DEAR CUSTOMER,
The cooker is exceptionally easy to use and extremely efcient. After reading the instruction
manual, operating the cooker will be easy.
Before being packaged and leaving the manufacturer, the cooker was thoroughly checked
with regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the cooker until you have read this instruction manual.
The cooker is intended for household use only.
The manufacturer reserves the right to introduce changes which do not affect the
operation of the appliance.

3
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 9
Installation..........................................................................................................................11
Operation........................................................................................................................... 14
Baking in the oven – practical hints ............................................................................... 28
Cleaning and maintenance.............................................................................................. 30
Technical data................................................................................................................... 36
TABLE OF CONTENTS

4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts
become hot during use. Care should be taken to
avoid touching heating elements. Children less than 8
years of age shall be kept away unless continuously
supervised.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
Warning: Unattended cooking on a hob with fat or
oil can be dangerous and may result in re.
NEVER try to extinguish a re with water, but switch
off the appliance and then cover ame e.g. with a lid
or a re blanket.
Warning: Danger of re: do not store items on the
cooking surfaces.

5
SAFETY INSTRUCTIONS
Warning: If the surface is cracked, switch off the ap-
pliance to avoid the possibillity of electric shock.
Metallic objects, such as knives, forks, spoons and
lids should not be placed on the hob surface since
they can get hot.
After use, switch off the hob element by its control
and do not rely on the pan detector.
During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside
the oven.
Warning: Accessible parts may become hot during
use. Young children should be kept away.
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering
of the glass.
Warning: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibillity of
electric shock.
You should not use steam cleaning devices to clean
the appliance.

6
SAFETY INSTRUCTIONS
Always keep children away from the cooker.
While in operation direct contact with the cooker may cause burns!
Ensure that small items of household equipment, including connection leads, do not touch
the hot oven or the hob as the insulation material of this equipment is usually not resistant
to high temperatures.
 Do not leave the cooker unattended when frying. Oils and fats may catch re due to
overheating or boiling over.
Do not allow the hob to get soiled and prevent liquids from boiling over onto the surface
of the hob. This refers in particular to sugar which can react with the ceramic hob and
cause irreversible damage. Any spillages should be cleaned up as they happen.
Do not place pans with a wet bottom on the warmed up heating zones as this can cause
irreversible changes to the hob (irremovable stains).
 Use pans that are specied by the manufacturer as designed for use with a ceramic
hob.
If any defects, deep scratches, cracks or chips appear on the ceramic hob, stop using the
cooker immediately and contact the service centre.
Do not switch on the hob until a pan has been placed on it.
Do not use pans with sharp edges that may cause damage to the ceramic hob.
Do not look directly at the halogen heating zones (not covered by a pan) when they are
warming up.
Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25
kg on the hob.
Do not use harsh cleaning agents or sharp metal objects to clean the door as they can
scratch the surface, which could then result in the glass cracking.
 Do not use the cooker in the event of a technical fault. Any faults must be xed by an
appropriately qualied and authorised person.
In the event of any incident caused by a technical fault, disconnect the power and report
the fault to the service centre to be repaired.
Never allow children to remain unattended near the cooktop nor to play with the control
panel.
People with life function support implants (such as a heart pacemaker, an insulin
pump, or a hearing aid) must make sure that the operation of these devices is not
disturbed by the induction plate (induction plate frequency range is 20 to 50 kHz).
The appliance has been designed only for cooking. Any other use (for example for heat-
ing) does not comply with its operating prole and may cause danger.

7
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Use proper pans for cooking.
Pans with thick, at bases can save up to 1/3
on electric energy. Remember to cover pans
if possible otherwise you will use four times
as much energy!
Match the size of the saucepan to the
surface of the heating zone.
A saucepan should never be smaller than a
heating zone.
Ensure heating zones and pan bases
are clean.
Soils can prevent heat transfer – and repeat-
edly burnt–on spillages can often only be
removed by products which cause damage
to the environment.
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
Switch off the oven in good time and make
use of residual heat.
For long cooking times, switch off heating
zones 5 to 10 minutes before nishing cook-
ing. This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
HOW TO SAVE ENERGY
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch off the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Only grill with the ultrafan after closing
the oven door.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.

8
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpack-
ing, please dispose of all
elements of packaging in a
way that will not cause dam-
age to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronic equipment. A symbol
shown on the product, the
instruction manual or the packaging shows
that it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
a signicant contribution to the protection of
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

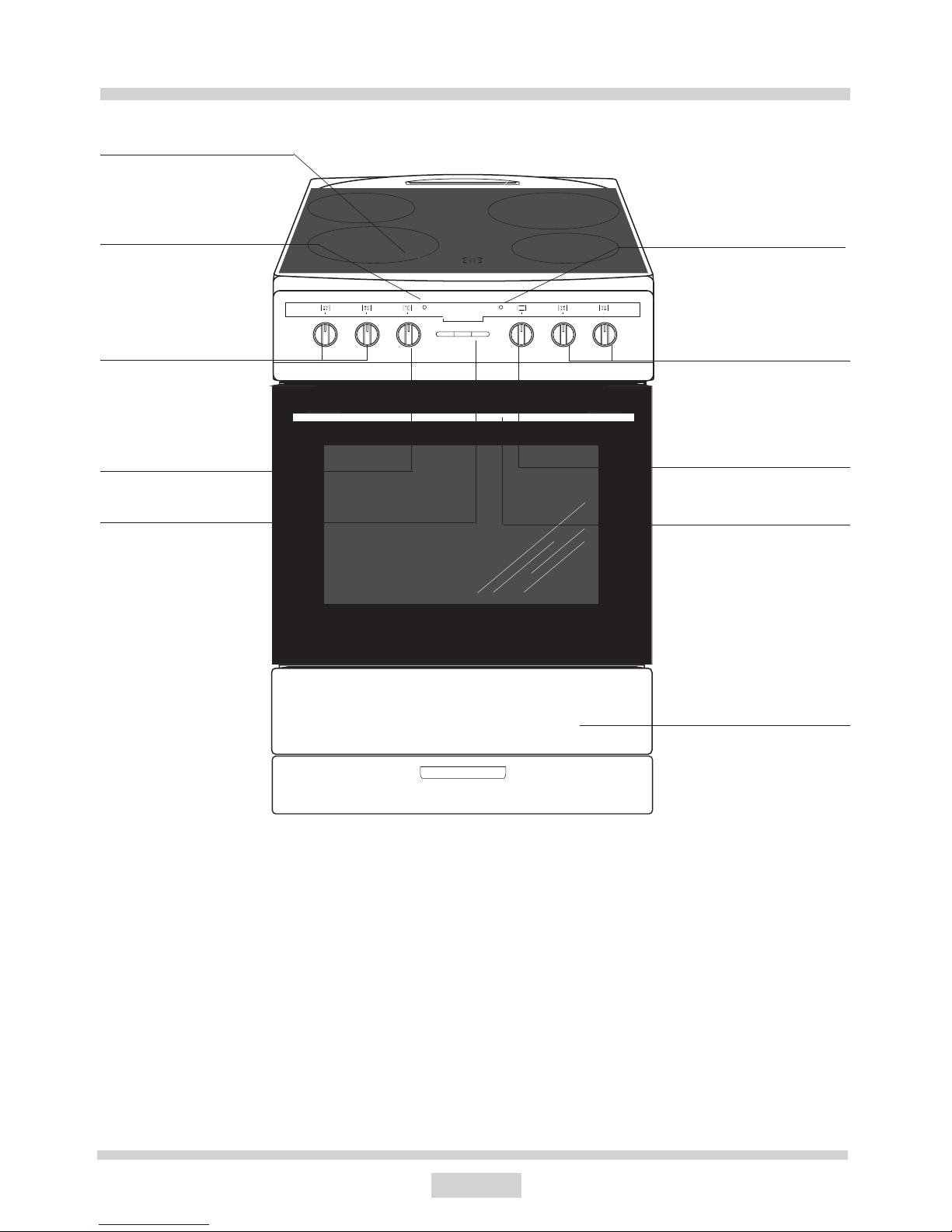

1Temperature control knob
2Oven function selection knob
3, 4, 5, 6 Heating zone control knobs
7Temperatureregulatorsignal light L
8Oven operation signal light R
9 Electronic programmer
10 Oven door handle
11 Drawer
12 Ceramic hob
1
7
3, 4
2
5, 6
8
10
11
12
9
9
DESCRIPTION OF THE APPLIANCE

*optional

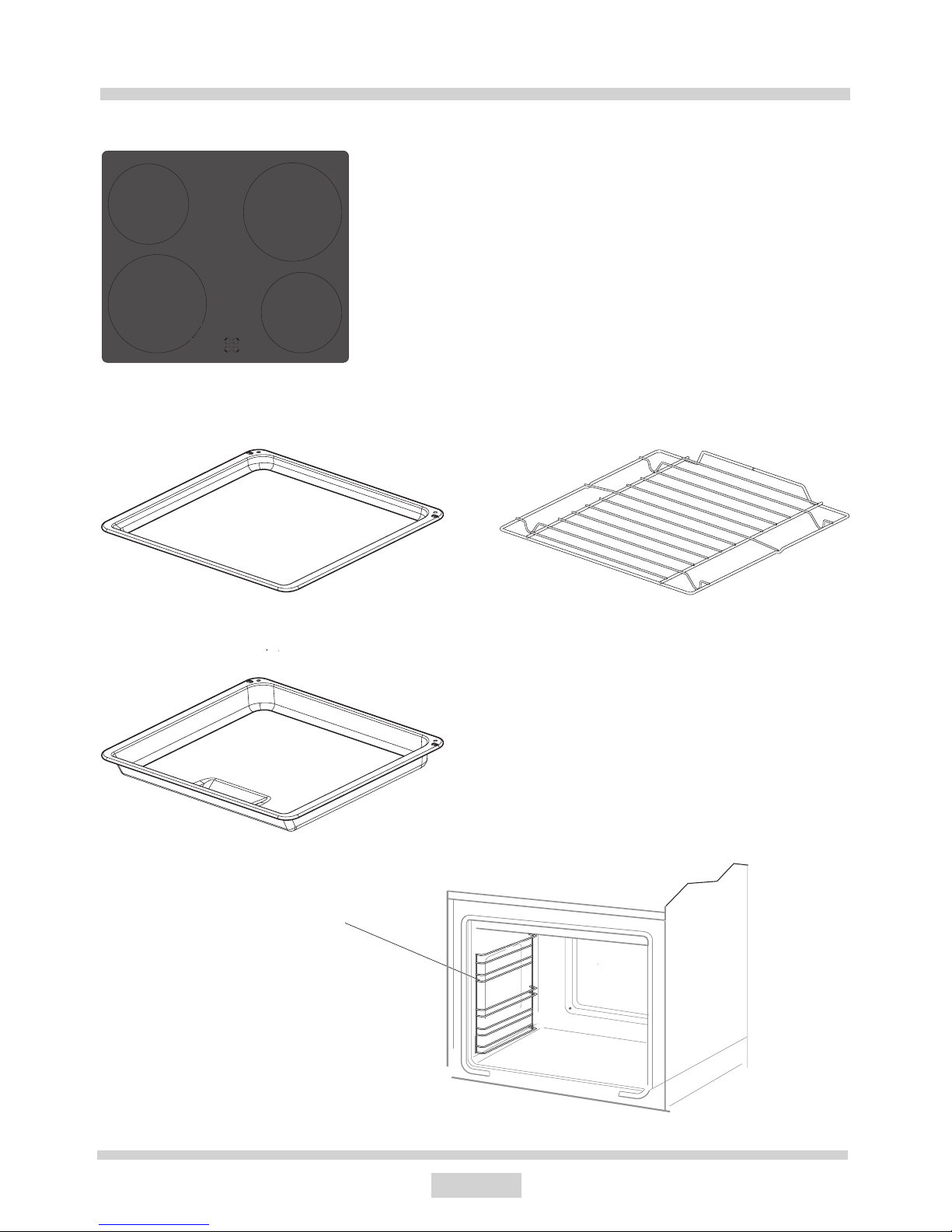

SPECIFICATIONS OF THE APPLIANCE
Ceramic hob:
Baking tray* Grill grate
(drying rack)
Roasting tray*
Sideracks
Cooker ttings:
10

11
INSTALLATION
Installing the cooker
The kitchen should be dry and airy and
have effective ventilation according to the
existing technical provisions.
The room should be equipped with a ven-
tilation system that pipes away exhaust
fumes created during combustion. This
system should consist of a ventilation
grid or hood. Hoods should be installed
according to the manufacturer’s instruc-
tions. The cooker should be placed so
as to ensure free access to all control
elements.
 Coating or veneer used on tted furniture
must be applied with a heat resistant
adhesive (100°C). This prevents surface
deformation or detachment of the coat-
ing. If you are unsure of your furniture’s
heat resistance, you should leave ap-
proximately 2 cm of free space around
the cooker. The wall behind the cooker
should be resistant to high temperatures.
During operation, its back side can warm
up to around 50°C above the ambient
temperature.
The cooker should stand on a hard, even
oor (do not put it on a base).
Before you start using the cooker it should
be leveled, which is particularly important
for fat distribution in a frying pan. To this
purpose, adjustable feet are accessible
after removal of the drawer. The adjust-
ment range is +/- 5 mm.
Mounting the overturning prevention
bracket.
The bracket is mounted to prevent overtur-
ning of the cooker. When the overturning
prevention bracket is installed, a child who
climbs on the oven door will not overturn the
appliance.

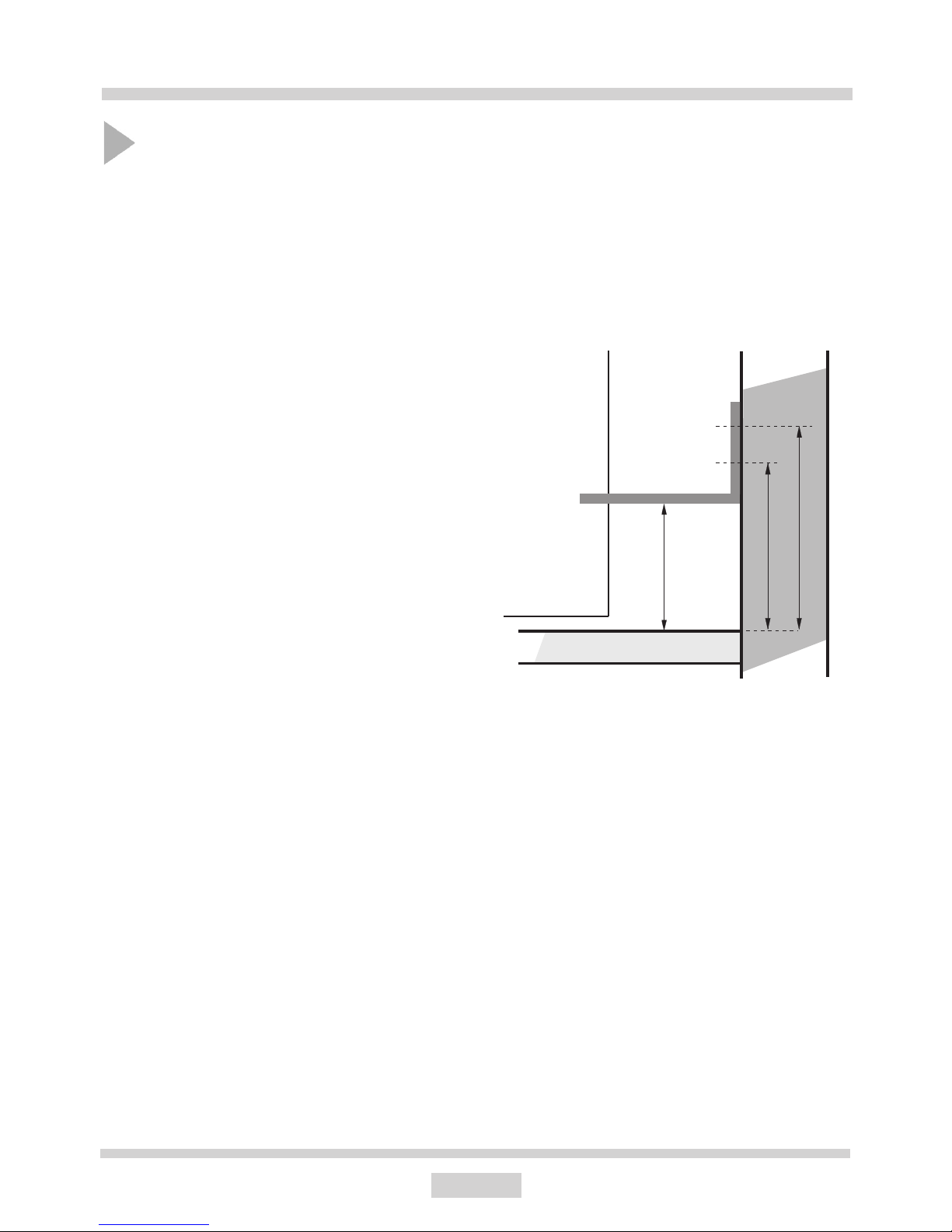

Cooker width W 600 mm, height 850 mm
X1=Y+30 mm
X2=Y+65 mm
Y=30 mm
Cooker width W 600 mm, height 900 mm
X1=Y+30 mm
X2=Y+65 mm
Y=80 mm
X - distance to wall mounting
Y - distance from the oor
Y
X1
X2
Cooker
Floor
Wall

12
INSTALLATION
Electrical connection
Warning!
All electrical work should be carried out by a
suitably qualied and authorised electrician.
No alterations or wilful changes in the electric-
ity supply should be carried out.
Fitting guidelines
The cooker is manufactured to work with
three–phase alternating current (400V
3N~50Hz). The voltage rating of the cooker
heating elements is 230V. Adapting the
cooker to operate with one-phase current is
possible by apropriate bridging in the connec-
tion box according to the connection diagram
below. The connection diagram is also found
on the cover of the connection box. Remem-
ber that the connection wire should match
the connection type and the power rating of
the cooker.
The connection cable must be secured in a
strain–relief clamp.
Warning!
Remember to connect the safety circuit to the
connection box terminal marked with . The
electricity supply for the cooker must have a
safety switch which enables the power to be
cut off in case of emergency. The distance
between the working contacts of the safety
switch must be at least 3 mm.
Before connecting the cooker to the power
supply it is important to read the informa-
tion on the data plate and the connection
diagram.
2
1
1
2
3
3
4
5

13
Caution! In the event of any connection the safety
wire must be connected to the PE terminal
Recommen-
ded
type
of connection
lead
1 For 230 V earthed one–phase
connection, bridges connect 1–2–3
terminals and 4–5 terminals, safety
wire to .
2 For 400/230 V earthed two–phase
connection, bridges connect 2–3 ter-
minals and 4–5 terminals, the safety
wire to .
3 For 400/230V earthed three–phase
connection, bridges connect 4–5 ter-
minals, phases in succession 1,2 and
3, earth to 4–5, the safety wire to .
L1=R, L2=S, L3=T, N=earth terminal, PE= safety wire terminal
H05VV-F3G4
H05VV-F4G2,5
H05VV-F5G1,5
CONNECTION DIAGRAM
Caution! Voltage of heating elements 230V
INSTALLATION
1
2
3
3
4
5

14
Important!
In ovens equipped with the electronic pro-with the electronic pro-
grammer, the time “0.00” will start ashing
in the display eld upon connection to the
power supply.
The programmer should be set with the cur-
rent time. (See Electronic programmer ). If the
current time is not set operation of the oven
is impossible.
Remove packaging, empty the drawer,
clean the interior of the oven and the hob.
Take out and wash the oven ttings with
warm water and a little washing–up liquid.
Switch on the ventillation in the room or
open a window.
Heat the oven (to a temperature of 250°C,
for approx. 30 min.), remove any stains and
wash carefully;
Before rst use
OPERATION
Important!
The inside of the oven should only be washed
with warm water and a small amount of
washing–up liquid.

15
0000
OK
2 31
Electronic programmer
functions
OK – function selection button 1
< – “–” button 2
> – “+” button 3
OPERATION
Setting the time
After connection to the mains or reconnec-
tion after a power cut the display shows
ash 0.00:

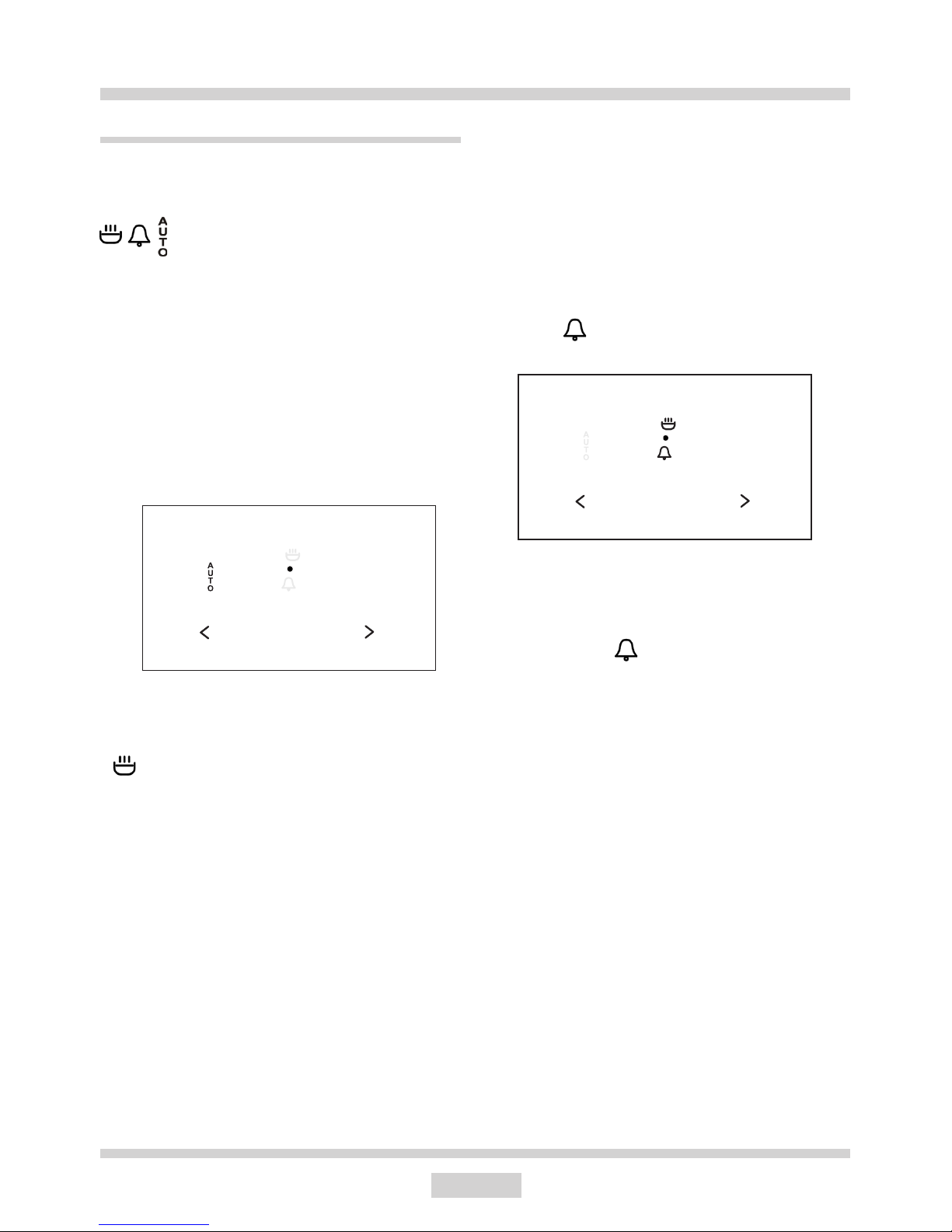

Timer
The timer can be activated at any time, re-
gardless of the status of other functions. The
timer can be set for from 1 minute to up to 23
hours and 59 minutes.
To set the timer you should:
Press button 1, then the display will show
ashing ,
Press button 1, then the display will show
,
set the time using buttons 3and 2.
7 seconds after the time has been set the
new data will be saved.
Caution!
If the correct time is not set then proper opera-
tion of the oven is not possible.
set the timer using buttons 3and 2.
The time set is shown on the display and the
signal function is on.
Press button 1, 2or 3in order to switch off
the signal, the signal function will go out and
the display will show the current time.
Caution!
If the alarm signal is not turned off manually,
it will be turned off automatically after approx.
7 minutes.
0000
OK

16
OPERATION

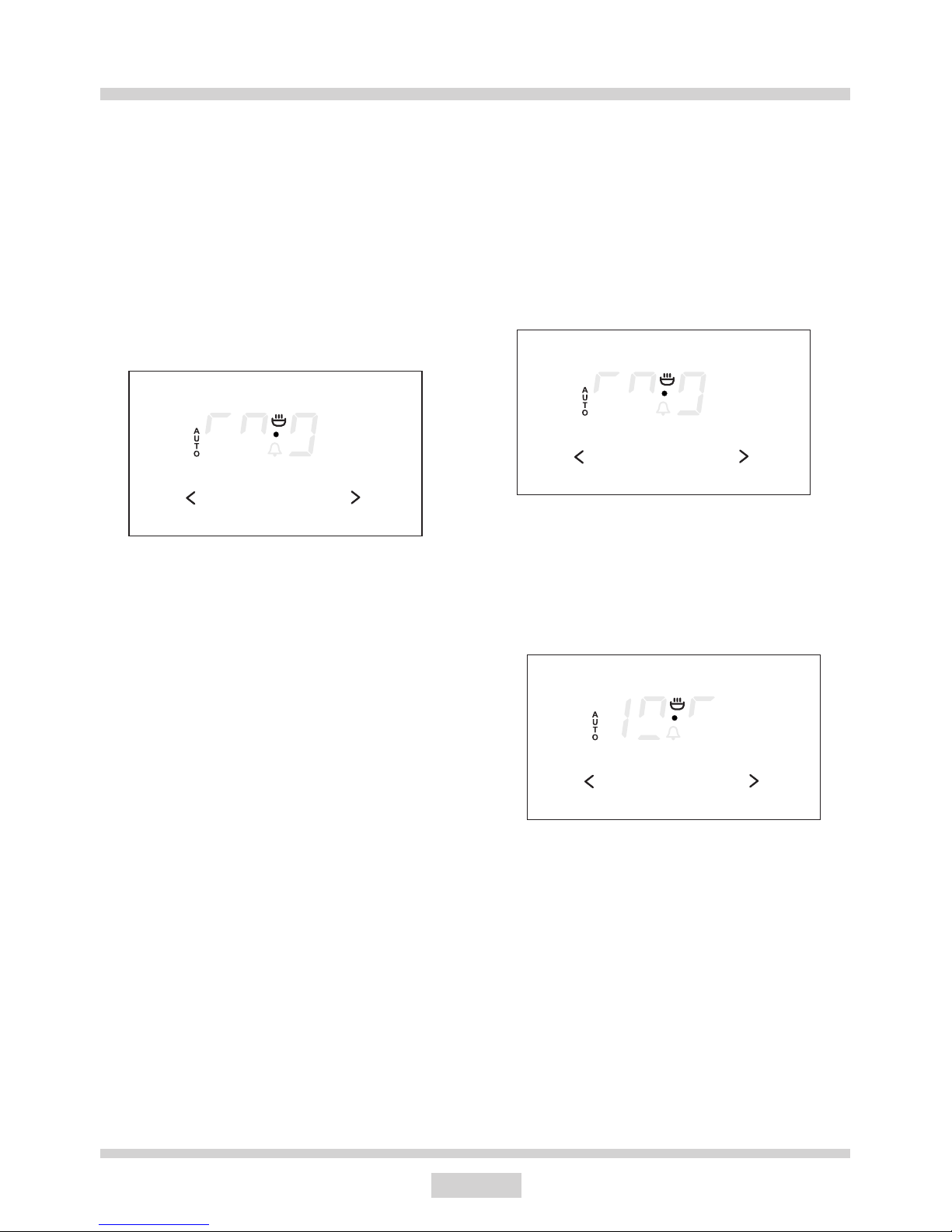

Semi–automatic operation
If the oven is to be switched off at a given
time, then you should:
Set the oven function knob and the tem-
perature regulator knob to the setting at which
you want the oven to operate.
Press button 1 until the display will show:
Set the required time using buttons 3and 2,
within a range from 1 minute to 10 hours.
The set time will be introduced to the memory
after approx. 7 seconds and the display will
show AUTO function.
When the set time has passed the oven is
switched off automatically, the alarm signal
is activated and the signal function AUTO
ashing again;
Set the oven function knob and the tem-
perature regulator knob to the switched–off
position.
Press button 1, 2or 3in order to switch off
the signal; the signal function will go out and
the display will show the current time.
Caution!
In ovens equipped with one control knob,
the oven function knob is integrated with the
temperature regulator knob.
Automatic operation
If the oven is to be switched on for a specied
period of time and switched off at a xed hour
then you should set the operation time and
the operation end time:
Press button 1 until the display will show:
Set the required time using the buttons
3and 2within a range from 1 minute to 10
hours.
Press button 1 until the display will show:
Set the switch–off time (operation end time)
using buttons 3and 2, which is limited to a
period of 23 hours and 59 minutes from the
current time.
Set the oven function knob and the tem-
perature regulator knob to the setting at which
you want the oven to operate.
80 80
OK
80 80
OK
88 80
OK

17
OPERATION
The function AUTO is now on; the oven will
start operating from the point when the differ-
ence between the set operation end time and
the operation duration time occurs (e.g. the
operation time is set to 1 hour, the operation
end time is set to 14.00, so the oven will start
working automatically at 13.00).
When the oven reaches the operation end
time it will switch off automatically, the alarm
will be activated and the function AUTO will
start ashing again.
Set the oven function knob and the tem-
perature regulator knob to the switched–off
position.
Press button 1, 2or 3in order to switch off
the alarm; the function AUTO will go out and
the display will show the current time.
Cancel settings
Timer and automatic function settings may
be cancelled at any time.
Cancel automatic function settings:
press buttons 2and 3simultaneously,
Cancel timer settings:
press button 1to select timer settings,
press buttons 2and 3again,
Change the timer beeps
The tone of the timer beeps may be
changed as follows:
press buttons 2and 3simultaneously,
select “tone” function with the 1button,
the display panel will start to blink:
● with the 2 button press the appropriate
buttons from 1 to 3 to select the option you
wish.
12 35
OK
OK
88 81

18
OPERATION

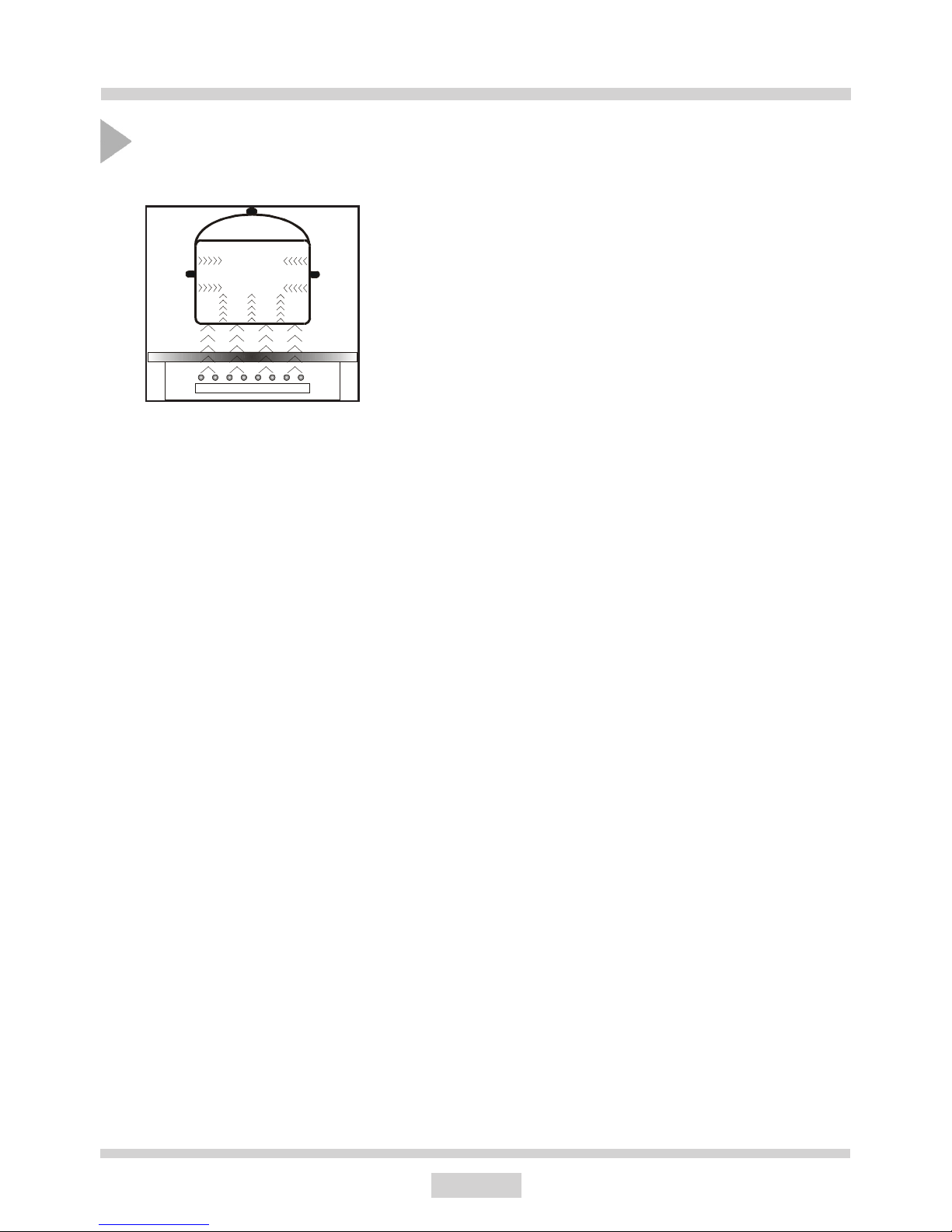

Inductive zone – principles of operation
A power generator supplies the coil installed in the
heating panel. An induction coil is located under each
cooking zone. When a cooking zone is switched on, this
coil creates a magnetic eld which impacts directly on
the base of the pan and heats it up. The cooking zone
itself is heated up indirectly by the heat given off by the
pan. The surface of the hob remains cold.
Induction cooking zones only work when a ferromagnetic pan is placed on it.
Induction heating features two main advantages:
as the pan is the sole source of heat, the heat use is optimised,
no heating inertia occurs, as cooking starts automatically the moment the pan is placed on
the surface of the heating panel, and ends when the pan is removed.
Protection equipment:
The protections activate rarely if the panel is installed and operated correctly.
Fan: the appliance has a cooling fan to help extend the life of the electronics. When the heat-
ing panel is being used intensively, this will come on and you will hear a whirring sound. The
fan may continue to run after the appliance has been switched off.
Transistor: the temperature of the electronics is measured constantly by a probe. The system
disconnects the cooking zones which are near the overheated components automatically
should the probe trigger such a signal.
Pot detection: the pan detector is a key element of the panel, which determines whether the
heating can start and when to stop it. Small objects which may occur within the cooking zones,
e.g. teaspoon, knife, or a ring, will be disregarded and the system will not activate.

19
OPERATION
Detecting pan on the cooking zone
Each induction cooking zone is equipped with pan detector. It activates and interrupts heating
automatically when a pan is placed / replaced from the zone. This saves energy.
Heating temperature is displayed if a suitable pan is used.
 Induction cooking suitable pans are those with at, magnetic base. See table for detailed
information.
Heating power digit will blink in the display if there is no pan in place on a cooking zone, or
the pan is unsuitable. The cooking zone will not activate. The cooking zone will switch off
automatically if no suitable pan is placed on the cooking zone within 1 minute.
It is not recommended to switch off cooking zones under normal conditions by taking the pan
off it. Use the respective knobs to switch off cooking zones.
Note:
Please note that all the settings will be cancelled if there is a power cut. Exercise care when
the power is restored. The residual heat indicator (‘H’) will appear in the display as long as
the cooking zones are hot.
Switch off the cooking zones after you have nished using the heating panel. Do not rely on
the indications of the pan detector.

20
OPERATION
Cookware marking Check if there is a sign on the label informing
that the pot is suitable for use on inductive
plates
Use magnetic pots (from enamelled sheet metal, ferrite stain-
less steel, cast iron), check them by trying to attach magnet
to the pot bottom (has to cling)
Stainless steel Does not detect the pot presence
Except for pots from ferromagnetic steel.
Aluminium Does not detect the pot presence.
Cast iron High efciency
Attention: the pots can scratch the plate.
Enamelled steel High efciency
Recommended pots with at, thick and even bottom.
Glass Does not detect the pot presence
Porcelain Does not detect the pot presence
Pots with copper bot-
tom
Does not detect the pot presence
Selection of cookware for inductive cooking zones
Induction cooktop Diameter of the bottom of a pot for induction cooking
Diameter (mm) Minimum (mm) Maximum (mm)
280 210 280
210/220 140 210/220
180/190 110 180/190
145/155 90 160
Energy is well generated when the dimensions of a pot are equal to an induction cooktop.
The shortest and longest diameters are presented in the table below and they depend on
the quality of a dish.
While using smaller pots than the minimum diameters, the induction cooktop may not work.
