GB
PowerTel 580 COMBO
PowerTel 580 combo
Operating Instructions
Powertel 580 Combo (English only1 1Powertel 580 Combo (English only1 1 5/9/08 16:44:465/9/08 16:44:46

PowerTel 580 combo
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Powertel 580 Combo (English only2 2Powertel 580 Combo (English only2 2 5/9/08 16:44:475/9/08 16:44:47

GB
3
ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays 3
Contents
1 Safety Information . . . . . . . . . . . . . . 4
2 Starting Up . . . . . . . . . . . . . . . . . . . . 6
3 Your PowerTel 580 combo . . . . . . . . 8
4 Operating the Telephone . . . . . . . . 10
5 Telephoning . . . . . . . . . . . . . . . . . . 14
6 Using the Menu, Telephone Base . 21
7 Phone Book, Telephone Base . . . . 26
8 Calls List, Telephone Base. . . . . . . 28
9 Using the Menu, Cordless Handset 30
10 Phone Book, Cordless Handset. . . 37
11 Calls List, Cordless Handset . . . . . 39
12 Using the Answering Machine . . . . 41
13 Using Remote Access . . . . . . . . . . 44
14 Private Branch Exchanges. . . . . . . 45
15 If Problems Occur. . . . . . . . . . . . . . 48
16 Technical Properties. . . . . . . . . . . . 50
17 Default Settings . . . . . . . . . . . . . . . 51
18 Maintenance/Guarantee. . . . . . . . . 52
19 Index. . . . . . . . . . . . . . . . . . . . . . . . 54
Powertel 580 Combo (English only3 3Powertel 580 Combo (English only3 3 5/9/08 16:44:475/9/08 16:44:47

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
GB
4
Safety Information
1 Safety Information
Please read this operating instruction
manual thoroughly.
Intended use
The telephone is suitable for telephoning
within a public telephone network system.
Any other use is considered unintended use.
Unauthorised modification or reconstruction
is not permitted. Under no circumstances
open the device or complete any repair work
yourself.
Installation location
Prevent excessive exposure to smoke, dust,
vibration, chemicals, moisture, heat and
direct sunlight.
Power supply
Caution: Only use the power adapter plug
supplied because other power supplies
could damage the telephone. Ensure
access to the power adapter plug is not
obstructed by furniture or such.
Power failure
Only the telephone base can be used when
there is a power failure. See page 20.
Rechargeable batteries
Do not throw the batteries into a fire or
immerse them in water.
Hearing aid compatibility
The telephone is compatible with most
popular hearing aids on the market.
However, due to the wide range of hearing
aids available, there is no guarantee that the
telephone will function ‘problem free’ with
every model.
Caution: This telephone is capable of
producing very high volume levels when
the ‘Boost’ is switched on and the volume
control is set to maximum. Extreme caution
should be taken if the handset is to be
shared between users with normal hearing
and those with hearing impairment.
Medical equipment
DO NOT use your telephone near
emergency/intensive care medical
equipment; if you have a pacemaker fitted or
during an electrical storm.
Powertel 580 Combo (English only4 4Powertel 580 Combo (English only4 4 5/9/08 16:44:485/9/08 16:44:48

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
GB
5
Safety Information
Disposal
You are obliged to dispose of consumable
goods properly in accordance with the
applicable legal regulations. The adjacent
symbol on the telephone indicates that
electrical and electronic apparatus and
batteries no longer required must be
disposed of separately from
domestic waste.
Electrical and electronic devices
must be disposed of at suitable
collection points provided by the
public waste authorities.
Batteries must be disposed of at the
point of sale or at the appropriate
collection points provided by the
public waste authorities.
Packaging materials must be
disposed of according to local
regulations.
Powertel 580 Combo (English only5 5Powertel 580 Combo (English only5 5 5/9/08 16:44:485/9/08 16:44:48

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
6
2 Starting Up
Safety note
Caution: It is essential to read the Safety
Information in Chapter 1 before preparing
the telephone for use.
Check the contents of the package
The package contains:
Content PowerTel 580 combo
Telephone Answering
Machine Base 1
Cordless handset 1
Battery cover 1
Charger base 1
Power adapter plug 2
Telephone connection
cable 1
AAA 1.2V 800mAh
NiMH rechargeable
batteries
2
Operating manual 1
Connecting the telephone base
Connect the telephone base as illustrated in the
diagram. For reasons of safety, only use the
power adaptor plug and telephone connection
cable supplied.
Mains power outlet Telephone network
socket
Connecting the charger base
Connect the charger base as illustrated in
the diagram. For reasons of safety, only use
the power adaptor plug supplied.
Mains power outlet
Starting Up
GB
Powertel 580 Combo (English only6 6Powertel 580 Combo (English only6 6 5/9/08 16:44:485/9/08 16:44:48

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays 7
Starting Up
GB
Inserting the batteries
Insert the 2 x AAA 1.2V 800mAh NiMH
rechargeable batteries supplied, into the
handset battery compartment. Take care to
note the ‘+’ and ‘-’ markings and position the
batteries the correct way around. Close the
battery compartment cover.
Charging the batteries
Place the handset in the base to charge for
a minimum of 15 hours before first use.
Shaker
You can plug a shaker accessory (not
included) into the socket on the back of the
base. The shaker will then vibrate when you
receive an incoming call.
Private branch exchanges
The information on Page 45 explains how
to install your telephone on a private branch
exchange.
Powertel 580 Combo (English only7 7Powertel 580 Combo (English only7 7 5/9/08 16:44:505/9/08 16:44:50

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
3 Telephone answering machine base
8
Your PowerTel 580 combo
GB
Handsfree
Rewind/OGM
Phone Book
Menu/OK
Quick dial memories/
User profiles
Alphanumeric
keypad
Play/Pause
Mute/Delete
Up/Redial/Pause
Headset
Down/Calls list/Recall
35 db Boost
(under handset)
Volume up
Fast forward/Memo
Display
Incoming call light
Stop/Esc/Answer on/off
Find handset/Intercom
Volume down
Equaliser
Powertel 580 Combo (English only8 8Powertel 580 Combo (English only8 8 5/9/08 16:44:505/9/08 16:44:50

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
Your PowerTel 580 combo
9

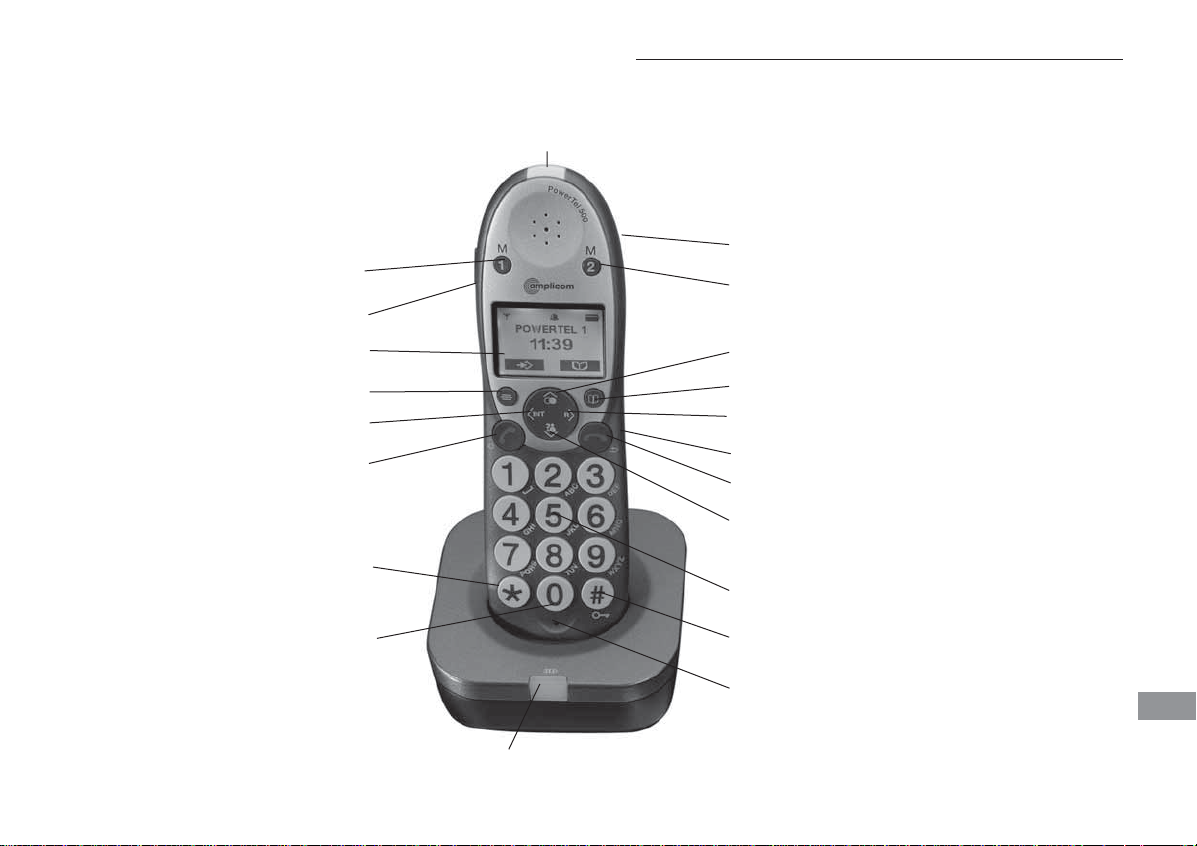

Cordless handset and base
GB
External call/Handsfree End call
Phone Book/Save/OK
Menu
Memory 1/Profile 1 Memory 2/Profile 2
Alphanumeric keypad
Pause (long press 0) #/Keylock
Intercom
Up/Redial
Recall
Down/Calls list
35 dB Boost
Volume up/down & Equalizer
Microphone
Display
Incoming call light
Charging
*/Ringer on/off
Headset socket
(Headset not included)
Powertel 580 Combo (English only9 9Powertel 580 Combo (English only9 9 5/9/08 16:44:515/9/08 16:44:51

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
10
4 Operating the Telephone
The instructions throughout this guide are
for both the telephone base and the cordless
handset, unless stated otherwise.
Display and explanation of operation
sequences. Enter digits or letters
Press the button shown, briefly
2 x Press the button shown, twice
briefly
2 sec Press the button shown for 2
seconds
Press and
hold Press and hold the button
shown
Release Release button shown
Handset rings
Base station rings
Cordless handset external call
button
End a call and/or return to
standby on the cordless
handset
VOLUME 1
or Text or icon in the display

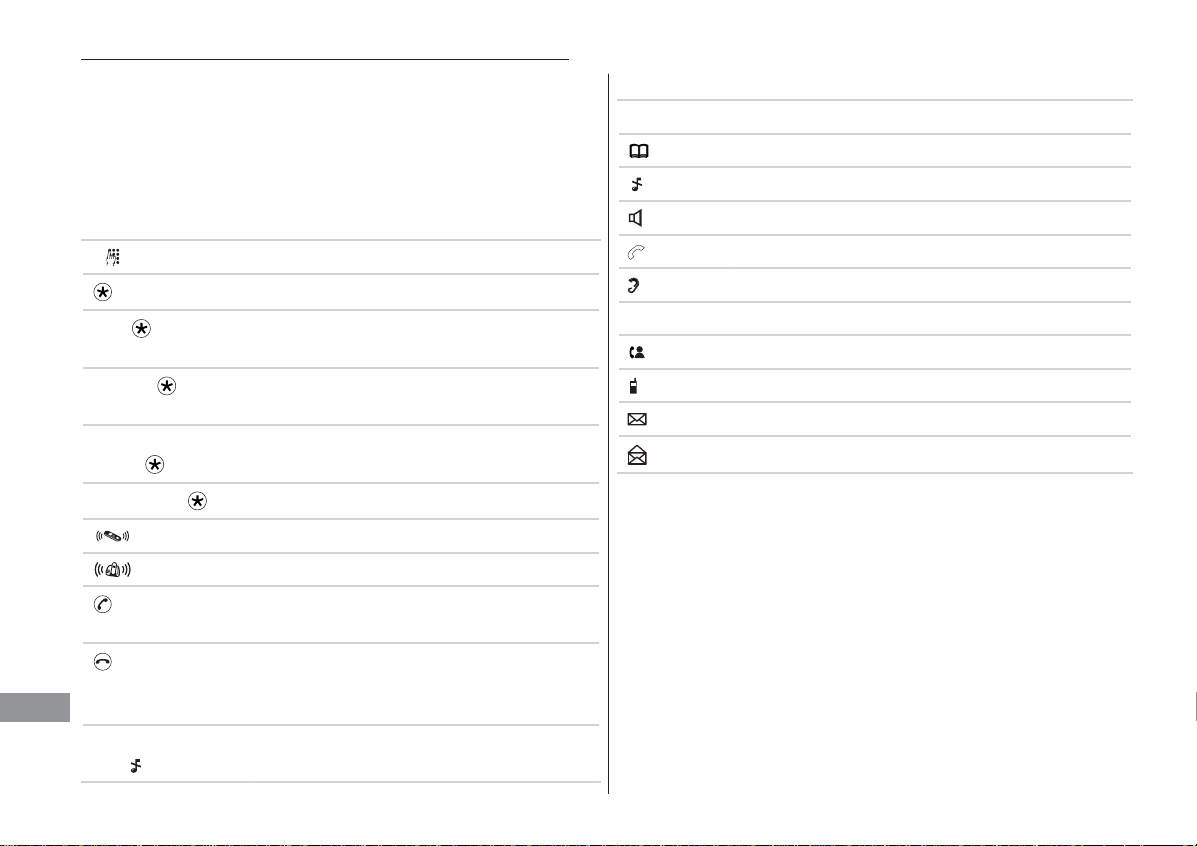

Icons in the telephone base station display
Icon Description
Phone Book mode
Ringer off
Handsfree mode
Call in progress
Boost receiver volume is on
X Handset microphone is muted
You have new calls
Internal call in progress
New calls in the calls list
Old calls in the calls list
Operating the Telephone
GB
Powertel 580 Combo (English only10 10Powertel 580 Combo (English only10 10 5/9/08 16:44:515/9/08 16:44:51

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
Operating the Telephone
Icons in the handset display
Icon Description
Phone Book mode
There are more digits to view on
the left
There are more digits to view on
the right
Battery status
Ringer off
Keylock is on
Handsfree mode
Call in progress
Boost receiver volume is on
Handset microphone mute
You have new calls
When steady indicates that the
handset is in range of the base.
When flashing indicates that the
handset is out of range of the base.
Internal call in progress
Message waiting
Note: This feature is not
compatible with the UK 1571
service
11
GB
Powertel 580 Combo (English only11 11Powertel 580 Combo (English only11 11 5/9/08 16:44:535/9/08 16:44:53

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
GB
12
Operating the Telephone
Navigating in the menu
All telephone base and cordless handset
functions can be accessed via the menu.
Please refer to ‘Using the menu’ on pages
21 and 30 for information on how to access
each function.
All descriptions in this operating manual
assume that the handset is in Standby
mode.
or Open the main menu
or Select the submenu required
or Open the submenu
or Select the function required
or Open the function
or Select the setting required
Enter digits or letters using the
relevant keys
, or
Save Confirm the entries
or Cancel and return to standby
mode
Every process is automatically cancelled
if there is no input within 20 seconds. The
handset will return to standby mode.
Creating phone book entries in the telephone
base - example
This example explains how to navigate and
create entries in the phone book. Proceed
as in this example for all the settings.
2 sec Opens add phone book entry
mode
Enter the name (max. 16
letters) and confirm it
Enter the phone number
(max. 24 digits) and confirm
it
or , Select and confirm a ringing
melody
Powertel 580 Combo (English only12 12Powertel 580 Combo (English only12 12 5/9/08 16:44:545/9/08 16:44:54

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
GB
13
Operating the Telephone

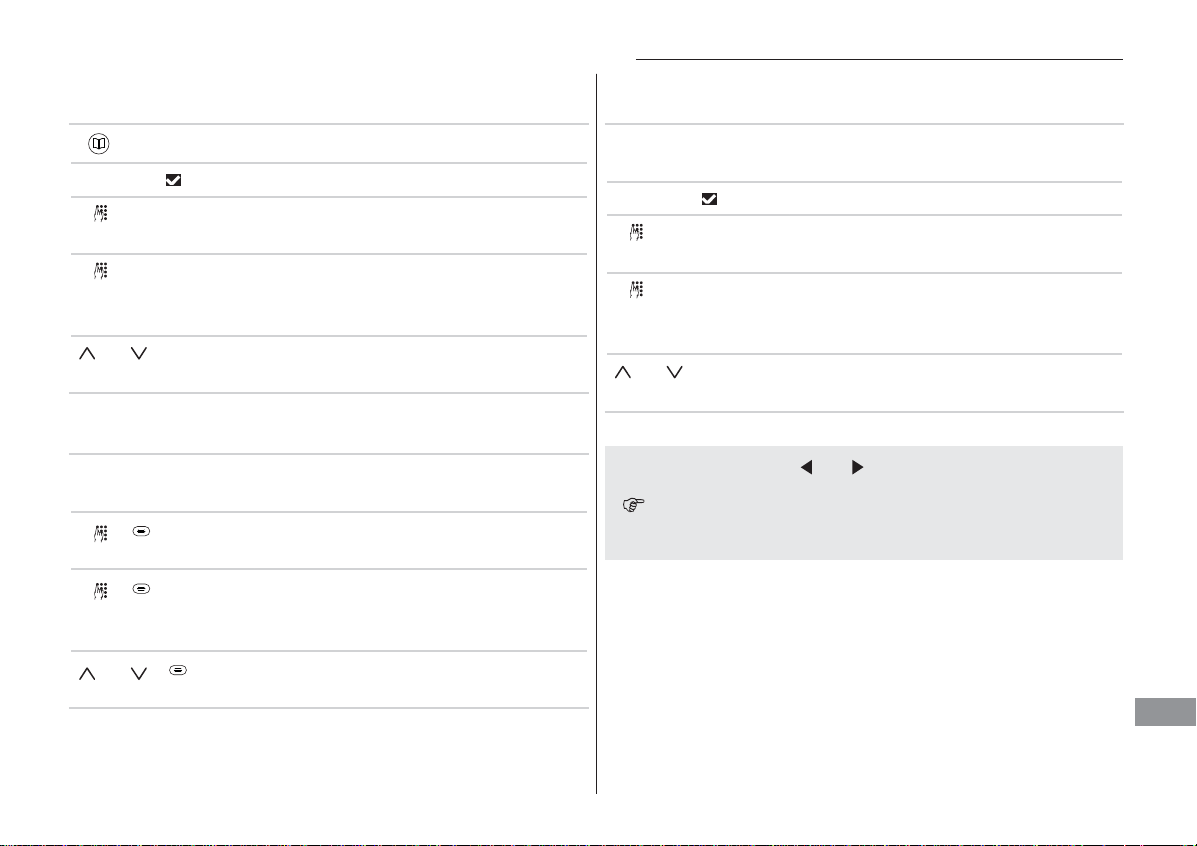

Creating phone book entries in the cordless
handset - example
Open the phone book
Option, Select ‘New entry’
Save Enter the name (max. 16
letters) and confirm it
Save Enter the phone number
(max. 24 digits) and confirm
it
or Save Select and confirm a ringing
melody
Storing a quick dial entry in the telephone
base
2 sec M1, M2
or M3 Opens add quick dial entry mode
Enter the name (max. 16
letters) and confirm it
Enter the phone number
(max. 24 digits) and confirm
it
or , Select and confirm a ringing
melody
Storing a quick dial entry in the cordless
handset
M1 or M2 Opens add quick dial entry
mode
Option, Select ‘New entry’
Save Enter the name (max. 16
letters) and confirm it
Save Enter the phone number
(max. 24 digits) and confirm
it
or Save Select and confirm a ringing
melody
If you see a or icon, there are more
digits to be viewed than can be shown on
the display. Press the < or > key to view
the digits.
Powertel 580 Combo (English only13 13Powertel 580 Combo (English only13 13 5/9/08 16:44:565/9/08 16:44:56

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
14
5 Telephoning
Making a call using the telephone base.
Each digit you enter before picking up
the handset or pressing handsfree will be
announced.
Enter the phone number (max.
24 digits)
Following incorrect input, press
to delete the last digit
or Dial the phone number
It is also possible to press the external call
button first to obtain dialling tone. The digits
entered will then be dialled immediately.
It is not possible to correct wrong digits
individually using this dialling procedure.
Making a call using the cordless handset
Enter the phone number (max.
24 digits)
Following incorrect input, press
to delete the last digit
Dial the phone number
End a call
, or End the call
Take a call
, , , or Take the call
Redial using the telephone base
Your telephone stores the last 5 telephone
numbers dialled (max. 24 digits each). As
you scroll to each telephone number in the
list, it will be announced.
Open the redial list
or , or Select an entry and
dial the number
GB
Telephoning
It is also possible to press the external call
button first to obtain dialling tone. The digits
entered will then be dialled immediately.
It is not possible to correct wrong digits
individually using this dialling procedure.
Powertel 580 Combo (English only14 14Powertel 580 Combo (English only14 14 5/9/08 16:44:585/9/08 16:44:58

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
Telephoning
GB
15
Redial using the cordless handset
Your telephone stores the last 10 telephone
numbers dialled (max. 24 digits each).
Open the redial list
, Select an entry and
dial the number
Calling back missed calls
Your telephone stores the last 30 incoming
calls in the calls list. As you scroll to each
telephone number in the calls list in the
telephone base, it will be announced.
or Open the calls list
or , or Select an entry and
dial the number
Dialling phone numbers from the phone book
There must be phone numbers stored in the
phone book. See pages 26 & 37.
Your telephone can store up to 200 name
and number entries in the phone book. As
you scroll to each telephone number in the
phone book in the telephone base, it will be
announced.
or Open the phone book
or ,
or Select an entry and dial
the number
Quick dial
Phone numbers must have been stored
as quick dialnumbers. See page 13. The
stored quick dial number in the telephone
base will be announced when you press the
quick dial button.
M1, M2 or M3 Press the required quick
dial button.
or Dial the number
Chain dialling
This feature is used for more complex
telephone services, eg for telephone banking
or calling card procedures. Several numbers
stored in the phone book can be dialled
successively when a connection has already
been made. It is also possible to combine
numbers from the phone book with numbers
entered manually. Numbers stored in the
phone book can be chained and transmitted
as required.
or Open the phone book
when a connection has
been made
or , or Select the phone book
entry and transmit the
number
Powertel 580 Combo (English only15 15Powertel 580 Combo (English only15 15 5/9/08 16:45:005/9/08 16:45:00

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
16
Adjusting the receiver volume, telephone
base
The receiver volume of your PowerTel 580
telephone is louder than with a standard
telephone.
or When in a call, adjust the
setting with the volume
buttons
Adjusting the receiver volume, cordless
handset
The receiver volume of your PowerTel 580
telephone is louder than with a standard
telephone. Push up or down and release for
each volume step.
When in a call, adjust the
setting with the side switch
Boosting the receiver volume
When in a call, you can increase the
loudness of each volume setting if you press
the 35dB button.
or Press the button, an icon
flashes in the display
Handsfree, using the telephone base
Use Handsfree to listen to your caller via the
loudspeaker
Switch on handsfree mode
Deactivate handsfree
mode
Handsfree, cordless handset
Use Handsfree to listen to your caller via the
loudspeaker
2 x Switch on handsfree mode
Deactivate handsfree
mode
Adjusting the Handsfree volume, telephone
base
There are 5 handsfree volume levels
available. The ‘35dB’ feature is not available
in handsfree mode.
or Adjust the volume with
the volume buttons
Telephoning
GB
Powertel 580 Combo (English only16 16Powertel 580 Combo (English only16 16 5/9/08 16:45:025/9/08 16:45:02

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
Telephoning
GB
17
Adjusting the Handsfree volume, cordless
handset
There are 5 handsfree volume levels
available. The ‘35dB’ feature is not available
in handsfree mode.
or and Adjust the volume with
the side switch or up
and down arrows
Talk time display
The duration of each call is displayed in
minutes and seconds during the call.
Equaliser, telephone base only
Everyone’s hearing is different and some
people can hear higher frequencies more
clearly that others. Press the button to
adjust the tone and high frequencies within a
call, until it’s right for you.
, << or >> Adjust the tone with
the left and right
buttons
Please don’t be surprised to find that the
volume can reduce when you set the tone
control to a frequency higher or lower than
normal. This is a normal effect. Please use
the volume control to correct the volume if
necessary.
Using a Headset (not included), telephone
base
Connect a headset to the headset socket
and press the headset button. You will now
be able to hear and speak to your caller via
the headset
Using a Headset (not included), cordless
handset
Connect a headset to the headset socket.
You will now be able to hear and speak to
your caller via the headset.
Muting the microphone, telephone base
The microphone can be activated and
deactivated during a telephone conversation
when you are in handset or handsfree mode.
, Mute Switch the microphone
off (Mute).
, Unmute Switch the microphone
on
Muting the microphone, cordless handset
The microphone can be activated and
deactivated during a telephone conversation
when you are in handset or handsfree mode.
, Mute On Switch the microphone
off (Mute).
Off Switch the microphone
on
Powertel 580 Combo (English only17 17Powertel 580 Combo (English only17 17 5/9/08 16:45:035/9/08 16:45:03

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
18
Ringer on/off, cordless handset only
You can turn the bell of the ringer on and off.
2 sec , Switches the bell
ringer off
2 sec Switches the bell
ringer on
Keylock, cordless handset only
Calls can still be answered in the normal way
when the keylock is on.
2 sec , Locks the keypad
2 sec Unlocks the keypad
Making internal calls
When making internal calls the telephone
base is ‘HS0’ and the cordless handset is
HS1. Internal calls are free of charge.
HS0: INT, , eg 1 Dial the internal call
number of the required
handset
HS1: Accept the internal call
on the other handset
HS0/HS1: End the internal call
Transferring external calls internally
HS0: Press and
hold INT until a
short beep is heard,
, eg 1
During an external
call, dial the number of
the required handset
HS1: Accept the internal call
on the other handset
HS0: External call is
transferred to the
other handset
If the called handset does not answer,
you can take the call back by pressing the
INTERCOM button.
Telephoning
GB
Powertel 580 Combo (English only18 18Powertel 580 Combo (English only18 18 5/9/08 16:45:045/9/08 16:45:04

ServiceHotline UK Tel. [phone], cost via UK landline at time of going to print: 6p connection charge and 5p/min. thereafter,
different charges may apply if calling from a mobile phone. Hotline hours are Monday to Friday, 9am to 5pm, excluding public and national holidays
Telephoning
GB
19
Conference calls
You can hold a conference call between 1
external and 2 internal callers.
HS0: Press and
hold INT until a
short beep is heard,
, eg 1
During an external
call, dial the number of
the required handset
HS1: Accept the internal call
on the other handset
HS0: 2 sec INT Activates conference
call
HS0: INT /HS1:
<INT Put external call on hold
HS0/HS1: End conference call
Handset registration
You only need to register a handset that has
become deregistered from the base or if you
have purchased a new handset.
New handsets must be fully charged before
you attempt to register them.
At the base
10 sec , Register Activate registration
mode
At the handset
, or , Open the menu, select
‘Handset’
or , , Select ‘Registration’,
‘Register’
or , Select 1,2,3 or 4
, , Enter the PIN code
and confirm
Handset deregistration, telephone base
You will only need to de-register a handset if
you decide that you have too many handsets
registered or your handset develops a fault
and you need to replace it.
, or , Open the menu, select
‘Remove HS’
,Enter the PIN code
and confirm
,Enter the handset
number and confirm
Powertel 580 Combo (English only19 19Powertel 580 Combo (English only19 19 5/9/08 16:45:055/9/08 16:45:05
