MAX-HT04 DATA SHEET
MAX by AMX continues to revolutionize the way audio, video and multimedia are stored, accessed, distributed
and played with the MAX-HT04 Home Theatre Server. Specifically created to meld with the home theatre,
the HT04 can be visibly placed among other high-end electronics but you may forget it’s there because it is
designed to blend into the demanding acoustics of the home theatre.
GROWS WITH YOU
The HT04 allows you to efficiently store and manage an incredible 250 DVDs or 5,300 CDs, or a combination of both. Need more
storage? No problem. Additional HT04 servers can be added and networked into the system.
TRUE TO THE ORIGINAL
MAX delivers the best possible sound and video – through native-quality DVD and CD-audio. Playback of MP3 files and other
audio formats is also available.
CUSTOM VIDEO DISTRIBUTION
Simply add a MAX-AVP Audio/Video Player or MAX-AOM to each area of the home (up to 25) where you want to access music and
movies, allowing you to create distinct zones that can be controlled and personalized.
• NocompressionisusedtostoreDVDs-outputssamequalityasoriginaldisc
• 25CDscanbestoredinplaceof1DVD
• ControlanyMAXproductoverEthernetviayourAMXcontrolsystem,aWindowsPC,ortheMAX-AVPon-screeninterface
• IncludesWinMAXsoftwareforcontrolbyaWindowsPC
• ProgressiveTextSearchlocatesthetitleyouarelookingforinstantly
• EthernetoutputforcontentdistributionviaAMXAudio/VideoPlayer(MAX-AVP)
• RunsonahighlyreliableLinuxplatform
• RAID5diskdrivesystem
• TwoormoreHTunitscanbenetworkedtogetherformorecapacityormorezones
MAX Digital Media Servers

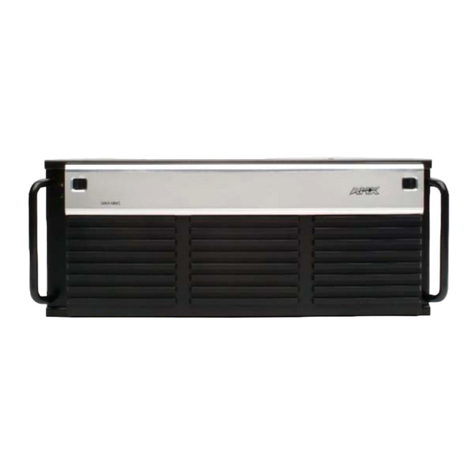

MAX-HT04
Multimedia
Server

MAX-HT04 DATA SHEET
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com
MAX-HT04 (FG2178-14)
HARD DRIVE CAPACITY
1.1 Terabytes: 250 DVD/5,300 CD Capacity (approximate values)
DIMENSIONS (HWD)
•8 3/4” x 16 15/16” x 18 7/8” (22.23 cm x 43.50 cm x 48.00 cm)
(without rack ears)
•5 RUs (mounts in a standard 19” equipment rack)
POWER
110-240VAC +/- 10%, 50/60Hz
AC CURRENT DRAW
120 VAC:
•Bootup/Power Cycle Peak - 3.0A @ 120V = 360 watts
•Normal Usage Peak – 0.95A @ 120V = 228 watts
240 VAC:
•Bootup/Power Cycle Peak – 1.5A @ 240V = 360 watts
•Normal Usage Peak – 0.95A @ 240V = 228 watts
WEIGHT
•Server only: 60 lbs (27.22 kg)
•Shipping weight: 83.9 lbs (38.06 kg)
OPERATING ENVIRONMENT
•Temperature: 10º to 35º C
•Humidity: 20% to 80%non-condensing
•Minimum Ventilation Clearance: 3” front and 3” rear
FRONT PANEL COMPONENTS
•4 hot-swappable 1TB hard drives
•DVD/CDRW drive
•Drive Status LEDs
•Ventilated front cover
•Power On/Off toggle switch
REAR PANEL COMPONENTS
•Power Cable connector: IEC connector for AC power cable (included)
•Master Power Supply switch
•PS/2 Keyboard and Mouse Ports (for diagnostic use only)
•USB ports 1 & 2: Type A USB connectors connect to MAX-AOM module(s)
for audio distribution
•RS-232 port: DB-9 serial port for external control
•Parallel port: not used
•VGA port: DB15HD port (for diagnostic use only)
•ETHERNET CONTROL port: RJ-45 Gigabit Ethernet port provides
1000/100/10 Mb/s network connectivity between the MAX-HT and the
NetLinx Master or PC
•A/V OUT port: RJ-45 Gigabit Ethernet port provides 1000/100/10 Mb/s
network connectivity between the MAX-HT and MAX-AVP Audio-Video
Players for A/V distribution
DISC MEDIA SUPPORTED LOCALLY
•DVD/DVD+R/-R/-RW/+RW, Dual Disc
•Audio CD, CD-R, CD-RW
INCLUDED ACCESSORIES
•One 6’ (1.83m) power cable
•One DVD, one CD
•One Rack Mount Kit
OPTIONAL ACCESSORIES
•Replacement 400GB Hard Drive (FG2178-40)
•MAX-AVP Audio / Video Player (FG2178-51)
•MAX-AOM Audio Only (USB) Module (FG2178-55)
•MAX-AOM-EX Expansion Module (FG2178-56)
•MAX-MDL200M Multi-Disc Loader (FG2179-03K)
CERTIFICATIONS
•UL Listed E252362, FCC, CE
•Network UPS Tools (NUT) compliant
