ANDELI TIG Series User manual

TIG WELDER
TIG-250GC/GLC/MGC/MPLC
INSTRUCTION MANUAL

- 1 -
Read me first
Thank you for using welder ! For the important safety of your body, please read
this manual book and understand its contents before operation. Thank you for
your cooperation!

- 2 -
Content
1. Use and Characteristic：..................................................................................... 3
2. Safty Precaution...................................................................................................3
3. Precautions of electromagnetic compatibility..................................................... 6
4. Main technical information................................................................................. 8
5. Installation：....................................................................................................... 9
6. Model establishment and illustration：.............................................................10
7. Brief description of the principle：................................................................... 11
8. Operation and instruction：.............................................................................. 12
9. Welding machine precautions and maintenance：............................................24

- 3 -
Use and Characteristic
The WS series inverter DC argon arc welding machine integrates manual welding,
ordinary argon arc welding, cold welding, and cleaning functions. It can weld carbon steel,
stainless steel, copper, titanium and other materials. Because this series of welding machines
have ideal performance, static and external characteristics and good dynamic characteristics, and
relatively complete control functions, it exhibits the following characteristics:
IGBT high-frequency soft switching conversion, high efficiency, small size and light weight;
The advanced control scheme significantly improves the performance of the welding
machine and meets the welding process requirements to a greater extent;
Manual welding, ordinary argon arc welding, cold welding, cleaning-multi-purpose machine;
4.Cold welding is suitable for spot welding of thin plates, and the workpiece does not
change color;
Cleaning function, cleaning the color of the workpiece after ordinary argon arc welding
Easy arc starting, stable arc, high welding quality; Manual arc welding ~ small spatter,
stable current, high reliability, and good weld formation;
Digital panel adjustment, complete functions, multi-parameter adjustment;
Safty Precaution
Generally Safety Precaution
Ensure to follow precautions specified in this manual, or else, an accident may happen.
The design and construction of input power supply, selection of installation site and use
of high pressure gas shall be performed according to the relevant standards and rules.
Irrelevant personnel are not allowed to enter the welding workplace. Only the qualified
personnel can install, overhaul, maintain and operate the welding machine.
Qualified staff is needed for installation, maintenance and use.
Make sure the welding machine is not used for other purposes except welding (such as
charging, heating and pipeline unfreezing, etc).
If the ground is uneven, please avoid dumping welding machine.
Avoid electrical shock or burn

- 4 -
Touching electric parts is forbidden.
Ensure to invite professional electrician to ground the welding machine with copper
conductor with specific cross section.
Ensure to invite professional electrician to connect power source in welding machine
with copper conductor with specific cross section. The insulating sheath cannot be
damaged.
Ensure to insulate the body and base metal when working in the wet and restricted area.
Please use safety net when working at heights.
Please close the input power when not in use.
Avoid welding fume and gas damaging human body
Ensure to use specified exhaust equipment to avoid gas poisoning and suffocation.
The protective gas will be deposited around the container bottom to cause suffocation.
Pay attention to the ventilation.
Avoid welding arc, splash and welding slag damaging human body
Ensure to wear protective glasses with enough overshadow. The arc will result in ocular
inflammation and the welding splash and slag will burn eyes.
Ensure to use protective supplies for welding, such as leather protective gloves, caftan,
cap, welding spats and apron to avoid welding arc light, welding splash and slag
burning skin.
Avoid fire, explosion and fracture and other accidents
The welding place cannot have the combustibles because splash and hot weld joint will
result in fire.
The cables and base metal must be connected firmly, or else, it may be heat to result in
fire.
Must not weld in the combustible gas or container with the combustibles, or else, it may
result in explosion.

- 5 -
Ensure to prepare fire extinguisher just in case.
To prevent the rotating moving parts wounding
Must not make fingers, hair and clothes close to the cooling fan and wire feed roll and
other rotating parts.
When feeding wire, must not make the welding gun end close to eyes, face and body to
avoid wire damaging person.
Avoid falling gas cylinder and breaking gas regulator
The gas cylinder shall be fixed reliably, or else it may dump to result in human injury.
Must not put gas cylinder in a place with high temperature or sunshine.
When opening gas cylinder valve, must not make face close to the gas outlet, or else
high-pressure gas may damage person.
Ensure to use gas regulator provided by the company and follow the use regulations.
Prevent the movement of welding
Must not stand under the welding machine and motion direction when moving welding
machine with fork lift truck or crane, or else, the welding machine may fall to cause
injury.
The rope sling shall bear enough pull force and cannot be broken when suspending. The
angle between rope sling and hook shall be no more than 30°.

- 6 -
Precautions of electromagnetic compatibility
1. Overview
Welding brings electromagnetic interference.
Minimize the interference emission of arc welding equipment with proper installation way
and correct application method.
The products described in the manual belong to Class A equipment (all occasions except
residential area powered by public electrical power system).
Warning: Class A equipment is not applicable to residential area powered by public
electrical power system. It is difficult to guarantee electromagnetic compatibility because of
conduction and radiated interference.
2. Advice of environment assessment
Before installing the arc welding equipment, the user shall evaluate the potential
electromagnetic disturbance of the surrounding. The considerations are as follows:
Check surrounding of arc welding equipment for other power cables, control cables, signals
and telephone wire.
Check for broadcasting and television launching and receiving equipment;
Check for computer and other controllers;
Check for high security level equipment, such as industrial protective equipment;
Consider the health of surrounding staffs, such as staffs with hearing aid and cardiac
pacemaker;
Check for calibrating or detection equipment;
Pay attention to immunity to interference of other equipment. The user shall make sure that
the surround equipment can be compatible. The additional protective measures may be
required;
Welding or other activity time.
The environmental range is decided based on the building structure and possible activities.
This range may exceed the boundary of building.
3. Method of reducing radiation emission
Public power supply system

- 7 -
The arc welding equipment shall be connected into public power supply system with the
method recommended by the manufacturer. In case of interference, please take addition
preventive measures, such as connecting filter with public power supply system. Ensure to
consider power able shielding for fixed arc welding equipment. The power cables can be
shielded with the metal pipe or other equivalent methods. Ensure to keep electrical continuity for
shielding.
Maintenance of arc welding equipment
Ensure to perform routine maintenance for arc welding equipment according to the method
recommended by the manufacturer. When welding equipment runs, all equipment inlets,
auxiliary doors and panels shall be closed and tightened appropriately. The arc welding
equipment cannot be changed in any form, unless the relevant change and adjustment are
allowed in the manual. The spark gap of arc initiation device and arc stabilizing device shall be
adjusted and serviced according to the suggestion of manufacturer.
Welding cable
The welding cable shall be short as much as possible and close to each other. Moreover,
welding cable shall be next to or close to ground cable.
Equipotential lap
Pay attention to lapping of metal objects in the surrounding. The lapping of metal objects
and workpiece will increase job hazard. When the operator touches these metal objects and
electrode, he may suffer from electrical shock. The operator shall be insulated from these metal
objects.
Workpiece earthing
The workpiece may be not provided with earthing because of electrical safety or workpiece
position, such as hull or building steel frame. When earthing is available for workpiece, radiation
emission may be reduced.But it is not always the case. Therefore, we must prevent the increased
risk of electric shock of users caused by the workpiece earthing or the damage of other electric
equipment. When necessary, some workpiece should be directly earthed, but directly grounding
is not allowed in some countries, user can achieve this effect only by selecting the appropriate
capacitor according to the regulations of the host countries.
Shielding

- 8 -
The shielding of surrounding equipment and other cables can reduce the electromagnetic
interference. The whole welding area can be shielded for special applications.
Main technical information
1. Main technical parameter
Model
TIG-200
Rated input voltage(V)
1PH AC220V±15%，50/60Hz
MMA
TIG
Rated input power(KVA)
4.6
3.5
Rated input current(A)
21
16
No-load voltage(V)
56V
Output current(A)
20-130
20-150
Rated Output
130A/25.2V
150A/16V
Rated duty cycle(%)
40%
Efficiency(%)
70
Insulation grade
F
Protection grade
IP21
WeightKg)
5
Dimension
396*142*268

- 9 -
Installation
1. Environment
Install in a dry environment with humidity less than 90% at 20℃and 50% at 40℃.
The temperature should be in the range of -10℃-40℃when welding, and -20℃-55℃for
storage and transportation.
Shelter the machine from direct sunshine and rain. Avoid raindrops.
Avoid using it in an environment with strong air flow when TIG welding.
The inclination of the welding power is less than 100the altitude no more than 1000m.
Avoid using it in a dusty, acid or other corrosive environment.
The machine should be placed more than 20cm from the wall, and more than 10cm from
other welding machines.
2. Requirement of the input power source
Waveform: standard pure sine wave
Fluctuation range: 220V 15%
Frequency: 50Hz/60Hz
3. Input power
Model
TIG-200
Input power
1PH AC220V±15%，50/60Hz
Min. power of power grid
7
Input
protection
Fuse
40
Circuit breaker
63
Cable
input
2.5mm2
output
16mm2
ground
2.5mm2
Enlarge the input , output and grounding cable according to the cable length.
Remark: the specifications of fuse and circuit breaker in the table above are only for reference.

- 10 -
4. Installation of the machine
The power supply of this series of products should be single phase AC 220V 50/60Hz. Use
a distribution cabinet with an automatic air switch. Ensure safe grounding.
4.1 MMA welding：
Connect welding cable to the machine.
Turn off the machine.
Connect the input cable to the distribution cabinet, switch on.
4.2 Hot/Cold TIG welding：
Connect the earth cable to the positive pole, TIG torch to the negative pole.
Connect the hose to the machine and gas bottle.
Turn off the machine.
Connect the input cable to the distribution cabinet, switch on.
4.3 Clean welding：
Connect the earth cable to the positive pole, TIG torch to the negative pole.
Turn off the machine.
Connect the input cable to the distribution cabinet, switch on.
Model establishment and illustration
TIG series welding machine model establishment and description as shown in figure 1：
T I G —×××
Model
Argon tungsten arc welding
( Figure 1) TIG series welding machine model establishment and description.

- 11 -
Control Circuit
High
frequency
High frequency
transformer
Rectifier
Rectifier filter
Brief description of the principle

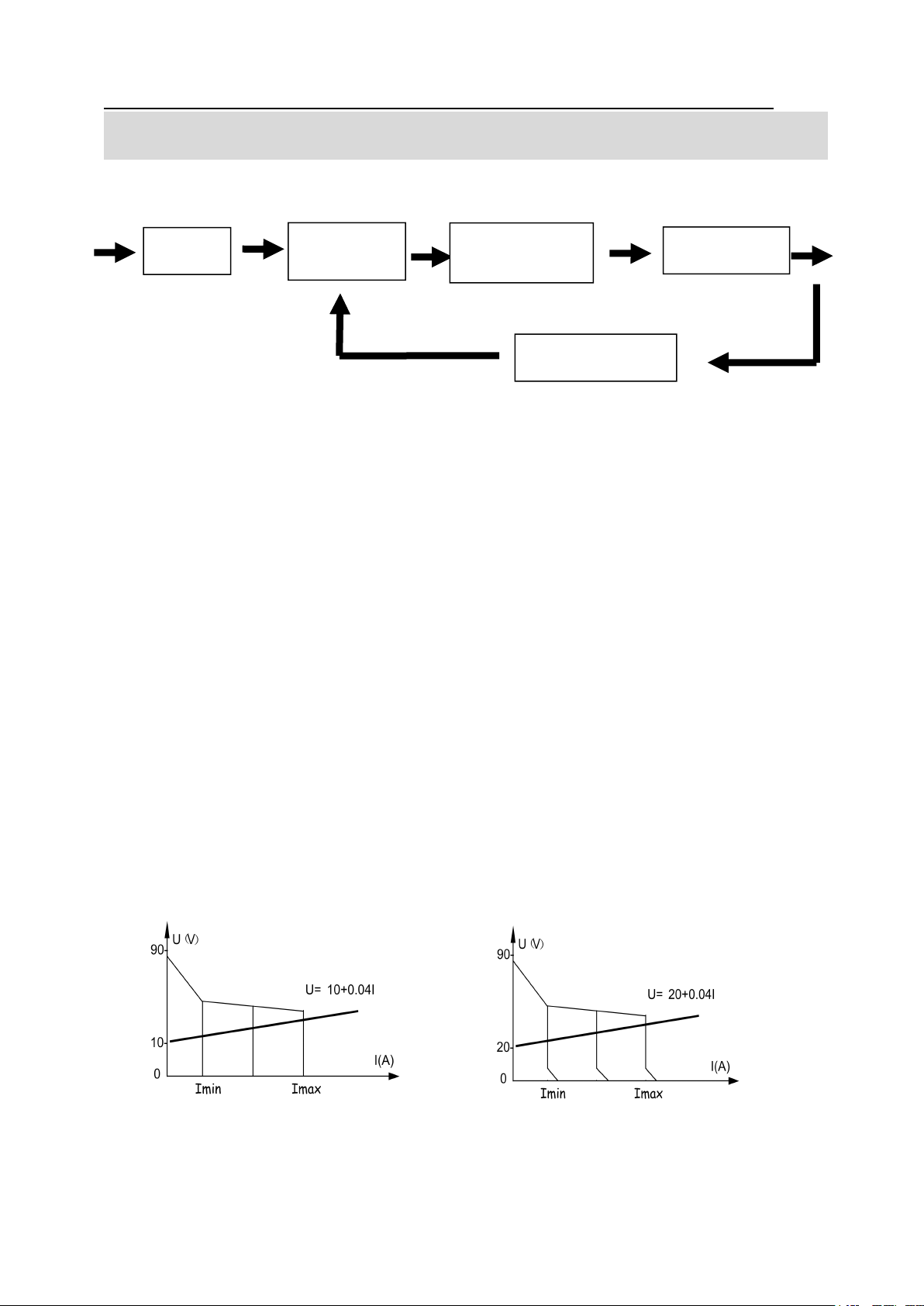

The schematic diagram of the TIG series welding machine is show figure 2：
（Figure 2）Welding machine schematic
The welding machine adopts IGBT high frequency inverter technology, power frequency
220V or 380V power input，direct rectification and then sent to the inverter composed of IGBT
and other components to become high frequency alternating current, high frequency alternating
current obtained after inverter is passed through high frequency transformer after the
step-down,high frequency rectifier rectifies and filters, the output is suitable for the DC current
of the welding. Through this process, the dynamic response of the welder is improved, the
volume and weight of the transformer and the reactor are reduced, and the efficiency of the
whole machine is improved.
The design of the control circuit enables the welder to always achieve good welding
process performance when external conditions change(such as grid voltage fluctuations and
different output cable lengths).It is easy to arc,the are is stable,the weld is well formed,and the
welding current can be continuously adjusted.
TIG-p series welding machine output characteristics such as shown in figure 3:
(3a)TIG welding output characteristics （3b)MMA welding output characteristics
MMA/TIG welding output characteristics：Drooping characteristics.

- 12 -
Operation and instruction
1．Function
1.1 Welding machine front panel
As shown in table 4, control panel is used for selecting functions and setting data of welding
machine. Control panel including digital display 、adjusting knobs 、selection keys and LED
indicator lights.
(Figure 4) TIG-250GC Panel
1.1.1 Function、parameter introduction
1Function selector：(The left first)
Function selector：Switch Clean and TIG function；Under TIG model, long press to enter
interval mode(interval lights on)；
2Function selector：(The right first)
Function selector：Switch current、Gas time delay、long press save；Switch interval and
current under Interval mode；
3Parameter adjustment button：
Adjust the value of each parameter, keep long press can adjust roughly；
4Digital tube：
Display the values of each parameter；

- 13 -
5Welding function indicator light：
Clean，clean the color of the workpiece after argon arc welding；
TIG；
TIG Interval，similar to automatic spot welding function；
6Parameter light：
Current light；adjust the current value under Clean and TIG mode；
Cold clean C5-C9, hot clean H10-H40 under Clean mode；
Under TIG interval mode, the lamp is on to adjust the current value, and the
lamp is off to adjust the interval time；
Gas delay indicator；Under TIG mode,the time range of adjusting gas delay
is 0-10s；
Under TIG interval mode, gas delay time fixed in 2.5S；
Storage indicator；Under TIG、TIG interval mode，long
press the parameter selection button to store welding parameters and
built-in parameters；There are 9 channels respectively, channel 0-4
store the self-tuning parameters and channel 5-8 save the Built-in
parameters；
Save Function ：For example, select channel 0 in advance, adjust the corresponding
parameters, and then long press the parameter selection button to
automatically jump to the next channel, and the parameters of channel 0
will be saved;And so on;
Built-in parameters in TIG welding mode：U5-D0.8，spot welding 0.8mm workpiece ；
U6-L0.8，Continuous welding 0.8mm workpiece；
U7-D3.0，spot welding 3.0mm workpiece；
U8-L3.0，Continuous welding 3.0mm workpiece；
Built-in parameters in TIG interval welding mode：P5-P8，weld 0.6mm，1.0mm，
1.5mm，3.0mm workpiece；

- 14 -
7protected code：
Display OC, indicating welding machine overheat or overcurrent protection；
Overheat protection is that the internal temperature of the machine is overheated, and the
machine can be restored to normal after cooling without load；
Overcurrent protection is unrecoverable when the machine is turned on without load, and
there may be original damage inside the machine. This situation needs to be carefully
handled and confirmed before starting the machine；If it is a misjudgment, just restart the
machine。
(Figure 5) TIG-250MGC Panel
1Function selector (The left first)
Function selector：switch Clean、TIG、electrowelding functions；In TIG welding mode, long
press to enter interval mode (interval light is on)；
2Parameter selection key (The right first)
Function selector：switch current、gas delay time、long press save；Under interval mode,
switch interval、current；
3Parameter adjustment knob：
Adjust the value of each parameter, keep long press can adjust roughly；
Under MMA mode：Light touch knob, select the electrode diameter (1.6/2.0/2.5/3.2) from
small to large, and adjust the knob to change the current on the electrode；
4Digital tube：

- 15 -
Display the values of each parameter；
5Welding function indicator light：
CLEAN，clean the color of the workpiece after argon arc welding；
TIG；
MMA；
TIG Interval，similar to automatic spot welding function；
6Parameter light：
Current light；adjust the current value under Clean and TIG mode；
Cold clean C5-C9, hot clean H10-H40 under Clean mode；
Under TIG interval mode, the lamp is on to adjust the current value, and the
lamp is off to adjust the interval time；
Gas delay indicator；Under TIG mode,the time range of adjusting gas delay
is 0-10s；
Under TIG interval mode, gas delay time fixed in 2.5S；
Storage indicator；Under TIG、TIG interval mode，long press the parameter
selection button to store welding parameters and built-in parameters ；There are 9 channels
respectively, channel 0-4 store the self-tuning parameters and channel 5-8 save the Built-in
parameters；
Save Function ：For example, select channel 0 in advance, adjust the corresponding
parameters,and then long press the parameter selection button to
automatically jump to the next channel, and the parameters of channel 0
will be saved;And so on;
Built-in parameters in TIG welding mode：U5-D0.8，spot welding 0.8mm workpiece；
U6-L0.8，Continuous welding 0.8mm workpiece；
U7-D3.0，spot welding 3.0mm workpiece；
U8-L3.0，Continuous welding 3.0mm workpiece；
Built-in parameters in TIG interval welding mode：P5-P8，weld 0.6mm，1.0mm，1.5mm，3.0mm

- 16 -
workpiece；
8protected code：
Display OC, indicating welding machine overheat or overcurrent protection；
Overheat protection is that the internal temperature of the machine is overheated, and the
machine can be restored to normal after cooling without load；
Overcurrent protection is unrecoverable when the machine is turned on without load, and
there may be original damage inside the machine. This situation needs to be carefully
handled and confirmed before starting the machine；If it is a misjudgment, just restart the
machine。
(Figure 6) TIG-250GLC Panel
1Function selector：(The left first)
Function selector：switch Clean、TIG、Cold；
2Function selector: (The right first)
Function selector：switch current、gas delay、cold welding time、long press to save；
3Parameter adjustment knob：
Adjust the value of each parameter, keep long press can adjust roughly；
4Digital tube：
Display the values of each parameter；

- 17 -
5Welding function indicator light：
CLEAN，clean the color of the workpiece after argon arc welding；
TIG；
COLD ，Suitable for sheet welding, can reduce the degree of workpiece
discoloration；
6Parameter light：
Adjust interval time under Cold welding mode；
Current indicator light；Adjust current value under Clean、TIG mode；
Cold clean C5-C9, hot clean H10-H40 under Clean mode；
It’s useless under Cold welding mode；
Gas delay indicator；Under TIG mode, adjust the gas delay time 0-10S；Set
the gas delay time of cold welding in the mean time ；
Under Cold mode：Adjusting welding time 1-250ms，It has the effect of reducing welding
temperature. The range of 1-200ms has the effect of reducing the welding
temperature. The smaller the value, the lower the temperature, and the
smaller the degree of workpiece discoloration；The range of 200-250ms has
the effect of heat interval pulse, continuous spot welding output to meet the
requirements of penetration control, the degree of workpiece color is close
to ordinary argon arc welding；
Save indicator light ；Long press the parameter selection key to store
welding parameters and built-in parameters under TIG and COLD
mode；Both mode have 9 channels, 0-4 channels store self-adjusting
parameters and 5-8 built-in parameters;
Storage function: for example, select channel 0 in advance, adjust the
corresponding parameters, and then long press the parameter
selection key to automatically jump to the next channel, and the
parameters of channel 0 will be saved;And so on...
Built-in parameters in TIG welding mode：U5-D0.8，spot welding 0.8mm workpiece；
U6-L0.8，Continuous welding 0.8mm workpiece；

- 18 -
U7-D3.0，spot welding 3.0mm workpiece；
U8-L3.0，Continuous welding 3.0mm workpiece；
Built-in parameters in cold welding mode: C5-C8, welding 0.4mm,0.8mm,1.5mm,2.0mm
workpiece;
9protected code：
Display OC, indicating welding machine overheat or overcurrent protection；
Overheat protection is that the internal temperature of the machine is overheated, and the
machine can be restored to normal after cooling without load；
Overcurrent protection is unrecoverable when the machine is turned on without load, and
there may be original damage inside the machine. This situation needs to be carefully
handled and confirmed before starting the machine；If it is a misjudgment, just restart the
machine。
(Figure 7) TIG-250MPLC Panel
1function selector (the left first)
function selector：switch MMA、TIG、COLD、CLEAN functions；
2function selector：(the right first)
Parameter selection key：Switch current、gas delay、cold welding time、interval time、long
press to save；
3Parameter adjustment knob：
Adjust the size of each parameter value, keep long press can adjust roughly；

- 19 -
Under MMA：Gently touch the knob to select the electrode diameter (1.6/2.0/2.5/3.2) from
small to large, and adjust the knob to change the current on the corresponding electrode；
4Digital tube：
Display the values of each parameter；
5Welding function indicator light：
MMA；
TIG；
COLD ，Suitable for sheet welding, can reduce the degree of workpiece
discoloration；
CLEAN ,clean the color of the workpiece after argon arc welding；
6Parameter light：
Current, interval indicator; adjust the current value under cleaning
and TIG mode；
Adjust the interval time under Cold mode；
Cold clean C5-C9, hot clean H10-H40 under Clean mode；
Gas delay indicator；Under TIG mode, adjust the gas delay time 0-10S；Set
the gas delay time of cold welding in the mean time ；
Under Cold moode ：Adjust the welding time 1-250ms, 1-200ms range has the effect of
reducing the welding temperature, the smaller the value, the
lower the temperature, the smaller the degree of workpiece
discoloration ；The range of 200-250ms has the effect of
inter-heat insulation pulse, continuous spot welding output, to
meet the requirements of penetration control, the degree of
workpiece color is close to ordinary argon arc welding;
Save indicator light；Long press the parameter selection key to store welding
parameters and built-in parameters under TIG and COLD mode ；
Both mode have 9 channels, 0-4 channels store self-adjusting
parameters and 5-8 built-in parameters;
