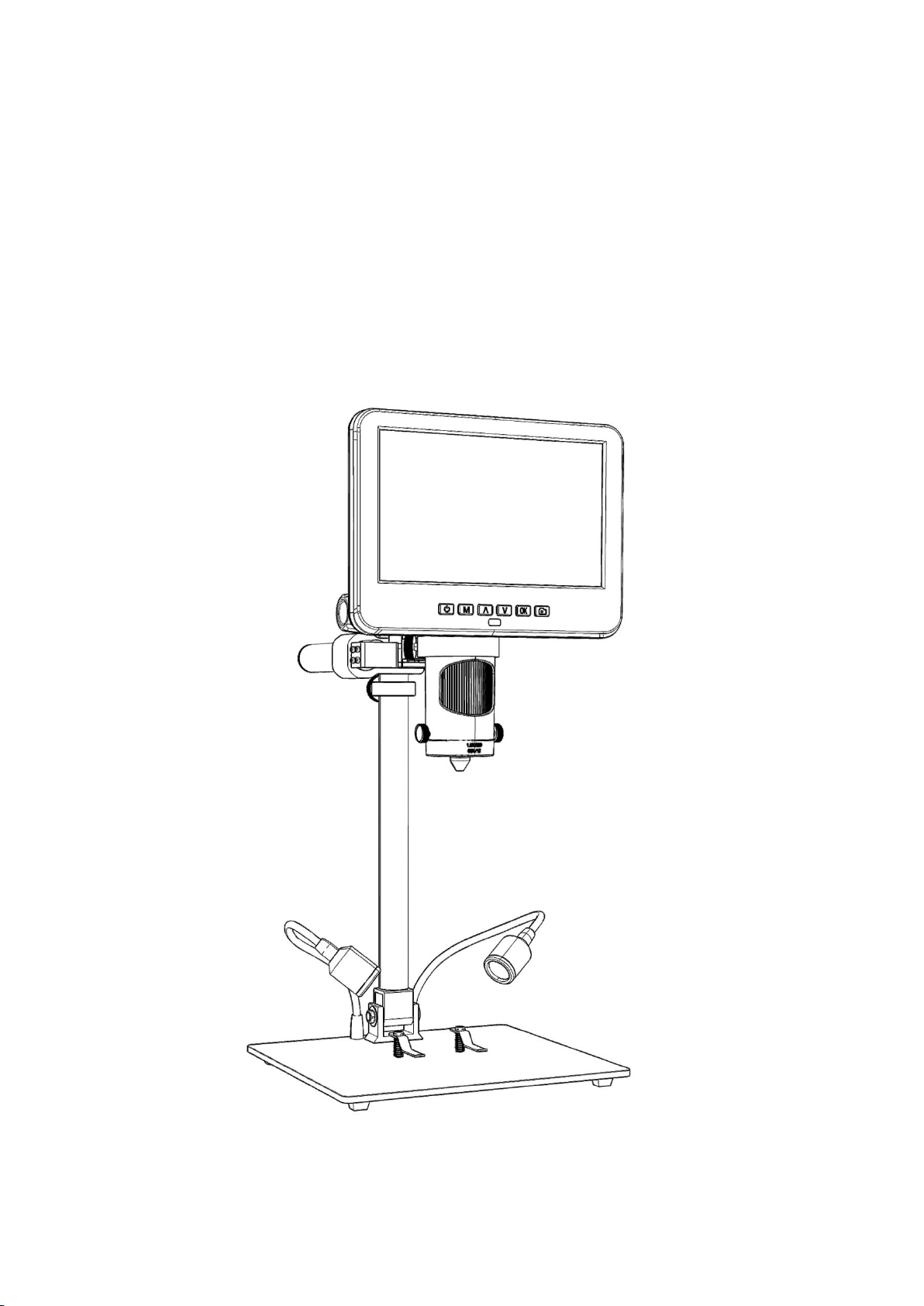

Andonstar 246 User manual

Digital Microscope 246 249
Users Manual (metal stand)

1
CONTENTS
Safety and maintenance .........................................................................................................................................................2
Specifications ............................................................................................................................................................................ 2
Package include ........................................................................................................................................................................3
Video demonstration .............................................................................................................................................................. 3
Buttons&Connection .............................................................................................................................................................. 4
Bracket installation .................................................................................................................................................................. 4
Bracket instructions ................................................................................................................................................................. 5
Quick Start ................................................................................................................................................................................. 5
How to choose lens ........................................................................................................................................................ 6
Digital zoom ....................................................................................................................................................................10
Save files to micro SD card ......................................................................................................................................... 10
Remote ............................................................................................................................................................................. 11
Settings ..................................................................................................................................................................................... 12
Trouble shooting ....................................................................................................................................................................12
Warranty ................................................................................................................................................................................... 13

2
Safety and maintenance
1. Please read this users manual carefully before using the device. It may cause permanent damage to the
device to not follow the operation guide listed in this manual.
2. This product contains tiny parts and components that are NOT edible. Please let children and teens use
this device under proper guide and supervise by adults. Disables, patients and people with allergy should
not use this product.
3. We do not recommend using this product outdoor. It is not waterproof, and can not be placed in
extreme environment: heat, high pressure etc.. Please keep and use it in safe, clean and dry
environment. Stay it away from oil, gas, water and corrosive potions. Storage method refers to other
electronic products, such as a computer.
4. Clean the lens when image goes blurry: cut the power supply firstly, wipe the lens with a soft clean
cloth moistened with alcohol, make sure the whole device is dry before power it on again. Users should
follow these steps for daily cleaning as well, remember to ONLY wipe the INSULATED part of the
monitor.
5. The screen of the monitor is very fragile, please use it with care. Do not drop, hard press or leave it
with sharp object. Hold the frame of the monitor to adjust its orientation. The monitor is not waterproof,
please clean it with soft and dry material.
6. Please be aware that this microscope is not for medical use.
Specifications
Video resolution
FHD1920X1080 30FPS; 1080P 1440X1080 30FPS；720P 1280X720
30FPS,
Video Format
AVI
Frame rate
Max 30fps
Magnification ratio
Lens A: 4.5-180x; Lens D: 450-510x; Lens L: 15-60x
（with3 times digital zoom)
Working Distance
Lens A: 12mm-320mm; Lens D: 4mm- 5mm; Lens L: 90mm-300mm
Photo resolution
Max 4032*3024 (12M)
Photo Format
JPG
Storage
Micro-SD card, up to 32G (not included)
Power supply
5V 2A and above
Stand size
20cm*18cm*33cm
Package include
Microscope, Metal stand, 3 Lenses(A,D&L), Slide holder, Remote,
Dimmer cable, Slides kit, Tweezers, Bug box

3
Package include
（P1 Package include）
①Microscope
②Metal bracket
③Lens A(has been fixed)
④Lens D
⑤Lens L
⑥Remote
⑦Dimmer cable
⑧Slide holder
⑨Slides kit
⑩Tweezers
⑪Bug box
（P1 Package include）
Video demonstration：
Please find the video demo from the link(Please type all letters properly capitalized)/QR code below,
①Product installation： ②How to choose different lens：
https://bit.ly/3rg8lTV https://bit.ly/3J2r0bN

4
Buttons&Connection
（P2 Buttons&Connection）
①Power on/off
②Mode/Menu
③Up/Digital zoom in
④Down/Digital zoom out
⑤OK/Start recording
⑥Take pictures
(while the device is recording)
⑦Remote signal receiver
(where you aim remote to)
⑧Focusing tube
⑨Lens fixing screws
⑩Reset
⑪USB port
⑫SD card slot
Bracket installation
Please see the attached installation diagram.

5
Bracket instructions

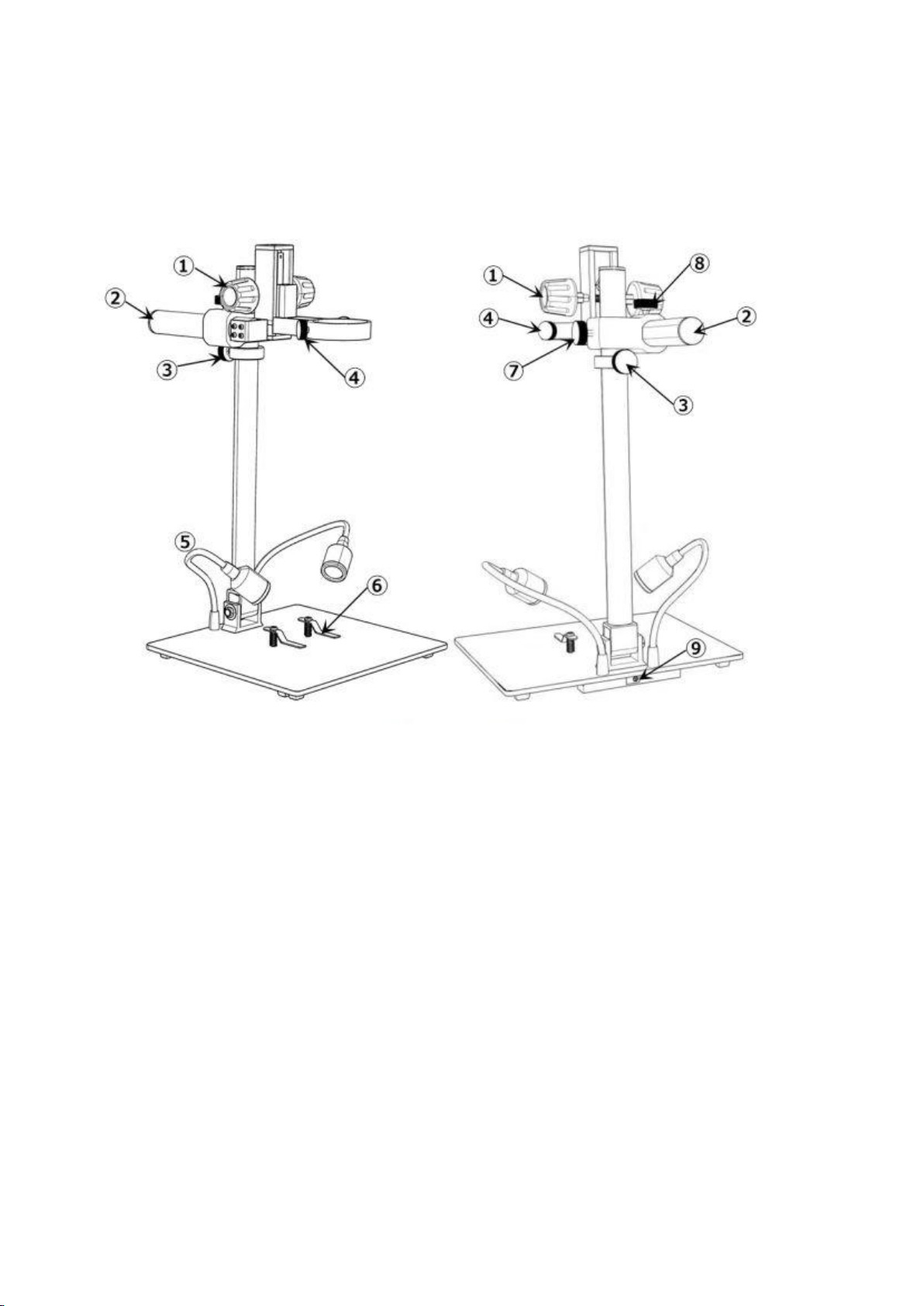

（P3 Bracket instructions）
①Secondary Bracket Lift
②Boom Arm
③Lower Limit Stop
④Monitor Fixing Screws
⑤Spot Lights
⑥Clips
⑦Boom Arm V-locker(lock the arm in vertical
direction)
⑧ Boom Arm H-locker(lock the arm in
horizontal direction)
⑧Spot Lights Interface
Quick Start
1. Connect the device to power supply as followed pic 4 to power on the microscope.
2. Press and hold the Power button (pic 2 # ① ) until the monitor lights up. (device may switch on
automatically when you power it on, and its totally normal)
*Trouble shooting

6
When the monitor image stops or froze, please pin the Reset hole (pic 2 #⑩) to reset the device first, then
power on the device again. (Reset hole is very tiny, located at the back of the monitor. You may need to
use the help of other tools with this process. All settings of the microscope will be back to factory setting
after this, but it won’t delete any files saved in memory card).
（pic 4 Connection）
How to choose lens
Lens L：
Working distance：90mm-300mm，
Magnification：15-60x（with3 times digital zoom)
Applications：circuit board observe, watch repair etc.

7
（pic 5 Go with lens L）
Steps：In pic 5 it marked out which parts of the microscope are involved to each step.
①Install and fix lens L to the bottom of the focusing tube.
②Bend the two goose-neck spot lights, make the field of view enough illuminated.
③Loose the Arm V-locker, locate the whole monitor part to a desire height (distance from the lens to the
specimen should be around 90mm to300mm), then fix the V-locker. In order to adjust object distance
more precisely, adjust the height of the secondary bracket. The shorter the object distance is, the bigger
magnification is.
④Turn the focusing tube to get a clear image. Turn it clockwise to zoom in and the other way to zoom
out.
Lens A：
Working distance：12mm-320mm，
Magnification：4.5-180x（with3 times digital zoom)
Applications: observe whole size or part of coins, stones/stamps collect, circuit
board observe etc.

8
（pic 6 Go with Lens A）
Steps：In pic 6 it marked out which parts of the microscope are involved to each step.
①Install and fix lens A to the bottom of the focusing tube.
②Bend the two goose-neck spot lights, make sure the light shines on the coin.
③Loose the Arm V-locker, locate the whole monitor part to a desire height (distance from the lens to the
specimen should be around 12mm to 320mm), then fix the V-locker. In order to adjust object distance
more precisely, adjust the height of the secondary bracket. The shorter the object distance is, the bigger
magnification is.
④Turn the focusing tube to get a clear image. Turn it clockwise to zoom in and the other way to zoom
out.
*In order to observe part of the coin, please lower the arm height to shorten the object distance, then
turn the focusing tube, get a clear image.
*Steps above can also be applied to observe plants, stones etc.

9
Lens D：
Working distance：4mm-5mm，
Magnification：450-510x（with3 times digital zoom)
Applications: Microscope slides etc.
（Pic 7 Go with lens D）
Steps：In pic 7 it marked out which parts of the microscope are involved to each step.
①Install and fix lens D to the bottom of the focusing tube.
② Place a slide on the slides holder and power on the slides holder. (goose-neck spot lights can not
provide proper illumination in this case, so leave them and use the same interface to power on slides
holder)
③Loose the Arm V-locker, locate the whole monitor part to a desire height (distance from the lens to the
specimen should be around 4mm to 5mm), then fix the V-locker. Since the focus range is very short in
this case, we recommend users to adjust the height of the secondary bracket instead, which is more
precisely. The shorter the object distance is, the bigger magnification is.
④Turn the focusing tube to get a clear image. Turn it clockwise to zoom in and the other way to zoom
out.
*Lens D’s magnification is quite big, which requires a short object distance. Meanwhile, any tiny
movement or shake of specimen would be displayed as huge on the monitor, which requires user to
operate very carefully and patiently.

10
Digital zoom
Press “up” button on the monitor(pic 2 #③) to apply digital zoom in, and “down” to zoom out( pic 2#
④)
Save files to micro SD card
To save images and videos to a memory card, please insert a card into the TF slot at the back of the
monitor before power on the device.
Attention:
1. TD card are not included in the standard package. Please purchase it from quality suppliers. We
recommend 10 grade high speed TF card.
2. Metal strip side of the card faces outward.
3. Push the card deeply into the card slot until you hear a click sound. Otherwise it would bounce back.
4. When the monitor shows “card error” or “card is full”, please format the card first before take
pics. Format steps are: Press and hold button M until it shows a menu→press M button again to get
into Setting menu→Press up or down button to select→choose”Format” and confirm
MODE button（pic 4 #②，marked as“M”）can be used to selected among three modes, video( ),
photo( ) and playback( ). In video mode, on the right upper corner of the monitor shows time and
“1080FHD”(white font). Time here shows how long a video the memory card is capable to record, and
“1080FHD” shows the current video resolution.
Record videos
In video mode( ), press OK button to start recording. Press it again to stop.
It works the same way with the OK button on the remote.
Take photos
In Photo mode( ), press “OK”button to take pictures.
The button marked as a camera on (pic 2 # ⑥ ), can also take pictures, but only while the camera is
recording videos.
* In playback mode the microscope can not take photos or videos
Playback & manage files
Use button M to get into Playback mode, press “up” or “down” to browse files.
In order to play videos, press OK to play it, OK to pause, M to stop.

11
Remote
*Freeze: Stop the image on the display, works in video mode, photo mode and while recording.
*Illumination+ & -: exposure compensation from +2.0 to -2.0.
*Sharpness up&down: three levels of sharpness: Soft/Normal/Strong. Those two buttons are both used
to switch the levels, but in different orders.
*Contrast up&down: same principle as Sharpness
（Pic 8 Remote）
*Upside down：refer to pic as follow
Normal Upside down
*Inverse: refer to pic as follow
Normal Inverse
*Black&white: refer to pic as follow
Normal Black&white

12
Settings
In any mode, press and hold M button until it shows video/photo/playback menu, press M again, get into
Setting menu.
For example. In video mode, press and hold M button, it would show video menu as pic 9:
And then, press M again to get into settings menu as pic 10：

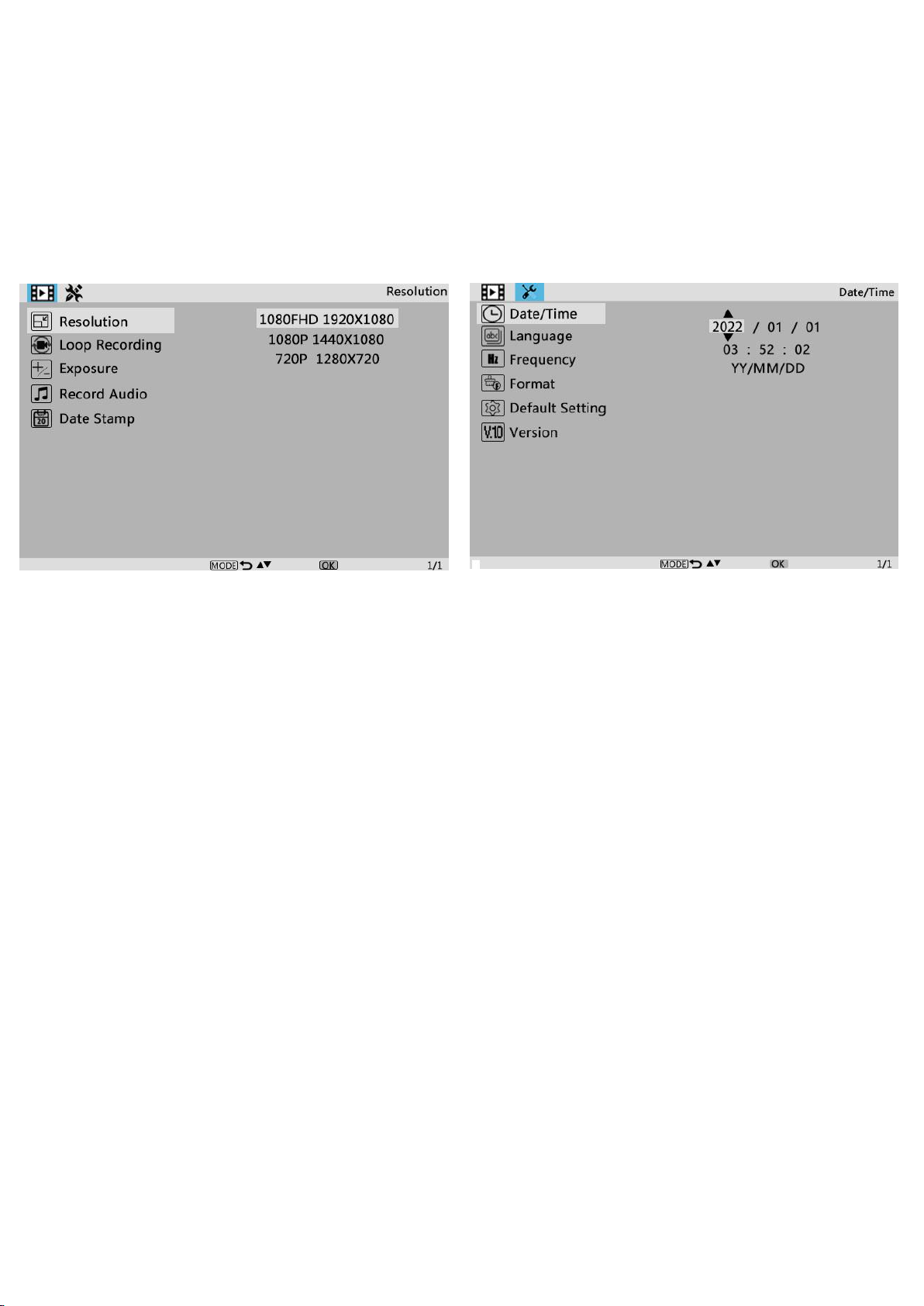

（pic 9 video menu) （pic 10 setting menu）
Date/Time Setting
Select “Date/Time” in setting menu, press OK button to get in time setting. Use “up”and “down”
button to select correct number, OK to confirm and jump to the next one. After it’s all done, press M to
back to setting menu.
Save setting
In order to let the microscope memorize the setting changes, please turn off the microscope by
PRESSING THE POWER BUTTON ON THE MONITOR (press and hold until it switch off).
Setting changes won’t be saved if you switch off the device in other ways.
Trouble shooting
1.The microscope can’t be switched on.
Please check the connection is exactly as pic 4 shows, power supply is strong enough (5V 2A & above)
and stable. If the device still can be not switched on, please pin the reset hole at the back side of monitor.
2.Images are not clear.
Please confirm the illumination work properly, and shine directly to the surface of the specimen. Adjust
the height of the boom arm, or the secondary bracket lift to change the distance from the lens to the
specimen, and turn the focusing tube properly. If the image is still blurry, please clean the bottom of the
lens use a piece of clean and soft cloth.

13
3. Setting changes can’t be memorized.
After changing settings, press and hold the button on the monitor to switch off the device. DO NOT cut
off the power supply directly or use the dimmer cable to switch off the device.
4.The microscope reboots repeatedly.
Please check the if the cable connection is firm and if the power supply is stable and strong enough.
Please check your power adapter is high quality 5V 2A.
4. It shows “card error” or “card is full” after inserting memory card to the device.
Please format the card after insert it into the device.（Format steps refer to chapter “Save files to micro
SD card”)
PS：If there are other questions or problems, please contact us as soon as possible, we will do our
best to help! Thanks for your support!
Warranty
Warranty
Name：
Address：
Phone number：
Post code：
Email：
Model name：
Purchase date：
Fault details：
Date：
Fault description：
Notice：
Our warranty does not cover:
1
If the purchaser can not provide a purchase proof, or it shows the product was bought as
second hand condition
2
If the product has been placed or used in an improper environment, such as heat, wet,
wrong power supply environment etc.
3
If the fault caused by accident, oversight, faulty operation or natural disasters etc.
4
If the fault caused by people who are not belong to authorized organizations of our
company during repacking, repair, dismantle, Or if users repack, repair or dismantle the
device not following our advice.
5
Out of warranty period.
