Animo M100W User manual

BOILER
Animo
2.5
2.4
2.4
2
1,2
1
BOILER
GB
MM110000WW,, MMTT110000WW
Animo
Manual

8
6
5
4
3
2
9
7
11
1
12
13
15
10
20
19 18
6
5
14
10
1
7
5
5.1 5.2 5.3
19
20
17
21
22
18
17
Animo
Coffee- and teamakingsystems
........................
........................ / .........................
MADE IN HOLLAND
........................ V 50-60Hz ..............W
Animo
Coffee- and teamakingsystems
........................
........................ / ...........................
MADE IN HOLLAND
........................ V 50-60Hz ...............W
BOILER
BOILER
Animo
2.5
2.4
2.4
2
1,2
1
BOILER
12.2
12.1
12.3
12
9
11
12
13
15
16
22
21
Animo

Animo
Animo
Coffeemakers
Hot water boier
Animo
Coffeemakers
620
460
420 380
420
225
38
E
E
220
160
Animo
1,2
2,4
2,5
1
2
2,2
Animo
Hot water boier
595
380
420
55
E
420
50
E
410
370
460
125
10
M100W fig. 1/Abb. 1
MT100W fig. 2/Abb. 2
Animo

Table of Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Safety instructions and danger warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Appliances and the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1. General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
1.1 A quick look at the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
1.1.1 Most important parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
1.1.2 Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2. Technical details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.2.1 Preparation for positioning the appliance . . . . . . . . . . . . . . . . . . 28
3.2.2 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.2.3 Water drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.2.4 First time use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.2.5 Setting the descale indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.2.6 Resetting the descale indicator light . . . . . . . . . . . . . . . . . . . . . . 30
4. aily use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.1 Leak stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.2 Coffee quantity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.3 Making coffee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.4 Termination of the brewing process . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4.5 Water boiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4.6 The water boiler in use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4.7 Setting the water temperature of the water boiler . . . . . . . . . . . . . . . . . 33
5. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5.1 Cleaning of the appliance and accessories . . . . . . . . . . . . . . . . . . . . . . . 33
5.1.1 Removing coffee deposits from glass jug and filter . . . . . . . . . . 33
5.1.2 Removing coffee deposits from thermos jug . . . . . . . . . . . . . . . 33
5.2 escaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5.2.1 escaling the coffeemaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5.2.2 Switching-off the descaling indicator light . . . . . . . . . . . . . . . . . . 35
5.2.3 escaling the water boiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7. Consumer articles and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
20
Animo

© 2001 Animo®
All rights reserved.
No part of this document may be reproduced and/or publizised by means of printing, microfilm, electronic or any other
means whatsoever without the prior written permission of the manufacturer. This also applies to the accompanying draw-
ings and/or diagrams.
Animo reserves the right to change parts at any time without giving prior or direct notification to the customer. The con-
tents of this manual can also be changed without prior notification.
This manual covers the standard model of the appliance. Animo can therefore not be held liable for any losses arising
from the fact that the specifications of the appliance supplied to you deviate from the standard model. Please contact your
supplier’s service department for information concerning adjustment, maintenance or repairs not covered by this manual.
Although this manual was produced with the greatest possible care, the manufacturer is unable to accept liability for
errors in this document or their consequences.
You are advised to carefully read the instructions in this document they contain important information about safety when
installing, using and maintaining the appliance. Keep this document in a safe place so that you can consult it when neces-
sary.
Preface
Purpose of this document
This document serves as a manual that enables qualified personnel to safely install, program
and maintain the coffee maker.
- ‘Qualified personnel’ are defined as people that can program the appliance, perform
maintenance on it and repair minor faults.
All of the chapters and paragraphs are numbered. The various illustrations to which the text
refers are given in the fold-out sheets or at the back of this booklet or under the particular
subjects.
Icons and symbols
NOTICE
General instruction for: IMPORTANT, NOTE or REMARK.
CAUTION !
Warning of possible damage to the appliance, the surroundings or the
environment.
WARNING
Warning of possible serious damage to the appliance or physical injury.
WARNING
Warning of electricity hazard.
21
Animo

Introduction
Congratulations on your purchase of one of our products. We hope that you will enjoy using it.
Models
This manual covers the following coffee makers fitted with a water boiler:
Purpose of the appliance
The sole purpose of this appliance is to make coffee and/or tea.
o not use the water boiler to heat and/or cook liquids other than water.
The use of the appliance for other purposes is not permitted and may be hazardous.
The manufacturer cannot be held liable for losses caused by using the appliance for purposes
other than those indicated here or by incorrect use.
Service and technical support
Please contact your dealer for information not given in this document regarding specific
adjustment, maintenance and repairs. Before contacting your dealer you should note the fol-
lowing appliance details, marked with a #. You will find these details on the type plate attached
to your appliance (14).
A - Type #
B - Article number #
C - Machine number #
- Supply voltage
E - Frequency
F - Output
Guarantee conditions
The guarantee conditions applicable to this appliance form an integral part of the general
terms of delivery.
Directives
This appliance meets the requirements of the EMC irective 89/336/EEC, and the Low Voltage
irective 72/23/EEC.
22
M100W MT100W
Animo
Animo
Coffeemakers
Hot water boier
Animo
1,2
2,4
2,5
1
2
2,2
Animo
Hot water boier
Animo
Coffee- and teamakingsystems
........................
........................ / ...........................
MADE IN HOLLAND
........................ V 50-60Hz ....................W
A
B
F E
C
Animo

Safety instructions and danger warnings
This appliance meets the mandatory safety regulations. Inexpert use can result in personal
injury and material damage. The following warnings and safety instructions must be observed
before using the coffee maker.
Instructions for use
Read these instructions for use carefully, before using this appliance.
This will protect your safety and prevent damage being caused to the appliance.
Perform the various actions in the order given.
Always keep this manual in close by the appliance.
Installation
• Place the appliance at buffet height and on a firm, level base, in such a way that it can be
connected to the power supply.
• Connect the appliance to an earthed wall socket.
• Position the appliance in such a way that no damage can be caused if it leaks.
• o not tilt the appliance, always position and move the appliance upright.
• The coffee maker is fitted with an overflow device that discharges at the bottom of the
appliance - take this into account when positioning the appliance.
• Water always remains in the heating system: for this reason the appliance must not be
placed in an area where the temperature can fall below freezing point.
• When installing the appliance, always observe the local rules and use approved materials
and parts.
• The ‘Installation’ chapter must again be followed when repositioning the appliance.
Usage
• Inspect the appliance before using it and check it for damage.
• Never submerge or spray the appliance.
• o not press the buttons with a sharp object.
• Protect the controls against dirt and grease.
• It is advisable to take the plug out of the socket if the appliance will not be used for longer
periods of time.
Maintenance and troubleshooting
• Observe the descaling intervals indicated by the descaling indicator light.
Overdue maintenance to the heating system can result in high repair costs and annulment
of the guarantee.
• Always follow the manufacturer’s instructions when using the descaling agent.
• o not leave the appliance unattended when maintenance is being performed.
• When descaling the appliance, it is advisable to wear safety glasses and protective gloves.
• Flush the appliance at least twice after descaling it.
• Wash your hands thoroughly after descaling the appliance.
• Always have repairs carried out by a qualified service engineer.
23
Animo

• The plug must be taken out of the socket if the appliance has to be opened for cleaning
or repairs.
The manufacturer cannot be held liable for losses caused as a result of failure to observe these
safety instructions.
Safeguards
The appliance is fitted with the following safeguards:
Dry-boil protection (20+21)
This appliance is equipped with two dry-boil protectors on the back. The protector on the left
(21) is that of the water boiler. On the right (20) is the one for the coffeemaker.
These protectors are switched off if the heating elements get overheated as a result of a fault.
Once the fault has been resolved, the dry-boil protection can be reset at the back of the
appliance. The most common cause of the dry-boil protection being triggered is not
descaling the heating system in time.
If the heating system does not switch back on, proceed as follows:
1. Allow the appliance to cool down.
2. Unscrew the protective cap.
3. Press the button which is now visible and firmly screw the protective cap back on.
If the dry-boil protection triggers owing to increased scale deposits, descale the appliance.
See chapter 5.2 Consult your dealer if the fault was caused by a problem other than the dry-boil
protection being triggered.
On/off switch (1+13)
Each appliance is switched on/off separately using the on/off switch (1+13). Remember that the
appliance can still be live after switching it off! For this reason you should always remove the
plug from the socket to render the appliance voltage-free.
Jug detector (10)
This appliance is fitted with a jug detector that operates the leak stop under the filter.
This jug detector also ensures that the appliance only makes coffee if there is a jug under the
filter. If the jug is removed during the coffee brewing process, the process will be interrupted
and the filter will stop leaking.
24
Animo

Appliances and the environment
The packing material
Your new coffee maker has been carefully packaged to protect it against damage.
The packing is not harmful to the environment and consists of the following materials:
• Corrugated cardboard
• Filler elements made of polyurethane foam <PUR> covered with a polythene film
(>PE-H <). The waste processing plant in your municipality will be pleased to inform
you about where you can dispose of the materials.
Discarding the appliance
No appliance lasts forever. When the time comes to discard your appliance it will usually be
possible to return it to your dealer. If this is not the case, ask your municipal council about the
alternatives for recycling the materials. All plastic parts have been given standard codes. The
parts of the appliance such as the printed circuit board and accompanying parts form electrical
and electronic waste. The metal pipes are made of stainless steel and can be completely
dismantled.
25
Animo

11..GGeenneerraall
1.1 A quick look at the appliance
The most important parts of the appliance are shown in the fold-out sheet in this manual.
Keep the fold-out sheet open when reading the instructions.
1.1.1 Most important parts
1. Appliance on/off switch coffee making 12. Indicator panel water boiler
section and bottom hot plate 12.1 Refill indicator light
2. On/off switch for top hot plate 12.2 Temperature ok indicator light
3. Basket filter with leak stop device 12.3 Temperature setting water boiler
4. Basket filter paper 13. On/off switch water boiler
5. Control panel coffeemaker 14. Bottom hot plate
5.1 escale indicator light 15. Stainless steel drip tray
5.2 Brewing process indicator light 16. Synthetic drip tray
5.3 Programming button 17. Type plate
6. Water reservoir opening 18. Water drain
7. Glass jug/thermos flask 19. Connection cable with plug
8. Top hot plate 20. ry-boil protection coffeemaker
9. Water boiler 21. ry-boil protection water boiler
10. Jug detector 22. rainage water boiler
11. Hot water tap
1.1.2 Control panel
The control panel of the coffeemaker has the following functions;
Descale indicator light (5.1); The red indicator light will light up if the appliance
needs to be descaled. The appliance will continue to work so that it can be descaled
when it is not being used. See also chapter 5.2.
Brewing process indicator light (5.2); The green indicator light lights up when the
coffee passes through the system. At the end of the coffee making process a signal
sounds three times and the green indicator light goes out. The indicator light
flickers if the jug is temporarily removed during the coffee making process. A signal
will also sound indicating that the coffee making process has temporarily stopped.
Programming button (5.3); This key is made visible with a small triangle.
This programme key is used exclusively to : set the appliance to the local water
hardness. The red indicator light goes out when the appliance has been descaled.
See chapter 5.2.1.
26
CAUTION
• Never press de buttons with a sharp object.
• Protect the controls against dirt and grease.
Animo

Sound signals;
Sounds three times at the end of the coffee making process.
Sounds once if the jug is removed during the coffee making process.
A long signal sounds when the appliance is switched on.
The indicator panel of the water boiler has the following functions;
Refill indicator light (12.1) the yellow indicator light will light up if the water boiler
needs to be refilled. The heating element will turn off.
The indicator light turns off when the water boiler has filled up sufficiently.
Temperature ok indicator light (12.2);
The green indicator light lights up when the water boiler has reached the correct
temperature. The control light turns off when the water temperature is too low.
Temperature adjuster water boiler (12.3);
With this adjuster the water boiler temperature can be increased/reduced, using a
small screwdriver. See chapter 4.7: Setting water temperature water boiler.
2. Technical details
Model M100W MT100W
Article number 10505 10525
Buffer stock coffee 3.6 l./ 28 cups 2.4 l. / 19 cups
Hourly coffee capacity 14 l./112 cups 14 l./112 cups
Jug filling time approx. 8 min. approx. 10 min./2,4 l.
Content cold water reservoir 2.7 l. 2.7 l.
Buffer stock hot water 1.8 l./14 cups 1.8 l./14 cups
Hour capacity hot water 16 l./ 128 cups 16 l./ 128 cups
Heating time water boiler 11 min. 11 min.
Supply voltage 220-240V~ 220-240V~
Frequency 50-60Cy 50-60Cy
Total output 3350W 3200W
Filter paper 90/250 90/250
imensions See fig. 1 See fig. 2
Empty weight 12 kg 15 kg
Transport dimensions (lxwxh) 600x490x540 mm 490x450x940 mm
Transport weight 15.5 kg. 19 kg.
All technical details are subject to change
27
Animo

3. Installation
3.1 Unpacking
The machine has been carefully packed to prevent damage being caused to your new coffee
maker. Remove the packing carefully without using sharp objects. Check if the appliance is
complete. The appliance is delivered with the following accessories:
M100W MT100W
Glass jug 2 -
Thermos container - 1
Basket filter 1 1
Filter paper (25 pcs.) 1 1
Coffee measuring cup 1 1
Water measuring cup - 1
Coffee fur remover 1 1
Scale remover 1 1
Manual 1 1
Synthetic drip tray - 1
Stainless steel drip tray 1 1
Please contact your dealer if any parts are missing or damaged.
3.2 Installation
3.2.1 Preparation for positioning the appliance
-Position the appliance at buffet height on a firm, level base that can bear the weight of the
appliance when it is filled.
-Position the appliance level and in such a way that it cannot cause any damage if it leaks.
-The power connection must be located within half a metre of the appliance.
-The owner must have these installation-technical preparations performed by qualified
engineers in accordance with general and local regulations.
-The service engineer may only connect the appliance to the prepared connections.
28
CAUTION
• Water always remains in the heating system: for this
reason the appliance must not be placed in an area
where the temperature can fall below freezing point.
Animo

3.2.2 Electrical connection
Supply voltages and frequencies can differ between countries. Check if the appliance is
suitable for connection to the local power mains. Check if the details on the type plate
correspond. Connect the appliance to an earthed wall socket.
3.2.3 Water drainage (18)
The water reservoir of the coffeemaker has a maximum content of 2.7 litres. If the reservoir is
overfilled, the excessive water will be discharged via the drain (18) at the bottom of the appli-
ance. Take this into account when positioning the appliance.
3.2.4 First time use
1. Slide an empty basket filter (3) into the appliance and place an empty jug (with lid)
underneath it.
2. Pour one jug (water measuring cup, MT-model) of cold water into the cold water
reservoir (6).
3. Wait for three minutes so that the entire heating system can de-aerate.
4. Fill the water boiler (9) with water. Never fill up the water boiler higher than the ring
indicating “MAX” to prevent boiling water from splashing over the pouring spout.
5. Check if the on/off switches (1 + 2, if present) are at position O.
6. Put the plug in the socket.
7. Switch on the coffeemaker by turning the on/off switch to (1) the I position.
The indicator lights (5.1 and 5.2) will light up and an audible signal will sound.
The green indicator light (5.2) will now light up until the appliance has finished
making the coffee.
8. When the appliance has finished making the coffee, a signal will sound three times
after about 1.5 minutes and the green indicator light (5.2) will go out.
9. After emptying the jug, the coffeemaker is ready for use.
10. Switch the water boiler on by turning the on/off switch to 1. The indicator lights will light
up. The water in the water boiler will heat up. The green indicator light will light up when
the water is heated sufficiently.
11. Tap all of the first heated water out of the water boiler and discard it.
Fill up the water boiler with fresh water. After this, the appliance is ready for use.
29
WARNING
• Ensure that the mains lead does not come into
contact with the hot plates (if present).
Animo

3.2.5 Setting the descale indicator
Scale deposits are left in the heating system when the appliance is used. The amount of scal-
ing depends on the hardness of the water being used. The coffeemaker is fitted with a descale
indicator light (5.1), which lights up when the heating system has processed a certain quantity
of water and has to be descaled. The appliance continues to work so that it can be descaled
when it is not being used.

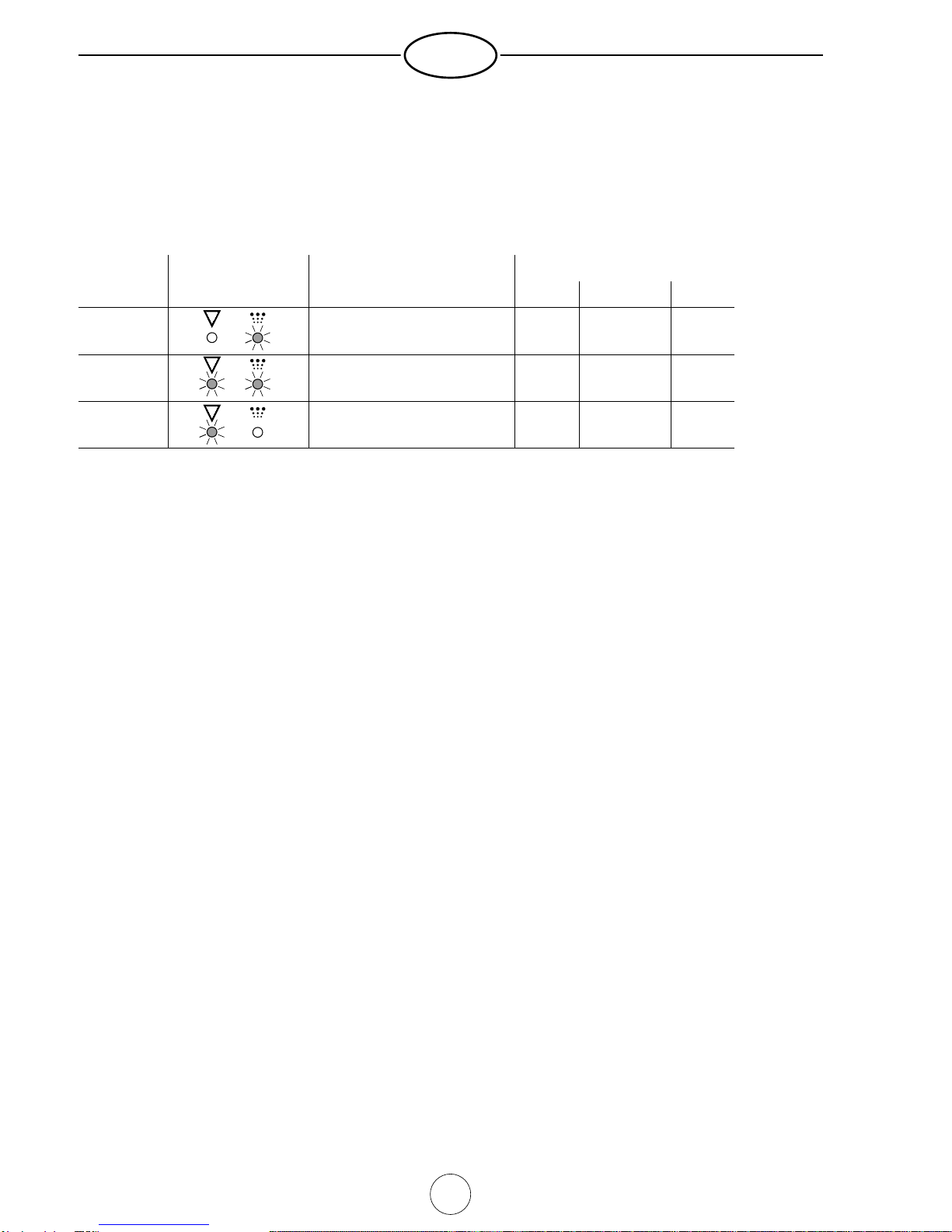

Position Indicatior lights Brewing processes Hardness
°D mmol/l °f
Soft 512 < 8 < 1,44 < 14
Normal* 256 8 – 12 1,44 –2,16 14-21
Hard 128 > 12 > 2,16 > 21
*Standard setting
If you are unaware of the hardness of your tap-water, you are advised to contact your local
water supply company.
Set the appliance to your water hardness as follows, using the table above as a guideline.
1. Switch off the appliance (1)
2. Hold in the programme button (5.3) and switch the appliance back on.
3. Press the programme button (5.3) until the right indicator light (5.1/5.2) lights up.
(E.g. only the red lamp should light up for hard water).
4. Wait for 6 seconds. The water hardness has now been set.
3.2.6 Resetting the descale indicator light
After the descaling procedure (see chapter 5.2.2) hold in the programme button for
6 seconds. The descaling indicator light will now go out.
30
Animo

4. Daily use
4.1 Leak stop
This appliance is fitted with a leak stop that ensures that no coffee drips out of the filter when
you:
• briefly take away the jug during the brewing process: the jug detector (10) ‘sees’ that you
have removed the jug and interrupts the brewing process.
A short audible signal will sound and the green indicator light (5.2) will flicker.
The brewing process will resume when you replace the jug.
• take away the jug after making coffee.
• take the filter out of the appliance after making coffee to empty it.
4.2 Coffee quantity
The amount of coffee can be measured using the coffee measuring cup supplied and
generally amounts to 35 to 50 grams per litre.
Jug Glass jug Thermos container
Content 1.8 litres 2.4 litres
Coffee 65-90 grams 85-120 grams
4.3 Making coffee
1. Place a sheet of basket filter paper containing the desired amount of coffee (fine grind
type) in the basket filter. See the table above for the amount of coffee required.
2. Slide the basket filter (1) into the appliance.
3. Use a jug or water measuring cup (MT models) to pour fresh cold water into the opening (6).
4. Then place the jug, with the lid on it, under the filter.
5. Switch on the coffeemaker using the on/off switch (1). The lamp in the switch will go on
and the lower hot plate will switch on. The green indicatior light (5.2) will light up and the
coffee brewing process will begin.
31
NOTICE
• The leak stop can only work if the jug detector is pressed in sufficiently by the jug.
If you use a coffee jug with a narrow neck the jug detector will not be pressed in
sufficiently and the appliance will not start.
NOTICE
Basic instructions for brewing coffee
• Use fine-grind coffee.
• Keep the jugs and the basket filter clean.
• Only use fresh cold water to fill the water reservoir.
Animo

6. Once the coffee brewing process has been completed the green indicatior light (5.2) will
go out and an audible signal will sound three times, indicating that the coffee is ready.
The jug can be removed before the filter has been completely emptied. Once the filter has
been cleaned you can immediately resume making coffee.
7. Pour out the coffee or place the jug on the top hot plate (8) (except for the MT models).
The top hot plate is switched on separately using on/off switch (2).
Always switch off the extra hot plate when it is not being used.
8. After cleaning the basket filter, the appliance can immediately be used to make the next
serving of coffee.
4.4 Termination of the brewing process?
The process can be stopped at any moment.
• Switch the on/off switch (1) to ‘off’, and the process will stop. The process will continue
when the on/off switch is switched back to ‘on’.
• Remove the jug from under the filter. The jug detector (10) will temporarily interrupt the
coffee making process and the leak stop will prevent the filter (3) from dripping.
The green indicator light (5.2) will flicker, and a short audible signal will sound. When the
jug is replaced under the filter the coffee brewing process resumes and will be completed.
4.5 Water boiler
The appliance is fitted with a water boiler suitable for drawing off small amounts of hot water.
The water in the water boiler is kept hot automatically.
1. Switch the water boiler on using the on/off switch (13). The light in the switch will light up.
2. After approx. 11 minutes the water is heated up and the green temperature ok indicator
light (12.2) will light up. Hot water can now be drawn off using the no-drip tap (11).
3. When the yellow refill indicator light (12.1) lights up, the water boiler needs to be refilled.
Fill the water boiler (9) with fresh water. Caution Never fill up the water boiler higher than
the ring indicating “MAX” to prevent boiling water from splashing over the pouring
spout.
4. After refilling, the yellow indicator light will go out. Caution when the refill indicator light
is on, the heater of the water boiler will turn off. As soon as the water boiler is refilled the
heater will switch on again.
4.6 The water boiler in use?
• Tap hot water off (a maximum of 1.8 litres at a time). After filling with cold water, up to
the ring indicating MAX., it will take approx. 5 minutes before the temperature of the
water boiler is restored.
• When the green temperature indicator light (12.2) turns on, new hot water can be
drawn off.
32
Animo

4.7 Setting the water temperature of the water boiler
On delivery the temperature of the water boiler is set at approx. 90˚C.
With the adjustment point (12.3) the temperature of the water boiler can be increased/reduced
within a range of 84 – 98˚C. Use a small screw driver for this. To reduce the temperature, turn
left. To increase the temperature, turn right.
5. Maintenance
5.1 Cleaning of the appliance and accessories
- Clean the outside of the appliance with a clean, damp cloth, if necessary using a mild
(non-abrasive) cleaning agent.
- o not use an abrasive, as this will leave scratches and dull patches.
- The glass jugs and the basket filter can be washed normally and rinsed clean.
Please note, however, that it is inadvisable to clean the basket filter in an industrial
dish washer as its lightness may cause it to float and sustain damage.
- The thermos jug, thermos jug with pump and the filter can be rinsed with hot water.
- The coffee deposit in the coffee jugs and the filter can be cleaned with Animo coffee
fur remover. The appliance is supplied with one sachet of coffee fur remover.
It is easy to use.
5.1.1 Removing coffee deposits from glass jug and filter
1. Fill a tray with approx. 5 litres of warm water and dissolve a sachet of coffee fur remover
in it.
2. Place the parts you want to clean in this solution and leave them to soak for 15 to 30
minutes.
3. Then rinse them several times with hot water, and repeat when necessary.
4. Sprinkle the powder on to heavily soiled parts and clean them with a wet brush.
5.1.2 Removing coffee deposits from thermos jug
1. issolve a quantity of coffee fur remover in warm water: use approx. 2 grams per litre.
2. Fill the thermos jug with this solution.
3. Leave the solution to soak for 15 to 30 minutes, then pour it away.
4. Rinse the jug thoroughly with hot water and repeat this several times.
33
WARNING
•The appliance must not be submerged or sprayed.
WARNING
• In high altitude areas (> 2000 metres.) the water will boil sooner because of lower
atmospheric pressure. Adjust the temperature of the water boiler, so it will not boil.
• If too much water is put into the water boiler, there is a chance that the hot water will
splash over the pouring spout.
• The manufacturer is unable to accept any liability for the consequences of altered settings.
Animo

5.2 Descaling
5.2.1 Descaling the coffeemaker
Scale deposits are left in the heating system when the appliance is used. The amount of
scaling depends on the hardness of the water being used. The appliance is fitted with a descale
indicator light (5.1), which lights up when the heating system has processed a certain quantity
of water and has to be descaled. The appliance continues to work so that it can be descaled
when it is not being used.
1. Before descaling the appliance, carefully read the instructions for use on the scale
remover. We advise you to use the tried and tested Animo scale remover.
2. issolve one 50 gram sachet of Animo scale remover in 1 litre of warm water
(approx. 60-70˚C).
3. Slide an empty basket filter (3) into the filter holder and place an empty jug under it.
4. Carefully pour the solution into the reservoir (6) and switch on the appliance (1).
The solution will now run through the heating system and discharge into the jug.
Leave the lid of the reservoir open!
5. Switch off the appliance using switch (1) after 1 minute.
6. Now wait about 2 minutes. The solution will react with the deposit in the heating system.
7. After the waiting time, switch the appliance back on and allow the rest of the solution
to run through the system.
8. Wash away the solution in the jug until the filter has finished dripping.
9. After descaling the appliance, flush the system by following the coffee brewing
procedure twice but without using filter paper or coffee. Remember to empty the jug
in the meantime.
10. Switch off the appliance and thoroughly clean the basket filter and the jug.
11. The appliance is now ready for use.
CAUTION
•Stay close to the appliance when performing maintenance.
• It is advisable to wear safety glasses and protective gloves when
descaling the appliance.
•Flush the appliance at least two times after descaling it.
•Wash your hands thoroughly after descaling the appliance.
NOTICE
• It is recommended to descale the coffeemaker and the water boiler in succession.
• Observe the descaling intervals indicated by the descale indicator light.
Overdue maintenance to the heating system can result in high repair costs and
annulment of the guarantee.
34
Animo

5.2.2 Switching-off the descale indicator light
1. Press the programme button (5.3) for 6 seconds; the descale indicator light (5.1)
will go out.
2. The control system resumes registering the number of brewing processes.
5.2.3 Descaling the water boiler
1. Before descaling the water boiler, carefully read the instructions for using the descaling
agent. We advise you to use the tested Animo descaling agent.
2. Switch the water boiler off when the temperature ok indicator light (12.2) is on.
Leave the water boiler switched off during the whole descaling process.
3. raw off approx. 1.5 litres. of hot water using the no-drip tap (11) and dissolve 2 sachets of
50 grams Animo descaling agent in it.
4. Pour the solution into the water boiler. This will start a ( fizzy) reaction on the scale
deposits.
5. Leave this solution for 10 minutes to soak in. Spread the solution repeatedly over the
scaled parts in the water boiler using a brush. raw off some solution and pour it back
immediately.
6. The entire water boiler can be emptied by using the water drain (22) on the back of the
appliance.
7. Make sure that the end of the tap hose is in the sink.
8. Pull the tap plug together with approx. 20 cm. hose out of its compartment.
Remove the plug by squeezing the hose just before the seal plug. Warning: The water is
still hot.
9. rain the water boiler completely empty and rinse well using clean warm water.
Rinse away all of the solution.
10. Close off the tap hose and push it back into its compartment.
11. Fill the water boiler using fresh water, turn on the on/off switch (13).
12. If there is still scale in the water boiler, repeat steps 3 to 9.
13. Before use, rinse the no-drip tap once more by drawing off approx. 1 litre. of hot water.
14. The water boiler is now ready for use.
35
NOTICE
• Leave the lid of the water boiler open during the descaling process.
Animo

6. Troubleshooting
If your appliance is not functioning correctly, use the troubleshooting guide below to see
whether you can resolve the problem yourself. If not, please contact your dealer.
36
WARNING
• Have all repairs to the electrical system performed by a qualified service technician.
Symptom
The appliance is not working
and the lamps in the switch
are not lighting up.
The brewing process indicator
light (5.2) is flickering, no
water is getting into the filter.
The brewing process indicator
light (5.2) is on, but no water
is getting into the filter.
The descale and brewing
process indicator light (5.1 +
5.2) are flickering in
alternation.
The descale indicator light (5.1)
has come on.
The descale indicator light (5.1)
remains on after descaling the
appliance.
Steam is coming from the filter.
Coffee is dripping out of the
filter when there is no jug
under it.
Possible cause
The fuse in the fuse box has
been triggered, the group is
loaded too heavily.
The jug indicator is not
registering a jug. There is no
jug under the filter, the wrong
coffee jug is being used.
The dry-boil protection has
been triggered.
The appliance has heated up
for more than 20 minutes and
completely shut down.
The scaling deposits in the
heating system exceed the set
limit.
The appliance has not yet been
reset.
The appliance was not
descaled when indicated by the
descaling indicator light or the
wrong water setting has been
applied.
The leak stop valve on the
outlet of the filter is soiled or
damaged.
Action
Replace the fuse or reset it.
Connect the appliance to a
separate group.
Position a jug, use the correct
jug.
Reset the dry-boil protection
(20) . See page 24. Safeguards;
dry-boil protection.
Switch off the appliance and
then turn it back on again.
The error message will disappear.
escale the appliance, see
chapter 5.2 escaling.
Press the programme button
for 6 seconds. The light will go
out. See chapter 3.2.6
Resetting the descaling
indicator light.
escale the appliance, see
chapter 5.2 escaling
See chapter 3.2.5 Setting the
descale indicator.
Clean the filter and check the
leak stop valve for damage.
Troubleshooting guide coffee making section
Animo
