Anova L1535 User manual
anovafurnishings.com
888.535.5005 tel
ASSEMBLY INSTRUCTIONS
L1535 40-Gallon Receptacle
TOOLS NEEDED:
7/16” Open-end or Box-end Wrench•
Flat Blade Screwdriver•
3 x
1/4 - 20
Flange Nut
3 x
Rubber Foot
ASSEMBLY:
Note: Even if installing the Receptacle as a surface mount, it is
required to install the Rubber Feet to maintain the satisfaction
guarantee and as a precaution against corrosion due to standing
water, salts, or other corrosive elements.
Inspect the shipping container contents for damage and to1.
determine that all components and hardware are present.
Place the Receptacle Body upside down on the packaging2.
cardboard or other so surface to avoid scratching the
product.
NOTE: the three outer holes on the bottom of the Receptacle are
intended for mounting the Rubber Feet. The four inner holes
are designed for use in surface mount applications.
ASSEMBLY HARDWARE:
RECEPTACLE COMPONENTS:
1 x
Receptacle Body
1 x
Spun Steel Top
Rubber Foot
mounting holes
1 x
Plastic Liner
3 x
1/4 - 20 X 3/4”
Round Head Screw
Inner holes for surface
mount applications
Do not drag the assembled unit across any surface.•
This product requires only periodic cleaning with a sponge and a solution of mild detergent and water to•
remove surface dirt. Do not clean with a solvent or petroleum based products.
Furniture must not be used other than for its intended purpose and should be inspected regularly for loose,•
missing, or broken hardware, and general instability.
Furniture that is damaged or appears to be unstable must be removed from service and be repaired or replaced.•
Repairs must be made using only factory authorized parts and methods.•
WARNING
CARE AND
MAINTENANCE
211 North Lindbergh Blvd.
St. Louis, MO 63141
tel: 888.535.5005
web: anovafurnishings.com
11/2012

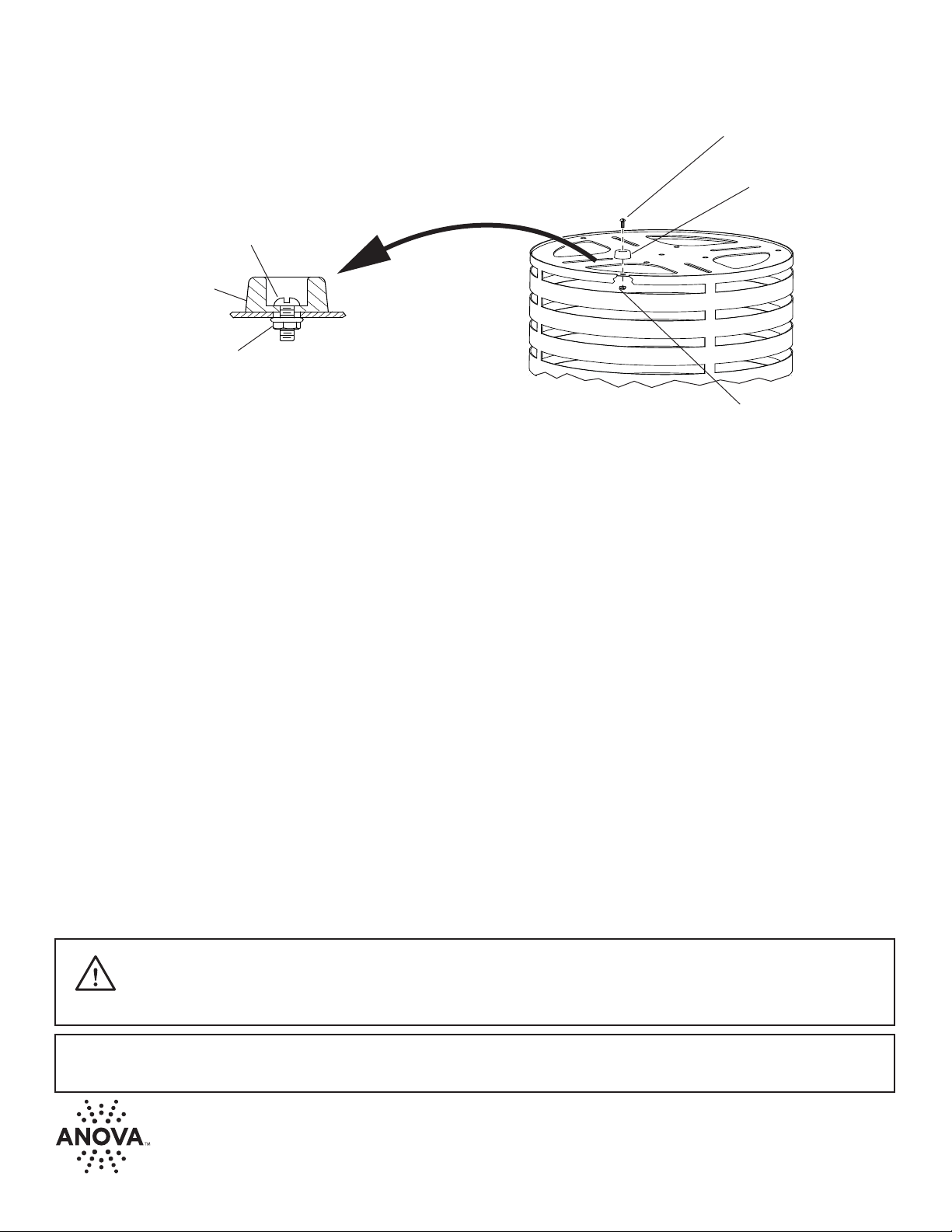

Push the threaded end of one of the Screws into the hole in the counterbored side of one of the Rubber Feet.3.
Insert the Screw into one of the Foot mounting holes on the bottom of the Receptacle.
Flanged Nut
3/4” Long
Screw
Rubber Foot
Screw
Flanged Nut
Rubber Foot
Place a Flanged Nut on the end of the Screw on the inside of
the Receptacle Body. Use the Wrench to hold the Nut still while
tightening the screw with the screwdriver. This will protect the
powdercoat nish inside the Receptacle Body.
Repeat Step 3 for the remaining two Rubber Feet.4.
Turn the Receptacle Body right side up.5.
Place the Plastic Liner inside the Receptacle Body with the opening facing up.6.
Place the Spun Steel Top over the top of the Receptacle Body.7.
Move the assembled Receptacle to the desired location.8.
Retighten the hardware two weeks aer the initial assembly.9.
