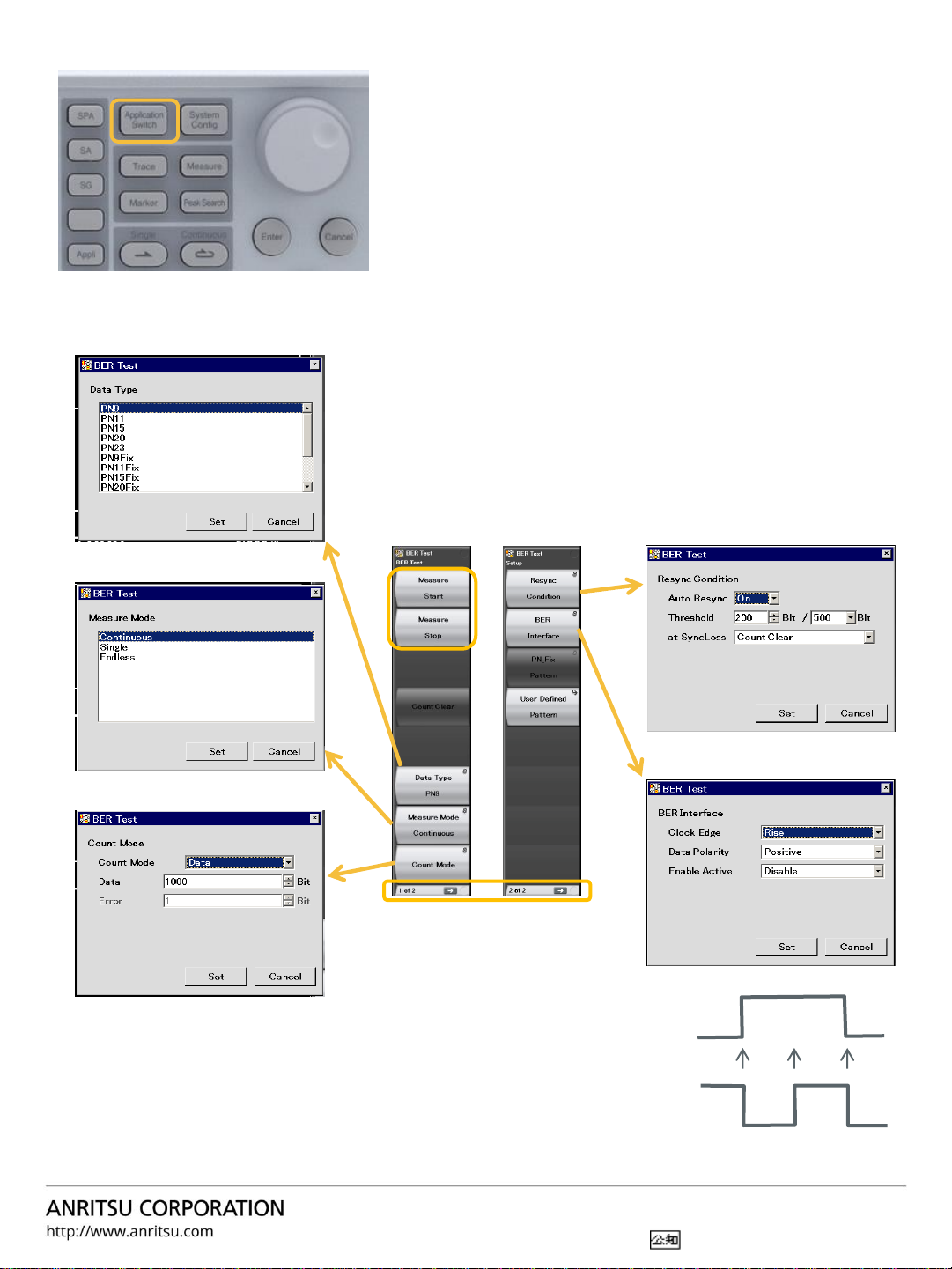

[Procedure]
①Press [Application Switch].
②Enable the BER function by pressing [Fx: BER Test].
(Page 1)
③Select [F6: Data Type] (Ex. PN9).
④Select [F7: Measure Mode] (Ex. Continuous).
⑤Select [F8: Count Mode] (Ex. Data, 1000 bit).
*The BER result is displayed for each set data bit count.
(Page 2)
⑥Press [F1: Resync Condition].
(Ex. Auto Resync = On, Threshold = 200/500 bit,
at Sync Loss = Count Clear)
*Set as necessary.
⑦Press [F2: BER Interface]. *See explanatory note.
(Ex. Clock Edge = Rise, Data Polarity = Positive,
Enable Active = Disable)
(Page 1)
⑧Press [F1: Measure Start] to start measurement.
⑨Press [F2: Measure Stop] to stop measurement.
①
③
④
⑤
⑥
⑦
Data
Clock
Note: Clock Polarity (See diagram on right.)
When demodulated data is output at the
DUT in synchrony with the clock Falling
edge, the BER measurement is counted at
the clock Rising edge.
Use an oscilloscope to confirm the data
and clock output from the DUT.
