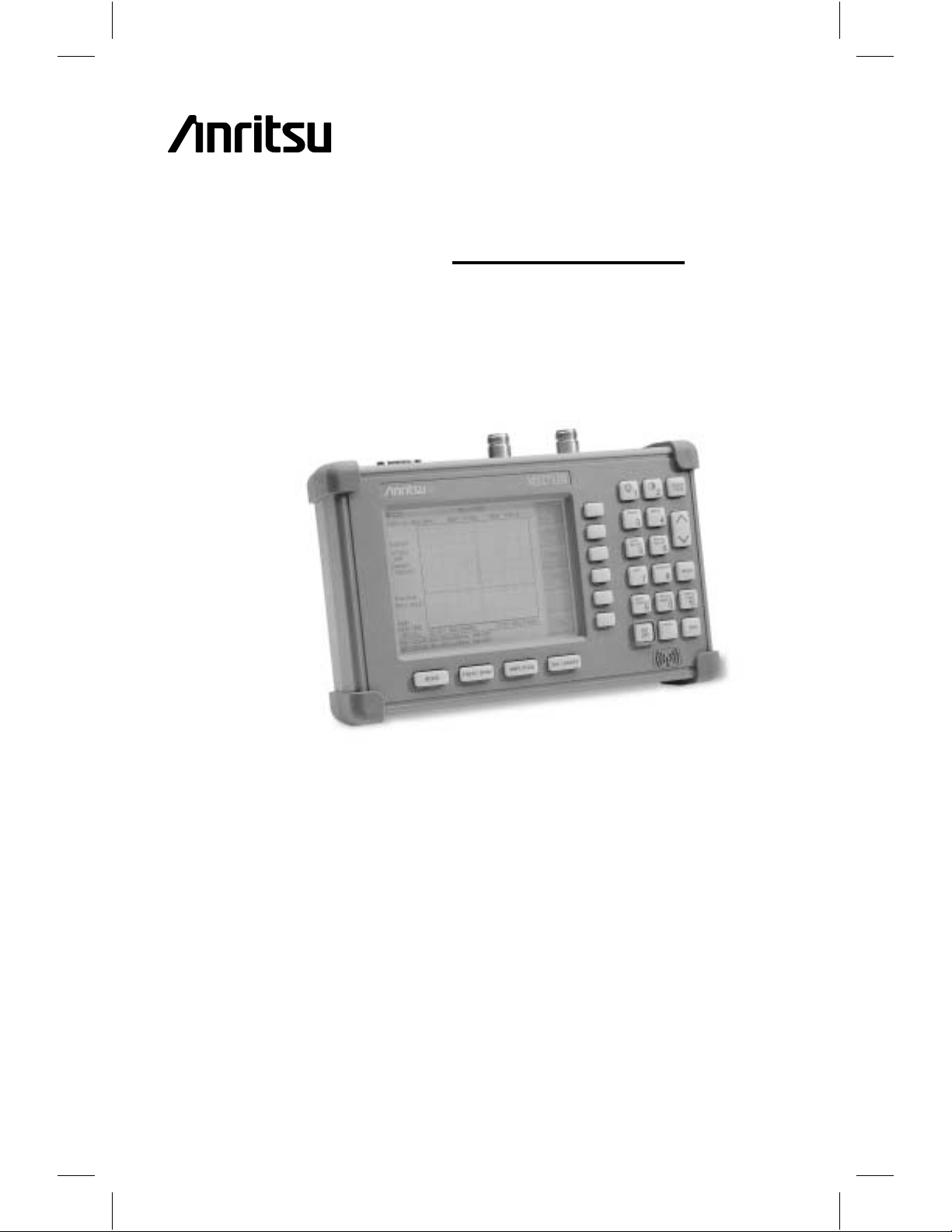

Anritsu MS2711B User manual

MS2711B
Hand Held
Spectrum Analyzer
User's Guide
Hand-Held Spectrum Analyzer for Measuring,
Monitoring and Analyzing Signal Environments

WARRANTY
The Anritsu product(s) listed on the title page is (are) warranted against defects in
materials and workmanship for one year from the date of shipment.
Anritsu's obligation covers repairing or replacing products which prove to be defec-
tive during the warranty period. Buyers shall prepay transportation charges for
equipment returned to Anritsu for warranty repairs. Obligation is limited to the origi-
nal purchaser. Anritsu is not liable for consequential damages.
LIMITATION OF WARRANTY
The foregoing warranty does not apply to Anritsu connectors that have failed due to
normal wear. Also, the warranty does not apply to defects resulting from improper or
inadequate maintenance by the Buyer, unauthorized modification or misuse, or op-
eration outside the environmental specifications of the product. No other warranty is
expressed or implied, and the remedies provided herein are the Buyer's sole and
exclusive remedies.
TRADEMARK ACKNOWLEDGMENTS
MS-DOS, Windows, Windows for Workgroups, Windows 95/98/NT4/2000/ME/XP
are registered trademarks of the Microsoft Corporation.
Anritsu ia a trademark of Anritsu Company.
NOTICE
Anritsu Company has prepared this manual for use by Anritsu Company personnel
and customers as a guide for the proper installation, operation and maintenance of
Anritsu Company equipment and computer programs. The drawings, specifications,
and information contained herein are the property of Anritsu Company, and any un-
authorized use or disclosure of these drawings, specifications, and information is
prohibited; they shall not be reproduced, copied, or used in whole or in part as the
basis for manufacture or sale of the equipment or software programs without the
prior written consent of Anritsu Company.
UPDATES
Updates to this manual, if any, may be downloaded from the Anritsu internet site at:
http://www.us.anritsu.com.

Table of Contents
Chapter 1 - General Information
Introduction..................................1-1
Description ..................................1-1
Standard Accessories.............................1-1
Options ....................................1-2
Printers ....................................1-2
Optional Accessories .............................1-3
Performance Specifications .........................1-5
Preventive Maintenance ...........................1-8
Calibration ..................................1-8
Annual Calibration ..............................1-8
ESD Cautions .................................1-8
Anritsu Service Centers ...........................1-9
Chapter 2 - Quick Start Guide
Introduction..................................2-1
Turning the MS2711B On for the First Time................2-1
Front Panel Overview ............................2-2
Display Overview ...............................2-3
Test Panel Connectors ............................2-8
Making Spectrum Analyzer Measurements ................2-9
Making a Basic Measurement .......................2-15
Example – Measuring a 900 MHz signal..................2-15
Save and Recall Display...........................2-20
Printing....................................2-20
Battery Information.............................2-22
Charging a New Battery ..........................2-22
Charging the Battery in the HHSA ....................2-22
Charging the Battery in the Optional Charger ..............2-22
Determining Remaining Battery Life ...................2-23
Symbols ...................................2-26
Self Test ...................................2-26
Error Messages ...............................2-27
Using the Soft Carrying Case........................2-29
Chapter 3 - Key Functions
Introduction..................................3-1
Hard Keys...................................3-1
Soft Keys ...................................3-4
i
January 2004 10580-00074
Copyright 2002-2004 Anritsu Company Revision: E

Chapter 4 - Measurement Fundamentals
Introduction..................................4-1
Measurement Fundamentals.........................4-1
Chapter 5 - Field Measurements
Introduction..................................5-1
Occupied Bandwidth .............................5-1
Channel Power Measurement ........................5-3
CDMA Channel Power Measurement ...................5-3
GSM Channel Power Measurement.....................5-5
AMPS Channel Power Measurement ....................5-7
Adjacent Channel Power Ratio .......................5-9
Adjacent Channel Power Measurement ..................5-9
GSM Adjacent Channel Power Measurement ..............5-11
AMPS (TDMA) Adjacent Channel Power Measurement ........5-13
Out-of-Band Spurious Emissions......................5-14
Out-of-Band Spurious Emission Measurement ..............5-14
In-band/Out-of-Channel Measurements..................5-16
In-band Spurious Measurement ......................5-16
Field Strength ................................5-18
Making Power Measurements with the Power Monitor
(Option 5) ..................................5-20
Dynamic Attenuation Control .......................5-22
Chapter 6 - Preamplifier
Description ..................................6-1
Preamplifier Operation ...........................6-1
Preamplifier Measurement Example ....................6-2
Chapter 7 - Tracking Generator
Description ..................................7-1
Tracking Generator .............................7-1
Chapter 8 - Software Tools
Introduction..................................8-1
Features ....................................8-1
System Requirements.............................8-1
Installation ..................................8-2
Using Software Tools .............................8-3
Downloading Traces .............................8-3
Plot Capture to the PC ............................8-4
Plot Upload to the Instrument ........................8-4
Plot Properties ................................8-4
Index
ii

Chapter 1
General Information
Introduction
This chapter provides a description, performance specifications, optional accessories, pre-
ventive maintenance, and calibration requirements for the Anritsu Hand Held Spectrum An-
alyzer model listed below. Throughout this manual, this instrument may be referred to as an
Anritsu HHSA.
Model Frequency Range
MS2711B 100 kHz to 3000 MHz
Description
The Anritsu HHSA is a synthesizer-based hand held spectrum analyzer that provides quick
and accurate signal results. Measurements can be easily made by using the main instrument
functions: frequency, span, amplitude and bandwidth. Dedicated keys for common func-
tions and a familiar calculator type keypad are available for fast data entry. Automatic time
and date stamping of measurement data of up to 200 results is provided as is storage and re-
call of up to 10 measurement setups. A large, high-resolution liquid crystal display (LCD)
provides easy viewing in a variety of lighting conditions. The Anritsu HHSA is capable of
up to two and one-half hours of continuous operation from a fully charged battery and can
be operated from a 12.5 Vdc source (which will also simultaneously charge the battery).
Built-in energy conservation features can be used to extend battery life over an eight-hour
workday.
The Anritsu HHSA is designed for monitoring, measuring, and analyzing signal environ-
ments. Typical measurements include: in-band interference, transmit spectrum analysis, an-
tenna isolation and cell area interference. A full range of marker capabilities such as peak,
center and delta functions are provided for faster, more comprehensive measurement of dis-
played signals. Multiple limit lines are available for creating quick, simple pass/fail mea-
surements. A menu option provides for an audible beep when the limit value is exceeded.
To permit use in low-light environments, the LCD can be back lit using a front panel key.
Standard Accessories
Anritsu Software Tools, a PC-based software program, provides an on-line database record
for storing measurement data. Software Tools can also convert the Anritsu HHSA display
to a Microsoft Windows 95/98/NT4/2000/ME/XP graphic. Measurements stored in the
Anritsu HHSA internal memory can be down-loaded to a PC using the included null-mo-
dem serial cable. Once stored, the graphic trace can then be displayed, scaled, or enhanced
with markers and limit lines. Historical graphs can be overlaid with current data using the
PC mouse in a drag-and-drop fashion. The underlying data can be extracted and used in
spreadsheets or for other analytical tasks.
1-1

The following standard accessories are supplied with the MS2711B:
·Soft Carrying Case
·AC-DC Adapter
·Automotive Cigarette Lighter 12 Volt DC Adapter
·CD ROM containing the Software Tools program.
·Serial Interface Cable (Null Modem Type)
·Rechargeable NiMH Battery
·One year Warranty (includes battery, firmware, and software)
·User's Guide
Options
·Option5—RFWattmeter Power Monitor (RF detector not included)
·Option 8 ¾Built-in 20 dB Preamplifier, 1 MHz to 3 GHz
·Option 20 ¾Built-in Tracking Generator, 10 MHz to 3 GHz
Printers
·2000-766 HP DeskJet Printer, with Interface Cable, Black Print Cartridge,
and U.S. Power Cable
·2000-753 Serial-to-Parallel Converter Cable
·2000-661 Black Print Cartridge
·2000-1207 Rechargeable Battery Pack for HP 350 Deskjet
·2000-663 Power Cable (Europe) for DeskJet Printer
·2000-664 Power Cable (Australia) for DeskJet Printer
·2000-665 Power Cable (U.K.) for DeskJet Printer
·2000-667 Power Cable (So. Africa) for DeskJet Printer
·2000-1008 Sieko DPU-414-30BU Thermal Printer with Internal
Battery, Thermal Printer Paper, Serial Cable, Power Cable
·2000-755 Five rolls of Thermal Paper
·2000-1002 U.S. Adapter for Seiko DPU-414-30B
·2000-1003 Euro Adapter for Seiko DPU-414-30B
·2000-1194 Japan Adapter for Seiko DPU-414-30B
·2000-1004 Battery Pack Adapter for Seiko DPU-414-30B
·2000-1012 Serial 9-pin male to 9-pin female cable for Seiko DPU-414-30B
1-2
Chapter 1 General Information
1

Optional Accessories
Optional Accessories are shown in Table 1-1.
1-3
Chapter 1 General Information
Part Number Description
5400-71N50
42N50A-30 RF Detector, N(m), 50 ohm, 1 to 3000 MHz Attenuator, 30 dB, 50 Watt, bi-directional
15NN50-1.5C Test Port Cable Armored, 1.5 meter, N(m) to N(m), 6 GHz
15NN50-3.0C Test Port Cable Armored, 3.0 meter, N(m) to N(m), 6 GHz
15NN50-5.0C Test Port Cable Armored, 5.0 meter, N(m) to N(m), 6 GHz
15NNF50-1.5C Test Port Cable Armored, 1.5 meter, N(m) to N(f), 6 GHz
15NNF50-5.0C Test Port Cable Armored, 3.0 meter, N(m) to N(f), 6 GHz
15NNF50-3.0C Test Port Cable Armored, 5.0 meter, N(m) to N(f), 6 GHz
15ND50-1.5C Test Port Cable Armored, 1.5 meter, N(m) to 7/16 DIN(m), 6 GHz
15NDF50-1.5C Test Port Cable Armored, 1.5 meter, N(m) to 7/16 DIN(f), 6 GHz
800-109 Detector Extender Cable, 7.6m (25 ft.)
800-110 Detector Extender Cable, 15.2m (50 ft.)
800-111 Detector Extender Cable, 30.5m (100 ft.)
800-112 Detector Extender Cable, 61m (200 ft.)
510-90 Adapter 7/16 (f) to N(m), 3.5 GHz
510-91 Adapter 7/16 (f) to N(f), 3.5 GHz
510-92 Adapter 7/16 (m) to N(m), 3.5 GHz
510-96 Adapter 7/16 DIN (m) to 7/16 DIN (m), 3.5 GHz
510-97 Adapter 7/16 DIN (f) to 7/16 DIN (f), 3.5 GHz
1091-26 Adapter, DC to 18 GHz, 50 Ohm, N(m)-SMA(m)
1091-27 Adapter, DC to 18 GHz, 50 Ohm, N(m)-SMA(f)
1091-172 Adapter, DC to 1.3 GHz, 50 Ohm, N(m)-BNC(f)
34NN50A Precision Adapter, DC to 18 GHz, 50 Ohm, N(m)-N(m)
34NFNF50 Precision Adapter, DC to 18 GHz, 50 Ohm, N(f)-N(f)
61N50 RF SWR Bridge, 10-2500 MHz, 50 Ohm, N(m)
61NF50 RF SWR Bridge, 10-2500 MHz, 50 Ohm, N(f)
1030-86 Band Pass Filter, 800 MHz band, 806-869 MHz, RL=1.7 dB, N(m)-SMA(f)
1030-87 Band Pass Filter, 900 MHz band, 902-960 MHz, RL=1.7 dB, N(m)-SMA(f)
1030-88 Band Pass Filter, 1900 MHz band, 1.85-1.99 GHz, RL=1.8 dB, N(m)-SMA(f)
1030-89 Band Pass Filter, 2400 MHz band, 2.4-2.5 GHz, RL=1.9 dB, N(m)-SMA(f)
12N50-75B Matching Pad, converts 75 Ohms to 50 Ohms, 7.5 dB loss
Table 1-1. Optional Accessories

1-4
Chapter 1 General Information
Part Number Description
48258 Spare Soft Carrying Case
40-115 Spare AC/DC Adapter
806-62 Spare Automotive Cigarette Lighter/12 Volt DC adapter
800-441 Spare Serial Interface Cable
551-1691 USB to Serial Adapter
760-215A Transit Case for Anritsu Hand Held Spectrum Analyzer
633-27 Rechargeable Battery, NiMH
2300-347 Anritsu Hand Held Spectrum Analyzer Software Tools
10580-00074 Anritsu HHSA User’s Guide, Model MS2711B
10580-00071
10580-00072 Anritsu HHSA Programming Manual, Model MS2711B Anritsu HHSA Maintenance Manual, Model MS2711B
2000-1029 Battery Charger (NiMH), with Universal Power Supply
2000-1030 Portable Antenna, 50 Ohm, SMA (m), 1.71 to 1.88 GHz
2000-1031 Portable Antenna, 50 Ohm, SMA (m), 1.85 to 1.99 GHz
2000-1032 Portable Antenna, 50 Ohm, SMA (m), 2.4 to 2.5 GHz
2000-1200 Portable Antenna, 50 Ohm, SMA (m), 806-869 MHz
2000-1035
70-28 Portable Antenna, 50 Ohm, SMA (m), 902-960 MHz Headset
Table 1-1. Optional Accessories (continued)

Performance Specifications
Performance specifications are provided in Table 1-2. Unless otherwise noted, specified
values are obtained after a five minute warmup period at a constant ambient temperature.
The typical values are provided for reference, and are not guaranteed.
1-5
Chapter 1 General Information
Description Value
Frequency
Frequency Range 100 kHz to 3.0 GHz
Frequency Reference
Aging
Accuracy ±1 ppm/yr ±2 ppm
Frequency Span 1 kHz to 3 GHz in 1, 2, 5 step selections in auto mode, plus
zero span
Sweep Time ³6.5 seconds full span; 510 ms zero span
SSB Phase Noise –75 dBc/Hz, 30 kHz offset
Spurious Responses
Input Related £-45 dBc
Spurious
Residual Responses £-90 dBm, ³500 kHz
Resolution Bandwidth
Selections 10 kHz, 30 kHz, 100 kHz and 1 MHz
Accuracy
Video Bandwidth
±20% typical
Selection 100 Hz to 300 kHz in 1-3 sequence
Amplitude
Measurement Range
Maximum Input Level
+20 dBm to –95 dBm (without options)
+23 dBm, without damage
±50 VDC
Displayed Average Noise
Level: £–115 dBm (³1 MHz typical with preamplifier on)
£–95 dBm (³500 kHz, typical with preamplifier off)
£–80 dBm (<500 kHz, typical with preamplifier off)
Dynamic Range > 65 dB
Total Level Accuracy ±2 dB ³500 kHz, typical *
±3 dB < 500 kHz, typical *
* For input signal levels ³–60 dBm,
accuracy of 50 MHz @ –30 dBm = ±1dB
Amplitude Units
Log Scale Mode dBm/m, dBV/m, dBmV/m, dBmV/m
Display Range 2 to 15 dB/division, in 1 dB steps, 10 divisions displayed
Attenuator Range: 0 to 50 dB, selected manually or automatically
coupled to the reference level. Resolution in 10 dB steps.
Table 1-2. Performance Specifications (1 of 3)

1-6
Chapter 1 General Information
Description Value
Display
Type Monochrome LCD with back light capability
Resolution 640 ´480
Marker Modes Standard
delta
marker to peak
marker to center (M1 to M4 only)
marker to valley (M5 & M6 only)
Memory
Trace Storage 200 traces
Setup Storage 10 setups
Displayed Traces 2 traces
Inputs
RF Input 50 W
Connector Female, Type N
RF Input VSWR (³20 dB atten.) 2.0:1 typical
RS232 Interface
Type Null modem
Baud Range 9600, 19.2k, 38.4k, 56k, 115.2k baud
Printer Interface
Drivers Refer to the list of supported printers on page 2-20
Tracking Generator
Frequency
Range
Resolution 10.0 MHz to 3.0 GHz 5.0 kHz
Tracking Offset Range ±5 MHz
Output
Output Power Level
Resolution
Absolute Level Accuracy
Output Tracking VSWR
Spurious Harmonics
Non-Spurious Harmonics
Measurement Range
0 to –60 dBm
0.1 dB
±1.5 dB, 0 to –40 dBm, ±4.0 dB, –40 dBm to –60 dBm
<2.0:1, <0 dBm; <1.5:1, <–12 dBm
£–20 dBc
£–20 dBc
+20 to –90 dBm (>10 MHz, typical w/ tracking generator on)
Table 1-2. Performance Specifications (2 of 3)

1-7
Chapter 1 General Information
Description Value
Preamplifier
Frequency
Range
Amplitude
Gain
Measurement Range
Maximum Input Level
Displayed Avg Noise
Level
1.0 MHz to 3.0 GHz
20 dB, 1.0 MHz to 3.0 GHz typical
–25 dBm to –115 dBm (typical with preamplifier on)
+13 dBm, without damage
±50 VDC
£–115 dBm (1 MHz to 3 GHz typical)
General Characteristics
Dimensions 10 ´7´2.4 inches
25.4 ´17.8 ´6.1 centimeters
Weight base model: 4.5 pounds (2.02 kg) including battery
with all options: 4.9 pounds (2.2 kg) including battery
Power Requirements NIMH battery: 10.8 volts, 1800 mA maximum
External DC input: +11 to +15 Vdc, 1250 mA max.
Temperature Operating: 0 to +50°C, 85% or less humidity
Non-operating: –20 to +75°C
Electromagnetic Compatibility Meets European community requirements for CE marking
Safety Conforms to EN 61010-1 for Class 1 portable equipment
Table 1-2. Performance Specifications (3 of 3)

Preventive Maintenance
Anritsu HHSA preventive maintenance consists of cleaning the unit and inspecting and
cleaning the RF connector on the instrument and all accessories.
Clean the Anritsu HHSA with a soft, lint-free cloth dampened with water or water and a
mild cleaning solution.
CAUTION: To avoid damaging the display or case, do not use solvents or abra-
sive cleaners.
Clean the RF connectors and center pins with a cotton swab dampened with denatured alco-
hol. Visually inspect the connectors. The fingers of the N (f) connectors and the pins of the
N(m) connectors should be unbroken and uniform in appearance. If you are unsure whether
the connectors are good, gauge the connectors to confirm that their dimensions are correct.
Visually inspect the test port cable(s). The test port cable should be uniform in appearance,
not stretched, kinked, dented, or broken.
Calibration
The Anritsu HHSA loads factory calibration data during start-up, eliminating the need for
daily calibration checks.
Annual Calibration
Although the Anritsu HHSA does not require daily field calibration, Anritsu recommends
an annual calibration and performance verification by local Anritsu service centers. Anritsu
service centers are listed in Table 1-3 beginning on the following page.
ESD Cautions
The MS2711B, like other high performance instruments, is susceptible to ESD damage.
Very often, coaxial cables and antennas build up a static charge, which, if allowed to dis-
charge by connecting to the MS2711B, may damage the MS2711B input circuitry.
MS2711B operators should be aware of the potential for ESD damage and take all neces-
sary precautions. Operators should exercise practices outlined within industry standards like
JEDEC-625 (EIA-625), MIL-HDBK-263, and MIL-STD-1686, which pertain to ESD and
ESDS devices, equipment, and practices.
As these apply to the MS2711B, it is recommended to dissipate any static charges that may
be present before connecting the coaxial cables or antennas to the MS2711B. This may be
as simple as temporarily attaching a short or load device to the cable or antenna prior to at-
taching to the MS2711B. It is important to remember that the operator may also carry a
static charge that can cause damage. Following the practices outlined in the above standards
will insure a safe environment for both personnel and equipment.
1-8
Chapter 1 General Information

Anritsu Service Centers
Table 1-3 provides a listing of the Anritsu Service Centers.
1-9/1-10
Chapter 1 General Information
UNITED STATES
ANRITSU COMPANY
685 Jarvis Drive
Morgan Hill, CA 95037-2809
Telephone: [phone]
FAX: [phone]
ANRITSU COMPANY
10 NewMaple Ave., Suite 305
Pine Brook, NJ 07058
Telephone: [phone]
FAX: [phone]
ANRITSU COMPANY
1155 E. Collins Blvd
Richardson, TX 75081
Telephone: 1-800-ANRITSU
FAX: [phone]
AUSTRALIA
ANRITSU PTY. LTD.
Unit 3, 170 Foster Road
Mt Waverley, VIC 3149
Australia
Telephone: [phone]
FAX: [phone]
BRAZIL
ANRITSU ELECTRONICA LTDA.
Praia de Botafogo 440. Sala 2401
CEP22250-040,Rio de Janeiro,RJ,
Brasil
Telephone: [phone]
FAX: [phone]
CANADA
ANRITSU INSTRUMENTS LTD.
700 Silver Seven Road, Suite 120
Kanata, Ontario K2V 1C3
Telephone: [phone]
FAX: [phone]
CHINA (SHANGHAI)
ANRITSU ELECTRONICS CO LTD
2F,Rm.B, 52 Section Factory Bldg.
NO 516 Fu Te Road (N)
Waigaoqiao Free Trade Zone
Pudong, Shanghai 200131
PR CHINA
Telephone: [phone]
FAX: [phone]
FRANCE
ANRITSU S.A
9 Avenue du Quebec
Zone de Courtaboeuf
91951 Les Ulis Cedex
Telephone: [phone]
FAX: [phone]
GERMANY
ANRITSU GmbH
Grafenberger Allee 54-56
D-40237 Dusseldorf
Germany
Telephone: [phone]
FAX: [phone]
INDIA
MEERA AGENCIES (P) LTD
A-23 Hauz Khas
New Delhi, India 110 016
Telephone: [phone]
FAX: [phone]
ISRAEL
TECH-CENT, LTD
4 Raul Valenberg St.
Tel-Aviv, Israel 69719
Telephone: [phone]
FAX: [phone]
ITALY
ANRITSU Sp.A
Rome Office
Via E. Vittorini, 129
00144 Roma EUR
Telephone: [phone]
FAX: [phone]
JAPAN
ANRITSU CUSTOMER SERVICE LTD.
1800 Onna Atsugi—shi
Kanagawa-Prf. 243 Japan
Telephone: [phone]
FAX: [phone]
KOREA
ANRITSU SERVICE CENTER
8F Sanwon Bldg.
1329-8 Seocho-Dong
Seocho-Ku
Seoul, Korea 137-070
Telephone: [phone]
FAX: [phone]
SINGAPORE
ANRITSU (SINGAPORE) PTE LTD
10, Hoe Chiang Road
#07-01/02
Keppel Towers
Singapore 089315
Telephone:[phone]
FAX:[phone]
SOUTH AFRICA
ETESCSA
12 Surrey Square Office Park
330 Surrey Avenue
Ferndale, Randburt, 2194
South Africa
Telephone: [phone]
Fax: [phone]
SWEDEN
ANRITSU AB
Botvid Center
Fittja Backe 13A
145 84
Stockholm, Sweden
Telephone: [phone]
FAX: [phone]
TAIWAN
ANRITSU CO., LTD.
6F, No. 96, Section 3
Chien Kuo N. Road
Taipei, Taiwan, R.O.C.
Telephone: [phone]
FAX: [phone]
UNITED KINGDOM
ANRITSU LTD.
200 Capability Green
Luton, Bedfordshire
LU1 3LU, England
Telephone: [phone]
FAX: [phone]
Table 1-3. Anritsu Service Centers

Chapter 2
Quick Start Guide
Introduction
This chapter provides a brief overview of the Anritsu MS2711B HHSA. The intent of this
chapter is to provide the user with a starting point for making basic measurements. For
more detailed information, users may want to consult Chapter 3, Key Functions or Chapter
4, Measurement Fundamentals.
Turning the MS2711B On for the First Time
The Anritsu MS2711B HHSA is a lightweight, hand held, battery operated unit designed
specifically for field environments and applications requiring mobility. It is capable of up to
2.5 hours of continuous operation from a fully charged, field-replaceable battery. Built-in
energy conservation features allow battery life to be extended over an eight-hour workday.
The Anritsu MS2711B HHSA can also be operated from a 12.5 Vdc source (which will also
simultaneously charge the battery). This can be achieved with either the Anritsu AC-DC
Adapter (P/N 40-115) or 12.5 Vdc Automotive Cigarette Lighter Adapter (P/N 806-62).
Both items are included as standard accessories (see Chapter 1).
Press the ON/OFF front panel button (Figure 2-1).
The HHSA takes about five seconds to perform a series of self-diagnostic routines. At com-
pletion, the screen displays the Anritsu logo, the model number, and the version of firm-
ware. It also prompts you to press ENTER to continue.
2-1
MS2711B
CONT
SINGLE
TRACE MEAS
SAVE
SETUP
RECALL
SETUP
LIMIT MARKER
SAVE
DISPLAY
RECALL
DISPLAY
PRINT
MODE FREQ / SPAN AMPLITUDE BW/SWEEP
SYS
ENTER
CLEAR
ESCAPE
ON
OFF
/
12
4
56
78
90
3
+-
.
ON/OFF Key

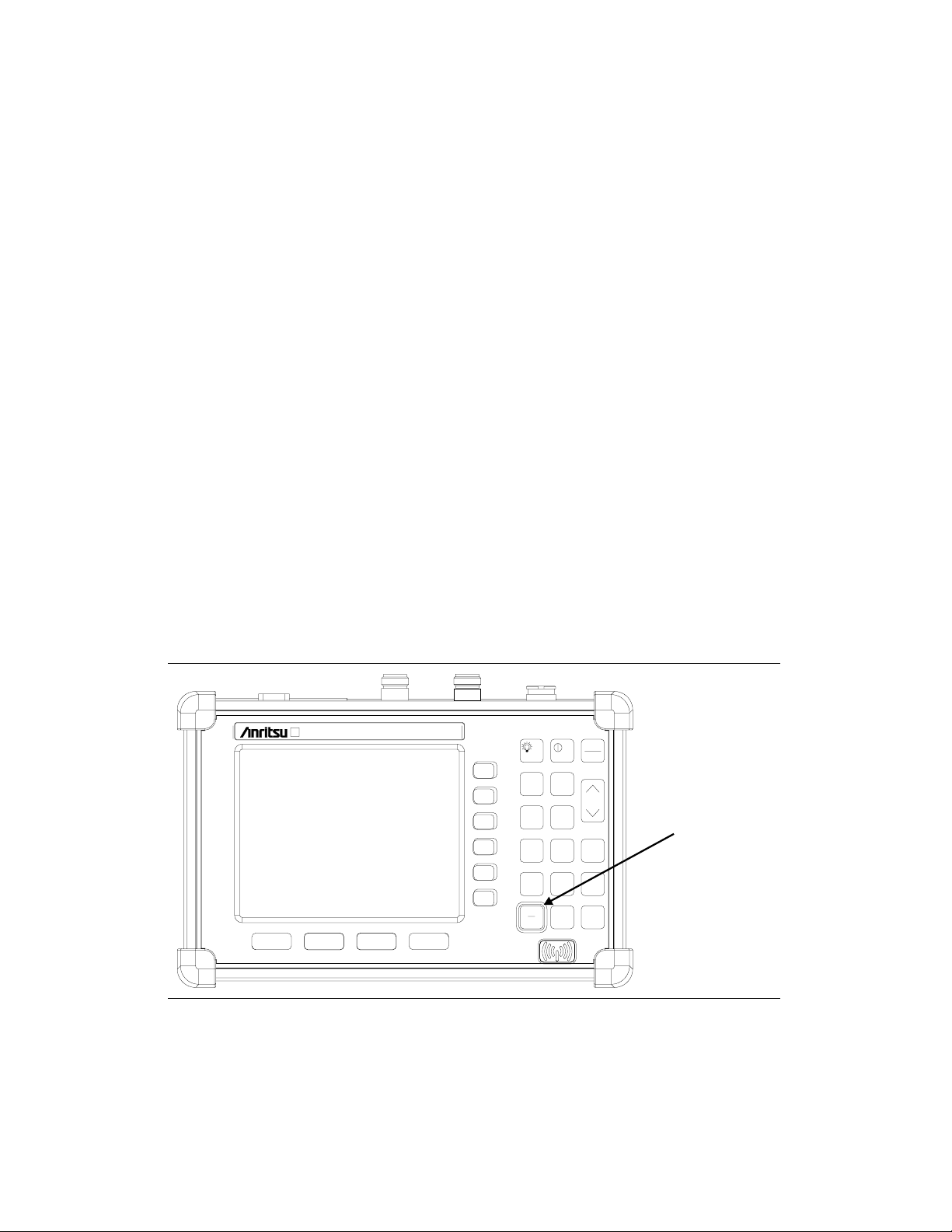

Figure 2-1. MS2711B Power ON/OFF Key

The Anritsu HHSA is now ready for operation. No additional keystrokes or installation are
required. For information on making measurements with the Anritsu HHSA, refer to
“Making a Basic Measurement,” on page 2-15. For advanced applications, refer to Chapter
4, Measurement Fundamentals, Chapter 6, Preamplifier, and Chapter 7, Tracking Genera-
tor.
Front Panel Overview
The Anritsu HHSA menu-driven user interface is easy to use and requires little training.
Hard keys on the front panel are used to initiate function-specific menus. There are four
function hard keys located below the display: Mode, Frequency/Span, Amplitude and
Bandwidth/Sweep.
There are seventeen keypad hard keys located to the right of the display. Twelve of the key-
pad hard keys are dual purpose, depending on the current mode of operation. The dual pur-
pose keys are labeled with one function in black, the other in blue.
There are also six soft keys that change function depending upon the current mode selec-
tion. The current soft key function is indicated in the active function block to the right of

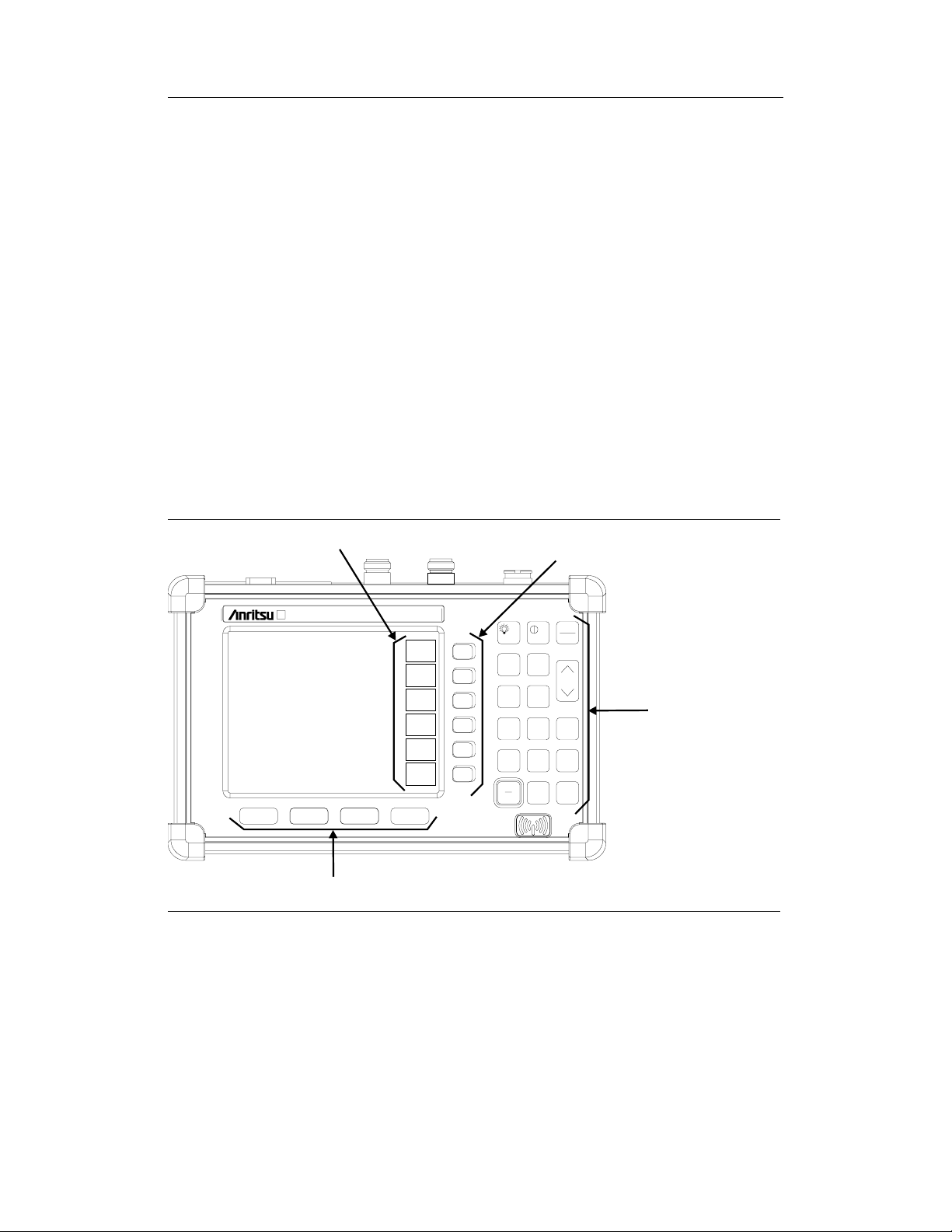

the display. The locations of the different keys are illustrated in Figure 2-2, below.
2-2
Chapter 2 Quick Start Guide
MS2711B
CONT
SINGLE
TRACE MEAS
SAVE
SETUP
RECALL
SETUP
LIMIT MARKER
SAVE
DISPLAY
RECALL
DISPLAY
PRINT
MODE FREQ / SPAN AMPLITUDE BW/SWEEP
SYS
ENTER
CLEAR
ESCAPE
ON
OFF
/
12
4
56
78
90
3
+-
.
Soft Keys
Active Function Block
Keypad Hard Keys
Function Hard Keys
Figure 2-2. MS2711B Keys

Display Overview
Figure 2-3 illustrates some of the key information areas of the MS2711B display.
Figures 2-4 through 2-7 illustrate the menu structures and soft key labels for each menu se-
lection. Refer to Chapter 3, Key Functions, for more detailed hard and soft key descriptions.
2-3
Chapter 2 Quick Start Guide
TITLE BAR
SWEEP MODE
RF INPUT PORT
IMPEDANCE
DETECTION METHOD
P
REAMPLIFIER STATE
MESSAGE AREA
CURRENT MENU
Figure 2-3. Display Overview

2-4
Chapter 2 Quick Start Guide
MODE MENU SOFT KEYS
SPECTRUM
A
NALYZER
(DEFAULT) FREQ/SPAN
AMPLITUDE
BW/SWEEP
ATTEN
CENTER
START
STOP
SPAN
RBW
VBW
DETECTION
UNITS
REF
LEVEL
RBW
AUTO
AUTO
AUTO
POSITIVE
PEAK
dBm
GHz
EDIT
SCALE
VBW AVERAGE
(1-25)
MANUAL
MANUAL
MANUAL
AVERAGE
dBV
MHz
FULL
ATTEN
MAX
HOLD
DYNAMIC
NEGATIVE
PEAK
dBmV dBuV mW
READOUT
kHz
ZERO
CENTER SPAN START STOP
UNITS
REF
LEVEL
OFFSET
DETEC-
TION
Hz
SPAN
UP
1-2-5
SPAN
DOWN
1-2-5
BACK
BACK
BACK
BACK
BACK
BACK
POWER
MONITOR POWER MONITOR UNITS REL OFFSET ZERO
Figure 2-4. Function Hard Keys Menu Structure, Spectrum Analyzer and Power Monitor Modes

Chapter 2 Quick Start Guide
2-5
MODES MENU SOFT KEYS
TRACKING
GENERATOR
FREQ/SPAN
AMPLITUDE
BW/SWEEP
ATTEN
CENTER
START
STOP
SPAN
RBW
VBW
DETECTION
UNITS
REF
LEVEL
RBW
AUTO
AUTO
AUTO
POSITIVE
PEAK
dBm
GHz
EDIT
SCALE
VBW AVERAGE
(1-25)
MANUAL
MANUAL
MANUAL
AVERAGE
dBV
MHz
FULL
ATTEN
MAX
HOLD
DYNAMIC
NEGATIVE
PEAK
dBmV dBuV mW
READOUT
kHz
ZERO
CENTER SPAN START STOP
TG
FREQ
OFFSET
TG
FREQ
OFFSET
UNITS
REF
LEVEL
OFFSET
TG
OUTPUT
LEVEL
DETEC-
TION
Hz
SPAN
UP
1-2-5
SPAN
DOWN
1-2-5
BACK
BACK
BACK
BACK
BACK
BACK
TG-FAST TUNE
Figure 2-5. Function Hard Keys Menu Structure, Tracking Generator Modes

2-6
Chapter 2 Quick Start Guide
MODE MENU SOFT KEYS
SPECTRUM
A
NALYZER
(DEFAULT)
LIMIT
SINGLE
LIMIT
MULTIPLE
UPPER
LIMITS
MULTIPLE
LOWER
LIMITS
SEGMENT
ON/OFF
SEGMENT
1
SEGMENT
1
ON/OFF
SEGMENT
2
SEGMENT
2
EDIT
SEGMENT
3
SEGMENT
3
SEGMENT
4
SEGMENT
4
PREV
SEGMENT
SEGMENT
5
SEGMENT
5
NEXT
SEGMENT
EDIT
BEEP
AT
LEVEL
SINGLE
LIMIT
MULTIPLE
UPPER
LIMITS
MULTIPLE
LOWER
LIMITS
LIMIT
BEEP
BACK
BACK
BACK
BACK
TRACE
TRACE
A
NORMAL-
IZE
RESET
A
A->B
NORMAL-
IZE
ON/OFF
A-B
->
A
A+B
->
A
TRACE
A
TRACE
B
BACK
TRACE
B
VIEW
B
CLEAR
B
RECALL
TRACE
->B
BACK
FIELD
STRNGTH
OBW
CHANNEL
POWER
ACPR
MEAS
ON/OFF
METHOD
CENTER
FREQ
CENTER
FREQ
FIELD
STRNGTH
SELECT
ANTENNA
%
INT
BW
MAIN
CH
BW
OBW
dBc MEASURE
ON/OFF
MEASURE
ON/OFF
MEASURE
ON/OFF
CHANNEL
SPAN
ADJ
CH
BW
CHANNEL
SPACING
MORE
BACK
BACK
BACK
MORE
AM/FM
DEMOD
(SSB/CW)
AM/FM
DEMOD
ON/OFF DEMOD
TYPE VOLUME BFO
ADJUST BACK
AM/FM
DEMOD
(AM, FM-NARROW,
FM-WIDE)
ON/OFF DEMOD
TYPE VOLUME
SET
CTR FREQ
STEP SIZE
BACK
STEP
CENTER
FREQ
BACK
BACK
CHANNEL
POWER ACPR PREAMP
Figure 2-6. Keypad Hard Keys Menu Structure
