ANTAIRA EVC-3001 User manual

ANTAIRA TECHNOLOGIES
Ethernet Extender over VDSL2
Media Converter
EVC-3001 & EVC-3010
User’s Manual

Trademarks
Copyright © Antaira Technologies 2013.
Contents subject to revision without prior notice.
Antaira is a registered trademark of Antaira Technologies. The
information in this manual is subject to change without notice.
All other trademarks belong to their respective owners.
Disclaimer
Antaira Technologies does not warrant that the hardware will
work properly in all environments and/or applications, and makes
no warranty and representation, either implied or expressed,
with respect to the quality, performance, merchantability, or
tness for a particular purpose.
Antaira has made every effort to ensure that this User’s Manual
is accurate; Antaira disclaims liability for any inaccuracies or
omissions that may have occurred.
Information in this User’s Manual is subject to change without
notice and does not represent a commitment on the part of
Antaira. Antaira assumes no responsibility for any inaccuracies
that may be contained in this User’s Manual. Antaira makes no
commitment to update or keep current the information in this
User’s Manual, and reserves the right to make improvements to
this User’s Manual and/or to the products described in this User’s
Manual, at any time without notice. If you nd information in
this manual that is incorrect, misleading, or incomplete, we
would appreciate your comments and suggestions.

FCC Warning
This equipment has been tested and found to comply with the
regulations for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with this user’s guide, may
cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct
the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference, in which case the user
may be required to take adequate measures.
Energy Saving Note of the Device
This power required device does not support Standby mode
operation.
For energy saving, please remove the DC-plug to disconnect the
device from the power circuit.
Without removing the DC-plug, the device will still consume
power from the power source. In the view of Saving the Energy
and reduce the unnecessary power consuming, it is strongly
suggested to remove the DC-plug for the device if this device is
not intended to be active.

WEEE Warning
To avoid the potential effects on the environment and
human health as a result of the presence of hazardous
substances in electrical and electronic equipment, end
users of electrical and electronic equipment should
understand the meaning of the crossed-out wheeled bin symbol.
Do not dispose of WEEE as unsorted municipal waste and have
to collect such WEEE separately.
Revision
Antaira Ethernet over VDSL2 Converter User’s Manual
For Models: EVC-3001 & EVC-3010
Rev 1.1 (Dec 2013)

Table of Contents
1. Introduction ..................................................................... 6
1.1 Checklist ................................................................... 6
1.2 Ethernet over VDSL2 Bridge Description....................... 6
1.3 Key Features............................................................ 10
1.4 Specications........................................................... 11
2. Hardware Description ...................................................... 14
2.1 Front Panel .............................................................. 14
2.2 The Rear Panel ........................................................ 16
3. Installation..................................................................... 19
3.1 Install Ethernet over VDSL2 Converter ....................... 19
3.1 EVC-3001 / EVC-3010 LAN to LAN Connection............ 20
3.2 Connecting EVC-3001 / EVC-3010 ............................. 21
3.3 Connecting EVC-3010 ............................................... 23
4. Power Information .......................................................... 25
5. Troubleshooting SYMPTOM:.............................................. 26
6. FAQ............................................................................... 27

6
1.Introduction
1.1 Checklist
Check the contents of the package for following parts:
EVC-3001 x 1; or EVC-3010 x 1l
5V DC/ 2A AC-to-DC Power Adapter x 1l
RJ-11 Telephone Line x 1l
User’s Manual x 1l
If any of these items are missing or damaged, please contact
Antaira Sales Representative or authorized dealer immediately.
Please retain the carton including the original packing material,
and use them against to repack the product in case there is a
need to return it us for repair.
1.2 Ethernet over VDSL2 Bridge Description
Antaira’s state-of-the-art Ethernet-over-VDSL2 products are
based on two core networking technologies: Ethernet and
VDSL2 (Very-high-data-rate Digital Subscriber Line 2). This
technology offers the absolute fastest possible data transmission
speeds over existing copper telephone lines or coaxial cables
without the need for rewiring.
The EVC-3001 / EVC-3010 Converter has a switching architecture
with RJ-45 10/100Mbps Ethernet port and one asymmetric
or symmetric Ethernet over VDSL port (Asymmetric means
upstream and downstream rate are not the same and Symmetric
means upstream and downstream rate are similar) – the VDSL
port can be RJ-11 connector (EVC-3001) or BNC Connector
(EVC-3010). The EVC-3001 / EVC-3010 can be set to Central
Ofce (CO) or Customer Premises Equipment (CPE) mode via
a DIP switch. The performance of EVC-3001 (RJ11) will up to
100/55Mbps for asymmetric data rate within 200m and up to

7
25/4Mbps for asymmetric data rate at 1.6km. The performance
of EVC-3010 (BNC) is up to 100/65Mbps for asymmetric data
rate within 200m and up to 25/5Mbps for asymmetric data rate
at 3.0km. This capability is ideal for use as an Ethernet extender
for the existing Ethernet network.
Antaira VDSL2 Converter provides a much cost effective
replacement and smooth migration for existing Long Reach
Ethernet (LRE) networks.
The cable specications of the connection are listed as following:
10Base-T, Category 3, 4 or 5 UTPl
100Base-TX, Category 5, 5e or 6 UTPl
Ethernet over VDSL2, Twisted-pair telephone wiresl
Ethernet over VDSL2, Coaxial cablel
The two drawings pictures are typical application for the Ethernet
over VDSL2 Converter.
Note
Slave device (CPE) must connect to Master device
(CO) through the telephone wire or coaxial cable.
It is not allow connecting like Master to Master
or Slave to Slave. To define the EVC-3001 /
EVC-3010 to CO or CPE, please refer to section
2.2.1 for more detail.

8
Telephone wire
100Base-TX UTP
VDSL2 Coaxial Cable
VDSL2
Main office/PBX,
Telco CO,
wire closet
Existing Telephone Network
IP Camera
IP Camera
Ethernet
Switch
CAM Viewer
Coaxial
Coaxial
ECV-3011 CPE+
EVC-3011 CO
VDSL2
VDSL2
VDSL2
VDSL2
LAN1
EVC-3001
CPE
Ethernet over VDSL and Telephone Network
Main office/PBX,
Telco CO,
wire closet
LAN2
Router
Internet
Multi-LAN Connection

9
Telephone wire
100Base-TX UTP
VDSL2 Coaxial Cable
VDSL2
Main office/PBX,
Telco CO,
wire closet
Existing Telephone Network
Ethernet over VDSL and Telephone Network
LAN2LAN1
Up to 1.6km
Up to 3.0km
Coaxial Cable
EVC-3001
CPE
EVC-3001
CO
Main office/PBX,
Telco CO,
wire closet
EVC-3001
CPE
EVC-3001
CO
Ethernet over VDSL and Telephone Network
LAN2LAN1
Up to 1.6km
Main office/PBX,
Telco CO,
wire closet
IP Camera
CAM Viewer
EVC-3001 CO
VDSL2
EVC-3001 CPE
LAN to LAN Connection

10
1.3 Key Features
The Ethernet over VDSL2 Converter provides the following key
features:
Cost-effective VDSL2 CO / CPE bridge solutionl
One box design, CO / CPE selectable via DIP Switchl
Denes Asymmetric (Band Plan 998) and Symmetric band l
plans for the transmission of Upstream and Downstream
signals
Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x l
standards
DMT (Discrete Multi-Tone) line codingl
Half Duplex Back Pressure and IEEE 802.3x Full Duplex Pause l
Frame Flow Control
Built-in POTS splitter to share voice and data - (EVC-3001)l
Voice and data communication can be shared on the existingl
telephone wire simultaneously - (EVC-3001)
Support up to 1536 bytes packet size, 802.1Q VLAN tag l
transparent
VDSL2 Stand-Alone transceiver for simple bridge modeml
application
Selectable Target Band Plan and Target SNR Marginl
Support extensive LED indicators for network diagnosticsl

11
1.4Specications
Product EVC-3001 EVC-3010
Hardware Specication
Ports
10/100Tx
1 x RJ-45,
Auto-negotiation
Auto-MDI/MDI-X
1 x RJ-45,
Auto-negotiation
Auto-MDI/MDI-X
VDSL 1 x RJ-11, female Phone
Jack
1 x BNC, female
connector
PHONE
1 x RJ-11, Built-in
splitters for POTS
connection
N/A
DIP Switch 4 Position Dip Switch
Functionality
• CO / CPE mode select
• Selectable fast and interleaved mode
• Selectable target Band Plan
• Selectable target SNR mode
Encoding
• VDSL-DMT
• ITU-T G.993.1 VDSL
• ITU-T G.997.1
• ITU-T G.993.2 VDSL2 (Prole 17a Support)
LED Indicators
One Power
3 for RJ-11/VDSL2
2 for RJ-45
10/100Base-TX port
One Power
3 for RJ-11/VDSL2
2 for RJ-45
10/100Base-TX port
Cabling
Ethernet
• 10Base-T: 2-pair UTP Cat.3, 4, 5 up to 100m
(328ft)
• 100Base-TX: 2-pair UTP Cat.5, 5e, 6 up to 100m
(328ft)
VDSL
Twisted-pair telephone
wires (AWG24 or better)
up to 1.6km
50 ohm, RG58A/U,
RG58C/U, RG58/U or
75 ohm, RG6 (Distance
3.0km)

12
Performance* (Down
Stream /
Up Stream)
Asymmetric Mode
200m -> 100/55Mbps
400m -> 90/50Mbps
600m -> 70/40Mbps
800m -> 60/25Mbps
1000m -> 45/15Mbps
1200m -> 35/10Mbps
1400m -> 30/6Mbps
1600m -> 25/4Mbps
200m->100/65Mbps
400m->100/64Mbps
600m->100/59Mbps
800m->100/53Mbps
1000m->94/44Mbps
1200m->84/36Mbps
1400m->74/28Mbps
1600m->66/19Mbps
1800m->60/14Mbps
2000m->44/15Mbps
2200m->35/12Mbps
2400m->32/10Mbps
2600m->29/8Mbps
2800m->27/6Mbps
3000m->25/5Mbps
Symmetric Mode
200m -> 100/100Mbps
400m -> 90/95Mbps
600m -> 70/70Mbps
800m -> 55/50Mbps
1000m -> 45/35Mbps
1200m -> 30/25Mbps
1400m -> 25/20Mbps
1600m -> 20/15Mbps
200m->100/100Mbps
400m->97/100Mbps
600m->86/91Mbps
800m->79/80Mbps
1000m->69/66Mbps
1200m->60/52Mbps
1400m->51/41Mbps
1600m->45/36Mbps
1800m->40/29Mbps
2000m->27/26Mbps
2200m->23/24Mbps
2400m->22/21Mbps
2600m->20/18Mbps
2800m->18/15Mbps
3000m->17/13Mbps
Power Requirement 5V DC, 2A
Operating
Temperature 0~50 Degree C

13
Storage Temperature -10~70 Degree C
Operating Humidity 10% to 90%, relative humidity, non-condensing
Storage Humidity 10% to 90%, relative humidity, non-condensing
Standard Conformance
Regulation
Compliance FCC Part 15 Class A, CE
Standards
Compliance
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Full Duplex Pause Frame Flow Control
ITU-T
• G.993.1 (VDSL)
• G.997.1
• G.993.2 VDSL2 (Prole 17a)
* The actual data rate will vary on the quality of the copper wire
and environment factors.

14
2.Hardware Description
EVC-3001l
The EVC-3001 provides 2 RJ-11 ports for voice connection (like
telephone) and for network line connection.
EVC-3010l
The EVC-3010 provides 1 BNC connector and supports 50 or 75
ohm cable with distance up to 3.0km.
The EVC-3001 / EVC-3010 provide 1 RJ-45 port with two
different running speeds: 10Mbps and 100Mbps. It will
distinguish the speed of incoming connection automatically.
This section describes the hardware features of the Ethernet
over VDSL2 Converter. For easier control of the converter,
familiarize yourself with its display indicators and ports. Front
panel illustrations in this chapter display the unit LED indicators.
Before connecting any network device to the converter, read this
chapter carefully.
2.1 Front Panel
The units’ front panel provides a simple interface monitoring the
Ethernet over VDSL2 Converter.

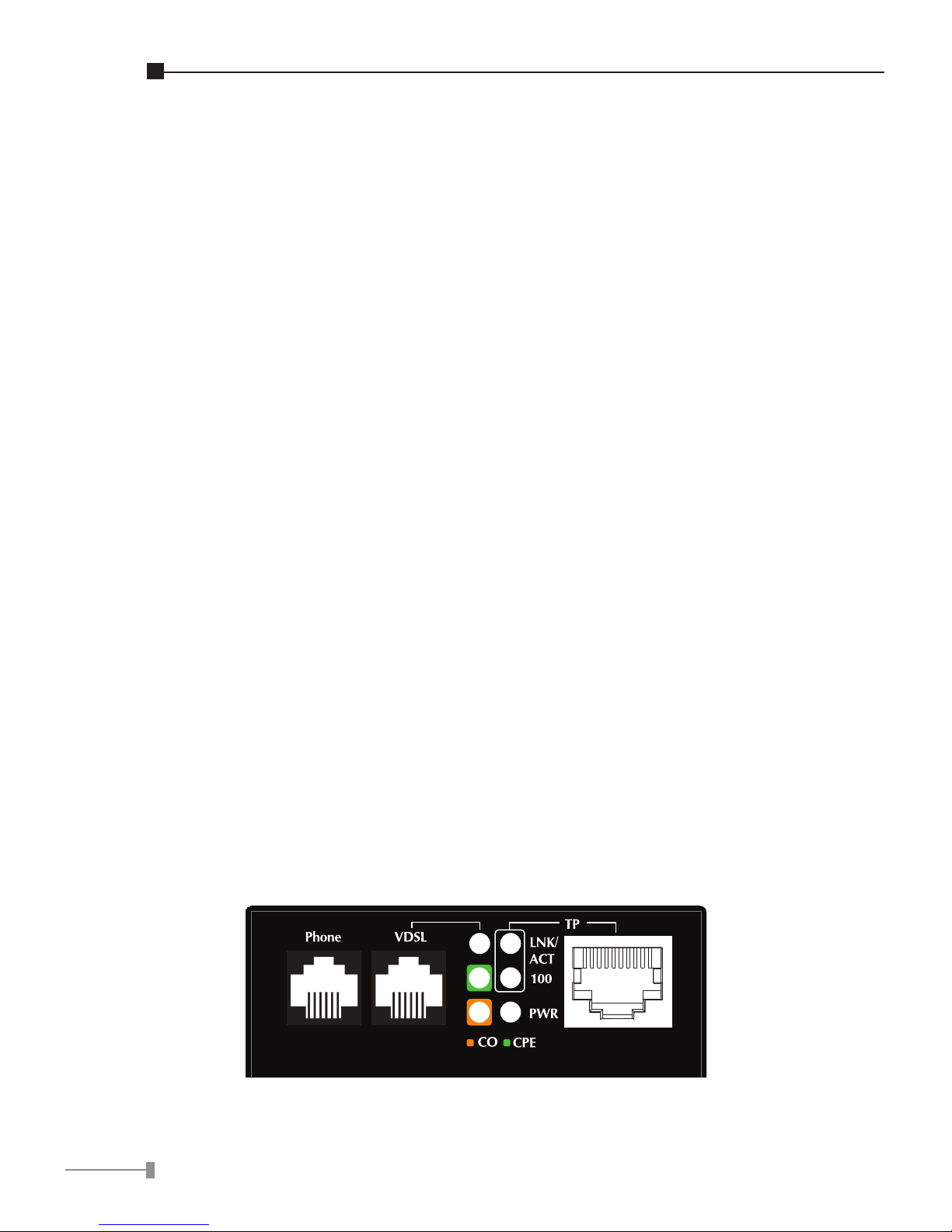

EVC-3001 Front Paneln
Figure 2-1: EVC-3001 Front Panel

15

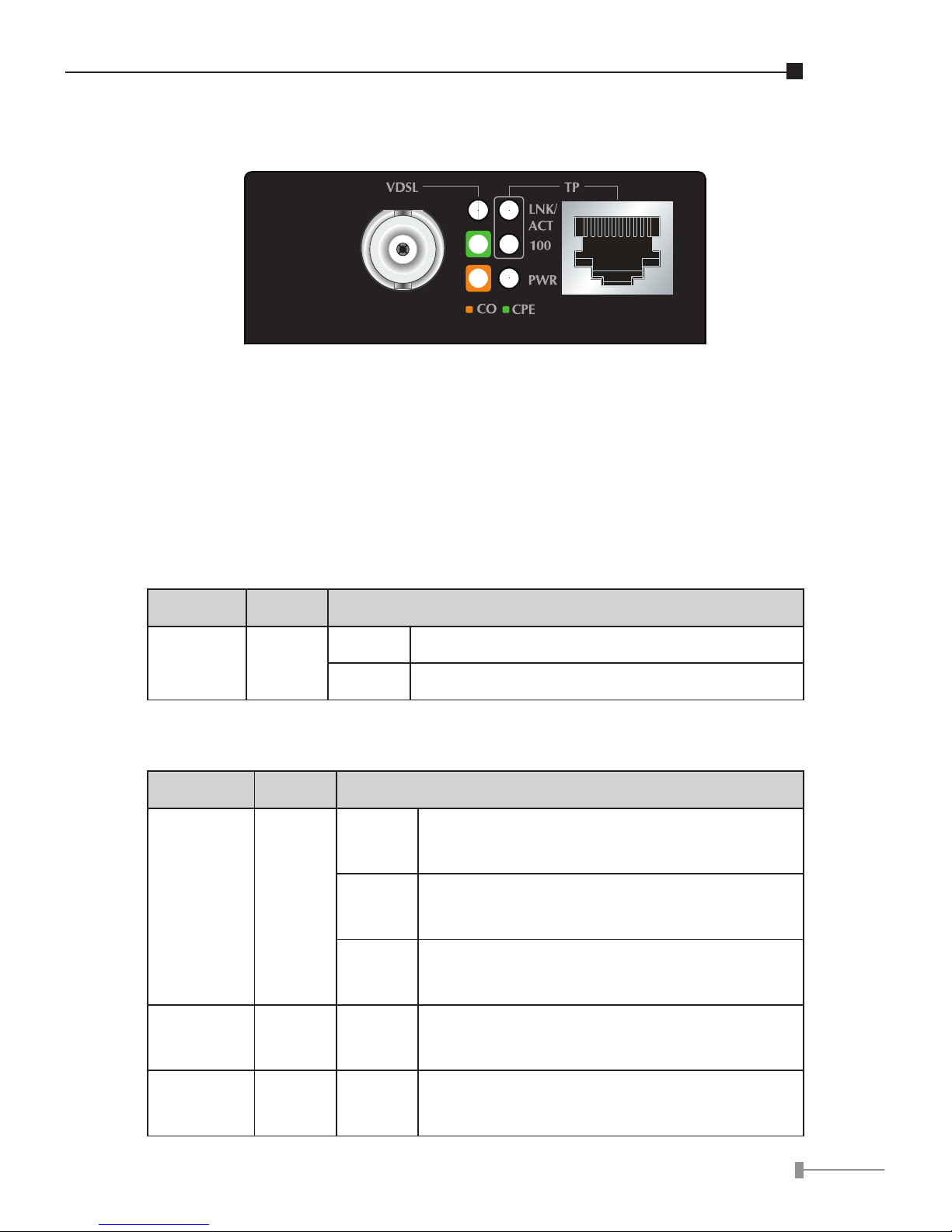

EVC-3010 Front Paneln
Figure 2-2: EVC-3010 Front Panel
2.1.1 LED Indicators for EVC-3001 and EVC-3010
The rich diagnostic LEDs on the front panel can provide the
operating status of individual port and whole system.
Systemn
LED Color Function
Power Green Light Power ON
Off Power OFF
VDSLn
LED Color Function
LNK/ACT Green
Light Indicate that the VDSL link is
established.
Fast
Blink
Indicate that the VDSL link is at
training status (about 10 seconds).
Slow
Blink
Indicate that the VDSL link is at idle
status.
CO Green Light Indicate the VDSL Bridge is running
at CO mode.
CPE Green Light Indicate the VDSL Bridge is running
at CPE mode.

16
10/100Tx Portn
LED Color Function
LNK/ACT Green
Light Indicate that the port is Link Up.
Fast
Blink
Indicate that the Converter is
actively sending or receiving data
over that port.
Slow
Blink
Indicate that the port is Link
Down.
100 Green
Light Indicate that the port is operating
at 100Mbps.
Light Indicate that the port is Link Down
or 10Mbps.
2.2 The Rear Panel
The rear panel of the Ethernet over VDSL2 Converter is shown
as below.
EVC-3001 / EVC-3010 Rear Paneln
1 2 3 4
ON
Figure 2-3: EVC-3001 / EVC-3010
2.2.1 DIP Switch Mode
The Ethernet over VDSL2 Converter provides 4 selective
transmission modes. By switching the transmission modes,
user can obtain a best transmission mode to suit with phone
line quality or distance of connectivity. The following is the

17
summary table of transmission setting; bandwidth and distance
extensibility tested for AWG 24 (0.5mm) twisted-pair without
noise and cross talk.
DIP-1 DIP-2 DIP-3 DIP-4
Mode Channel Band Plan SNR
OFF CO Interleave Symm 9db
ON (default) CPE Fast Asymm 6db
CO / CPEn
◊ CO (Central Ofce) – the Master device mode, usually
the CO device will be located at the data center of ISP or
enterprise to link to the backbone.
◊ CPE (Customer Premises Equipment) – the Slave device
mode, usually the CPE device will be located at branch
ofce, home or remote side as the long reach data
receiver. The CPE can be connected to the PC, IP Camera
or Wireless Access Point and etc network devices.
Note
When the Ethernet Over VDSL2 Converter operate
at CPE mode, the DIP switch 2,3,4 is no function.
Fast and Interleave Moden
◊ Fast mode guarantees a minimum end to end latency less
than 1 ms.
◊ Interleaved mode provides impulse noises protection with
a duration less than 250 us. Interleaved mode has a
maximum end to end latency of 10m sec.
Band Plann
◊ User can switch the Band Plan either Symmetric or Asym-

18
metric by their own. When Symmetric is selected that
provides better upstream performance, when Asymmetric
is selected that provides better downstream performance.
Refer to table above for details.
Target SNR (Signal Noise Ratio) Marginn
◊ When xed SNR margin is selected, the system will main-
tain the SNR margin at 9 dB across all usable loop length.
Note
By default setting, the four DIP switch at “ON”
position and operate as “CPE”. For operate as
“CO”, please adjust the DIP 1 switch to “OFF”
position. Adjust other DIP switch setting to fill
different network application demand.
Please power off the Ethernet Over VDSL2 Converter before
making any transmission mode adjustment.
2.2.2 DC Power Jack
EVC-3001 / 3010 require 5V DC power input. It will conform to
the bundled AC adapter.
Note
1. The device is a power-required device, it
means, it will not work till it is powered. If
your networks should active all the time, please
consider using UPS (Uninterrupted Power
Supply) for your device. It will prevent network
data loss or network downtime.
2. In some area, installing a surge suppression
device may also help to protect the Ethernet
Over VDSL2 Converter from being damaged by
unregulated surge or current to the Ethernet
over VDSL2 Converter or the power adapter.

19
3.Installation
3.1 Install Ethernet over VDSL2 Converter
The Ethernet over VDSL2 Converter does not require any
software conguration. Users can immediately use any feature
of this product simply by attached the cables and plug power
on. There is some key limitation on the Ethernet over VDSL2
Converter. Please check the following items:
nEVC-3001: The device is used for Point-to-Point connec-
tion only (Master device to Slave device) and has equipped
with 2 RJ-11 connectors for VDSL port. One for voice device
connection (like telephone) and the other one for network link
connection.
Depending on the quality of telephone line, the maximum
distance of one VDSL segment is 1.6km (5250ft) with AWG
24 telephone wires.
nEVC-3010: 1 BNC connector and supports 50 or 75 ohm
cable. Depending on the quality of coaxial cable, the
maximum distance of one VDSL segment is 3.0km (9842ft)
with 5C coaxial cable.
The distance will change by the quality of telephone wires and
coaxial cables.

20
3.1 EVC-3001 / EVC-3010 LAN to LAN Connection
Two sets of the Ethernet over VDSL2 Converters could be used
to link two local Area networks that are located in different
place. Through the normal telephone line, it could setup a
100/55Mbps asymmetric backbone, but one Ethernet over
VDSL2 Converter must be Master (CO mode) and the other one
is Slave (CPE mode).
VDSL2 CPE Converter
VDSL2 CO Converter
Internet
Up to 1.6km
Router
Switch
PBX Phone
PSTN 100Base-TX UTP
Telephone wire
Figure 3-1: EVC-3001 LAN to LAN Connection
Coaxial Cable
Up to 3.0km
Router
Switch
VDSL2 CPE Converter
VDSL2 CO Converter
Internet
VDSL2
100Base-TX UTP
VDSL2 Coaxial Cable
VDSL2
Figure 3-2: EVC-3010 LAN to LAN Connection
