ANTAIRA IMC-C1000-SFP Series User manual

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
i
IMC-C1000-SFP Series
10/100/1000Tx to 100/1000Fx
Compact Industrial Gigabit Ethernet Media Converter
Version 1.0
User Manual

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
ii
© Copyright 2017 Antaira Technologies, LLC.
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or translation
without prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC., Microsoft Windows and the Windows logo are
the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the
registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered
trademarks of their respective owners.
Notice: Copyrights © 2017 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or
translation without prior permission of Antaira Technologies, LLC. is prohibited, except as allowed under the
copyright laws.
Disclaimer
Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but
not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,
LLC. may make improvements and/or changes to the product and/or specifications of the product described in
this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or
typographical errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to change without prior
notice.

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
iii
FCC Notice
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause
harmful interference to radio communications if the equipment is not installed and used in accordance with the
instructions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
Industrial Ethernet Media Converters
Industrial Grade Unmanaged Ethernet Media Converters
User Manual
Version 1.0 (January 2017)
This manual supports the following models:
IMC-C1000-SFP
IMC-C1000-SFP-T
This document is the current official release manual. Please check our website (www.antaira.com) for any
updated manual or contact us by e-mail ([email protected]).

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
ii
Table of Contents
1.Overview....................................................................... 1
1.1 Key Features...................................................... 1
1.2 Package Contents.............................................. 1
1.3 Safety Precaution............................................... 1
2.Hardware Description ................................................. 2
2.1 Physical Dimensions.......................................... 2
2.2 Front Panel ........................................................ 3
2.3 Top View............................................................ 3
2.4 LED Indicators ................................................... 4
2.5 DIP-Switch Setting............................................. 4
2.6 Ethernet Ports.................................................... 5
2.7 Cabling............................................................... 6
2.8 Wiring the Power Inputs..................................... 8
3.Mounting Installation .................................................. 9
3.1 DIN-Rail Mounting.............................................. 9
3.2 Wall Mounting .................................................. 11
4. Hardware Installation................................................ 12
4.1 Installation Steps.............................................. 12
5. Network Application ................................................. 13
6. Trouble Shooting ...................................................... 13
7. Technical Specifications.......................................... 14

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
1
1.Overview
Antaira Technologies’ IMC-C1000-SFP series is a compact IP-30 rated gigabit Ethernet-to-Fiber media
converter featuring a 10/100/1000TX Ethernet port and a dual rate 100/1000 SFP slot. It is perfectly
designed to fulfill industrial applications that require distance extension and high bandwidth capabilities.
This small form factor is ideal for saving space in outdoor applications such as factory automation,
security, ITS transportation, power/utility, water wastewater treatment plants, and any other extreme
ambient weather environments.
The IMC-C1000-SFP series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF)
function with 12~48VDC redundant power inputs with reverse polarity and overload current protection.
This product series supports DIN-rail as well as wall mountable orientations and provides operating
temperature range models in STD: -10°C to 70°C and EOT: -40°C to 75°C.
1.1 Key Features
System Interface/Performance
RJ-45 ports support the auto MDI function
Embedded 1*10/100/1000Tx and 1*100/1000Fx
Store-and-forward switching architecture
Power Input
DC 12~48V redundant power with a 4-pin removal terminal block
Operating Temperature
Standard operating temperature model: -10°C ~ 70°C
Extended operating temperature model (–T): -40°C ~ 75°C
Case/Installation
IP-30 protection
DIN-Rail and wall mount design
1.2 Package Contents
1 –IMC-C1000-SFP series compact industrial media converter
2 - Wall mounting brackets and screws
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet media converter’s
hardware specs, ports, cabling information, and wiring installation will be
described within this user manual.

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
2
2. Hardware Description
2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ IMC-C1000-SFP series:
10/100/1000Tx to 100/1000Fx compact industrial gigabit Ethernet media converter.
(W x D x H) is 26mm x 75mm x 95mm
Figure 2.1
IMC-C1000-SFP Series Physical Dimensions

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
3

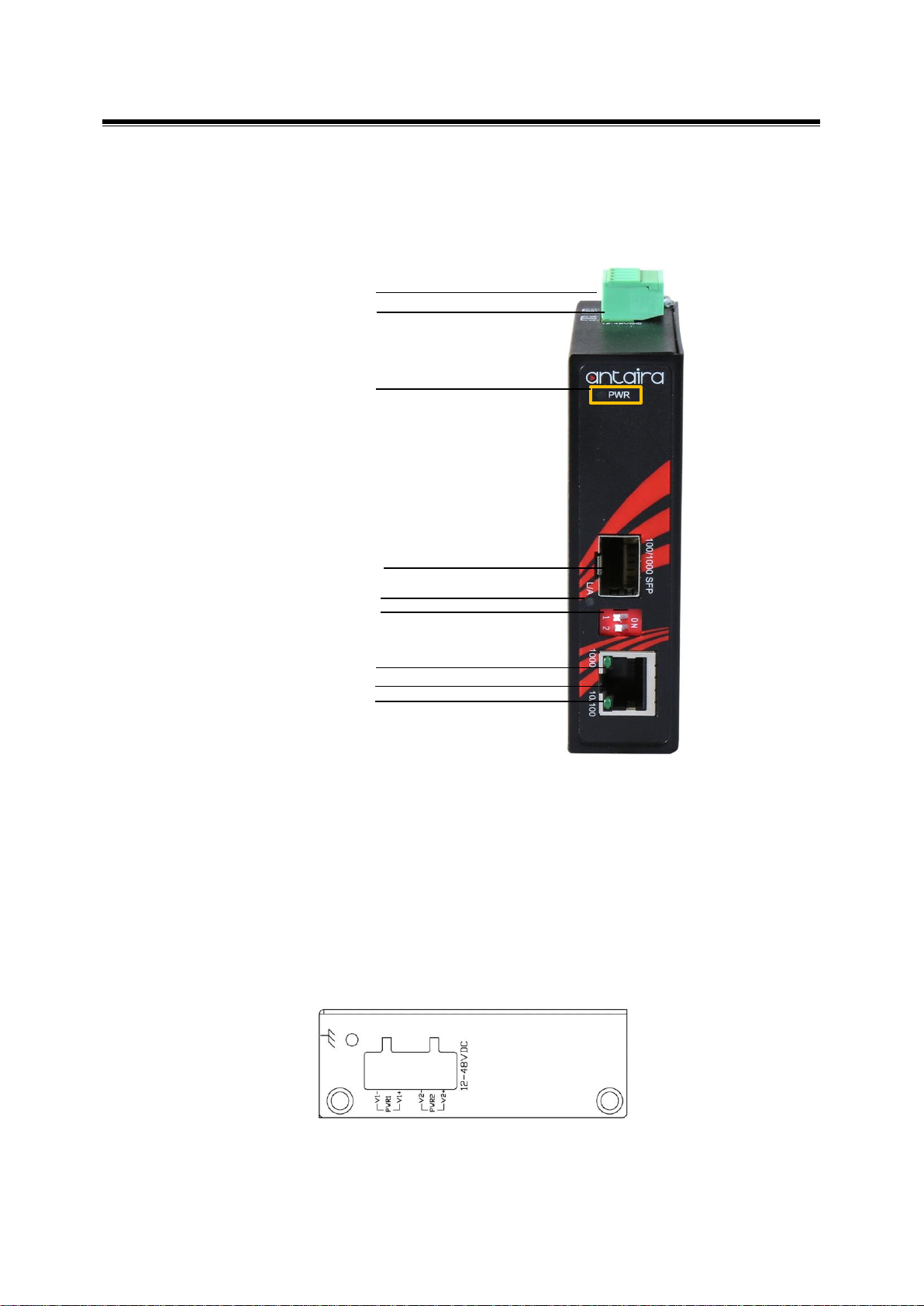

2.2 Front Panel
The front panel of the IMC-C1000-SFP series: 10/100/1000Tx to 100/1000Fx industrial compact
gigabit Ethernet media converter (Figure 2.2).
2.3 Top View
Figure 2.3, below, shows the top panel of the IMC-C1000-SFP series media converter that is
equipped with one 4-pin removal terminal block connector for dual DC power inputs (12~48VDC).
Figure 2.2
Front Panel of the IMC-C1000-SFP Series
Figure 2.3
Top Panel View of IMC-C1000-SFP Series
Grounding screw
4-pin removal terminal block (power input)
LED for PWR
Fiber Port –100/1000Fx
LED for network fiber connection
Dip switches for LFP setting
LED for RJ45 1000Tx network speed status
10/100/1000Tx RJ45 port
LED for RJ45 10/100Tx network speed status

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
4
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet media
converter that display the power status and network status. Each LED indicator has a different
color and has its own specific meaning, see below in Table 2.1.
LED
Color
Description
Power
Green
On
Power input 1 or 2 is active
Off
Power input 1 or 2 is inactive
LINK/ACT
(SFP Slot)
On
Connected to network at 100/1000mbps
Green
Flashing
Networking is active
Off
Not connected to network
RJ45 Port
(Upper LED)
Green
On
Linked to network at 1000Mbps
Flashing
Networking is active
Off
Not connected to network
RJ45 Port
(Lower LED)
Green
On
Linked to network at 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
2.5 DIP-Switch Setting
There are 2‐set DIP‐switch in front panel that can setting for SFP (Link Fault Pass)
function and SFP transmission rate, see below in Table 2.2
DIP 1
DIP 2
Description
ON
ON
LFP Enable and Set SFP to 100Mbps
Power input 1 or 2 is inactive
ON
OFF
LFP Enable and Set SFP to 1000Mbps
OFF
ON
LFP Disable and Set SFP to 100Mbps
OFF
OFF
LFP Disable and Set SFP to 1000Mbps (Default)
Table 2.1
LED Indicators for IMC-C1000-SFP Series
Table 2.2
DIP‐switch setting for IMC-C1000-SFP Series

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
5
2.6 Ethernet Ports
RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 port is auto-sensing for 10/100Base-Tx, or 1000Base-
Tx device connections. Auto MDI/MDIX means that the media converter can connect to another
switch or workstation without changing the straight-through or crossover cabling. See the figures
shown below for the straight-through and crossover cabling schematics.
RJ-45 Pin Assignments (Table 2.3)
Pin Number
Assignment
1
Rx+
2
Rx-
3
Tx+
6
Tx-
The RJ45 port on this industrial Ethernet media converter supports automatic MDI operations. Users
can use straight-through cables (Figure 2.4 & Figure 2.5) for all network connections to PCs, servers,
and other switches or hubs. With a straight-through cable, pins 1, 2, 3, and 6, at one end of the cable,
are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below
(Table 2.3) shows the 10BASE-T/100BASE-TX/1000BASE-T MDI port pin outs.
Note:
The “+” and “-” signs represent the polarity of the wires that make up each wire pair.
Pin MDI-X
Signal Name
MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)
Table 2.3
RJ45 Pin Assignments
Table 2.4
Ethernet Signal Pin Outs

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
6
The following figures show the cabling schematics for straight-through and crossover cables.
2.7 Cabling
Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded
twisted pair (STP) cable. The cable between the equipment and the link partner (media
converter, switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
The small form‐factor pluggable (SFP) is a compact optical transceiver used in optical
communications for both telecommunication and data communication applications.
To connect the transceiver and LC cable, please follow below steps:

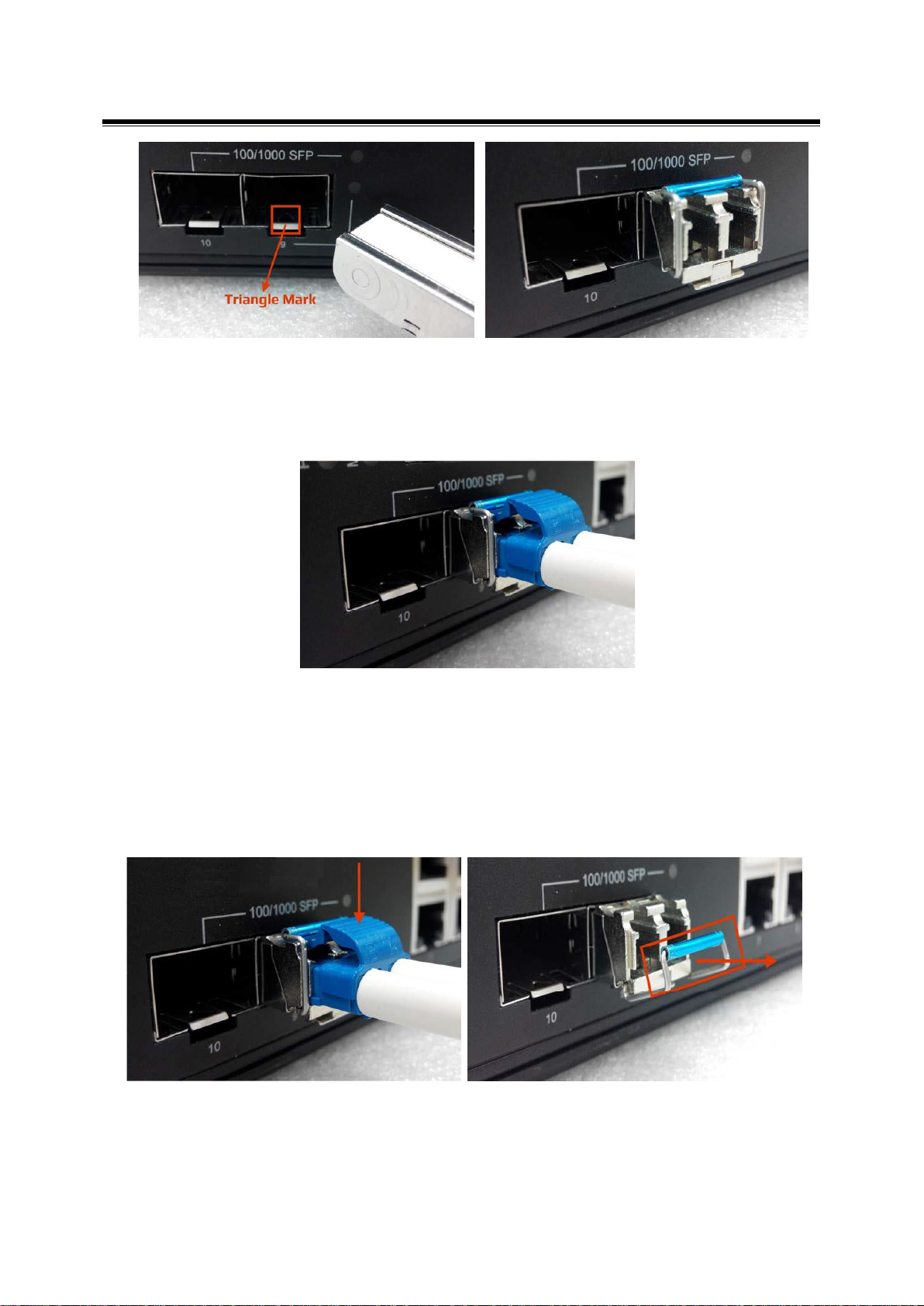

oStep 1 - Insert the SFP transceiver module into the SFP slot as shown below in
Figure 2.6. Notice that the triangle mark is at the bottom of the SFP slot. Figure
2.7shows the SFP transceiver module was inserted.
Figure 2.4 Figure 2.5
Straight-Through Cables Schematic Crossover Cables Schematic

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
7
oStep 2 - Insert the fiber cable of the LC connector into the transceiver as shown
below in Figure 2.8.
To remove the LC connector from the transceiver, please follow the steps shown below:
oStep 1 - Press the upper side of the LC connector from the transceiver and pull it
out to release as shown below in Figure 2.9.
oStep 2 - Push down the metal clasp and pull the transceiver out by the plastic part
as shown below in Figure 2.10.
Figure 2.6 - Transceiver to the SFP Slot
Figure 2.7 - Transceiver Inserted
Figure 2.8 - LC Connector to the Transceiver
Figure 2.9 –Remove LC Connector
Figure 2.10 –Pull Out from SFP Slot

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
8
2.8 Wiring the Power Inputs
Please follow the steps below to insert the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.11.
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure
2.12.
**Note:
Only use copper conductors, 60/75°C, tighten to 5 lbs.
The wire gauge for the terminal block should range between 18~20 AWG.
Figure 2.12
Power Terminal Block
Figure 2.11
Power Terminal Block

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
9
3.Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet media converter from the factory. If the
DIN-Rail is not on the industrial Ethernet media converter, please refer to Figure 3.1 to learn how
to install the DIN-Rail on the media converter.

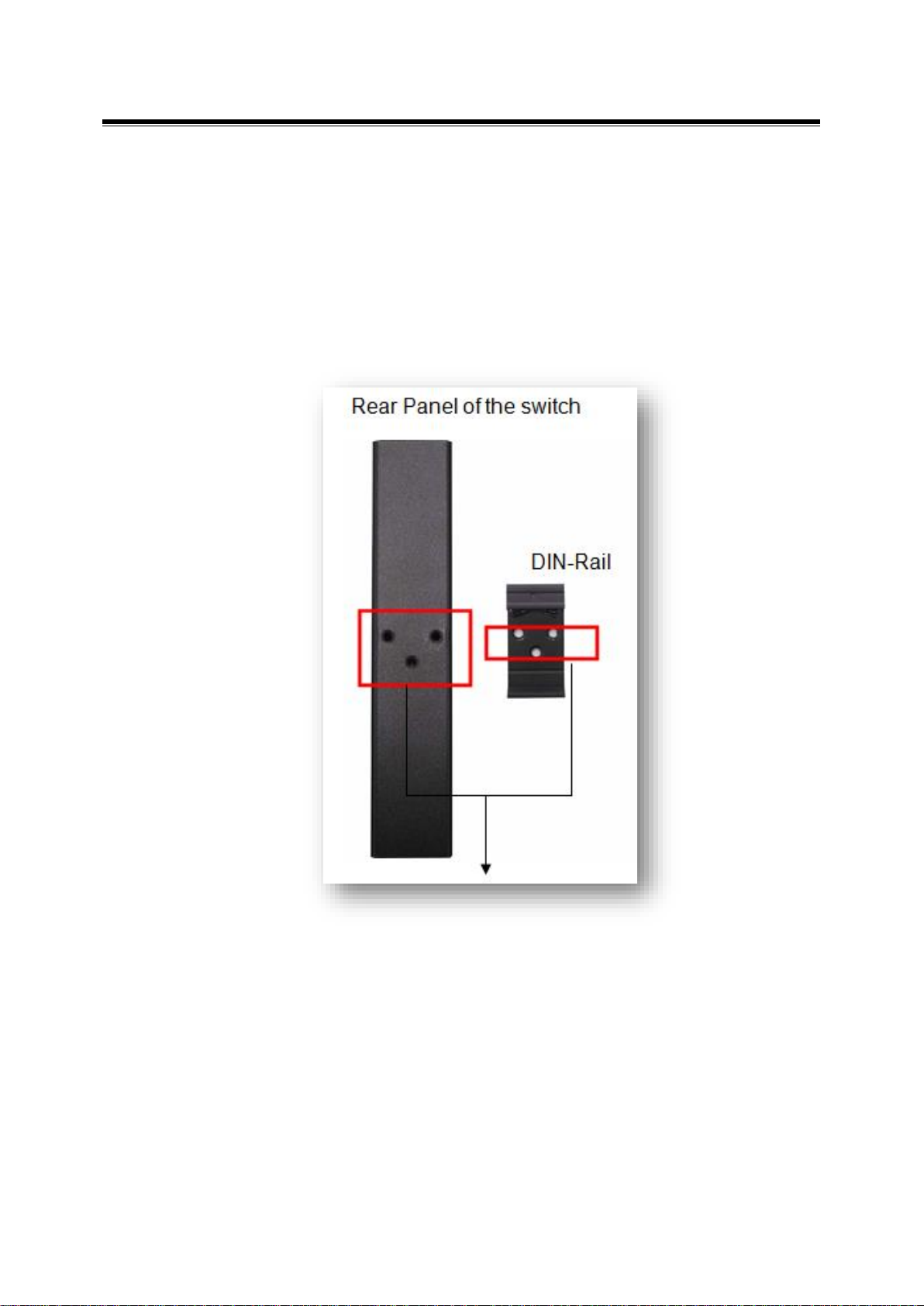

Figure 3.1
TheRear Side of the Media Converter and DIN-Rail Bracket

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
10
Follow the steps below to learn how to hang the industrial Ethernet media converter.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet media
converter.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the media converter, insert the top of
the DIN-Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial
Ethernet
media converter from the rail, do the opposite from the above
steps.

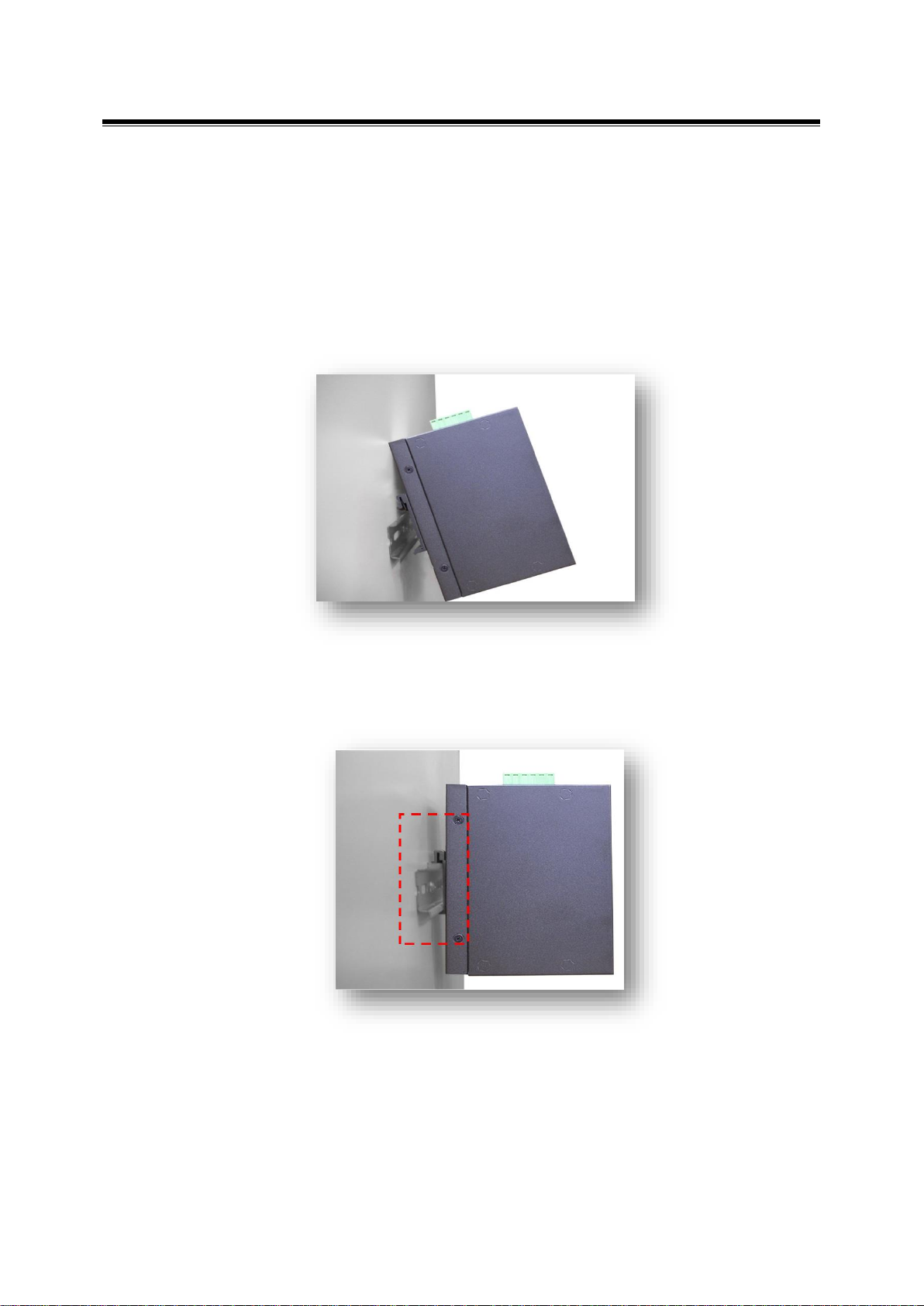

Figure 3.3
Stabilize the Media Converter on the DIN-Rail
Figure 3.2
Insert the Media Converter on the DIN-Rail

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
11
3.2 Wall Mounting
Follow the steps below to mount the industrial
Ethernet
media converter using the wall mounting
bracket as shown below in Figure 3.4.
1. Remove the DIN-Rail bracket from the industrial media converter by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial media converter.
3. Use the screws to screw the wall mounting bracket on the industrial media converter.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
media converter on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.4
Remove DIN-Rail Bracket from the Media Converter
Figure 3.5
Wall Mounting Bracket Dimensions

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
12
4. Hardware Installation
4.1 Installation Steps
This section will explain how to install Antaira Technologies’ IMC-C1000-SFP (-T) series:
10/100/1000Tx to 100/1000Fx industrial compact gigabit Ethernet media converter.
Installation Steps
1. Unpack the industrial Media Converter from the original packing box.
2. Check if the DIN‐Rail bracket is screwed on the industrial Media Converter.
a. If the DIN‐Rail is not screwed on the industrial Media Converter, please refer to the
DIN‐Rail Mounting section for DIN‐Rail installation.
b. For Wall Mounting, please refer to the Wall Mounting section for wall mounting
installation.
3. For DIN‐Rail or wall mounting, please refer to the Mounting Installation section.
4. Power on the industrial Media Converter and then the power LED light will turn on.
a. For wiring power, please refer to the Wiring the Power Inputs section.
b. Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted‐pair, straight‐through category 5 cable for Ethernet connection.
6. Insert one side of the RJ‐45 cable into Media Converter’s Ethernet port and on the other
side into the networking device’s Ethernet port, e.g. switch PC or server. The Ethernet port’s
(RJ‐45) LED on the industrial Media Converter will turn on when the cable is connected to
the networking device.
a. Please refer to the LED Indicators section for LED light indication.
7. Insert one side of the SFP cable into Media Converter’s SFP port and on the other side into
the networking device’s SFP port, e.g. switch or server. The SFP port’s LED on the industrial
Media Converter will turn on when the cable is connected to the networking device.
a. Please refer to the LED Indicators section for LED light indication.
8. When all connections are set and the LED lights all show normal, the installation is
completed.

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
13
5. Network Application
This segment provides an example of an industrial Ethernet media converter application
(Figure 5.1).
6. Trouble Shooting
Always verify the right power cord or adapter is being used. Never use a power supply or
adapter with a non-compliant DC output voltage or it will burn the equipment.
Select the proper UTP or STP cable in order to construct the network. Use an unshielded
twisted-pair (UTP) or shield twisted-pair (STP) cable for RJ-45 connections: 100Ω Category
5e for 10/100/1000Mbps. Also be sure that the length of any twisted-pair connection does
not exceed 100 meters (328 feet).
Diagnosing LED Indicators: To assist in identifying problems, the media converter can be
easily monitored with the LED indicators which help to identity if any problems exist.
oPlease refer to the LED Indicators section for LED light indication.
If the power indicator LED does not turn on when the power cord is plugged in, the user
may have a problem with the power cord. Check for loose power connections, power losses
or surges at the power outlet.
oPlease contact Antaira for technical support service, if the problem still cannot
be resolved.
If the industrial media converter LED indicators are normal and the connected cables are
correct but the packets still cannot transmit, please check the system’s Ethernet devices’
configuration or status.

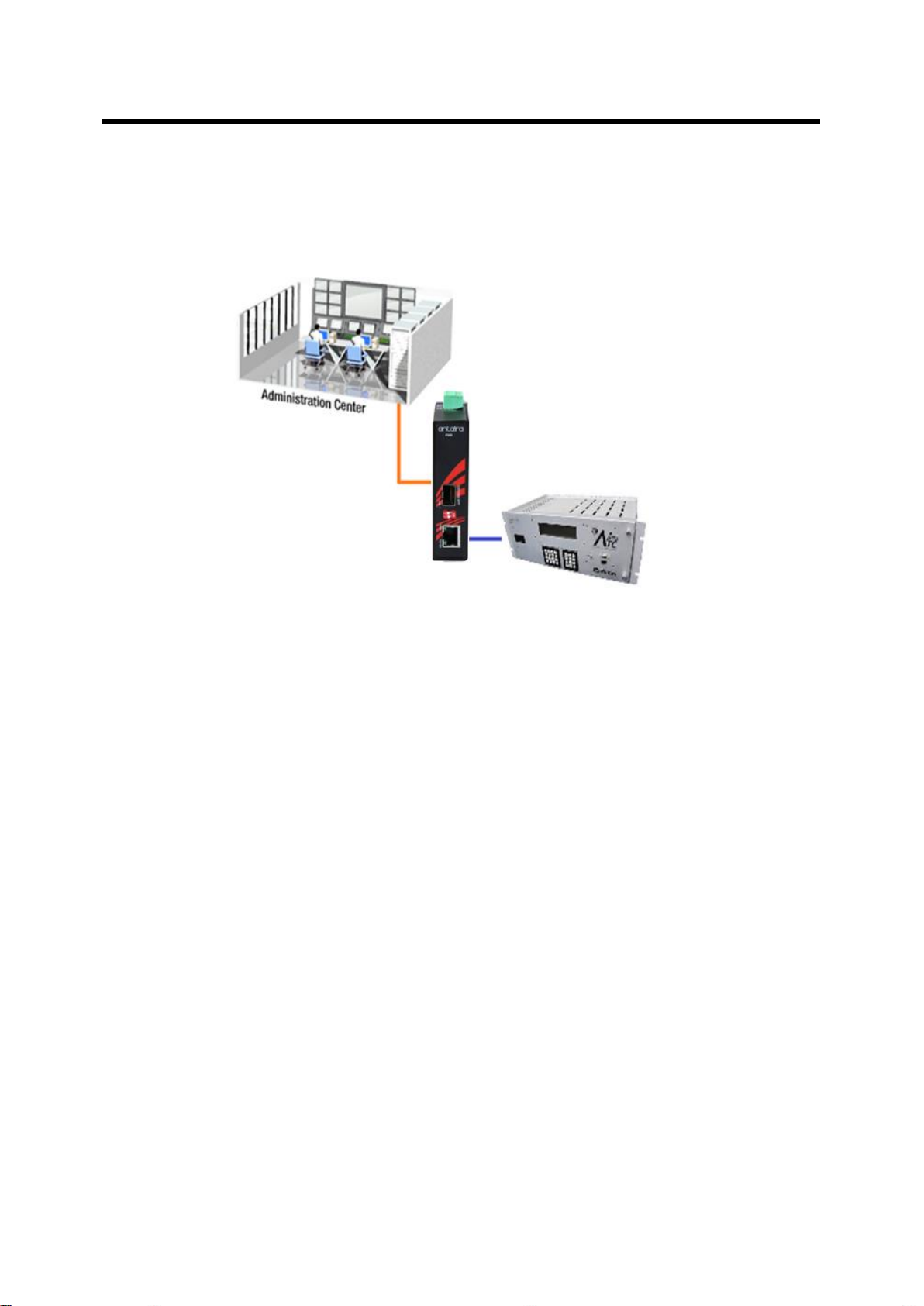

Figure 5.1
Industrial Gigabit Media Converter
Application Example

Antaira Technologies - Industrial Media Converter
IMC-C1000-SFP Series User Manual V1.0
14
7. Technical Specifications
Table 7.1 has the technical specifications for Antaira Technologies’IMC-C1000-SFP series:
10/100/1000Tx to 100/1000Fx industrial compact Gigabit Ethernet media converter.
Standards
IEEE 802.3
10Base-T 10Mbit/s Ethernet
IEEE 802.3u
100Base-Tx, Fast Ethernet
IEEE 802.3ab
1000Base-Tx Gigabit Ethernet
IEEE 802.3z
1000BaseSX/LX Standards for Gigabit Fiber
IEEE 802.3x
Back pressure flow control
Technology
Protocol
CSMA/CD
Data Process
Store and Forward
Transfer Rate
14,880 pps for 10Base-T Ethernet port
148,800 pps for 100Base-TX Fast Ethernet port
1,4888,000 pps for Gigabit Ethernet port
Transmission Distance
Up to 1000M (Ethernet) ; Up to 120Km for fiber dependent on SFP
Transmission Speed
Up to 1000Mbps
Port Interface
Ethernet (RJ45) Port
1*10/100/1000Tx auto negotiation speed, full/half duplex mode, and auto
MDI connection
Fiber Port
1*100/1000Fx SFP Slot
Fiber Wavelength
Refer to SFP Module
DIP Switch
DIP Switch 1: LFP(Link Fault Pass) Enable/Disable
DIP Switch 2: 1000Mbps / 100Mbps
LED Indicator
Power 1, Power 2, Fault
Ethernet Ports: On‐Link/Flash‐data transmitting
SFP: Link/Active
Network Cable
10BaseT: 2-pair UTP/STP Cat.3,4,5 cable EIA/TIA-568 100-ohm (100m)
100BaseTX: 2-pair UTP/STP Cat.5 cable EIA/TIA-568 100-ohm (100m)
1000BaseTX: UTP/STP Cat. 5/5e cable EIA/TIA-568 100-oHm (100m)
Mechanical
Characteristics
Housing
Metal IP30 protection
Dimension
26 x 95 x 75 mm
Weight
Unit Weight: 0.5 lbs. Shipping Weight: 1.0 lbs.
Mounting
DIN-Rail Mounting, wall-mounting (optional)
Power
Requirement
Input Voltage
12~48VDC Redundant Input
Power Connection
1 removable 4-contact terminal block
Power Consumption
1.8 Watts
Environmental
Limits
Operating Temperature
Standard: -10 to 70˚C (14 to 158F)
EOT: -40 to 75˚C (-40 to 167F)
Operating Humidity
5% to 95% (Non-Condensing)
Storage Temperature
-40 to 85˚C (-40 ~ 185F)
Regulatory
Approvals
EMI / EMS
FCC Part 15 Subpart B Class A, CE EN 55022 Class A
IEC61000‐4‐2(ESD), 3(RS), 4(EFT), 5(Surge), 6(CS), 8(Magnetic Field)
Stability Testing
IEC60068-2-32(Free Fall), 27(Shock), 6(Vibration)
Safety
CE, FCC, UL 61010-1, UL 61010-2-201 (Pending)
Table 7.1
IMC-C1000-SFP Series Technical Specifications
