Antelope R4S User manual

SATORI & R4S User Manual 2
CONTENTS
BEFORE YOU BEGIN 3
INSTALLATION GUIDE 4
ACTIVATE YOUR PRODUCT WARRANTY 7
FRONT PANELS EXPLAINED 8
Satori 8
R4S 10
REAR PANELS EXPLAINED 12
Satori 12
R4S 13
CONTROL PANEL APPLICATION 14
CUSTOMER SUPPORT INFORMATION 14
MY ANTELOPE AUDIO PRODUCT ISN’T WORKING. 15
LIMITED WARRANTY POLICY 17
SAFETY NOTES 23
TECHNICAL SPECIFICATIONS 24

SATORI & R4S User Manual 3
BEFORE YOU BEGIN
Thank you for purchasing Satori & R4S from Antelope Audio.
Satori is a digitally controlled, true analog monitoring and summing system designed for
today’s studios. The Antelope Audio Orion32 and Zen Studio interfaces have both been
praised for their digital clarity, while maintaining the realism of analog sound. Thanks to
advanced circuit design, Satori features the same high level of uncompromising sound
quality.
The vast assortment of I/O includes 8 stereo inputs, 4 stereo speaker outputs, a
subwoofer output, 4 independent headphone outs, 4 stereo summing inputs and software-
driven talkback capability as well as a rear panel talkback jack mic input and a built-in
microphone in the front panel.
A user-friendly control application for macOS and Windows allows for advanced remote
control and also offers recallable user presets.
Satori is a perfect companion to our very popular Orion32 AD/DA interface and would
complement any mixing or mastering studio - from an expanding home setup to a state-
of-the-art recording facility demanding the highest level of monitoring quality today’s
technology can offer.
Satori is bundled with a bus-powered remote control – R4S. The remote is specially
designed for Satori, completely replicating the front panel functionality. It provides
engineers with ease and ergonomics, controlling Satori directly from the mix position. R4S
allows for lightning fast control of all sources and monitors, as well as talkback.
Should you ever find yourself struggling, do not hesitate to contact our Customer
Support team over phone, live chat and our ticket system. You can also visit Antelope

SATORI & R4S User Manual 4
Audio on YouTube and explore our video tutorials or join the Antelope Audio
Users Facebook group and ask for advice. The Knowledge Base is also a good source of
information.
Enjoy working with Satori & R4S!
Best wishes,
Team Antelope
MANDATORY ONLINE ACTIVATION
Please note that the mandatory device activation procedure requires an active Internet
connection on your computer. Activating an Antelope device offline is not possible.
INSTALLATION GUIDE
Satori
Step 1: Getting Started
Connect the Satori to a power outlet using an AC power cable. Plug in the device to your
computer using a USB cable.
Step 2: Install the Satori Launcher/Control Panel (macOS & Win)
Download and install the Satori Launcher/Control Panel application for Windows or
macOS from here.
Open and install the Launcher/Control Panel by following the steps in the installation
wizard.

SATORI & R4S User Manual 5
Step 3: Activate your Satori
Once the installation is completed, start the application. You will be prompted to create an
Antelope ID directly from the application. Fill out the necessary information and
click Continue. If you already have an active Antelope ID, click on Use existing Antelope
ID.
Bear in mind, that your Antelope ID is different and has no relation to your user profile on
antelopeaudio.com.

SATORI & R4S User Manual 6
Sign in using your credentials. If you have just created your Antelope ID, do not forget to
activate it using the link in the e-mail you have just received.
After successfully signing in your Antelope ID, you will be asked to fill
in additional information concerning your recent purchase.
Once you have filled in the required information, click Done. You can now begin using
your Satori.

SATORI & R4S User Manual 7
R4S
Simply connect the USB cable between the rear panel of R4S and the computer on which
you are running the Satori Control Panel application. Note that R4S is bus-powered from
the USB port and does not require a separate power supply.
ACTIVATE YOUR PRODUCT WARRANTY
You will be required to activate your product warranty from the My Warranty tab in My
Antelope Account. To activate your product, click on the text that sends you to the page
where you can add a custom warranty.
On the following screen you will be asked to enter information about your new device and
to attach your warranty. Select your device from the list under Device type and add a
serial number. You can find it on the back side of your device’s rack ears. After entering the
serial number enter the date of purchase.
The last step is to attach your warranty. You can add multiple files (up to five) by using the
plus sign. Acceptable formats are .pdf, .jpg, .png, .jpeg, .heif, and the size limit is 7 MB per
file. Once you have completed the steps click Add Warranty.

SATORI & R4S User Manual 8
After successfully completing the process, you can click on View Warranty to see if your
file has been uploaded correctly.
FRONT PANELS EXPLAINED
Satori

SATORI & R4S User Manual 9
1. Power button
Toggles Standby/On state.
2. Input select buttons channels 1-8
Input select lets you switch between your desired input source, which will be fed to your
selected monitor output.
3. Sum select button
The sum select button lets you send your stereo sum to your chosen monitor output.
4. Rotary control
Large stepped relay attenuator for headphone volume and main monitor outputs.
●Press the volume attenuator to choose which output you are controlling.
●Press and hold to mute the currently selected output. i.e. Monitor outputs or
headphone outputs as indicated by the LEDs.
5. Mono, Dim & M/S
●Press the mono button to sum the currently chosen monitor output to mono. This
button corresponds to the last setting chosen in the Mono effects dropdown menu
in the Control Panel application.
●Press the Dim button to activate the -20dB attenuator. Press once more to restore
normal volume.
●When Mono is active, you also have the option to select M/S. Press the M/S button
to select either the sum or the difference between the L/R channels. This lets you
monitor only the centre or only the periphery of your audio.
6. Talkback button
Press the Talkback button to activate the talkback microphone. Talkback can be
distributed to your chosen headphone output(s) from the Control Panel application.
7. Monitor select buttons 1-4

SATORI & R4S User Manual 10
Press to choose between the four monitor outputs. The chosen source will be fed to the
selected monitor out.
8. Headphone outputs
Two independently assignable headphone outputs (HP1 & HP2), selectable and controllable
from the main volume control knob.

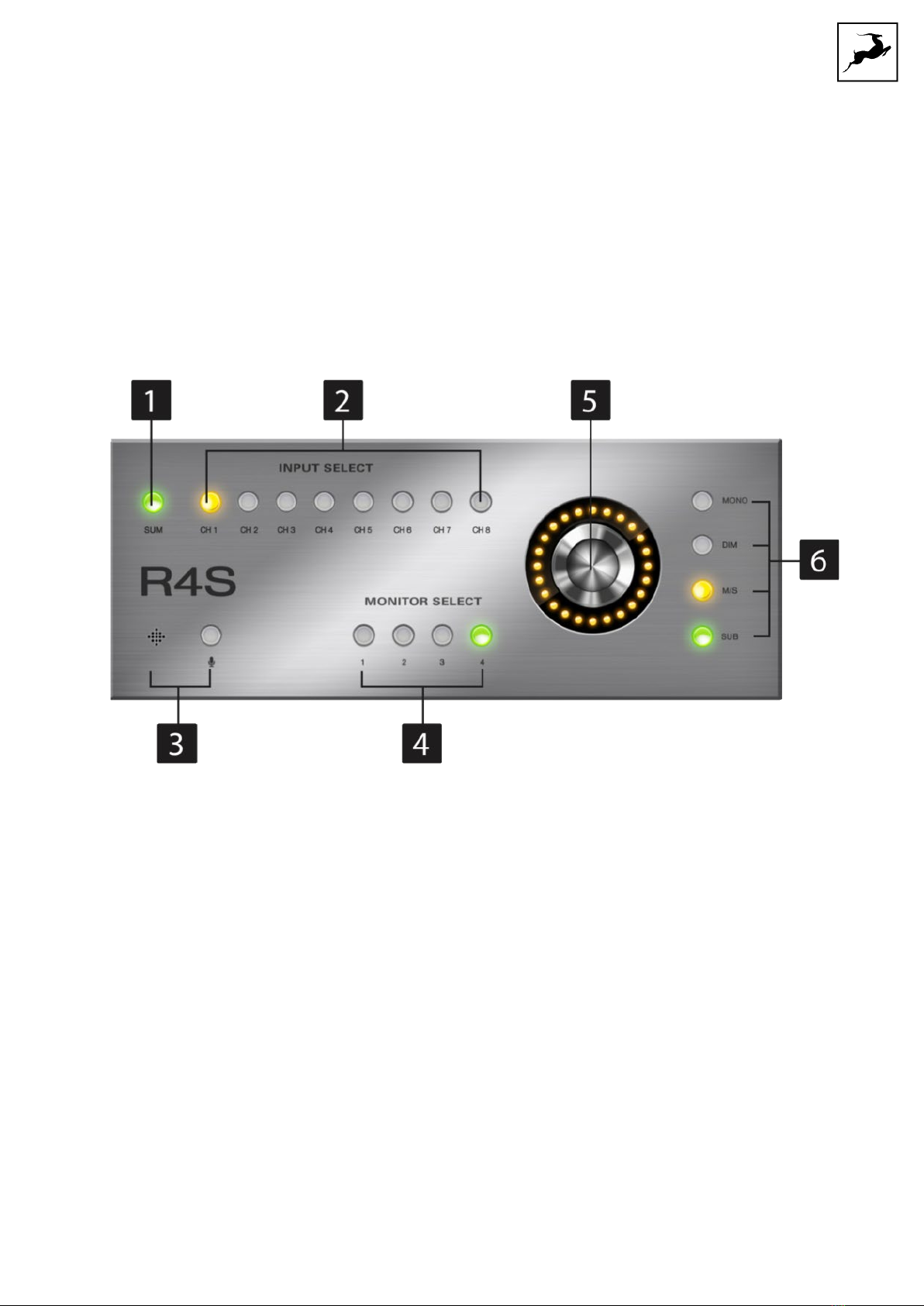

R4S
1. SUM Select button
Press to send the stereo sum to the chosen monitor output.
2. Input Select buttons, channels 1 - 8
Switch your desired input source, which will be fed to your chosen monitor output.
3. Talkback button
Activates the talkback microphone. Talkback can be distributed to your chosen headphone
output(s) from the Control Panel application.

SATORI & R4S User Manual 11
4. Monitor Select buttons 1 - 4
Switch between the four monitor outputs. The chosen source will be fed to the selected
monitor out.
5. Rotary control
Large stepped relay attenuator for the main monitor output.
●Turn clockwise or counterclockwise to adjust level.
●Press-and-hold to mute.
●To access the Trim Offset feature, press and hold the desired 'Monitor' (1, 2, 3, 4) or
'Input' (Ch. 1 - 8) button. Turn the rotary control to adjust trim (-6dB to +6dB) or
double-press to return to 0dB.
6. Mono Dim, M/S & Sub
●Press the Mono button to sum the currently chosen monitor output to mono.
●Press the Dim button to activate the -20dB attenuator. Press once more to restore
normal volume.
●When Mono is active, you also have the option to choose M/S. Press the M/S
button to choose either the sum or the difference between the L/R channels. This
lets you monitor either the center or the periphery of your audio.
●Press the Sub button to activate the LFE (low frequency effect) output.

SATORI & R4S User Manual 12

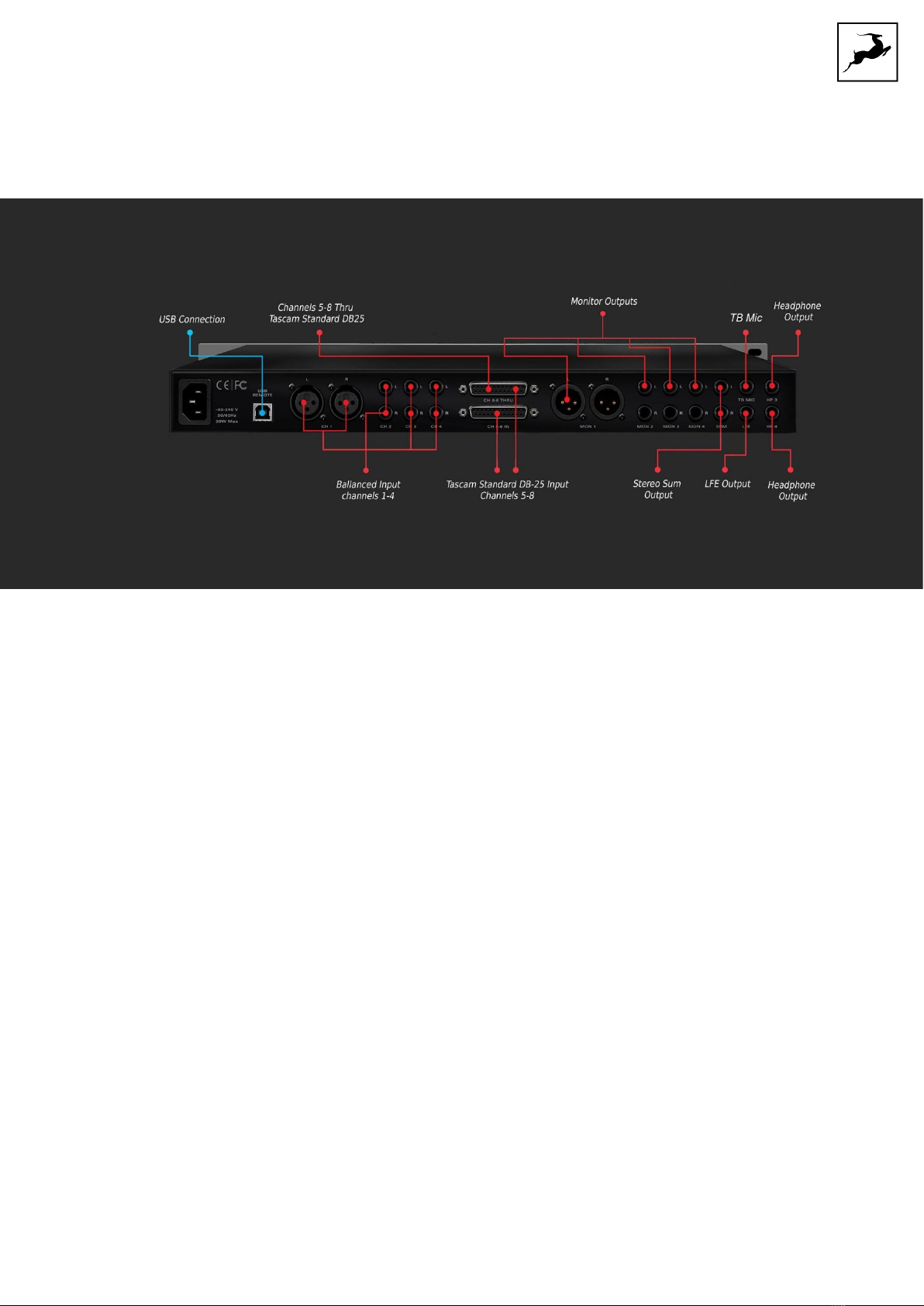

REAR PANELS EXPLAINED
Satori
1. Mains Power Connection
The AEC connector supports a range from ~95-245 V. This lets the device automatically
accommodate mains voltage in every country.
2. USB Full-Speed
Satori uses an USB connector Type-B and lets users connect to the Windows & macOS
Control Panel application.
3. 4 x Stereo Source Inputs
Four stereo inputs, one on XLR and three on TRS for connecting a wide variety of inputs.
4. 4 x Stereo Source Inputs on D-Sub with a Thru Output
D-Sub Thru, outputs all 4 stereo channels coming through Stereo input channels 5-8.
The D-Sub inputs, as well as going to the D-Sub Thru, also get summed to the stereo sum
output. The D-Sub Inputs are on an 8 channel D-Sub connection. The 8 channels make up
4 stereo inputs, odd numbered inputs being the left signal and even numbered inputs
being the right signal.

SATORI & R4S User Manual 13
5. 4 x Main Stereo Monitor Outputs
Four assignable balanced stereo outputs, one over XLR, three over TRS
6. Stereo Sum Output
The stereo sum output takes the summing input channels 5-8 and creates a stereo signal
output over TRS.
7. Talkback Mic Input
The talkback input lets you connect a dynamic mic for another talkback option, using your
preferred microphone.
8. Balanced LFE Outputs
LFE stands for Low Frequency Effect. Balanced TRS to connect a sub-woofer, which
outputs the currently selected monitor signal.
9. Headphone Outputs
Two further independently assignable headphone outputs (HP3 & HP4), selectable and
controllable from the main volume attenuator and the Control Panel application.
R4S

SATORI & R4S User Manual 14
7. USB Type-B Connector
R4S uses an USB Type-B connector for power and computer connection.

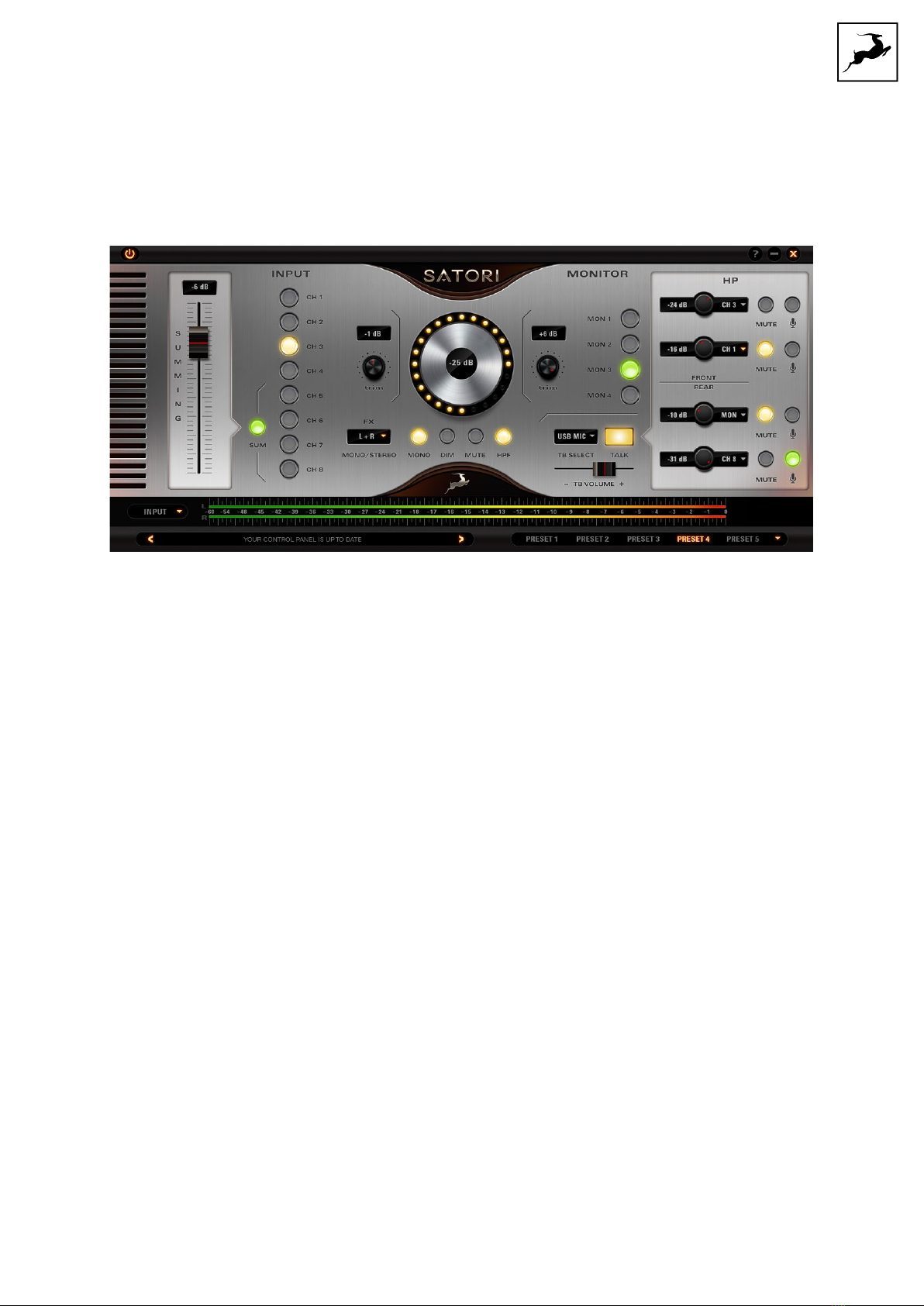

CONTROL PANEL APPLICATION
The Windows & macOS Control Panel application mirrors the functionality of Satori's front
panel controls, not unlike how R4S does it. It also provides metering and save/recall of up
to 5 presets. Click on PRESET 1 - 5 to recall a preset. Ctrl + Click (Win) / Command + Click
(Mac) on PRESET 1 - 5 to save into that slot.
CUSTOMER SUPPORT INFORMATION
Antelope Audio Customer Support can be reached by the following means:
Online
Visit support.antelopeaudio.com
Phone
We are there for you around the clock, 21 hours/day, Monday to Friday.
North America [phone]:00 a.m. – 10:00 p.m. (EST)
International [phone]:00 a.m. – 03:00 a.m. (GMT)
Pour le Support francophone: [phone]:00 a.m. - 17:30 p.m. (GMT+1)
Live Chat
Live Chat is available during the following hours Monday to Friday
International 06:00 a.m. – 06:00 p.m. (GMT)
Note: If you’re trying to reach us outside working hours, we advise you to file a ticket in

SATORI & R4S User Manual 15
our customer support system or leave a voice message.
Additional Resources
•The Antelope Audio YouTube channel is home to various tutorial videos
and endorser content which you may find helpful and inspiring.
•The Antelope Audio Users Facebook group lets you interact with fellow
users and some of our employees. Note, however, that it is not meant to be a
support group. Please contact our customer support team for such inquiries.
•The Knowledge Base in our Customer Support section is an often-
overlooked source of troubleshooting information, answers to commonly asked
questions and Antelope know-how.
MY ANTELOPE AUDIO PRODUCT ISN’T
WORKING.
WHAT SHOULD I DO?
If you can't find a solution on your own, please get in touch with us so we check if you are
having a hardware-related issue. If this is the case, we'll guide you through the repair
process. If the product should be returned, a RMA number will be issued so we can begin
the procedure.
What's an RMA number?
Issuing a RMA (Return Merchandise Authorization) number is required for any factory
service or repair procedure. Please, don't attempt to send us your device without receiving
a RMA number first, as the device will be returned and not serviced.
How do I get an RMA number?
The Antelope Audio Customer Support team is in charge of issuing RMA numbers. Visit
support.antelopeaudio.com and get in touch.

SATORI & R4S User Manual 16
After your RMA has been issued, you will receive an email with instructions on how to
proceed.
RMA shipping information
Alongside the product you are returning please, include a letter containing your full name,
shipping address, RMA number issued by our technical support team and a note with a
short information about the technical issue.
Please use the original box if possible, because a worn out one will surely not protect your
product sufficiently on its way to the Antelope Audio HQ. Additional cushioning materials in
multiple layers between the unit and the box walls to prevent from shock, vibration and
various tears and scratches.
Please remove any labels or old shipment markings it may have and ensure you add your
shipping address inside the box in case the original shipment label becomes illegible during
transportation.
The shipping costs are covered by the owner of the product. Antelope Audio will not cover
any local customs charges.
We recommend using a courier service of your choice (e.g. DHL, UPS, FedEx). The package
should be insured for its real value, marked as fragile and a tracking number should be
provided. We do not recommend using standard mail delivery services.
Please, don't forget to add the RMA number, issued by the Antelope Audio technical
support, on all shipping paperwork.
Antelope Audio cannot be held responsible for undelivered packages – lost or damaged on
the way to the Antelope Audio HQ. For damage claims, please contact your shipping
service provider of choice.
Antelope Audio cannot cover any repair costs for product damages due to poor packaging.

SATORI & R4S User Manual 17
LIMITED WARRANTY POLICY
This is a non-transferable voluntary Limited Product Warranty provided to end-customers
who have purchased Antelope Audio-branded hardware product (hereinafter referred to as
“Product”) from an authorized Antelope Audio re-seller.
For customers covered by consumer protection laws or regulations in their country of
purchase or, if different, their country of residence, the benefits conferred by Antelope
Audio's Limited Warranty are in addition to, and not instead of, rights and remedies
convened by such consumer protection laws and regulations and it does not exclude, limit
or suspend buyer’s rights arising from consumer law. Consumers have
the right to choose whether to claim service under the Antelope Audio Limited Warranty or
under their consumer law rights.
All claims made under the Antelope Audio Limited Warranty will be governed by the terms
set out in this warranty document.
Warranty Coverage
Antelope Audio warrants that the Product will be free from defects in material and
workmanship for the period of 1 (one) year commencing on the date of purchase of
Product by end-customer from authorized Antelope Audio’s re-seller.
Except where explicitly prohibited by applicable local law, this warranty is limited to the
original purchaser and is non-transferable. This warranty provides you with specific legal
rights, and you may have additional rights that vary under local laws.
In general, this warranty means your Antelope Audio hardware product will operate in
accordance with published technical specifications, as specified by its data-sheet, and in
the operating environment for which it was intended for the length of the warranty period.
This version of the warranty applies to products purchased on or after January1,2018. For
prior versions of the Antelope Audio limited warranty, please contact customer service.
Limited Factory Refurbished (B-stock) Warranty

SATORI & R4S User Manual 18
Antelope Audio warrants products sold as “B-stock, Factory Refurbished or Open Box” to
be free from defects in materials (unless otherwise stated in product description) and
workmanship. Only products purchased from an authorized dealer or directly from
Antelope Audio are covered by this Warranty.
The Limited Factory Refurbished (B-stock) Warranty is valid for the period of 6 (six)
months, commencing on the date of purchase of Product, if local regulations do not
require otherwise.
All warranty terms contained hereunder apply also to the B-stock Warranty, unless
otherwise specified.
Remedies
Antelope Audio’s entire liability and your exclusive remedy for any Antelope Audio Product
that is not operating in accordance with its published technical specifications is at
Antelope Audio’s discretion:
1) to repair the Product at Antelope Audio’s expense using new or equivalent-to new
refurbished parts in good working condition; or
2) to replace the Product at Antelope Audio’s expense with a product with equivalent
functionality formed from new and/or equivalent-to new refurbished parts in good working
condition, or
3) to refund the price paid. Should Antelope Audio decide to refund the price paid, it may
deduct from the paid Product’s price any damages caused to the Product; where, within
fourteen (14) days of the expiration of the warranty period,(i) Antelope Audio has received
written notice of any nonconformity;(ii) after Antelope Audio’s written authorization,
customer has returned the nonconforming product to the designated place; and
(iii)Antelope Audio has determined that the Product is nonconforming and that such non
conformity is not the result of any of the exclusions designated below.

SATORI & R4S User Manual 19
These warranty obligations are conditioned upon the hardware being returned to the
original place of purchase, or another place as directed by Antelope Audio, with the original
sales receipt attached. You will be required to pay shipping and handling charges for
returning the product. You may be required to pay any other applicable tariffs, duties,
taxes, or other fees with regard to returning the products.
Any repaired or replacement Product will be warranted for the remainder of the original
warranty period.
Obsolete or Discontinued Products
An obsolete or discontinued product will be repaired or replaced with the same product if
available. If Antelope Audio is unable to replace your obsolete or discontinued product with
the same product, Antelope Audio will replace the obsolete or discontinued product, in its
sole discretion, with a product having similar function and capacity.
Exclusions
This warranty does not cover problems or damage resulting from, but not limited to, any of
the following: (i)Wear and tear associated with normal use; (ii)Any modification,
abuse, accident, disassembly, misapplication, misuse, negligence, acts of God, accident;
(iii)Unauthorized repair or attempted repair by anyone other than Antelope Audio or
someone authorized by Antelope Audio to do warranty work; any unauthorized repairs will
void this warranty(iv)Any improper operation, maintenance or installation, including any use
not in accordance with any supplied product instructions; (v)Connection to any improper
voltage supply; (vi)Use of consumables or spare parts not supplied by Antelope Audio,
except where such restriction is prohibited by applicable local law; (vii)Any other cause
which does not relate to a Product defect in materials or workmanship.
The warranty does not apply to any Products which have been subject to misuse, neglect,
accident or modification or which have been soldered or altered such that they are not
capable of being tested under normal test conditions.
This warranty does not cover (i) any counterfeit products, i.e. Products that Antelope
Audio, at its sole discretion, determines were not manufactured by Antelope Audio or any

SATORI & R4S User Manual 20
of its authorized manufacturing partners; (ii) Products purchased from a person or entity
which is not an authorized dealer or re-seller of Antelope Audio; (iii)Product sold “as is” or
“with all faults”, to the extent permitted by local law.
This warranty is not valid in case any manufacturer label(s), serial numbers, date stamp(s)
or warranty sticker(s) has been altered or removed from the Product.
Limitation of Liability
ANTELOPE AUDIO SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT,
OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO
LOSS OF PROFITS, REVENUE, OR DATA (WHETHER DIRECT OR INDIRECT) OR
COMMERCIAL LOSS FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON YOUR
PRODUCT EVEN IF Antelope Audio HAS BEEN ADVISED PREVIOUSLY OF THE
POSSIBILITY OF SUCH DAMAGES. Some local laws do not allow the exclusion or limitation
of special, indirect, incidental or consequential damages, so this limitation or exclusion may
not apply in your jurisdiction.
ANTELOPE AUDIO WILL NOT ASSUME OR AUTHORIZE ANY OTHER PERSON TO
ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH ITS PRODUCTS.
Data Recovery
In the event of data loss using Antelope Audio storage devices, Antelope Audio is not
responsible for backing up or recovering any data that you may have lost.
No Other Warranties
No Antelope Audio employee, dealer, re-seller, or other agent is authorized to make any
modification, extension, or addition to this warranty.
How to Make a Warranty Claim
Valid warranty claims should be processed through your point of purchase. Please also
verify the return policy directly with the retailer where you purchased your product. Any
warranty claims that cannot reprocessed through your original point of purchase should be
addressed directly to Antelope Audio. Our customer service contact information can be
found on the web or in the documentation included with your Product.
