AP&T AP-AZ3201 User manual

Ecient Static Removal
Ionizing Air Snake
AP-AZ3201
Shanghai Anping Static Technology Co.,Ltd
AP&T
AP&T
R

Completely Dust Removal
Partially Static Removal
Static Removal & Dust Removal

Static removal
Prevent adhesion of foreign objects
Prevent sticking
Remove surface dust
Prevent uneven scattering
APPLICATION
Electronics, plastics, chemical, printing,
photoelectricindustry and other industries.

① Reasonably determine the best position of ionizing air snake to static discharge .
② Insert the φ8 compressed air tube into ionizing air snake air source interface.
③ Insert the plug of the national standard power cord into the socket of the high-voltage power supply.
④ Turn on the high-voltage power switch and the indicator lights to show work.
Installation steps
AC
AC
High voltage power supply
(Positive high pressure)
(Negative high pressure)
+HV
(Positive high pressure)
-HV
(Negative high pressure)
Test standard: ANSI/ESD.STM3.1, SJ/T 11446—2013
Test instrument: Trek157 static tester
Test voltage: ±1000V → ±100V attenuation
Test environment: humidity 50±5%; temperature 23±3℃
Discharge eect

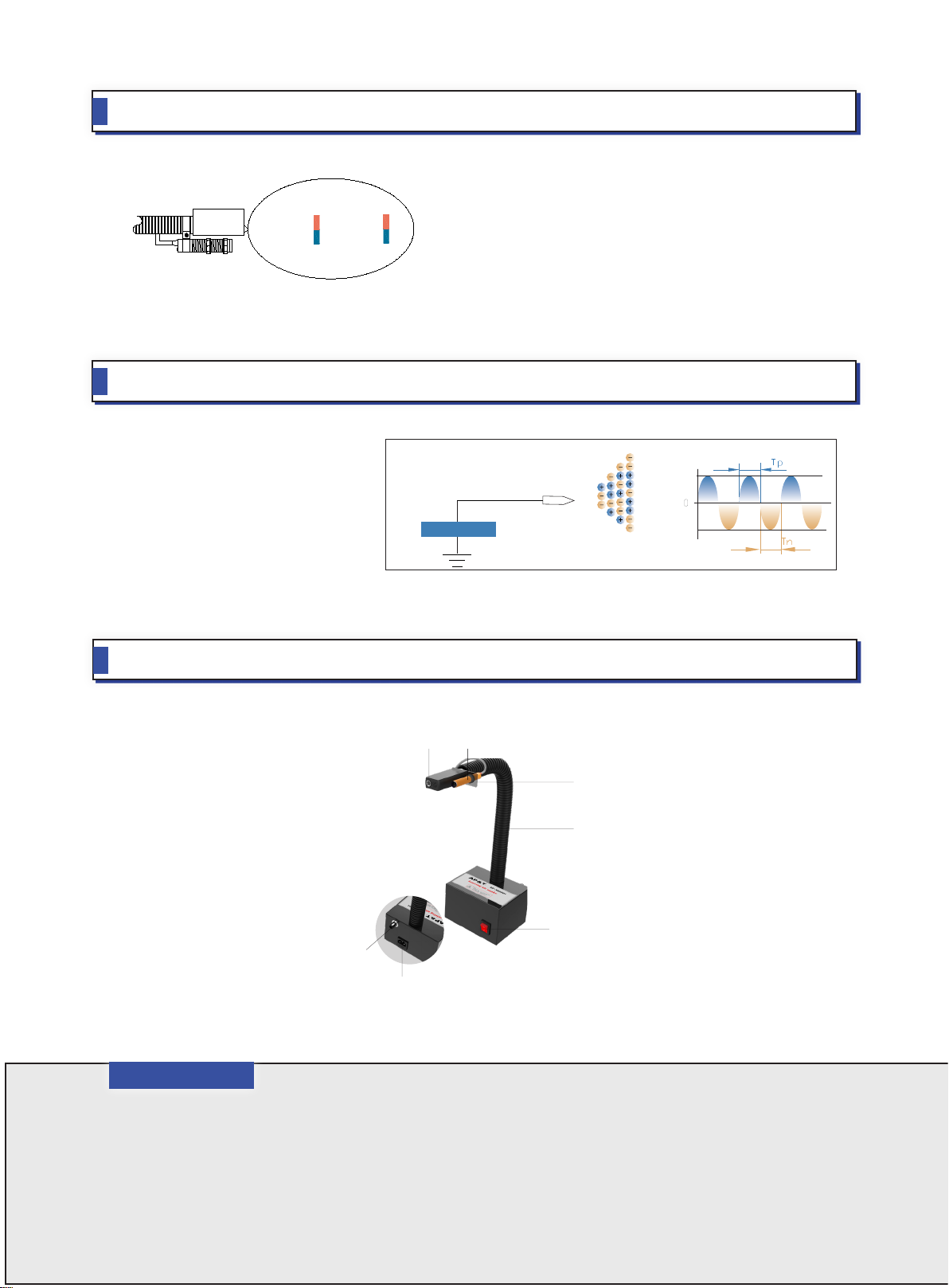

Working way
AP-AZ3201 ionizing air snake uses AC high voltage
to act on the dedicated emitter electrode to ionize the
air molecules to generate a large amount of positive
and negative air ions; and transport it to the surface
of the static object to be eliminated by compressed air
and neutralize the positive and negative electrostatic to
static eliminate efciently and reliable.
Details
1.3s
1.4s
-2
300mm
1.0s
1.1s
-5V
+
-
150mm
AP-AZ3201
Hose (can be bent arbitrarily)
Discharger Photoelectric switch
Photoelectric switch clamping ring
power switch
Power outlet
Compressed air input connector

① It should be placed in the work area where the static electricity is eliminated .(about 150~300mm away from the surface of the
static electricity object is better)
Static elimination angle should be perpendicular to the surface of the charged body.
② The entire device must be reliably connected to the ground wire of the AC device and the ground resistance is less than 1 ohm.
③ The surface of the ionizing air snake is not allowed to cover other objects.
Installation tips
Dimensions
Product parameters
Model AP-AZ3201
Input voltage AC220V/50Hz or AC110V/60Hz
Working voltage AC3500V
Power 26W
Discharge distance 150 －300mm
Ion balance ≤|±50V|（150mm from the front of ionizing air snake)
Discharge speed ≤1.5S（150mm from the front of ionizing air snake)
Noise <65db（150mm from the front of ionizing air snake)
Use media Clean compressed air
Air pressure 0.2—0.6MPa
Working temperature 0℃—50℃
Working humidity 30-70%RH
Air source connector ф8mm(Can be customized according to requirements)
Dimensions 156*127*117mm（L*W*H）
Net weight 3350g (including power cord, photoelectric switch, clamp
ring)
Gross weight 3780g
Unit : mm

Shanghai Anping Static Technology Co,.Ltd
Tel : [phone]
Fax : [phone]
Postcode : 200233
Website : www.ap-static.com
Address : 3/F,Building 27,No.69,Guiqing Road,Shanghai,China
Speciality Creates ValueSpeciality Creates Value
