AP&T AP-DJ283 Series User manual

Intelligent Static Removal
High speed Self-balancing LCD Display
Shanghai Anping Static Technology Co.,Ltd
AP-DJ283X
IONIZING
AIR
BLOWER

Multi models available
Suitable for different production environments
AP-DJ2832
AP-DJ2831
AP-DJ2834
AP-DJ2833
Durable Intelligent remote control Network monitoring One-button start CE certification

Static removal
Prevent adhesion of objects
Prevent material splash
Prevent static electricity
Prevent blockage of feeder
Industry Application
Widely used in electronics, optoelectronics, and
semiconductor industries

Multiple ways of networking, monitoring the
working status of ionizing air blower online
Wireless
communication
IMS monitoring software
Network Monitoring
AP-DY6703
AP-KT3701 AP-DY6704
USB wire link
USB wire link
IMS monitoring software
IMS monitoring software
RS485
communication

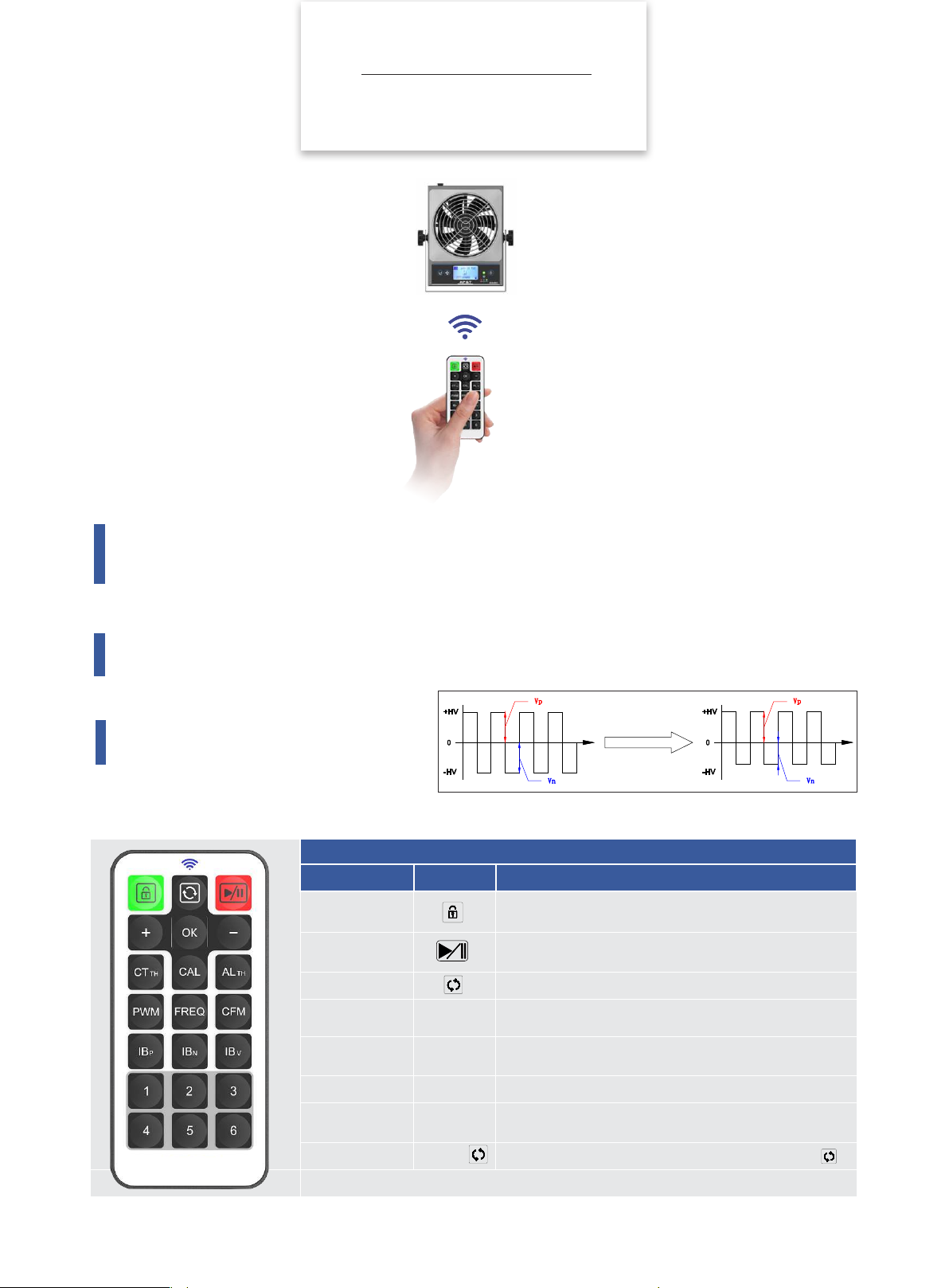

Intelligent Remote Control
Cleaning time /Air volume output/Ion balance adjustable
Cleaning time setting
Set a reminder for the cleaning time at will. Blue light flashes indicates cleaning is required. The electrode needle
cleaning cycle should be set according to the working environment when using the ionizing air blower. Cleaning cycle
should be shorten appropriately in environment with more moisture and dust.
Air volume output adjustable
Fan speed in five gears. Adjust the air volume according to the installation distance of the static eliminator and the
status of the target object.
Ion balance adjustable
The ion balance voltage can be adjusted by adjusting the negative high voltage
amplitude remotely.
TIME TIME
Reduce the negative high voltage amplitude,
the negative ion output decreases
Adjust ion balance voltage
CTTH → +/-
CFM → +/-
IBN→ +/-
CAL → OK
CAL →
Function Symbol Operation instructions
Button Function instructions
Unlock
Run / Pause
Clean
Adjust clean time
Adjust air volume
Adjust ion balance
Confirm
Reset
Unlock before adjusting operating parameters; 30s delay if any key is
pressed, exit and re-locked if no key is pressed.
Device starts running when power is on. Press "STOP" to standby and no
high voltage output. Press "RUN" again and the device will start working.
Press the button to clean the needle once.
Press CTTH first, and then press +/- to increase or decrease the
cleaning cycle. Minimum adjustment unit 1H.
Press CFM first, then press +/-,air volume from high to low is 1,2,3,4,5.
Press IBN first, then press +/- to adjust the ion balance voltage.
Note: Press CAL first, then press OK to confirm after adjusting the
output parameter; otherwise, false alarms are likely to occur.
Reset（150Hz、50%、4H）：Press CAL first，then press
Press IBN first, then press + when the positive voltage on flat panel charge detector or object surface is high, press IBN first, then press - when
the negative voltage on flat panel charge detector or object surface is high until the ion balance reaches the ideal status.

Pulse DC
Discharge effect is better compare to
frequency AC ionizing air blower
Pulse DC method generate ions with two polarity by
applying "+" and "-" high voltage alternately on
positive and negative electrode needles.
Compared with power frequency AC method, the
utilization rate of ion generation is higher. And its
static elimination ability can be exerted no matter
in short or long distance. In addition, the
discharge frequency can be adjusted, which can
extend the discharge distance. The output ratio of
positive and negative ions can be adjusted, which
is convenient for intelligent control.
Decrease Tp so that the positive voltage acting capacity becomes smaller and the acting
time becomes shorter. Less positive ions and more negative ions output to neutralize
the excess positive charge on the surface of the object.
Increase Tp so that the positive voltage acting capacity becomes greater and the acting
time becomes longer. More positive ions and less negative ions output to neutralize the
excess negative charge on the surface of the object.
Adjust the duty ratio [Tp/(Tp+Tn)] to an appropriate ratio and send out the same amount
of positive and negative ions to neutralize the static electricity on the surface of the
object.
3 situations of static electricity on
the surface of the object
AC
power supplyHigh voltage
Power frequency AC
T
+HV
-HV
Pulse DC Pulse DC
Positive pulse Negative pulse
T
Pulse DC
+HV
-HV
Pulse DC VS Traditional AC
（Positive high voltage）
（Positive high voltage）
（Negative high voltage）
（Negative high voltage）
Positive voltage working time
Positive voltage working time
Negative voltage working time
Negative voltage working time

Test bearing chart of single-port air blower Test bearing chart of multi-port air blower
Z（mm）Trek 150*150mm plate tester
-150
X（mm）
150mm
300mm
450mm
900mm
600mm
750mm
150
0
125 375
0
Z （ mm ）
-375 -125
X （ mm ）
150mm
300mm
450mm
900mm
525
-525
600mm
750mm
-150 0 150
900
750
600
450
300
150
0.4
1.5
2.7
3.8
5
6.2
7.3
8.4
9.6
11
12
-150 0 150
900
750
600
450
300
150
-9
-7
-6
-4
-3
-1
0
2
3
5
-275 -125 0 125 275
900
750
600
450
300
150
0.3
1
1.7
2.4
3.1
3.9
4.6
5.3
6
6.7
7.4
-275 -125 0 125 275
900
750
600
450
300
150
-14
-12
-9
-7
-5
-2
0
2
5
7

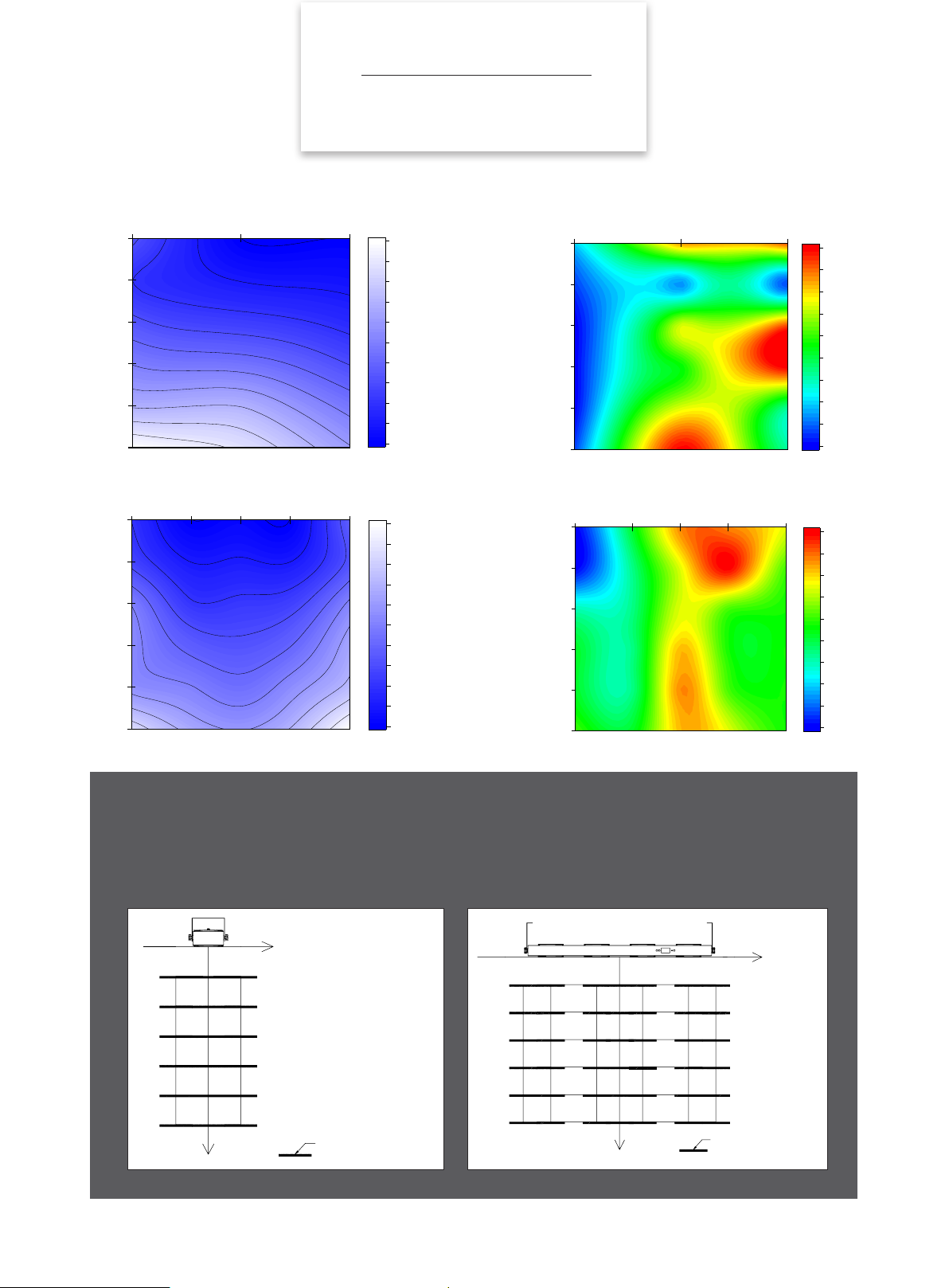

Ion balance distribution diagram of AP-DJ2831
Discharge time distribution diagram of AP-DJ2831
Keep a clean production environment and stay
away from static electricity
High Efficiency Static Removal
Test Height (mm)
Discharge Time(s)
Test Length (mm)
Ion Balance(V)
Test Length (mm)
Test Height (mm)
Discharge time distribution diagram of AP-DJ2832 Ion balance distribution diagram of AP-DJ2832
Test Height (mm)
Discharge Time(s)
Test Length (mm)
Ion Balance(V)
Test Length (mm)
Test Height (mm)
Note：The 0 point of the test length is the center position of the air blower
Test standard：ANSI/ESD.STM3.1，SJ/T 11446—2013
Test instrument: Trek charge plate tester
Test voltage：±1000V → ±100V attenuation
Test environment：humidity 50±5%；temperature 23±3℃
Trek 150*150mm plate tester

Discharging time: Discharge speed within 2.5 sec when vertical installation
distance is 450mm
Discharging distance: Up to 1050mm width.
Keep a clean production environment and stay
away from static electricity
High Efficiency Static Removal

No.1
No.2
No.3
No.4
No.5
RS485
communication
Wireless
communication
IMS monitoring software

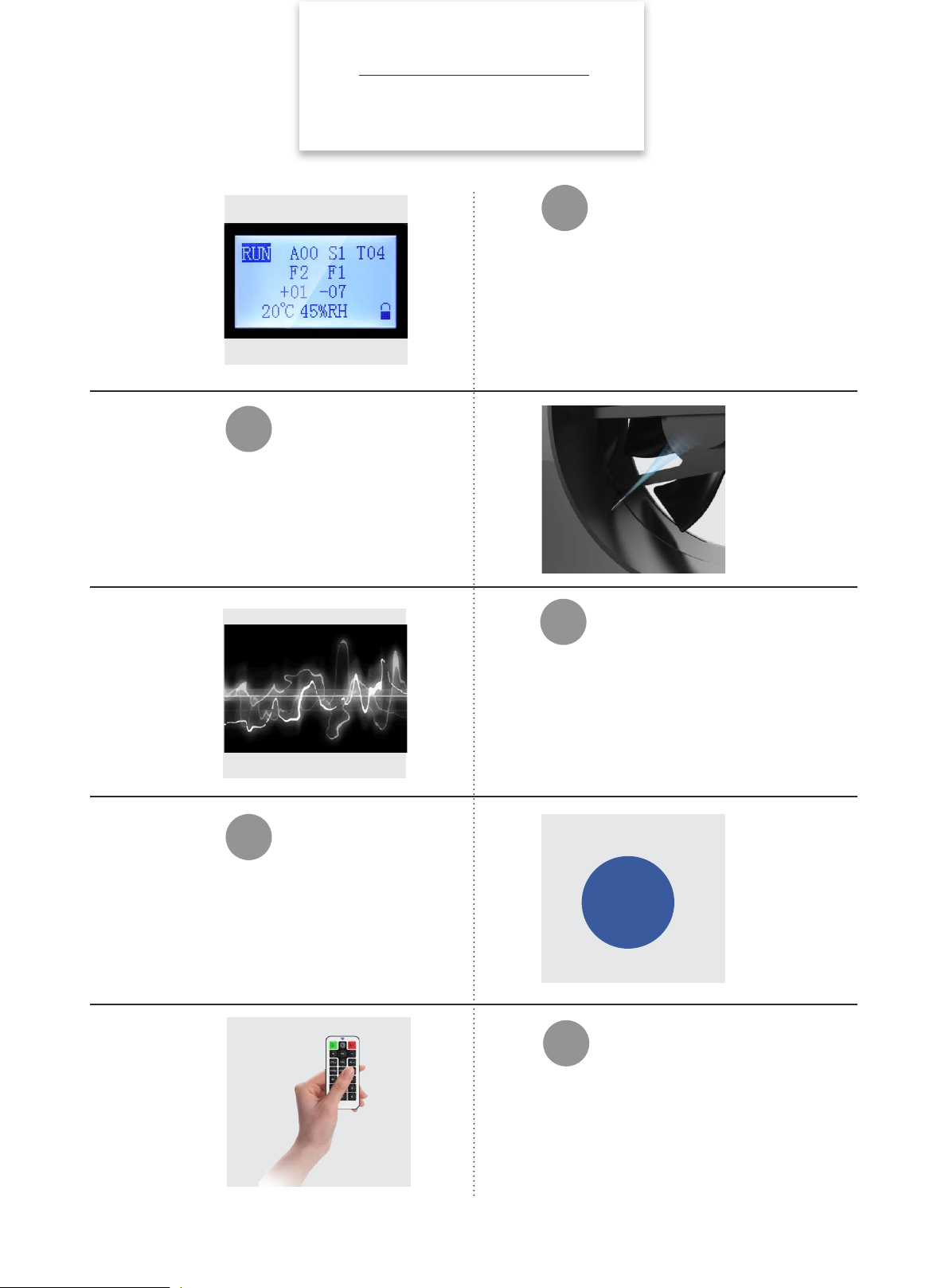

Features
Safe / Easy to use / Durable
Magnetic net cover
The power is cut off immediately and the fan is in
the standby (STOP) state when the net cover is
separated , which is convenient for disassembly
and maintenance.
High air volume fan five
speed adjustment
Stable performance and air volume output
1.45 times higher than ordinary fans.
Built-in cleaning brush
Automatic needle brushing function when start
up. By default, the needle is automatically
brushed every 4 hours for manual cleaning and
maintenance free.
Fault alarm
Display screen show fault alarm and LED red
light alarm when the fan, ion balance, and high
voltage breakdown.
Network Monitoring
Wired or wireless network
communication realisable and monitor
the working status of the air blower.

No.6
No.7
No.8
No.9
No.10
±10V
Features
Safe / Easy to use / Durable
8 Tungsten electrode needles
Multiple air outlets, 8 needles per air outlet
with large amount of ion generation and
longer life time compared to titanium and
silicon.
CE certification
CE certified with electromagnetic protection function
and no electromagnetic interference to other
equipment. It can also effectively avoid external
electromagnetic interference affecting the normal
operation of the air blower which is a high-security
and high-reliability static eliminator.
Ion self-balance function
The self-balance range is ±10V and the
balance voltage can be displayed in real time.
Intelligent remote control
The negative high voltage amplitude is adjustable,
which can be used to adjust the ion balance voltage.
Ion output characteristics can be adjusted by remote
control.
LED display
LED display shows the equipment address (e.g.A00), wind
speed gear (e.g.S1), cleaning cycle (e.g.T04), temperature
and humidity, cleaning indication (Cleaning), fan fault
alarm (Fan Fault!!) and HV fault alarm (HV Fault!!). The
balance voltage of each air outlet displays in real time,
which alarms (Ion Fault!!!) when the set threshold is
exceeded, alarms fault when the high voltage is 0V.

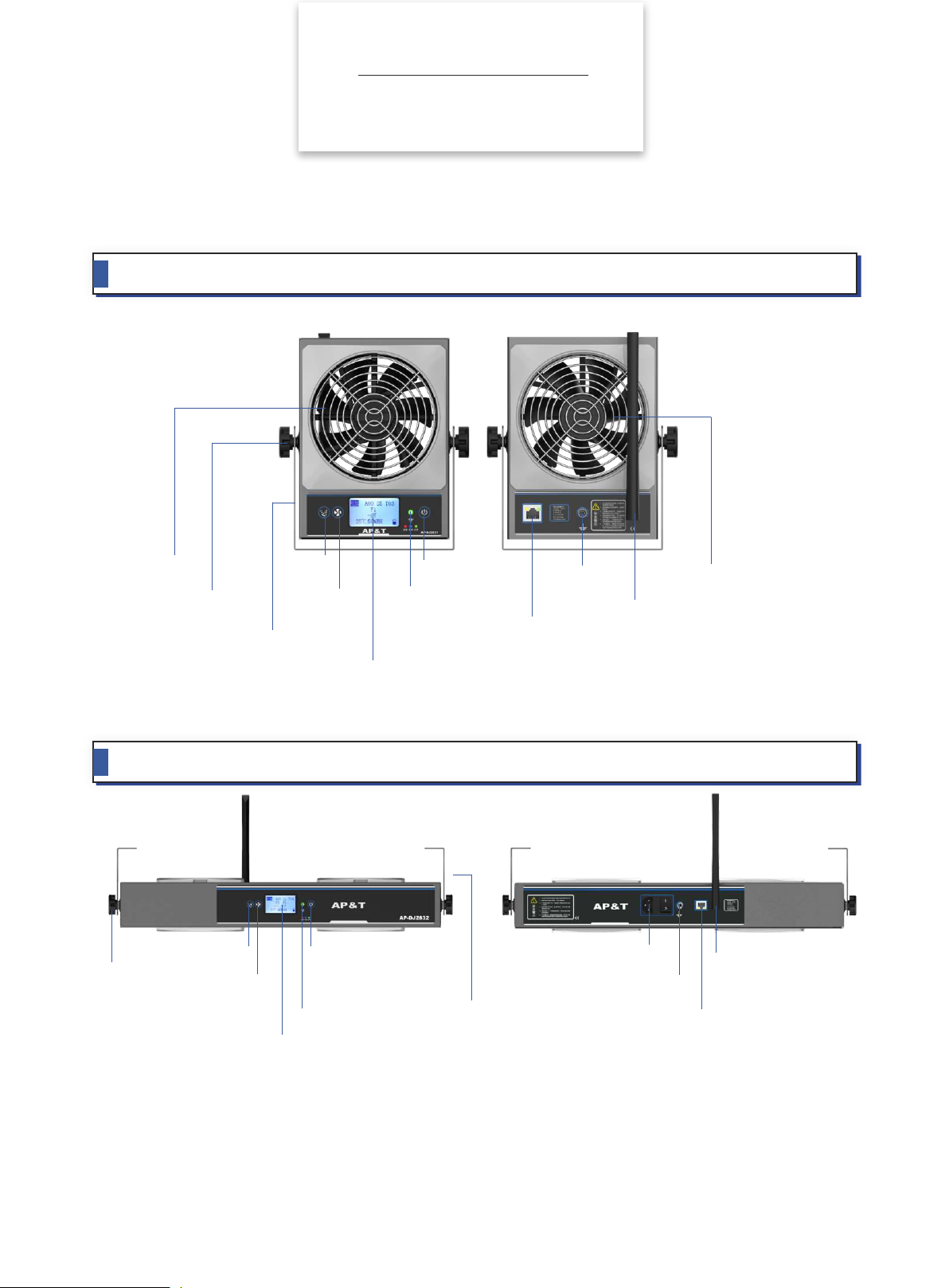

Panel function instructions
Rich functions, more intelligent use
U-shaped bracket
Cleaning switch
Communication antenna
Communication antenna
RJ45 power/communication interface
Power switch
Air volume adjustment
LCD display
Status Indicator
Front
Front
Back
Back
AP-DJ2832/2833/2834
AP-DJ2831
Bakelite screw handle (M5×8)
Front cover
Back cover
L-shaped bracket
Three-in-one power switch
Ground Stud
RJ45 power/communication interface
Power switch
Air volume adjustment
Status Indicator
LCD display
Bakelite screw
handle（M5×8）
Cleaning switch
Ground Stud

Power interface cable function information
1、2
3
4
5
6
7
8
9
The output wiring diagrams of pins 7 and 8 are as follows:
RUN/STOP
A00
S4
T04
F2 F1
+07 -08
28℃
62%RH
Cleaning...
Fan Fault!!!
HV Warning!!!

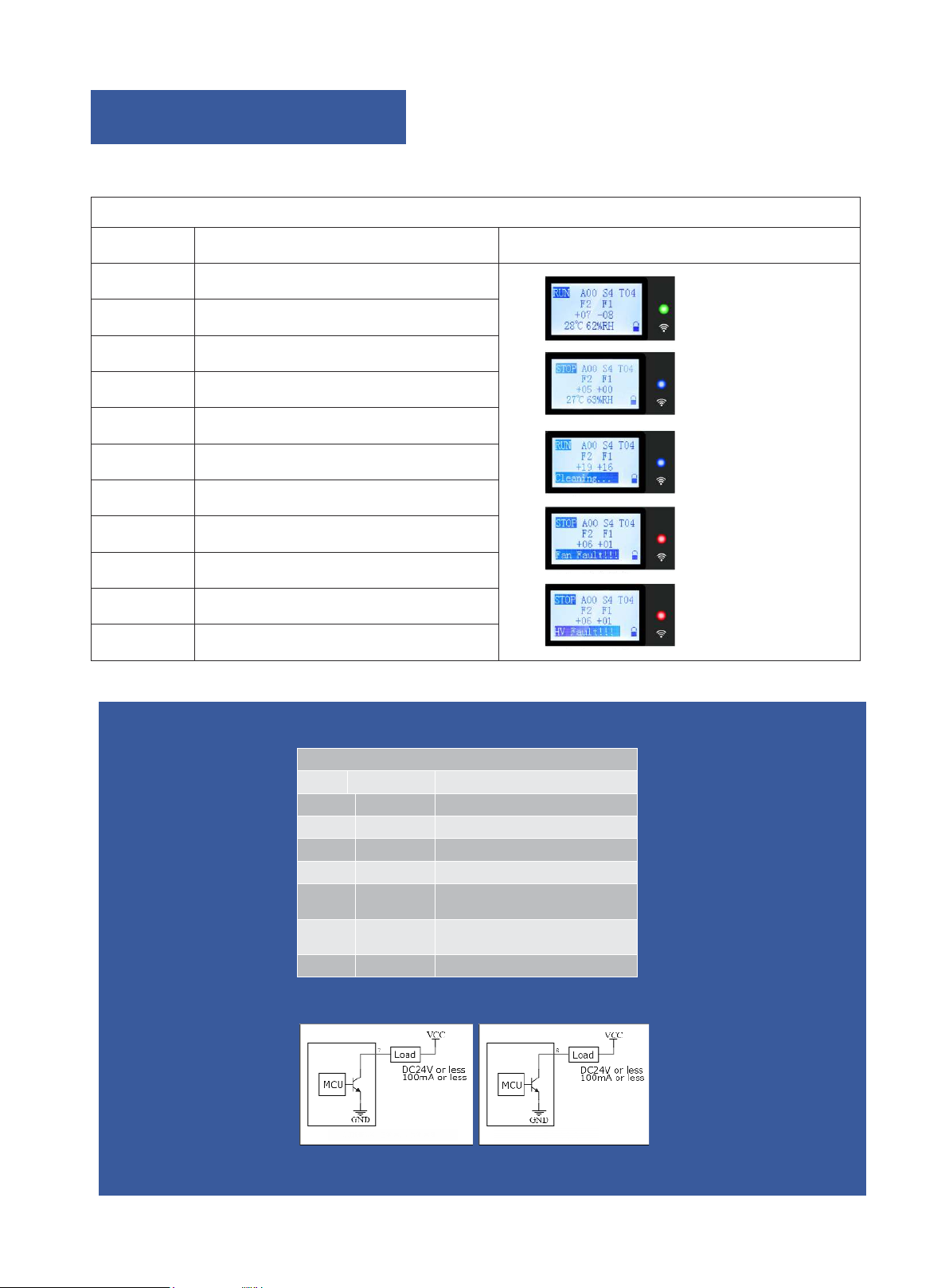

LCD display parameters
Display content Description Sample graph
LCD parameter display description
Run / Pause
Working address of the device：00
The current wind speed gear: 4 (5 gears in total,
wind speed in gear 1 is the largest)
Cleaning cycle：04（Unit：H）
The current air outlet of the device
(AP-DJ28 series ionizing air blower have 1 to 4 air outlets)
Balance voltage of the air outlet
Temperature of the current operating environment
Humidity of the current operating environment
Cleaning indication
Fan fault alarm
High voltage fault alarm
Green light：Running
Blue light：Pause / Standby
Blue light flashes：Cleaning
Red light：Fan fault alarm
Red light fashes：HV alarm
VCC：+24VDC
RS485+B
RS485+A
GND
GND
PE
Orange/White-orange
Blue
White-blue
Green
White-green
Brown VTH：Sensor threshold alarm
HVAL：Eliminator high voltage alarm
White-brown Clean：Eliminator cleaning indication
Metal shield
ACT：Sensor/eliminator power-on indication
HV Alarm signal:Normal--always open、Abnormal--always close
Power signal :Normal--always close
cleaning signal:Clean--always open

Model AP-DJ2831 AP-DJ2832 AP-DJ2833 AP-DJ2834
Input voltage DC 24V（RJ45 interface）DC 24V（RJ45 interface）/ Three in one socket（220VAC 50/60Hz）
Output voltage DC±4KV → ±6KV
Power 12W 22W 33W 42.5W
Ion emission Pulses DC
Emitter electrode Tungsten alloy
Discharge range 750*300mm（L*W）750*550mm（L*W）750*800mm（L*W）750*1050mm（L*W）
Air volume ≤ 135CFM*1 ≤ 135CFM*2 ≤ 135CFM*3 ≤ 135CFM*4
Noise Single air outlet≤ 58dBA（1000mm away from the air outlet）
Ozone thickness ≤ 0.05ppm（150mm away from the air outlet）
Ion balance ≤ |±10V| ≤ |±15V|
Discharge speed ≤ 1.5S（300mm directly in
front of the air outlet）≤ 2.5S（450mm directly below the air outlet）
Alarm indication
Communication method Wireless communication /RS485
Signal output
RS485（115200bps,8,1,n,n）≥ 20ms
Collector open circuit：＜ 50V,100mA
Working temperature 0℃ -50℃
Working humidity ＜ 70%RH
Dimensions(L*W*H)
（Fan body size）142*70.5*190mm 510*154*70mm 760*154*70mm 1011*154*70mm
Shell material Aluminum powder spraying
Installation accessories 1 pair of L-shaped iron powder spraying mounting brackets,
1 pair of bakelite screw handles(M5×8（M5×8）
Power adapter
(Interface type)
INPUT：AC100—240V 50/60Hz；（Priority to supply when supplying power at the same time ）
OUTPUT：DC24V 2A（dual RJ45 interface）
Net weight(Including
power cord and bracket) 1.35KG 2.60KG 3.65KG 4.85KG
Warranty
Certification CE
Technical Parameters
Specification
Technical Parameters / Product Size
Balance voltage exceed alarm-red light flashes；
Power on/clean operation—blue light flashes;
Normal work—green light (always under monitoring status);
Fan fault alarm—red light always on;
High voltage fault alarm-red light flashes；
Infrared debugging/cleaning prompt-blue light flashing
1Year
1 pair of U-shaped iron powder spraying mounting
brackets, 1 pair of bakelite screw
handles(M5×8（M5×8）

AP-DJ2832/2833/2834 Product Size
AP-DJ2831 Product Size
Unit：mm
Unit：mm
142
190
70.5
180
98.5
200.5
152
117
Φ6.5×3
Φ6.5×2
102
30
10°
56 56
30
R6
20
1,5
60
20
510
536
77
125 250 125
500
70
154
192
70
154
760
786
125 250 250 125
77
750
192
154
77
1011
1037
70
1000
125 250 250 250 125
192
49
13
30
通
65
150
165
2-R6
1,5
85°
Installation accessories
1 pair of U-shaped aluminum powder
spraying mounting brackets,
1 pair of bakelite screw handles（M5×8）Installation accessories
1 pair of L-shaped aluminum powder
spraying mounting brackets,
1 pair of bakelite screw handles（M5×8）

AP-DJ2831
AP-DJ2831
AP-DJ2832/2833/2834
AP-DJ2832/2833/2834
400
Packing accessories
Products Use
Installation steps/technical tips/Packing accessories
1. Install the ionizing air blower and the matching power adapter firmly in the best discharge position.
2. Insert the power network cable into the adapter and the ionizing air blower RJ45 network port, and insert the power cable of the adapter into the
row socket.
3. The suspended fan can also be directly powered by 220VAC. The actual power supply is 220VAC when both 220VAC and 24VDC are
connected to the fan.
4. Touch the power switch on the front panel of ionizing air blower. It will automatically brush the needle after starting and the fan works normally
when the indicator light is green.
Installation steps
Technical tips
1. Place the ionizing air blower in the work area where static electricity is to be eliminated and the installation angle is perpendicular to the surface
of the charged body.
2. Ionizing air blower should be at least 300mm away from the metal conductor and metal grounding body. The ionizing air blower must be
reliably connected to the ground wire.
3. Two ionizing air blowers should be installed side by side with an interval of more than 400mm and more than 200mm away from obstacles such
as walls.
Wall Wall
Wall Wall
Wall Wall
Wall Wall
4. The air inlet is at least 150mm away from the wall.
Wall
Wall
AP2930003 18YXG25110 18WXI000041AP2253011 1Part namePicturePart No.SpecificationQ'TYPower adapterGRT-240200：DC24V 2A，Dual-port output，size：123*61*40.5mm（L*W*H）National standard power cordStandard 1.8m，Optional 3m/5m
Power cableStandard 2.5m，Optional 5m/10m
Remote controlIR remote control，84×38mm

1. Read the operating instruction carefully before installing and using the device.
2. The whole set of equipment must be reliably grounded during use, and the connection resistance of the electrical connection to the AC
equipment ground should be less than 1 ohm.
3. Do not use the device when the humidity is higher than 70%.
4. Do not use the device in inflammable and explosive environment.
5. It is strictly forbidden to disassemble products without authorization. Internal maintenance and repair must be carried out by professional
personnel.
6. The product is strictly prohibited to touch liquid during use, otherwise there will be abnormal, resulting in electric shock or fire.
7. Power must be turned off during inspecting or replacing the product, otherwise it may cause electric shock or fire.
8. The product is specially designed for removing static electricity and is strictly prohibited for other purposes. Any abnormal use may
cause machine failure, electric shock, fire and other hidden dangers.
9. It is strictly forbidden to touch the electrode needles when power is on, otherwise it is easy to cause fault and electric shock accident.
10.The electrode needle is a sharp metal object, please use it with care.
11.Please check the specifications of the power supply before powering on the product. Any power supply that does not meet the
specifications may cause damage or even failure to the product.
12.Please check the product power cord/communication cord regularly, and replace it immediately if it is damaged; otherwise, electric
leakage, poor communication, and abnormal operation may occur.
Safety warning
NO
1
2
3
4
Ion balance alarm Use the remote control to re-adjust after cleaning the
electrode and net cover
5
6
Return to factory for maintenance
Return to factory for maintenance
Poor grounding / no grounding / chip damage
caused by wrong power supply circuit
7
Return to factory for maintenance
Return to factory for maintenance
8Return to factory for maintenance
Faults
The indicator on the fan
panel is off
The electrostatic
removal performance
decreased obviously.
The electrostatic removal
performance decreased
High voltage/ion balance
alarm（Panel indicator light
flashes red）
Fan alarm（Panel indicator red
light always on）
Unable to discharge
The display is off or flickering
The product is smoky or burnt
Reasons Solutions
Trouble shooting
Poor contact of the power cable
Power supply mismatch
Check whether the power cable is in good condition and
securely connected
Confirm the power supply specification（INPUT：100—240VAC
50/60Hz；OUTPUT：24VDC 2000mA）
Discharge needle is polluted and damaged Clean or replace the discharge needle
The cleaning brush covers the electrode needle Brush the needle manually with the remote control, or shut down and
restart to keep the cleaning brush away from the electrode needle
Bearing set of ionizing air blower is improper Confirm the best bearing set
There are conductors or other
ionizing air blower around Remove (moving) conductors or other ionizing air blowers
Electromagnetic interference
Abnormal discharge
No power supply for high voltage module
High voltage module is damaged
Turn off the power switch / unplug the power cable, restart
the ionizing air blower
Confirm whether the electrode needle is close to or touching
the metal conductor, and remove foreign objects
Return to factory for maintenance
Return to factory for maintenance
Fan fault
The fan power supply or control circuit is damaged
Main-board chip is damaged
High voltage module is damaged
Abnormal discharge
High voltage module is damaged
Poor grounding or wrong product power supply circuit
The high-voltage module is damaged or the insulation
of the discharge bracket is damaged
Check the grounding of the ionizing air blower and plant equipment,
and return to the factory for maintenance
Check the grounding of the ionizing air blower and plant equipment,
and return to the factory for maintenance
Return to factory for maintenance
Return to factory for maintenance
The cleaning brush covers the electrode needle Brush the needle manually with the remote control, or shut down and
restart to keep the cleaning brush away from the electrode needle

1. In order to ensure the good performance of the product, the fan should be cleaned and maintained in time according to the use environment
and the required electrostatic protection requirements, that is, using electrostatic brush, dust-free cotton swab, dust-free cloth dipped in
anhydrous alcohol to gently remove the dust on the electrode, discharge bracket, fan and metal mesh cover. Note:
AA.. Operation must be done 10 minutes after power cut of
B. The cleaning cycle of the electrode needle should be set according to the working environment during use of the fan. It should be
appropriately reduced in the environment with more humid and dusty.
CC.. The fan must be powered on after alcohol is completely volatilized after cleaning. No other organic solvent can be used to clean the fa
D. The alloy electrode is a consumable product which is not included in the scope of warranty and will be charged for replacement when
repairing.
2. Do not press or rotate the control buttons on the fan panel too hard; otherwise, the device will be permanently damaged.
3. If the working indicator light on the front panel of the fan is off or red, it should be stopped and repaired by professional maintenance
personnel. It can be used only after the electrical performance index is normal.
Maintenance
After-sales service
AP-DJ283X series DC ionizing air blower has undergone rigorous testing and aging treatment before ex-work. Its performance has completely
reached the relevant indicators marked in the usage instruction.
AP&T makes a commitment to the customer that any defective parts inspected by AP&T will be repaired or replaced free of charge within one
year from the date of purchase. However, this commitment does not apply to:
1. The device is incorrectly used or installed.
2. Damage caused by negligence or accident during use;
3. Modified, disassembled or repaired by other service departments not authorized by Anping Company.
AP&T assumes no obligation or liability to the user of the product except for the repair or replacement of the part as set forth herein.

专业创造价值
AP&T
Professional electrostatic intelligent monitoring/analysis
and elimination solution provider
Speciality Creates Value
AP&T
Shanghai Anping Static Technology Co.,Ltd
Tel : [phone]
Fax : [phone]
Postcode : 200233
Website : www.ap-static.com
Address : 3/F,Building 27,No.69,Guiqing Road,Shanghai,China
