APG B Series User manual

APG
R
Doc #9004258
Rev C, 04/16
LOE Ultrasonic Level Sensors
User Manual
Web Enabled Controller, Series B
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

ii
Table of Contents
Introduction ................................................................................................................ iii
Warranty and Warranty Restrictions.................................................................... iv
Chapter 1: Specications and Options..................................................................... 1
Dimensions ........................................................................................................................................1
Specications ............................................................................................................................... 2-3
Model Number Congurator.......................................................................................................... 3
System Wiring Diagrams ........................................................................................................... 4-6
Chapter 2: Installation and Removal Procedures and Notes..............................7
Tools Needed..................................................................................................................................... 7
Connection Notes............................................................................................................................. 7
Electrical Installation ..................................................................................................................... 7
Installation Notes ............................................................................................................................ 8
Mounting Instructions ................................................................................................................... 8
Software Setup ............................................................................................................................9-13
Removal Instructions ................................................................................................................... 13
Chapter 3: Programming with Modbus TCP/IP...................................................14
Modbus Polling via Ethernet with Modbus TCP/IP...........................................................14-15
LOE Generic Modbus Register List .............................................................................................15
Modbus Programming of Individual Sensors.......................................................................... 16
Chapter 4: LOE Embedded Web Server..................................................................16
Accessing the LOE Embedded Web Server ............................................................................. 16
Navigating the LOE Embedded Web Server ........................................................................16-17
LOE Sensor Input Conguration Submenus.......................................................................18-32
Modbus Sensor Conguration Registers............................................................................ 33-35
LOE Utility Menus ................................................................................................................... 36-39
Chapter 5: Maintenance .......................................................................................... 40
General Care....................................................................................................................................40
Troubleshooting.............................................................................................................................40
Calibration ....................................................................................................................................... 41
Repair and Returns........................................................................................................................ 41
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

iii
Introduction
Thank you for purchasing an LOE Ultrasonic Level Sensor and Web Enabled Controller from APG. We
appreciate your business! Please take a few minutes to familiarize yourself with your LOE and this manual.
The LOE Ultrasonic Level Sensor and Web Enabled Controller oers a wide degree of integrated, exible,
remote and local control and monitoring for your system. The LOE can control up to 10 APG Modbus
sensors--any combination of level, pressure, magnetostrictive and ultrasonic--and two input or output
relay terminals. All readings are available for control and monitoring via TCP/IP for local or remote network
access. The LOE also had exible power options: it can use either POE or an independent 12-28 VDC power
source.
Reading your label
Every APG controller comes with a label that includes the controller’s model number, part number, and
serial number. The LOE label also indicates the default IP address, subnet mask, and mac address. Please
ensure that the model number on your label matches your order.
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

1
Chapter 1: Specications and Options
• Dimensions
6.05”
153.7mm
5.50”
139.7mm
6.05”
153.7mm
5.50”
139.7mm
3.00”
76.2mm
3” NPT
3.86”
98.0mm
2.40”
61.0mm
4.00”
101.6mm
2” NPT
2.00”
50.8mm
2.40”
61.0mm
2.30”
58.4mm
4.00”
101.6mm
LOE-2126, LOE-6126
LOE-3136
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

2
Performance
Operating Range 0.6 - 15.0 ft. / 7 in. - 180 in. / 178mm - 4572mm (6126)
1.0 - 25.0 ft. / 12 in. - 300 in. / 305mm - 7620mm (2126)
1.5 ft. - 40 ft. / 18 in. - 480 in. / 458mm - 12192mm (3136)
Beam Pattern 9° o axis
Transducer Frequency 43 kHz (3136) / 69 kHz (2126, 6126)
Response Time Programmable, 5 Hz maximum (200 ms)
Communications
Digital Output Ethernet TCP/IP Modbus
Ethernet TCP/IP via embedded webserver (LAN only)
Ethernet TCP/IP to APG-provided website
0-2 Isolated Solid State Relays
Inputs RS-485 Modbus (up to 10 slave sensors)
0-2 Discrete Switches
Electrical
Operational Supply Voltage (at sensor) 48 VDC via POE (requires injector or switch)
12-28 VDC
Current Draw 40 mA @ 48 VDC
80 mA @ 24 VDC
Power Rating (LOE) 2.0 W Max
Isolated SS Relays 120V, 120 mA Max
Accuracy
Accuracy ±0.25% of detected range
Resolution 0.1 inch (2.54 mm)
Environmental
Operating Temperature -40 to 60°C (-40 to 140°F)
Internal Temperature Compensation Yes
Enclosure Protection IP65
Materials of Construction
Transducer Housing PVDF
Upper Housing PC/PET
Transducer Type Ceramic, PVDF faced
• Specications
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

3
Mounting
LOE-2126 2” Ø NPT
LOE-3136 3” Ø NPT
LOE-6126 2” Ø NPT
Compatible APG Modbus Senors
Ultrasonic MNU
Magnetostrictive MPX-E1, MPX-R1
Pressure PT-400-L5, PT-400-L31, PT-500-L5, PT-500-L31
Controllers DCR-1006A, MND
• Model Number Congurator
Model Number: LOE - _____ - _____
A B
A. Model
□ 2126 1 - 25 ft. (305mm - 7620mm); 69 kHz; 2” NPT threads
□3136 1.5 - 40 ft. (458mm - 12192mm); 43 kHz; 3” NPT threads
□6126 0.6 - 15 ft. (178mm - 4572mm); 69 kHz; 2” NPT threads
B. Relay Conguration
□ 0000 2 relay outputs
□0010 1 relay output, 1 switch input
□0110 2 switch inputs
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

4
External 12-28 VDC Source Wiring
• System Wiring Diagrams
COM
OK SEND/
RESET
24V B A GND
RS-485
24V B A GND
RS-485
To 12-28 VDC Power Supply
+
-
ETHERNET
PORT TR1 TR1 TR2 TR2 NOTE: Power terminals for 24V and
GND can only be used to power Modbus
sensors if LOE is powered via POE.
If LOE is powered via 12-28 VDC supply,
Modbus sensors must be powered
independently.
POE (Power over Ethernet) Wiring
POWER
LAN + DCLAN
To
Network
Connection
To AC
power
POE
Power
Injector
Terminal inside housing
supplies 24 Vdc to power
attached Modbus devices
when powering the LOE
from a POE source.
24V B A GND
RS-485
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

5
Modbus Sensor Daisy-chain Wiring
270 Ω
terminating
resistor at
last sensor
Sensor 3
V+
A
B
GND
Trunk Line
Sensor 1
V+
A
B
GND
Sensor 2
V+
A
B
GND
Use shielded cable
Sensor Line Drops
270 Ω terminating
resistor NOT internal
to LOE
Note: Terminating resistor size recommended
based on input resistance of LOE. Length
of cable and overall impedence of network may
necessitate a different size resistor.
NOTE: Power terminals for 24V and
GND can only be used to power Modbus
sensors if LOE is powered via POE.
If LOE is powered via 12-28 VDC supply,
Modbus sensors must be powered
independently.
24VBAGND
RS-485
TR1TR1TR2TR2
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

6
System Overview - LOE with Modbus network, SSR’s and Internet Connection
Network / Internet Connection
Computer
on
Local
Network
Computer
on
Internet
MNU Ultrasonic Sensors MP Magnetostrictive Float Level Sensors
Solid State Relays
Modbus
Input
Connection to
Internet
Server Hosting
Website and
Logged Data
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

7
Chapter 2: Installation and Removal Procedures and Notes
• Connection Notes
• Up to 10 Modbus sensors can be connected to the LOE in any combination.
• Output SSR’s are rated for 120V, 120mA max.
• Flat head screwdriver to remove knockouts for cables.
• If you are using a stand pipe to mount your LOE, you will probably need tools to install the stand pipe.
• For any attached Modbus sensors, please consult each sensor’s user manual for installation notes and
instructions.
• Tools Needed
• Use at head screwdriver to remove knockouts on either side of LOE housing.
• Insert included cable ttings in knockout holes.
• Connect any relays rst.
• Connect LOE to Ethernet/network.
• Connect independent 12-28 VDC supply if not using POE.
• Connect and set up one Modbus sensor at a time.
• Electrical Installation
IMPORTANT: Each Modbus sensor must be connected to the network individually and
assigned a unique Sensor Number before the next sensor can be added.
IMPORTANT: Multiple Modbus sensors added to the network simultaneously are all
assigned the same Modbus address/sensor number: 1. Sensors MUST be added to the
network individually.
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

8
• Installation Notes
• Mount your LOE sensor so that it has a clear, perpendicular sound path to the surface being moni-
tored. Your sensor should be mounted away from tank or vessel walls and inlets. (See Figure 2.1)
• The sound path should be free from obstructions and as open as possible for the 9° o axis beam
Figure 2.1
NOTE: Do not mount the sensor where the beam will intersect objects such as ll
streams, pipes, ladder rungs, wall seams, or corrugated tank walls.
• Mounting Instructions
Mounting your LOE is easy if you follow a few simple steps:
• Never over-tighten the sensor.
• Always screw in your sensor by hand to avoid cross-threading. Thread failure can be a problem if you
damage threads by over-tightening them or by crossing threads.
IMPORTANT: Do not over tighten! The sensor should be threaded in only hand tight.
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

9
Initial setup of the LOE and individual Modbus sensors is done via an embedded web server. The embedded
server can be accessed by using either the serial number or local IP address of the LOE and a web browser
(Internet Explorer, Chrome, Firefox, etc).
• Software Setup

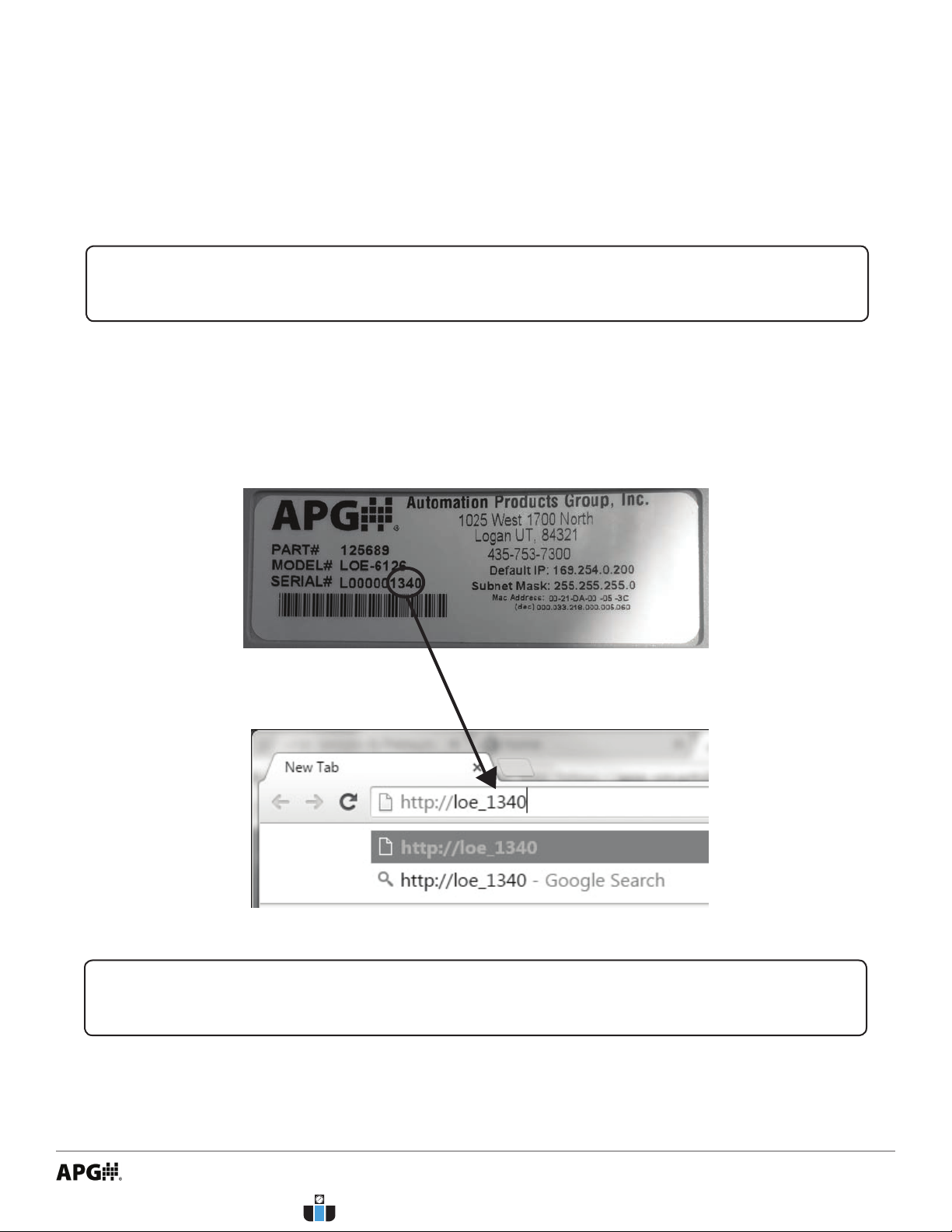

The easier way to access the embedded web server is to type loe_xxx into a web browser on a computer
connected to the same local network as the LOE. xxx represents the numeric portion of the LOE’s serial
number. See Figures 2.2 and 2.3.
Accessing LOE Embedded Web Server via Serial Number
NOTE: If your web browser performs a web search for “loe_xxx” istead of accessing the
server, type “http://loe_xxx”.
Figure 2.2
Figure 2.3
NOTE: Port 6700 must be open on your local network for the LOE to connect.
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

11
Figure 2.6
On the Sensor Information screen you will see
the IP Address of the newly installed LOE. (See
Figure 2.6.)
Type the LOE’s IP address into your browser’s
address bar (See Figure 2.7).
Figure 2.7
Logging on to the LOE Embedded Web Server
The LOE’s embedded webpage should now be open, showing the Main Display page (See Figure 2.8). This
page lists the LOE, any Modbus sensors attached to the LOE, and displays each sensor’s current reading.
The LOE is displayed as sensor #11. The congured sensor number for each Modbus sensor will show as its
Sensor Number. Every new Modbus sensor defaults to sensor number 1.
IMPORTANT: Multiple Modbus sensors added to the network simultaneously are all
assigned the same sensor number: 1. Sensors must be added to the network individually.
Figure 2.8
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

12

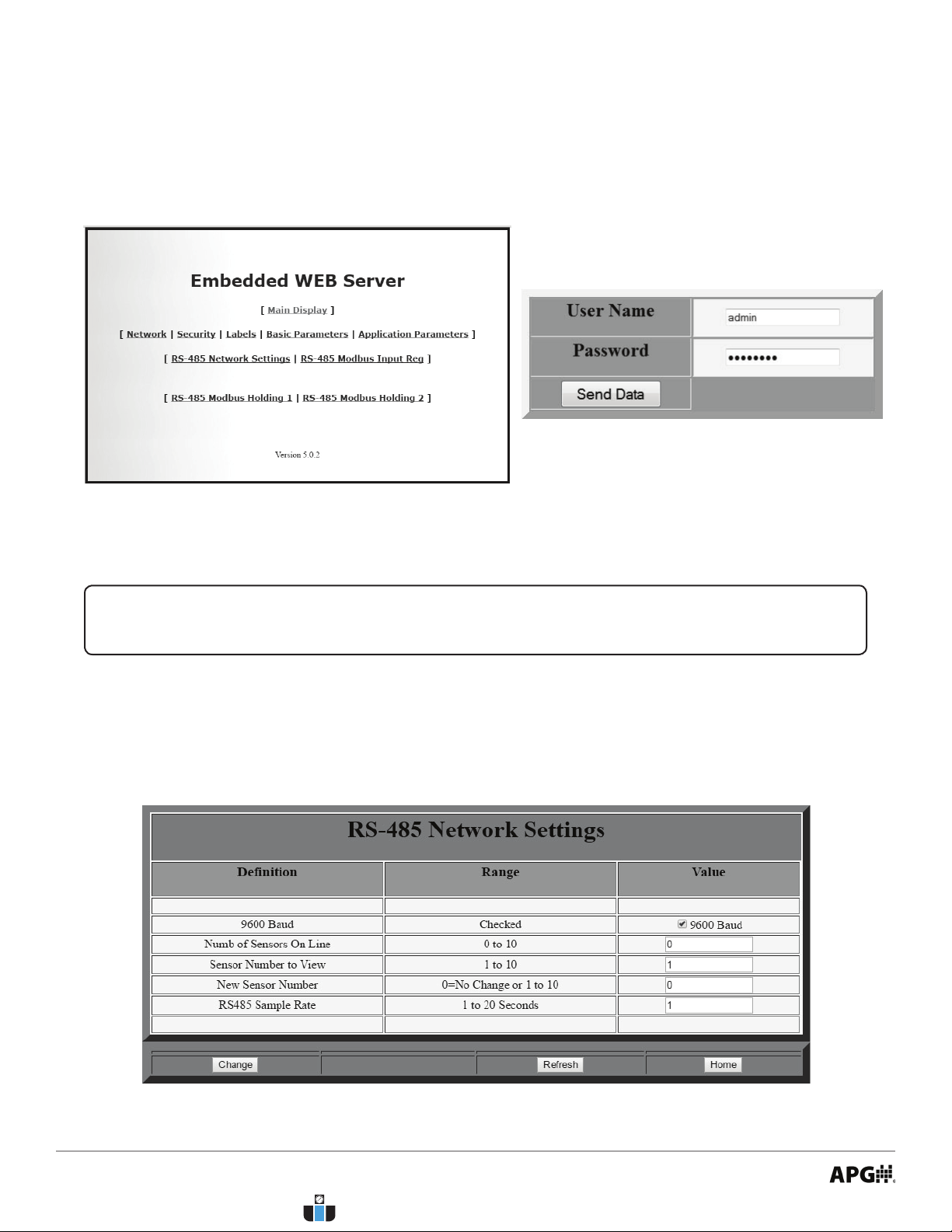

Click on Home to bring up the Menu page (See Figure 2.9). The rst menu link clicked during each session
will prompt a User Name and Password login for the LOE (See Figure 2.10). The default User Name is admin,
and the default Password is password.
Figure 2.9 Figure 2.10
Assigning Modbus Senor Numbers
Click on RS-485 Network Settings to bring up the RS485 Settings page (See Figure 2.11). See section RS-485
Network Settings for a full description of each parameter in this menu (Page 38).
Figure 2.11
NOTE: See the Security Setting Menu (Page 37) to change this user name and pass-
word.
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

13
IMPORTANT: None of parameters in the RS485 Settings menu automatically update.
Each one must be manually congured.
• Disconnect power to the LOE rst.
• Disconnect network connection.
• Disconnect any sensors, relays, and switched inputs.
• Remove the LOE and store it in a dry place, at a temperature between -40° F and 180° F.
• Removal Instructions
NOTE: If you control the power to each Modbus sensor seperately, powering up a new
sensor after assigning a Modbus address to the previous sensor will allow you to assign
an address to the new sensor without leaving the RS845 Settings Menu.
Change Numb of Sensors On Line to reect the total number of Modbus sensors you will be connecting to
your LOE. Click Change (or press Enter) to send the new value to the LOE.
With Sensor Number to View set to 1 (for the latest sensor added to the Modbus network), set New Sensor
Number to the highest available number. Click Change (or press Enter) to send the new value to the LOE.
Repeat this process for each Modbus sensor as it is added to the network.
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

14
Chapter 3: Programming with Modbus TCP/IP
Using the LOE’s IP address, and port number 502, readings can be polled from the LOE for any attached
sensors via RS-485 Modbus commands. Up to 14 16-bit Input Registers, beginning with register 299, can be
polled with a single command. Below is a sample Modbus command illustrating the necessary syntax.
Example:
00 01 : Transaction Identier
00 00 : Protocol Identier
00 06 : Message Length (6 bytes to follow)
0B : The Reporting Unit Identier [sensor number] (0B hex = 11)
04 : The Function Code (04 = read Input Registers)
01 2E : The Data Address of the rst register requested. (12E hex + 1 = 303)
00 02 : The total number of registers requested. (read 2 registers, i.e. 303 to 304)
Byte order (hex values)
00 01 00 00 00 06 0B 04 01 2E 00 02
Notes:
• Reporting Unit indicates the sensor reading being polled from the LOE, in hex. 01 - 0A are for Modbus
sensors 1 - 10 attached to the LOE. 0B (i.e. sensor 11) reads the values from the LOE sensor (See Figure
2.8). Unused registers (i.e., those not associated to an attached sensor) will return zeros when polled.
• Data Address of registers, decimal to “hex minus 1” conversion:
Decimal Address Hex minus 1 Decimal Address Hex minus 1
299 12A 306 131
300 12B 307 132
301 12C 308 133
302 12D 309 134
303 12E 310 135
304 12F 311 136
305 130 312 137
• Modbus Polling via Ethernet with Modbus TCP/IP
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

15
• Total number of registers requested, up to 14, given in hex:
# of Registers Hex equivalent # of Registers Hex equivalent
01 01 08 08
02 02 09 09
03 03 10 0A
04 04 11 0B
05 05 12 0C
06 06 13 0D
07 07 14 0E
• LOE Generic Modbus Register List
Input Registers (0x04)
Register Returned Data
30299 Sensor Type
30300 Distance/Level 1, Top (in mm, unsigned)
30301 Distance/Level 2, Bottom (in mm, unsigned)
30302 Sensor Temperature Reading (in 0C, signed)
30303-30304 Calculated 1 (raw)
30305-30306 Calculated 2 (raw)
30307 (upper bits) Version
30307 (lower bits) Signal Strength
30308 Battery Voltage
30309 (upper bits) Sensor Trip 1 Alarm
30309 (lower bits) Sensor Trip 1 Status
30310 (upper bits) Sensor Trip 2 Alarm
30310 (lower bits) Sensor Trip 2 Status
30311 (upper bits) Sensor Trip 3 Alarm
30311 (lower bits) Sensor Trip 3 Status
30312 (upper bits) Sensor Trip 4 Alarm
30312 (lower bits) Sensor Trip 4 Status
This is the list of generic Input Registers for polling the LOE and any connected sensors. Actual registers
used vary by sensor. Please see the user manual for each sensor for a full and accurate list of registers.
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

16
Chapter 4: LOE Embedded Web Server
See the Software Setup section of chapter 2 (pages 9 - 11) for instructions for accessing and signing into the
LOE embedded web server.
• Accessing the LOE Embedded Web Server
The LOE embedded web server has two primary screens--the Main Display Page (Figure 4.1) and Menu Page
(Figure 4.2)--and a screen for each of 9 submenus. The submenus can be understood in three groups:
• LOE Sensor Input Conguration Submenus
Application Parameters
Basic Parameters
• Modbus Sensor Conguration Registers
RS-485 Modbus Input Reg
RS-485 Modbus Holding 1
RS-485 Modbus Holding 2
• LOE Utility Menus
Network
Security
Label
RS-485 Network Settings
The Menu Page also has a link back to the Main Display Page.
• Navigating the LOE Embedded Web Server
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

17
Figure 4.1
Figure 4.2
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30

18
LOE Application Parameters
Figure 4.3
The Application Parameters menu congures the application-specic parameters applied to the calculated
reading from the LOE sensor.
PARAMETER RANGE
Units 1 - feet
2 - inches
3 - meters
Units is used to select the units of measurement for distance or level applications. The units will also
determine the resolution of Basic and Application Parameters. The resolution is: feet 0.01, inches 0.1, and
meters 0.001.
PARAMETER RANGE
Decimal Place 0 - 3
Decimal Place determines the number of decimal places shown on the output reading (see Figure 4.1). As the
output reading is used for setting/evaluating Trip Distance and Window, the Decimal Place setting applies to
those parameters as well.
• LOE Sensor Conguration Submenus
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30
