• Model Number Congurator
Model Number: MPI - _F_ _____ _____ - _____ _____ - _____ _____ _____ _B_ - _____ - _____ - _____ _2_ _____ _____
A B C D E F G H I J K L M N O

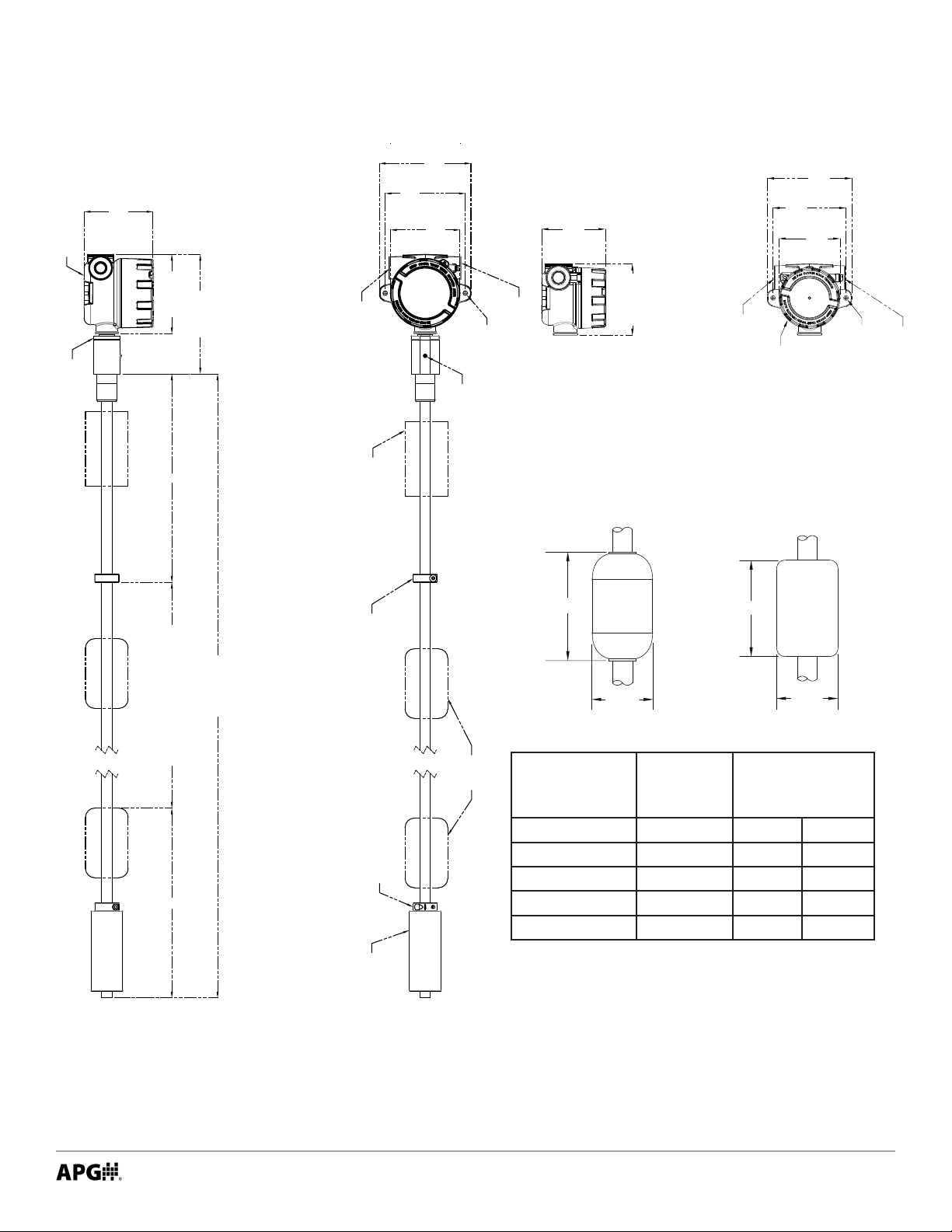

A. Stem Type
□F Flexible Tubing
B. Output
□6 Single oat, loop-powered 4-20 mA, 2-wire
□7 Dual oat, loop-powered 4-20 mA, 4-wire
□8▲Modbus RTU, with optional temperature sensors
C. Housing Type
All Housing Die-cast Aluminum, NEMA 4X, IP65, Blue
□__▲Large Housing
□A Small Housing

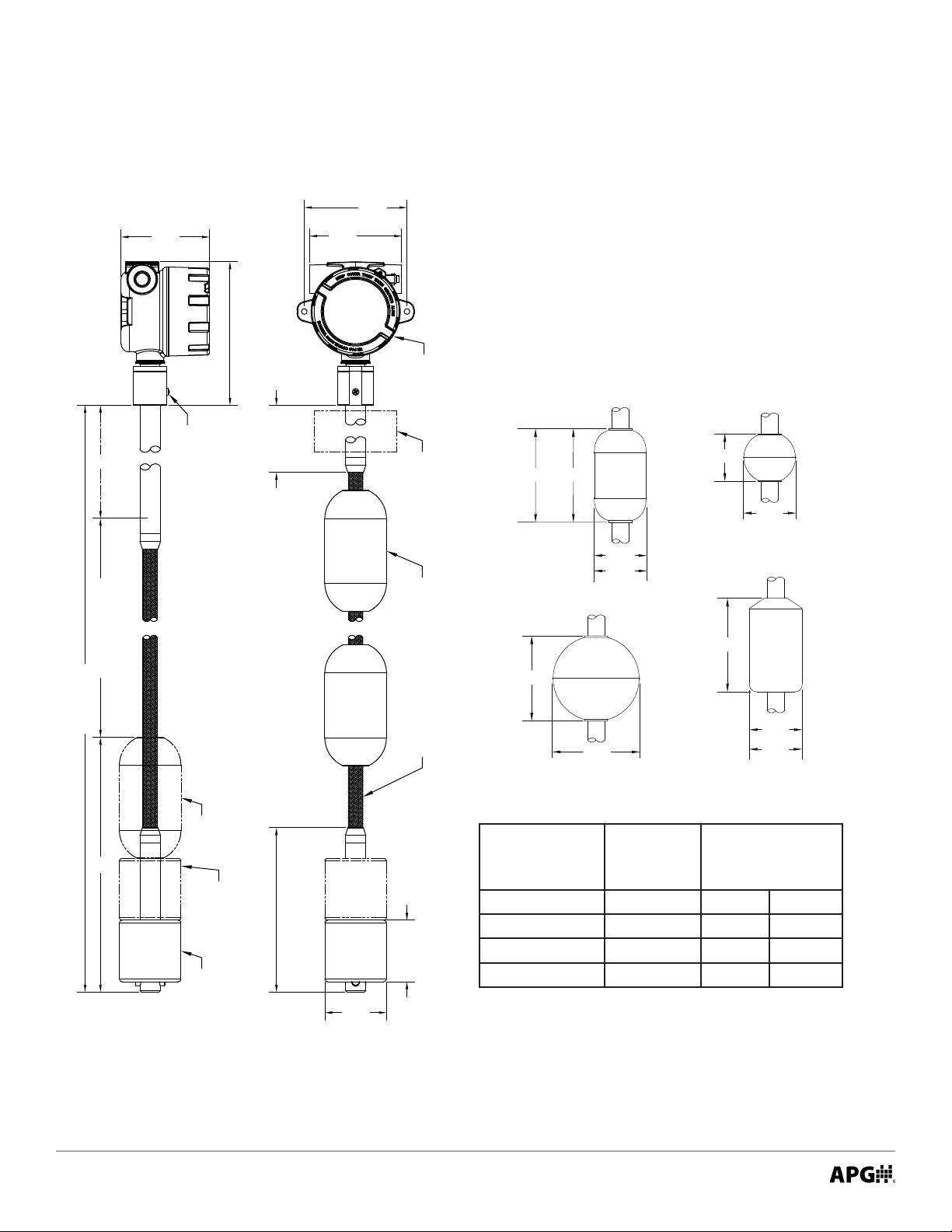

D. Float 1 (Top Float)
□Z/Y 5.5h x 3d in. Red Polyurethane (0.65 SG / 0.94 SG)
□X/W 5 in. Round 316L SS (0.52 SG / 0.92 SG)
□V/U 6h x 3d in. Oval 316L SS (0.58 SG / 0.94 SG)
□T/S 3 in. Round 316L SS (0.60 SG / 0.94 SG)
□M/L 5.5h x 2d in. Red Polyurethane (0.57 SG / 0.94 SG)
□J/I 5h x 3d in. Oval Titanium 2 (0.60 SG / 0.94 SG)
□N None
E. Float 2 (optional)
□N None
□Y 5.5h x 3d in. Blue Polyurethane (0.94 SG)
□W 5 in. Round 316L SS (0.92 SG)
□U 6h x 3d in. Oval 316L SS (0.94 SG)
□S 3 in. Round 316L SS (0.94 SG)
□L 5.5h x 2d in. Blue Polyurethane (0.94 SG)
□I 5h x 3d in. Oval Titanium 2 (0.94 SG)
F. Mounting Type
□P▲ NPT Plug 150#
□N None
G. Mounting Size
□2▲2 in. (welded or slide connection)
□3 3 in. (slide connection)
□N None
H. Mounting Connection
□W Welded (xed)
□S▲Slide with Compression Fitting (adjustable)
I. Stem Material
□B 316L SS
J. Total Stem Length in Inches
□__ Min. 48 in. - Max. 384 in.
K. Temperature Sensor Options
MPI-F8
□N None
□1D▲ Digital Temperature Sensor A, 12 in. from bottom of
probe
□2D Digital Temperature Sensors A, B
□3D Digital Temperature Sensors A, B, C
□4D Digital Temperature Sensors A, B, C, D
□5D Digital Temperature Sensors A, B, C, D, E
□6D Digital Temperature Sensors A, B, C, D, E, F
□7D Digital Temperature Sensors A, B, C, D, E, F, G
□AP Sensor Quanity and Placement per API 18.2 Standard
Note: Temperature sensors B - G are spaced evenly between A
and probe’s zero reference.
L. Custom Housing-Electrical Connection†
□N▲ None
□B Cable Gland (Cable sold separately)
□C 4-pin M12 Micro Connector Female
□D 4-pin M12 Micro Connector Male - 90°
□F 4-pin M12 Micro Connector Female - 90°
□G 90° Elbow
□M 4-pin M12 Micro Connector Male
M. End Plug
□2▲Keyhole for weight locking pin
N. Float Stop
□A3▲ 1-piece top oat stop, held with set screw
□F3 2-piece clamp top oat stop
□N None
O. Stem Weights
□W7 316L SS, 3 lb, 2”Ø x 4.75”H; modular
□W8 316L SS, 5 lb, 3”Ø x 3”H; modular
Note: ▲This option is standard.
Note: †Connectors available for use with Small Housing only. For
Large Housing, choose N None.
