Aplex ACS-2310 User manual

ACS-2310_2311 User Manual 0
ACS-2310/2311
Intel Celeron N2930 Fanless BOX PC
User Manual
Release Date Revision
Jun. 2017 V1.1
®2017 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: [phone] Fax: [phone] E-mail: [email protected] URL: www.aplextec.com

ACS-2310_2311 User Manual 1
Revision History
Reversion
Date
Description
1.0
2016/02/16
Official Version
1.1
2017/06/03
Add ACS-2311 BOX PC
Modify motherboard

ACS-2310_2311 User Manual 2
Warning!___________________________
Disclaimer
This information in this document is subject to change without notice. In no event
shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or
consequential, arising from either the use or misuse of information in this document
or in any related materials.
Caution
Risk of explosion if the battery is replaced with an incorrect type.
Batteries should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.
Electric Shock Hazard –Do not operate the machine with its back cover removed.
There are dangerous high voltages inside.
This equipment generates, uses and can radiate radio frequency energy and if
not installed and used in accordance with the instructions manual, it may cause
interference to radio communications. It has been tested and found to comply with
the limits for a Class A computing device pursuant to FCC Rules, which are designed
to provide reasonable protection against such interference when operated in a
commercial environment. Operation of this equipment in a residential area is likely
to cause interference in which case the user at his own expense will be required to
take whatever measures may be required to correct the interference.

ACS-2310_2311 User Manual 3
Packing List
Accessories (as ticked) included in this package are:
□Adaptor
□Driver & manual CD disc
□Other.___________________(please specify)
Safety Precautions
Follow the messages below to prevent your systems from damage:
◆Avoid your system from static electricity on all occasions.
◆Prevent electric shock. Don‘t touch any components of this card when
the card is power-on. Always disconnect power when the system is not in
use.
◆Disconnect power when you change any hardware devices. For instance,
when you connect a jumper or install any cards, a surge of power may
damage the electronic components or the whole system.

ACS-2310_2311 User Manual 4
Table of Contents
R e v i s i o n H i s t o r y …….……………..………………………………………………..……………………………….1
Wa rn i ng ! /D i sc la im e r …… …............................……………………………….… ……… … ….… …..… . 2
Pac k in g List/ S a fet y Pre ca u tio n s …......…… … … … ..……………………………..………………………..3
Chapter 1 Getting Started
1.1 Features………………………………….………..……………………………………5
1.2 Specifications……………………………….………….………………………………5
1.3 Dimensions……………………………………………..……………………………….7
1.4 Brief Description of ACS-2310/2311…………………………..……………9
Chapter 2 Motherboard
2.1 Specifications………………………….……………..……………………….…..…10
2.2 Board Dimensions……..………….…………….………………………..……....12
2.3 Jumpers and Connectors Location……….………………………………..13
2.4 Jumpers Setting and Connectors…..……………………………………….14
Chapter 3 BIOS SETUP
3.1 Operations after POST Screen....................................................25
3.2 BIOS SETUP UTILITY………………………………………………………………25
3.3 Main Screen…………....................................................................26
3.4 Advanced Settings......................................................................27
3.5 Chipset Settings…………………………………………..............................38
3.6 Security Settings.........................................................................44
3.7 Boot Settings.............................................................................45
3.8 SAVE &Exit Settings…….............................................................46
Chapter 4 Installation of Drivers
4.1 Intel(R) AtomTM SoC Chipset……………………………….……………….49
4.2 Intel(R) VGA Chipset…………………………………………………………..…52
4.3 Realtek ALC662 HD Audio Driver Installation……………………..…56
4.4 Intel_TXE(Win) Driver..………………………………………………………..…58
Figures
Figure 1.1: Dimensions of ACS-2310…………....…………………………..…...7
Figure 1.2: Dimensions of ACS-2311 (Din rail mount)………………..…...7
Figure 1.3: Dimensions of ACS-2311 (Wall mount)….………………..…...8
Figure 1.4: Front View of ACS-2310………………………………….......……...9
Figure 1.5: Rear View of ACS-2310……………………………………..………....9
Figure 1.6: Overview of ACS-2311……………………………………..………....9
Figure 2.1: Dimensions of Motherboard SBC-7116………………….……12
Figure 2.2: Top of Motherboard SBC-7116………………..…………….……13
Figure 2.3: Bottom of Motherboard SBC-7116…………….………….……13

ACS-2310_2311 User Manual 5
Chapter 1 Getting Started
1.1 Features
Intel® Celeron® Processor N2930 1.83 GHz
Fanless and extendable I/O Design
1 x SO-DIMM DDR3L 1333MHz, up to 8GB
Wide-ranging DC 9~36V Power Input
Ultra Slim design
1 x 2.5”SATA2 HDD Space
1.2 Specifications
System
Model name
ACS-2310
ACS-2311
Processor
Intel Celeron N2930 1.83GHz Processor
System Chipset
SoC
System Memory
1 x 204-pin SO-DIMM slot up to 8GB DDR3L 1333MHz
Outside I/O
USB
2 x USB3.0 type A
4 x USB2.0 type A
Serial/Parallel
1 x RS-232/422/485 DB-9,
COM1 (Default RS-232)
2 x RS-232 DB-9, COM2 and
COM3
1 x RS-232/422/485 DB-9,
COM1 (Default RS-232)
1 x RS-232 DB-9, COM2
LAN
2 x GbE LAN RJ-45
VGA
1 x VGA
HDMI
1 x HDMI
Audio
1 x Line-out
Power
1 x power button with LED light
1 x 3-pin DC power input terminal block
Options I/O
Options
None
Either one:
1 x RS-232, DB-9, COM3
1 x GPIO 8-bits digital I/O port
Storage
Storage
1 x 2.5”SATA2 HDD Bay(easy accessible design only for ACS-2311)

ACS-2310_2311 User Manual 6
Expansion
Expansion Slots
1 x Mini-PCIe slot full size
1 x Mini-PCIe slot full size (shared with mSATA)
Power
Power Input
DC 9~36V
Power Consumption
MAX: 19W
MAX: 17W
Mechanical
Construction
Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis
Dimension
180 x 130 x 35.5 mm
180 x 130 x 55 mm
Net Weight
1 Kg
1.3 kg
Mounting
Wall mount
Wall mount
Din rail for option
Environmental
Operating Temperature
0~50 °C
Storage Temperature
-30~70 °C
Storage Temperature
10%~90%@ 40°C, non-condensing
Certificate
CE / FCC Class A
Operating System
Support
Windows Embedded 8.1 Industry Pro,
Windows 7 Professional for Embedded,
Windows Embedded Standard 7,
Windows Embedded 8 Standard
Windows 10 IoT Enterprise 2016 LTSB Entry

ACS-2310_2311 User Manual 7
1.3 Dimensions
Figure 1.1: Dimensions of ACS-2310
Figure 1.2: Dimensions of ACS-2311 (Din rail mount)

ACS-2310_2311 User Manual 8
Figure 1.3: Dimensions of ACS-2311 (Wall mount)

ACS-2310_2311 User Manual 9
1.4 Brief Description of ACS-2310/2311
The ACS-2310/2311 is a fanless design high-efficiency ultra slim BOX PC, powered
by Intel Celeron N2930 1.83GHz processor and supports 1 x SO-DIMM DDR3L
1333MHz up to 8G memory. It comes with 2 x USB 3.0, 1 x VGA, 2 x LAN, 1 x line out, 4
x USB 2.0, and so on. It supports 1 x 2.5”SATA2 HDD space and DC 9~36V wide-ranging
power input. The model has 1 x Mini-PCIe full size slot and 1 x Mini-PCIe slot full size
(shared with mSATA) for expansion. The model is plating titanium gray aluminum
heatsink and black steel chassis design. The ACS-2310/2311 works very well along with
any of our display series and it absolutely can provide an easy way to perform control
and field maintenance.
Figure 1.4: Front View of ACS-2310
Figure 1.5: Rear View of ACS-2310
Figure 1.6: Overview of ACS-2311

ACS-2310_2311 User Manual 10
Chapter 2 Motherboard
SBC-7116 is a 3.5” industrial motherboard developed on the basis of Intel
BayTrail,which provides abundant peripheral interfaces to meet the needs of different
customers.Also,it features two GbE ports, 4-COM ports and one Mini PCIE and one
mSATA configuration. To satisfy the special needs of high-end customers, Due to its
compact size, the product is widely used in various sectors of industrial control.
2.1 Specifications
Specifications
Board Size
147mm x 102mm
CPU Support
Intel Celeron N2930 up to 2.16GHz
Intel Celeron J1900 up to 2.42GHz （ option)
Chipset
SOC
Memory Support
1x SO-DIMM (204pins), up to 8GB DDR3L 1333MHz FSB
Graphics
Integrated Intel HD Graphics 313/854 MHz (N2930)
Integrated Intel HD Graphics 688/854 MHz (J1900)
Display Mode
1x HDMI interface
1x DB15 VGA interface
1x 18/24 bit dual channel LVDS interface
Support
Resolution
Up to 1920 x 1200 for HDMI
Up to 1920 x 1200 for VGA
Up to 1920 x 1200 for LVDS (PS8625)
Three Display
HDMI + VGA
HDMI + LVDS（option)
VGA + LVDS（option)
Super I/O
Nuvoton NCT6106D
BIOS
AMI/UEFI BIOS
Storage
1x SATAII Connector (7Pin)
1x mSATA Connector (52Pin)
Ethernet
2x GbE ports by RJ-45 with intel 82583V controller
USB
2x USB 3.0 (type A) stack ports (HUB/USB30 )
4x USB 2.0,2x5 Pin header (USB3_4/USB5_6)
1x USB 2.0 for M-PCIE1（USB2）
1x USB 2.0 for M-SATA (option,USB3 co-lay)
Serial
1x RS232/422/485,2x5 Pin header,Pin9 with 5V/12V/RI (COM1)
1x RS232,2x5 Pin header,Pin9 with 5V/12V/RI (COM2)
2x RS232,2x5 Pin header,Pin9 with RI (COM3/COM4)
Digital I/O
8-bit digital I/O by Pin header

ACS-2310_2311 User Manual 11
4-bit digital Input
4-bit digital Output
Battery
Support CR2477 Li battery by 2-pin header (1000mAh)
Audio
Support Audio via Realtek ALC269-VB HD audio codec
1x Stack audio Jack（Line out）
Line in/Line out/Mic by 2 x 6 Pin header
1x 4Pin Wafer Connector,Amplifier 2 channel output (SPK1)
SIM
1x SIM Card Holder,1x 6Pin Wafer by SIM1
Power
Management
1x 2-pin power input connector (Wide range DC+9V~36V)
Switches and
LED Indicators
Power on/off switch by FP1
Reset switch by FP1
Power LED status by FP1
HDD LED status by FP1
Expansion
1x mini PCIe slot (full,PCIe/USB2.0/SIM/SMbus)
Temperature
Operating: -20℃to 70℃
Storage: -40℃to 85℃
Humidity
10% - 90%, non-condensing, operating
Power
Consumption
12V/0.70A (Intel N2930 2.16 GHz Processor with 2GB DDR3L/HDD)
12V/0.75A (Intel J1900 2.42 GHz Processor with 2GB DDR3L/HDD)
EMI/EMS
Meet CE/FCC class A

ACS-2310_2311 User Manual 12
2.2 Board Dimensions
(units :mm)

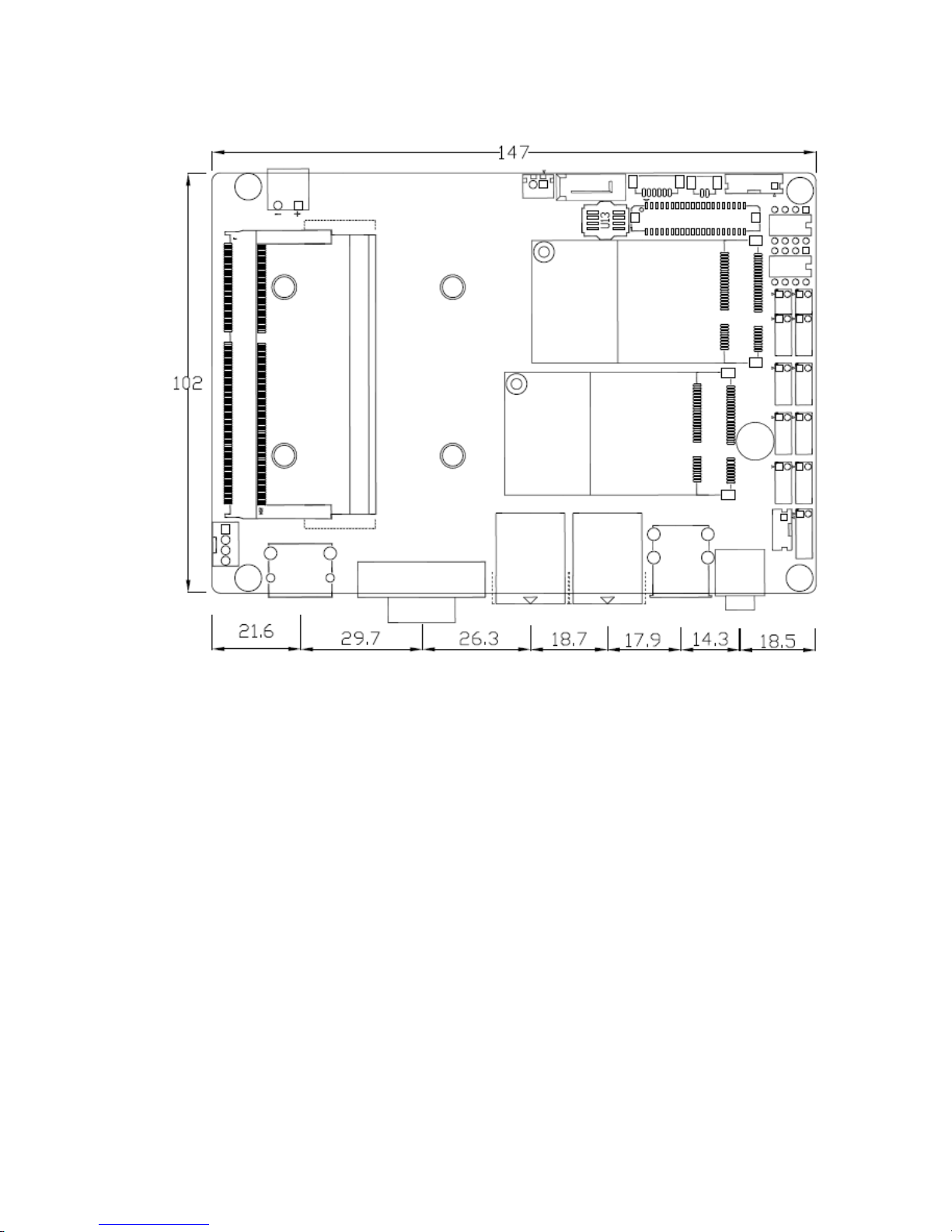

Figure 2.1: Dimensions of motherboard SBC-7116

ACS-2310_2311 User Manual 13
2.3 Jumpers and Connectors Location
Figure 2.2: Top of motherboard SBC-7116
Figure 2.3: Bottom of motherboard SBC-7116

ACS-2310_2311 User Manual 14
2.4 Jumpers Setting and Connectors
1. BAT1 :
(1.25mm Pitch 1x2 wafer Pin Header) 3.0V Li battery is embedded to
provide power for CMOS.
Pin#
Signal Name
Pin1
Ground
Pin2
VCC_RTC
2. SW1(1，2):
(Swich),ATX Power and Auto Power on jumper setting.
SW1
Mode
Pin1 on
Auto Power on (Default)
Pin1 off
ATX Power (option)
CMOS clear swich, CMOS clear operation will permanently reset old
BIOS settings to factory defaults.
SW1
CMOS
Pin2 OFF
NORMAL (Default)
Pin2 ON
Clear CMOS
Procedures of CMOS clear:
a) Turn off the system and unplug the power cord from the power
outlet.
b) To clear the CMOS settings, use the swich to Pin2 on for about 3
seconds then move the swich Pin2 off.
c) Power on the system again.
d) When entering the POST screen, press the <DEL> key to enter CMOS
Setup Utility to load optimal defaults.
e) After the above operations, save changes and exit BIOS Setup.
3. DC_IN1:
(5.08mm Pitch 1x2 Pin Connector),DC12V System power input
connector。
Pin#
Power Input（DC_IN1）
Pin1
DC9~36V
Pin2
Ground

ACS-2310_2311 User Manual 15
4. CPU1:
(FCBGA1170), onboard Intel Bay trail-I/M Processors.
Model
Processor
Numbe
r
PBF
Cores/
Threads
TDP
Remarks
SBC-7116-N2930
N2930
2.16GHz
4 / 4
4.5/7.5W
SBC-7116-J1900
J1900
2.42GHz
4 / 4
10W
option
5. H1/H2/H3/H4(CPU SCREW HOLES):
CPU FAN SCREW HOLES, Four screw holes for fixed CPU Cooler assemble.
6. FAN1:
(2.54mm Pitch 1x4 Pin Header),Fan connector, cooling fans can be
connected directly for use. You may set the rotation condition of cooling
fan in menu of BIOS CMOS Setup.
Pin#
Signal Name
1
Ground
2
VCC(12V_S0)
3
CPU_FANTACH
4
CPU_FANPWM
Note:
Output power of cooling fan must be limited under 5W.
7. DDR3:
(SO-DIMM 204Pin socket), DDR3L memory socket, the socket is located at the
top of the board and supports 204Pin 1.35V DDR3L 1333MHz FSB
SO-DIMM memory module up to 8GB.
8. HDMI1:
(HDMI 19P Connector), High Definition Multimedia Interface
connector.
9. CRT1:
(CRT Connector DB15),Video Graphic Array Port, provide high-quality
video output.

ACS-2310_2311 User Manual 16
10. SW1(PIN3，PIN4):
(Swich),18bit or 24bit LVDS setting.
SW1
Mode
Pin3 on
Single Channel LVDS
Pin3 off
Dual Channel LVDS
Pin4 on
18bit LVDS
Pin4 off
24bit LVDS
11. U11:
AT24C02-DIP8,The EEPROM IC（U11）is the set of LVDS resolution.
If you need other resolution settings, please upgrade U11 data.
Model
LVDS resolution
SBC-7116-N2930
SBC-7116-J1900
1280*1024 (Default)
800*480（option）
800*600（option）
1024*768（option）
1920*1080（option）
……
12. INVT1:
(2.0mm Pitch 1x6 wafer Pin Header), Backlight control connector for
LVDS.
Pin#
Signal Name
1
+DC12V
2
+DC12V
3
Ground
4
Ground
5
BKLT_EN_OUT
6
BKLT_CTRL

ACS-2310_2311 User Manual 17
13. LVDS1：
(1.25mm Pitch 2x20 Connector,DF13-40P),For 18/24-bit LVDS output
connector,Fully supported by Parad PS8625(DDI1 to LVDS), the
interface features dual channel 24-bit output. Low Voltage
Differential Signaling, A high speed, low power data transmission
standard used for display connections to LCD panels.
Signal Name
Pin#
Pin#
Signal Name
VDD5
2
1
VDD5
Ground
4
3
Ground
VDD3
6
5
VDD3
LB_D0_N
8
7
LA_D0_N
LB_D0_P
10
9
LA_D0_P
Ground
12
11
Ground
LB_D1_N
14
13
LA_D1_N
LA_D1_P
16
15
LA_D1_P
Ground
18
17
Ground
LB_D2_N
20
19
LA_D2_N
LB_D2_P
22
21
LA_D2_P
Ground
24
23
Ground
LB_CLK_N
26
25
LA_CLK_N
LB_CLK_P
28
27
LA_CLK_P
Ground
30
29
Ground
LVDS_DDC_DATA
32
31
LVDS_DDC_CLK
Ground
34
33
Ground
LB_D3_N
36
35
LA_D3_N
LB_D3_P
38
37
LA_D3_P
NC
40
39
NC
14. JP1:
(2.0mm Pitch 2x3 Pin Header),COM1 jumper setting, pin 1~6 are used
to select signal out of pin 9 of COM1 port.
JP1 Pin#
Function
Close 1-2
COM1 Pin9 RI (Ring Indicator) (default)
Close 3-4
COM1 Pin9 = +5V/1A (option)
Close 5-6
COM1 Pin9 = +12V/1A (option)

ACS-2310_2311 User Manual 18
15. COM1:
(2.0mm Pitch 2X5 Pin Header),COM1 Port, standard RS232 ports are
provided. They can be used directly via COM cable connection.
