Chapter 1 Getting Started
1.1 Specifications
Specs
ACS-2695A
System
CPU
Support Socket G2, 3rd Generation Intel Core i7/i5/i3
System Chipset
Intel HM77 PCH
System Memory
2 x 204 Pin DDR3 SO-DIMM, default 4GB (one slot), up to
16GB 1066/1333MHz
External I/O Port
2 x DB9 RS-232 (COM1.2)
1 x DVI-I
1 x HDMI
2 x RJ45 GbE LAN
4 x USB 2.0
1 x Mic-in, Line-Out
1 x DC Power 3 Pin terminal block connector
1 x 2 pin power switch connector
2X LED indication
OS Support
Windows XP embedded, Windows embedded standard 7,
Windows 7 Pro for embedded
Expansion I/O
By a new daughter board
By TB-523
1X Power button switch
1X CF Slot by USB
1X COM RS-422/485 (COM3, default:RS-485)
1X COM RS-232 (COM4)
1X10 pins terminal block for 1 Ground/VCC/ 4 in & out DIDO
Wi-Fi
2 optional Antenna holes at front side (conserved)
CD/DVD-R Device
Optional
Optional Fan
Two 40X40mm System Fan space, rear and front
(080401030540)
Expansion Slots
1 x PCIe x16 and 1 x PCI slot By TB-526P1E161
Storage
2x 2.5" SATA HDD
Power
Power Input
DC 9~32V
Power Consumption
Max:29.75W
Mechanical Specifications
Construction / Color
Steel and Aluminum Heatsink
Dimensions(WxHxD)
211.2(W)x203.5(H)x177(D) mm
Net Weight
5.5KG
Environmental
Operating Temperature
0~50 °C
Storage Temperature
-20~60 °C
Storage Humidity
10%~90%@ 40℃, non-condensing
Vibration
5G, 5-500MHz, 3 Axes(with CF or SSD)
0.5G 5-500MHz, 3Axes(with HDD)
Shock
50G Half sine (11 msec. duration)/operation with SSD
Drop
92cm (1 Corner, 3 Edge, 6 Surface)
Certificate
CE / FCC Class A

7
ACS-2695A User Manual
1.2 Dimensions

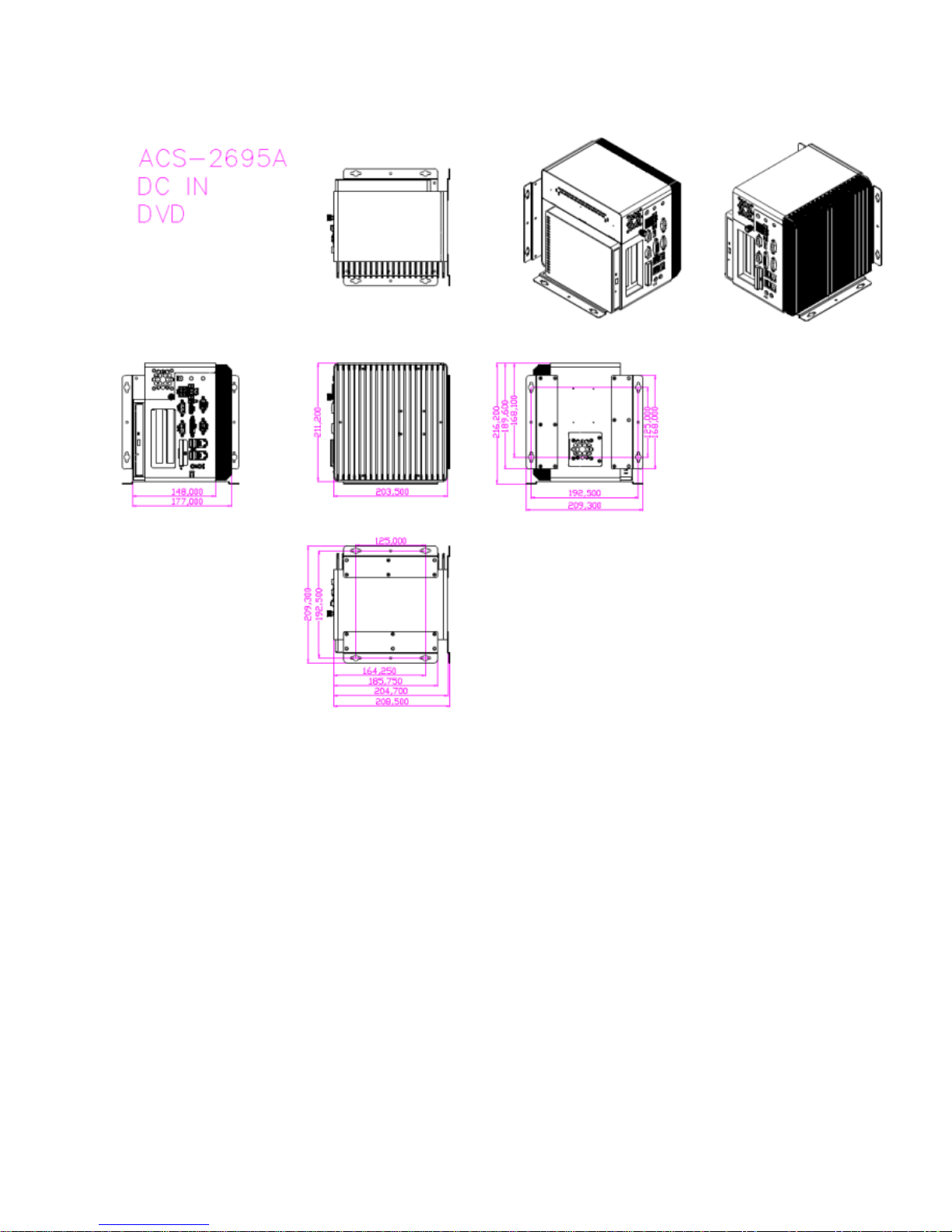

Figure 1.1: Dimensions of the ACS-2695A

8
ACS-2695A User Manual
1.3 Brief Description of the ACS-2695A
The ACS-2695A is a fan-less high-efficiency thermal solution Box PC, powered by
Socket G2, 3rd Generation Intel Core i7/i5/i3 processor and supporting 4 x USB 2.0 ports, 2 x
COM Ports, 1 x DVI-I, support 2 x SATA HDD space, 1 x external CF slot, 9~32V
wide-ranging power input etc. It is ideal for Industrial Automation, Factory Automation,
Machine Vision, Process Control, Data Terminal, TI, Surveillance, etc. and running factory
operations from small visual interface and maintenance applications to large control process
applications. The ACS-2695A works very well along with any of our Display series and it
absolutely can provide an easy way to perform control and field maintenance.

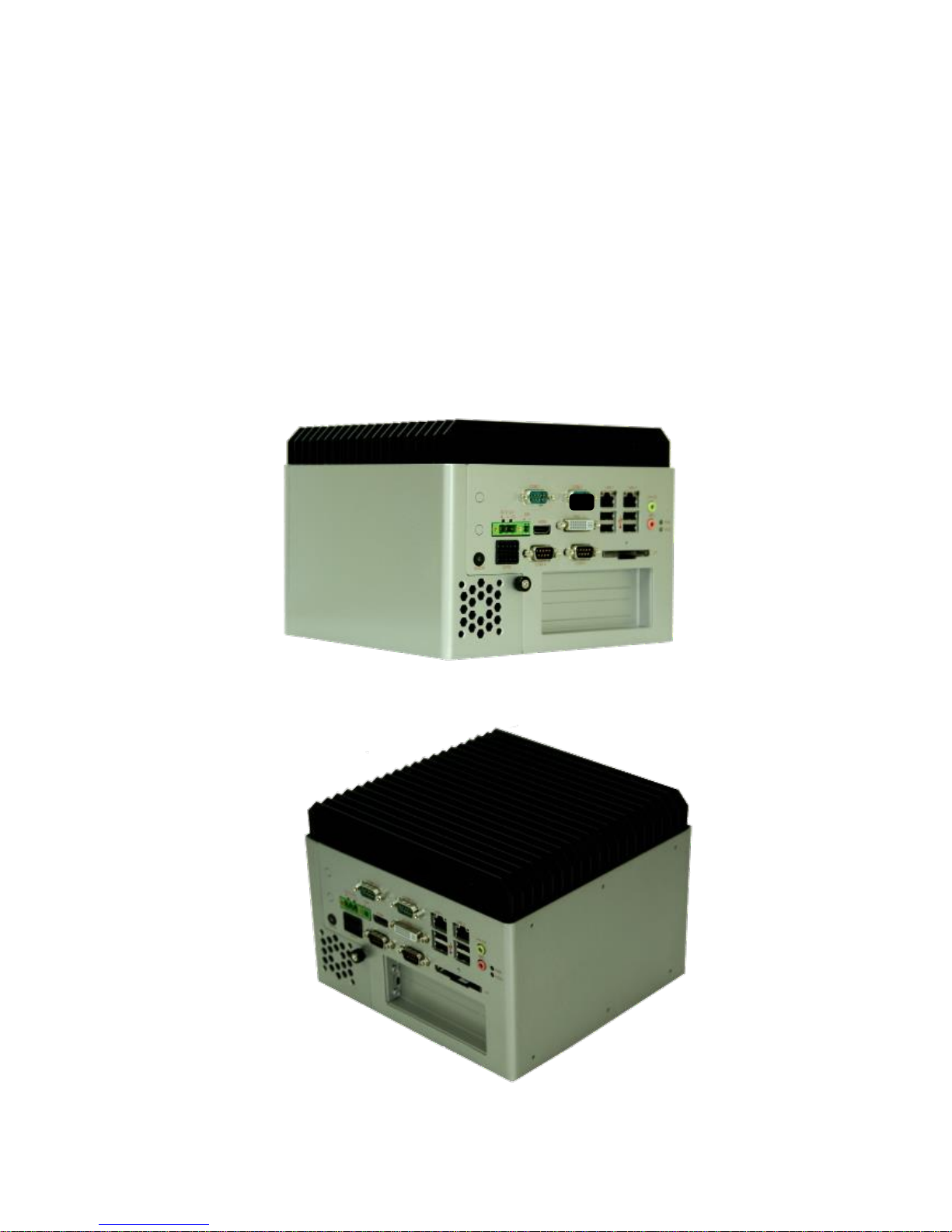

Figure 1.2: Left-front View of ACS-2695A
Figure 1.3: Right-front View of ACS-2695A

9
ACS-2695A User Manual

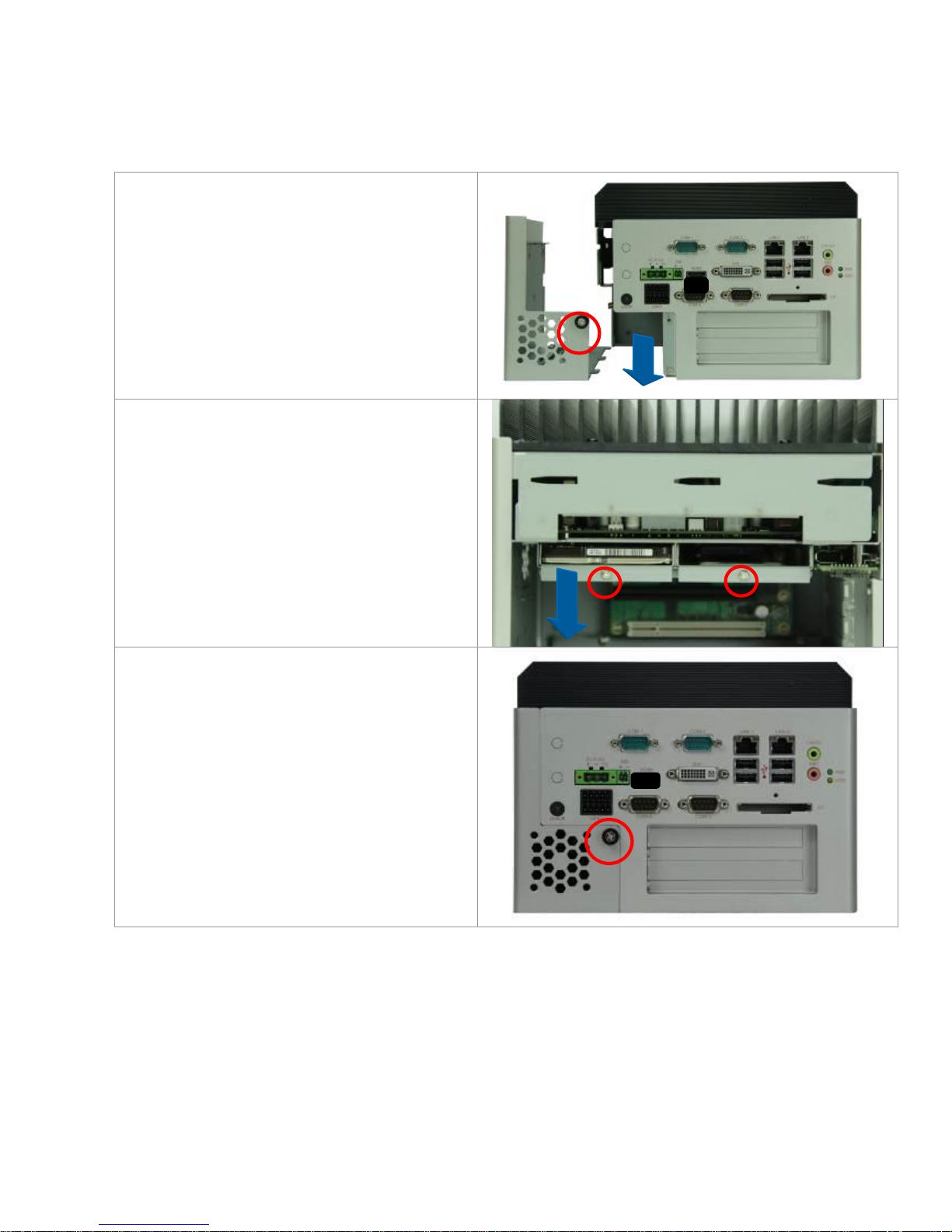

1.4 Installation of HDD
Step 1
There is one screw which connects to the
chassis. Pull out the chassis towards the I/O
side after unscrewing as shown in the picture
ACS-2695A
Step 2
There are 2 screws to deal with when
enclosing or removing the HDD bracket as
shown in the picture ACS-2695A
Loosen screw and draw the HDD bracket
out as shown in the picture ACS-2695A
Step 3
Tighten the 1 screw as shown in the picture.
That’s how it should look after it has been
installed.

10
ACS-2695A User Manual
1.5 Installation of PCI Add-on
Step 1
There is one screw which connects to the
chassis. Pull out the chassis towards the I/O
side after unscrewing as shown in the picture
ACS-2695A
Step 2
Now slide the add on into the PCI slot,
making sure the golden part faces the slot.
When the part that is interfaced together
come into the right contact, slightly push the
add on into the rail of the slot.
After sliding the add on into the PCI
expansion slot, get the one screw as circled
tightened to finish the connection.
** Half Expansion-card limit to be not more
than 175mm length
Step 3
Tighten the 1 screw as shown in the picture.
That’s how it should look after it has been
installed.

11
ACS-2695A User Manual
Chapter 2 Hardware Installation
2.1Mainboard Specifications
Figure 2.1: Mainboard Dimensions

12
ACS-2695A User Manual

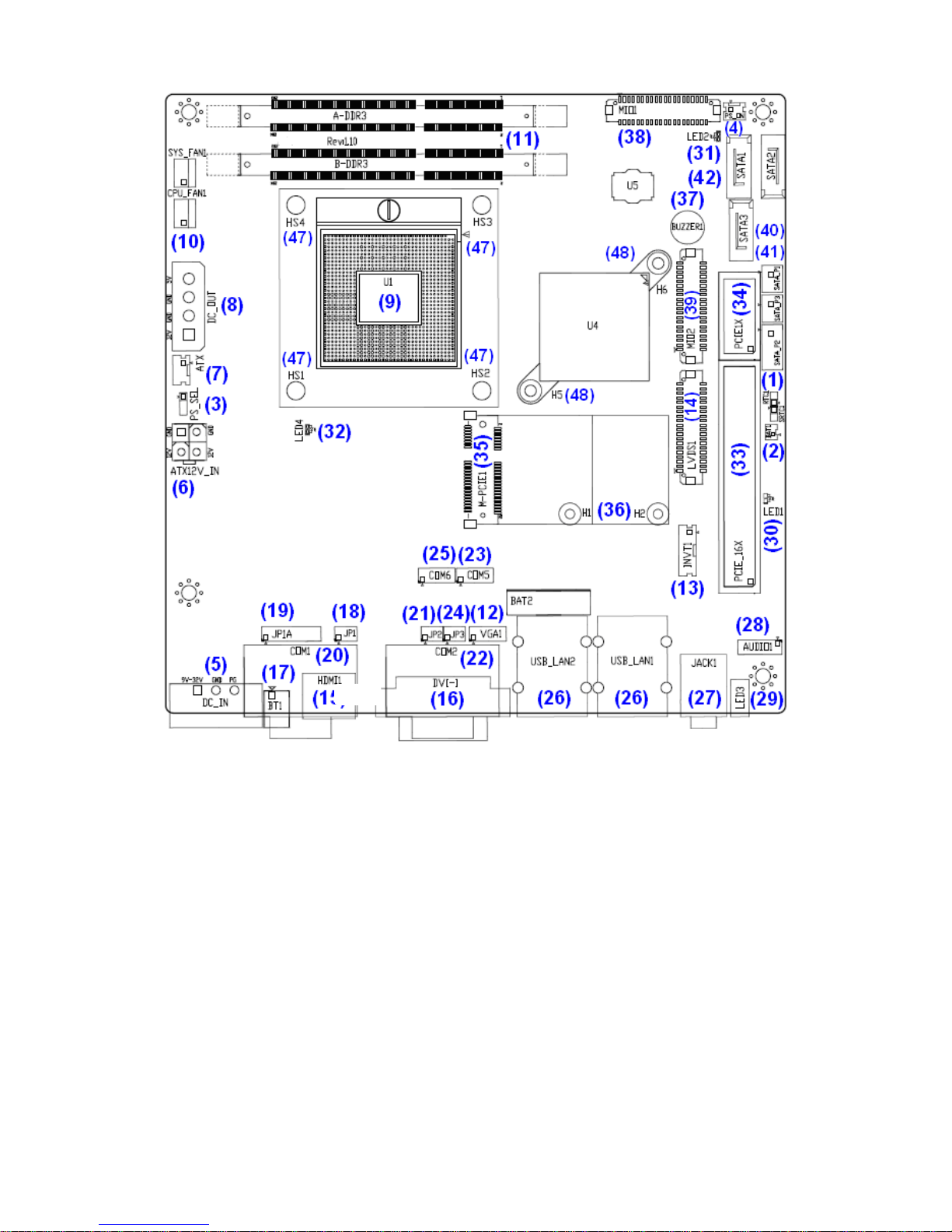

Figure 2.2: Jumpers and Connectors Location-TOP

13
ACS-2695A User Manual

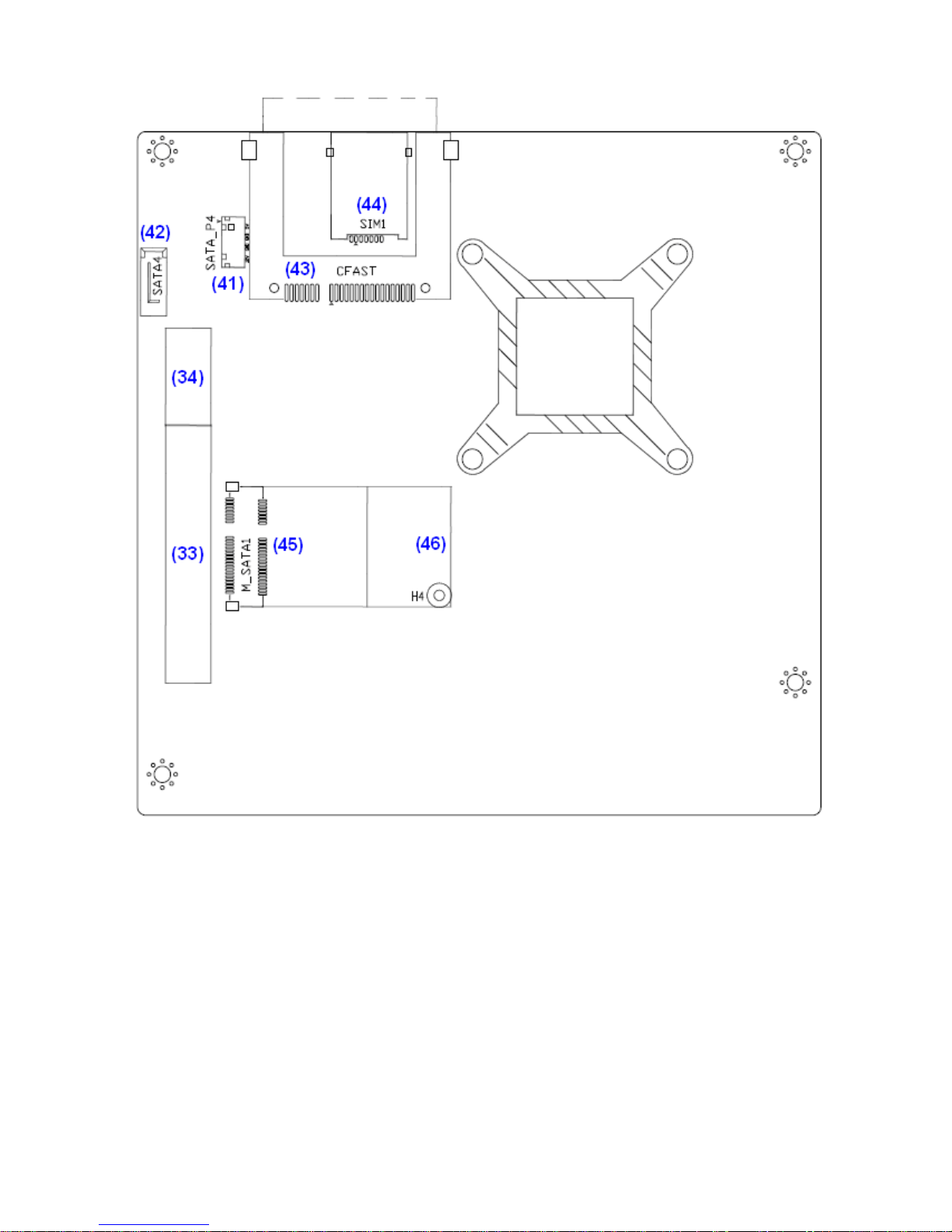

Figure 2.3: Jumpers and Connectors Location- Bottom

14
ACS-2695A User Manual
Specifications
Specifications
Board Size
170mm x 170mm
CPU Support
Support Socket G2, 2nd/3rd Gen Intel Core i3/i5/i7 Processors
Chipset
Intel HM77 (ASB-M8771HB)
Memory Support
2 x SO-DIMM (204pins), up to 16GB DDRIII 1066/1333/1600MHz FSB
Graphics
Intel HD Graphics 4000
Super I/O
Winbond W83627UHG
BIOS
AMIBIOS 16M
Storage
1 x SATA2.0 Connector (SATA3)
1 x SATA2.0 Connector (SATA4 option)
2 x SATA3.0 Connector (SATA1/SATA2)
1 x MSATAConnector (option)
Ethernet
2 x PCIe GbE LAN by Intel 82574L
USB
4 x USB 2.0 stack ports for external
3 x USB 2.0 box Pin header for MIO1
4 x USB 2.0 box Pin header for MIO2
1 x USB 2.0 internal for mini PCIe
Serial
1 x RS232/422/485 port, DB9 connector for external (COM1)
pin 9 w/5V/12V/Ring select
1 x RS232 port, DB9 connector for external (COM2)
pin 9 w/5V/12V/Ring select
1 x RS232 header for internal (COM5)
1 x RS232 header for internal (COM6), pin 9 w/5V/12V select
I/O Card TB-522 (option):
1 x 422/485 select header for internal MIO1 (COM3)
1 x RS232 header for internal MIO1 (COM4)
I/O Card TB-523 (option):
1 x 422/485 select header for internal MIO1 (COM3)
1 x RS232/422/485 select header for internal MIO1 (COM4)
Digital I/O
8-bit digital I/O by Pin header by MIO2
4-bit digital Input
4-bit digital Output

15
ACS-2695A User Manual
Battery
Support CR2477 Li battery by 2-pin header
Support CR2032 Li battery(BAT2,option)
Audio
Support Audio via Realtek ALC662 HD audio codec
Support Line-out, MIC by JACK1
Support Line-in, Line-out, MIC by 2x6-pin header
Keyboard /Mouse
PS2 K/B and Mouse by MIO2
1 x PS/2 keyboard
1 x PS/2 mouse
Expansion
1 x PCI-express x16 extend by 4x30 pin socket
2 x PCI-express x1 extend by 4x10 pin socket
1 x mini-PCI-express slot
1 x CRT 2x5 Pin Header
Power
Management
1 x 3-pin power input connector (Wide range DC+9V~32V)
1 x ATX Power Input （2x2Pin and 3Pin, option）
DC5V/12V output by 1x4 pin Connectors
Switches and
LED Indicators
Power on/off switch by TB-522 or TB-523
Reset switch by MIO2
Power LED status by MIO2
HDD LED status by MIO2
External I/O port
2 x COM Ports (COM1/COM2)
4 x USB 2.0 Ports (stack)
2 x RJ45 GbE LAN Ports
1 x DVI-I Port
1 x HDMI Port
1 x Audio Ports (Mic, Line out)
Watchdog Timer
Software programmable 1–255 second by Super I/O
Temperature
Operating: -20℃to 70℃
Storage: -40℃to 85℃
Humidity
10% - 90%, non-condensing, operating
Power
Consumption
12V/3.80A (Intel i5-2430M 2.4GHz Processor with 4GB DDR3)
19V/2.0A (Intel i5-2540 2.6GHz Processor with 8GB DDR3)
19V/2.2A(Intel i7-2620 2.7GHz Processor with 8GB DDR3)
EMI/EMS
Meet CE/FCC class A

16
ACS-2695A User Manual
2.2 Jumpers Setting and Connectors
1. RTC1/SRTC1:
(2.0mm Pitch 1X2 Pin Header)CMOS clear jumper, CMOS clear operation will permanently
reset old BIOS settings to factory defaults.
RTC1/SRTC1
CM OS
Open or
（RTC1Pin1-SRTC1 Pin close）
NORMAL (Default)
Close 1-2
Clear CMOS
Procedures of CMOS clear:
a) Turn off the system and unplug the power cord from the power outlet.
b) To clear the CMOS settings, use the jumper cap to close pins1 and 2 for about 3
seconds then reinstall the jumper clip back to pins open.
c) Power on the system again.
d) When entering the POST screen, press the <DEL> key to enter CMOS Setup
Utility to load optimal defaults.
e)After the above operations, save changes and exit BIOS Setup.
2. BAT1 :
(1.25mm Pitch 1X2 box Pin Header) 3.0V Li battery is embedded to provide power for
CMOS.
Pin#
Signal Name
Pin1
VBAT
Pin2
Ground
3. PS_SEL:
(2.0mm Pitch 1X3 Pin Header),DC in Power andATX 12V_IN Power jumper setting.
PS_SEL
Mode
Close 1-2
DC in Power (Default)
Close 2-3
ATX 12V_IN Power
4. PS_ON:
(2.0mm Pitch 1X2 Pin Header),ATX Power andAuto Power on jumper setting.
PS_ON
Mode
Close 1-2
Auto Power on (Default)
Open 1-2
ATX Power

17
ACS-2695A User Manual

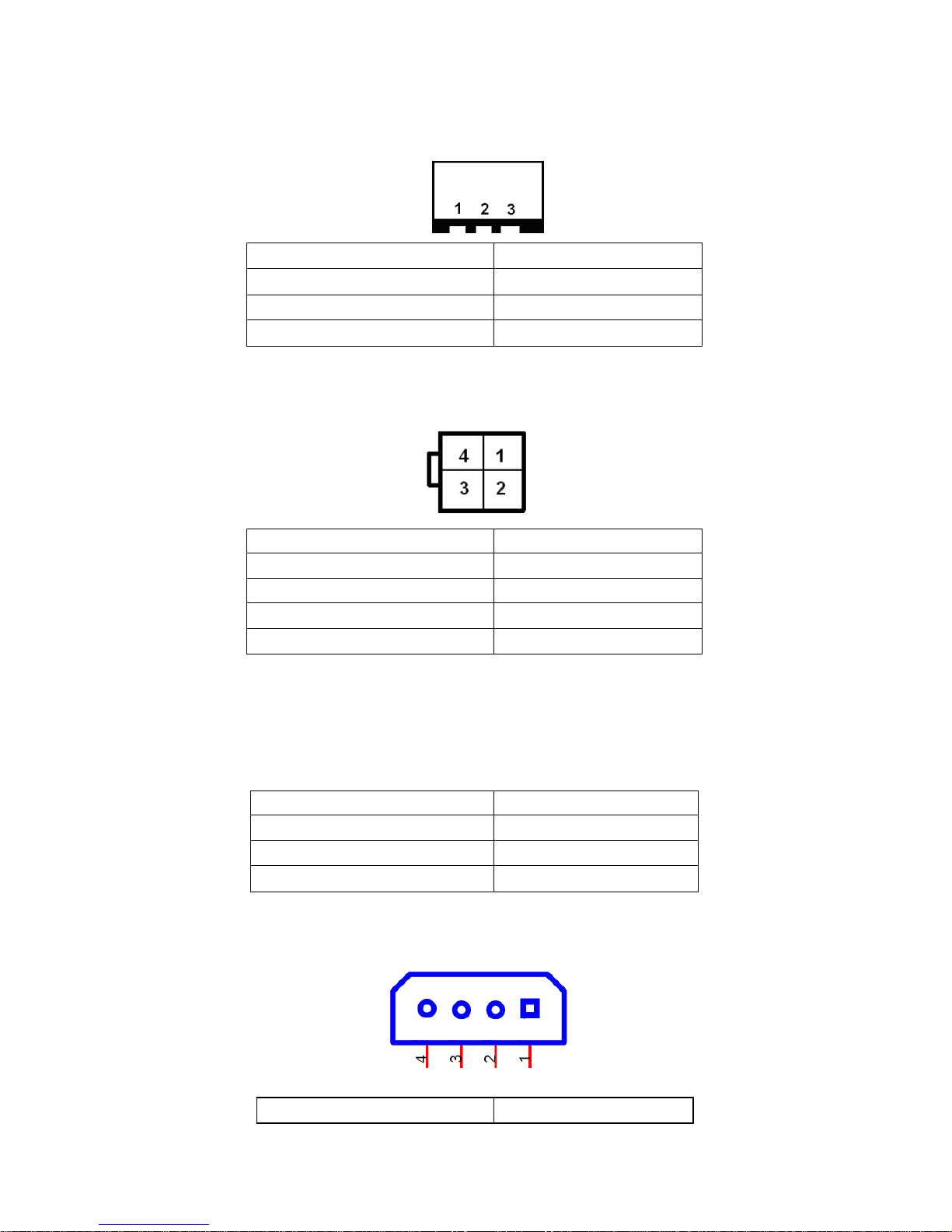

5. DCIN:
(5.08mm Pitch 1x3 Pin Connector),DC9V ~ DC32V System power input connector。
Pin#
Power Input
Pin1
DC+9V~32V
Pin2
Ground
Pin3
PG
6. ATX12V_IN (ATX Power option):
(2x2 Pin Connector), DC12V System power input connector.
Pin#
Power input
Pin1
Ground
Pin2
Ground
Pin3
DC+12V
Pin4
DC+12V
7. ATX (ATX Power option):
(2.0mm Pitch 1X3 box Pin Header), connect PSON and 5VSB and Ground signal,support
ATX Power model. Reserved.
Pin#
Signal Name
Pin1
ATX PSON
Pin2
ATX Ground
Pin3
ATX 5VSB
8. DC_OUT:
(2x2 Pin Connector),DC12V and DC5V System power output connector.
Pin# Power output

18
ACS-2695A User Manual
Pin1
DC+12V
Pin2
Ground
Pin3
Ground
Pin4
DC+5V
9. U1:
(Socket G2), installing the 2nd GEN intel Core i3/i5/i7CPU Socket.
10. CPU_FAN1/SYS_FAN1:
(2.54mm Pitch 1x3 Pin Header),Fan connector, cooling fans can be connected directly for
use. You may set the rotation condition of cooling fan in menu of BIOS CMOS Setup.
Pin#
Signal Name
1
Ground
2
VCC
3
Rotation detection
Note:
Output power of cooling fan must be limited under 5W.
11. A-DDR3/B-DDR3:
(SO-DIMM 204Pin socket), DDRIII memory socket, the socket is located at the top of the
board and supports 204Pin 1.5V DDRIII 1066/1333/1600MHz FSB SO-DIMM memory
module up to 16GB.
12. VGA1:
(CRT 2.0mm Pitch 2X5 Pin Header), Video Graphic Array Port, Provide 2x5Pin cable to
VGAPort.
Signal Name
Pin#
Pin#
Signal Name
CRT_RED
1
2
Ground
CRT_GREEN
3
4
Ground
CRT_BLUE
5
6
Ground
CRT_H_SYNC
7
8
CRT_DDCDATA
CRT_V_SYNC
9
10
CRT_DDCCLK
13. INVT1:
(2.0mm Pitch 1x6 box Pin Header), Backlight control connector for LVDS1.

19
ACS-2695A User Manual
Signal Name
Pin#
Pin#
Signal Name
VDD5
2
1
VDD5
Ground
4
3
Ground
VDD33
6
5
VDD33
LB_D0_N
8
7
LA_D0_N
LB_D0_P
10
9
LA_D0_P
Ground
12
11
Ground
LB_D1_N
14
13
LA_D1_N
LB_D1_P
16
15
LA_D1_P
Ground
18
17
Ground
LB_D2_N
20
19
LA_D2_N
LB_D2_P
22
21
LA_D2_P
Ground
24
23
Ground
LB_CLK_N
26
25
LA_CLK_N
LB_CLK_P
28
27
LA_CLK_P
Ground
30
29
Ground
VLVDS_DDC_DATA
32
31
LVDS_DOC_CLK
Ground
34
33
Ground
LB_D3_N
36
35
LA_D3_N
LB_D3_P
38
37
LA_D3_P
NC
40
39
NC
Pin#
Signal Name
1
+DC12V
2
+DC12V
3
Ground
4
Ground
5
BKLT_EN
6
BKLT_CTRL
Note:
Pin6 is backlight control signal, support DC or PWM mode, mode select at BIOS CMOS
menu.
14. LVDS1:
(1.25mm Pitch 2x20 Connector), For 18/24-bit LVDS output connector, Fully supported
by Intel HM77 chipset, the interface features dual channel 18/24-bit output.
L
