ARCHMI-8XX(P)H
7”, 8”, 12.1”, and 15”Intel Celeron N2930, High Brightness Fanless Industrial
Compact Size Panel PC
User Manual
Release Date Revision
Jul. 2016 V1.1
®2016 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: [phone] Fax: [phone] URL: www.aplextec.com

ARCHMI-8XX(P)H Series User Manual
1
Revision History
Reversion
Date
Description
1.0
2016/0 6/20
Official Version
1.1
2016/07/19
Add 7”, 12.1”, and 15”HMI

ARCHMI-8XX(P)H Series User Manual
2
Warning!________________________
Caution
Risk of explosion if the battery is replaced with an incorrect type.
Batteries should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.
Disclaimer
This information in this document is subject to change without notice. In no event
shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or
consequential, arising from either the use or misuse of information in this
document or in any related materials.
Electric Shock Hazard –Do not operate the machine with its back cover removed.
There are dangerous high voltages inside.
This equipment generates, uses and can radiate radio frequency energy and
if not installed and used in accordance with the instructions manual, it may cause
interference to radio communications. It has been tested and found to comply
with the limits for a Class A computing device pursuant to FCC Rules, which are
designed to provide reasonable protection against such interference when
operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference in which case the user at his own
expense will be required to take whatever measures may be required to correct
the interference.

ARCHMI-8XX(P)H Series User Manual
3
Packing List
Accessories (as ticked) included in this package are:
□Adaptor
□Driver & manual CD disc
□Other.___________________(please specify)

ARCHMI-8XX(P)H Series User Manual
4
Safety Precautions
Follow the messages below to prevent your systems from damage:
◆Avoid your system from static electricity on all occasions.
◆Prevent electric shock. Don‘t touch any components of this card when
the card is power-on. Always disconnect power when the system is not
in use.
◆Disconnect power when you change any hardware devices. For instance,
when you connect a jumper or install any cards, a surge of power may
damage the electronic components or the whole system.

ARCHMI-8XX(P)H Series User Manual
5
Table of Contents
Revision History…………………………………………………………………………………………………….1
Warning!................................................................................…………………………….…2
Caution/Disclaimer……..……………………..…………………………………………………………………2
Packing List…………………………………….……………………………………………………………………..3
Safety Precautions…………………………………………………………………….…..……………………..4
Chapter 1 Getting Started
1.1 Features………………………..………………………...…………………………..7
1.2 Specifications…………………...………………………………………………….7
1.3 Dimensions………………………....…….………………………………………..9
1.4 Brief Description of ARCHMI-8XX(P)H..………………………….……12
1.5 Installation of HDD –7”and 8”..…..…………...…………………..…..16
1.6 Installation of HDD –12.1”and 15”….…………..…………………..-18
1.7 VESA Mounting…………………………………..………………………………20
1.8 Panel Mounting……………………………………..………………….……….20
Chapter 2 Hardware
2.1 Motherboard Introduction……………………...……………..………....21
2.2 Specifications…………………………..…………………………………………21
2.3 Jumpers and Connectors Location……………………………………...24
2.4 Jumpers Setting and Connectors…………………………………..……25
Chapter 3 BIOS Setup
3.1 Operations after POST Screen…...…….……...…………………………39
3.2 BIOS Setup Utility……………………………………………………………….39
3.3 Main Settings……………………………………..………………………………40
3.4 Advanced Settings……………………………………………………………...41
3.5 Chipset Settings……………………………………….………………………...49
3.6 Security Settings…………………………………………….…………………..51
3.7 Boot Settings…..………………………………………….……………………..53
3.8 Save & Exit Settings……………………………………..…………………....54
Chapter 4 Installation of Drivers
4.1 Intel (R) AtomTM SoC Chipset ………..……...………….………………57
4.2 Intel (R) VGA Chipset……………………………………………….……......60
4.3 Intel (R) LAN Driver………..………………………………………..………...64

ARCHMI-8XX(P)H Series User Manual
6
4.4 Realtek ALC662 HD Audio Driver Installation………………………67
4.5 USB 3.0 Driver…………………………………………………………………….68
4.6 Com Driver…..…………………………………………………………………….71
Chapter 5 Touch Screen Installation
5.1 Windows 7/8/8.1 Universal Driver Installation for PenMount
6000 Series…………………….…………….…………………………………...74
5.2 Software Functions…………………………………………………………....84
Figures
Figure 1.1: Dimensions of ARCHMI-807(P)H……………………..…………………..…9
Figure 1.2: Dimensions of ARCHMI-808(P)H.…………………..……………….…...10
Figure 1.3: Dimensions of ARCHMI-812(P)H………………………………………..…10
Figure 1.4: Dimensions of ARCHMI-815(P)H……………………………………..……11
Figure 1.5: Front View of ARCHMI-807(P)H………………………..…………….……12
Figure 1.6: Rear View of ARCHMI-807(P)H……………………………………………..12
Figure 1.7: Front View of ARCHMI-808(P)H………………………..………………….13
Figure 1.8: Rear View of ARCHMI-808(P)H…………..…….……..………………..…13
Figure 1.9: Front View of ARCHMI-812(P)H……..……………………………….……14
Figure 1.10: Rear View of ARCHMI-812(P)H……………………………………….….14
Figure 1.11: Front View of ARCHMI-815(P)H…………………………………….……15
Figure 1.12: Rear View of ARCHMI-815(P)H…………………………………………..15
Figure 1.13: ARCHMI-8XX(P)H VESA Mounting………………...……………………20
Figure 1.14: ARCHMI-8XX(P)H Panel Mounting………………..…………………...20
Figure 2.1: Motherboard Dimensions…………………………..………………….…….23
Figure 2.2: Jumpers and Connectors Location-Board Top……………..…….….24
Figure 2.3: Jumpers and Connectors Location-Board Bottom……….……..…24

ARCHMI-8XX(P)H Series User Manual
7
Chapter 1 Getting Started
1.1 Features
7”, 8”, 12.1”, and 15”Industrial Compact Size Panel PC
Flat front panel touch screen
Fanless design
Intel Celeron N2930(1.83GHz) CPU built-in
Onboard 4GB DDR3L 1600 MHz/8GB(option)
9~36VDC wide-ranging power input
IP65 compliant front panel
Optional projected capacitive touchscreen support 7H anti-scratch surface
High brightness 1,000nits
Optical bonding(option)
System power LED light
1.2 Specifications
ARCHMI-8XX Series
System
CPU
Onboard Intel Celeron N2930(1.83GHz )
Chipset
SoC
Memory
Onboard 4GB DDR 3L 1600 MHz/8GB(option)
IO Port
USB
2 x USB 3.0 type A
Serial/Parallel
1 x RS-232 DB-9(COM2)
1 x DB-9 RS-232/422/485 (Default RS-232)(COM1)
Audio
1 x Audio Line Out
LAN
2 x GbE LAN RJ-45
Power
1 x 3-pin DC Power input terminal
1 x 2-pin connector for power on/off button
Option
(Not available for
ARCHMI-807(P)H and
ARCHMI-808(P)H)
2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1
2 x CAN bus via TB-528CAN2
2 x USB 2.0 type A Via TB-528U2
2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1xRS-232 DB-9 + 1 x Power button
via TB-528C1U2P1
UPS Battery 21W/10.8W/1.95Ah(3S1P)

ARCHMI-8XX(P)H Series User Manual
8
UPS Battery and TB-528 expansion board can’t be used in the same time
for ARCHMI-812(P)H
Storage Space
Storage
1 x SD card slot, up to 32GB
1 x MO-297 SATA SSD bay (Easy Accessible) (for 7”/8”)
1 x 2.5" SATA HDD bay for SATA HDD (Easy Accessible)
Expansion
Expansion Slot
1 x Internal Mini-PCIe slot full size
Touch Screen –Resistive Touch Window Type
TS Control IC
PenMount 6000 on Board
Interface
USB
Light Transmission
Over 80%
Touch Screen –Projected Capacitive Type
TS Control IC
Chip on tail
Interface
USB
Light Transmission
Over 90%
Power
Power Input
9~36V DC
Mechanical
Construction
RAL 9007
IP Rating
IP65 compliant front panel
Environmental
Operating temperature
0~50°C
Storage temperature
-20~60°C
Storage humidity
10 to 90% @ 40°C, non- condensing
Certification
CE / FCC Class A
Operating System Support
OS Support
Windows Embedded Compact 7, Windows Embedded Standard 7, Windows
7 Pro(FES), Windows 7 Ultimate(FES), Windows Embedded 8 Standard,
Windows Embedded 8.1 Industry Pro, Windows 10 IoT Enterprise 2015LTSB

ARCHMI-8XX(P)H Series User Manual
9
ARCHMI-807(P)H
ARCHMI-808(P)H
ARCHMI-812(P)H
ARCHMI-815(P)H
Display Type
7”TFT LCD
8”TFT LCD
12.1”TFT LCD
15”TFT LCD
Max. Resolution
800 x 480
800 x 600
800 x 600
1024 x 768
Max. Color
262K
16.2M
16.2M
16.2M
Luminance(cd/m²)
1000
1000
1000
1000
Contrast Ratio
400 : 1
500 : 1
600 : 1
800 : 1
Viewing angle
140(H)/130(V)
140(H)/125(V)
160(H)/140(V)
160(H)/145(V)
Backlight Lifetime
50,000 hrs
40,000 hrs
50,000 hrs
50,000 hrs
Power
Consumption
MAX:14W
(807H)
MAX: 13.7W
(807PH)
MAX:14.2W
(808H)
MAX:16.1W
(808PH)
MAX:22.1W
(812H)
MAX:25.6W
(812PH)
MAX:28.7W
(815H)
MAX:26W
(815PH)
Mounting
VESA Mount 75 x 75
VESA Mount 100 x 100
Dimensions(mm)
202 x 149 x 40
231.1 x 176.1 x 50
319 x 245 x 51.7
410 x 310 x 54.6
Net Weight
1.2 Kg
1.9 Kg
2.9 Kg
4.5 Kg
1.3 Dimensions

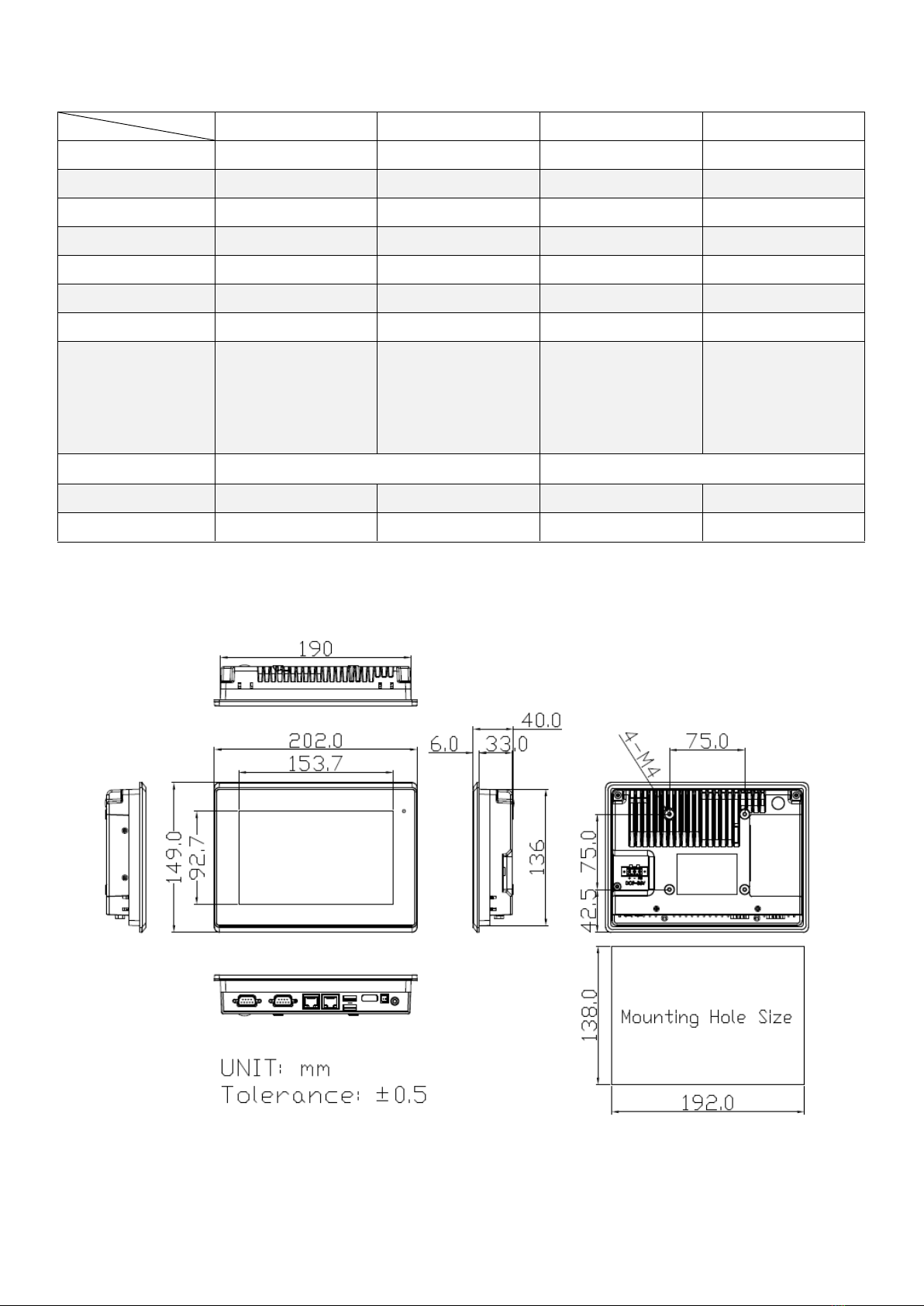

Figure 1.1: Dimensions of ARCHMI-807(P)H

ARCHMI-8XX(P)H Series User Manual
10

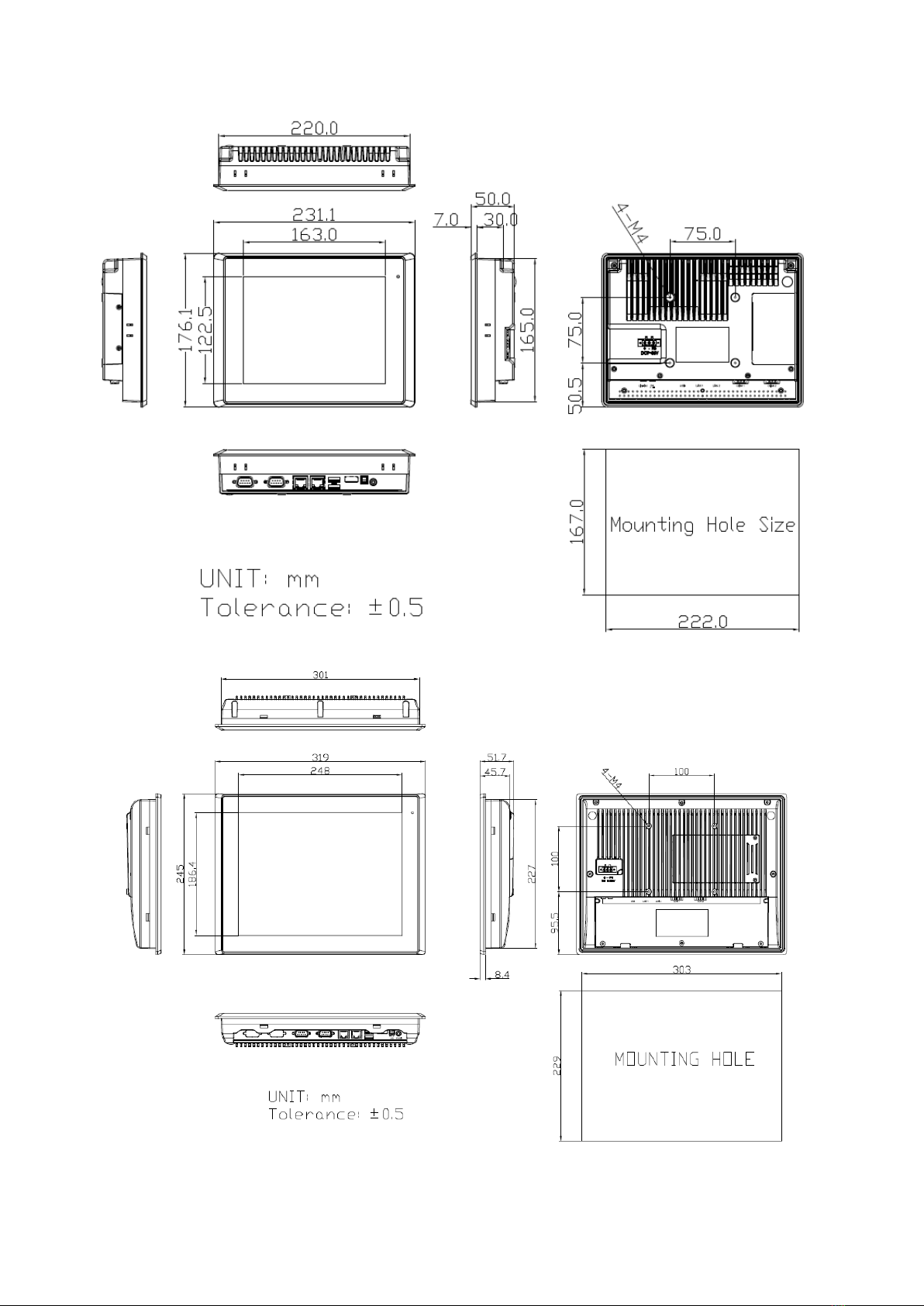

Figure 1.2: Dimensions of ARCHMI-808(P)H
Figure 1.3: Dimensions of ARCHMI-812(P)H

ARCHMI-8XX(P)H Series User Manual
11
Figure 1.4: Dimensions of ARCHMI-815(P)H

ARCHMI-8XX(P)H Series User Manual
12
1.4 Brief Description of ARCHMI-8XX(P)H
There are 7”, 8”, 12.1”, and 15”Industrial Compact Size Panel PC in
ARCHMI-8XX(P)H series, which comes with flat front panel touch screen and fanless
design. It is powered by Intel N2930(1.83GHz) processor built-in, and 4GB DDR3L
1600MHz memory (8GB memory is for option). ARCHMI-8XX(P)H is 9~36V DC
wide-ranging power input and IP65 compliant front panel. The model features high
brightness sunlight-readable LCD, and can be optical bonding designed for option.
Optional projected capacitive touch supports 7H anti-scratch surface is ideal for use
as PC-based controller for industrial automation & factory automation.
Figure 1.5: Front View of ARCHMI-807(P)H
Figure 1.6: Rear View of ARCHMI-807(P)H

ARCHMI-8XX(P)H Series User Manual
13

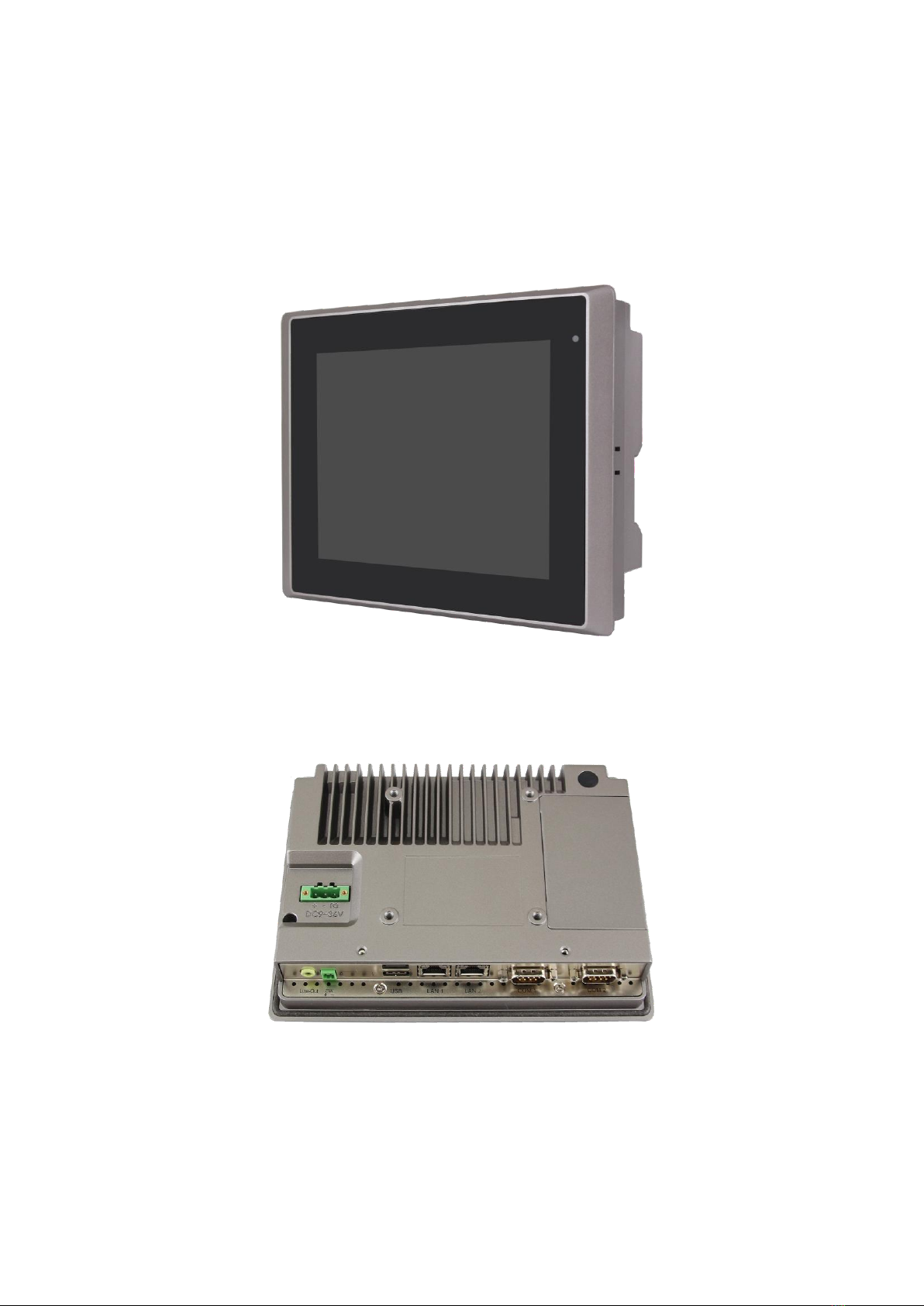

Figure 1.7: Front View of ARCHMI-808(P)H
Figure 1.8: Rear View of ARCHMI-808(P)H

ARCHMI-8XX(P)H Series User Manual
14

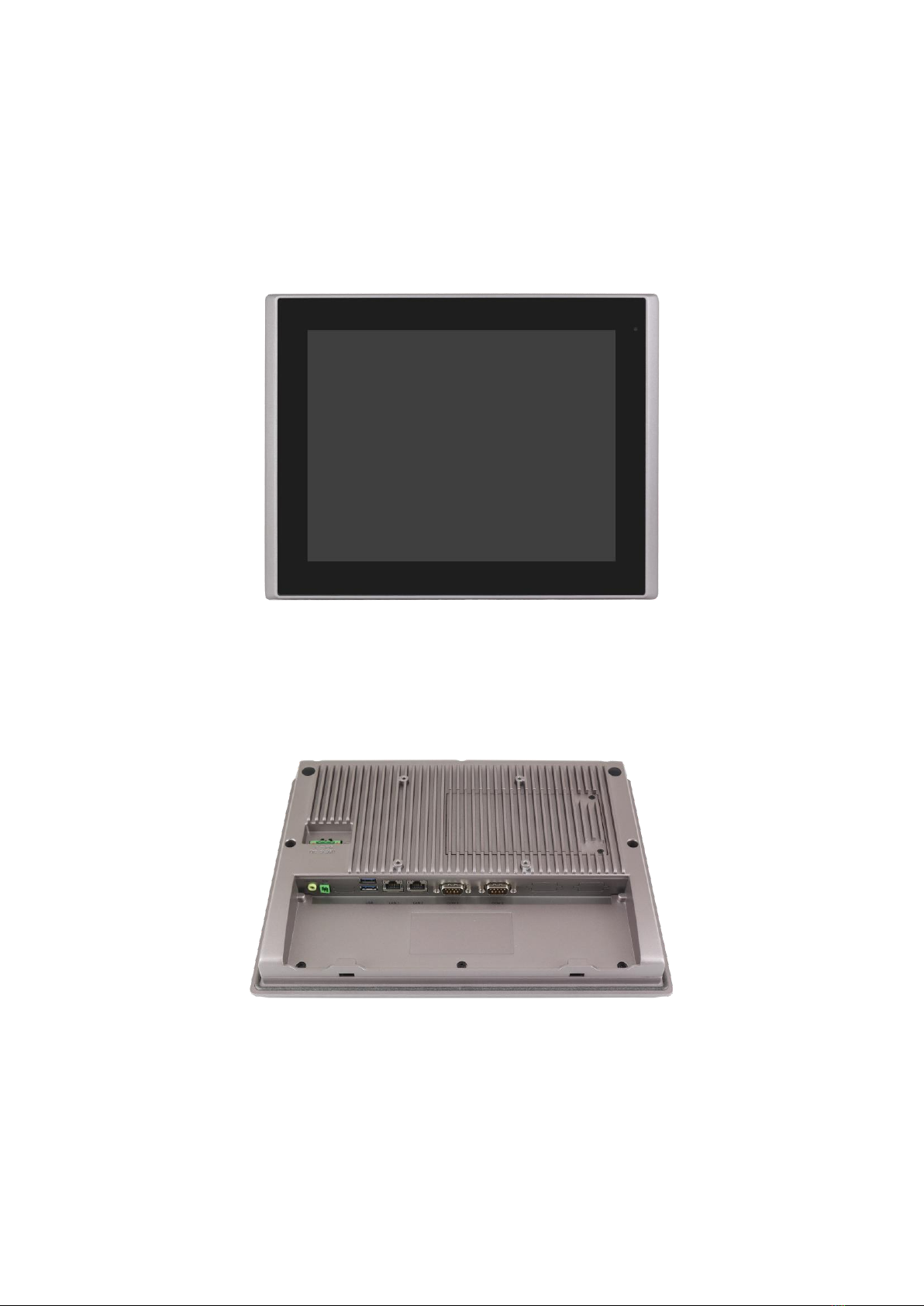

Figure 1.9: Front View of ARCHMI-812(P)H
Figure 1.10: Rear View of ARCHMI-812(P)H

ARCHMI-8XX(P)H Series User Manual
15

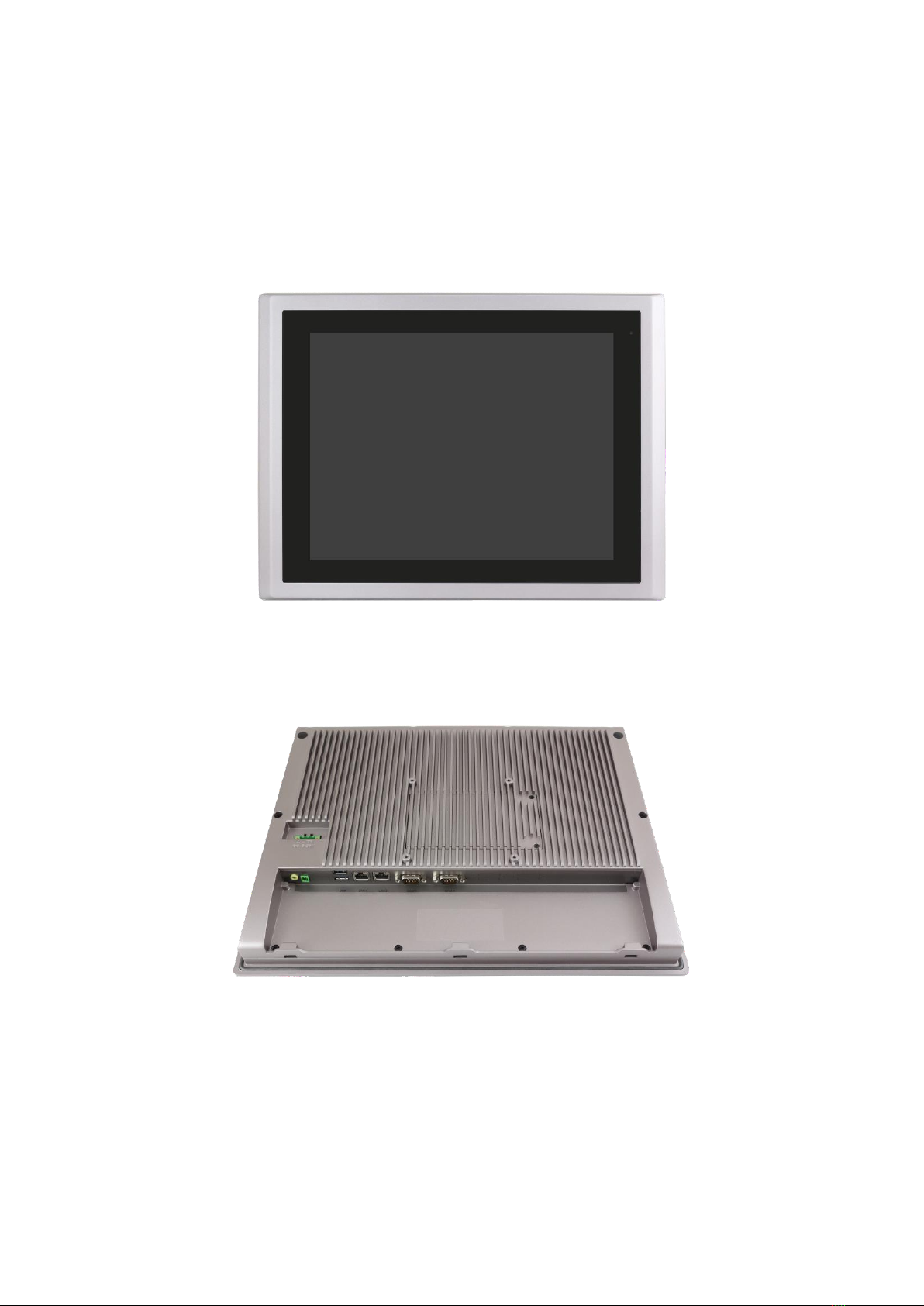

Figure 1.11: Front View of ARCHMI-815(P)H
Figure 1.12: Rear View of ARCHMI-815(P)H

ARCHMI-8XX(P)H Series User Manual
16

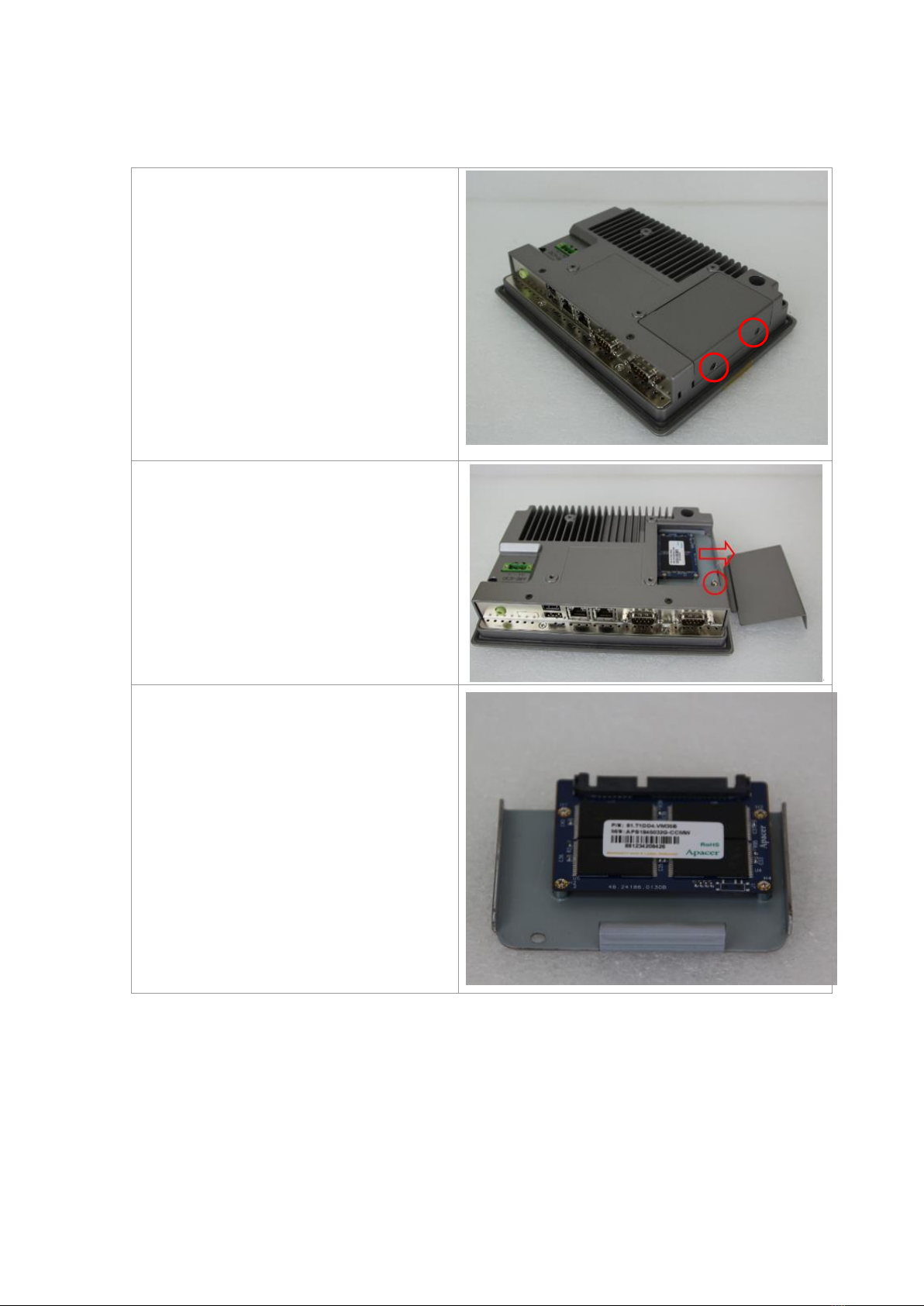

1.5 Installation of HDD –7”and 8”
Step 1
There are two screws to deal with when
enclosing or removing the chassis.
Gently remove two screws.
Step 2
There is a SSD card in the bracket. Gently
remove the screw, then carefully pull
SSD card.
Step 3
Take out SSD Card bracket.

ARCHMI-8XX(P)H Series User Manual
17
Step 4
You can replace SSD card by unscrewing
four screws as shown in the picture.
Note: four screws are packed in the
packing list.
Step 5
There is a SD card hole in the side of the
machine. You can replace SD card from
there.
Step 6
Gently screw the screws.

ARCHMI-8XX(P)H Series User Manual
18

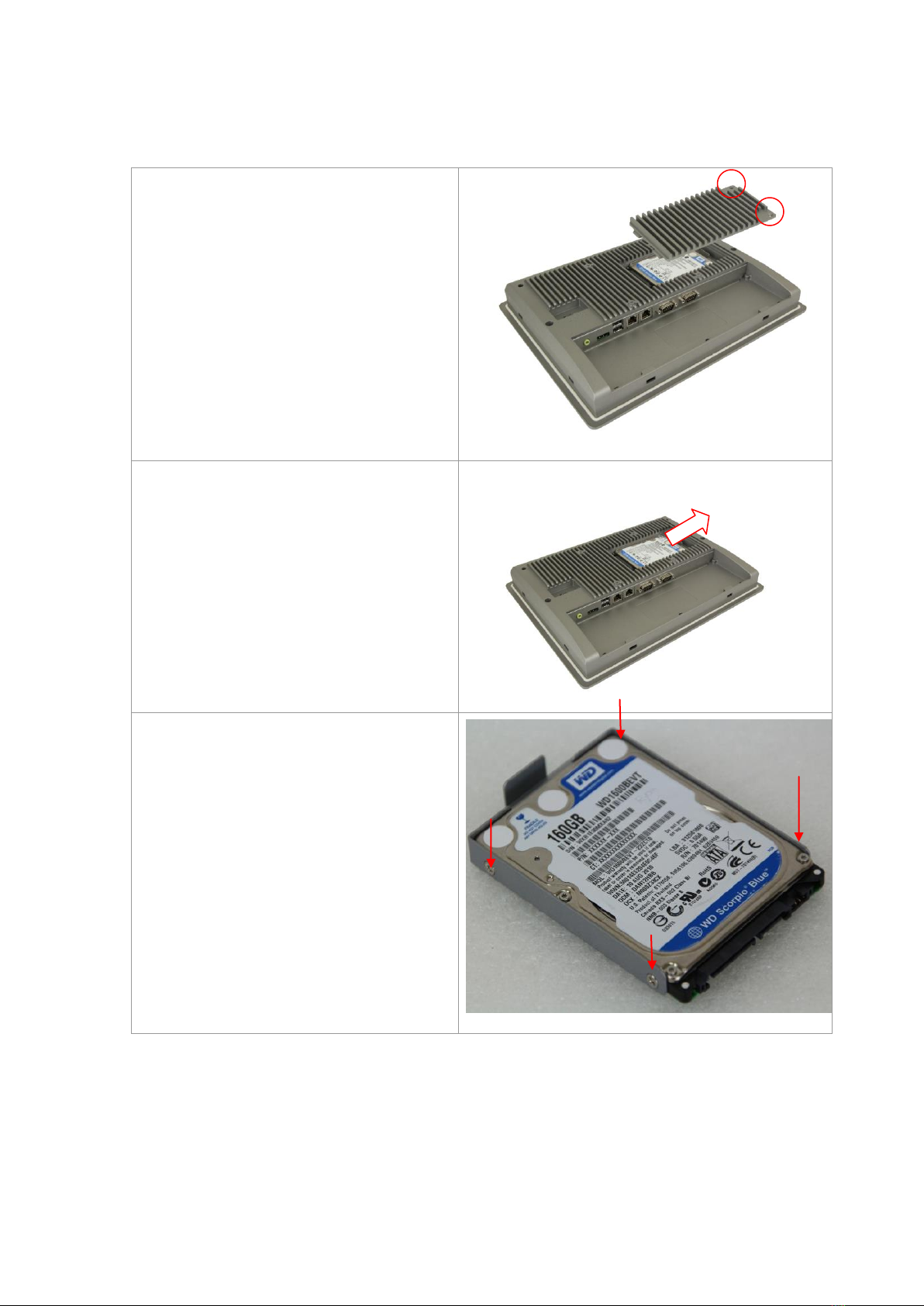

1.6 Installation of HDD –12.1”and 15”
Step 1
There are 2 screws to deal with when
enclosing or removing the chassis.
Gently remove 2 screws.
Step 2
You can put or remove HDD into the
machine by pulling the HDD bracket.
Step 3
You can remove HDD by unscrewing 4
screws in the HDD bracket.
Note: 4 screws are packed in the packing
package.
