Apollo XPander User manual

Commissioning guide

© Apollo Fire Detectors Limited 2015
2
Contents
Introduction 3
Environmental 4
Handling precautions 4
Quick start guide for XPander Diversity Site Survey 5
Quick start guide for XPander Diversity Loop Interface 5
Installation 6
Menu - scrolling and selecting 6
Initial power up screen 7
Multiple Interfaces 7
Logging on interfaces 7
Log on procedure 8
Menu options 9
Menu Level: (1.0) 9
Menu Level: (1.1) 9
Menu Level: (1.2) 10
Menu Level: (1.3) 10
Menu Level: (1.4) 11
Menu Level: (1.5) 11
Menu Level: (1.6) 11
Menu Level: (1.7) 11
Menu Level: (2.0) 12
Menu Level: (3.0) 12
Menu Level: (4.0) 12
Menu Level: (4.1) 12
Menu Level: (4.2) 12
Menu Level: (4.3) 13
Menu Level: (4.4) 13
Menu Level: (5.0) 13
Menu Level: (5.1) 13
Menu Level: (5.2) 13
Menu Level: (5.3) 13
Appendix A 14
Appendix B 14
Appendix C 15
Appendix D 15
Appendix E 15
Appendix F 17

3
© Apollo Fire Detectors Limited 2015
Introduction
XPander incorporates entirely new designs with respect to the wireless communication system. A Radio Interface
is connected to the loop. It communicates with the control panel using the Apollo Addressable two-wire power
and communications system. The interface communicates with the detection and alarm signalling devices by
means of radio waves. A maximum of 5 interfaces is permitted for each site. For sites that require more than 5
interfaces please contact Apollo.
The radio bases and signalling devices are addressable and use a pre-set analogue value to report via the Apollo
protocol. Apart from normal and fire the bases can send pre-set analogue values to indicate low battery, detector
contaminated, detector tamper and low signal strength fault conditions.
• Up to 5 interfaces per site - contact Apollo for more information
• Up to 31 devices per interface
• Loop-powered interface (Including bi-directional Short Circuit Isolator)
• Wireless addresses seen by control panel as normal addresses
• Radio base with wireless circuitry and battery compartment
• Optical chamber designed to inhibit dirt penetration and thus reduce false alarms
• Automatic drift compensation with DirtAlert™ warning
• Detection algorithms for transient rejection
• FasTest™ reduces time taken to test detectors
• Remote test facility
• 5-year battery life (It is recommended that the battery is changed in year 4 of maintenance)
• Alkaline Panasonic® Powerline or Alkaline Varta® Industrial are the recommended battery types to use
• Modern styling

© Apollo Fire Detectors Limited 2015
4
XPander detectors are supplied with a mounting base as a complete unit. The range comprises of the following
products:
Description Part Number

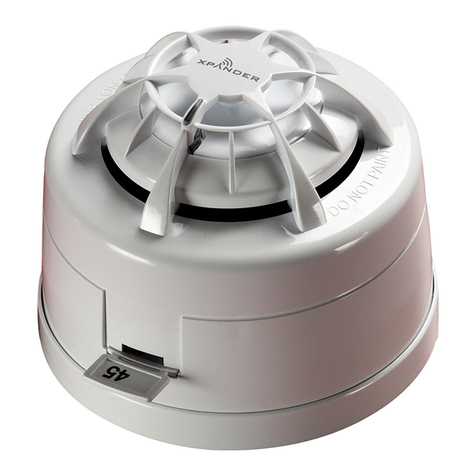

Optical detector with base XPA-CB-12034-APO
Heat detector A1R and base XPA-CB-11170-APO
Heat detector CS and base XPA-CB-11171-APO
Combined sounder and optical smoke detector XPA-CB-14016-APO
Combined sounder and heat detector (class A1R) XPA-CB-14017-APO
Combined sounder and heat detector (class CS) XPA-CB-14018-APO
Combined sounder-visual indicator (red) and optical smoke detector XPA-CB-14020-APO
Combined sounder-visual indicator (red) and heat detector (class A1R) XPA-CB-14021-APO
Combined sounder-visual indicator (red) and heat detector (class CS) XPA-CB-14022-APO
Combined sounder-visual indicator (clear) and optical smoke detector XPA-CB-14024-APO
Combined sounder-visual indicator (clear) and heat detector (class A1R) XPA-CB-14025-APO
Combined sounder-visual indicator (clear) and heat detector (class CS) XPA-CB-14026-APO
Manual call point XPA-MC-14006-APO
Red sounder with mounting base XPA-CB-14001-APO
White sounder with mounting base XPA-CB-14002-APO
Red sounder visual indicator with red mounting base XPA-CB-14003-APO
Amber sounder visual indicator with white mounting base XPA-CB-14004-APO
Clear sounder visual indicator with white sounder mounting base XPA-CB-14005-APO
Site Survey Kit XPA-TE-14075-APO
Single input/output unit XPA-IN-14011-APO
Dual input/output unit XPA-IN-14012-APO
Diversity Loop Interface XPA-IN-14050-APO
White XPander XPERT card 29600-413
Red XPander XPERT card 29600-399
For spare parts/replacement parts see page 15.
Environmental
All packaging recyclable.
Disposing of batteries should be in accordance with local regulations.
Handling precautions
As with all electronics, care should be taken during handling. Avoid dropping any of the parts onto hard surfaces,
as damage may occur to the case and internal circuitry.
All products should be kept in their packaging until they are due to be installed to minimise the risk of damage.
Retain all packaging until the installation and commissioning is complete.
Observe anti-static precautions when handling all products. To avoid risk of static discharges do not place static-
sensitive devices on plastic surfaces.

5
© Apollo Fire Detectors Limited 2015
Quick Start Guide for XPander Diversity Loop Interface
1. Select the interface number
or ID (range 1-5).
2. Select channels following
Appendix B and checklist on
the inside of the unit.
3. Set the address for the
system.
4. Log on devices to the
interface (for each interface).
For detailed instructions see page 07
For detailed instructions see page 13
For detailed instructions see
Installation Guide 39214-926
For detailed instructions see page 08
Quick Start Guide for XPander Diversity Site Survey
1. Use the site survey tool to
check the signal strength.
2. Record all the survey signal
strengths on the site survey
sheet.
3. Fit the interfaces - as per
instructions in the quick start
guide below.
4. Log the devices on to the
interface - as per instructions in
the quick start guide below.
5. Check the signal strength
for each logged on device and
record on the site survey sheet.
For detailed instructions see page 16
For site survey sheet see page 17
See Quick Start Guide for XPander
Diversity Loop Interface below
For detailed instructions see page 08
For site survey sheet see page 17

© Apollo Fire Detectors Limited 2015
6
Menu
Device
Address
Currently Used (5.1)
Auto Select (5.2)
Manual Select (5.3)
Fault Status (4.1)
Background Level (4.2)
Fast Test (4.3)
Ident (4.4)
Fault Status (1.1)
Alarm Status (1.2)
Battery Level (1.3)
Signal Level (1.4)
Manual Update (1.5)
Ident (1.6)
Device Status (1.0)
Add New Device (2.0)
Remove Device (3.0)
Interface Status (4.0)
Radio Channels (5.0)
Installation
Installation should be carried out in accordance with the radio survey and system design. Siting of the devices
should be in strict accordance with the survey. Failure to do so could result in loss of performance.
The log on procedure (page 8) along with a completed site survey sheet should be sufficient to obtain a stable
working system, the site survey procedure ensures all XPander devices will communicate correctly once installed.
These sheets need to be completed and kept as commissioning and user documentation to comply with BS5839 -
1 section 2-27 and section 5-39 & 40
This guide provides information on features designed to help commission and troubleshoot a system.
Please note: Should building structure change, the site survey will need to be repeated. The system will not
comply to BS 5839 or other national codes if the site survey is not carried out properly and all supporting paper-
work completed (site survey sheet).
Menu - scrolling and selecting
Selecting Menu Options
A rotary select switch is used for scrolling through the menu and selecting an option. Turn the select switch clock-
wise to scroll down the menu. Turn the switch anti-clockwise to scroll back up the menu. Press the select switch
once to select an option.
The ‘Back’ button is used to return to the previous menu.
If a menu is selected and no further activity is detected, the menu will ‘time out’ and the interface will return to
normal operating mode. Loop Interface PCB.
TX
RADIO
WD
RESET
HELP
RX
ON
1 2 3 4 5 6 7 8
BACK
POWER
FA U LT
ISOLATE
0V
RX
TX
3V
SCR
+
-
LOOP IN
SCR
LOOP OUT
+
-
1 2 3 4 5 6 7
Front Lid
Tamper Switch
8 Way loop
Address Switch
Reset
Button
868 MHz Aerial
Connections
Status
LEDs
Help
Button
Rotary
Control
Back
Button
LCD
Screen
Loop In, Out and
Screen Connections
LCD Contrast
Adjustment

7
© Apollo Fire Detectors Limited 2015
Initial power up screen
DEV 00 AL 00 FT 00
No. of devices
logged onto
interface
No. of logged on
devices in fault
condition
No. of logged
on devices in
alarm condition
Multiple Interfaces
If more than 1 interface is being used, refer to Appendix B on page 14 before logging on the devices and complete
the checklist on the lid. Interfaces are numbered from 1 to 5. This is not the loop address, it is the frequency ID.
For fault free operation, the interfaces must have the channels set correctly. To do this the interfaces must be
numbered so that the nearest interface to 1 is 2 and the nearest interface to 2 is 3 etc. Start at one end of the site
plan and continue in this manner until all 5 have been labelled. Use the table in Appendix B on page 14 to set the
channels on the interfaces.
Logging on interfaces
Up to 31 wireless detectors or alarm signalling devices may be assigned to a single interface. Prior to adding
devices to the Interface, batteries must be inserted, the power jumper positioned correctly and the mounting
plates fitted. During the device log-on routine, the interface will request confirmation of the device serial number.
This is to be found on the side of the radio module. The XPERT address card must be fitted prior to assigning a
device to the interface. In the case of sounders or sounder visual indicators the tone must be selected using the
5-segment DIL switch on the base of the sounder or sounder visual indicator.
Note: I/O Units and the Combined Sounder Visual Indicator Base do not have an XPert card, the addressing is set
by a DIL switch.

© Apollo Fire Detectors Limited 2015
8
A127D
OUTPUT2OUTPUT1
3VDC SET RST
INPUT1 INPUT2
LED
ENABLE
POWER
INPUT1
INPUT2
FAULT
CLOSED
0 1
1
64
F-SAFE
3VDC SET RST
N/O
COM
N/C
N/O
COM
N/C
XPander Sounder and
Sounder/Beacon
XPander Detector
Base Module
XPander MCP XPander
I/O Unit
XPander Combined Sounder
and Detector
PRESS HERE TO
LOGON
MCP logon button
Detector and Sounder logon button Input Output Unit logon button
OUTPUT2OUTPUT1
3VDC SET RST
INPUT1 INPUT 2
LED
ENABLE
POWER
INPUT1 INPUT2
FAULT
CLOSED
01
1
64
F-SAFE
3VDC SET RST
N/O
COM
N/C
N/O
COM
N/C
Combined Sounder and Detector logon button
Logon procedure
Ensure batteries are installed correctly and fit the battery jumper (shown below) across both header pins.
Note: The XPander Combined Sounder (Visual Indicator) uses a DIL switch to connect the battery supply.
Push the rotary select switch on the interface and release. Turn until “add new device” is shown on the menu and
push to select. On the device press the log-on button (shown below) for two seconds. A LED on the device will
flash.
A five-figure code will be displayed on the interface similar to below. This is the XPander device’s unique ID.
Turn the rotary select switch to ‘Yes’ and push to select. The menu will return to ‘add new device’.
Check the device’s unique ID against the ID on the label of the product to ensure that it matches.
Repeat steps to add more devices.
Press the ‘Back’ button on completion to return to the previous menu.

9
© Apollo Fire Detectors Limited 2015
Menu options
Menu Level: (1.0)
Device Status
Add New Device
Remove Device
Interface Status
Radio Channels
This menu shows the status of logged on devices. The loop address as
determined by the XPERT card (1-126), logged on status and the device
type are displayed.
Fault Status (1.1)
Alarm Status* (1.2)
Battery Level (1.3)
Signal Level (1.4)
Manual Update (1.5)
Ident (1.6)
Type** (1.7)
Further information on each device can be viewed by pressing then turning
the Rotary Select Switch.
* Input status on Input/Output Unit
**Combined Sounder Visual Indicator Base only
Menu Level (1.1)
Fault Status
Alarm Status
Battery Level
Signal Level
Manual Update
Ident
This menu shows detailed information on the fault status of the device. If
multiple faults are present, these can be viewed by turning the rotary select
switch.
For a full range of analogue values please see Appendix A on page 14
Addr 067 L Optic
Optic = Optical Detector
Sound = Sounder Device
I/O = Input/Output Device
Radio = Loop Interface Module
Multi = Multisensor Detector
Heat = A1R Heat Detector
H Temp = CS Heat Detector
MCP = Manual Call Point
Cmb = Combined Sounder Visual
Indicator Base
??? = Unknown Device
Loop address determined by
the XPERT card or DIL switch
??? = No address assigned
or illegal address
= Logged On with fire present
L = Logged On with address assigned
A = Logged On without address assigned
! = Logged On with fault present
X = Dual address on Interface
Note: Combined sounder visual indicator base shows two addresses, first address in the detector
followed by the sounder visual indicator as shown below.
Addr 004 ! 005 Cmb
Detector Sounder Visual Indicator

© Apollo Fire Detectors Limited 2015
10
Menu Level: (1.3)
Fault Status
Alarm Status
Battery Level
Signal Level
Manual Update
Ident
This menu shows the status of the two battery packs in a device. Battery
conditions are displayed as follows:
Displayed Definition Icon on LCD Analogue value at panel
Pack 1 OK Pack 1 battery voltage
healthy
Full battery icon 25 (detectors)
16 (sounders and MCPs)
Pack 1 Warning* Pack 1, 30 day warning Half battery icon 7
Pack 1 Low Pack 1, 7 day warning Empty battery icon 7
Pack 1 Missing No battery pack fitted X 0
Pack 2 OK Pack 2 battery voltage
healthy
Full battery icon 25 (detectors)
16 (sounders and MCPs)
Pack 2 Warning* Pack 2, 30 day warning Half battery icon 7
Pack 2 Low Pack 2, 7 day warning Empty battery icon 7
Pack 2 Missing No battery pack fitted X 0
Recommended replacement batteries:
Alkaline Panasonic Powerline 1.5V AA (Size M, LR6)
Alkaline Varta Industrial 1.5V AA (4006, LR6)
Alkaline Panasonic Powerline 1.5V C (Size L, LR14) for sounders only
Alkaline Varta Industrial 1.5V C (4014, LR14) for sounders only
Note: When replacement batteries are required all batteries must be replaced together.
* Batteries need to be changed as soon as possible (recommendation 7 days)
Menu Level: (1.2)
Fault Status
Alarm Status *
Battery Level
Signal Level
Manual Update
Ident
This menu shows the alarm status of the device.
*Input status on Input Output Unit - Displays the status of the monitored
input(s). A switch input ‘closed’ condition is displayed as a logic ‘1’ For a
full range of analogue values please see Appendix A on page 14

11
© Apollo Fire Detectors Limited 2015
Menu Level: (1.4)
Fault Status
Alarm Status
Battery Level
Signal Level
Manual Update
Ident
This menu shows the status of the two signalling channels used by the
loop interface and the communicating device. If more than one interface is
used, please refer to Appendix B on page 14.
The received signal strength at the loop interface from the device is shown
as LI D followed by a percentage indicating the signal strength. Similarly
the received signal at the device is shown as LI D followed by the signal
strength.
If you have moved or re-installed a device, complete a manual update
before checking the signal level.
The LI D level is updated every 300 seconds. The LI D level is updated
every 12 hours or when requested manually by selecting the “Manual
Update” option described below.
Menu Level: (1.5)
Fault Status
Alarm Status
Battery Level
Signal Level
Manual Update
Ident
When selected, the signalling
status of all devices is updated. The current status can then be viewed as
described in the “signal level” menu.
Menu Level: (1.6)
Fault Status
Alarm Status
Battery Level
Signal Level
Manual Update
Ident
This menu shows the unique 5-digit identification number for the device.
This may be recorded on site drawings or the radio survey document for
maintenance purposes.
Menu Level: (1.7)
Fault Status
Alarm Status
Battery Level
Signal Level
Manual Update
Ident
Type
This menu indicates the detector type on a Combined Sounder Visual
Indicator Base.
LI D XXX
Ch 1 LI D = Device to Interface signal on channel 1
Ch 2 LI D = Device to Interface signal on channel 2
Ch 1 LI D = Interface to Device signal on channel 1
Ch 2 LI D = Interface to Device signal on channel 2
60 - 100 = Good signal level
50 - 59 = Medium Signal level*
40 - 49 = Low Signal level
30 - 39 = Caution Signal level
10 - 29 = Fault Signal Level
0 = No Signal level
*Minimum level recommended

© Apollo Fire Detectors Limited 2015
12
From this menu new or additional devices can be logged on to the
interface up to 31 devices. (Log on procedure on page 8).
See page 7 for details of compatibility for XPander interfaces and devices.
Menu Level: (4.2)
Fault Status
Background Level
Fast Test
Ident
The background noise level on the two signalling channels can be
viewed.
Menu Level: (3.0)
Device Status
Add New Device
Remove Device
Interface Status
Radio Channels
This menu shows a list of devices logged on to the interface. To remove
a device use the rotary select switch and press to confirm, this has to be
done before physically removing the device from the ceiling.
Warning – Once devices have been removed, they will no longer be able to
signal an alarm. If the device is permanently removed this will also need to
be removed from the control panel.
Menu Level: (4.0)
Device Status
Add New Device
Remove Device
Interface Status
Radio Channels
From this menu the status of the loop interface and background noise can
be viewed.
Menu Level: (4.1)
Fault Status
Background Level
Fast Test
Ident
This menu shows detailed information on the fault status of the interface.
If multiple faults are present they can be individually viewed by using the
rotary select switch.
For a full range of analogue values please see Appendix A on page 14
CH1 XXX
Ch 1 = Channel 1
Ch 2 = Channel 2
0 - 24 = Very low
25 - 49 = Low
50 - 74 = Medium
75 - 99 = High
100 = Very high
Menu Level: (2.0)
Device Status
Add New Device
Remove Device
Interface Status
Radio Channels

13
© Apollo Fire Detectors Limited 2015
Menu Level: (4.3)
Fault Status
Background Level
Fast Test
Ident
XPander detectors incorporate algorithms to minimise unwanted alarms
whilst maintaining a high level of protection. The FasTest™ function
reduces the number of detection samples required for an alarm condition
therefore making it quicker to test detectors. When FasTest™ is selected
the device’s LED will flash once a second. After a pre-selected period of
time the device will return to normal operating mode. This period applies
to all detectors logged on to the interface. Once selected, a count-down
time is displayed. On receipt of an alarm from a detector, the timer
resets to the period selected and resumes the count down. If no alarm
is received, the interface and detectors return to their normal operating
mode.
Menu Level: (4.4)
Fault Status
Background Level
Fast Test
Ident
This menu displays the unique identification number of the interface.
Menu Level: (5.0)
Device Status
Add New Device
Remove Device
Interface Status
Radio Channels
From this menu it is possible to view and/or select the two signalling
channels manually from the 32 available. The default setting is automatic
channel selection and the interface defaults to CH8 and CH26 for
communication. The default setting should be altered if multiple interfaces
are being used on site. A maximum of 5 interfaces can be used in any one
site, if more is required please contact Apollo.
The menu options available will depend on whether devices are logged on
to the interface. Manual channel select is only accessible when no devices
are logged on the interface. If devices are logged on, only the ‘Currently
Used’ option is displayed.
See Appendix C on page 15 for a full list of frequencies.
Menu Level: (5.1)
Currently Used
Auto Select
Manual Select
When selected the currently used frequencies for CH1 and CH2 are
displayed. If more than 1 interface is being used, refer to Appendix B on
page 14 before logging on the devices and ensure to follow the given
instructions for the selection of the frequencies which is printed on the lid
of the unit.
Menu Level: (5.2)
Currently Used
Auto Select
Manual Select
This does not detect radio
communications from other XPander devices. It will scan for other sources
of background noise. The auto selected channels should not be used when
multiple interfaces are fitted, only the channels stated in Appendix B on
page 14.
This function should not be used without consultation with Apollo.
Menu Level: (5.3)
Currently Used
Auto Select
Manual Select
Radio channels should be manually selected when more than one interface
is installed on a system (see Multiple Interfaces on page 7). Channel
information is shown on both the lid of the interface and in Appendix B.
Select ‘First Channel’ and scroll to the desired channel and enter. Repeat
this procedure for ‘Second Channel’. Channel selection must be carried
before devices are logged on.
Note: Menu 5.2 and 5.3 are not available if devices are logged on to the
interface.

© Apollo Fire Detectors Limited 2015
14
Appendix A
The devices return an analogue value depending on their state. The table below shows these values and their
definitions
AV Definition
0 Battery pack A and B missing
1Detector fault, sounder audio fault
2Head missing
3Sounder missing
4Tamper
5 Signal strength fault, background RSSI out of range - Interface
6Not used
7 Battery fault 30 days, A and B
8-12 Not used
13 Signal strength poor
14 Signal strength low
15 Not used
16 Normal - MCP, sounder, loop interface, I/O unit
17-19 Not used
20 Signal strength medium - detector
21-24 Not used
25 Signal strength good - detector
26-34 Not used - detector
35 Head dirty detector
36-49 Not Used
50 Pre-alarm - detector
51-63 Not used
64 Alarm - MCP
65-84 Not used
85 Alarm - detector
Note: No response to polling indicates an RF comm failure
Appendix B
Multiple interfaces - channel selection
Please complete on commissioning
XPander
Interfaces on
Site
1st Channel Selected 2nd Channel Selected Tick
1
Ch 08
Ch 26
2
Ch 16
Ch 32
3
Ch 01
Ch 20
4
Ch 04
Ch 23
5
Ch 12
Ch 29
Q.1
If there is more than one XPander Interface on the site: have ALL
the channels been set as above?
Q.2
Has the XPander Interface been installed as per the survey and
installation instructions, allowing two metres from electrical
equipment and other XPander Interfaces?
Q.3
Has the aerial been installed as per the survey and installation
instructions, allowing 400mm from any metal object or other
equipment?
Q.4
Are ALL the device signal levels 50% or above?
Q.5
Has the XPander site survey sheet been fully completed?

15
© Apollo Fire Detectors Limited 2015
Appendix C
Radio Channels
Ch1: 868.048 MHz Ch9: 868.248 MHz Ch17: 868.749 MHz Ch25: 868.950 MHz
Ch2: 868.073 MHz Ch10: 868.273 MHz Ch18 : 868.774 MHz * Ch26: 868.975 MHz
Ch3: 868.098 MHz Ch11: 868.298 MHz Ch19: 868.800 MHz Ch27: 869.000 MHz
Ch4: 868.123 MHz Ch12: 868.323 MHz Ch20: 868.825 MHz Ch28: 869.025 MHz
Ch5: 868.148 MHz Ch13: 868.349 MHz Ch21: 868.850 MHz Ch29: 869.050 Mhz
Ch6: 868.173 MHz Ch14 : 868.374 MHz Ch22: 868.875 MHz Ch30: 869.075 MHz
Ch7: 868.198 MHz Ch15: 868.399 MHz Ch23: 868.900 MHz Ch31: 869.100 MHz
* Ch8: 868.223 MHz Ch16: 868.424 MHz Ch24: 868.925 MHz Ch32: 869.125 MHz
* Default channels on power up.
Appendix D
XPander spares
Description Part Number
Optical detector XPA-OP-12034-APO
Heat detector A1R XPA-HT-11170-APO
Heat detector CS XPA-HT-11171-APO
Mounting base detector XPA-WB-10022-APO
Red sounder XPA-SO-14001-APO
White sounder XPA-SO-14002-APO
Red sounder visual indicator XPA-SN-14003-APO
Amber sounder visual indicator XPA-SN-14004-APO
Clear sounder visual indicator XPA-SN-14005-APO
Red sounder mounting base XPA-SB-10023-APO
White sounder mounting base XPA-SB-10024-APO
Combined sounder and detector base XPA-WB-14036-APO
Combined sounder-visual indicator (red) and detector base XPA-WB-14037-APO
Combined sounder-visual indicator (white) and detector base XPA-WB-14038-APO
Appendix E
Site Survey Instructions PP2323 - see next page
Appendix F
Radio Site Survey Sheet - see page 17

© Apollo Fire Detectors Limited 2015
16
Introduction
Radio waves have very different characteristics to wired links and it is necessary to ensure that every possible
source of attenuation of the radio signal is identified and fully considered in the design of the system.
It is therefore essential that a full site survey is carried out as part of the system design prior to any XPander
devices being installed. This preparatory work will ensure that good signal integrity is achieved.
The reliability of the data transmitted in the final system is determined by the site survey.
Site Survey Instructions
1. Turn on Surveyor Unit using the switch provided.
2. Position the Surveyor unit in the proposed location of the XPander Diversity interface.
• The minimum distance of metal objects from the interface is 400mm
• The minimum distance to other electrical equipment e.g. computers, photocopiers, fax machines
and other XPander interfaces is 2 metres (three dimensionally).
3. Switch on the hand held Surveyor Device.
4. Position the Surveyor Device where the XPander device is to be fitted. Ensuring that the button on the back of
the Surveyor Device is pressed against the surface where the device is to be fitted.
• The Surveyor Device will now report the strengths, dB readings and background levels.
5. At this point record all information on the Site Survey Sheet PP2322 and then move to the position of the next
device.
Surveyor Unit
Surveyor Device

17
© Apollo Fire Detectors Limited 2015
SHEET OF
(Copy this sheet for additional
interfaces)
SITE NAME DATE
PANEL
INTERFACE NUMBER LOCATION
Device
Type (O, H, MCP, S, SB, I/O)
Loop address*
Location
Approx. distance from
interface
AV*
Site Survey %
Site Survey dB
Site Survey %
Site Survey dB
Background Noise Levels dB
Signal Strength
CH1 LI ← D*
CH2 LI ← D*
CH1 LI ← D*
CH2 LI ← D*
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
XPander Radio Site Survey Sheet

© Apollo Fire Detectors Limited 2015
18
Frequencies in use* CH1 MHz CH2 MHz
Background noise level* CH1 % CH2 %
* to be completed on installation
Building and construction notes
Status of building at the time of survey
Notes
Approved for installation YES NO
Name
Signature
This sheet needs to be completed and kept as commissioning and user documentation to comply with BS 5839 - 1 section
2-27 and section 5-39 & 40

PP2286/2015/Issue 11
