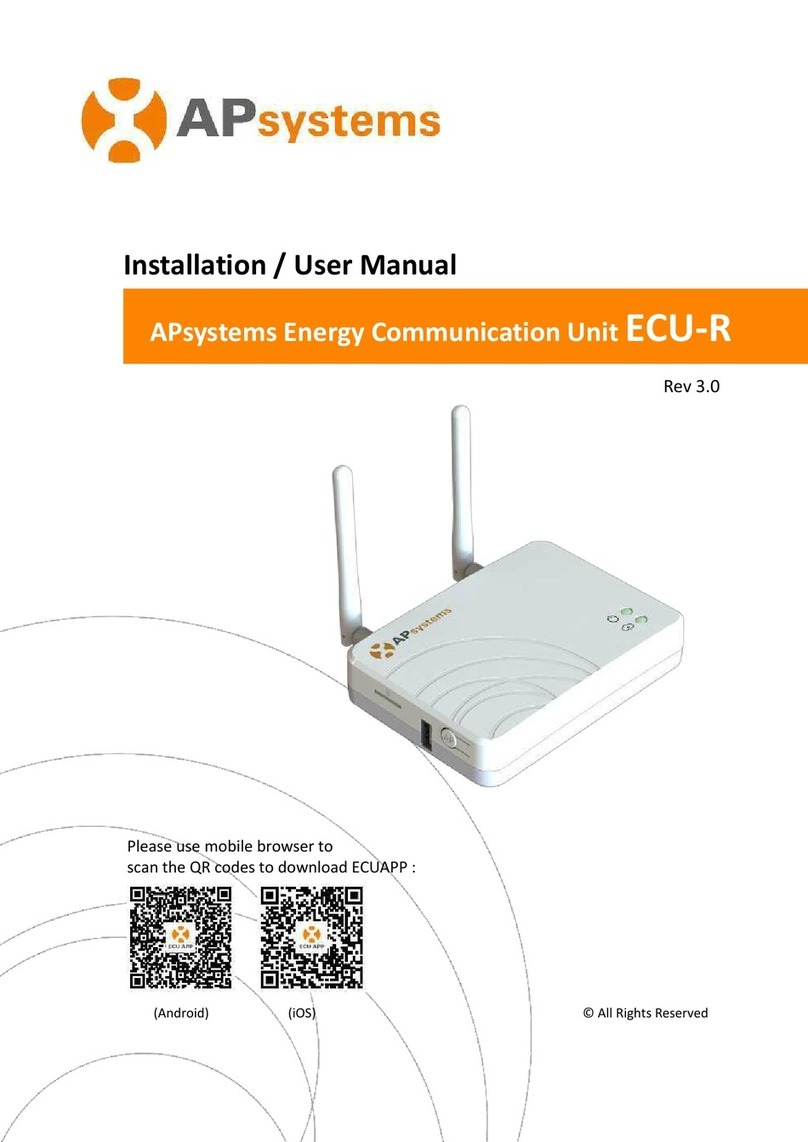

APsystems ECU-R User manual

2020/06/28 REv3.0 Quick Installation Guide
1
APsystems Energy Communication Unit
ECU-R Quick Installation Guide
This guide is for reference only and assumes you have access to, and have read the detailed
instructions in the ECU-R Users Manual (available at APsystems.com).
Step 1: Power-on ECU-R
Make sure the adapter is properly connected to the power port
on the top of the ECU-R.
Plug the adapter into a dedicated standard AC electrical outlet.
Step 2: Antenna Up ECU-R
Make sure the antenna is properly connected to corresponding position on the top of the
ECU-R.
Step 3: Connect your smartphone to ECU-R
1 : Open Wi-Fi setting in your smartphone, select ECU-R hotspot.
2 : Connecting to the ECU-R via the Local Wireless, the default password is “88888888”.
Step 4 : Connect Microinverter to ECU-R
1 : Open the ECUAPP.
2 : Check ECUAPP is connected to ECU-R in the Home page.
3：Click settings, select the ID management, input the ID with the SCAN function or manually,
select the IDs and click SYNC to enter IDs into ECU-R. If you want to clean up all the IDs, please
select the IDs and click “DELETE “and then “SYNC”.
4： Select “Home” at the bottom of the page.The Home Page is displayed.
5： View the real-time system operation data statistics for your solar array.
NOTE : Before the first time to add the UID, users must set the date
and time in advance.
Please use mobile browser to
scan the QR codes to download ECU APP
(Android) (iOS)

2020/06/28 REv3.0 Quick Installation Guide
2
1 2019/9/26 REv2.1 Quick Installation Guide
6： Configure IDs、date、 Network Connection and WLAN connection.
7： Select Language.
NOTE : If you want to create an end user account, please refer to
user manual 4.7 EMA Registration function.
Product information is subject to change without notice.(Please download manuals at www.APsystems.com).
