Aqua Creek F-044SCH-04 User manual

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 3/18/20
24V Solar Charger
Instructions
9889 Garrymore Ln
Missoula, MT 59808
888-687-3552 | [phone]
www.aquacreek.com
PART #: F-044SCH-04
(For use with Admiral, Ranger 2 & Ambassador)
MANDATORY
LEAVE THIS MANUAL WITH LIFT OWNER
Read and follow all instructions.
Lift safety can only be ensured if the lift is installed and
operated according to these instructions.
• NEVER permit children to play on or around the lift
• Do not allow children to use the lift without adult
supervision
• NEVER apply direct water pressure to the electronics
• NEVER use the lift with a dry pool
Check entire box and all packing materials for parts. Before beginning assembly, read the
instructions and identify parts using the fi gures and parts listed in this document.
It is critical that all parts be carefully inspected prior to installation. If any damage occurred in
transit, Aqua Creek Products, LLC must be notifi ed within three days of receipt of unit.
Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s
warranty and may aff ect the safety of the user.
READ CAREFULLY
1

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 3/18/20
Admiral & Ranger 2 Installation
To install the Solar Charger on a Admiral or Ranger 2 lift;
STEP 1: Remove the 1/2”hex bolt from the baseplate as shown above.
STEP 2: Place the 24V Solar Charger over the baseplate of the lift as shown.
STEP 3: Align the mounting stud with the baseplate & anchor insert. Thread the mounting stud into the
anchor insert and tighten. Use a 3/4” wrench to make sure it is snug.
STEP 4: The solar charger control box connector plugs directly into the battery and control box on the
lift. See page 4 for Admiral lift and page 5 for Ranger 2 lift.
ADMIRAL OR
RANGER 2 LIFT
REMOVE THIS
1/2" HEX BOLT
THREAD INTO
ANCHOR INSERT
TIGHTEN WITH
3/4" WRENCH
CHARGE
CONNECTOR
PLUGS INTO
CONTROL BOX
2

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 3/18/20
Ambassador Installation
To install the Solar Charger on a Ambassador lift;
STEP 1: Remove the 1/2”hex bolt from the back anchor insert as shown above.
STEP 2: Place the 24V Solar Charger over the base frame where the bolt was removed.
STEP 3: Align the mounting stud with the base frame & anchor insert. Thread the mounting stud into the
anchor insert and tighten. Use a 1” wrench to make sure it is snug.
STEP 4: Run the BATTERY CABLE along the base frame, back under the main frame, and up the actuator
frame as shown. See page 5 for instructions on plugging the system into the control box.
AMBASSADOR LIFT
REMOVE THIS
1/2" HEX BOLT
THREAD INTO
ANCHOR INSERT
TIGHTEN WITH
1" WRENCH
CHARGE
CONNECTOR
PLUGS INTO
CONTROL BOX
CONTROL BOX
ACTUATOR
FRAME
BATTERY
BATTERY CABLE RUNS
ALONG BASE FRAME,
BACK UNDER MAIN FRAME
& UP THE ACTUATOR FRAME
BASE FRAME
MAIN FRAME
NOTE: MAKE SURE TO RUN
BATTERY CABLE ALONG
BASE & MAIN FRAMES
AS SHOWN TO CABLE GOES
UP & DOWN WITH THE LIFT
3

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 3/18/20
Solar Charger Installation to Vito Controls
Disconnect the the cable that connects the battery to the control box. The SOLAR CHARGER CABLE
has a male end and a female end that split o from the FUSE BOX. Connect the male end of the SOLAR
CHARGER CABLE into the female end of the BATTERY. Then connect the female end of the SOLAR
CHARGER CABLE to the male end of the CONTROL BOX. See pictures below.
NOTE: Make sure all plugs are fully engaged, the lights on the solar charger come on, and that the lift
functions correctly.
4

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 3/18/20
Solar Charger Installation to Linak Controls
STEP 5: Run the BATTERY CABLE behind the control box as shown, and plug the BATTERY CONNECTOR
into the control box.
5

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 3/18/20

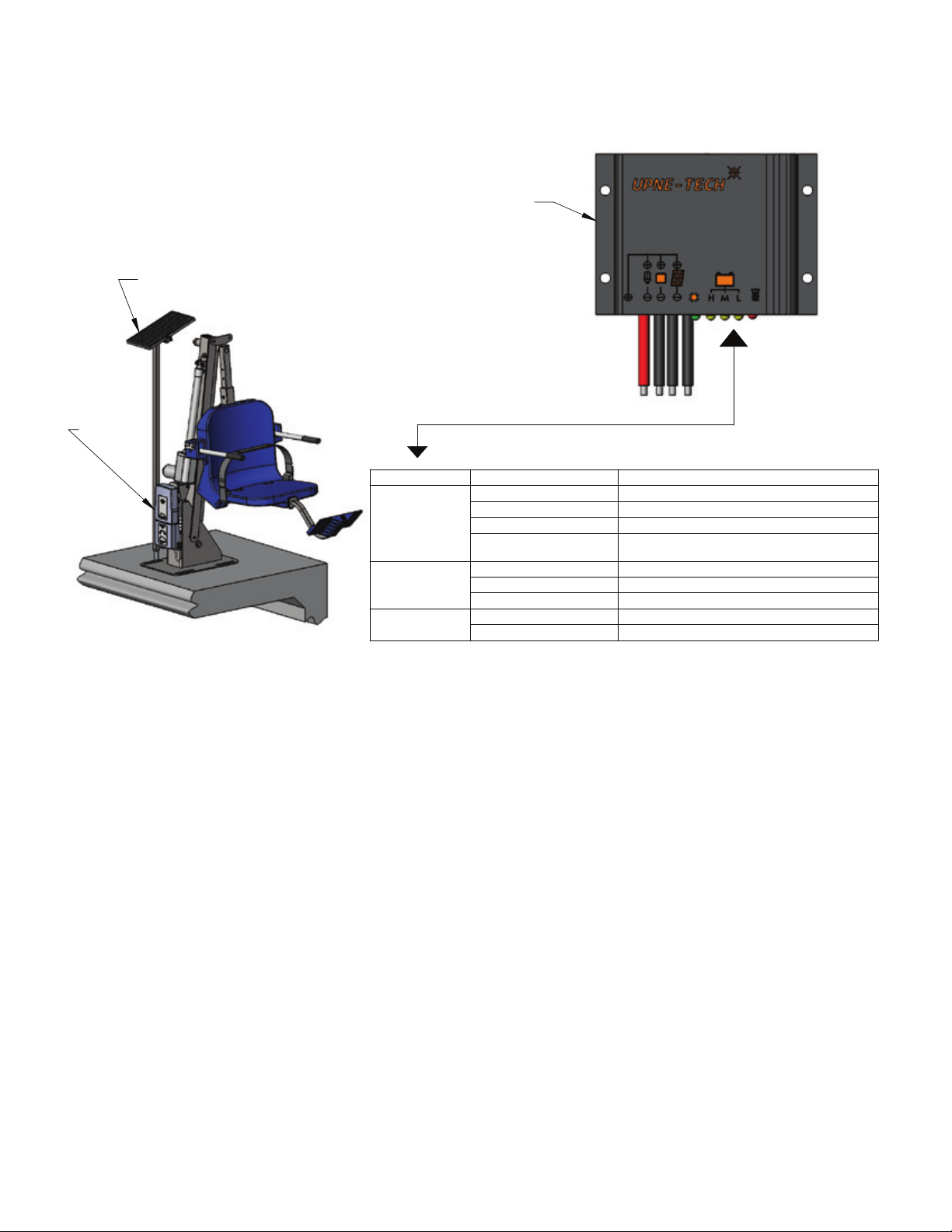

Solar Charger Operation
CHARGE
CONTROLLER
CHARGE
CONTROLLER
(UNDERNEATH)
24V
BATTERY
LED LIGHT STATUS FUNCTION
GREEN LED
ON MAIN CHARGE DURING DAYTIME
SLOW FLASH FLOAT CHARGE
FAST FLASH EQUALIZATION CHARGE
OFF
CONTROLLER CONNECTED TO BATTERY,
NIGHT DETECTED
YELLOW LED
YELLOW LED 1 (L) ON BATTERY POWER LOW
YELLOW LED 2 (M) ON BATTERY POWER MEDIUM
YELLOW LED 3 (H) ON BATTERY POWER HIGH
RED LED
OFF NORMAL OPERATION
FLASH OVERLOAD OR SHORT-CIRCUIT OF LOAD
Once the solar charger has been installed and both the control box and battery have been plugged in,
and there is sufficient daylight, the 24V Solar Charger will turn on and start trickle-charging the battery.
Without both the control box and battery being plugged in, the 24V Solar Charger will be o and will
remain o until both components are plugged in.
When a 24V battery is installed onto the lift, and there is sufficient daylight, the GREEN LED will turn
on to show a 24V battery has been detected and the charger is operational. If a fully charged battery
is being used, the YELLOW LED marked “H” will light up as well. If a non-fully charged battery is being
used, either the YELLOW LED marked “M” or the YELLOW LED marked “L”will turn on, depending on how
drained the battery is.
See the table in the image above for more descriptions on what all of the LED lights mean when they are
either on or o.
The 24V Solar Charger will continue to charge the battery, even as the lift is being used. So once the 24V
Solar Charger has been installed it will function without any need for adjustment. The user should check
the indicators periodically to make sure it is working.
6

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 3/18/20
Linak Battery Maintenance
1. Do NOT expose the battery to freezing temperatures.
2. Do NOT expose the battery to prolonged periods of extreme heat or severe cold
temperatures.
4. Do NOT expose the battery to long periods of direct sunlight. Heat will shorten your battery
life. Optimum operating temperature is below 20 degrees Celsius (68 degrees F.)
Aqua Creek recommends a battery cover be used with solar chargers since the battery is left on
the lift at all times.
5. Never drop or bump the battery pack. This may result in loose or damaged internal
connections, and may damage the battery terminals.
6. Keep battery terminals clean and free from dirt and corrosion to ensure good contact.

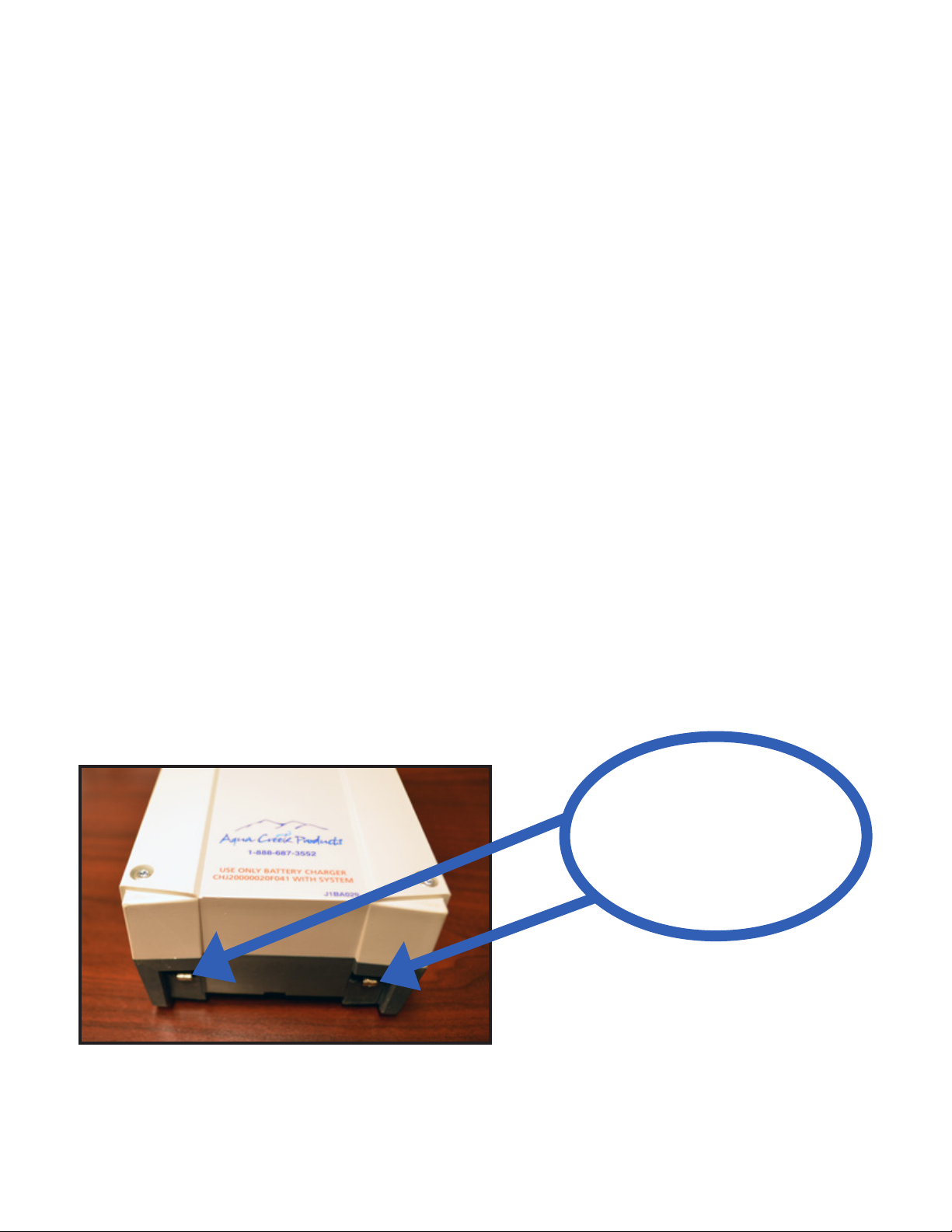

The terminals may be cleaned using alcohol and a cotton swab. Clean o any corrosion or
discoloration of the battery contacts with a Scotch-BriteTM pad and then apply dielectric grease
(supplied with lift) as shown in the gure below.
Clean with alcohol
and a cotton swab and
apply dielectric grease
to terminals
7

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 3/18/20
Solar Charger Parts List
ITEM # QTY PART # DESCRIPTION
1 1 PSC-100-20 LOWER WELDMENT, PRO POOL SOLAR CHARGER
2 1 222-500 CARRIER, HOUSING, FOR WAGO CONNECTORS
3 1 SLAC-MH10A CONTROLLER, SOLAR CHARGER
4 1 7.5W SOLAR PANEL 7.5W MONOCRYSTALLINE SOLAR PANEL 36V
5 2 222-412 CONNECTOR, WAGO, 2 LEVER
6 1 222-413 CONNECTOR, WAGO, 3 LEVER
7 4 BC 4 X 1/2 BOLT, 316 SS, #4-40 X 1/2” FH PHILLIPS
8 4 NN 4 NUT, 316 SS, NYLOCK, #4-40
9 2 BB 10 X 1/2 BOLT, 316 SS, 10-24 X 1/2 BHSCS
10 2 NN 10 NUT, 316 SS, NYLOCK, #10-24
11 1 NH 1/2 NUT, 316 SS, HEX, 1/2”-13
12 1 P-TPTR12 THREAD PROTECTOR
13 1 VSCC2 CABLE, SOLAR CHARGER CABLE, VITO
14 1 00918174 LINAK DUMMY PLUG FOR DC PORT
A
12
11
13
14
1
DETAIL A
SCALE 1 : 8
8
8
10
3
7
45
6
5
9
10
2
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 PSC-100-20 SOLAR CHARGER LOWER WELDMENT 1
2
222-500
CARRIER, HOUSING, FOR WAGO,
CONNECTORS
1
3
SLAC-MH10A CONTROLLER, SOLAR CHARGER 1
4
7.5W SOLAR PANEL
7.5W MONOCRYSTALLINE SOLAR
PANEL 36V
1
5
222-412 CONNECTOR, WAGO, 2 LEVER 2
6
222-413 CONNECTOR, WAGO, 3 LEVER 1
7
BC 4 X 1-2 BOLT, 316 SS, #4-40 X 1/2" FH PHILLIPS 4
8
NN 4 NUT, 316 SS, NYLOCK, #4-40 4
9
BB 10 X 1-2 BOLT, 316 SS, 10-24 X 1/2 BHSCS 2
10 NN 10 NUT, 316 SS, NYLOCK, #10-24 2
11 NH 1-2 NUT, 316 SS, HEX, 1/2"-13 1
12 P-TPTR12
THREAD PROTECTOR, 1/2" OD X 2"
INSIDE HEIGHT
1
13 VSCC2
CABLE, SOLAR CHARGER CABLE,
VITO
1
14 00918174 LINAK DUMMY PLUG FOR DC PORT 1
8

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 3/18/20
Revised_9.14.2017
AQUA CREEK PRODUCTS, LLC LIMITED ONE (1) YEAR WARRANTY:
SOLAR CHARGING SYSTEMS
(ITEM #’s F-043SCH, F-044SCH, F-045SCH, F-046SCH, F-047SCH)
Aqua Creek Products, LLC (a.k.a. Aqua Creek) warrants to the original end user purchaser that products manufactured by Aqua
Creek, when properly installed in accordance with assembly and installation instructions and properly used and maintained, shall be
free from defects in material and workmanship for a period of one (1) year from the date of original purchase, provided that Aqua
Creek receives prompt notice in writing of any defect or failure and satisfactory proof thereof, with the following exceptions:
Exceptions:
All electrical components shall be warranted for a period of ninety (90) days from the date of original purchase.
This warranty specifically excludes reimbursement for labor to remove, repair, or install the product and any freight
charges.
This warranty does not cover any damages due to accident, force majeure, act of nature, misuse, abuse, negligence or
failure to properly maintain any products, or normal wear and tear from day to day operations.
In the event that any products are altered, repaired, or improperly installed by anyone without the prior written approval
by Aqua Creek, all warranties are void.
To initiate a warranty claim, the owner of an Aqua Creek product must provide the place of purchase, in writing, with a full
description of the product, its serial number, the dates of purchase and installation, and the exact nature of the defect. Within thirty
(30) days after receipt of a written warranty claim by Aqua Creek, and barring any unforeseen delays, the place of purchase will be
notified of Aqua Creek’s decision regarding the claim. All warranty calculations are from date of original purchase at manufacturer’s
suggested retail price. Non-payment for product to Aqua Creek may void warranty.
If requested by Aqua Creek, any defective product must be returned, freight prepaid by customer, to Aqua Creek’s designated
factory location or duly appointed distributor for inspection and/or repair. Aqua Creek will, at its option, repair or replace the failed
or defective item, and deliver the repaired product or replacement to the customer. All freight charges are the responsibility of the
customer. Products returned to Aqua Creek for which Aqua Creek provides replacement under this limited warranty shall become
the property of Aqua Creek. A new warranty period shall NOT be established for the repaired or replaced products. Such products
shall remain under warranty only for the remainder of the original warranty period on the original products purchased.
This written limited warranty constitutes the final, complete and exclusive statement of warranty terms. No person or organization
is authorized to make any other specific or implied warranties or representations on behalf of Aqua Creek.
THE WARRANTIES SET FORTH HEREIN ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, WHICH ARE HEREBY
DISCLAIMED AND EXCLUDED, INCLUDING WITHOUT LIMITATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE OR USE.
THE SOLE AND EXCLUSIVE REMEDIES FOR BREACH OF ANY AND ALL WARRANTIES WITH RESPECT TO THE PRODUCTS SHALL BE
LIMITED TO REPAIR OR REPLACEMENT AT AQUA CREEK’S DESIGNATED FACTORY LOCATION, OR DULY APPOINTED DISTRIBUTOR, OR
IN PLACE AT AQUA CREEK’S OPTION. IN NO EVENT SHALL AQUA CREEK’S LIABILITY EXCEED THE ENTIRE AMOUNT PAID TO AQUA
CREEK BY THE ORIGINAL PURCHASER FOR THE FAILED OR DEFECTIVE PRODUCT.
IN NO EVENT SHALL AQUA CREEK PRODUCTS, LLC BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT, PUNITIVE
OR EXEMPLARY DAMAGES OR LOST PROFITS FROM ANY BREACH OF THIS LIMITED WARRANTY OR OTHERWISE.
Aqua Creek Products, LLC
9889 Garrymore Lane
Missoula, MT 59808
[phone] –[phone]
www.aquacreek.com
9
