Aqua-Marina LAXO User manual

User’s Guide
aquamarina.com
For your own safety and that of your equipment, make sure to take the following precautions.
Failure to follow warning notices and instruction may result in property damage, serious
injury or death.
WARNING
LAXO / MEMBA
INFLATABLE HEAVY-DUTY KAYAK
EN

2
GENERAL INFORMATION
SAFETY
Kayak sports can be very dangerous and physically demanding. The users of this product should
understand participating in kayak sports may involve serious injury or death. Observe all
applicable watercraft laws, and use common sense.
PLEASE KEEP THIS MANUAL IN A SECURE PLACE, AND HAND IT OVER TO THE NEW OWNER
WHEN YOU SELL THE CRAFT. RECORD THE “HULL IDENTIFICATION NUMBER” (HIN) WHICH
IS PRINTED ON THE KAYAK’S HULL IN THE FOLLOWING BOX:
MANUFACTURER’S CERTIFICATION
AM kayak products comply with the ISO 6185 standard established by International Organization
for Standardization.
SAFETY CHECK LIST AND SAFETY WARNING
• It is the owner’s responsibility to carefully read the manual and instruct all users in safe
operation of this product.
• Retain owner’s manual for future reference.
• Get kayak instruction specific to this type of craft.
• Follow the instructions in the Owner’s Manual, including the data given on the capacity plate.
Uneven distribution of people or loads in the kayak could result in danger.
• Use caution when stepping or climbing aboard the kayak. Step into the center of the kayak for
maximum stability.
• Always wear an approved Personal Flotation Device (Life Preserver).
• Wear a helmet when appropriate.
• Do not use in high wind, strong currents, open water or dangerous tides.
• Do not paddle in flood conditions.
• Do not use this product under the influence of alcohol or drugs.
• Do not overload or over inflate
• Do not exceed your paddling ability; be honest with yourself.
• Never tow from another boat or vehicle.
• Know and follow local water safety rules and boating regulations.
• Do not use as a life saving device.
• Not for use by children without adult supervision.
• DO NOT exceed the data given on the capacity plates.
• BEWARE OF OFFSHORE WINDS AND CURRENTS.

3
13
2 4567
MANUFACTURER’S RECOMMENDATION
The total number of persons and total weight shall not exceed the limits printed on the kayak.
Please refer to the kayak’s hull label for the actual specifications of your product.

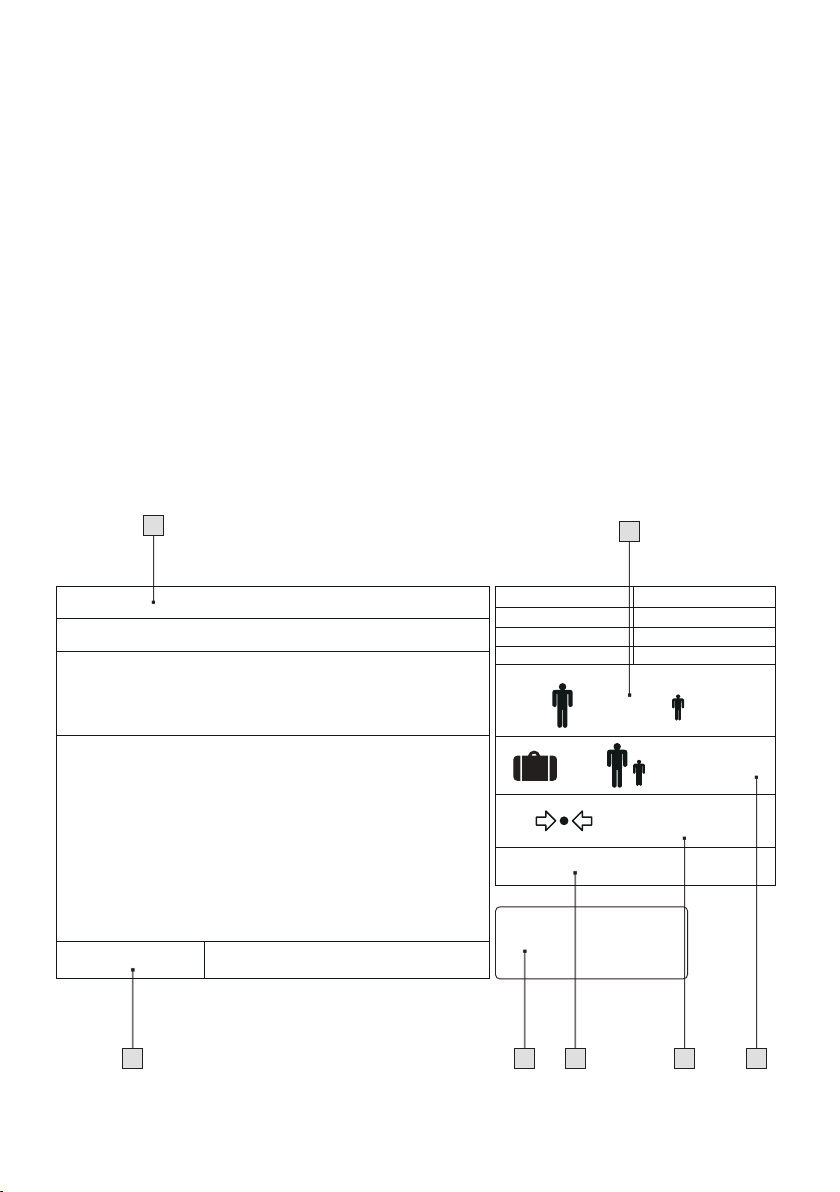

KAYAK LABEL FORMAT
1. Standard: EN ISO 6185 PART 1 TYPE Ⅲ
2. Country of origin
3. Maximum passengers
4. Manufacturer’s recommended maximum load capacity
5. Manufacturer’s recommended working pressure
6. Hull identification number (HIN)
7. Manufacturer’s name and address
EN ISO 6185 PART1 TYPE Ⅲ
STANDARD EN ISO 6185-1:2018
TYPE Ⅲ(B)
= 2
= 210KG (462lbs)+
= 1
/
BOAT TYPE
DESIGN CATEGORY
LA-380
BOAT MODEL
CN-ORP
Do not over inflate or use high pressure air compressor to inflate.
Inflate the chambers in numbered sequence.
Use the enclosed barometer to check while inflating.
Ensure even distribution of persons or loads in the KAYAK.
WARNING:
This is not a life saving device.
Use only under competent supervision.
Always use an approved life preserver.
Do not use in high wind, rapid currents, open water or dangerous tides.
Be familiar with area where you intended to use KAYAK.
Never allow diving into this product.
Never leave in or near the water when not in use.
Follow these rules to avoid drowning, paralysis or other serious injury:
- Not for use by children without adult supervison.
- Do not overload.
- Know and follow local water safety rules and regulations.
MADE IN CHINA DATE
= 0.07bar / 1psi
ORIENTAL RECREATIONAL
PRODUCTS (SHANGHAI) CO.,LTD
NO. 1699 DAYE ROAD,
WUQIAO, FENGXIAN,
SHANGHAI, 201402, CHINA
LA-380

4

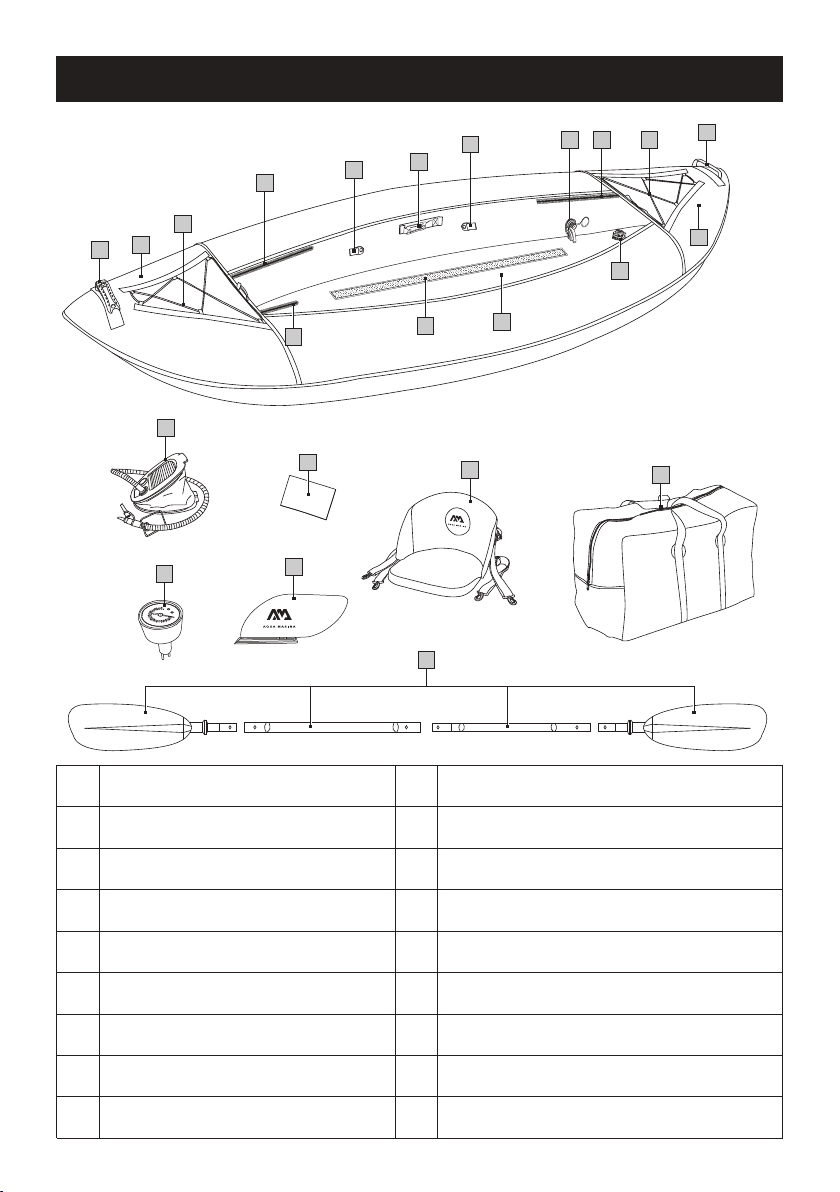

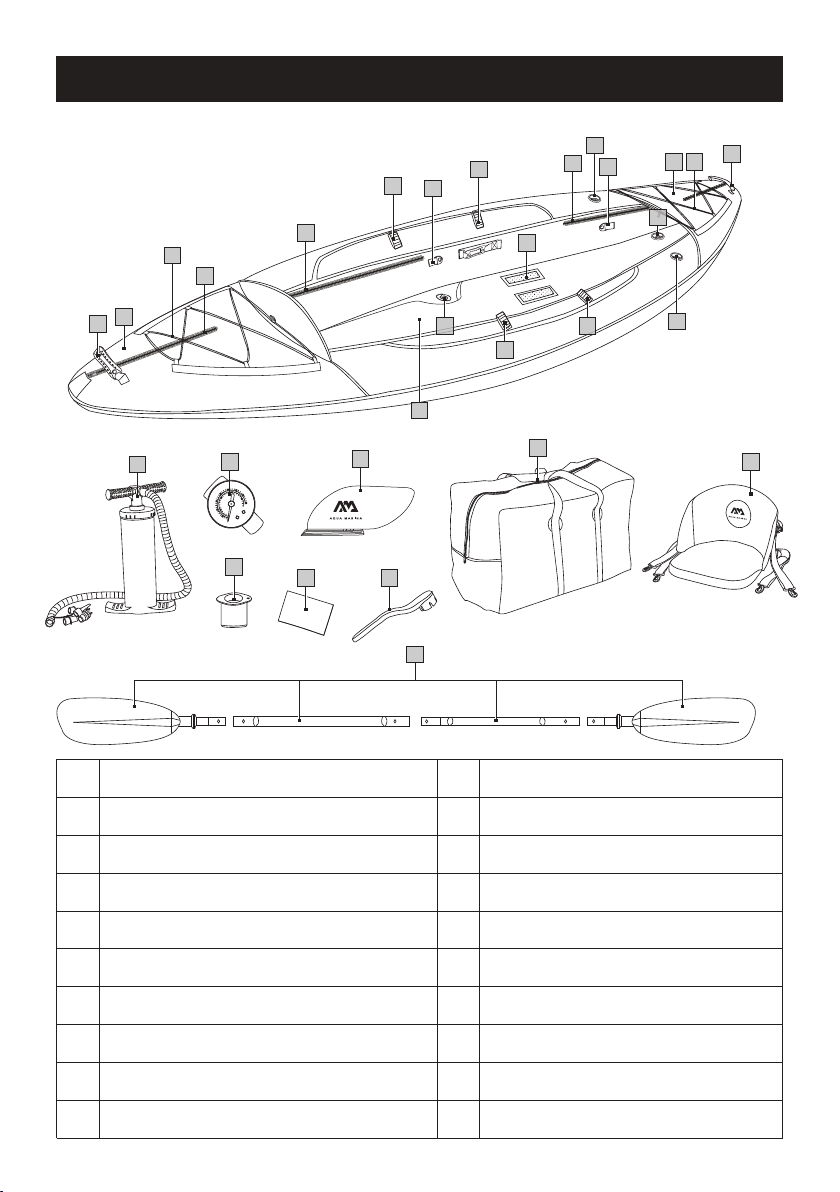

PART LIST
LAXO
Extended water splash guard bow design
Zipper of hull covers
D-rings for seat connection
Cargo bungee cord
a
b
c
d
Durable rubber carry handle
Boston valve for the hull
e
11” foot pump with inflation hose
Velcro for removable high-back seat
f
g
h
Slide-in kayak fin x 2
Carry bag
Pressure gauge
i
j
Durable high-back seat
(LA-285 x 1, LA-320 x 2, LA-380 x 3)
k
Kayak paddle
(LA-285 x 1, LA-320/LA-380 x 2)
l
Repair kit
m
n
o
Strong inflatable i-beam floor
n
a
e
c
c
d
b
b
dg
o
k
j
i
m
l
e
g
a
f
h
b
e

s
c
c
f
b
b
5

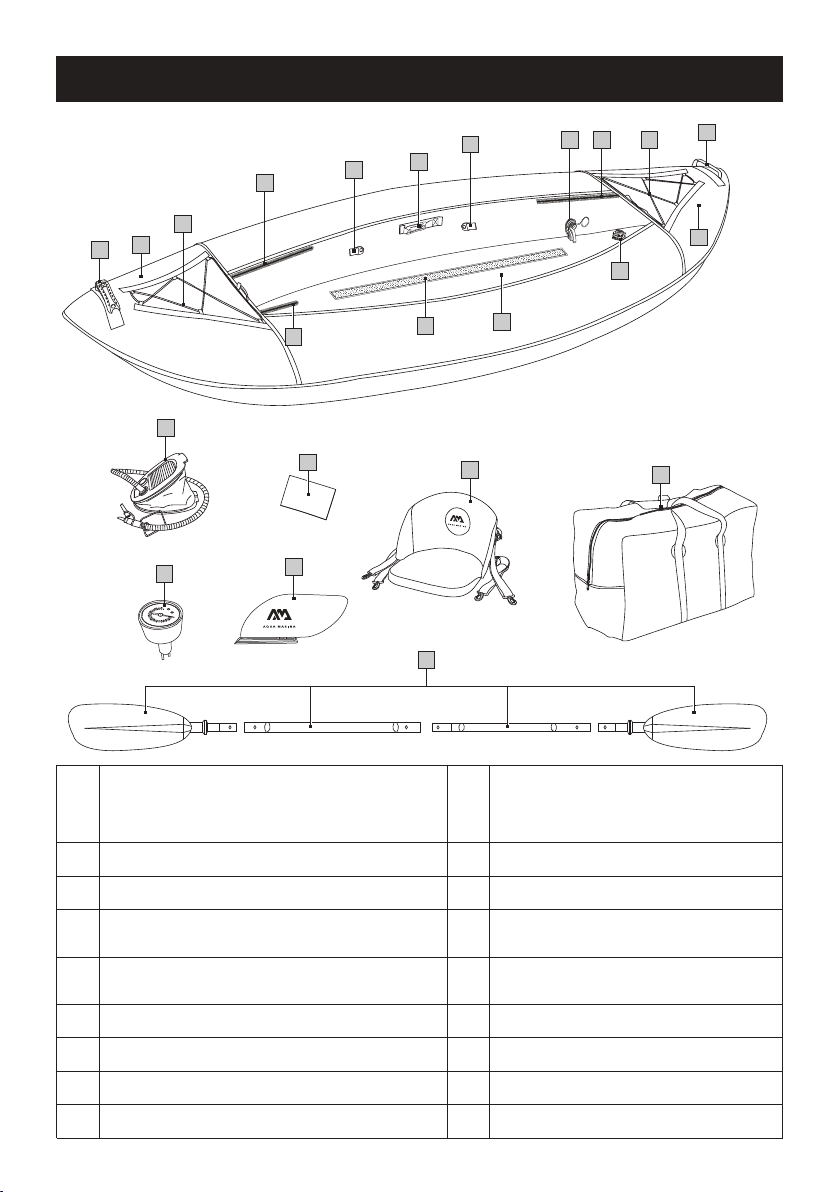

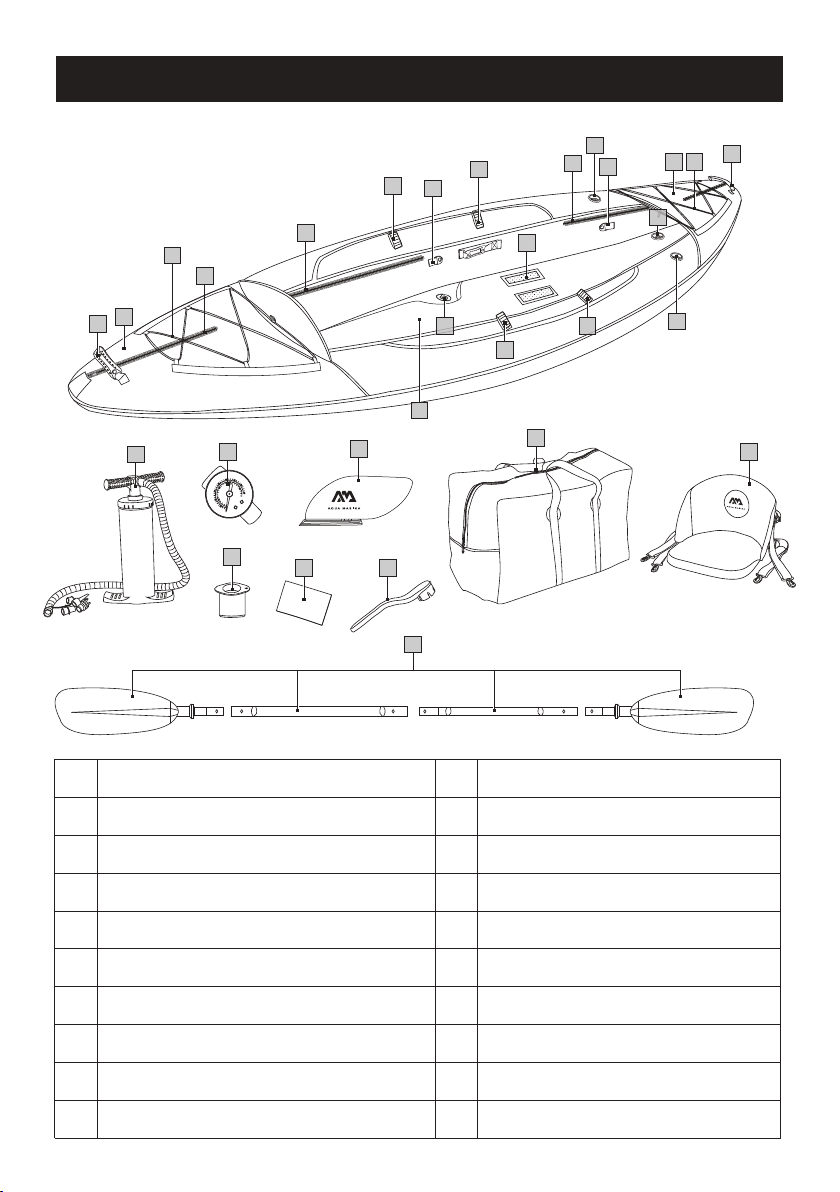

PART LIST
MEMBA
Extended water splash guard bow design
Zipper of hull covers
D-rings for seat connection
Cargo bungee cord
a
b
c
d
Velcro paddle holder design
Durable rubber carry handle
e
High pressure recessed valve for quick and
easy inflation and deflation Kayak paddle (ME-330 x 1, ME-390 x 2)
7cm drop-stitch air deck floor
f
g
h
16” hand pump with inflation hose
Pressure gauge
Velcro for removable high-back seat
i
j
k
Adaptor for high pressure valve
l
Slide-in kayak fin x 2
m
Carry bag
n
o
Repair kit
q
Wrench
r
s
p
Durable high-back seat
(ME-330 x 1, ME-390 x 2)
Integrated drain valve
mqr
n
l
kp
o
a
a
g
g
ed
d
i
i
e
j
e
f
h
ei

6
MODEL
285 cm
(9’4”)
LAXO
LA-285
95cm
(37”) 1 2+1
95 kg
(209 lbs)
12 kg
26.5 lbs
LENGTH WIDTH MAX.
PASSENGER CAPACITY NET
WEIGHT
MAX.
AIR PRESSURE
SPECIFICATIONS
AIR
CHAMBERS
1psi
（0.07bar）
320 cm
(10’6”)
LAXO
LA-320
95cm
(37”) 2 2+1
155 kg
(341 lbs)
15 kg
33.1 lbs
1psi
（0.07bar）
380 cm
(12’6”)
LAXO
LA-380
95cm
(37”) 2+1 2+1
210 kg
(462 lbs)
17.5 kg
38.6 lbs
1psi
（0.07bar）
330 cm
(10’10”)
MEMBA
ME-330
90cm
(35”) 1 2+1
95 kg
(209 lbs)
12.5 kg
27.6 lbs Refer to
inflation guide
(P8)
390 cm
(12’10”)
MEMBA
ME-390
90cm
(35”) 2 2+1
155 kg
(341 lbs)
16 kg
35.3 lbs

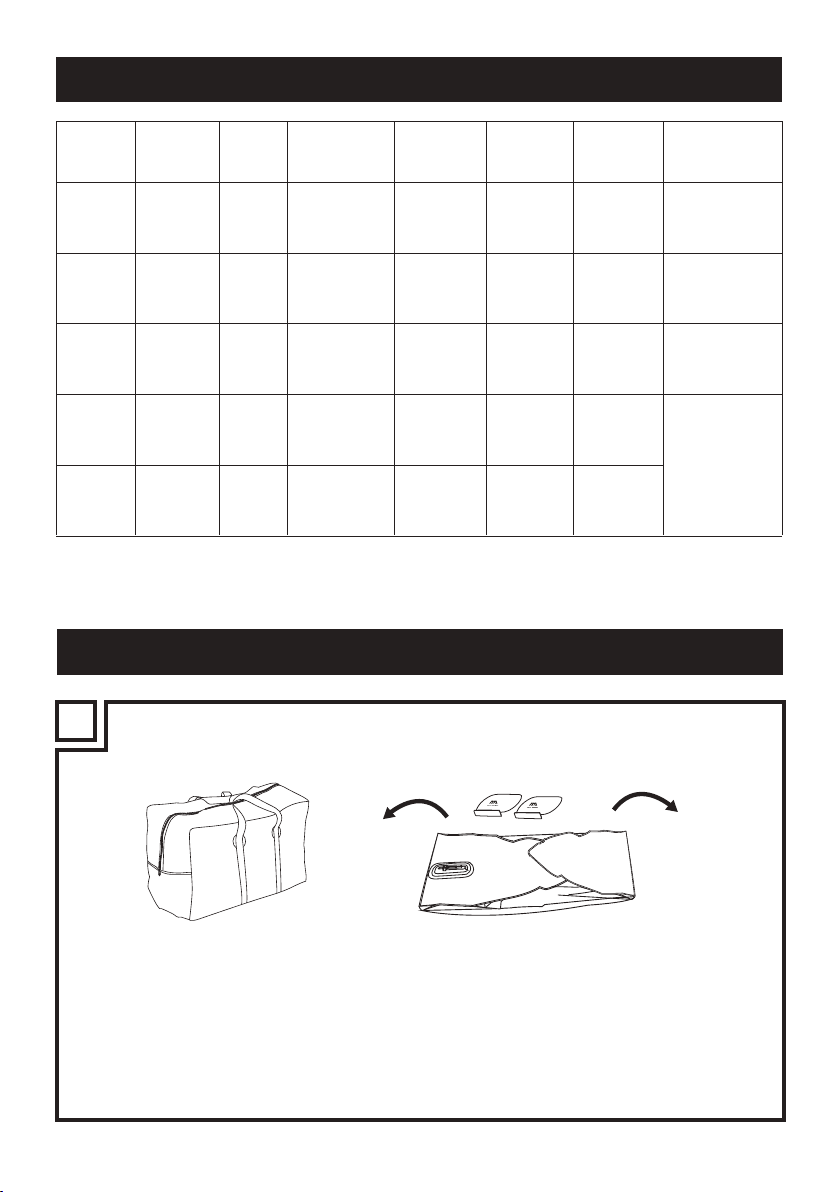

INSTRUCTION FOR ASSEMBLING AND DISASSEMBLING
A
UNFOLD THE KAYAK FROM THE PACKAGING BOX
On a clean and smooth space, unfold the Aqua Marina kayak and lay it out flat. The
kayak fins need to be installed if you use the kayak on flat water.
DO NOT USE KAYAK FINS IN WHITE WATER.

LAXO
B
Step 1
Step 2
Step 2
FOR DEFLATION ONLY

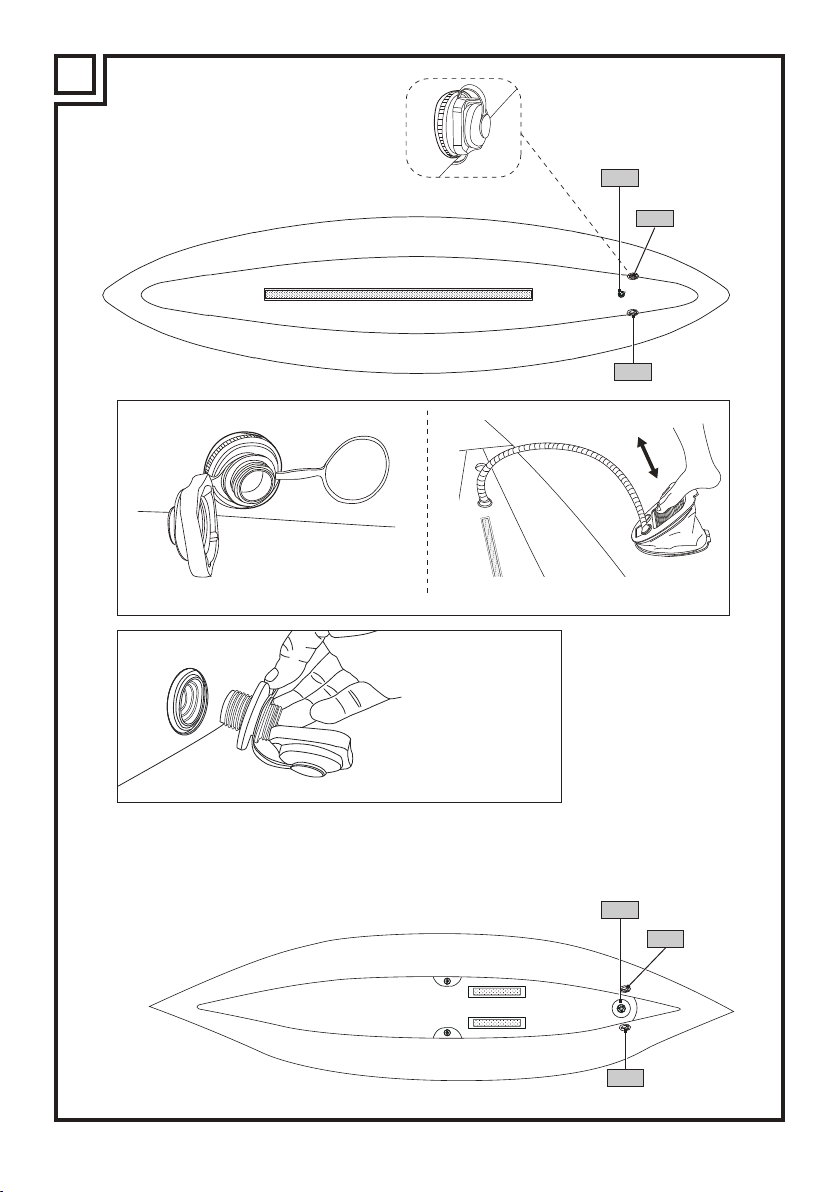

INFLATION
7
BOSTON VALVE
Upper Cap
NOTE:
MEMBA Step 2
Step 1
Step 1

1. Attach the pump hose to the pump and secure it tightly.
2. BOSTON VLAVE (FOR LAXO)
Ensure that the main valve is securely screwed into the ring plate first.
Open the upper cap of the Boston valve for inflation.
In this situation, the valve only lets air in, not out.
HIGH PRESSURE VALVE (FOR MEMBA)
Unscrew the valve cap, push button in and turn it
clockwise to make sure that the valve is in the
“Pin Out” position.
8
NOTE： After multiple times of inflation – deflation, there may be slight displacement of
the valve. Replace it to the correct position when deflated. Then inflate to required air
pressure to use.
HIGH PRESSURE VALVE
3. Start pumping air into the kayak. Keep inflating
until the required air pressure is reached. DO NOT OVERFILL. Once inflated, firmly cap
each valve.
TIP: If the pump piston starts to squeak, apply some lubrication oil on the piston shaft.
TIP: Working pressure of each part should NOT exceed the maximum as below.
LAXO
SIDE CHAMBERS FLOOR
1 psi / 0.07 bar 1 psi / 0.07 bar
1 psi / 0.07 bar 4.35 psi / 0.3 barMEMBA
INFLATE THE KAYAK
Inflate the side chambers and air floor in sequence as shown in the picture.
Step 2
Step 1 Upper cap
Main valve
Ring plate
BOSTON VLAVE

9
C

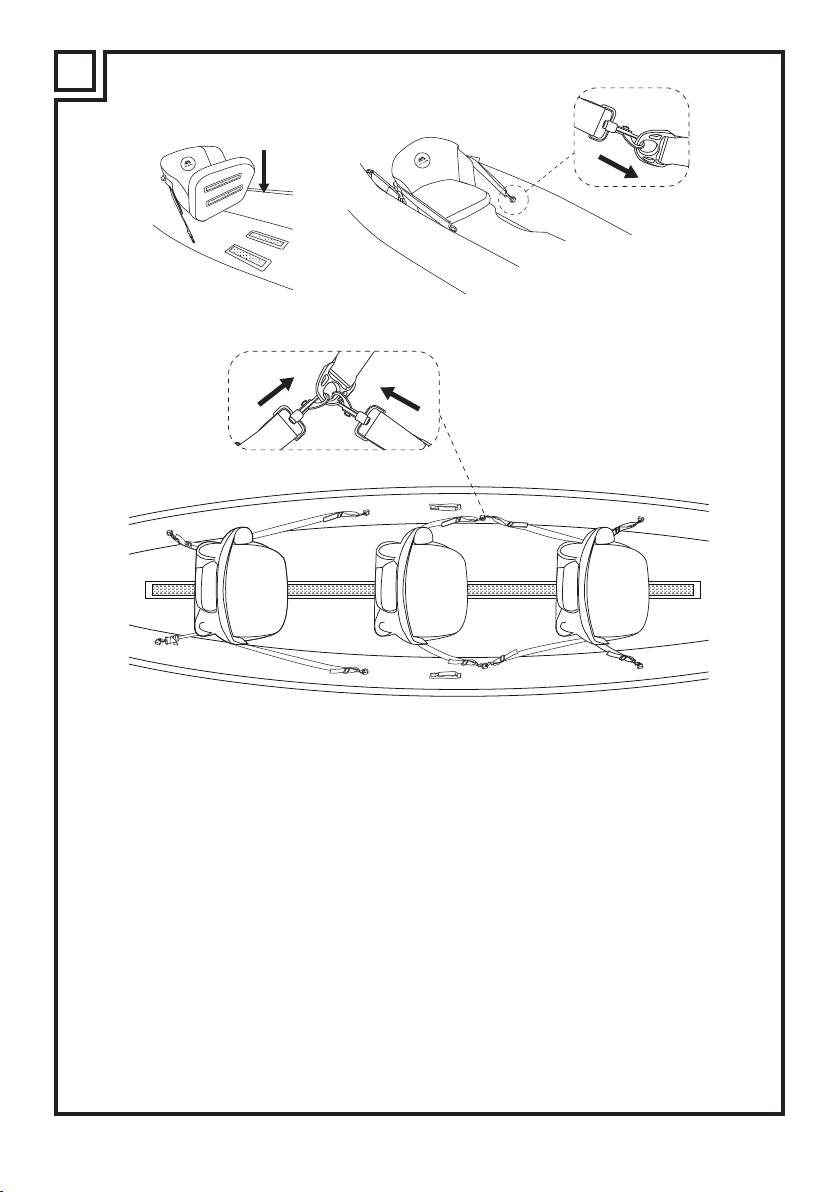

SEAT INSTALLATION
1. Attach the seat to the kayak floor with Velcro. It is important to place the seat in the
right place to evenly balance the boat when in the water. A solo paddler should be
slightly aft of the boat’s center. With two paddlers, the heavier one should sit toward
the rear.
2. Once seat position is confirmed, connect the seat straps to the D-rings by using seat
strap buckles. Attach the upper straps to the D-rings forward of each seat.
NOTE: Seat position could be easily adjusted by clipping strap buckles to different
D-rings, and strap buckles may be clipped to the same D-ring if needed.

LAXO
MEMBA
10
D
E
BOSTON VALVE
11” FOOT PUMP
Inflate
Deflate
KAYAK FIN INSTALLATION
Turn the kayak over and slide the kayak fin into the base. It only slides in facing one way.
Slide in the push-in pin into the grove until it clicks into the position.
HIGH PRESSURE VALVE

1. Clear any water or debris out of the valve areas.
2. BOSTON VLAVE (FOR LAXO)
Open the lower cap of the Boston valve for deflation. In this situation, the valve only lets
air out, not in.
HIGH PRESSURE VALVE (FOR MEMBA)
Slowly press down on the valve stem to let air out of the kayak.
There will be an initial burst of air, but will slow down very quickly. Once the
air flow has slowed down, press the valve stem all the way down and turn it
clockwise to lock it into the “OPEN” position.
11
KAYAK DEFLATION
16” HAND PUMP
Inflate
Deflate

12
NOTE:
Please avoid bending the fin box.
1. Remove all the accessories from the kayak: seats and fins.

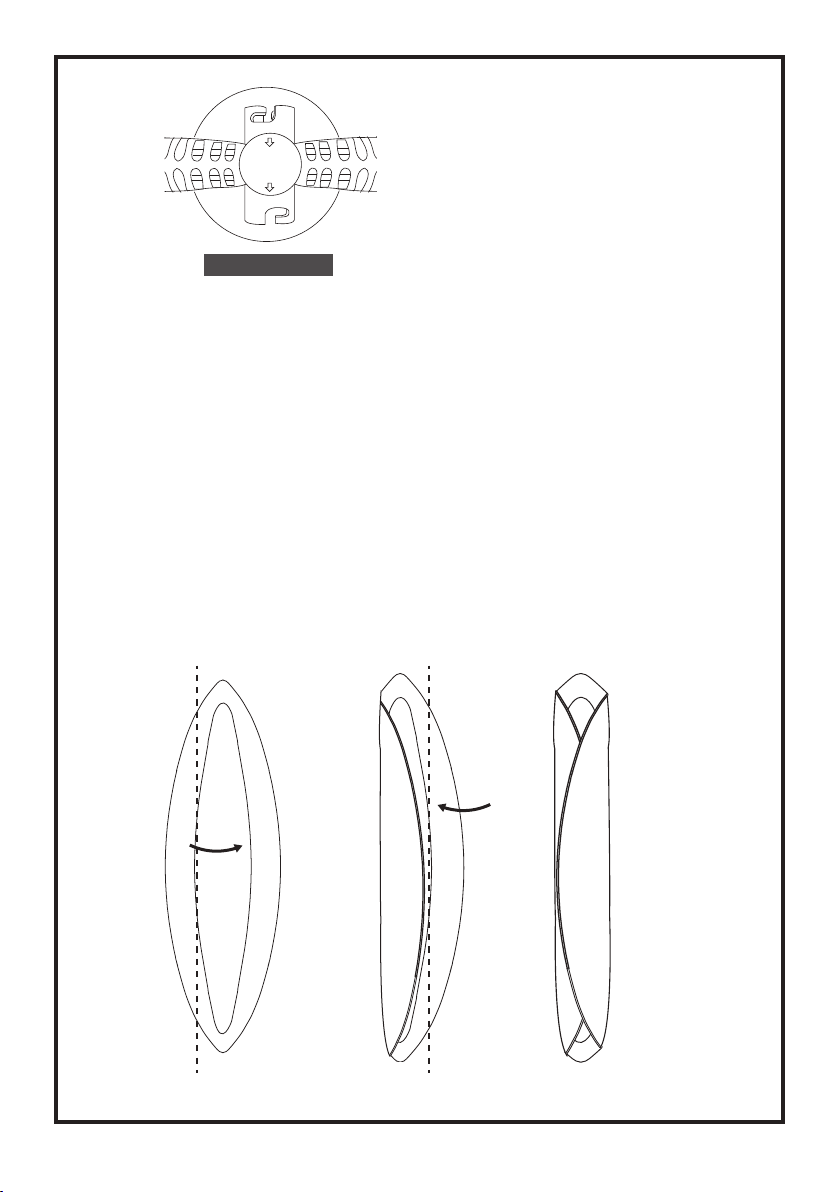

2. After deflation, tri-fold the tubes of the kayak. Then, fold the bow to the middle and
force out any remaining air. Repeat this procedure for the stern, and place bow folds
on top of stern.
3. The kayak carry bag is designed to allow you to get your kayak into the bag as easily
as possible with minimal folds.
KAYAK FOLDING STEPS

13
F
INSTRUCTION FOR CARE AND STORAGE
The kayak is made of the highest quality materials and complies with ISO 6185 standards.
Altering the construction of the kayak will endanger your own safety, safety of the
occupants and void the limited warranty!
There is very little that you have to do to keep your kayak in good condition for many years.
• Clean your kayak after a trip to prevent damage from sand, salt water or sun exposure.
Most dirt can be removed with a garden hose, a sponge and mild soap. Make sure the
kayak is completely dry before being stored . Use as few cleaning agents as possible, do
not discharge waste agents into water, and clean your kayak preferably on land.
• The products may be stored inflated, but do not place any heavy or sharp objects on it.
Hanging the kayak is not recommended.
• Store your kayak in a dry room.
• Take protection method to keep your kayak away from rodents or other vermin, as they
may bite the product.
• The room temperature shall be maintained between 0°C (32°F) and 40°C (104°F).
G
PADDLE ASSEMBLY
KAYAK PADDLE ASSEMBLY
1. Place the blade piece into the shaft by unlocking the microlock. Snap it into
place and secure the microlock into the shaft hole.
2. Join the 2 shafts together by securely snapping the shaft pieces into place.
3. To disassemble, reverse the assembly steps.
Note: It’s not necessary to detach the paddle blades from the shafts.
NOTE: Always drain the water left in the paddle shaft after each use.
Shaft ShaftBlade Blade
KAYAK PADDLE

14
LEAK DETECTION AND REPAIR
H
A leaking valve is rare, but if you do find a leak, turn to after-sales service center for a
replacement valve. To locate a leak, we recommend mixing soap and water in a spray bottle,
spray around the valve. If you see bubbles forming, check your valve seating and base and
be sure the valve insert is screwed tight. If the kayak is losing air and all the valves are good,
it probably has a small puncture.

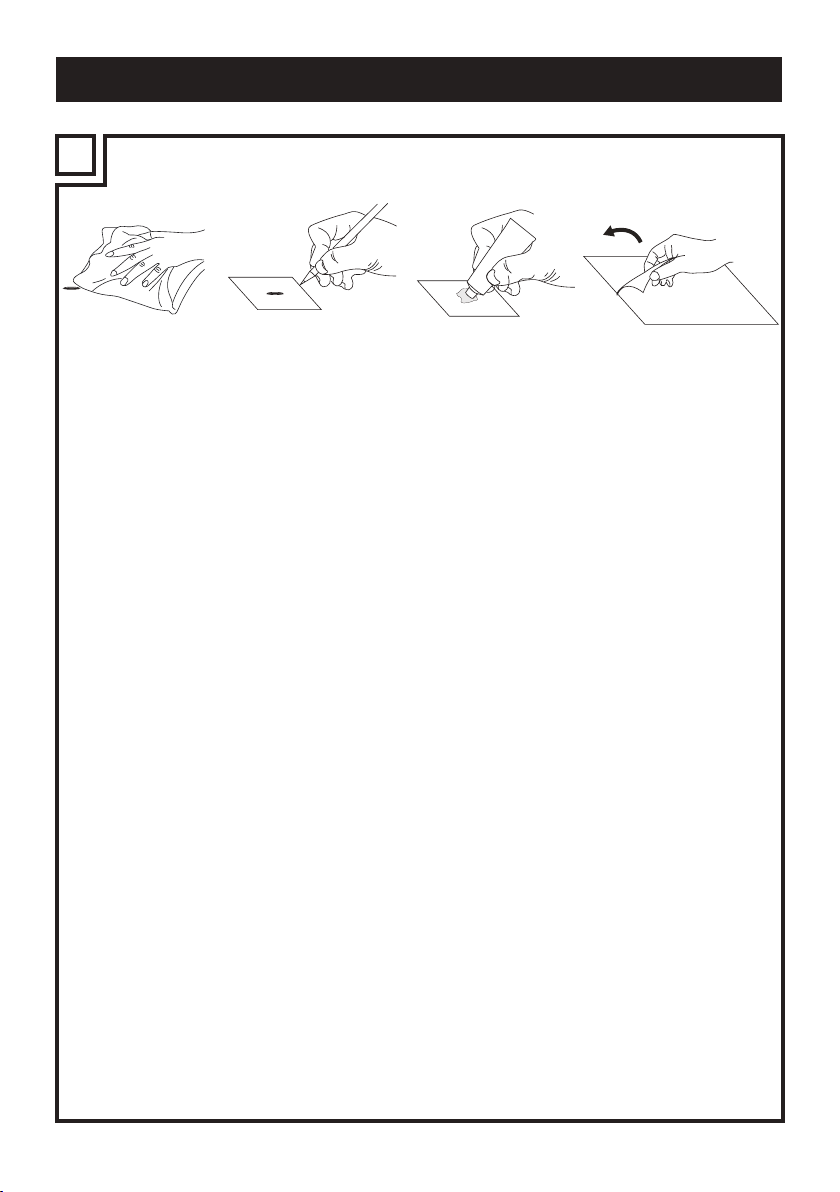

Small punctures can be repaired easily and permanently. Spray soap water around the kayak
until air bubbles become visible and mark the position of the leak.
1. Punctures less than 1/8”in size can be repaired simply without a patch. Deflate your
board, then clean and dry the area to be repaired. Apply a small drop of glue to cover the
puncture, and let it dry 12 hours.
2. Cut a piece of repair material large enough to overlap the damaged area by
approximately 1.5cm (1/2”), and round off the edges.
3. Apply glue to the under side of the patch and around the area to be repaired. Too much
glue will interfere with a proper repair.
4. Allow adhesive to become tacky for 2-4 minutes, and then start at one corner and work
outward, carefully apply the patch to the repair area using very firm pressure. Rub the
entire patch area and the edges of the patch using very firm pressure. Allow to cure for at
least 12 hours before inflating and using.

15
1. The warranty is valid only when this product is used for normal recreational activities and does
not cover products used in rental or school operations
2. AM will make the final warranty determination, which may require inspection and/or photos of
the equipment, which clearly show the defect(s). If necessary, this information must be sent to
the AM distributor in your country with prepaid postage. Product can be returned only if a
return authorization number is given in advance by the AM distributor. The return authorization
number must be clearly labeled on the outside of the package, or it will be refused
3. If a product is deemed to be defective by AM, the warranty covers the repair or replacement of
the defective product only. AM will not be responsible for any costs, losses, or damages
incurred as a result of loss or misuse of this product
4. This warranty does not cover damage caused by misuse, abuse, neglect, normal wear and tear
including, but not limited to, punctures, damage due to excessive heat exposure, damage
caused by improper handling and storage, damage caused by use in waves or shore break,
board breakage caused by filling or crashing in surf conditions, or damage caused by anything
other than defects in material and workmanship
5. This product must not be modified and/or fitted with a motor except AM BlueDrive power fin
6. This product must not be used in excess of the manufacturers recommended maximum load
capacity
7. This warranty is void if any unauthorized repair, change or modification has been made to any
part of the equipment
8. The warranty for any repaired or replacement equipment is good from the date of the original
purchase only
9. The original purchase receipt must accompany all warranty claims. The name of the retailer and
date of purchase must be clear and legible
10. There are no warranties that extend beyond the warranty specified here in
THIS PRODUCT IS DESIGNED IN ACCORDANCE WITH
STANDARDS FOR A SPECIFIC USE. ANY MODIFICATIONS OR
TRANSFORMATIONS HIGHER THAN THAT INDICATED BY
THE MANUFACTURER COULD RESULT IN SERIOUS RISKS
FOR THE USER AND WILL VOID THE WARRANTY.
WARNING
WARRANTY
AM warrants this product to be free from major defects in material or workmanship to
the original purchaser for a period of ONE (1) YEAR from the date of purchase. This
warranty is subject to the following limitations:

Guide de l'utilisateur
aquamarina.com
Pour votre propre sécurité et celle de votre équipement, assurez-vous de prendre les
précautions notifiées dans ce manuel.
Le non-respect des avertissements et des instructions peut entraîner des dommages
matériels, des blessures graves ou la mort.
ATTENTION
LAXO / MEMBA
KAYAK GONFLABLE ROBUSTE
FR

2
INFORMATION GENERALE
SECURITE
Les sports à pagayepeuvent être très dangereux et exiger une bonne condition
physique. Les utilisateurs de ces produits doivent comprendre que pratiquer des sports
à pagaye peut entraîner des blessures graves ou la mort. Observez toutes les lois de
navigation et utilisez votre bon sens.
S’IL VOUS PLAIT, CONSERVEZ CE MANUEL DANS UN ENDROIT SUR, ET
REMETTEZ-LE AU NOUVEAU PROPRIETAIRE SI VOUS VENDEZ L’EMBARCATION.
ENREGISTREZ LE « NUMERO D’IDENTIFICATION DE COQUE » (NIC) QUI EST
IMPRIME SUR LA COQUE DU BATEAU DANS LA CASE SUIVANTE :
CERTIFICATION DU FABRICANT
Les produits Kayaks AM sont conformes à la norme ISO 6185 établie par l’Organisation
Internationale de Normalisation.
LISTE DE VERIFICATION DE SECURITE ET AVERTISSEMENT DE
SECURITE
• Il est la responsabilité du propriétaire de lire attentivement le manuel et d’instruire tout
utilisateur pour utiliser ce produit en toute sécurité.
• Conservez le manuel d’utilisation pour un usage ultérieur.
• Obtenez les instructions des sports à pagayespécifiques à ce type d’embarcation.
• Suivez les instructions du Manuel du Propriétaire, y compris les données situées sur la plaque
indiquant les capacités. La répartition inégale des personnes ou des charges dans le bateau
peut engendrer une situation dangereuse.
• Soyez prudents lorsque vous embarquez à bord du Kayak. Entrez par le centre du Kayak pour
une stabilité maximale.
• Portez toujours un Dispositif Personnel Flottant approuvé (Gilet de Sauvetage).
• Portez un casque si nécessaire.
• Ne pas utilisezdans legrand vent, les courants forts, le large ou les marées dangereuses.
• Ne pas pagayez en casd’inondations.
• Ne pas utilisezce produit sous l’emprise de l’alcool ou de la drogue.
• Ne pas surchargezou tropgonflez.
• Ne dépassez pas vos capacités à pagayer, soyez honnêtes avec vous-même.
• Ne jamais remorquez par des autres bateaux ou véhicules.
• Connaissez et suivez les règles locales de sécurité et de navigation.
• Ce n’est pas un dispositif de sauvetage.
• Ne pas pour utilisation par des enfants sans surveillance d’un adulte.
• NE PAS dépassez les données indiquées sur les plaques de capacité.
• FAITES ATTENTION AUX VENTS ET COURANTS EN MER.

3
13
2 4567
RECOMMANDATIONS DU FABRICANT
Le nombre total de personnes et le poids total ne doivent pas excéder les limites
imprimées sur le Kayak. S’il vous plait, referez-vous au label sur la coque pour les
spécifications actuelles de votre produit.
KAYAK FORMAT D’ETIQUETTE
1. Norme: EN ISO 6185 PARTIE 1 TYPE III
2. Pays d’origine
3. Nombre maximal de passagers
4. Capacitésde charge maximale recommandée par le fabricant
5. Pression de service recommandée par le fabricant
6. Numéro d’identification de la coque (NIC)
7. Nom et adresse du fabricant
EN ISO 6185 PART1 TYPE Ⅲ
STANDARD EN ISO 6185-1:2018
TYPE Ⅲ(B)
= 2
= 210KG (462lbs)+
= 1
/
BOAT TYPE
DESIGN CATEGORY
LA-380
BOAT MODEL
CN-ORP
Do not over inflate or use high pressure air compressor to inflate.
Inflate the chambers in numbered sequence.
Use the enclosed barometer to check while inflating.
Ensure even distribution of persons or loads in the KAYAK.
WARNING:
This is not a life saving device.
Use only under competent supervision.
Always use an approved life preserver.
Do not use in high wind, rapid currents, open water or dangerous tides.
Be familiar with area where you intended to use KAYAK.
Never allow diving into this product.
Never leave in or near the water when not in use.
Follow these rules to avoid drowning, paralysis or other serious injury:
- Not for use by children without adult supervison.
- Do not overload.
- Know and follow local water safety rules and regulations.
MADE IN CHINA DATE
= 0.07bar / 1psi
ORIENTAL RECREATIONAL
PRODUCTS (SHANGHAI) CO.,LTD
NO. 1699 DAYE ROAD,
WUQIAO, FENGXIAN,
SHANGHAI, 201402, CHINA
LA-380

4
LISTE DES PIÈCES
LAXO
Anneaux en D pour la connexion du siège
Corde de bungee pour le chargement
a
b
c
d
Poignée de transport robuste en caoutchouc
Valve Boston pour la coque
e
Pompe à pied de 11” avec tuyau de gonflage
Velcro pour siège amovible avec dossier haut
f
g
h
2 dérives de kayak coulissantes
Sac de transport
Manomètre
i
j
Siège robuste avec dossier haut
(LA-285 x 1, LA-320 x 2, LA-380 x 3)
k
Pagaie de kayak
(LA-285 x 1, LA-320/LA-380 x 2)
l
Kit de reparation
m
n
o
Plancher gonflable en forme de poutre en i
n
a
e
c
c
d
b
b
dg
o
k
j
i
m
l
e
g
a
f
h
b
e
Protection contre les éclaboussures d’eau sous
forme d’arc prolongé Conception de l'arc
prolongé de garde d'eau
Couvertures de la coque avec fermeture éclair

Pagaie de kayak
(ME-330 x 1, ME-390 x 2)
c
c
f
b
b
5
LISTE DES PIÈCES
MEMBA
Protection contre les éclaboussures d’eau sous
forme d’arc prolongé
Couvertures de la coque avec fermeture éclair
Anneaux en D pour la connexion du siège
Corde de bungee pour le chargement
Porte-pagaie de conception velcro
Poignée de transport robuste en caoutchouc
Valve encastrée à haute pression pour
gonflage et dégonflage rapides et faciles
Plancher de pont aérien à point lancé de 7 cm
Pompe à main de 16 ”avec tuyau de
gonflage
Manomètre
Velcro pour siège amovible avec
dossier haut
Adaptateur pour valve haute pression
2 dérives de kayak coulissantes
Sac de transport
Kit de reparation
Clé
Siège durable à dossier haut
(ME-330 x 1, ME-390 x 2)
Robinet de vidange intégrée
a
a
g
g
ed
d
i
i
e
j
e
f
h
ei
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
q
r
s
p
s
mqr
n
l
kp
o
