AQUAMAXX ConeS DCQ Series User manual

ConeS DCQ Series Protein Skimmer DCQ-2 / DCQ-3
Before installation and operation
Please open the package carefully and check for damaged or lost parts.
PARTS INCLUDED:
Assembling the main unit
Loosen the screws in the bottom of the
skimmer to separate the base and the
skimmer body.
2.
Collection cup with lid
Diffuser Adjusting valve
Silencer
SHARK DC Pump
Venturi
Pump Controller
Transformer with holder
Air hose
Take the screw under the pump and put the pump on the base then screw back to
combine the pump to the base.
3. Loosen the center screw on the diffuser to separate the diffuser plate.
Recommendations
For best performance, please clean the collection cup frequently. Use a sponge and
warm water to clean it. (DO NOT USE ANY SOAP OR CHEMICALS TO CLEAN THE
COLLECTION CUP).
While we take great care to keep any contaminants away from our products during
assembly, please take a moment to clean with warm water ONLY. Never clean Acrylic
with alcohol-based products. Use caution when handling acrylic scratches easily.
It may require 2 – 4 weeks for the skimmer to reach maximum performance due to
tiny amounts of oil or remnants left from manufacturing. Skimmer performance may
be erratic during this time and be sure to allow ample time for the skimmer to break-in
before making adjustments.
4. Loosen the screw beside the cap and put the plate on the pump then screw back.
Make sure to put the plate in the center of the base or the main body cannot be installed.
view from bottom
[email protected]
www.aquamaxxaquariums.com
1.
1.
2.
3.
7. Install the venturi and connect the
venturi and the silencer by the air hose.
8. Install the collection cup and lid.
(DO NOT OVER TIGHTEN SKIMMER CUP AS DAMAGE MAY RESULT)
9. Connect the pump to the controller and the transformer.
Controller to transformer
Controller to pump
Select a suitable place to set your protein skimmer
For best results place the skimmer in 7 to 8 inches of water. Please make sure that the skimmer is in no more than 8 inches of water. Otherwise, the adjusting valve will not function
properly.
The pump must be completely submerged underwater when in use
To Start
Plug in the pump.
The main chamber will fill with bubbles. Carefully adjust the adjusting valve (clockwise to close, the water level in the chamber
will go up; counter-clockwise to open, the water level will go down). Adjust the water level within the skimmer to where the cup
meets the neck.
Once the bubbles reached the bottom of collection cup, you can start to adjust the water level according to your preference. If
you prefer wet wastewater, you need the high water level; Conversely, if you want dry wastewater, just let your water level goes
down. water level
water color
high low
5. Put back the diffuser plate and tighten
the center screw, do not overtighten.
6. Screw the skimmer body back. Make sure the wire is in the right place.
the diffuser plate should only be installed in
this position
recommened water level
1.
2.
1.
2.
3.
Warranty
AquaMaxx warrants all AquaMaxx products to be free from manufacturing defects for one year from the original purchase date when purchased through an authorized AquaMaxx
retailer. This warranty does not cover any damages caused by misuse, neglect, alterations or improper handling / transport / maintenance / installation. Physical damages are not
covered by warranty. AquaMaxx does not cover personal injury, personal loss, or other damages associated with the use of our products. In order to request warranty service, please
email us at [email protected]. A purchase receipt is required for any warranty service. Products requiring warranty service must be returned to AquaMaxx. You are
responsible for the cost of shipping a warranty claim to AquaMaxx and any damages that may occur during transit. Once a returned product has been inspected, it will be repaired or
exchanged at our discretion and returned to you. International and/or expedited shipping are not covered under your AquaMaxx warranty.
Regular maintenance of the pump will ensure a long life and maximum performance: recommended every 3 months.
You can disassemble the pump by following steps:
Maintenance
Pump
Unscrew the 4 screws
outside the pump, to
take off the cover.
Pull out the rotor. Soak in a mixture of 1 part water and 1 part vinegar
(citrin acid also available) for at least 24 hours. Once
you finish, please rinse with warm water.
Clean the collection cup and main body frequently with a sponge and warm water.
Collection cup & Body
Venturi
Check the air hose and silencer frequently,
especially the place marked on the photo got
clogged sometimes. Once it’s clogged, please clean
up immediatly.
Silencer
Check the venturi (especially the place marked on the photo)
It’s common that the carbonate (limescale) builds up to form a very hard white substance. Rinse it weekly, soak in vinegar water (1 part water and 1
part vinegar or citrin acid) every month for at least 24 hours. Once you finish, please rinse with warm water.

This manual suits for next models

4

Other AQUAMAXX Water Filtration System manuals

AQUAMAXX CTECH T-2 User manual

AQUAMAXX

AQUAMAXX CTECH T-2 User manual

AQUAMAXX TS-2 User manual

AQUAMAXX

AQUAMAXX TS-2 User manual

AQUAMAXX ConeS FC Series User manual

AQUAMAXX

AQUAMAXX ConeS FC Series User manual

AQUAMAXX ConeS RC-3 User manual

AQUAMAXX

AQUAMAXX ConeS RC-3 User manual

AQUAMAXX HOB-PF User manual

AQUAMAXX

AQUAMAXX HOB-PF User manual

AQUAMAXX HOB-1 User manual

AQUAMAXX

AQUAMAXX HOB-1 User manual

AQUAMAXX Cone-S Q Series User manual

AQUAMAXX

AQUAMAXX Cone-S Q Series User manual

AQUAMAXX Puratek Deluxe User manual

AQUAMAXX

AQUAMAXX Puratek Deluxe User manual

AQUAMAXX FR-SE User manual

AQUAMAXX

AQUAMAXX FR-SE User manual

AQUAMAXX cTech Nano Calcium Reactor User manual

AQUAMAXX

AQUAMAXX cTech Nano Calcium Reactor User manual

AQUAMAXX FR-1ES User manual

AQUAMAXX

AQUAMAXX FR-1ES User manual

AQUAMAXX ConeS DRC-2 User manual

AQUAMAXX

AQUAMAXX ConeS DRC-2 User manual

AQUAMAXX HOB-1.5 User manual

AQUAMAXX

AQUAMAXX HOB-1.5 User manual

AQUAMAXX ConeS DRC-3 User manual

AQUAMAXX

AQUAMAXX ConeS DRC-3 User manual

Popular Water Filtration System manuals by other brands

Blue Wave HYDRO NE635 instructions

Blue Wave

Blue Wave HYDRO NE635 instructions

Aquapure MCA SERIES Installation and operating instructions

Aquapure

Aquapure MCA SERIES Installation and operating instructions

B. Braun Aquaboss CCS Instructions for use

B. Braun

B. Braun Aquaboss CCS Instructions for use

Aquapure AP9100+ Installation and operating instructions

Aquapure

Aquapure AP9100+ Installation and operating instructions

AlkaViva Vesta H2 owner's manual

AlkaViva

AlkaViva Vesta H2 owner's manual

SPX FLOW HANKISON HF Series instruction manual

SPX FLOW

SPX FLOW HANKISON HF Series instruction manual

Puretec CR-Z2 user guide

Puretec

Puretec CR-Z2 user guide

Puretec HybridPlus Series user guide

Puretec

Puretec HybridPlus Series user guide

ThePondguy AllClear Series installation manual

ThePondguy

ThePondguy AllClear Series installation manual

Waterco Gemini Fitting and operating instructions

Waterco

Waterco Gemini Fitting and operating instructions

KEBCO COMBILINE manual

KEBCO

KEBCO COMBILINE manual

Blue Wave EASY CLEAN 200 instruction manual

Blue Wave

Blue Wave EASY CLEAN 200 instruction manual

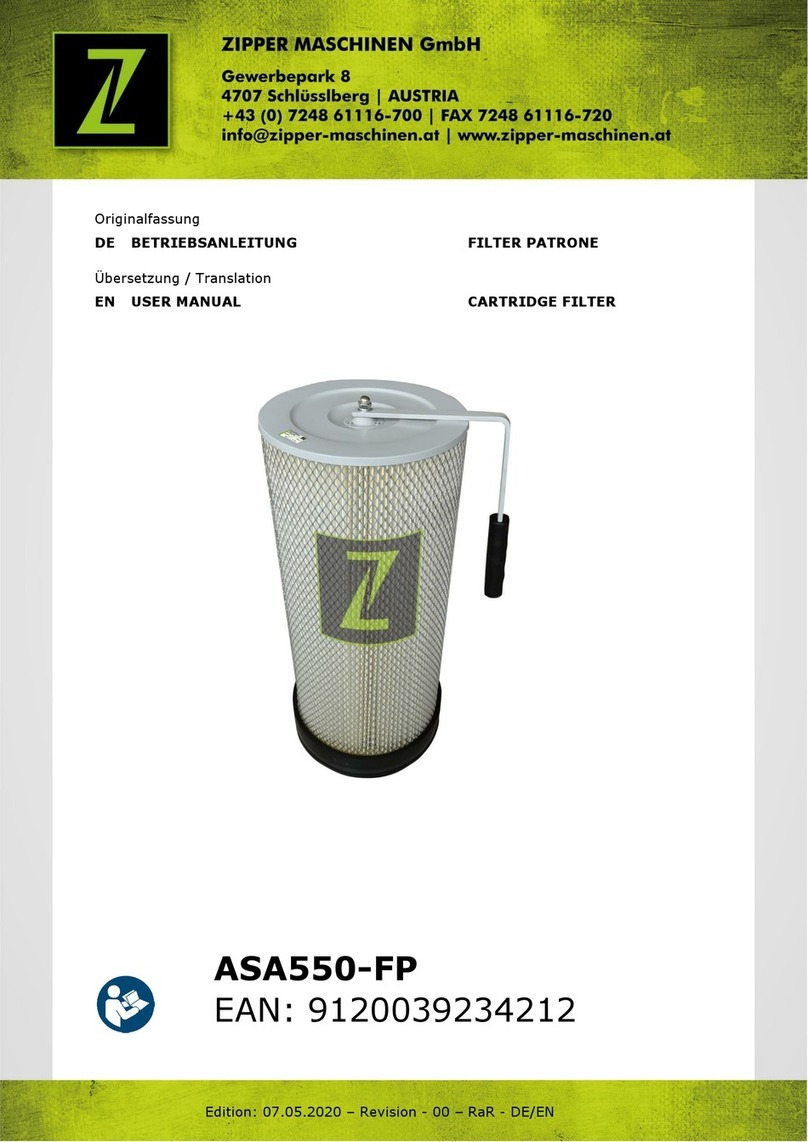

Z.I.P.P.ER MASCHINEN ASA550-FP user manual
