Table of contents
For more information, please consult the
FAQs on www.archos.com. Make sure to read
them before considering any product return.
Your deal may be no big deal. As we are often
updating and improving our products, your
device’s software may have a slightly dierent
appearance or modied functionality than
presented in this Quick Start Guide.
Package contents........................................................
Description of the phone.........................................
Assembling....................................................................
Getting started.............................................................
Through the wizard....................................................
3G & WiFi connection.................................................
Google account & Contacts.....................................
Troubleshooting...........................................................
2
3
6
8
9
10
12
14
ARCHOS_53_Platinum_book_quick.indd 1 23/04/2013 18:14:51

2
Package Contents
Check your product box for the following items:
-ARCHOS 53 Platinum
-Battery
-Headset
-Micro SIM adaptor
-USB cable
-Charger
-Quick start guide
-Warranty Legal & Safety notices
The items supplied with your device and
available accessories may vary depending on
your region or service provider.
The supplied items are designed only for your
device and may not be compatible with other
devices.
Unapproved accessories may cause your device
to malfunction.
ARCHOS_53_Platinum_book_quick.indd 2 23/04/2013 18:14:52

3
scale 1:1 mm
05-04-2013
last modification:
NEW
Rev O
AC53PL
CONFIDENTIAL
DRAWING
5
21
4
3
EN

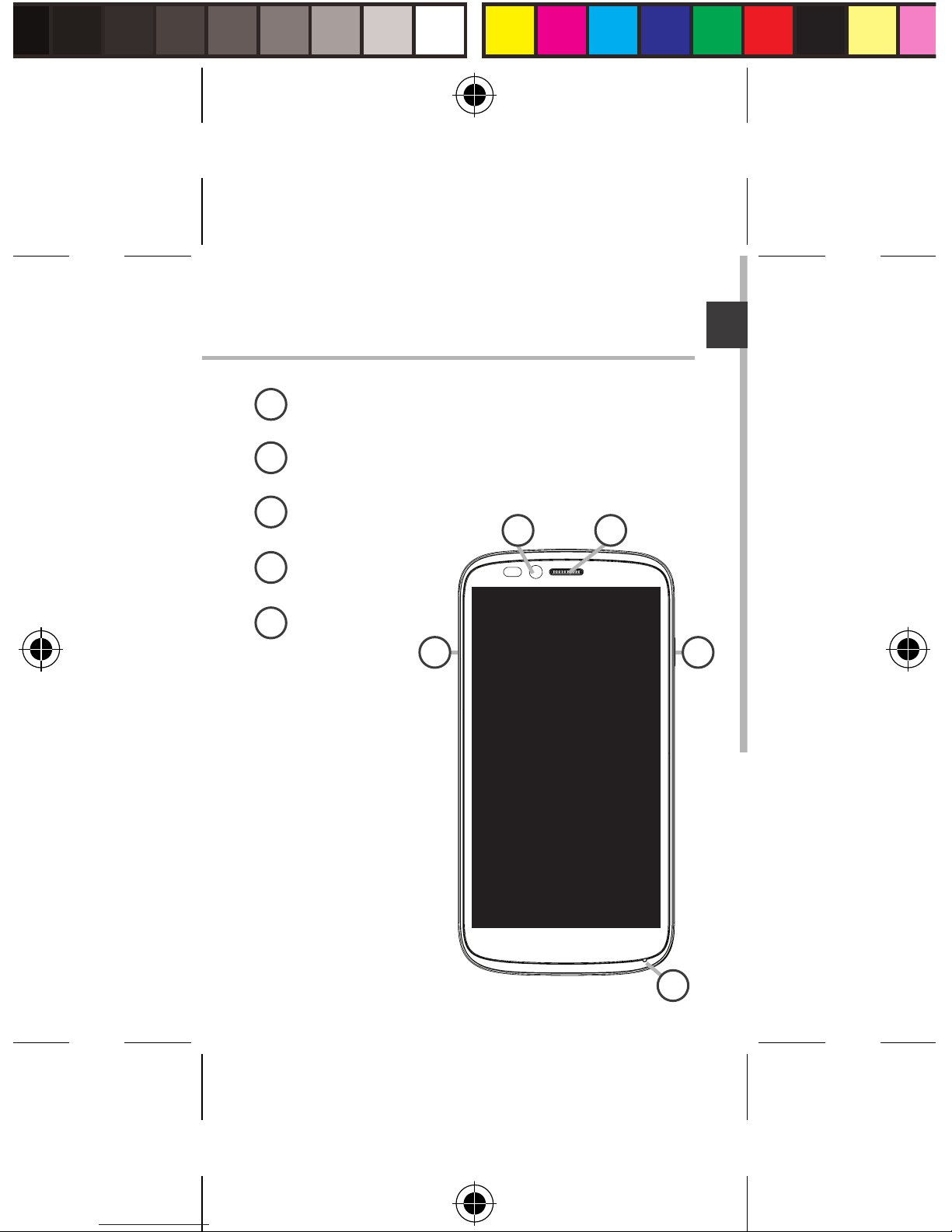

1Webcam
Loudspeaker
Volume buttons
Microphone
ON/OFF button
2
3
4
5
Description of the phone
ARCHOS_53_Platinum_book_quick.indd 3 23/04/2013 18:14:53

4
10
67
scale 1:1 mm
05-04-2013
last modification:
NEW
Rev O
AC53PL
CONFIDENTIAL
DRAWING
scale 1:1 mm
05-04-2013
last modification:
NEW
Rev O
AC53PL
CONFIDENTIAL
DRAWING
8 9
Description of the phone

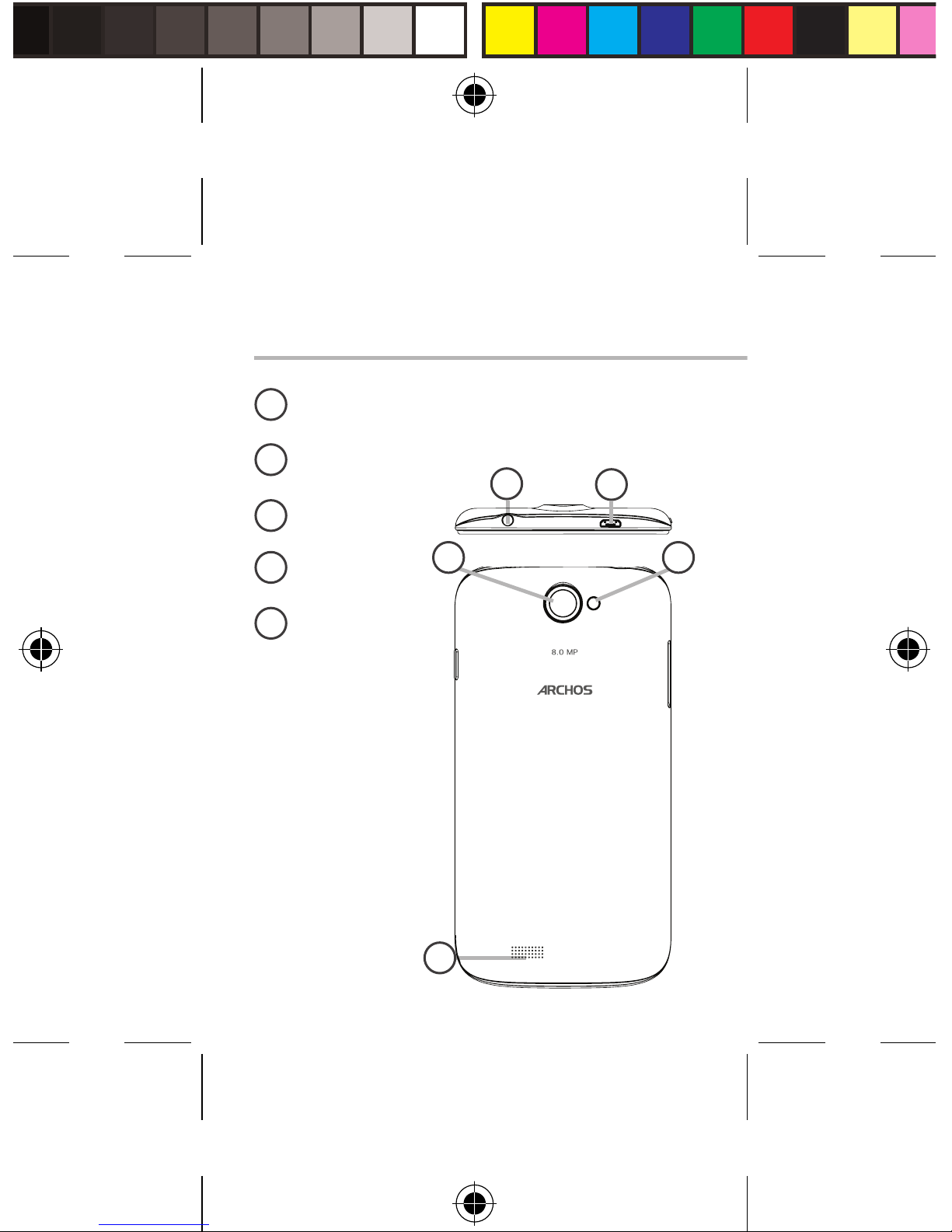

Micro-USB port
Headset jack
Camera
Flashlight
Loudspeaker
6
9
8
7
10
ARCHOS_53_Platinum_book_quick.indd 4 23/04/2013 18:14:54

5
11 13
12
EN
Menu button: open the list of options available
on the current screen.
Home button: short press to return to the
Home screen; press and hold to open the list of
recent applications.
Back button: return to the previous screen.
Description of the phone
Menu button
Home button/Recent apps
Back button
13
12
11
ARCHOS_53_Platinum_book_quick.indd 5 23/04/2013 18:14:55

6
Assembling

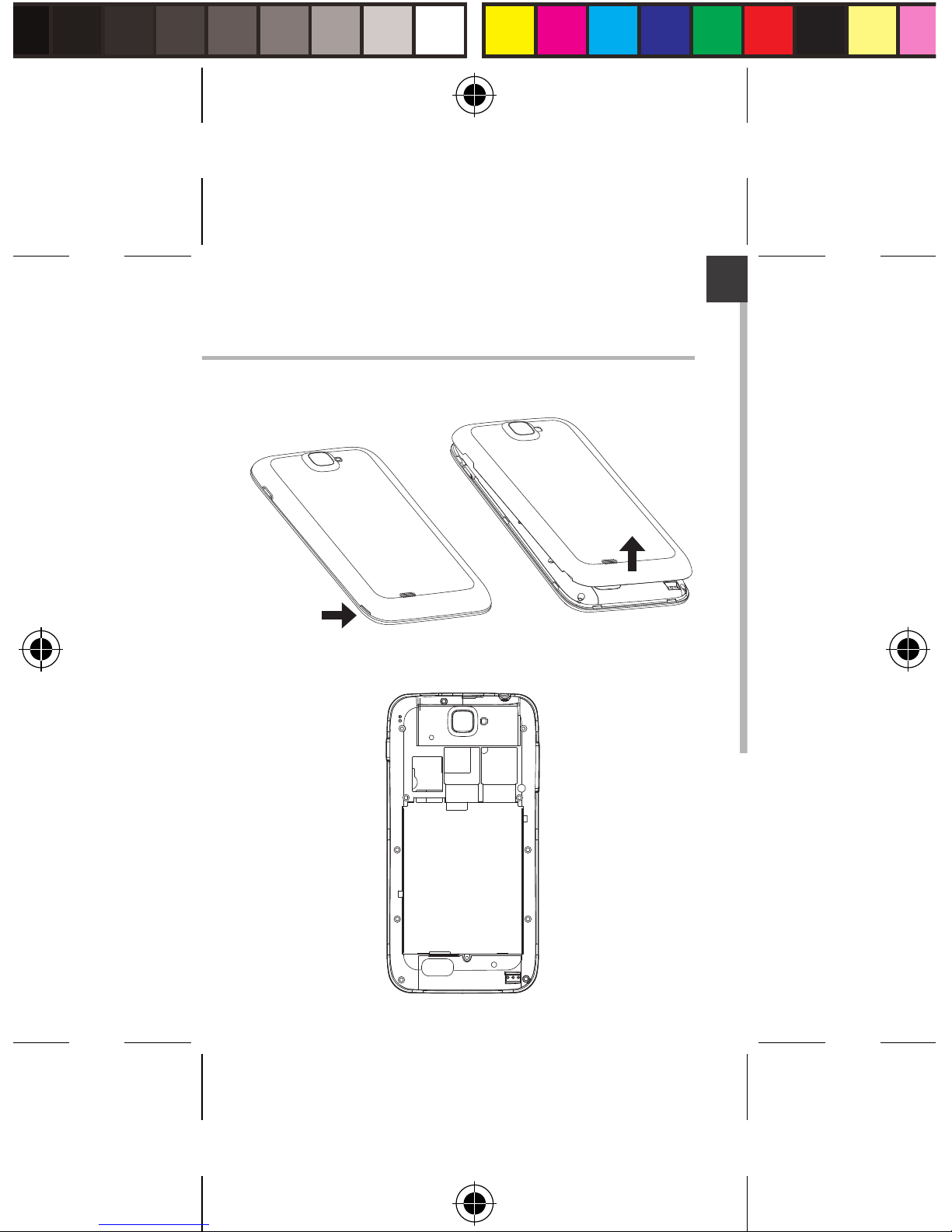

1. Use the notch to remove the back cover.
Do not bend or twist the back cover
excessively. Doing so may damage the cover.
2. To insert your 3G SIM card, slide it facing
downwards in the 2G/3G slot (slot 1). To insert
your standard SIM card, slide it facing downwards
in the 2G slot (slot 2).
3. To insert a Memory card, push upwards
the memory card slot and lift the cover. Place
the Memory card. Close the cover and push it
downwards.
4. Align the battery’s 4 contact points with those
of the phone and gently press the battery down
into place.
5. Replace the battery cover clicking it back into
position.
Before using your device for the first time,
charge completely its battery.
ARCHOS_53_Platinum_book_quick.indd 6 23/04/2013 18:14:55

7
Picture to show how to removed the bottom casing Picture to show how to insert the battery pack Picture to show the scards position
Picture to show how to removed the bottom casing Picture to show how to insert the battery pack Picture to show the scards position
Slot1Slot2
EN
Assembling
ARCHOS_53_Platinum_book_quick.indd 7 23/04/2013 18:14:56

8
Turn ON
If you are turning on your device for the rst
time, follow the on-screen instructions to set
up your device. You must sign in to Google or
create a Google account to use applications
that interact with the Google server.
1. Press and hold the ON/OFF button to turn on
the device.
When you turn on your device, a PIN code may
be requested.
2. Type the PIN code supplied with your SIM card.
Beware of typing a wrong PIN code.
3. Select‘OK’.
Turn OFF
To turn o your device, press and hold the ON/
OFF button, and then select Power o > OK.
Getting started
ARCHOS_53_Platinum_book_quick.indd 8 23/04/2013 18:14:56

9
EN
Tip:
Your device turns off the touch screen when
you do not use it for a specified period. To turn
on the screen, press the ON/OFF button.
Getting started
Through the wizard
The rst time you start up your ARCHOS, the
installation wizard will help you set up your
device:
-Language
-Date & time
-WiFi connection
-Location service options
-3rd party apps
ARCHOS_53_Platinum_book_quick.indd 9 23/04/2013 18:14:57

10
3G connection
With your 3G SIM card, you can connect to the
Internet without setting.
The ARCHOS will only have signal if you are in
an area covered by your 3G provider’s 3G or
EDGE network.
When connected to the 3G network, the 3G
icon is displayed in the status bar.

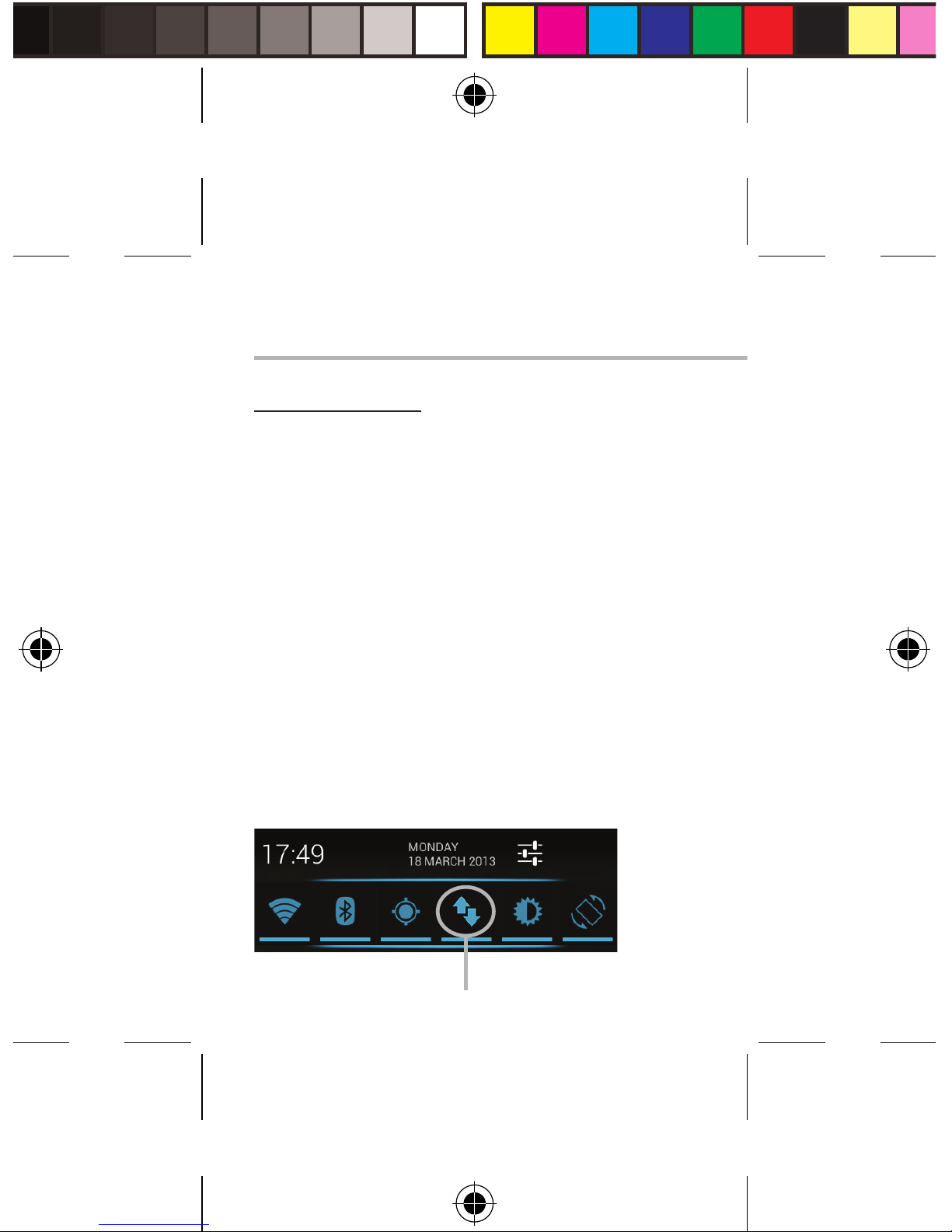

To be able to access Internet, the mobile data
icon must be activated.
Drag down the status bar and touch the mobile
data icon to activate it.
3G & WiFi connection
ARCHOS_53_Platinum_book_quick.indd 10 23/04/2013 18:14:57

11
EN
WiFi connection
WARNING: Make sure that you are in a WiFi
zone. You can access the WiFi settings quickly
from the status bar.
1. Drag down the status bar. The status
dashboard is displayed.
2. Touch the “Settings”icon to open the settings
menu.
3. In the “Wireless & networks”, if the WiFi is o,
slide the WiFi switch to the “ON”position. Once
the WiFi is on, the ARCHOS will scan for WiFi
networks in range.
4. Touch “WiFi” to display available networks
5. Touch the name of network you want to
connect to.
Private networks are shown with a lock icon and
will require you to enter your password.
ARCHOS_53_Platinum_book_quick.indd 11 23/04/2013 18:14:57

12
Adding a Google account
A Google account lets you take full advantage
of any Google apps and services that you may
want to use.
1. Go to“Settings” >“Accounts”>“Add
account”.
2. Select the account type“Google”to add.
3. Follow the onscreen steps to enter information
about the account.
Once the account is created, you can access
Play Store, Gmail, Talk, Maps and many other
apps.
4. Go to“Settings”>“Accounts”>“Google”.
5. Select your account.
The list of information that can be sync are
displayed. Make sure they are all checked in
order to be sync. Your data are backed up and
you can get them back in case of loss of your
device or SIM card.
Google & Contacts
ARCHOS_53_Platinum_book_quick.indd 12 23/04/2013 18:14:57

13
EN
Saving your contacts
All your contacts are always available on the
web and can be synced to any Android phone
that’s set up with the same Google account.
1. Install the SIM card with your contacts in your
phone.
2. From a Home or All Apps screen, select the
People app .
3. Touch the Menu button > Import/Export.
4. In Import/export contacts, select Import from
SIM card.
5. Go to Settings > Accounts > Google.
6. Select you Google account.
Make sure“Contacts”is checked.
7. Select the Menu button, then“Sync now”.
Your contacts are saved to your Google account.
ARCHOS_53_Platinum_book_quick.indd 13 23/04/2013 18:14:57

14
Troubleshooting
My phone is frozen or cannot switch on
Check the battery contacts, remove and
reinstall your battery, then turn your phone on.
Check the battery power level, charge for at
least 20 minutes.
My phone cannot connect to a network or
“No service” is displayed
Try connecting in another location. Verify the
network coverage with your operator.
Unable to make outgoing calls
Make sure your phone is connected to a
network, and the network is not overloaded or
unavailable.
Unable to receive incoming calls
Make sure your phone is switched on and
connected to a network (check for overloaded
or unavailable network).
SIM card PIN locked
Contact your network operator to obtain the
PUK code (Personal Unblocking Key).
ARCHOS_53_Platinum_book_quick.indd 14 23/04/2013 18:14:57

15
FR
Pour plus d’informations, consultez-les FAQs
sur www.archos.com. Consultez-les avant
d’envisager un éventuel retour du produit.
Le problème que vous rencontrez peut être
résolu facilement. Comme nous mettons à jour
et améliorons régulièrement nos produits, le
logiciel de votre appareil peut présenter une
interface ou des fonctionnalités légèrement
diérentes de celles décrites dans ce guide.
Contenu de la boîte...................................................
Description du téléphone........................................
Assemblage.................................................................
Mise en route...............................................................
Assistant de démarrage...........................................
Connexion 3G & WiFi.................................................
Compte Google & Contacts....................................
Dépannage...................................................................
16
17
20
22
23
24
26
28
Table des matières
ARCHOS_53_Platinum_book_quick.indd 15 23/04/2013 18:14:57

16
Contenu de la boîte
Vériez que les éléments ci-dessous sont
présents dans la boîte :
-ARCHOS 53 Platinum
-Batterie
-Kit piéton
-Adaptateur pour Micro SIM
-Câble USB
-Chargeur
-Guide d’utilisation rapide
-Guide des garanties et des mentions légales
Il se peut que les éléments fournis, de même
que les accessoires, varient en fonction votre
localité ou de votre opérateur.
Les éléments fournis sont conçus uniquement
pour votre appareil et ils pourraient ne pas être
compatibles avec d’autres appareils.
Des accessoires non conformes peuvent la
source d’un mauvais fonctionnement.
ARCHOS_53_Platinum_book_quick.indd 16 23/04/2013 18:14:58

17
scale 1:1 mm
05-04-2013
last modification:
NEW
Rev O
AC53PL
CONFIDENTIAL
DRAWING
5
21
4
3
FR
Description du téléphone

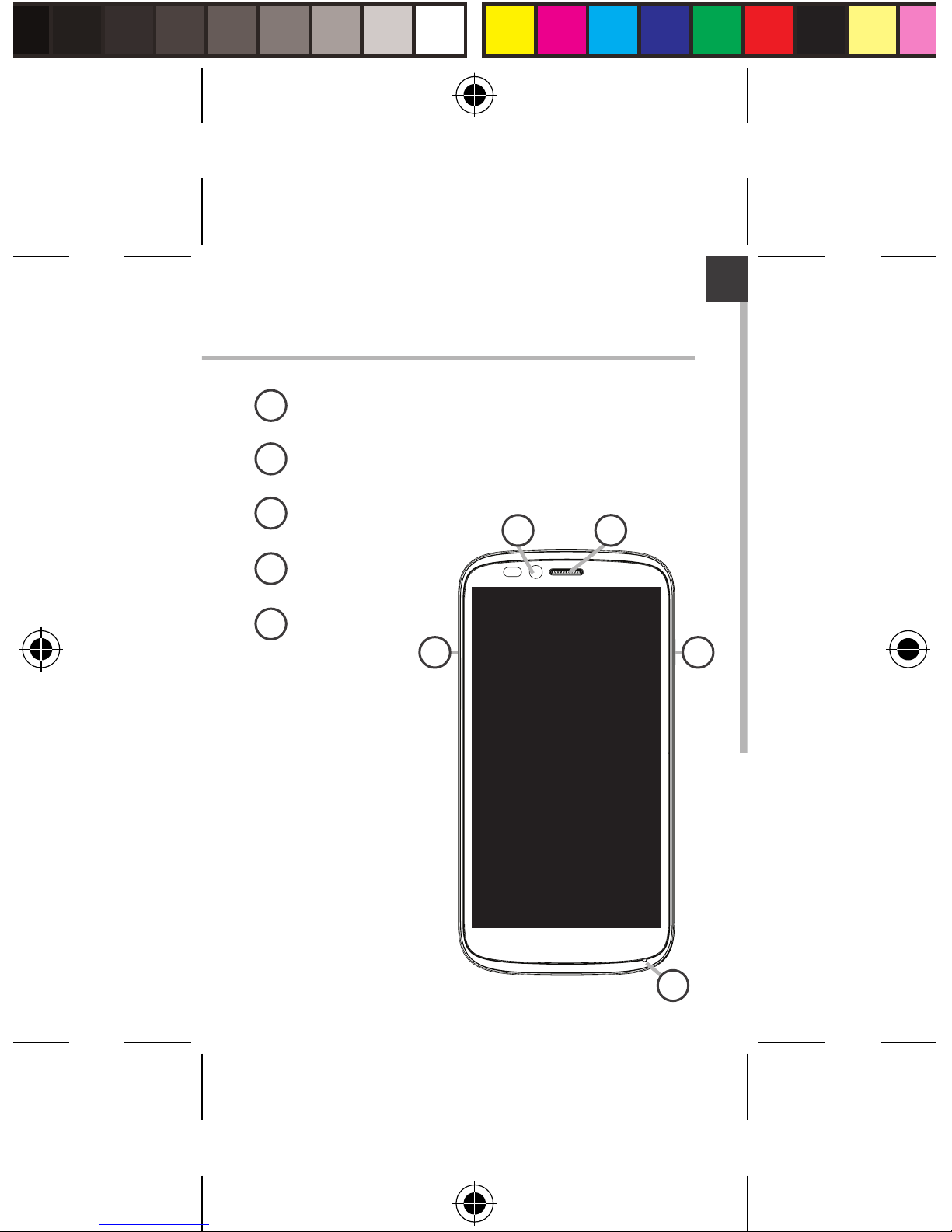

1Caméra frontale
Haut-parleur
Boutons de volume
Bouton ON/OFF
Micro
2
3
4
5
ARCHOS_53_Platinum_book_quick.indd 17 23/04/2013 18:14:58

18
10
67
scale 1:1 mm
05-04-2013
last modification:
NEW
Rev O
AC53PL
CONFIDENTIAL
DRAWING
scale 1:1 mm
05-04-2013
last modification:
NEW
Rev O
AC53PL
CONFIDENTIAL
DRAWING
8 9
6
8
7
Prise kit piéton
Port Micro-USB
Caméra
Flash
Haut-parleur
8
7
Description du téléphone
ARCHOS_53_Platinum_book_quick.indd 18 23/04/2013 18:14:59

19
11 13
12
FR
Bouton Menu
Bouton Accueil/Applications récentes
Bouton Retour
12
11
12
Bouton Menu : ache une liste d’options
disponibles pour un écran donné.
Bouton Accueil : appui court pour revenir à
l’écran d’accueil; appui long pour acher une
liste d’applications récentes.
Bouton Retour : retour à l’écran précédent
ARCHOS_53_Platinum_book_quick.indd 19 23/04/2013 18:15:00

20
Assemblage
1. Utilisez l’encoche pour enlever la coque arrière.
Ne pas déformer ou plier la coque arrière
excessivement au risque de l’endommager.
2. Pour insérer votre carte SIM 3G, glissez-la
dans l’emplacement 2G/3G en orientant la face
magnétique vers le bas (emplacement 1).
Pour insérer votre carte SIM standard, glissez-la
dans l’emplacement SIM standard en orientant la
face magnétique vers le bas (emplacement 2).
3. Pour insérer la carte mémoire, poussez vers le
haut le clip puis soulevez-le.
Placez la carte mémoire. Fermez le clip et
poussez-le vers le bas.
4. Alignez les 4 points de contact de la batterie
avec ceux du téléphone puis appuyez doucement
pour insérer la batterie.
5. Remettez en place la coque arrière.
Avant d’utiliser votre téléphone pour la
première fois, chargez complètement la
batterie.
ARCHOS_53_Platinum_book_quick.indd 20 23/04/2013 18:15:00
