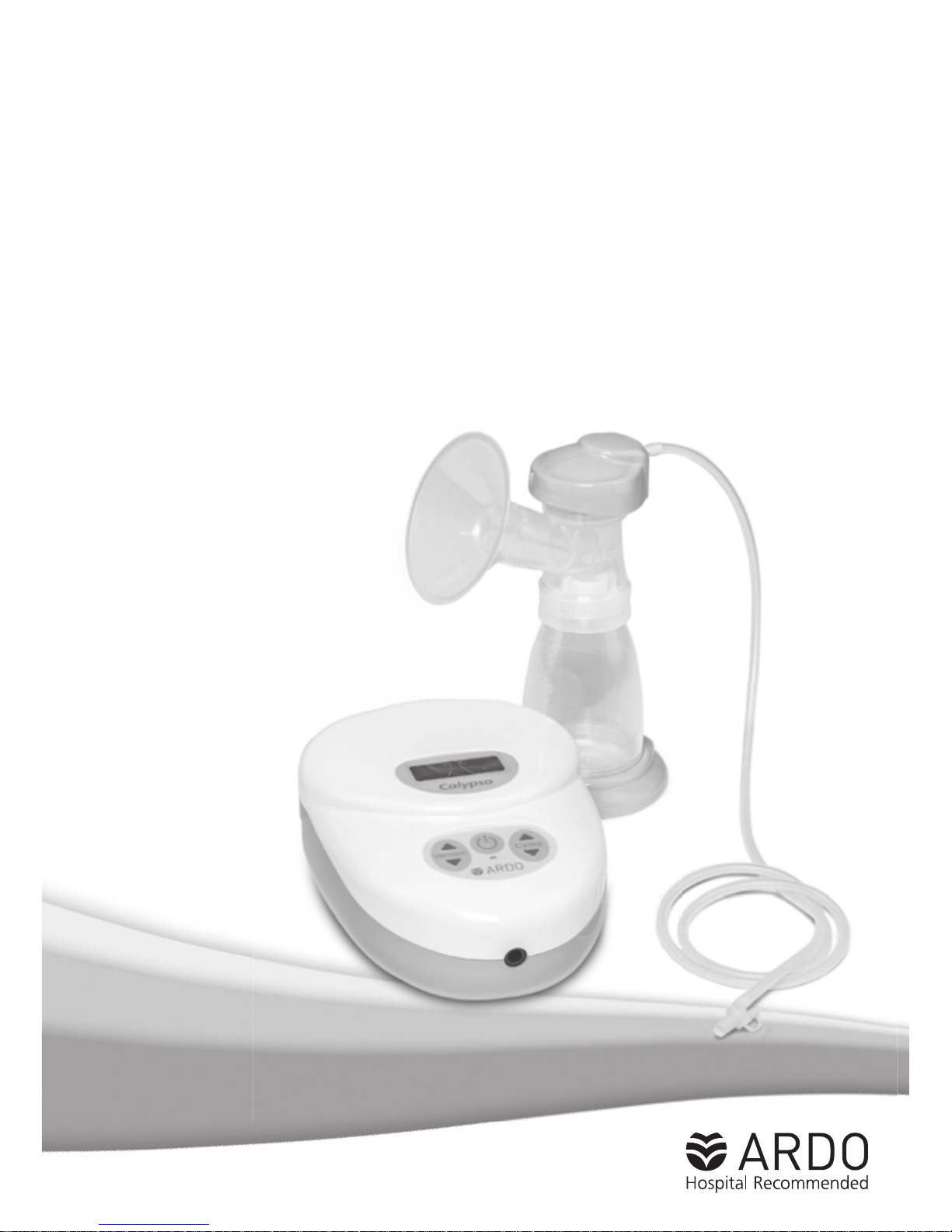

Ardo Calypso User manual

1
CALYPSO,
CALYPSO DOUBLE PLUS,
CALYPSO-TO-GO
Operating Instructions | Bruksanvisning | Käyttöohje | Bruksanvisning | Brugsanvisning |
   | Instrukcja obsługi | Οδηγίες χρήσης | 사용 설명서 | 󱆯󳝘󴸤󲠾

2
Bruksanvisning Calypso, Calypso Double Plus, Calypso-To-Go 10-17
Languages Page
Käyttöohje Calypso, Calypso Double Plus, Calypso-To-Go 18-25
Bruksanvisning Calypso, Calypso Double Plus, Calypso-To-Go 26-33
Brugsanvisning Calypso, Calypso Double Plus, Calypso-To-Go 34-41
Calypso, Calypso Double Plus, Calypso-To-Go 42-49
 

Οδηγίες χρήσης Calypso, Calypso Double Plus, Calypso-To-Go 58-65
사용 설명서 Calypso, Calypso Double Plus, Calypso-To-Go 66-73
󱆯󳝘󴸤󲠾 Calypso, Calypso Double Plus, Calypso-To-Go 74-81
sv
fi
no
da
ru
pl
el
ko
zh
Instrukcja obsługi Calypso Double Plus, Calypso-To-Go 50-57
Operating Instructions Calypso, Calypso Double Plus, Calypso-To-Go 3-9
en

3
Congratulations on your purchase and thank you for
choosing the gentle Calypso breastpump from Ardo. In these
instructions you will find important and useful details which
will make your Calypso experience even more rewarding.
When using electrical devices it is very important to observe
the following safety regulations. Please take the time to
read through the user manual carefully before using the
unit for the first time. Please start with Section 4 - (Start-up
/ Operation) – before you plug your Calypso into the mains
power supply, or install the battery.
Table of contents
1. Product description
2. Important safety details
3. Intended use
4. Start-up / Operation
5. Useful tips
6. Trouble-shooting
7. Accessories
8. Maintenance / Care / Cleaning
9. Guarantee
10. Technical Information
11. Transport / Storage / Disposal

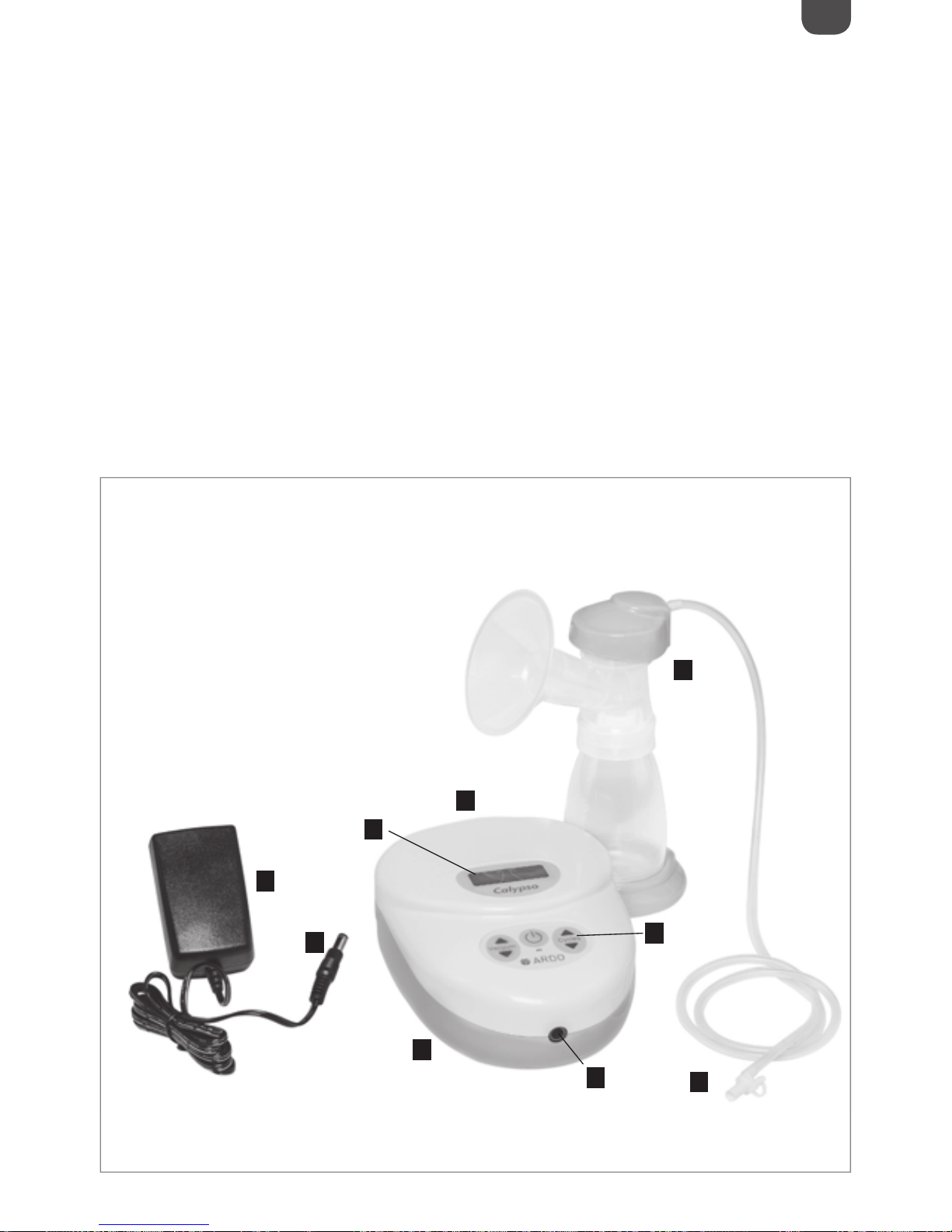

1. Product description
a Calypso breastpump
b Pumpset (see separate User Manual, enclosed)
c Tube connector
d Control panel
e LCD display
f Connection opening for tube connector
g Mains adapter
h Input plug of the mains adapter
i Mains connection
en
a
d
b
e
c
f
i
g
h

4
2. Important safety details
Calypso is an electrically-operated, safe and reliable breastpump for personal use. Calypso is constructed and assembled in
accordance with CE guidelines, and in compliance with safety standards EN 60601-1, EN 60601-1-2, EN ISO 10079-1, EN
60601-1-4 and EN 60601-1-6. For your safety, to avoid damage to the unit and to avoid risk of electric shock, injury or fire,
please observe the following safety regulations.
Safety Regulations
•After use, disconnect the Calypso from the mains power source by pulling the mains plug out of the socket.
•Do not leave old batteries in the unit - danger of leakage.
•When using the unit connected to the mains, remove the batteries.
•In the event of an accidental splash, or the unit falling into water - IMMEDIATELY disconnect it from the
•mains. Do not touch the unit until it has been disconnected.
•The Calypso with the mains adapter is designed for indoor use only. Do not use outdoors.
•Use the unit with the Ardo mains adaptor only.
•Do not open the unit (no user-serviceable parts).
•Calypso is not water-proof.Therefore the unit must never be immersed in water or other fluids, nor used or stored in
places where it might fall into the water. Do not use while in the bath or while taking a shower.
•Keep the mains cable and all accessories away from sources of heat.
•Do not use Calypso in an area where oxygen gas is in use or sprays are being applied.
•Only use a genuine Ardo Pumpset and genuine Ardo parts. See Section 4 (Start-up/Operation) and
•Section 8 (Maintenance / Care / Cleaning).
•Calypso should only be used for the purposes detailed in Section 3 (Application).
•Please keep these Operating Instructions handy for reference at all times.
3. Intended use
The Calypso breastpump system is intended for the expressing of breastmilk, for the collection and storage of breastmilk in
the event of breastfeeding problems, illness or in the absence of either mother or baby. Contra- indications: none known: -
when the unit is used for the correct purpose. Calypso can be used as both a single pump and as a double pump. The unit is
intended for personal domestic use.
Key to symbols
Important information
Warning: General risk points – check with the
Instruction Manual
Please note Operating Instructions
Compliance with Directives MDD 93/42 EEC
/2007/47EC and MDD 2009
Manufacturer
Unit type BF
The unit is subject to the stipulations of WEEE
Directive 2002/96/EC
Class II appliance
IP21 drip-proof protection (Calypso)
IP20 drip-proof protection (mains adapter)
Alternating current
Direct current
Temperature
Air pressure
Relative humidity
Fragile, handle with care
Keep packaging away from heat
Keep packaging away from moisture
0123
IP20
IP21
P
RH
en

5
4. Start-up / Operation
4.1 Controls
4.2 Preparing the pump for use
Mains operation:
• insert the input plug (h) of the mains adapter (g) into the
electrical connection socket (i) of the unit (Fig. 1). The mains
adapter must correspond to the local mains electricity supply.
Important: remove the batteries before plugging the unit into
the mains.
Battery operation:
• Release the latch (Fig. 2) and slide open the battery cover.
•Six LR 06 / AA batteries are required for use. Check the + / -
mark orientation of the batteries (Fig. 3).
•Close the battery compartment cover and secure by re-engag-
ing the latch (Fig. 4). The average working life with a medium
vacuum and cycle setting is approximately 5 hours (Duracell
batteries). We recommend that you use Duracell batteries.
1 2
3 4
Stand-by switch Adjust the suction intensity / vacuum (V) Change the cycle level (C)
Connecting the Pumpset
The Pumpset is an applied part of Calypso. Use of the Pumpset
(b) is detailed in the separate “Ardo Pumpset” Operating
Instructions.
•To use the single Pumpset: attach the tube connector (c) to
the pump (f) (Fig. 5). The second opening of the tube connec-
tor remains closed.
•To use the double Pumpset: Open the second opening of the
tube connector and attach the second Pumpset (Fig. 6).
•Attach the tube connector (c) to the pump (f) (Fig.7).
5 6
7
4.3 Operation
The vacuum (suction intensity) and cycle (suction frequency) can be
adjusted independently of each other. Touching the switches changes
the intensity of the vacuum or the cycle by one level.
•Turn on the pump by touching the stand-by switch (Fig. 8). The
green LED display will light up. Choose the settings which you
find most comfortable.
•Touch the up-arrow to increase the intensity of the vacuum
(suction strength). Touch the down-arrow to reduce the vacuum
(Fig. 9).
•Touch the up-arrow to step-up the cycle (suction frequency).
Touch the down-arrow to reduce the cycle (Fig. 10).
8 9
10
en

6
5. Useful Tips
Adjusting the vacuum (suction intensity)
Expressing milk should never be painful.
•Set the vacuum intensity at the highest level which is comfortable for you.
•Take care that the nipple is centred in the breast shell.
•Check whether the size of the breast shell fits your nipple. (See the “Ardo Pumpset” Operating Instructions).
•In the event that the milk is not released, try a massage – this can be really effective.
•When the Calypso is to be used at a height greater than 1000 meters above sea level (height difference), the choice of
vacuum level must be checked.
•Regulate the vacuum by touching the arrow keys.
•Intensify the vacuum, until you feel a very slight discomfort, and then reduce the intensity of the vacuum until pumping is
comfortable.
Adjusting the cycle (stimulation mode)
•When babies start to breastfeed, they suckle with rapid sucking motions and low suction – this causes the milk to release
by stimulating the milk ejection reflex. This effect can be replicated by starting with a higher cycle level (e.g. 8 bars) and
selecting a weaker vacuum.
•When using the stimulation mode, choose the levels of vacuum and cycle which suit you.
•When the milk begins to release, reduce the cycles by touching the down arrow and strengthen the vacuum by touching
the up-arrow until you find the most comfortable level for you.
•If the milk flow fails, begin again in stimulation mode in order to prompt the milk to release/flow once again.
Encouraging the milk ejection reflex
The milk ejection reflex may occur later when pumping than when breast feeding. The following measures may be helpful.:
•Massage the breast before breast feeding.
•Have a warm drink.
•Relax and think about your baby.
•Gaze at a picture of your baby.
•Apply a warmed compress to the breast before expressing.
•Warm the cone or funnel of the breast shell before applying.
Pumping efficiently
•Massaging the breast while using the breastpump can boost milk production, and promote better flow.
Increasing the quantity of milk
•Use a double Pumpset
•For the first 10 minutes, or until no more milk is flowing, use a double pump i.e. express from both breasts at once.
Afterwards, switch to a single pump. Express from each breast for five minutes while massaging gently.
en

7

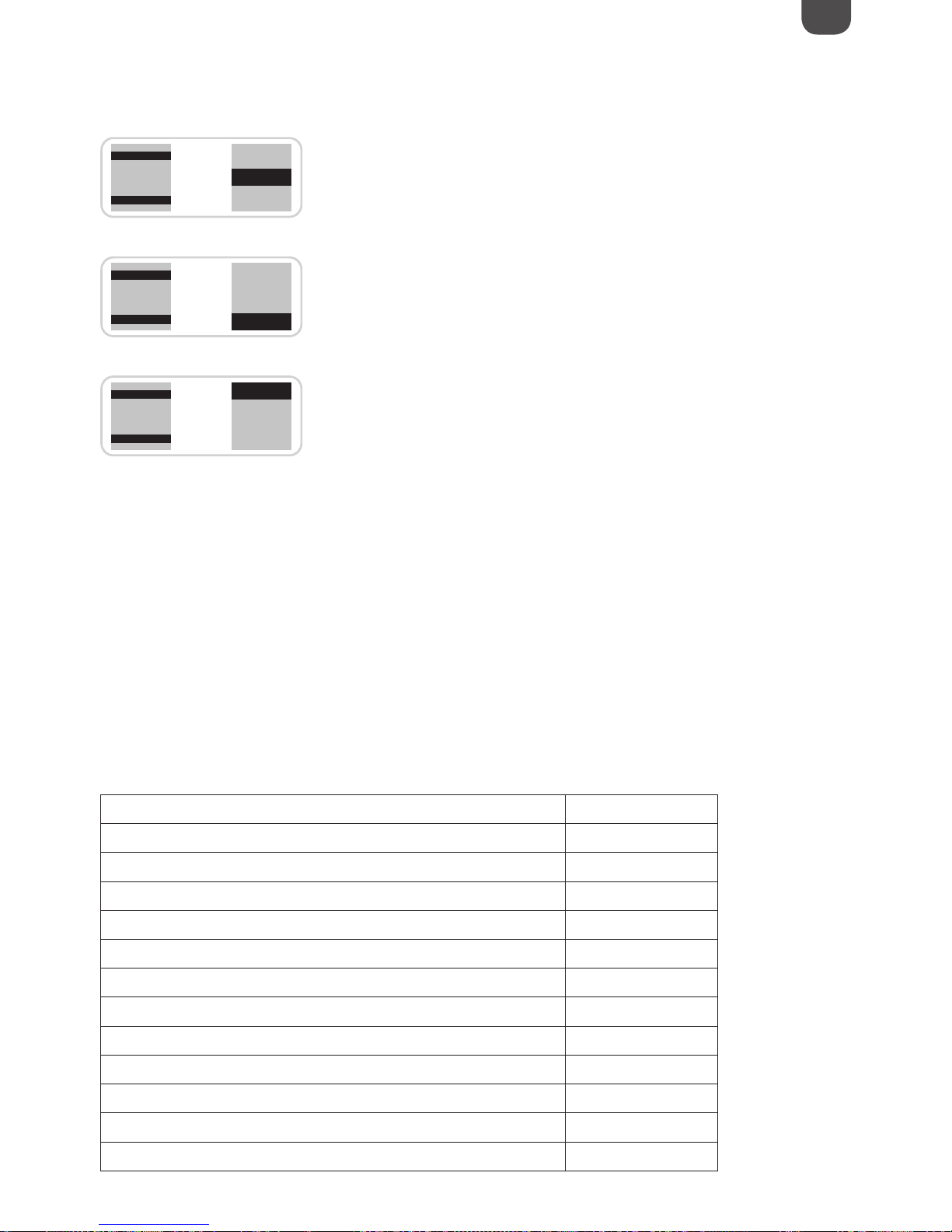

6. Troubleshooting / error indicator
In the event of an error, the LED display flashes green and orange alternately. There are three different error-displays:
7. Accessories
Further possible errors when using the unit
•Weak or absent vacuum:
Disconnect the Pumpset from the unit. Partly close the connector opening (f) with a finger to test the suction.
How ever, be careful not to completely cover the opening. If suction is detectable, then the pump is working. Test
the Pumpset in accordance with the separate Operating Instructions (only use the original Ardo Pumpset).
•The pump is not working / no data on the display:
Check the mains supply; if the unit still does not work it is defective.
• In the event that one of these errors occurs, and is confirmed, the unit must be brought or sent back to the point
of sale. The unit must be checked out by trained service personnel, or by the manufacturer of the pump unit.
Mains adapter 120 V / 60 Hz output 9 V 1.2 A UL 63.00.69
Regulated mains adapter 100-240 V 50/60 Hz, output 9 V 1.4 A Euro 63.00.141
Regulated mains adapter 100-240 V 50/60 Hz, output 9 V 1.4 A UK 63.00.142
Regulated mains adapter 100-240 V 50/60 Hz, output 9 V 1.4 A UL 63.00.143
Regulated mains adapter 100-240 V 50/60 Hz, output 9 V 1.4 A Australia 63.00.144
Regulated mains adapter 100-240 V 50/60 Hz, output 9 V 1.4 A China 63.00.145
UpgradeSet 63.00.41
Nursing-aids bag 63.00.81
Pumpset bag 63.00.83
Calypso bag 63.00.84
Cold bag - complete 63.00.82
Cooling element 63.00.116
Miscellaneous Pumpsets www.ardomedical.com
General error (time-out)
•Switch off the unit and re-start. If the error message appears again, the unit is
defective and cannot be repaired.
Voltage too low
•Weak batteries
•Incorrect or defective mains adapter
Voltage too high
• Incorrect or defective mains adapter
en

8
8. Maintenance / Care / Cleaning
The silicone pot integrated into the Pumpset ("Vacuum Seal" technology) ensures that no breast milk or air can get into the
tube or Calypso unit. The closed system is so secure that it constitutes a barrier against cross contamination (infection).
The unit is maintenance-free; care of the unit and its accessories is limited to inspection and cleaning. There are no user-ser-
viceable parts in the Calypso breastpump. With the exception of the mains adapter (g), there are no spare parts.
Visual inspection by the user before switch-on
•Is the mains adapter (g) undamaged?
•Is the accessory clean, complete and intact?
•Is the accessory correctly attached?
Ignoring these checks, or the cleaning instructions, may lead to risk of infection, electric-shock or damage to the unit.
Cleaning / disinfection
•Calypso breastpump:
Important: Unplug the unit from the mains-adapter before cleaning.
Cleaning at home: As needed, wipe with a damp cloth, commercial detergent may be used. Do not put the unit into the
dish-washer or into a washing-up bowl. It is not possible to clean the pump or the power unit. Attempting to do so may
cause the unit to malfunction or to become contaminated – requiring suitable disposal (see section 11:Transport / Storage
/ Disposal).
Calypso is not waterproof. It complies with Standard IP21.
•Accessory Pumpset: Please read the separate Operating Instructions, Section: Cleaning.
9. Guarantee
Ardo medical AG guarantees its products in respect of materials and manufacturing defects. The guarantee period starts
from the date of purchase. Defective materials will be replaced free-of-charge, during the life of the Guarantee, provided that
the Guarantee has not been voided by unauthorised use or access to the unit.To ensure Guarantee cover, and the flawless
functioning of the unit, the Operating Instructions must be followed, and only Ardo accessories used. The Guarantee is void if
the unit has been opened or tampered with.
General terms and conditions
Ardo medical AG guarantees its products in respect of materials and manufacturing defects. The guarantee period starts
from the date of purchase. Defective materials will be replaced free-of-charge, during the life of the Guarantee, provided that
the Guarantee has not been voided by unauthorised use or access to the unit.To ensure Guarantee cover, and the flawless
functioning of the unit, the Operating Instructions must be followed, and only Ardo accessories used. The Guarantee is void if
the unit has been opened or tampered with.
NB
After 400 hours, the green LED display changes to orange. This means that the additional Guarantee has expired. The Calyp-
so can however still be used without any reduction in performance.
en

9
10. Technical Information
10.3 Compliance
In accordance with Medical Devices Directive MDD 93/42 EEC of 14.7.1993, and
2010, as well as 2007/47/CE, 2006/42/CE, EN 60601-1, EN60601-1-2, EN ISO
10079-1, EN 60601-1-4, EN 60601-1-6, EN60601-1-11
10.4 EMC Test records
See Page 82
10.2 Technical data
Pump dimensions 190 x 130 x 76 mm Classification in accordance with MDD93/42 Class 2a
Mains adapter dimensions 100 x 60 x 90 mm Mains adapter input voltage 230 / 115 Volt AC ± 10 %
Pump weight 0.545 kg Frequency 50 Hz / 60 Hz
Mains adapter weight 0.445 kg Mains adapter output 9 Vdc, 1.2 A
Regulated mains adapter output 9 Vdc, 1.4 A
Double insulated protection class Class II Vacuum range 50 - 330 mbar
Protection level BF Permitted tolerance of the vacuum strength ± 5 %
Life time (excluding normal wear
and tear)
800 hours Operating temperature
Relative humidity
+5 - 40 °C
10 - 93 %
Trasport and storage conditions
Up to 15 weeks From 15 weeks, the numbers given in the “Operating Condi-
tions” apply
Temperature -25 °C to +70 °C +5° C to +40 °C
Relative humidity 10 - 75 % 30 - 75 %
Air pressure 50 - 1060 hPa 700 - 1060 hPa
11. Transport / Storage / Disposal
For the transport and storage of your Calypso unit, we recommend using the original packaging.We further recommend separate storage
protected from UV (e.g. sunlight/halogen lamps), heat and dust (Avoid storing or using the unit on a heater. Do not store or use the unit in a
dusty environment. Failure to observe these instructions can lead to the malfunction of the unit).
Disposal
The unit may be returned to the manufacturer, or be dismantled and recycled (as metal or plastic) in an environmentally-friendly manner,
through a recycling firm specialising in electrical goods. There are no special or increased risk factors.
10.1 Versions
Calypso 63.00.194 en-de-fr-it-es-nl Calypso Euro mains plug
63.00.195 en-se-fi-el-ru-zh Calypso Euro mains plug
63.00.232 en-de-fr-it-es-n Calypso UK mains plug
63.00.233 en-se-fi-el-ru-zh Calypso UK mains plug
63.00.234 en-de-fr-it-es-nl Calypso UL mains plug
Calypso Double Plus 63.00.197 en-de-fr-it-es-nl Calypso Double Plus Euro mains plug
63.00.198 en-se-fi-el-ru-zh Calypso Double Plus Euro mains plug
63.00.237 en-de-fr-it-es-nl Calypso Double Plus UK mains plug
63.00.238 en-se-fi-el-ru-zh Calypso Double Plus UK mains plug
63.00.239 en-de-fr-it-es-nl Calypso Double Plus UL mains plug
Calypso-To-Go 63.00.63 universal Calypso-To-Go Euro mains plug
63.00.65 universal Calypso-To-Go UK mains plug
63.00.66 universal Calypso-To-Go UL mains plug
en
012
3
0123

10
Bruksanvisning Calypso, Calypso Double Plus, Calypso-To-Go 10-17
Languages Page
Käyttöohje
Calypso, Calypso Double Plus, Calypso-To-Go
18-25
Bruksanvisning
Calypso, Calypso Double Plus, Calypso-To-Go
26-33
Brugsanvisning
Calypso, Calypso Double Plus, Calypso-To-Go
34-41
Calypso, Calypso Double Plus, Calypso-To-Go
42-49
 


Οδηγίες χρήσης
Calypso, Calypso Double Plus, Calypso-To-Go
58-65
사용 설명서
Calypso, Calypso Double Plus, Calypso-To-Go
66-73
󱆯󳝘󴸤󲠾
Calypso, Calypso Double Plus, Calypso-To-Go
74-81
sv
fi
no
da
ru
pl
el
ko
zh
Instrukcja obsługi
Calypso Double Plus, Calypso-To-Go
50-57
Operating Instructions
Calypso, Calypso Double Plus, Calypso-To-Go
3-9
en
sv
