Argo ARKE TOWER User manual

12
V 03/19
ARKE TOWER
This product is only suitable for correctly-insulated
environments or for occasional use.
OPERATING INSTRUCTIONS
Read the instructions carefully before operating the appliance or carrying out maintenance
operations.
Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or
damage. Keep these instructions in a safe place for future reference.
TOWER FAN HEATER
EN

13
V 03/19
GENERAL SAFETY INFORMATION
•Use this fan heater only as outlined in this manual. Any other use
not recommended by the manufacturer may cause fire, electric
shock or injury to persons.
•Make sure that the type of mains power complies with the electrical
requirements of the fan heater (220-240 V~/50 Hz).
•This appliance can be used by children of at least 8 years of age
and by people with reduced physical, sensory or mental abilities, or
who lack sufficient experience or the necessary knowledge,
provided that they are supervised or have been instructed on how
to use the appliance safely and understand the hazards related to
its use.
•Children must not be allowed to play with the appliance.
•Cleaning and maintenance operations normally carried out by the
user must not be performed by unsupervised children.
•This product is not a toy. Children under the age of 3 years must
be kept out of reach unless properly supervised, to ensure that
they do not play with the appliance.
•Children aged between 3 and 8 years must only be able to turn the
appliance on/off, provided that the appliance has been placed in its
normal operating position, that instructions have been given on
how to use the equipment safely, and that its risks have been
understood.
•Children aged between 3 and 8 years must not be able to plug in,
adjust, clean or perform any maintenance on the appliance.
•WARNING: Certain parts of this product may become very hot and
cause burns. Special care should be taken when children and
vulnerable people are nearby.
•To avoid the risk of accidentally resetting the thermal protection,
this appliance must not be powered through an external switching
device, such as a timer, or connected to a circuit that is switched
on and off by the utility.
•WARNING: do not use the fan heater with a controller or any
other device that activates the appliance automatically, as
there may be a risk of fire if the fan heater is covered or
incorrectly positioned.
•Do not restrict the air inlet and outlet grilles.
•The appliance heats up significantly when running and can cause
burns. Avoid unprotected contact with the hot surface.

14
V 03/19
•Keep flammable materials, such as furniture, cushions, blankets,
paper, cloths, curtains and similar items at least 1 m away from the
front, sides and back of the appliance.
•Disconnect the mains power when the appliance is not in use or
during cleaning.
•Avoid using the fan heater in dusty environments or in the
presence of flammable vapours (e.g. in workshops or garages).
•Do not place anything on the product; avoid placing wet garments
on the fan heater.
•Use the heater in a well-ventilated area.
•Avoid placing fingers or foreign objects in the air inlet/outlet grilles,
as this may lead to electric shock or fire and may damage the
appliance.
•To avoid the risk of fire, do not block the grilles or tamper with
them in any way while the fan heater is in use.
•Do not use the appliance if the power cable or plug are
damaged. Contact a service centre to replace a damaged power
cable, so as to avoid any safety risks.
•Do not use the fan heater if it has fallen from a certain height or if it
has been damaged in any way. Contact a service centre to check
the fan heater or make any necessary electrical or mechanical
repairs.
•The most common cause of overheating is the build-up of dust in
the appliance. Remove accumulated dust by removing the plug
and cleaning the grilles using a vacuum cleaner.
•Do not use any abrasive products to clean the appliance. Clean it
using a damp cloth (not wet) rinsed with soapy water. Remove the
plug from the socket before performing any maintenance.
•To disconnect the fan heater, turn the switch to OFF and remove
the plug from the socket. Pull on the plug only. Do not pull on the
cable when turning off the fan heater.
•Do not place any objects on the cable and also avoid bending the
cable.
•Using extension leads is not recommended as they may overheat
and cause a fire hazard. Never use a single extension lead to
operate multiple appliances.
•Do not immerse the power cable, plug or any other part of the
appliance in water or other liquids.
•Do not touch the plug with wet hands.

15
V 03/19
•Do not place the fan heater above or near another heat source.
WARNING: AVOID COVERING THE FAN HEATER TO PREVENT
IT FROM OVERHEATING.
The symbol below signals this warning:
•The fan heater may cause the risk of fire if, while operating, it is
covered or comes into contact with flammable material including
curtains, drapery, blankets, etc. KEEP THE FAN HEATER AWAY
FROM THESE MATERIALS.
•Do not connect the fan heater to the power supply until it has been
correctly assembled or positioned.
•Do not run the cable under carpets. Do not cover the cable with
blankets, carpets or similar materials. Place the cable away from
busy areas and where it cannot accidentally be pulled out.
•Do not operate the fan heater in close proximity to bathtubs,
showers, washbasins or pools.
•Do not position the fan heater beneath a power socket.
•Do not operate the appliance outdoors.
•Upon initial start-up, the fan heater may emit a slight, harmless
smell. This smell is a normal effect of the initial heating up of the
internal heating elements, and should not recur subsequently.
WARNING:
THE ON/OFF SWITCH IS NOT THE ONLY METHOD OF
DISCONNECTING THE MAINS POWER.
ALWAYS UNPLUG THE APPLIANCE DURING MAINTENANCE
OPERATIONS, WHEN MOVING IT OR WHILE IT IS NOT IN USE.
•A fan heater contains parts that generate electrical arcs and
sparks. It must not be used in potentially dangerous areas such as
those subject to the risk of fire or explosion, or areas filled with
chemical substances or humidity.
•Do not use the appliance on soft surfaces such as beds, where the
grilles may get covered. Always rest the fan heater on a flat and
stable surface when it is running, so as to prevent it from toppling
over. Arrange the cable so that neither the fan heater or other
objects can be on top of it.
•Always unplug the appliance when it is not in use.
•Turn the appliance off if unattended, in order to prevent accidents.

16
V 03/19
•In the event of any anomalies (abnormal noise or a strange smell),
immediately turn off the appliance; do not attempt to repair it but
take it to your local service centre.
ASSEMBLY INSTRUCTIONS

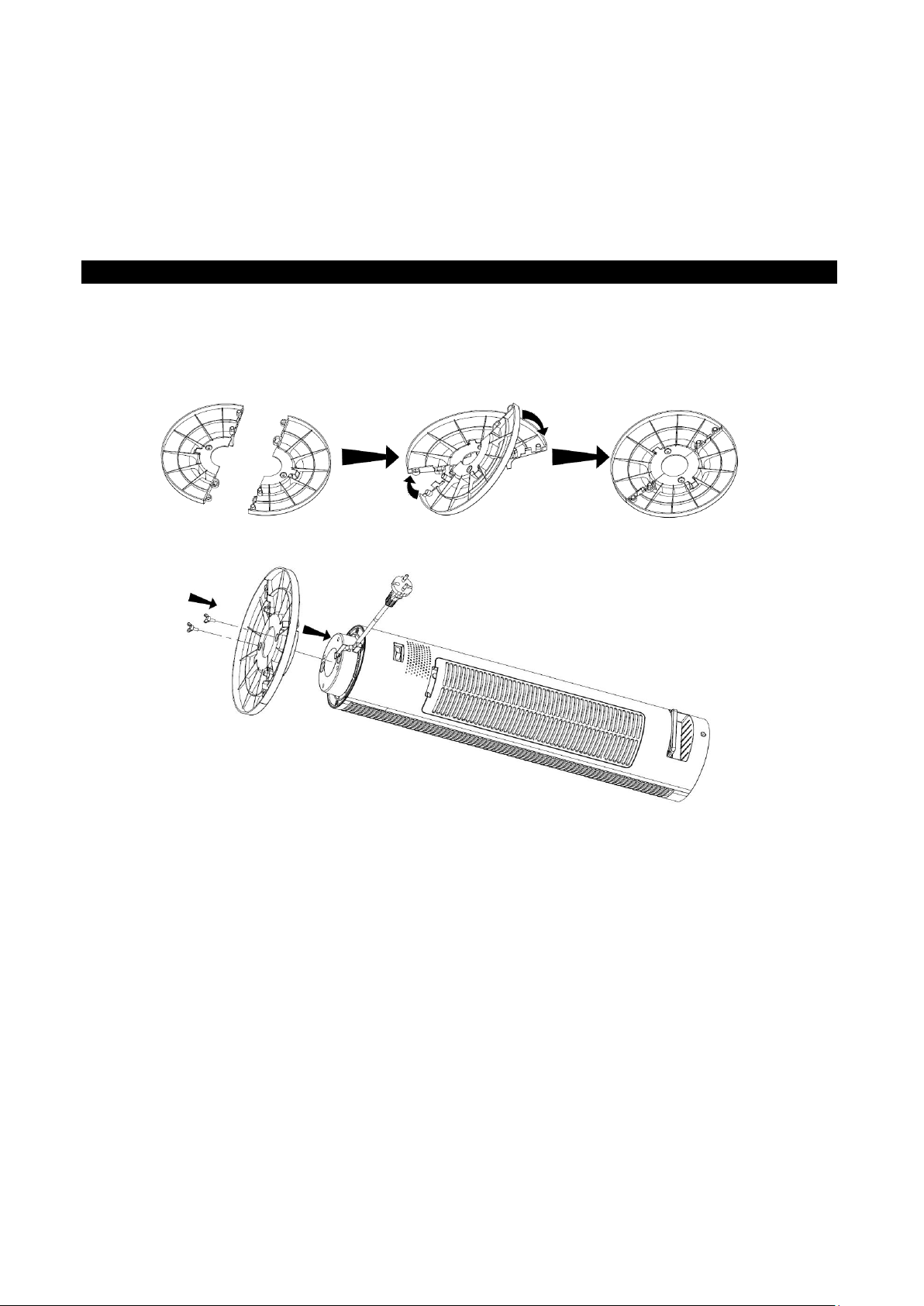

Open the box and remove the parts of the appliance: body, base and remote control unit.
Combine the two halves of the base, as shown in the diagram.
Insert the cable into the central hole.
Insert the base onto the lower part of the appliance and tighten the 4 screws.
Stand the appliance up vertically on a level surface before switching on.

17
V 03/19
DESCRIPTION OF PARTS
1. Soft touch control panel
2. Hot air outlet grille
3. Base
4. Handle and remote control-holder
5. Air intake grill
6. Grille with filter
7. On/off switch
8. Power chord
CONTROL PANEL DISPLAY and REMOTE CONTROL
Front view
Rear view

18
V 03/19

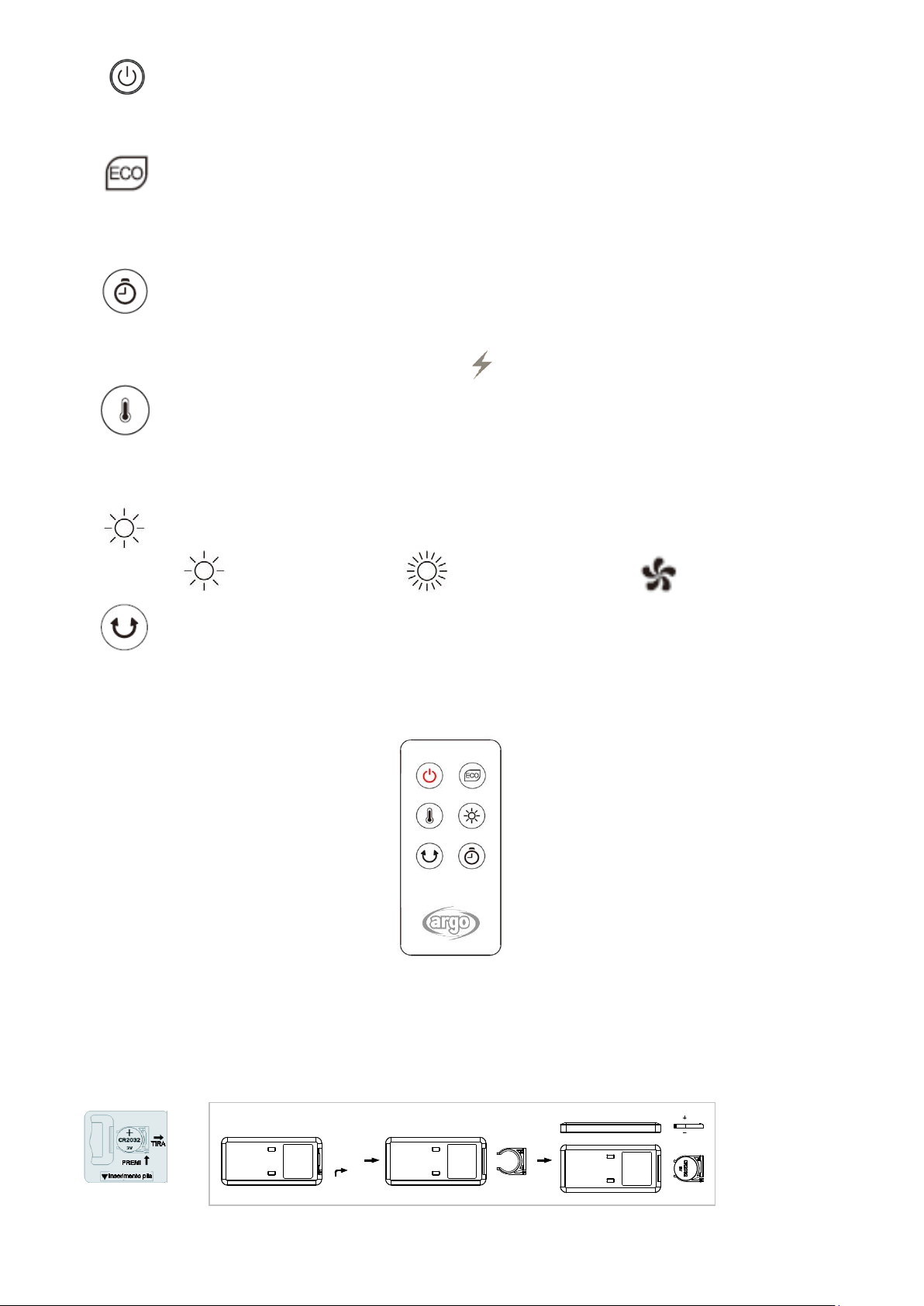

ON/OFF BUTTON: Press this button to turn ok/off the fan heater.
ECO BUTTON: press this button to activate/deactivate ECO SMART function.
If the room temperature is below 18°C the fan heater will work in high heating
mode(2000W) when the temperature reach 18°C the fan heater will work in low
heating mode (1000W) when the room temperature is 25°C the fan heater stops
working and enter in stand-by mode. When room temperature decreases of 1°C
the fan heater will star to work again in low heating mode to reach again 25°C.
TIMER BUTTON: in working status you can select the timer off function. The timer
off can be setted (1-2-4-8 hours). If timer function is on the LED of the timer is on,
if no timer is sed the timer LED is off.
TEMPERATURE BUTTON: Select to activate countinuos mode, the fan
heater will work continuously until room temperature is 35°C. Press again this
button to select default temperatures (22°C-26°C-30°C). When the selected room
temperature is reached the fan heater will enter stand-by mode, when roome
temperature decreased of 1°C the fan heater will start to work again.
MODE BUTTON: Press this button to select the 3 different working modes:
Low heating
(1000W)
High heating
(2000W)
FAN ONLY
(32W)
SWING BUTTON: Press this button to activate/deactivate the swing function
REMOTE CONTROL
Use Lithium/Manganese button cells, model no. CR2032 -3 V, conforming to Battery Directive no. 2006/66/EC and
modification by Dir.no 2013/56/EU (supplied with the remote control).
HOW TO INSERT / REMOVE THE REMOTE CONTROL BATTERIES (refer to the diagram below)
Open the battery cover at the back of the remote control (press the back and pull the flap). Insert the battery into the slot,
making sure you respect the polarities. Put the cover back onto the remote control.

19
V 03/19
HOW TO USE THE FAN HEATER
Place the fan heater in a vertical position on a flat and stable surface. Connect the power cable to a suitable electric socket
(220-240V~/50Hz). Use the handle to move the appliance.
SWITCHING ON/OFF
Put the on/off button (on the rear) in the “I” position. When the appliance emits a “beep”, this means that the fan heater is
ready for use and enters stand-by mode. Press the button on the control panel or on the remote control to switch it
on. To switch off the fan heater, press the button again, let the unit cool down for about 30 seconds and switch the
button on the rear to “0” to turn the fan heater off.
HEATING
Press the button on the control panel or on the remote control to select the low (1000W) or high (2000W) heating
function. The LED in low function and in high function, will appear on the display. Select to activate the fan
only mode.
TIMER
When the fan heater is operating, press the button on the control panel or on the remote control to set the timer.
Select the switch-off timer (1-2-4-8 h). When the set timer expires, the fan heater switches to stand-by mode.
TEMPERATURE REGULATION
The temperature can be regulated via the remote control or the control panel; press the button.
In CONTNUOUS mode the heater works without interruption for a maximum of 12 hours, or until room temperature
is 55°C, the It will enter stand-by mode. It is not possible to restart the heater until the room temperature is below 45°C.
The heater can also work until room temperature reach one of the default temperature 22°C-26°C-30°C. When the
selected room temperature is reached the fan heater will enter stand-by mode, when roome temperature decreased of
1°C the fan heater will start to work again.
ECO SMART FUNCTION
When the unit is operating, press the “ECO” button to activate the ECO SMART mode: the matching LED will light on the
display. In this mode the heating power is adjusted automatically,
- When the room temperature is lower than the set temperature by a maximum of 1°C, the fan heater will operate at
low power (1000W).
- When the room temperature is lower than the set temperature by more than 1°C, the fan heater will operate at high
power (2000W).
- When the room temperature is equal to the set temperature, the fan heater goes into stand-by mode and switches
back on when the room temperature drops by at least 1°C.
The appliance is equipped with an anti-tipping device which interrupts operation when the product is tilted. Do not
position the appliance on its side or upside down.
INFORMATION FOR THE CORRECT DISPOSAL OF BATTERIES IN ACCORDANCE WITH EUROPEAN DIRECTIVE
2006/66/EC AND CHANGES INTRODUCED BY DIRECTIVE 2013/56 / EU
Replace batteries when they are depleted. At the end of their life, batteries must be disposed of separately from unsorted
waste. They must be taken to designated recycling centres or returned to a retailer providing this service. Separate
disposal of batteries prevents potential negative effects on the environment and human health due to inadequate disposal,
and also allows their constituent materials to be recovered and recycled, resulting in significant savings in terms of energy
and resources. In order to highlight the obligation regarding separate disposal, the battery carries the crossed-out dustbin
symbol. Illegal disposal of the product by the user may lead to administrative sanctions being applied as per current
regulations.

20
V 03/19
CAUTION: ALWAYS UNPLUG THE APPLIANCE BEFORE CLEANING OR MAINTENANCE OPERATIONS.
IMPORTANT: DO NOT IMMERSE THE CERAMIC FAN HEATER IN WATER
Cleaning the outside surface of the appliance
Use a soft cloth to remove any dust from the fan heater.
If the fan heater is excessively dirty, use a soft cloth dampened with water and neutral detergent at a temperature below
50°C. Leave the fan heater to dry completely before using it again.
Do not use corrosive detergents or solvents such as petrol. Do not wash the appliance with water. When cleaning the
appliance, do not use oils, chemical substances or other items that may damage the surface.
Use a vacuum cleaner to remove dust from the air inlet/outlet grilles.
STORAGE
If the appliance is not used for prolonged periods, it must be stored together with this manual in its original packaging, in a
cool and dry place.
MAINTENANCE AND STORAGE

21
V 03/19
INFORMATION REQUIREMENTS FOR ELECTRIC LOCAL SPACE HEATERS
Table 2 - Annex II - Ecodesign requirements - Requirements for product information -
COMMISSION REGULATION (EU) 2015/1188 of 28 April 2015 implementing Directive 2009/125/EC of the European
Parliament and of the Council with regard to ecodesign requirements for local space heaters
Model identifier(s): ARKE TOWER
Item
Symbol
Value
unit
Item
unit
Heat output
Type of heat input, for electric storage local space
heaters only (select one)
Nominal heat output
Pnom
2,0
kW
manual heat charge control, with integrated
thermostat
[NA]
Minimum heat output
(indicative)
Pmin
0,944
kW
manual heat charge control with room
and/or outdoor temperature feedback
[NA]
Maximum continuous
heat output
Pmax,c
2,055
kW
electronic heat charge control with room
and/or outdoor temperature feedback
[NA]
Auxiliary electricity
consumption
fan assisted heat output
[NA]
At nominal heat output
elmax
NA
kW
Type of heat output/room temperature control (select
one)
At minimum heat output
elmin
NA
kW
single stage heat output and no room
temperature control
[no]
In standby mode
elsb
0,00026
kW
Two or more manual stages, no room
temperature control
[no]
with mechanic thermostat room temperature
control
[no]
with electronic room temperature control
[yes]
electronic room temperature control plus
day timer
[no]
electronic room temperature control plus
week timer
[no]
Other control options (multiple selections possible)
room temperature control, with presence
detection
[no]
room temperature control, with open
window detection
[no]
with distance control option
[no]
with adaptive start control
[no]
with working time limitation
[no]
with black bulb sensor
[no]
Contact details :
ARGOCLIMA SPA - Via A. Varo,35 - Alfianello (BS) - ITALY -
www.argoclima.com
The seasonal space heating energy efficiency of all local space heaters except commercial
local space heaters, ηS(%)
37

22
V 03/19
INFORMATION ON THE CORRECT DISPOSAL OF THE PRODUCT pursuant to Art. 26 of (Italian) Legislative Decree no. 49
of 14/03/14, “IMPLEMENTATION OF DIRECTIVE 2012/19/EU ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT”
At the end of its useful life, this appliance must not be disposed of together with household waste. We call your attention to the
crucial role played by the consumer in the reuse, recycling and other forms of recovery of such waste.
The dismantled appliance, with its components collected separately, must be delivered to the local waste disposal facility or
returned to the dealer free of charge when purchasing a new equivalent appliance.
Sorted disposal of electric and electronic equipment prevents potentially negative consequences on the environment and human
health due to improper waste disposal, and also allows the constituent materials to be recovered and recycled, with significant
savings in terms of energy and resources.
In order to highlight the obligation regarding separate disposal of these devices, the appliance carries the crossed-out wheeled bin
symbol.
www.argoclima.com
