Argo HI FLOOR RAY User manual

V 09/16
10
OPERATING INSTRUCTIONS
Read the instructions carefully before operating the panel or carrying out maintenance operations.
Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damages.
Store these instructions.
MICATHERMIC PANEL HEATER
EN

V 09/16
11
GENERAL SAFETY INFORMATION
Use this panel heater only as outlined in this manual. Any other
use not recommended by the manufacturer may cause fire, electric
shock or injury to persons.
Ensure that the mains voltage complies with that indicated on the
panel heater data plate (220-240V/50Hz).
This appliance can be used by children aged from 8 years and
above and people with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Remove the panel from its packaging and check that it is in good
condition before use. Keep any plastic bags away from children.
Check the cord and plug before using the panel to ensure that
they have not been damaged during transport.
This product is not a toy. Children of less than 3 years should be
kept away unless continuously supervised.
Children aged from 3 and less than 8 years shall only switch
on/off the appliance provided that it has been placed or installed in
its intended normal operating position and they have been given
instruction concerning use of the appliance in a safe way and
understand the hazards involved.
Children aged from 3 years and les than 8 years shall not plug in,
regulate and clean the appliance or perform user maintenance.
CAUTION - Some parts of this product can become very hot
and cause burns. Particular attention has to be given where
children and vulnerable people are present.
WARNING: In order to avoid hazard due to inadvertent resetting of
the thermal cut-out, this appliance must not be supplied through
and external switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by the utility.
WARNING: DO NOT USE THE PANEL WITH A CONTROLLER
OR ANY OTHER EXTERNAL DEVICE THAT ACTIVATES THE
APPLIANCE AUTOMATICALLY, AS THERE MAY BE A RISK OF

V 09/16
12
FIRE IF THE FAN HEATER IS COVERED OR INCORRECTLY
POSITIONED.
Disconnect the mains power when the appliance is not used or
for cleaning operations.
To disconnect the panel heater, push the switches to OFF and
remove the plug from the socket. Pull on the plug only. Do not pull
the cord.
Avoid placing fingers or foreign objects in the air inlet/outlet
grilles, as this may lead to electric shock or fire and may damage
the panel. To avoid the risk of fire, do not block the grilles or tamper
with them in any way while the panel heater operates.
Do not use the panel if the cord or plug is damaged. If the power
supply cord is damaged, it must be replaced by the manufacturer,
dealer or a similarly qualified person so as to avoid any safety risks.
Do not place any objects on the cord and do not bend it. During
operation, the cord must be entirely unwound.
It is not advisable to use extension cords, as these may overheat
and cause the risk of fire. Do not use a single extension cord to
operate more than one panel.
The panel heater heats up significantly during operation. Risk of
burn. To avoid injury, do not allow skin to come into contact with a
hot surface. Use the handle to move the panel. Keep flammable
materials such as furniture, cushions, blankets, paper, clothes,
curtains and similar at a distance of 1 metre.
Do not immerse the cord, plug or any other element of the panel
in water or other liquids.
Do not touch the plug or panel with wet hands.
Avoid using the panel heater in dusty environments or in the
presence of flammable vapours (e.g. in workshops or garages).
Do not place the panel heater above or near another heat
source.
WARNING: AVOID COVERING THE PANEL HEATER TO
PREVENT IT FROM OVERHEATING.
The symbol below signals the above warning:

V 09/16
13
The panel heater may cause risk of fire if, while in operation, is
covered by or comes into contact with flammable material including
curtains, drapery, blankets, etc. KEEP THE PANEL HEATER
AWAY FROM THESE MATERIALS.
Do not insert and avoid accidental insertion of any external objects
into the ventilation or discharge outlets as this may lead to electric
shock, fire or damage the panel.
A panel heater contains parts that generate arcs or sparks. It must
not be used in potentially dangerous areas such as areas at risk of
fire or explosion, or areas loaded with chemical substances or
humidity.
Do not use the panel on soft surfaces such as beds, where the
grilles may be covered. Always stand the panel heater on a flat,
stable surface when in operation, in order to prevent it from
overturning. Arrange the cord in such a way that the panel heater
and other objects do not rest on it. Do not run the cord under
carpets. Do not cover the cord with blankets, carpets or similar
materials. Place the cord far away from busy areas, or in a place
where it cannot be accidentally pulled-out.
This panel cannot be used in bathrooms, laundry rooms, next to a
shower or swimming pool or in similar indoor environments. Never
position the panel where it may fall into a bath or other containers of
water.
Never position the panel on a wet floor.
In any case, the adjustment knobs must never be accessible by
anyone in a bath or shower.
Do not position the panel heater below an electric socket.
The socket must be earthed.
Do not allow the electric cord to touch the mesh cover when the
panel is hot or in operation, in order to avoid the high temperatures
ruining the cord.
Do not operate the panel heater outdoors. Do not use the panel in
front of or near an open window.
Upon initial start-up, the panel heater may emit a slight, harmless
smell. This smell is a normal effect of the initial heating up of the
internal heating elements, and should not recur later on.
Do not attempt to repair, disassemble or modify the panel. The
panel does not contain parts that can be repaired by the user.

V 09/16
14
Turn the switch off and unplug before carrying out any
maintenance work or moving the panel heater. Always unplug from
the socket when the panel is not in use.
WARNING: ALWAYS UNPLUG WHEN CARRYING OUT
MAINTENANCE WORK OR MOVING THE PANEL HEATER.
Do not place anything on the panel; avoid placing wet garments
on the panel heater.
Turn the appliance off if unattended in order to avoid accidents.
If the panel is not used for prolonged periods, disconnect the
plug, replace the panel in its box and store it in a dry, ventilated
place.
Ensure that the air inlet /outlet are not close to walls or curtains
when the panel is in use, so as to avoid obstructing the panel and
hampering its efficiency.
Should you hear an abnormal noise or detect an unusual smell
when using the panel, cease use and unplug immediately.
Do not use the panel in rooms measuring less than 4 m².
Do not expose the elderly or children to a continuous flow of air.
Do not use the panel if it has been dropped or damaged.
WARNING:
THE ON/OFF SWITCH IS NOT THE ONLY MEANS OF
DISCONNECTING POWER. IF NOT IN USE, FOR MOVING OR
MAINTENANCE OF THE PANEL, SIMPLY REMOVE THE PLUG
FROM THE SOCKET.

V 09/16
15

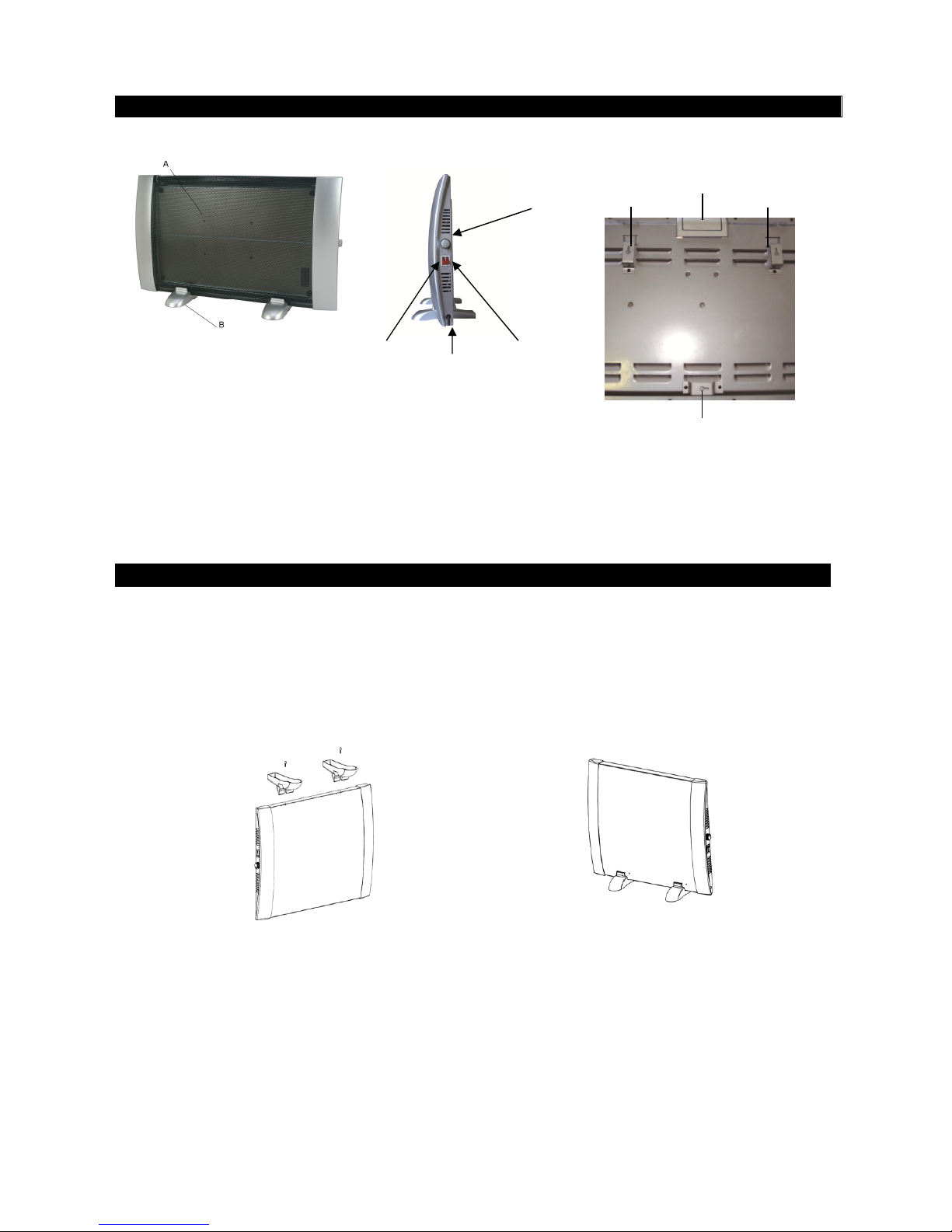

DESCRIPTION OF PARTS
A. Radiating body
B. Feet
C. Room temperature regulation thermostat
D. Power selector I – power 500W
E. Power selector II – power 1000W
F. Power cord
G. Carry handle
H. Rear brackets for wall mounting
I. Rear bracket for wall mounting
HOW TO INSTALL THE APPLIANCE
The panel heater can be used on the floor, after assembling the feet, or alternatively it can be wall-mounted using the
specific accessories supplied.
ASSEMBLING THE FEET SUPPLIED
A. Floor-mounting: how to assemble the feet supplied
The panel is packed without feet. These must therefore be assembled before using the appliance.
Assemble the feet as shown in the figure: upturn the panel, insert the feet and tighten the screws. Now return the
panel to an upright position.
H
H
I
G
SIDE CONTROL PANEL BACK
FRONT
C
ED
F

V 09/16
16

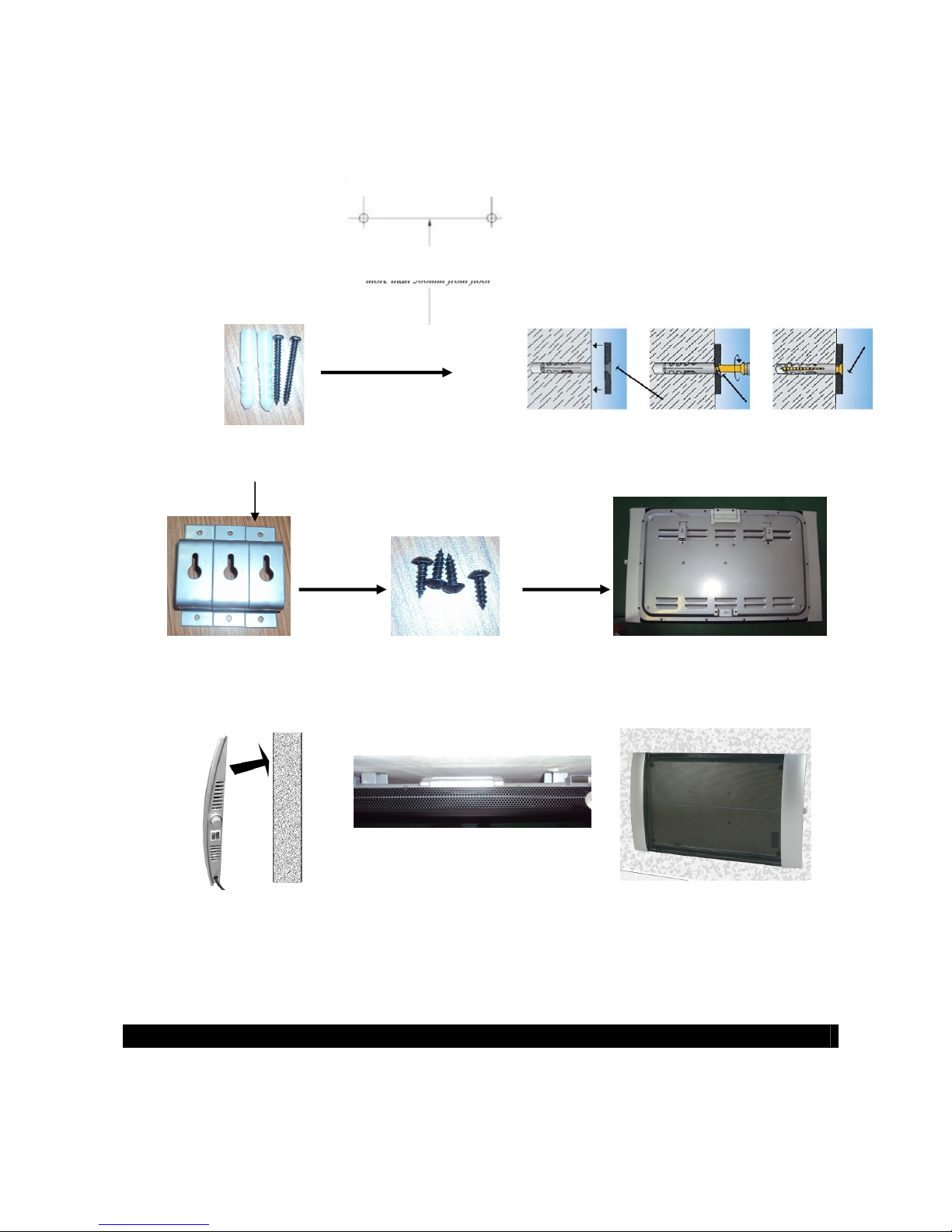

B. Wall-mounting: how to assemble the panel brackets and mount it to the wall
The panel packaging contains all the accessories necessary for wall-mounting.
To wall-mount, proceed as follows:
1. Mark out on the wall the points to be drilled for Fischer rawlplug insertion. The holes must be 332 mm apart, as
shown in the figure.
2. Drill the holes in the wall and insert the Fischer rawlplugs. The Fischer
rawlplugs must be placed at a height of at least 500 mm from the ground.
Screw up the screws supplied into the rawlplugs.
3. Fit the wall-mounting brackets to the back of the panel using the screws supplied.
4. Mount the panel by inserting the screws fixed to the wall into the rear brackets. Lower the panel to allow it to fit
perfectly into a straight, stable position. The lower bracket serves as further support only.
It is important that the panel is assembled straight.
APPLICATION USING THE REAR
SUPPORTS, SEEN FROM ABOVE
INSTALLATION COMPLETE
HOW TO USE THE PANEL HEATER
Choose a suitable place to position the panel heater, considering the general safety warnings given in the first part of this
manual. Only use this panel in an upright position.
Insert the plug into the electrical socket, ensuring that voltage is compliant with that specified on the panel data plate
Min. 500 mm
332 mm

V 09/16
17
(220-240V/50Hz).
Turn the side dial of the thermostat to the maximum (max. temperature).
Now choose the power level desired by using the switches as appropriate:
If both switches are in the ‘0’ position, i.e. off, the panel is off.
By turning the switches to ‘I’ or ‘II’ or ‘III’, the panel turns on and operates at ‘minimum’ or ‘medium’ or ‘maximum'
level. The red switch in the on position, lights up.
.
Room temperature can be regulated by rotating the thermostat clockwise to increase or anticlockwise to
decrease temperature.
When turning the panel on, we recommend turning the thermostat dial to maximum: then, when a pleasant room
temperature has been obtained, turn the thermostat dial anticlockwise until the light of the active switch goes out. This
way the panel will maintain that room temperature constant.
OVERHEATING SAFETY DEVICE
In the event of overheating, the panel protection system automatically disables the heating elements, turning the
appliance off.
To understand whether it has turned off due to intervention by this system, rotate the thermostat switch to maximum to
verify that the thermostat has not simply turned the convector off due to having reached the set temperature.
Should the appliance not return to normal operation due to the safety device having intervened:
1. turn the panel off;
2. remove any cause of overheating (e.g. obstacles on the air outlet or intake grille, dust deposits in the appliance, etc.);
3. leave the appliance to cool for 15 – 20 minutes;
4. turn the panel on again.
CLEANING THE PANEL HEATER
Always unplug and leave the panel to cool before cleaning.
Use a damp cloth to clean the panel exterior and remove dust. Leave the casing to dry before using the appliance
again.
Do not allow water to enter the panel.
Do not use benzene, solvents or abrasive compounds to clean the panel, as these may damage the casing.
Use a vacuum cleaner to remove dust from the air inlet/outlet grilles.
Ensure that the panel is dry before inserting the plug.
Do not use metal tools to clean the panel. Any metal fragments that may detach may come into contact with the
panel’s electrical components and cause a short-circuit.
In the event of malfunctions or damages, always contact an authorised service centre.

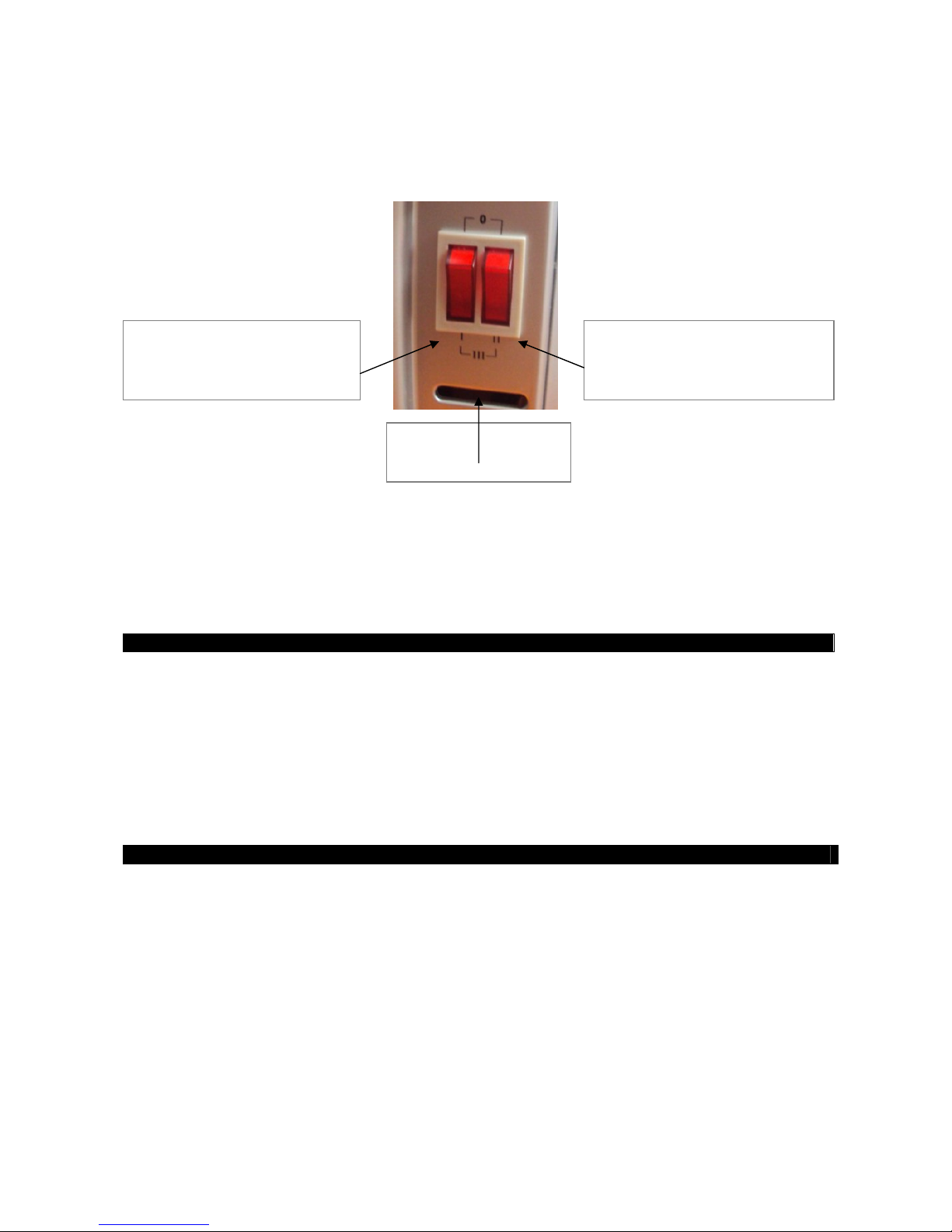

By setting the left-hand switch to
the ‘I’ position and leaving the
right-hand switch set to ‘0’, minimum
power is selected: 500 W
By setting both switches to
the ‘III’ position, maximum
power is selected: 1500 W
By setting the right-hand switch to
the ‘II’ position and leaving the left-
hand switch set to ‘0’, medium power
is selected: 1000 W

V 09/16
18
STORING THE PANEL HEATER
If the panel is not used for prolonged periods, it must be stored together with this manual in its original packaging, in a
cool and dry place. Never put the appliance away when still hot. Always wait for it to cool down.
INFORMATION ON PROPER DISPOSAL OF THE APPLIANCE IN COMPLIANCE WITH EUROPEAN
DIRECTIVE 2012/19/EU.
When this appliance reaches the end of its useful life, it must not be disposed of together with household waste
but must be delivered to appropriate separate waste disposal plants or to dealers that provide similar service.
Separate waste disposal of electrical and electronic appliances prevents possible negative effects on the
environment and human health resulting from inadequate disposal, and also allows for recovering and recycling
the materials comprising the appliances to ensure significant saving in terms of energy and resources. The
separate disposal obligation is underlined by the crossed-out dustbin symbol appearing on the product. Illegal
disposal of the product by the user shall determine the application of the administrative sanctions defined by the
regulations in force.
www.argoclima.com
