ArianaSpas Lipo-6 User manual

© ArianaSpas www.arianaspas.com
1 | P a g e

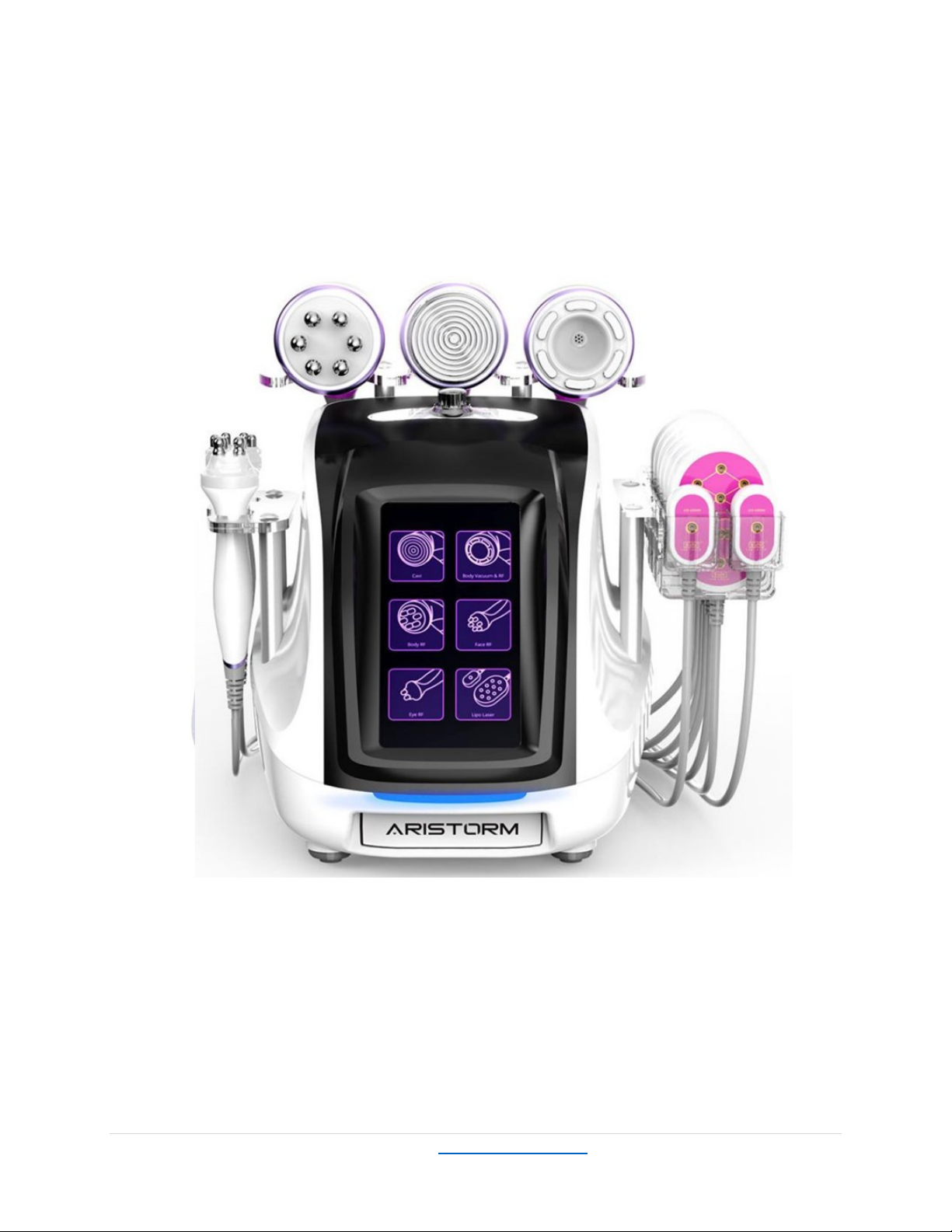

6 In 1 RF with Ultrasonic 40K Cavitation 2.5 with Lipo Laser
Model: ArianaSpas Lipo - 6

© ArianaSpas www.arianaspas.com
2 | P a g e
Disclaimer
This machine is meant to be used by trained personnel only. Improper usage of this machine
can cause injury or death.
o Please read the instructions in detail and keep them nearby for further reading and
consultation.
o Please follow the instructions to set-up and operate the machine correctly.
o Please do not remove and modify any accessories of the machine.
o This machine should only be opened by trained professionals.
o If there are any issues with the machine, please stop using it and contact us for a
resolution.
o This device does not treat medical ailments or disease. For any medical issues, please
contact your physician.
Contents:
1) 1 x Ultrasonic Cavitation 2.5 Handle
2) 1 x 6-polar 3D SMART Body RF Handle
3) 1 x 6-polar RF Vacuum Photon Handle
4) 1 x Bipolar 3D SMART RF Handle
5) 1 x 6-pole RF Face Handle
6) 1 x Photon Microcurrent Handle 1 x Hot and Cold Hammer
7) 6 x Small LED pads 6 x Big LED pads
8) 1 x Power Cord 1 Set Belts

© ArianaSpas www.arianaspas.com
3 | P a g e
Warranty & Support
Most issues are due to incorrect setting. If you are experiencing an issue please make a
Small Cell Phone Video and send via text to [phone].
One of our technicians will review it and advise with a solution.
Your Ariana Spa Supplies-branded hardware product (“Product”) is warranted against defects in
materials and workmanship for a period of ONE (1) YEAR from the date of original retail purchase
(“Warranty Period”) when used in accordance with Ariana Spa Supplies’ user manuals. If a defect arises
during the Warranty Period, Ariana Spa Supplies, at its option will (1) repair the Product at no charge
using new parts or parts that are equivalent to new in performance and reliability, or (2) exchange the
Product with a product with equivalent functionality formed from new and/or previously used parts that
are equivalent to new in performance and reliability or with your consent, a product that is at least
functionally equivalent to the product it replaces. This warranty excludes normal depletion of
consumable parts such as batteries unless failure has occurred due to a defect in materials or
workmanship and, damage resulting from abuse, accident, modifications, unauthorized repairs or other
causes that are not defects in materials and workmanship.
Ariana Spa Supplies does not warrant, represent or undertake that it will be able to repair or replace any
Product under this warranty without risk to and / or loss of information and / or data stored on the
Product. In no event shall Ariana Spa Supplies be liable for (a) loss or damage, which as of the product’s
purchase cannot be regarded as being caused by Ariana Spa Supplies’ breach of these warranty terms;
or (b) losses caused by the user’s fault, loss of data or loss of profits or benefits.
Any limitations of liability in this warranty document shall not apply to (i) death or personal injury
pursuant to any mandatory law on product liability; (ii) fraud or fraudulent misrepresentation; (iii)
intentional misconduct or gross negligence; (iv) or a culpable breach of major contractual obligations. A
damages claim based on a breach of major contractual obligations or gross negligence will be limited to
foreseeable damage typical for the sale contract concerned.
To obtain warranty service, contact Ariana Spa Supplies at Ariana Spa Supplies, 42715 Chisholm Drive,
Broadlands, VA 20148. Customers are responsible for shipping charges to get the item back to us and for
return shipping cost once the item is repaired or replace.

© ArianaSpas www.arianaspas.com
4 | P a g e
Table of Contents:
1. Introduction to Manual ...................................................................................................................... 5
1.1 Purpose
1.2 Legend
2. Medical Safety ................................................................................................................................... 6
2.1. Contraindications
2.2. Precautions
2.3. Client Safety
3. Features .............................................................................................................................................. 8
4. Detailed Operations ............................................................................................................................. 9
4.1 Function Selection
4.2 Detailed Operations for Cavi
4.3 Detailed Operations for Body Vacuum RF
4.4 Detailed Operations for Body RF
4.5 Detailed Operations for Face RF
4.6 Detailed Operations for Eye RF
4.7 Detailed Operations for Cold & Hot Hammer
4.8 Detailed Operations for BIO
5. Technical Parameters………………………………………………………………………………………………………………………18
6. Precautions on Use ............................................................................................................................ 19
7. Common Malfunction & Troubleshooting Solutions .......................................................................... 20
8. FAQs ................................................................................................................................................. 21
9. Operating Steps ................................................................................................................................ 24
10. Operational Diagrams ..................................................................................................................... 25

© ArianaSpas www.arianaspas.com
5 | P a g e
1. Introduction to Manual
1.1 Purpose
This manual provides a description of the system components, its
controls and displays, instructions for its operation, and other equipment information
relevant to the user.
Warning: Do Not operate this machine before reading thismanual thoroughly. In
addition to this manual, additional training may be available.
1.2 Legend
Note: This Indicates important information
Warning: Necessary and vital information for the safety of the patient and/or user.
All procedures are broken down by numbered steps. Steps must be completed in the sequence
they are presented.
Bulleted lists indicate general information about a particular function or procedure. They do not
imply a sequential procedure.

© ArianaSpas www.arianaspas.com
6 | P a g e
2. Medical Safety
2.1. Contraindications
This machine is not intended for use in patients with:
o Open wounds or lesions on the face and/or neck
o Severe or cystic acne on the face and/or neck
2.2. Precautions
The cavitation vacuum RF micro current photon machine should not be used on clients that
have the following:
o Mechanical implants
o Dermal fillers
o Implanted electrical devices in the face and/or neck
o Metal stents in the face and/or neck area
o Existing keloid(s)
o The following areas should be avoided during treatment:
o Thyroid gland, thyroid cartilage and trachea
o Major blood vessels
o The cavitation vacuum RF microcurrent photon machine has not been evaluated
for use in the following client populations:
o Pregnant or breast-feeding women
o Children
o Those with the following disease(s):
• A hemorrhagic disorder or hemostatic dysfunction
• An active systemic or local skin disease that may alter wound healing
• Herpes simplex
• Autoimmune disease
• Diabetes
• Bell’s palsy

© ArianaSpas www.arianaspas.com
7 | P a g e
2.3. Client Safety
Warning: This machine is to be used only by trained and qualified professionals.
Warning: Cavitation vacuum RF micro current photon machine should not be used on a
client’s eyes or in a location or technique where ultrasound energy can reach the eye.
Warning: If any problems occur during system operation - lift the transducer off the
client’s skin, press the PAUSE button to completely halt system operation.

© ArianaSpas www.arianaspas.com
8 | P a g e
3. Features
o This is a painless treatment that is both safe and effective.
o This is a non-surgical, non-invasive process.
o The treatments do not have any adverse side effects and do not interfere with daily life.
o Firms the arms, legs, thighs, buttocks, waist, back, abdominal muscles to reshape the body.
o Provides feelings of: soothing, decompression and pain relief (such as joint pain, sciatica).
o Promotes the regular mechanical aerobic exercise of skin tissue to rapidly relieve stress and remove
fatigue.
o Firms, lifts and compacts facial skin by promoting cellular metabolism. Up to 100% more collagen
and may be available to help improve skin elasticity.

© ArianaSpas www.arianaspas.com
9 | P a g e

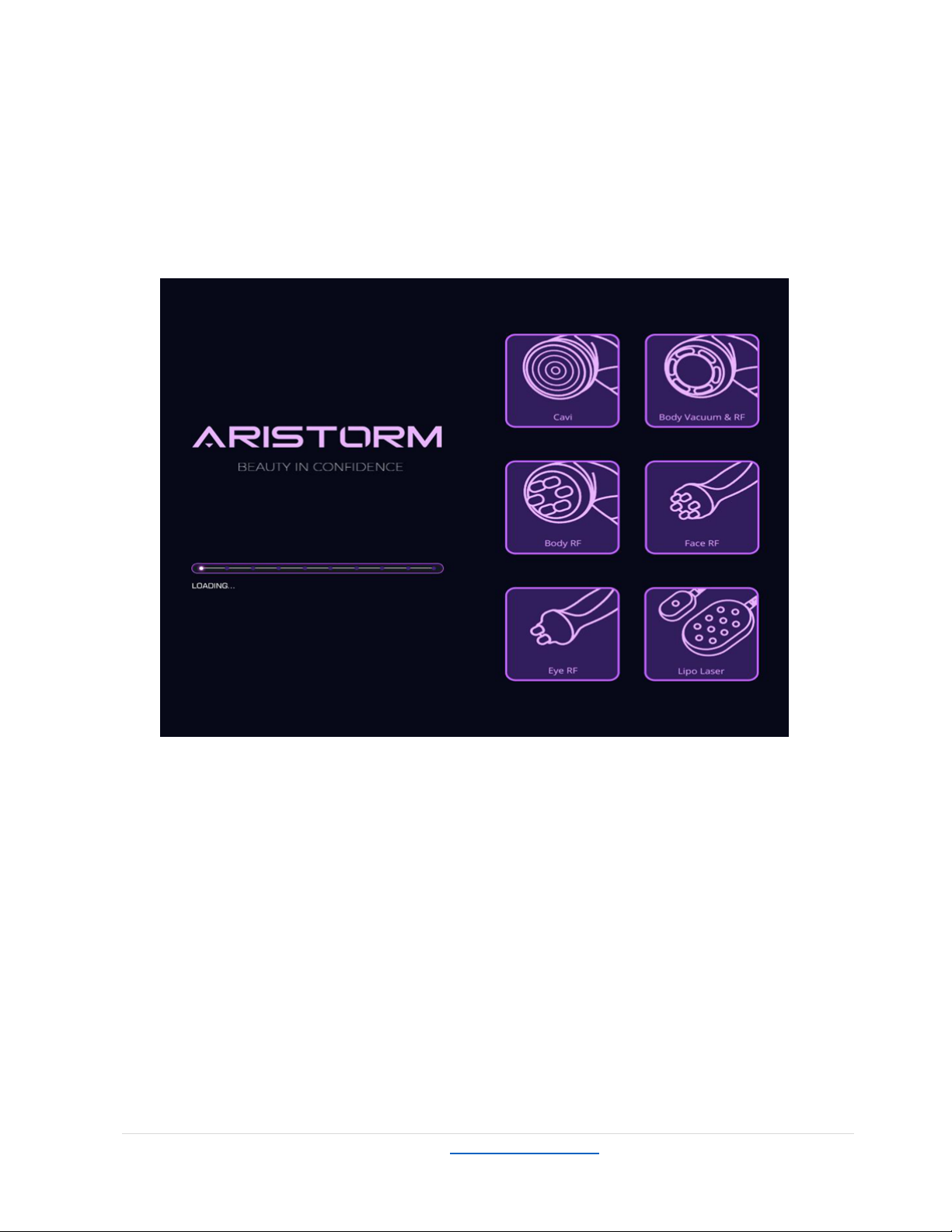

4. Detailed Operations
Check the equipment and make sure it's properly connected. The following initial interface on the
left will appear after having the power switch on. It enters the function selection page on the right
after the loading finishes.

© ArianaSpas www.arianaspas.com
10 | P a g e
4.1. Function Selection
Time Setting & Display
Time Setting(decrease)
Time Setting(increase)
Energy Intensity Setting & Display
Energy Setting(decrease)
Energy Setting(increase)
Start/ Pause
Reset
Mode Selection

© ArianaSpas www.arianaspas.com
11 | P a g e

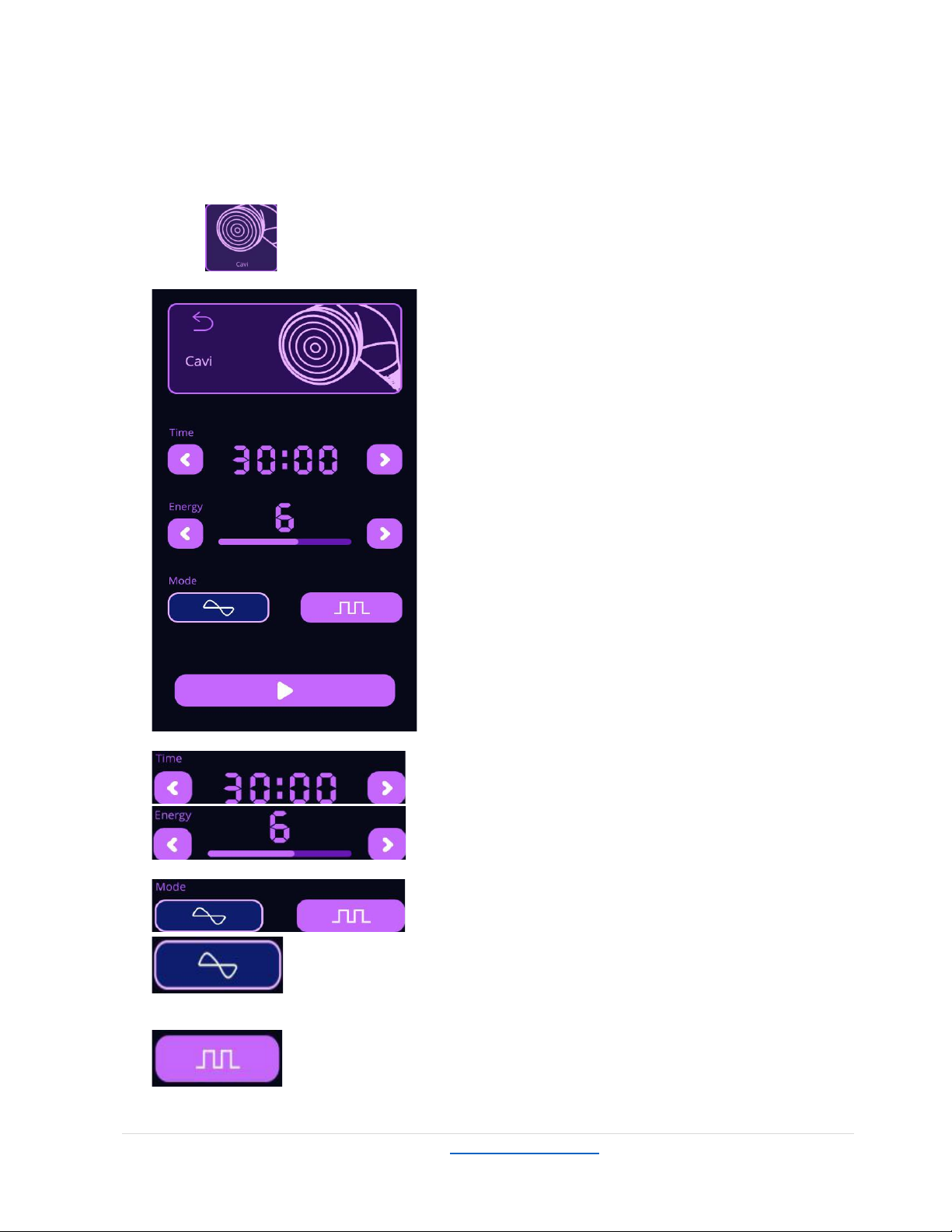

4.2. Detailed Operations for Cavi
Select and enter the following page.
Time Setting & Display
Energy Intensity Setting & Display
Two Working Modes for
Continuous working mode, which suits those with fat accumulation
or thick fat.
Discontinuous working mode, which suits those with local obesity or who
want to reduce weight.

© ArianaSpas www.arianaspas.com
12 | P a g e
4.3. Detailed Operations for Body Vacuum RF
Select and enter the following page.
Time Setting & Display
Energy Intensity Setting & Display
release time)
Suction Time Display & Setting of Body Vacuum (suction time＞

© ArianaSpas www.arianaspas.com
13 | P a g e
Suction Time Setting of Body Vacuum (decrease)
Suction Time Setting of Body Vacuum (increase)
Release Time Display & Setting of Body Vacuum (When the time is
set to zero, it's direct suction.)
Release Time Setting of Body Vacuum (decrease)
Release Time Setting of Body Vacuum (increase)
Mode Selection
Default Mode. When clicking Start, the energy intensity of the handpiece
reaches the setting value directly, and the red light will be on.
Intelligent Mode. When clicking Start, the red light will be on, and the
energy intensity of the handpiece reaches the setting value slowly after the handpiece
touches the skin.
Vacuum Suction Setting. It can be adjusted according to the
user's tolerance. Please start with the lowest intensity and increase the intensity gradually
after the client gets used to it.

© ArianaSpas www.arianaspas.com
14 | P a g e
4.4. Detailed Operations for Face RF
Press and enter the following page.
Time Setting & Display
Energy Intensity Setting & Display
Working Mode Selection
Default Mode. When clicking Start, the energy intensity of the handpiece
reaches the setting value directly, and the red light will be on.
Intelligent Mode. When clicking Start, the red light will be on, and the
energy intensity of the handpiece reaches the setting value slowly after the handpiece
touches the skin.

© ArianaSpas www.arianaspas.com
15 | P a g e

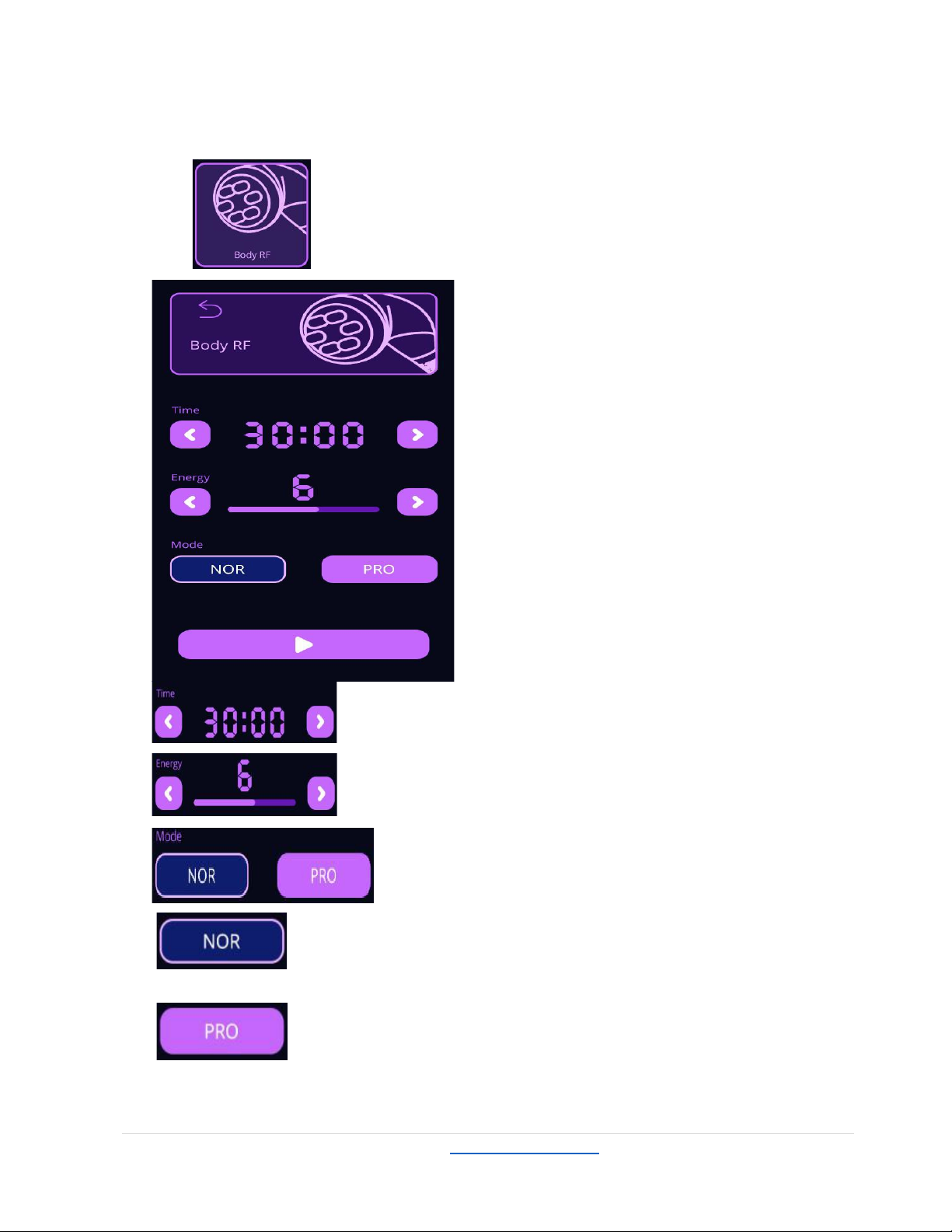

4.5. Detailed Operations for Body RF
Press and enter the following page.
Time Setting & Display
Energy Intensity Setting & Display
Working Mode Selection
Default Mode. When clicking Start, the energy intensity of the handpiece
reaches the setting value directly, and the red light will be on.
Intelligent Mode. When clicking Start, the red light will be on, and the
energy intensity of the handpiece reaches the setting value slowly after the handpiece
touches the skin.

© ArianaSpas www.arianaspas.com
16 | P a g e

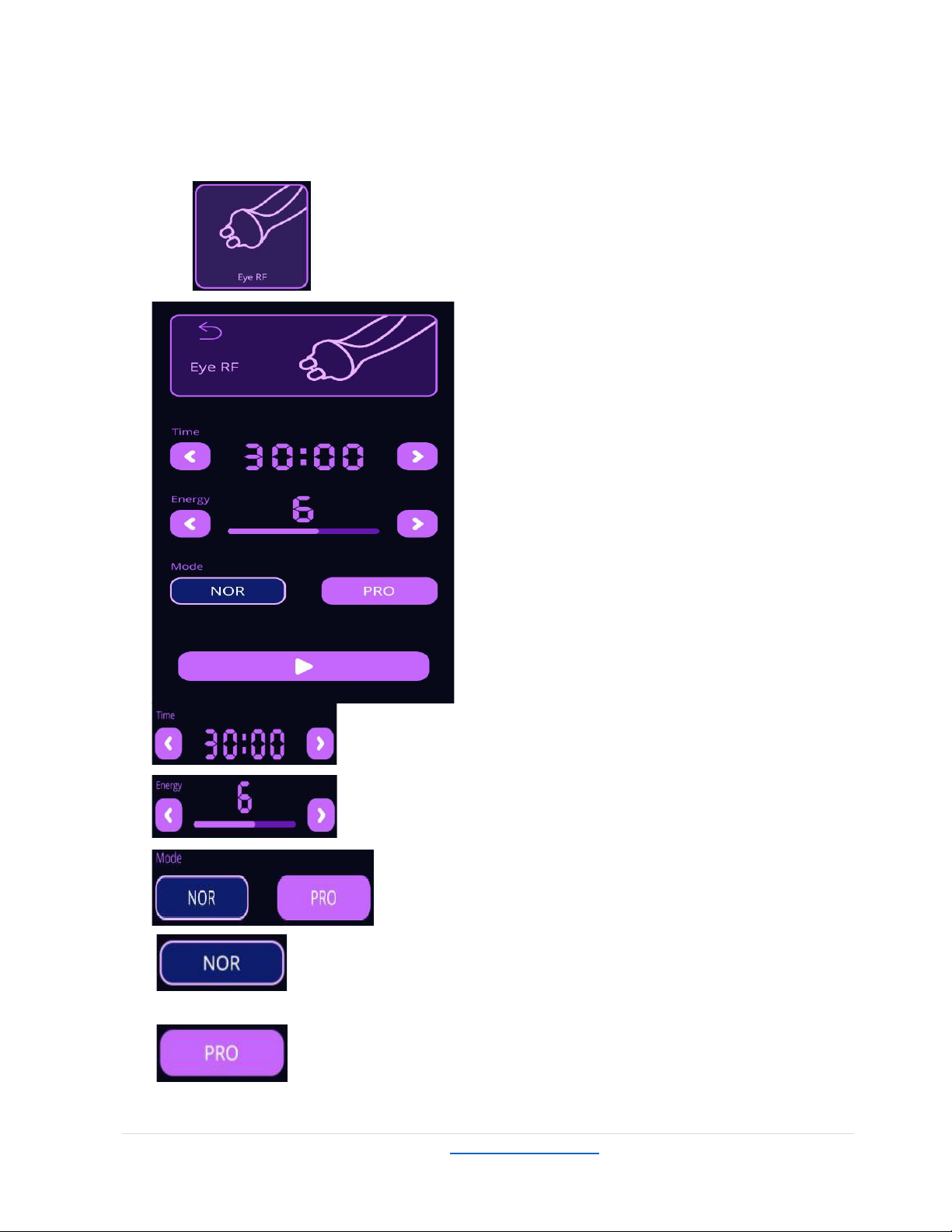

(1) 4.6. Detailed Operations for Eye RF
Press and enter the following page.
Time Setting & Display
Energy Intensity Setting & Display
Working Mode Selection
Default Mode. When clicking Start, the energy intensity of the handpiece
reaches the setting value directly, and the red light will be on.
Intelligent Mode. When clicking Start, the red light will be on, and the
energy intensity of the handpiece reaches the setting value slowly after the handpiece
touches the skin.

© ArianaSpas www.arianaspas.com
17 | P a g e

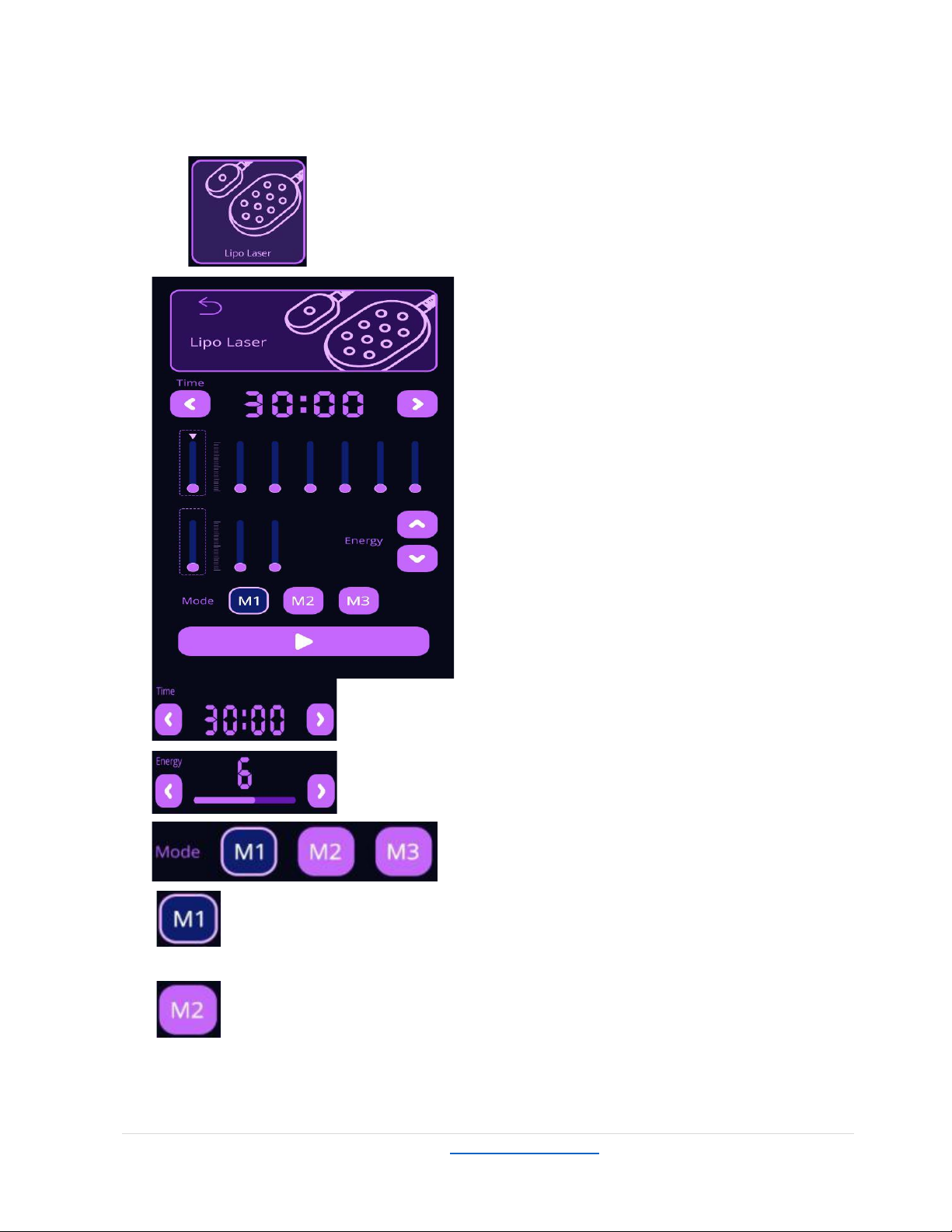

(2) 4.7. Detailed Operations for Lipo Laser
Click and enter the interface of the laser pad.
Time Setting & Display
Energy Intensity Setting & Display
Working Mode Selection
Continuous Working Mode (The laser pads will be on all the time, which suits those
who want to lose weight powerfully.)
Discontinuous Working Mode (The laser flashes slowly, suits those who want to
maintain and reinforce the effect.)

© ArianaSpas www.arianaspas.com
18 | P a g e

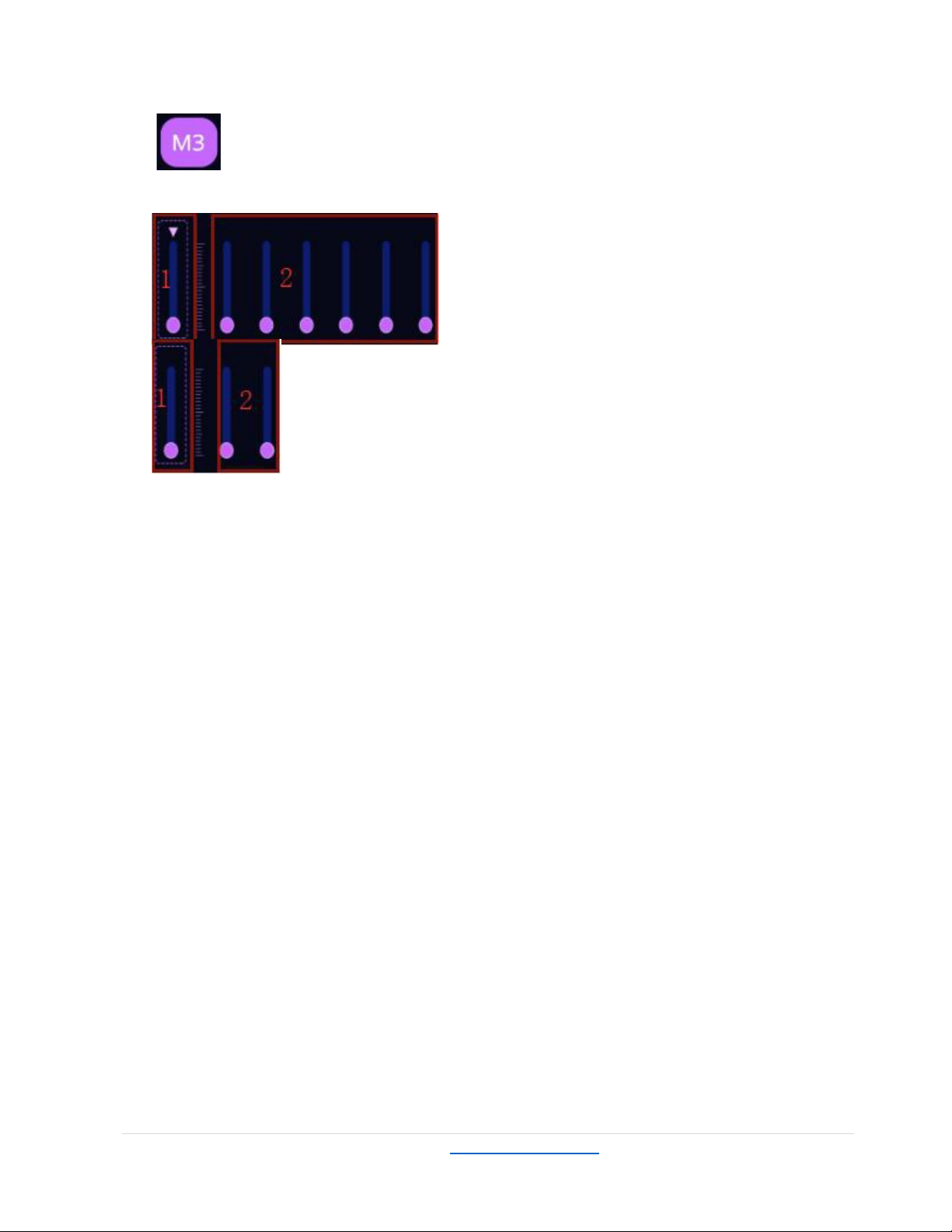

Quick Flashing Mode (The laser flashes quickly, suits those who are first-time users or
just start to operate.)
Energy Intensity Display of the Large Laser Pad
Energy Intensity Display of the Small Laser Pad
1: After clicking, the energy intensity of all laser pads can be set uniformly.
2: The energy intensity of a single laser pad can be adjusted. Select the laser pad you want to
adjust first, and then press the energy setting button to change its intensity.

© ArianaSpas www.arianaspas.com
19 | P a g e
5. Technical Parameters
Power Supply Input: 100V-240V Power: 190W
Ultrasonic Cavitation 2.5 Handpiece Frequency: 40KHz
Power: 30W
6-polar 3D SMART Body RF Handpiece Frequency: 3MHz
Power: 30W
6-polar RF Vacuum Photon Handpiece Frequency: 3MHz
Power: 50W Vacuum: <-80kPa Pressure: >250kPa
Air Flow: >10L/minute
Noise level:<70db (30cm away)
Bipolar 3D SMART RF Handpiece Frequency: 3MHZ
Power: 30W
6-pole RF Face Handpiece Frequency: 3MHZ
Power: 50W
LED Laser Wavelength: 635nm-650nm Power of each light: 5mw
Energy output: 50 x 5mW = 250mw ( 6 big pads *8 light/each + 2 small pads * 1 light/each)
Mains Power Output: 100VA

© ArianaSpas www.arianaspas.com
20 | P a g e
6. Precautions on Use
o A plug with a ground pin must be used, and a power socket that is already grounded must be
ensured before using the equipment.
o Make sure the voltage of the equipment is adaptive. If the local power supply voltage is not
stable, we suggest users add a voltage regulator with matching power between the mains
supply and the equipment.
o To guarantee the equipment's curative effect and normal service life, please uniformly use
specified parts provided or suggested by the original manufacturer.
o The equipment can't be placed in damp places or near water, and it also can not be exposed to
direct sunlight.
o Please don't place the equipment near an intense heat source since this may affect its service
life and everyday use.
o Please remove all the metal objects from the body before use to avoid unexpected situations
which may affect the curative effect.
o Please refrain from using the equipment to aim at eyes, thyroid, parathyroid,
o testicles, pregnant woman's abdomen, pacemaker, etc.
o Those suffering from an illness should use it with caution unless they get permission from a
doctor.
o Please turn the equipment's power switch off if no one uses it, and ensure the main power is
off after everything is settled. Thus the safety of the equipment can be guaranteed.
o Start from the lowest energy level and gradually increase the level after the client gets used to
it.
o The handpieces can be used separately, but a better effect can be achieved with the combined
use.
o The equipment should contact the skin thoroughly to avoid uneven heat when in use.
o The device should contact the skin fully when in use. Otherwise, it may not be attached to the
skin.
o It's advised to stop taking other weight-loss medicines for 1 to 2 months before treatment if you
are taking them now. The course of treatment shall be extended if you want to have it started
immediately.
o Using Cavi on the head, chest, breast, heart, and back is prohibited.
o Those who did cesarean in the past six months, experienced a miscarriage in the past three
months, and had natural labor in the past two months are forbidden to use it.
o If the suction level of the Body Vacuum & RF is too high, please stop it immediately and reset
the suction.
o Use the equipment and train the operators in strict accordance with the instructions specified
in the manual.
o After the operation, clean the equipment with normal saline to ensure its cleanliness and
hygiene and extend its service life.
