ArianaSpas Lipo-9 User manual

© ArianaSpas www.arianaspas.com
1 | P a g e

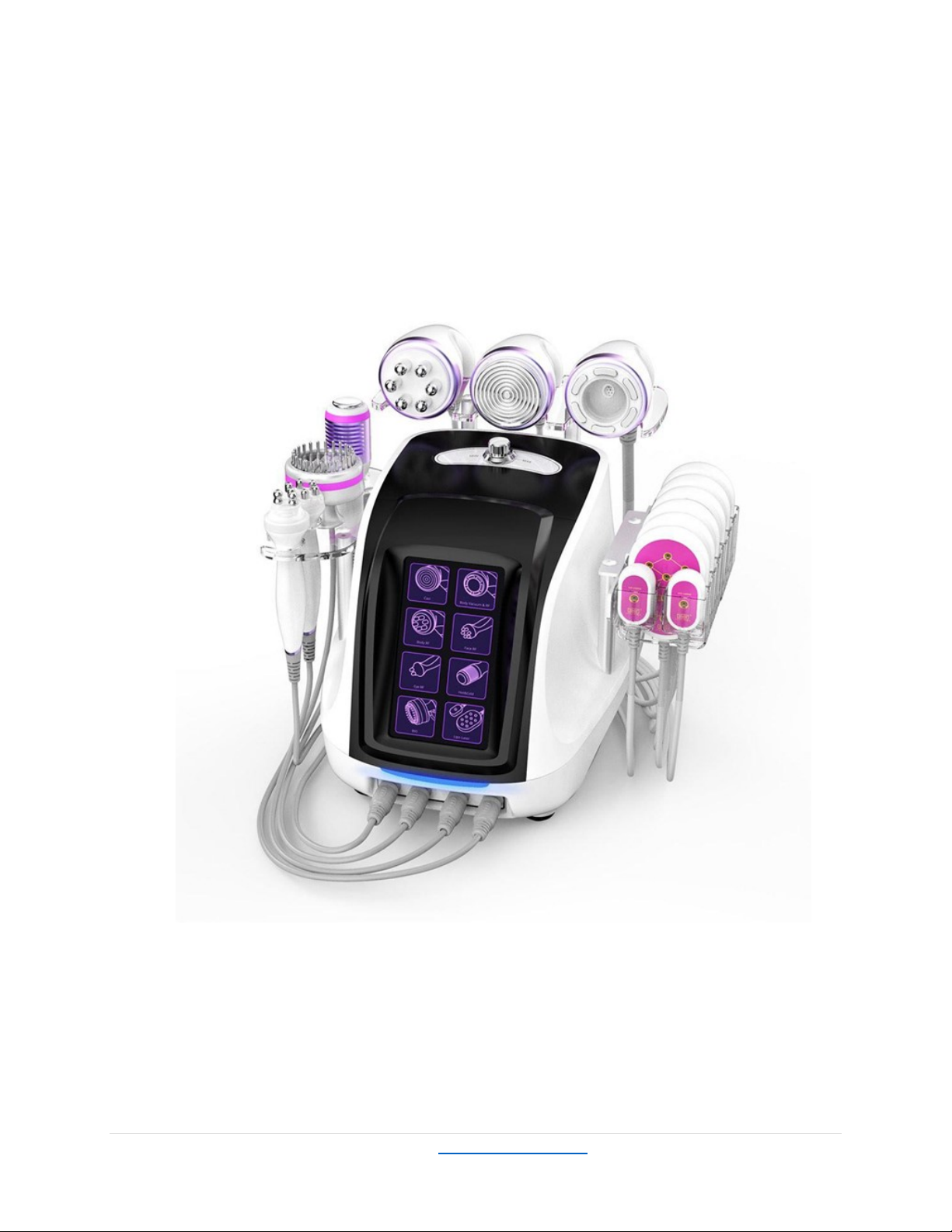

9 In 1 RF with Ultrasonic 40K Cavitation 2.5 with Lipo Laser
Model: ArianaSpas Lipo - 9

© ArianaSpas www.arianaspas.com
2 | P a g e
Disclaimer
This machine is meant to be used by trained personnel only. Improper usage of this machine
can cause injury or death.
o Please read the instructions in detail and keep them nearby for further reading and
consultation.
o Please follow the instructions to set-up and operate the machine correctly.
o Please do not remove and modify any accessories of the machine.
o This machine should only be opened by trained professionals.
o If there are any issues with the machine, please stop using it and contact us for a
resolution.
o This device does not treat medical ailments or disease. For any medical issues, please
contact your physician.
Contents:
1) 1 x Ultrasonic Cavitation 2.5 Handle
2) 1 x 6-polar 3D SMART Body RF Handle
3) 1 x 6-polar RF Vacuum Photon Handle
4) 1 x Bipolar 3D SMART RF Handle
5) 1 x 6-pole RF Face Handle
6) 1 x Photon Microcurrent Handle
7) 1 x Hot and Cold Hammer
8) 2 x Small LED pads
9) 6 x Big LED pads
10) 1 x Power Cord
11) 1 Set Belts

© ArianaSpas www.arianaspas.com
3 | P a g e
Warranty & Support
Most issues are due to incorrect setting. If you are experiencing an issue please make a
Small Cell Phone Video and send via text to [phone].
One of our technicians will review it and advise with a solution.
Your Ariana Spa Supplies-branded hardware product (“Product”) is warranted against defects in
materials and workmanship for a period of ONE (1) YEAR from the date of original retail purchase
(“Warranty Period”) when used in accordance with Ariana Spa Supplies’ user manuals. If a defect arises
during the Warranty Period, Ariana Spa Supplies, at its option will (1) repair the Product at no charge
using new parts or parts that are equivalent to new in performance and reliability, or (2) exchange the
Product with a product with equivalent functionality formed from new and/or previously used parts that
are equivalent to new in performance and reliability or with your consent, a product that is at least
functionally equivalent to the product it replaces. This warranty excludes normal depletion of
consumable parts such as batteries unless failure has occurred due to a defect in materials or
workmanship and, damage resulting from abuse, accident, modifications, unauthorized repairs or other
causes that are not defects in materials and workmanship.
Ariana Spa Supplies does not warrant, represent or undertake that it will be able to repair or replace any
Product under this warranty without risk to and / or loss of information and / or data stored on the
Product. In no event shall Ariana Spa Supplies be liable for (a) loss or damage, which as of the product’s
purchase cannot be regarded as being caused by Ariana Spa Supplies’ breach of these warranty terms;
or (b) losses caused by the user’s fault, loss of data or loss of profits or benefits.
Any limitations of liability in this warranty document shall not apply to (i) death or personal injury
pursuant to any mandatory law on product liability; (ii) fraud or fraudulent misrepresentation; (iii)
intentional misconduct or gross negligence; (iv) or a culpable breach of major contractual obligations. A
damages claim based on a breach of major contractual obligations or gross negligence will be limited to
foreseeable damage typical for the sale contract concerned.
To obtain warranty service, contact Ariana Spa Supplies at Ariana Spa Supplies, 42715 Chisholm Drive,
Broadlands, VA 20148. Customers are responsible for shipping charges to get the item back to us and for
return shipping cost once the item is repaired or replace.

© ArianaSpas www.arianaspas.com
4 | P a g e
Table of Contents:
1. Introduction to Manual ...................................................................................................................... 5
1.1 Purpose
1.2 Legend
2. Medical Safety ................................................................................................................................... 6
2.1. Contraindications
2.2. Precautions
2.3. Client Safety
3. Features .............................................................................................................................................. 8
4. Detailed Operations ............................................................................................................................. 9
4.1 Function Selection
4.2 Detailed Operations for Cavi
4.3 Detailed Operations for Body Vacuum RF
4.4 Detailed Operations for Body RF
4.5 Detailed Operations for Face RF
4.6 Detailed Operations for Eye RF
4.7 Detailed Operations for Cold & Hot Hammer
4.8 Detailed Operations for BIO
4.9 Detailed Operations for Lipo Laser
5. Technical Parameters………………………………………………………………………………………………………………………20
6. Precautions on Use ............................................................................................................................ 21
7. Common Malfunction & Troubleshooting Solutions .......................................................................... 22
8. FAQs ................................................................................................................................................. 23
9. Operating Steps ................................................................................................................................ 26
10. Operational Diagrams ..................................................................................................................... 27

© ArianaSpas www.arianaspas.com
5 | P a g e
1. Introduction to Manual
1.1 Purpose
This manual provides a description of the system components, its
controls and displays, instructions for its operation, and other equipment information
relevant to the user.
Warning: Do Not operate this machine before reading thismanual thoroughly. In
addition to this manual, additional training may be available.
1.2 Legend
Note: This Indicates important information
Warning: Necessary and vital information for the safety of the patient and/or user.
All procedures are broken down by numbered steps. Steps must be completed in the sequence
they are presented.
Bulleted lists indicate general information about a particular function or procedure. They do not
imply a sequential procedure.

© ArianaSpas www.arianaspas.com
6 | P a g e
2. Medical Safety
2.1. Contraindications
This machine is not intended for use in patients with:
o Open wounds or lesions on the face and/or neck
o Severe or cystic acne on the face and/or neck
2.2. Precautions
The cavitation vacuum RF micro current photon machine should not be used on clients that
have the following:
o Mechanical implants
o Dermal fillers
o Implanted electrical devices in the face and/or neck
o Metal stents in the face and/or neck area
o Existing keloid(s)
o The following areas should be avoided during treatment:
o Thyroid gland, thyroid cartilage and trachea
o Major blood vessels
o The cavitation vacuum RF microcurrent photon machine has not been evaluated
for use in the following client populations:
o Pregnant or breast-feeding women
o Children
o Those with the following disease(s):
• A hemorrhagic disorder or hemostatic dysfunction
• An active systemic or local skin disease that may alter wound healing
• Herpes simplex
• Autoimmune disease
• Diabetes
• Bell’s palsy

© ArianaSpas www.arianaspas.com
7 | P a g e
2.3. Client Safety
Warning: This machine is to be used only by trained and qualified professionals.
Warning: Cavitation vacuum RF micro current photon machine should not be used on a
client’s eyes or in a location or technique where ultrasound energy can reach the eye.
Warning: If any problems occur during system operation - lift the transducer off the
client’s skin, press the PAUSE button to completely halt system operation.

© ArianaSpas www.arianaspas.com
8 | P a g e
3. Features
o This is a painless treatment that is both safe and effective.
o This is a non-surgical, non-invasive process.
o The treatments do not have any adverse side effects and do not interfere with daily life.
o Firms the arms, legs, thighs, buttocks, waist, back, abdominal muscles to reshape the body.
o Provides feelings of: soothing, decompression and pain relief (such as joint pain, sciatica).
o Promotes the regular mechanical aerobic exercise of skin tissue to rapidly relieve stress and remove
fatigue.
o Firms, lifts and compacts facial skin by promoting cellular metabolism. Up to 100% more collagen
and may be available to help improve skin elasticity.

© ArianaSpas www.arianaspas.com
9 | P a g e
4. Detailed Operations

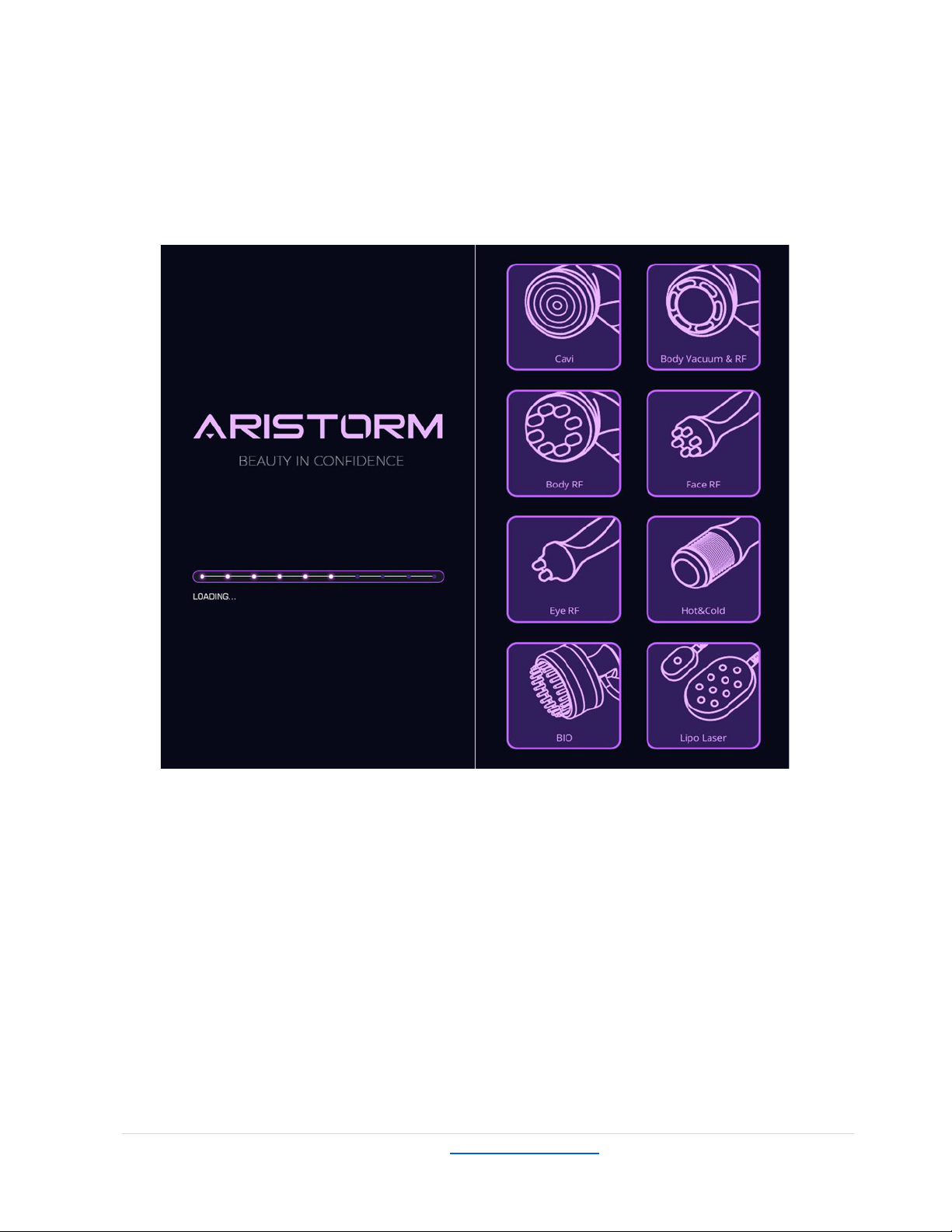

Check the equipment and make sure it's properly connected. The following initial interface on the
left will appear after having the power switch on. It enters the function selection page on the right
after the loading finishes.

© ArianaSpas www.arianaspas.com
10 | P a g e

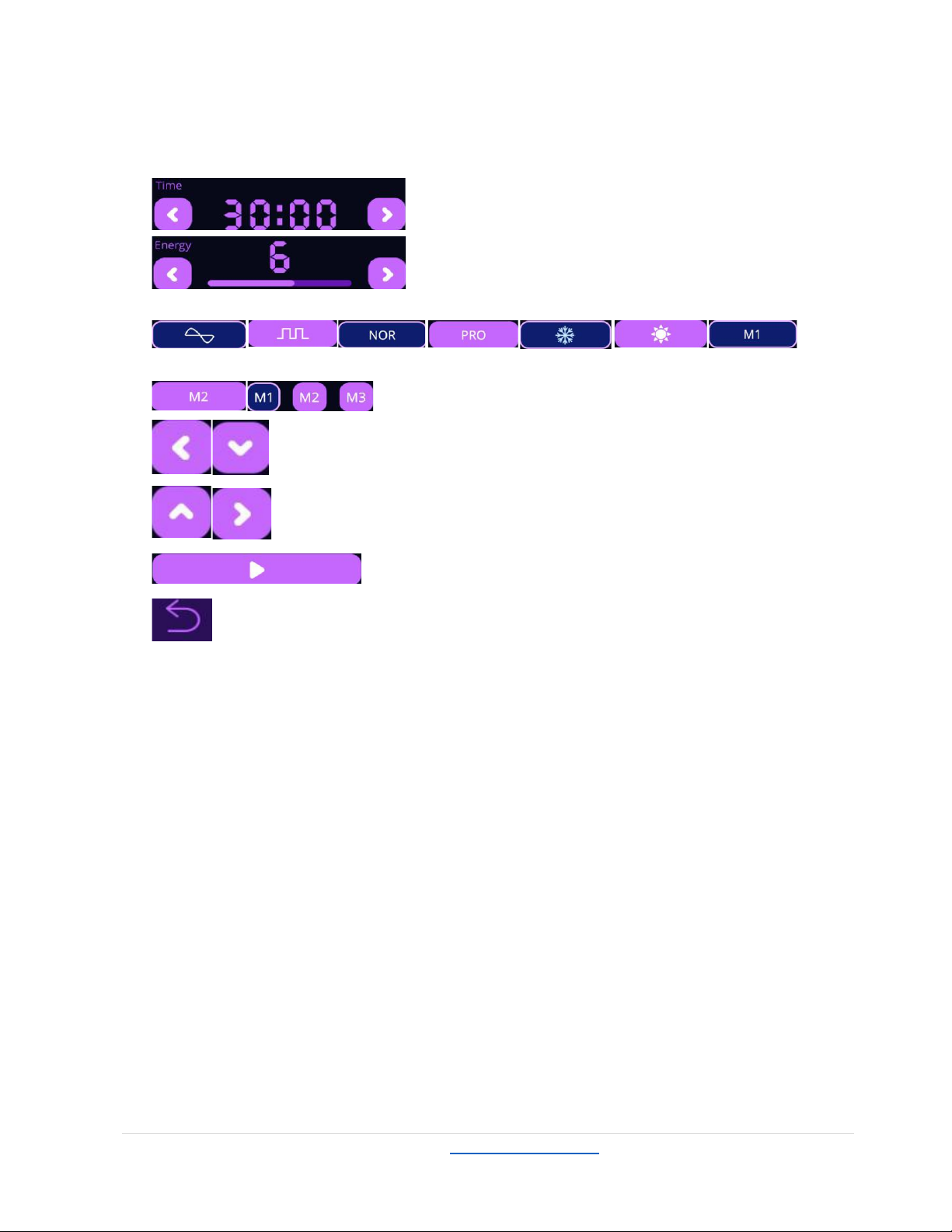

4.1. Function Selection
Time Setting & Display(Time Range: 00:00 to 60: 00)
Energy Intensity Display & Setting(Energy Intensity
Range: 0 to 10)
Mode Icons
Time & Energy Intensity Setting(decrease)
Time & Energy Intensity Setting(increase)
Start/ Pause
Return

© ArianaSpas www.arianaspas.com
11 | P a g e

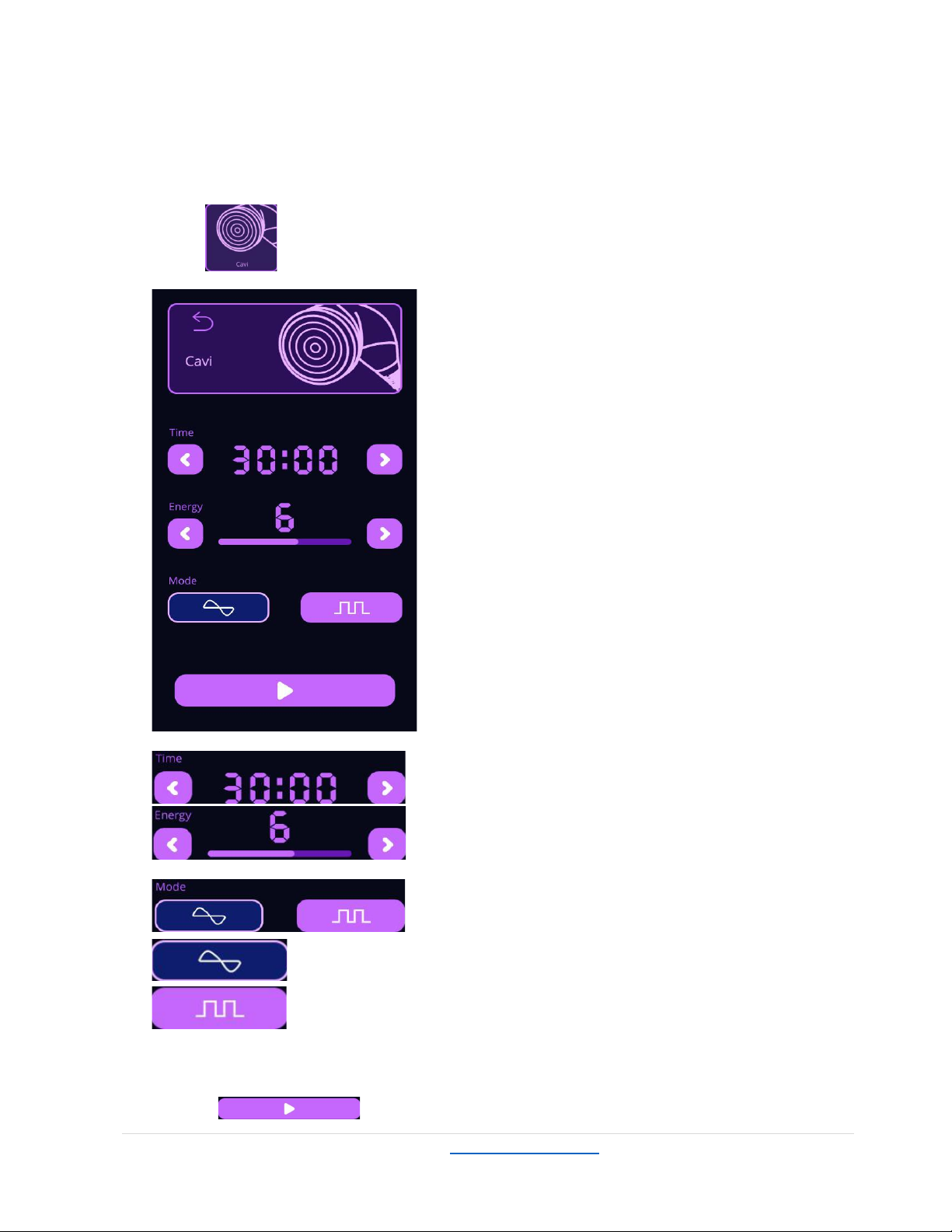

4.2. Detailed Operations for Cavi
Select and enter the following page.
Time Setting & Display
Energy Intensity Setting & Display
Two Working Modes for Cavi
Continuous Working Mode
Discontiuous Working Mode
Have the time, energy intensity, and mode set, and
then click to start.

© ArianaSpas www.arianaspas.com
12 | P a g e

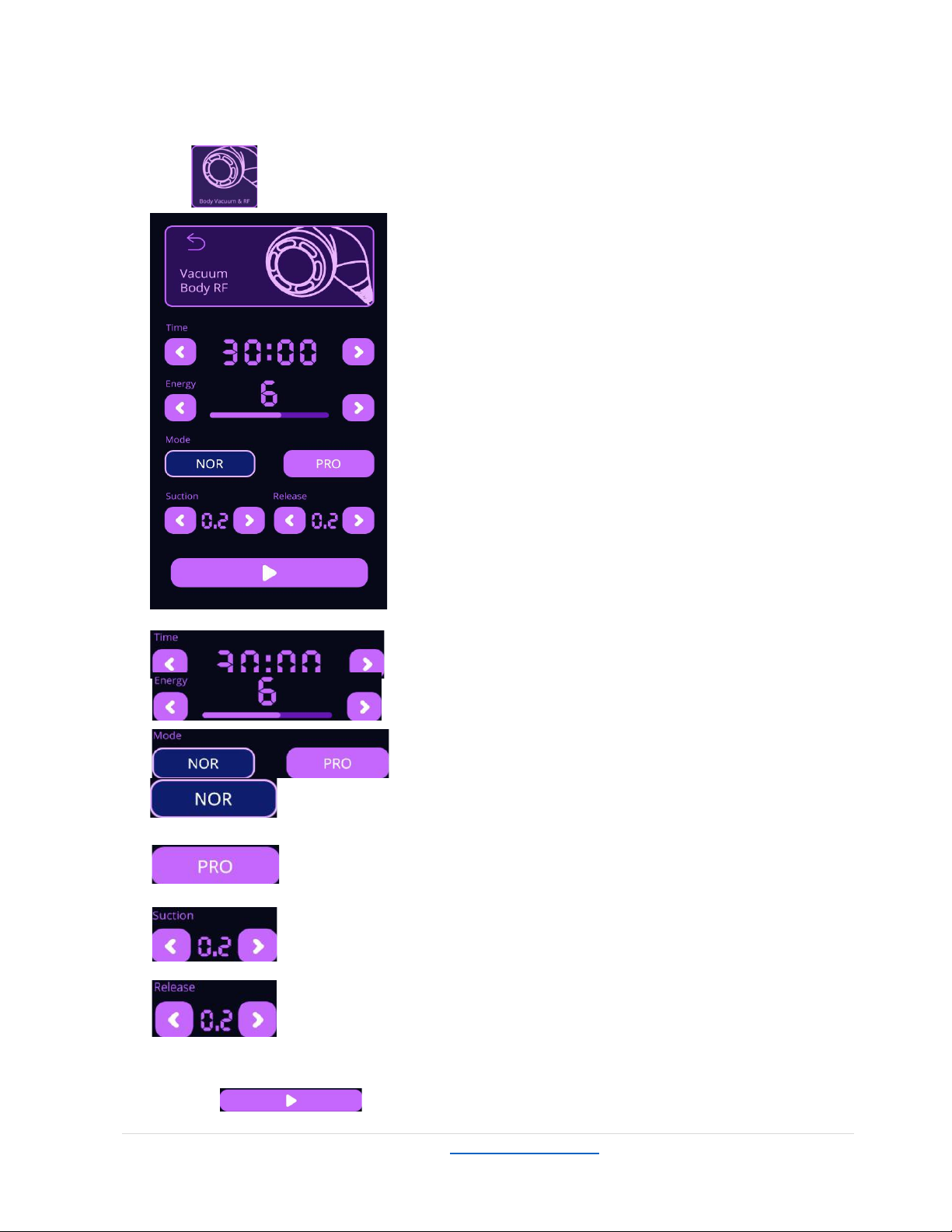

4.3. Detailed Operations for Body Vacuum RF
Select and enter the following page.
Time Setting & Display
Energy Intensity Setting & Display
Two Working Modes for RF
After clicking Start, the light of the handpiece will be on, and the energy
reaches the setting value directly.
After clicking Start, the light will be on, and the energy reaches the setting value
slowly after the handpiece touching the skin.
Suction Time Setting & Display(Range: 0.0 to 2.0)
Release Time Setting & Display(Range: 0.0 to 2.0)
Have the time, energy intensity, and mode set, and
then click to start.

© ArianaSpas www.arianaspas.com
13 | P a g e

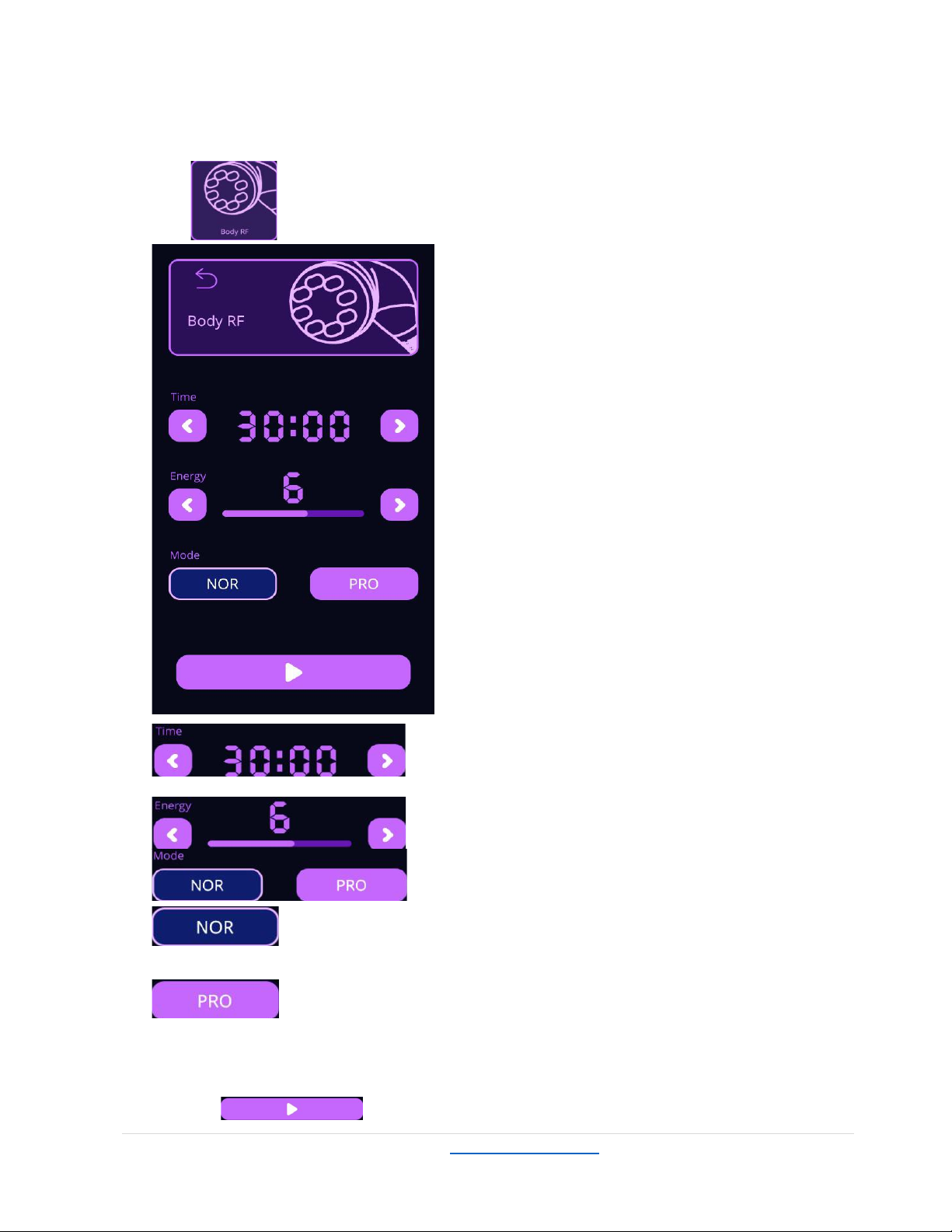

4.4. Detailed Operations for Body RF
Select and enter the following page.
Time Setting & Display
Energy Intensity Setting & Display
Two Working Modes for Body RF
After clicking Start, the light of the handpiece will be on, and the energy
reaches the setting value directly.
After clicking Start, the light will be on, and the energy reaches the setting value
slowly after the handpiece touching the skin.
Have the time, energy intensity, and mode set, and
then click to start.

© ArianaSpas www.arianaspas.com
14 | P a g e
4.5. Detailed Operations for Face RF
Select and enter the following page.
Time Setting & Display
Energy Intensity Setting & Display
Two Working Modes for Face RF
After clicking Start, the light of the handpiece will be on, and the energy
reaches the setting value directly.
After clicking Start, the light will be on, and the energy reaches the setting value
slowly after the handpiece touching the skin.
Have the time, energy intensity, and mode set, and
then click to start.

© ArianaSpas www.arianaspas.com
15 | P a g e

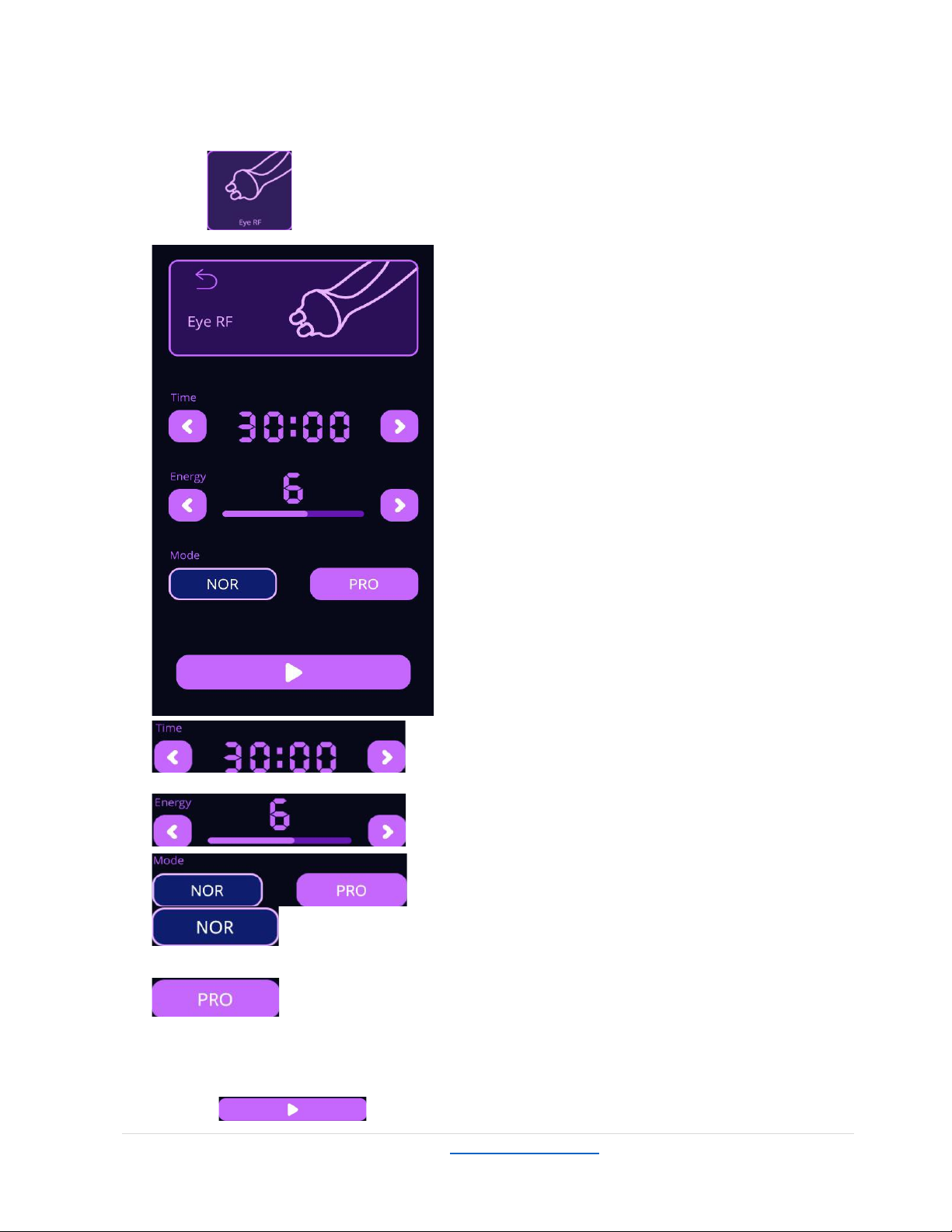

4.6. Detailed Operations for Eye RF
Select and enter the following page.
Time Setting & Display
Energy Intensity Setting & Display
Two Working Modes for Eye RF
After clicking Start, the light of the handpiece will be on, and the
energy reaches the setting value directly.
After clicking Start, the light will be on, and the energy reaches the setting value
slowly after the handpiece touching the skin.
Have the time, energy intensity, and mode set, and
then click to start.

© ArianaSpas www.arianaspas.com
16 | P a g e

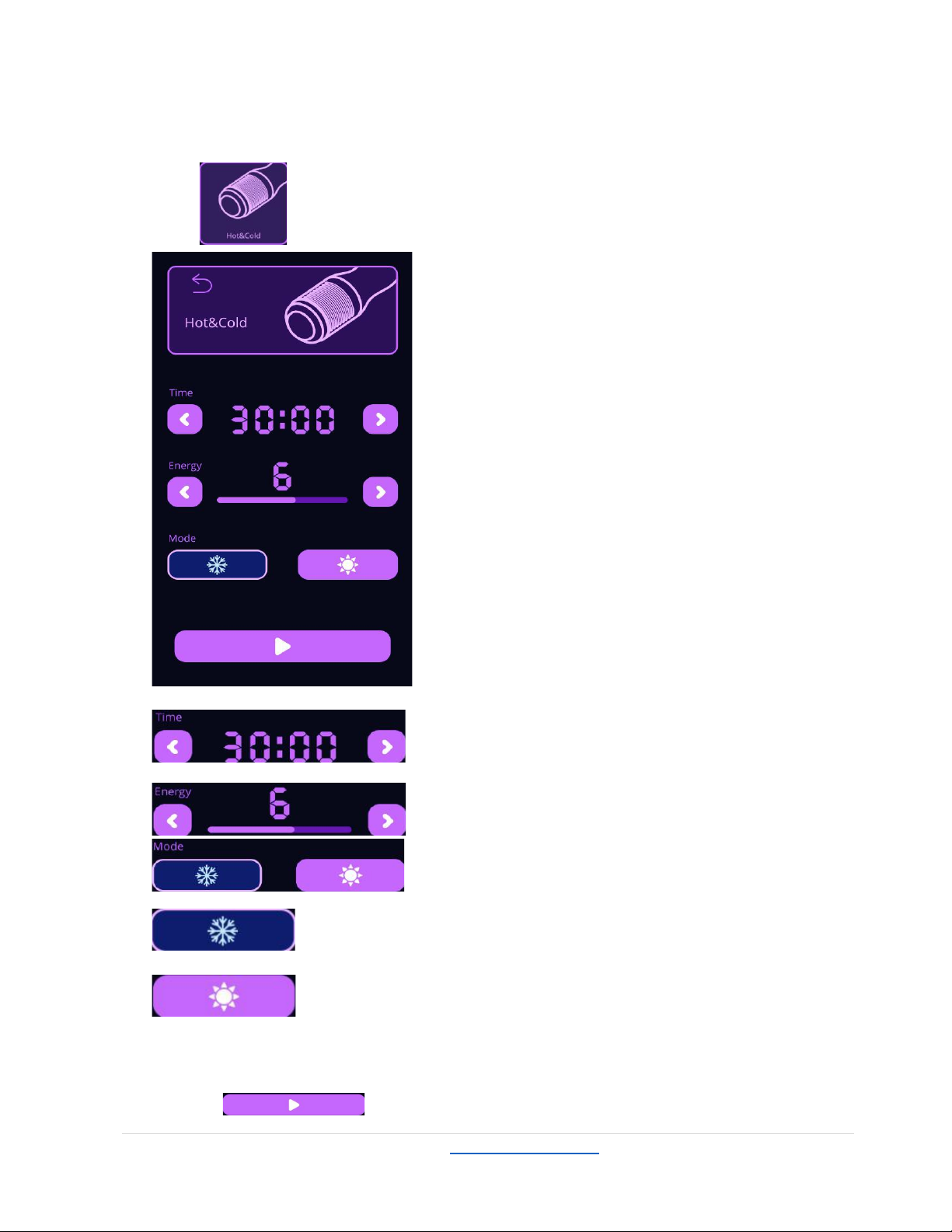

4.7. Detailed Operations for Cold & Hot Hammer
Select and enter the following page.
Time Setting & Display
Energy Intensity Setting & Display
Mode Selection for Cold & Hot Hammer
Cooling Mode (for calming and repairing sensitive, swelling, or
heating skin)
Heating Mode (for skin infusion and absorption)
Have the time, energy intensity, and mode set, and
then click to start.

© ArianaSpas www.arianaspas.com
17 | P a g e

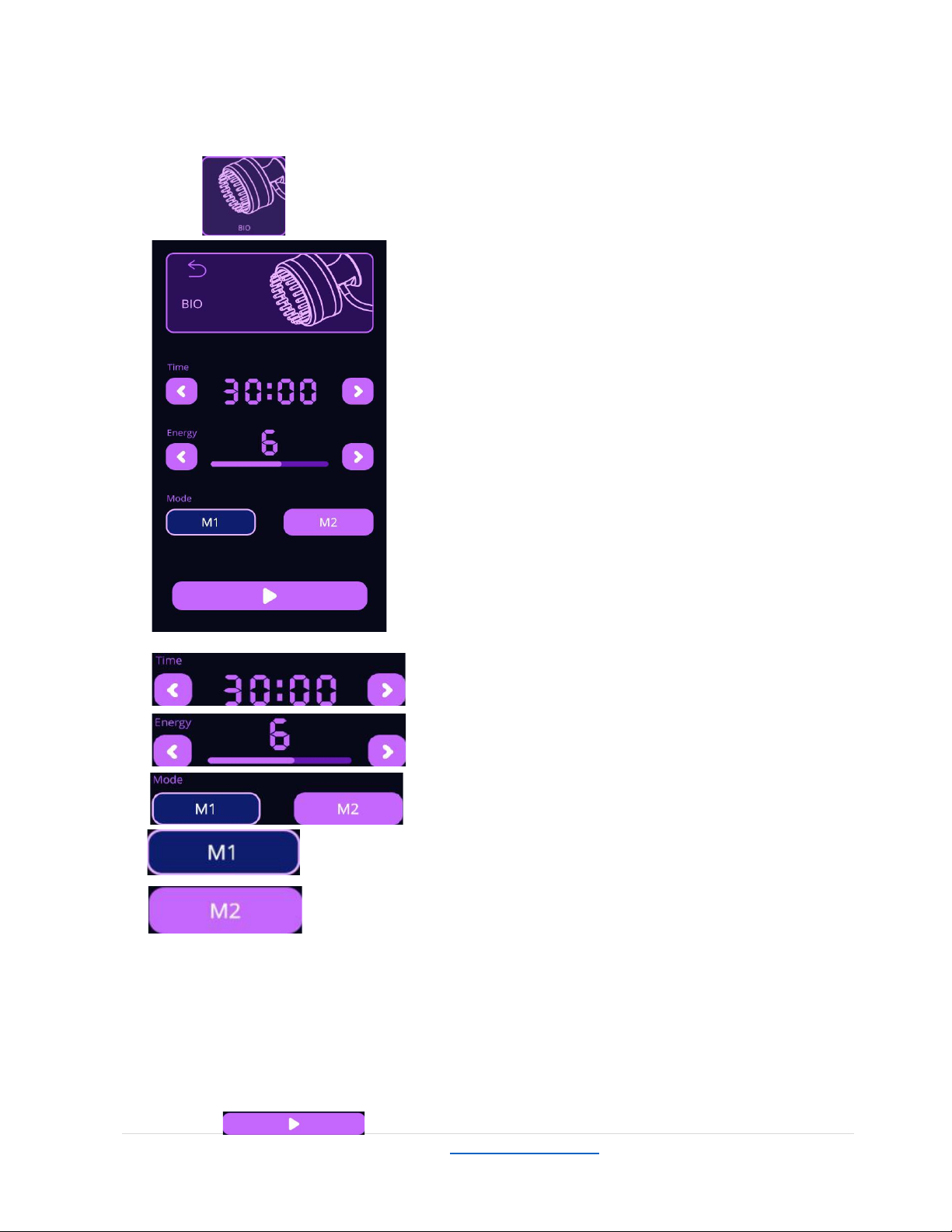

4.8. Detailed Operations for BIO
Select and enter the following page.
Time Setting & Display
Energy Intensity Setting & Display
Two Working Modes for BIO
Continuous Working Mode
Discontinuous Working Mode
Handpiece Adjustment:
OFF： Photon LED
AUTO： Change color automatically（cycle through multiple twinkling colors） MODE/ON： Mode
Selection（different colors can be chosen to stay on)
WAVE ： Mono Twinkling Color (click MODE to switch to a different color when needed)
Have the time, energy intensity, and mode set, and
then click to start.

© ArianaSpas www.arianaspas.com
18 | P a g e

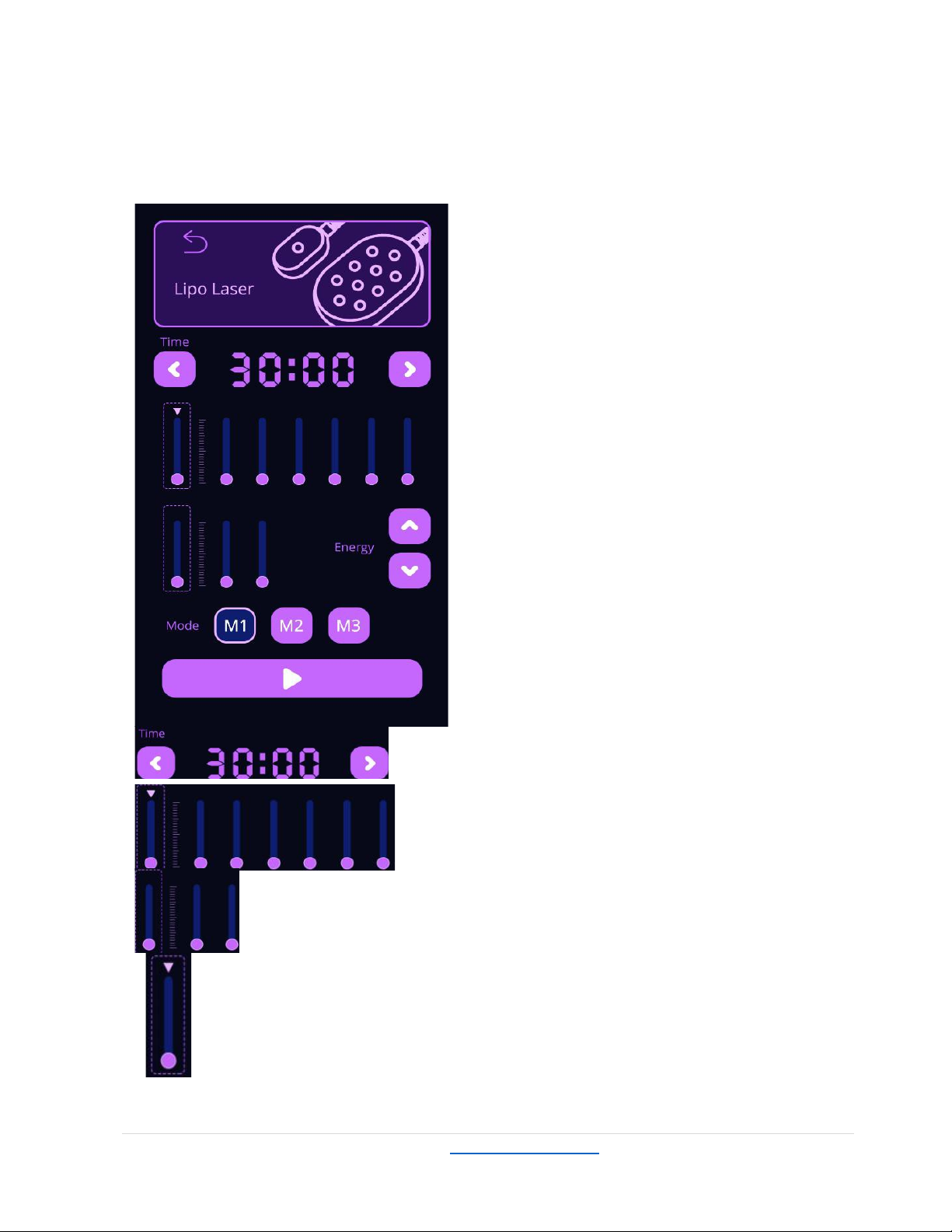

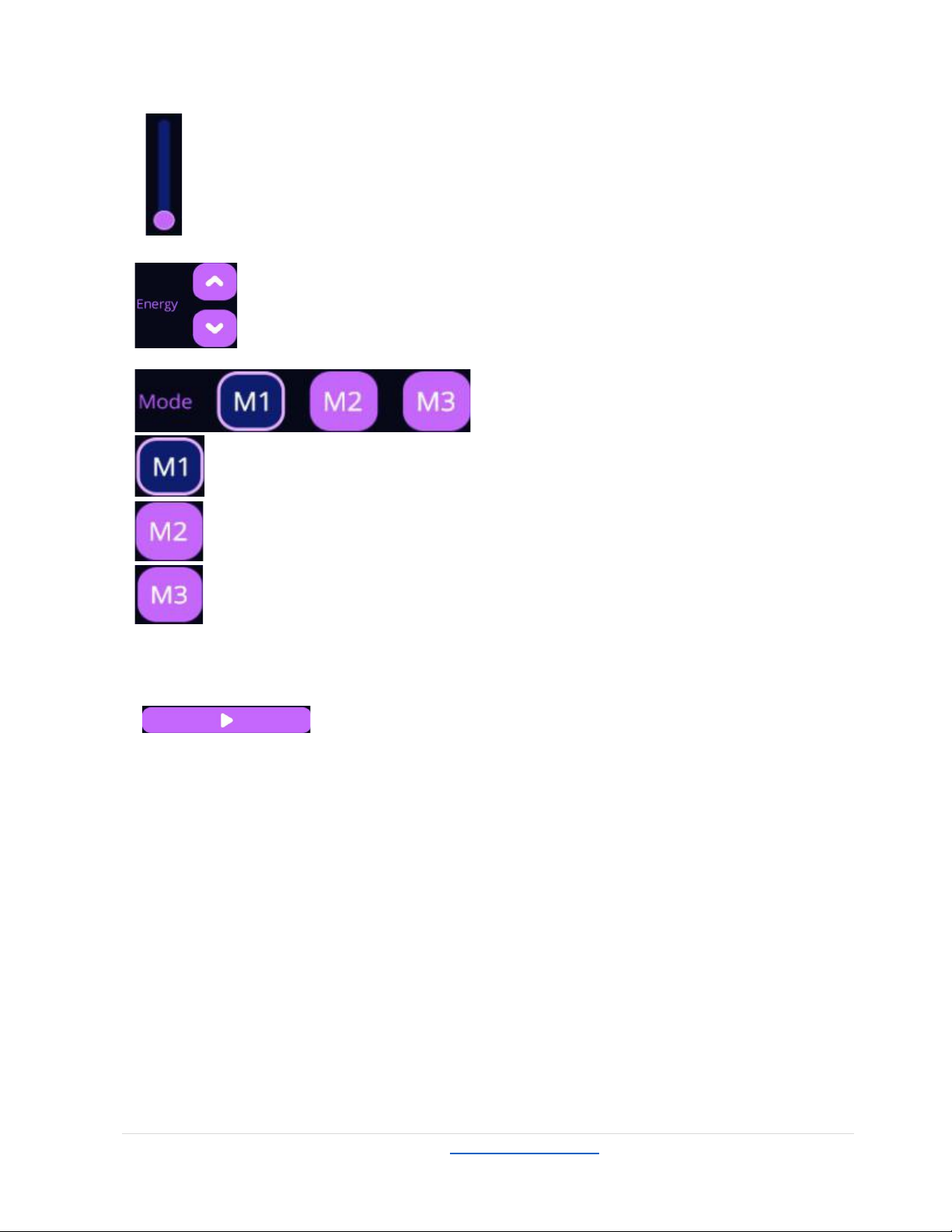

4.9. Detailed Operations for Lipo Laser
time display and adjustment
energy level display for large Lipo Laser pads
energy level display for small Lipo Laser pads
If you choose the leftmost bar, the energy level of all Lipo Laser pads can be
adjusted simultaneously

© ArianaSpas www.arianaspas.com
19 | P a g e
If you choose a certain bar(excluding the leftmost one), the energy level of
corresponding Lipo Laser pad can be adjusted
buttons for adjusting energy level
three working modes
the laser light is constanty on
the laser light flashes with low frequency
the laser light flashes with high frequency
The longer the light acts on skin, the obvious the effects will be. Choose working mode based on
individual needs.
set time, energy level and choose working mode and then press
to start the treatment.

© ArianaSpas www.arianaspas.com
20 | P a g e
5. Technical Parameters
Power supply Input:100V-240V
Power: 190W
Ultrasonic Cavitation 2.5 Handle
Frequency: 40KHz
Power: 30W
6-polar 3D SMART Body RF Handle
Freqeuncy: 3MHz
Power: 30W
6-polar RF Vacuum Photon Handle
Freqeuncy:3MHz
Power:50W Vacuum: <-
80kPa Pressure:
>250kPa
Air flow: >10L/minute
Noise level:<70db(30cm away)
Bipolar 3D SMART RF Handle
Frequency: 3MHZ Power:30W
6-pole RF Face Handle
Freqency: 3MHZ
Power:50W
Photon Microcurrent Handle
7 colors : Red, Blue, Green, Purple, Orange, Turquoise, White
Hot and Cold Hammer
Cold Hot Hammer Cold: 0-5
degree
Hot: 45 degree
Led laser wavelength: 635nm ~650nm
Power of each light: 5mw
Energy output :50 x 5mW =250mw ( 6 big pads *8 light/each+2 small pads * 1 light/each)
Mains power output: 100VA
