Arianaspas Slimming-9 User manual

9-in-1 40K Ultrasonic Cavitation RF Vacuum

Photon & Micro Current Machine with Lipo Laser

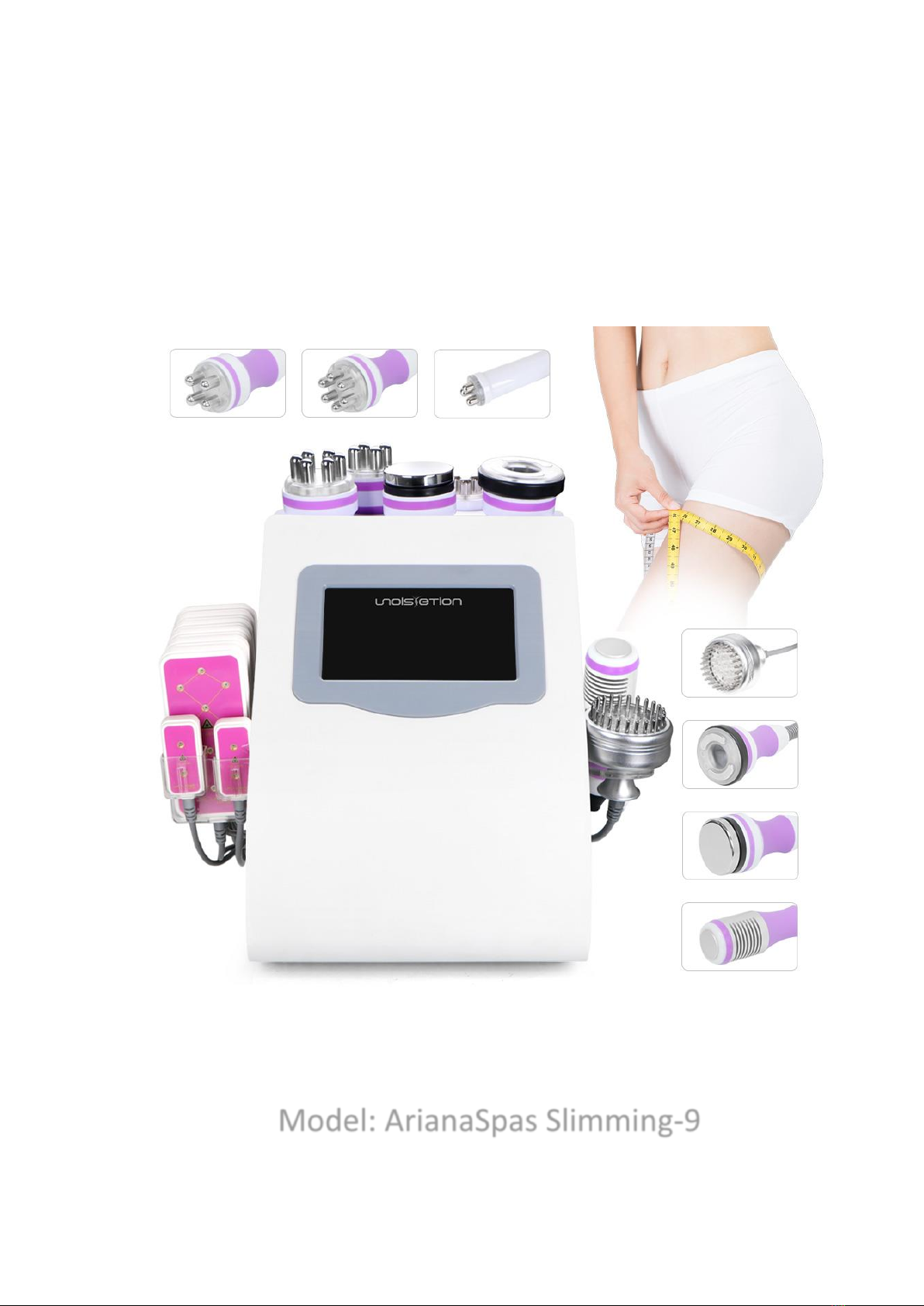

Model: ArianaSpas Slimming-9

Disclaimer

This machine is meant to be used by trained personnel only. Improper usage of this

machine can cause injury or death.

oPlease read the instructions in detail and keep them nearby for further reading and consultation.

oPlease follow the instructions to set-up and operate the machine correctly.

oPlease do not remove and modify any accessories of the machine.

oThis machine should only be opened by trained professionals.

oIf there are any issues with the machine, please stop using it and contact us for a resolution.

oThis device does not treat medical ailments or disease. For any medical issues, please contact

your physician.

Contents:

Ultrasonic Cavitation Machine comes with

1. 40KHz Cavitation Head x 1

2. Vacuum Bipolar RF Head x1

3. Tripole RF Head for Face and Eyes' Around x 1

4. Quadrupole RF Head for Face and Body x1

5. Multipolar RF Head for Body x1

6. Photon & Microcurrent probe x 1

7. Hot and Cold probe x1

8. Lipo laser 5mw big pads x6

9. Lipo laser 5mw small pad x2

10. Power cord x 1

Warranty & Support

Most issues are due to incorrect setting. If you are experiencing an issue please make a

Small Cell Phone Video and send via text to (571) 418 4858.

One of our technicians will review it and advise with a solution.

Your Ariana Spa Supplies-branded hardware product (“Product”) is warranted against defects in materials

and workmanship for a period of ONE (1) YEAR from the date of original retail purchase (“Warranty Period”)

when used in accordance with Ariana Spa Supplies’ user manuals. If a defect arises during the Warranty

Period, Ariana Spa Supplies, at its option will (1) repair the Product at no charge using new parts or parts

that are equivalent to new in performance and reliability, or (2) exchange the Product with a product with

equivalent functionality formed from new and/or previously used parts that are equivalent to new in

performance and reliability or with your consent, a product that is at least functionally equivalent to the

product it replaces. This warranty excludes normal depletion of consumable parts such as batteries unless

failure has occurred due to a defect in materials or workmanship and, damage resulting from abuse,

accident, modifications, unauthorized repairs or other causes that are not defects in materials and

workmanship.

Ariana Spa Supplies does not warrant, represent or undertake that it will be able to repair or replace any

Product under this warranty without risk to and / or loss of information and / or data stored on the Product.

In no event shall Ariana Spa Supplies be liable for (a) loss or damage, which as of the product’s purchase

cannot be regarded as being caused by Ariana Spa Supplies’ breach of these warranty terms; or (b) losses

caused by the user’s fault, loss of data or loss of profits or benefits.

Any limitations of liability in this warranty document shall not apply to (i) death or personal injury pursuant

to any mandatory law on product liability; (ii) fraud or fraudulent misrepresentation; (iii) intentional

misconduct or gross negligence; (iv) or a culpable breach of major contractual obligations. A damages claim

based on a breach of major contractual obligations or gross negligence will be limited to foreseeable

damage typical for the sale contract concerned.

To obtain warranty service, contact Ariana Spa Supplies at Ariana Spa Supplies, 42715 Chisholm Drive,

Broadlands, VA 20148. Customers are responsible for shipping charges to get the item back to us and for

return shipping cost once the item is repaired or replace.

Table of Contents:

1. Introduction to Manual ............................................................................................................................5

1.1 Purpose

1.2 Legend

2. Medical Safety..........................................................................................................................................6

2.1. Contraindications

2.2. Precautions

2.3. Client Safety

3. Features.………………....................................................................................................................................8

4. Control Unit & Handpiece..........................................................................................................................9

5. Operation Instructions.............................................................................................................................10

5.1. Cavitation 40k probe

5.2. Vacuum Bipolar RF Handle

5.3. Multipolar RF Head for Body

5.4. Quadrupole RF Head for Face and Body

5.5. Tripole RF Head for Face and Area Around Eyes

5.6. Cooling & Heating Handle

5.7. Photon & Microcurrent

5.8. Lipo laser

6. Vacuum Filter Installation Instructions………………………………………………………………………………………………..20

7. Operation Illustrations…………………………………………………………………………………………………………………………21

8. Technical Specification……………………………………………………………………………………………………………………..…29

1. Introduction to Manual

1.1 Purpose

This manual provides a description of the system components, its controls and displays, instructions

for its operation, and other equipment information

relevant to the user.

Warning: Do Not operate this machine before reading this manual thoroughly. In addition to

this manual, additional training may be available.

1.2 Legend

Note: This Indicates important information

Warning: Necessary and vital information for the safety of the patient and/or user.

➢All procedures are broken down by numbered steps. Steps must be completed in the sequence

they are presented.

➢Bulleted lists indicate general information about a particular function or procedure. They do not

imply a sequential procedure.

2. Medical Safety

2.1. Contraindications

This machine is not intended for use in patients with:

oOpen wounds or lesions on the face and/or neck

oSevere or cystic acne on the face and/or neck

2.2. Precautions

The cavitation vacuum RF micro current photon machine should not be used on clients that have the

following:

oMechanical implants

oDermal fillers

oImplanted electrical devices in the face and/or neck

oMetal stents in the face and/or neck area

oExisting keloid(s)

The following areas should be avoided during treatment:

oThyroid gland, thyroid cartilage and trachea

oMajor blood vessels

The cavitation vacuum RF microcurrent photon machine has not been evaluated for use in the

following client populations:

oPregnant or breast-feeding women

oChildren

oThose with the following disease(s):

•A hemorrhagic disorder or hemostatic dysfunction

•An active systemic or local skin disease that may alter wound healing

•Herpes simplex

•Autoimmune disease

•Diabetes

•Bell’s palsy

2.3. Client Safety

Warning: This machine is to be used only by trained and qualified professionals.

Warning: Cavitation vacuum RF micro current photon machine should not be used on a

client’s eyes or in a location or technique where ultrasound energy

can reach the eye.

Warning: If any problems occur during system operation - lift the transducer off the

client’s skin, press the PAUSE button to completely halt system operation.

3. Features

oThis is a painless treatment that is both safe and effective.

oThis is a non-surgical, non-invasive process.

oThe treatments do not have any adverse side effects and do not interfere with daily life.

oFirms the arms, legs, thighs, buttocks, waist, back, abdominal muscles to reshape the body.

oProvides feelings of: soothing, decompression and pain relief (such as joint pain, sciatica).

oPromotes the regular mechanical aerobic exercise of skin tissue to rapidly relieve stress and remove

fatigue.

oFirms, lifts and compacts facial skin by promoting cellular metabolism. Up to 100% more collagen and

may be available to help improve skin elasticity.

4. Control Unit & Handpiece

Cavitation 40k Body sextuple RF Body Vacuum RF Face Quadrupole RF

Eye Tripolar RF Cooling Handle Microcurrent Photon Lipo-Laser Pads

5.Operation Instructions

5.1 Cavitation 40k Probe

1. Press and to set working time.

2. Press and to set energy level.

3. Press to select the energy delivery model. One mode may be selected at a time.

oModel A: continuous wave, for areas with thin fat

oModel B: intermittent wave, for areas with thick fat.

4. Press to start or pause the operation.

5. Operate the 40KHz Cavitation Head for 15-20 minutes on the treatment area.

Warning:

Cavitation 40k Probe should not be used on the back

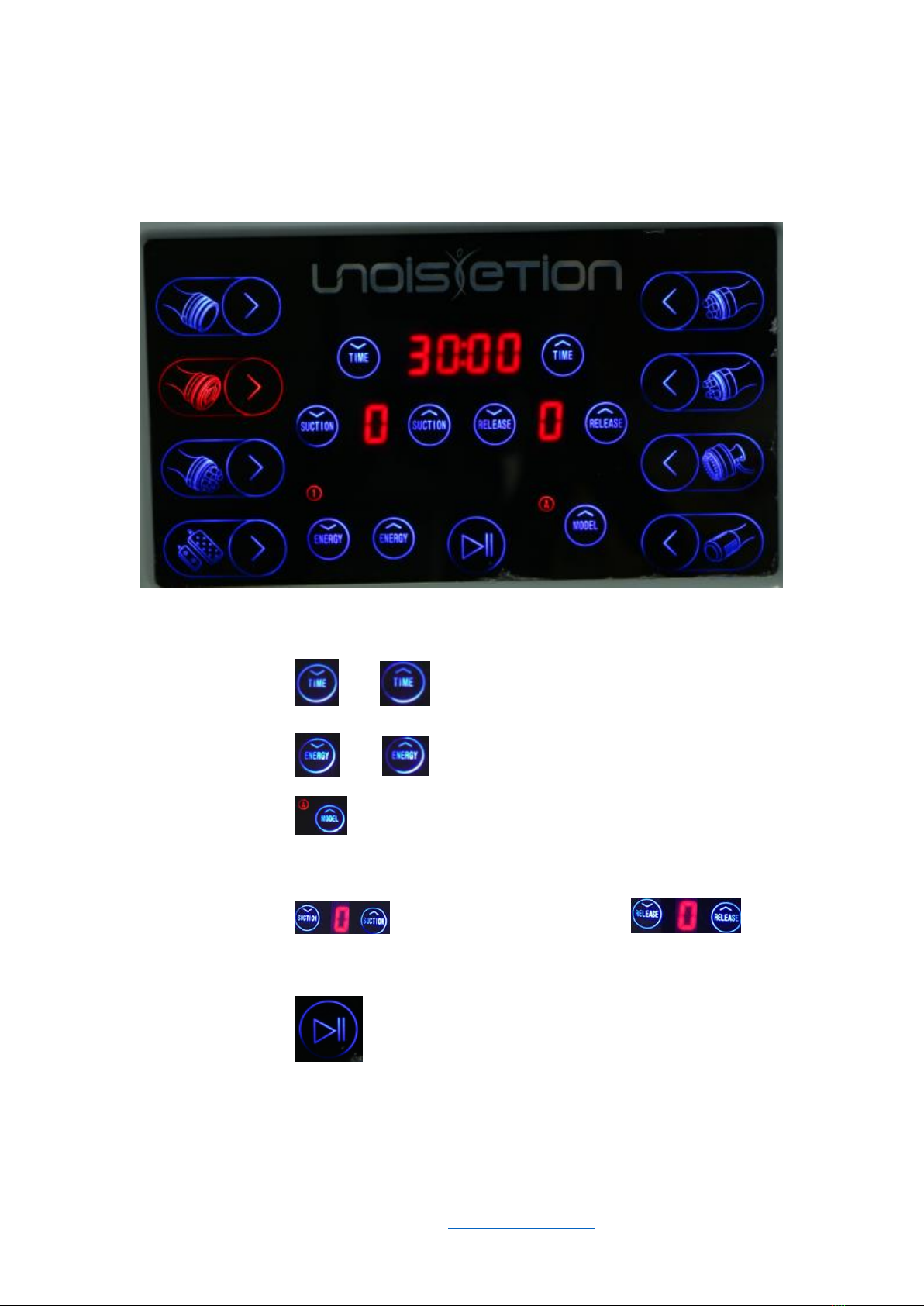

5.2 Vacuum Bipolar RF Handle

1. Press and to set working time.

2. Press and to set energy level.

3. Press to select the energy delivery model. One mode may be selected at a time.

oModel A: continuous wave, for areas with thin fat

oModel B: intermittent wave, for areas with thick fat.

4. Press to adjust the suction time. Press to adjust the

release time (adjust according to the client's acceptable level, 3-6 is standard). Typically,

suction time is longer than the release time.

5. Press to start or pause the operation.

6. Operate the Vacuum Bipolar RF Handle for 15-20 minutes on the treatment area.

Operating Tips:

➢Apply ultrasonic gel to the treatment area.

➢Maintain full contact with the skin during treatment, move the probe thoroughly along the

surface of the target area evenly.

➢Adjust intensity from lower to higher, based on client preference.

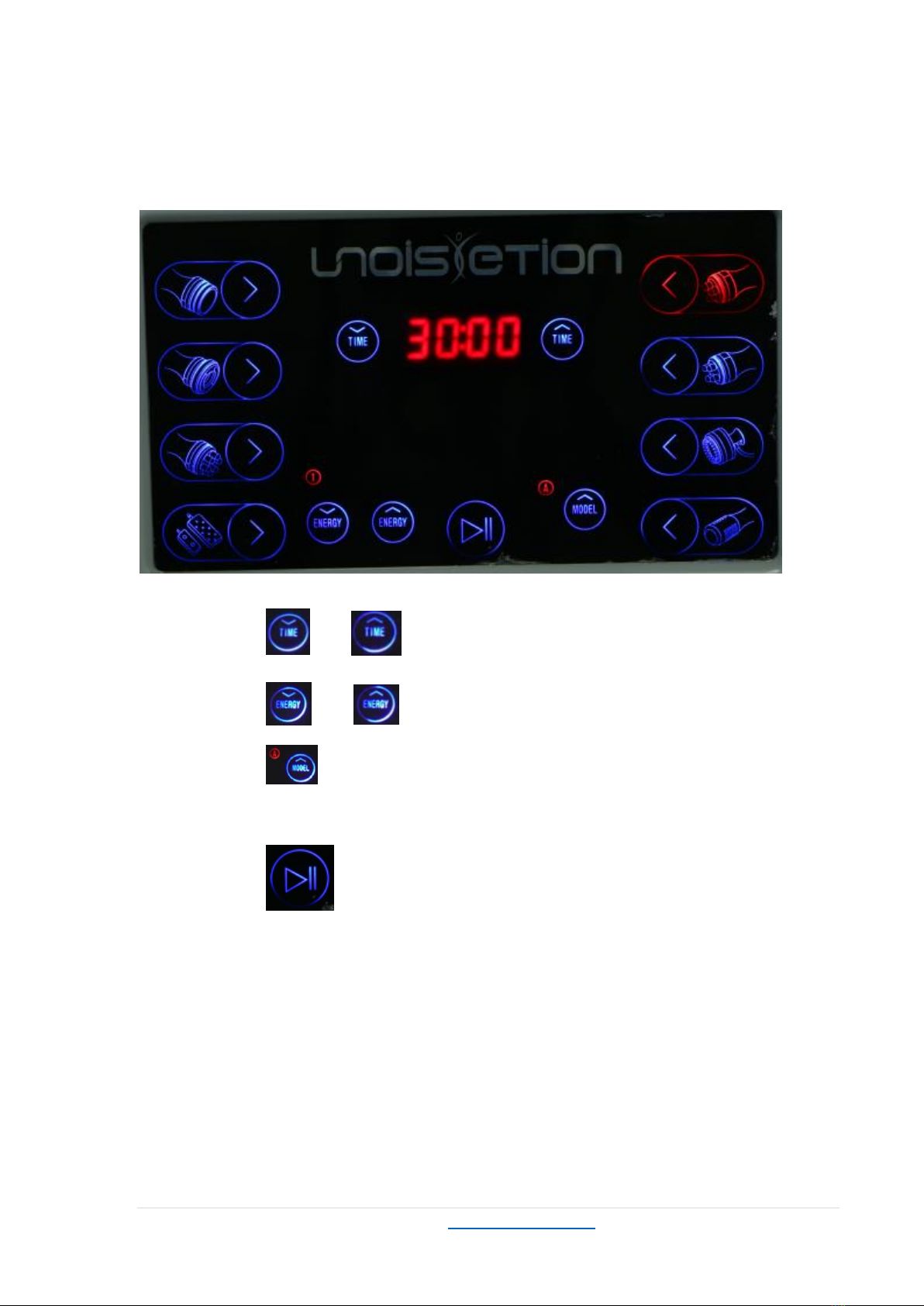

5.3 Multipolar RF Head for Body

1. Press and to set working time.

2. Press and to set energy level.

3. Press to select the energy delivery model. One mode may be selected at a time.

oModel A: continuous wave, for areas with thin fat

oModel B: intermittent wave, for areas with thick fat.

4. Press to start or pause the operation.

5. Operate the Multipolar RF Head for 15-20 minutes on the treatment area.

Operating Tips:

➢Maintain full contact with the skin during treatment, move the probe thoroughly

along the surface of the target area evenly.

➢Adjust intensity from lower to higher, based on client preference.

5.4 Quadrupole RF Head for Face and Body

1. Press and to set working time.

2. Press and to set energy level.

3. Press to select the energy delivery model. One mode may be selected at a time.

oModel A: continuous wave, for areas with thin fat

oModel B: intermittent wave, for areas with thick fat.

4. Press to start or pause the operation.

5. Operate the Quadrupole RF Head for 15-20 minutes on the treatment area.

Operating tips:

➢Apply ultrasonic gel to the treatment area.

➢Maintain full contact with the skin during treatment, move the probe thoroughly along the

surface of the target area evenly.

➢Adjust intensity from lower to higher, based on client preference.

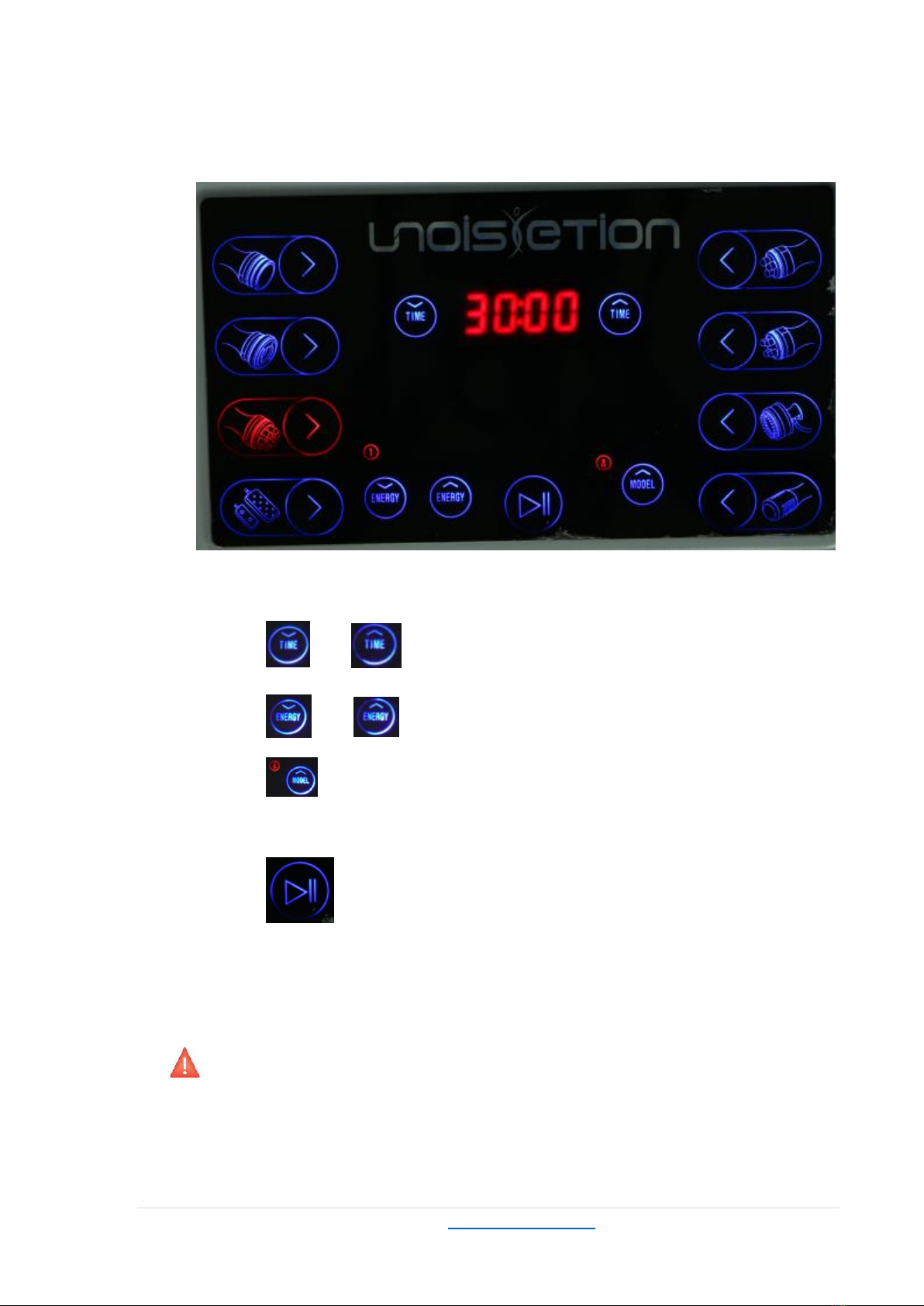

5.5 Tripole RF Head for Face and Area Around Eyes

1. Press and to set working time.

2. Press and to set energy level.

3. Press to select the energy delivery model. One mode may be selected at a time.

oModel A: continuous wave, for areas with thin fat

oModel B: intermittent wave, for areas with thick fat.

4. Press to start or pause the operation.

5. Operate the Tripole RF Head for 15-20 minutes on the treatment area.

5.6 Cooling Handle ( Cold & Hot Hammer)

The Cavitation probe, Vacuum probe and RF probes may cause skin warming and irritation. The Cold

Handle can be used to calm the skin, and shrink pores.

1. Press and to set working time.

2. Press and to set energy level.

3. Press to select the energy delivery model. One mode may be selected at a time.

oModel A: Cold Hammer.

oModel B: Hot Hammer.

4. Press to start or pause the operation.

5.7 Photon & Microcurrent

1. Press and to set working time.

2. Press and to set energy level.

3. Press to select the energy delivery model. One mode may be selected at a time.

oModel A: continuous wave, for areas with thin fat

oModel B: intermittent wave, for areas with thick fat.

4. Press to start or pause the operation.

Rejuvenating Light Effects:

oRed: Useable on any skin type. Increases natural hydration levels, improves circulation,

regenerates collagen, shrinks the appearance of pores, and accelerates skin repair.

oBlue: Suitable for sensitive, oily, skin. Commonly used to treat sun damage, reduce enlarged oil

glands, treat acne, and remove acne scarring.

oGreen: Used to normalize sebaceous glands, reduce frequency of blackheads, balance moisture

levels, relieve chronic pain or migraines.

oPurple: Helps eliminate toxins, reduce inflammation, improve healing, and reduce wrinkles.

oOrange: Breaks down skin pigmentation and smooths scars.

oTurquoise: Increases the skin’s natural defenses, supports restoration and rejuvenation of the body.

oWhite: Helps to boost mood and energy levels.

Operating Tip:

➢Please keep eyes closed during LED photon therapy.

5.8 Lipo Laser

1. Press and to set working time.

2. Press and to set energy level.

3. Press to select the energy delivery model. One mode may be selected at a time.

oModel A: continuous wave, for areas with thin fat

oModel B: intermittent wave, for areas with thick fat.

4. Press to start or pause the operation.

Operating tips:

➢Choose the proper Lipo Laserpad for the treatment area, Then place pad onto the body. Suggested

treatment time is 20-25 minutes.

➢Lipo Laser 5mw is recommended to produce a slimming effect.

6.Vacuum Installation Instructions.

1. Please place the vacuum filter on the rear of the machine before the machine is turned on.

2. If placed correctly, the vacuum filter should look like this:

3. If the vacuum suction is weak, please use the adjustment knob to fine-tune suction level.

Clockwise rotation：Minimum to Maximum.

ArianaSpas Slimming-9 User manual

Popular Personal Care Product manuals by other brands
