ArianaSpas S-Shape RF User manual
© ArianaSpas www.arianaspas.com
2 | P a g e
Disclaimer
This machine is meant to be used by trained personnel only. Improper usage of this machine
can cause injury or death.
oPlease read the instructions in detail and keep them nearby for further reading and
consultation.
oPlease follow the instructions to set-up and operate the machine correctly.
oPlease do not remove and modify any accessories of the machine.
oThis machine should only be opened by trained professionals.
oIf there are any issues with the machine, please stop using it and contact us for a
resolution.
oThis device does not treat medical ailments or disease. For any medical issues, please
contact your physician.
Contents:
•Main Machine x 1
•RF Handy Polar x 1
•RF Vacuum pad x1
•30K&RF Handle x 1
•Vacuum&RF Handle x 1
•Vacuum&RF Face Handle x 1
•Face EMS&EL Handle x 1
•Holder x 1
•Fuse x 2
•Power Supply Cord x 1
© ArianaSpas www.arianaspas.com
3 | P a g e
Warranty & Support
Most issues are due to incorrect setting. If you are experiencing an issue please make a
Small Cell Phone Video and send via text to (571) 418 4858.
One of our technicians will review it and advise with a solution.
Your Ariana Spa Supplies-branded hardware product (“Product”) is warranted against defects in
materials and workmanship for a period of ONE (1) YEAR from the date of original retail purchase
(“Warranty Period”) when used in accordance with Ariana Spa Supplies’ user manuals. If a defect arises
during the Warranty Period, Ariana Spa Supplies, at its option will (1) repair the Product at no charge
using new parts or parts that are equivalent to new in performance and reliability, or (2) exchange the
Product with a product with equivalent functionality formed from new and/or previously used parts that
are equivalent to new in performance and reliability or with your consent, a product that is at least
functionally equivalent to the product it replaces. This warranty excludes normal depletion of
consumable parts such as batteries unless failure has occurred due to a defect in materials or
workmanship and, damage resulting from abuse, accident, modifications, unauthorized repairs or other
causes that are not defects in materials and workmanship.
Ariana Spa Supplies does not warrant, represent or undertake that it will be able to repair or replace any
Product under this warranty without risk to and / or loss of information and / or data stored on the
Product. In no event shall Ariana Spa Supplies be liable for (a) loss or damage, which as of the product’s
purchase cannot be regarded as being caused by Ariana Spa Supplies’ breach of these warranty terms;
or (b) losses caused by the user’s fault, loss of data or loss of profits or benefits.
Any limitations of liability in this warranty document shall not apply to (i) death or personal injury
pursuant to any mandatory law on product liability; (ii) fraud or fraudulent misrepresentation; (iii)
intentional misconduct or gross negligence; (iv) or a culpable breach of major contractual obligations. A
damages claim based on a breach of major contractual obligations or gross negligence will be limited to
foreseeable damage typical for the sale contract concerned.
To obtain warranty service, contact Ariana Spa Supplies at Ariana Spa Supplies, 42715 Chisholm Drive,
Broadlands, VA 20148. Customers are responsible for shipping charges to get the item back to us and for
return shipping cost once the item is repaired or replace.
© ArianaSpas www.arianaspas.com
4 | P a g e
Table of Contents:
Table of Contents:
1. Introduction to Manual...........................................................................................................................5
1.1 Purpose
1.2 Legend
2. Medical Safety......................................................................................................................................... 6
2.1. Contraindications
2.2. Precautions
2.3. Client Safety
3. Features ....................................................................................................................................................8
4. Operation Instructions..............................................................................................................................9
4.1 Function Selection
4.2 RF& Ultrasound
4.3 RF & Vacuum Suction Body
4.4 RF& Vacuum Suction Face
4.5 EMS&EL
4.6 Handy Polar
5. Restrictions on Use ................................................................................................................................15
6. Precautions ............................................................................................................................................15
7. Troubleshooting & Solutions..................................................................................................................16
8. FAQs.......................................................................................................................................................17
10. Operational Diagrams……………………………………………………………………………………………………………………19
© ArianaSpas www.arianaspas.com
5 | P a g e
1.
Introduction to Manual
1.1 Purpose
This manual provides a description of the system components, its
controls and displays, instructions for its operation, and other equipment information
relevant to the user.
Warning: Do Not operate this machine before reading thismanual thoroughly. In
addition to this manual, additional training may be available.
1.2 Legend
Note: This Indicates important information
Warning: Necessary and vital information for the safety of the patient and/or user.
All procedures are broken down by numbered steps. Steps must be completed in the sequence
they are presented.
Bulleted lists indicate general information about a particular function or procedure. They do not
imply a sequential procedure.
© ArianaSpas www.arianaspas.com
6 | P a g e
2.
Medical Safety
2.1. Contraindications
This machine is not intended for use in patients with:
o
Open wounds or lesions on the face and/or neck
o
Severe or cystic acne on the face and/or neck
2.2. Precautions
The cavitation vacuum RF micro current photon machine should not be used on clients that
have the following:
o
Mechanical implants
o
Dermal fillers
o
Implanted electrical devices in the face and/or neck
o
Metal stents in the face and/or neck area
o
Existing keloid(s)
o
The following areas should be avoided during treatment:
o
Thyroid gland, thyroid cartilage and trachea
o
Major blood vessels
o
The cavitation vacuum RF microcurrent photon machine has not been evaluated
for use in the following client populations:
o
Pregnant or breast-feeding women
o
Children
o
Those with the following disease(s):
•
A hemorrhagic disorder or hemostatic dysfunction
•
An active systemic or local skin disease that may alter wound healing
•
Herpes simplex
•
Autoimmune disease
•
Diabetes
•
Bell’s palsy
© ArianaSpas www.arianaspas.com
7 | P a g e
2.3. Client Safety
Warning: This machine is to be used only by trained and qualified professionals.
Warning: Cavitation vacuum RF micro current photon machine should not be used on a
client’s eyes or in a location or technique where ultrasound energy can reach the eye.
Warning: If any problems occur during system operation - lift the transducer off the
client’s skin, press the PAUSE button to completely halt system operation.
© ArianaSpas www.arianaspas.com
8 | P a g e
3.
Features
o
This is a painless treatment that is both safe and effective.
o
This is a non-surgical, non-invasive process.
o
The treatments do not have any adverse side effects and do not interfere with daily life.
o
Firms the arms, legs, thighs, buttocks, waist, back, abdominal muscles to reshape the body.
o
Provides feelings of: soothing, decompression and pain relief (such as joint pain, sciatica).
o
Promotes the regular mechanical aerobic exercise of skin tissue to rapidly relieve stress and remove
fatigue.
•Firms, lifts and compacts facial skin by promoting cellular metabolism. Up to 100% more
collagen and may be available to help improve skin elasticity.
© ArianaSpas www.arianaspas.com
9 | P a g e
4.
Operation Instructions
After checking that the instrument is connected properly, the following starting interface will appear when
the power supply is turned on.
4.1 Function Selection
Start/Pause
Restore
Mode Selection
Time Display & Adjustment
Vacuum&RF Suction Adjustment (turn right ton increase suction,
and turn left to decrease suction)
Home
© ArianaSpas www.arianaspas.com
10 | P a g e
4.2 Detailed Operation: RF& Ultrasound
Energy Level Display
Ultrasound&RF Energy Adjustment
Ultrasound Mode Adjustment (M1 is consecutive mode and
is suitable for thin fat layer; M2 is intermittent mode and is suitable for thick fat
layer.)
RF Mode Selection (NOR is the set mode. The red LED is on
and energy is at the set level and stay at the set level after turning on the device.
PRO is the smart mode. The red LED stays on and temperature goes up slowly to
the set energy and after the probe comes in full contact with the skin.)
Select
To go to the interface
below
© ArianaSpas www.arianaspas.com
11 | P a g e

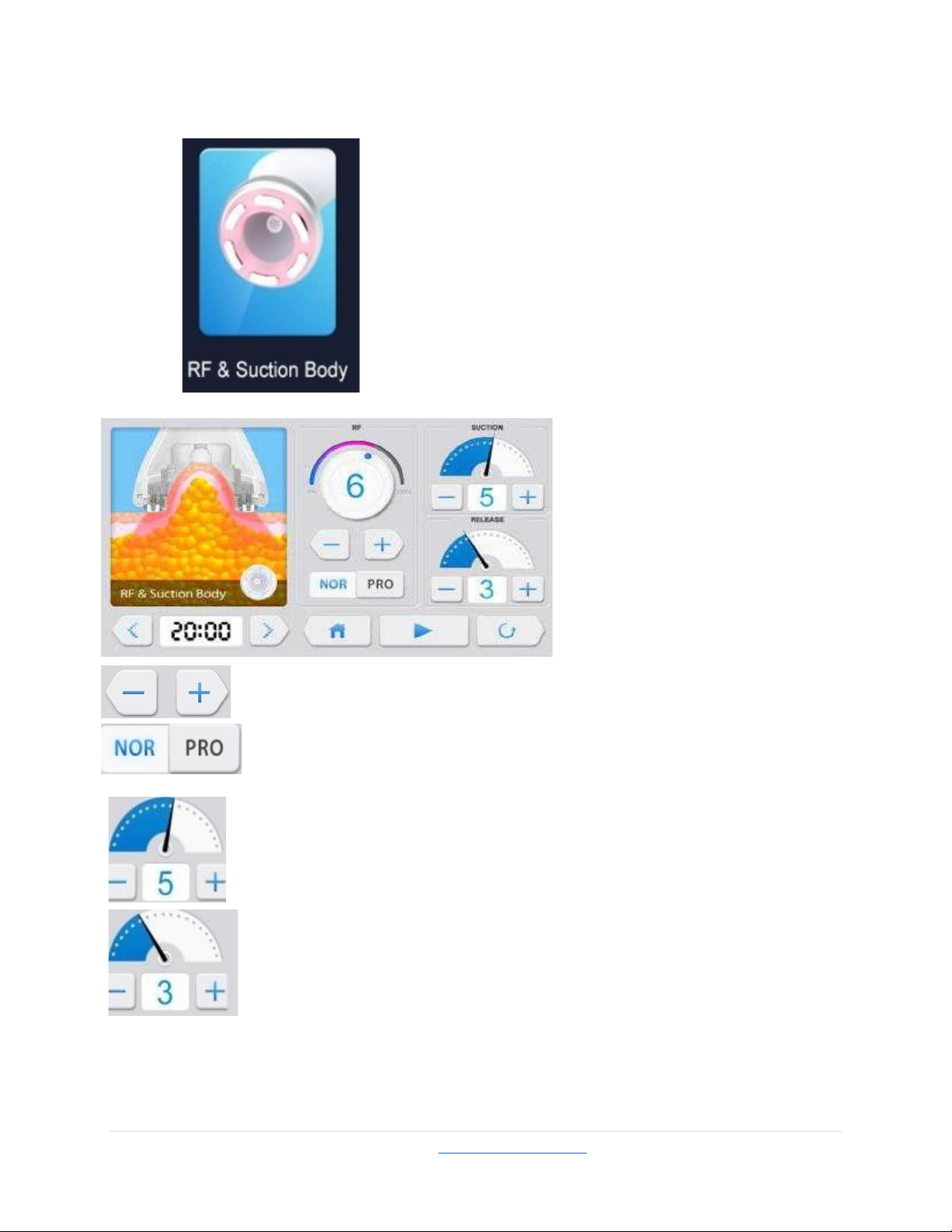

4.3 Detailed Operation: RF & Vacuum Suction Body
Select to go to the interface below
RF Energy Adjustment
RF Mode Selection (NOR is the set mode. The red LED is on and energy is at the set level
and stay at the set level after turning on the device. PRO is the smart mode. The red
LED stays on and temperature goes up slowly to the set energy and after the probe
comes in full contact with the skin.)
Vacuum Suction Time Adjustment (Suction time ＞Release time)
Vacuum Release Time Adjustment (0 means direction suction)
© ArianaSpas www.arianaspas.com
12 | P a g e

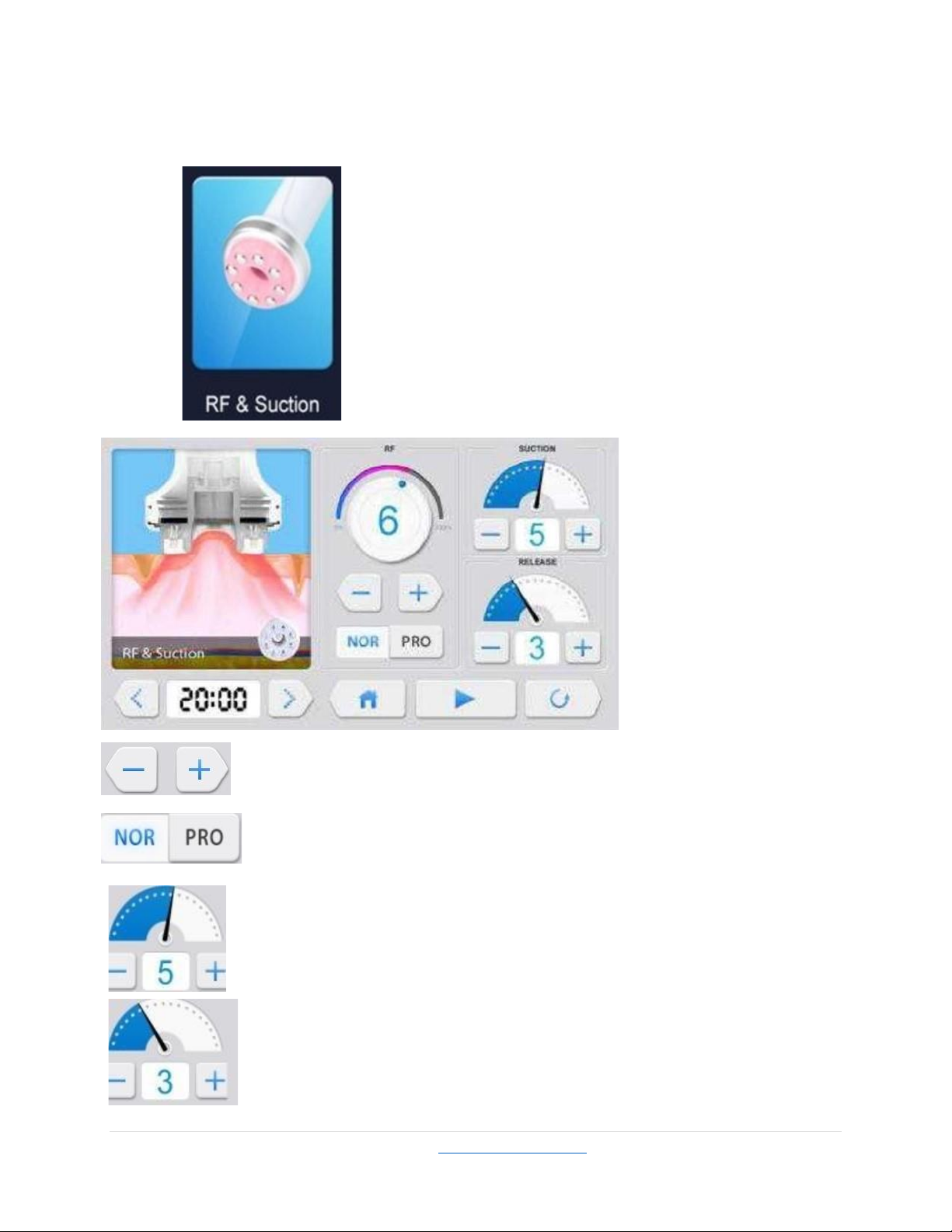

4.4 Detailed Operation: RF& Vacuum Suction Face
Select to go to the interface below
RF Energy Adjustment
RF Mode Selection (NOR is the set mode. The red LED is on and energy is at the set level
and stay at the set level after turning on the device. PRO is the smart mode. The red
LED stays on and temperature goes up slowly to the set energy and after the probe
comes in full contact with the skin.)
Vacuum Suction Time Adjustment (Suction time ＞Release time)
Vacuum Release Time Adjustment (0 means direction suction)
© ArianaSpas www.arianaspas.com
15 | P a g e
6. Restrictions on Use
Patients with the following symptoms should be cautious about using this instrument. Please consult
a doctor or a professional before using the instrument. The details are as follows:
1. Those who are pregnant or lactating.
2. Those with heart disease or who are equipped with pacemaker.
3. Those whose wounds have not healed and who are recovering from the operation.
4. Those with epilepsy, severe diabetes and hyperthyroidism.
5. Those with malignant tumor, hemophilia or severe bleeding.
6. Those with skin diseases and infectious diseases.
7. Precautions
oUse a grounding pin and make sure the power socket of the device is properly connected before each
operation.
oEnsure that the voltage of the device is appropriate. If the voltage of the local power supply is unstable, we
recommend that users increase to the matching power voltage.
oIn order to ensure the therapeutic effect and normal service life expectancy of the device, please use the
specified accessories provided or recommended by the original manufacturer.
oThe device should not be placed in wet environment or near water, norshould they be directly exposed to
sunlight.
oDo not place the device near a strong heat source, because this may affect the life and normal use of the
device.
oBefore treatment, please remove all metal objects from the body first, so as to avoid unexpected
conditions and influence the curativeeffect.
oPlease restrain from using the device on eyes, thyroid, parathyroid, testicles, abdomen of pregnant
women, and pacemakers.
oPatients who are suffering from illness should consult with a doctor and gain permission from the doctor
before using.
oPlease turn off the power switch of the device, and ensure that the total power supply of the device is
turned off before the staff leaves after daily use, so as to ensure the safety of the electrical products.
oUse device or train device operators in strict accordance with instructions in the user manual.
oWhen taking other weight-loss drugs, it is recommended to stop taking them for 1 to 2 months before
treatment. Extension of the course of treatment is recommended if you wish to lose weight immediately.
oDon't use the instrument with an empty stomach. After a full meal, wait at least 1 hour before a course of
weight loss treatment.
oWhen operating, the instrument should fully touch the skin to avoid unevenheat.
oStart from the lowest energy level and slowly add up.
oWhen using this device, the operating parts must be kept moist and dryskin should be avoided.
oMake sure the RF handy polar and the vacuum pedal is in full contact with the skin.
oClean the instrument with normal saline after operation to ensure its cleanliness and hygiene and prolong
its service life.
© ArianaSpas www.arianaspas.com
16 | P a g e
oThe suction force of vacuum&RF should not be too high when operating the on the face, so as to avoid
scrapping.
oWhen operating with RF handy polar, pedal down when your hands come in contact with the customer’s
skin and let go when your hands are not in contact with the customer’s skin.
8. Troubleshooting & Solutions
1. The device cannot be started, and the light on the back of the device is not working?
A.Make sure the power cord is connected to a good power socket.
B. Check the fuse tube on the back of the device. Maybe it’s loose or burntout.
2. The RF output is not working?
A. Please check the handle of the device and the plug. Whether they are closely connected witheach
other.
B. Please check whether the treatment area has been cleaned. Grease or oil essential productsmay
cause poor contact between handle and human body, which will result in no RF output.
3. Weakened RF output?
A.Please check whether the handle and the plug is closely connected.
B. Please check whether there is non-conductive grease on the handle, which will cause poorcontact
and weaken theoutput.
C. Please check whether the product used is the adaptive product specified by the device.
4. No suction or with small suction?
A. Turn off the instrument and check the specialized filter, which may need to bereplaced.
B. Check the rubber ring of the handle plug since a worn rubber ring may cause air
leakage.
C. Check whether the oil filter cup outside the filter is tightened, and whether the rubberring is
worn. It’s possible that air leakage in this palce may lead to poor air pressure.
D. If the above-mentioned solutions are not working, please contact instrument dealerfor
assistance.
5. The device can be started, but the monitor shows wrong information?
A.Take out the plug in the back of the instrument, and wait for about 1 minute and re-plug andrestart
the device.
B. If the above-mentioned solutions are not working, please contact instrument dealerfor
assistance.
© ArianaSpas www.arianaspas.com
17 | P a g e
9. FAQs
1. Q: How long before I can start seeing results of RF treatment?
A: Under normal circumstances within that day or a week. Skin collagen tissue is heated and produces
contractions, and you can obviously feel skin tightening. Because RF works by stimulating subcutaneous tissue
and bring about sustainable collagen regeneration, so the more you do it, the more visible effects you shall
receive.
2. Q: Is RF harmful to skin?
A: RF treatment falls under the category of non-surgery operation. It stimulates collagen regeneration at the
skin bottom and boosts metabolism, therefore has no damage to the skin. Partial redness and fever is the
normal phenomenon of accelerated blood circulation, and will be resolved by oneself after a moment, so
there’s no need to worry.
3. 3.Q: How long does the body firming treatment take?
A: One operation time is 60 minutes. We will combine professional techniques and instruments to achieve
remarkable results.
4. Q: What are all the functions of this instrument?
A: Dissolve fat, body shaping, smooth skin, firming, lifting, and anti-aging. It can be operated all over the body.
In terms of facial care, it can contour facial outline, alleviate wrinkles and saggy skin. In terms of body care, it
can reduce regional fatness and build S curve, promote the metabolism and detoxification of the whole body.
Meanwhile, it can also enhance the functions of viscera and regulate the sub-health of the body.
5. Q:Which one is better in terms of weight loss, liposuction or this machine?
A: The principle of liposuction is to suck out the excess fat in one part of the body through the method of
negative pressure suction, so as to achieve the purpose of rapid weight loss on parts of the body. It achieves
fast results, requires anesthesia, recovery period. It falls under the category of surgery operation and comes
with risks. However, our machine is risk-free and has no side effects. While losing weight, it can stimulate
collagen regeneration to lift and tighten skin. By lifting, it can also shape perfect curves and accentuate
women's natural charm.
6. Q: Will I experience rebound after operation?
A: Ultrasound works by dissolving fat to reduce weight, and are not prone to rebound. Because what’s dissolved
through Ultrasound treatment is fat, not water. The formation of fat needs a longer period of time to
accumulate, so it is not prone to rebound.
7. Q: Do I need to be on a diet?
A: Pay attention to what you eat. Because radio frequency and ultrasonic treatment end with blasting adipose
and accelerated metabolism. It’s best to avoid to eating spicy, oily, or fried food, to avoid affecting regular
metabolism. Also proper workout and sweating help with the process, in a way weight loss will be more visible
as well.
8. Q: Does it have any side effects on the body?
A: RF beauty treatment is non-invasive and so far the most safe and effective method to remove wrinkles and
shape body. Generally speaking side effects won't appear. A small number of people may experience transient
redness or swelling that will disappear after a few hours. Those with dry skin may experience atrophy after the
initial treatment. The skin will lose moisture due to RF heat. However, the skin will become plump at the
beginning of collagen regeneration and these symptoms will disappear after three days. There are no side
effects on health.
9. Q: Can RF instrument be used for chest shaping?
A: As the growth of age and female physiology period, sub-health state, gravity, stimulation during lactation, a
large number of nutrition loss... All the above will cause collagen loss, decreased blood flow, damaged elastic
tissue, flabby ligament gland, and prolapsed breasts. Through RF energy conduction, collagen protease can be
promoted to repair elastic tissue and ligament glands, thus achieving the effect of chest lifting and shaping.
10. Q: Can ultrasound be operated all over the body?
A: Ultrasonic cavitation ruptures fat cells and causes mechanical disruption of fat cell membrane. Liquefied fat
© ArianaSpas www.arianaspas.com
18 | P a g e
cells then cleared away by metabolic pathways. Our heart is a hollow organ, and sensitive to high frequency
sound waves. Back and forth reflex occur due to the fact that muscle tissue and blood in the heart do not
conduct sound waves in the same way. The reflex force can detach cardiac valves from cardiac muscles. If
directed at the eye, it can cause retinal detachment. In a word, avoid eye and heart area when using ultrasonic
beauty device. (It is also advised not to use it on waist, back and chest.)
11. Q: Does ultrasound have side effects on human body?
A: Ultrasonic beauty machine requires no surgery, no opening up and no anesthesia, therefore is indeed non-
invasive. It relies on ultrasound (mechanical sound wave) blast fat through cavitation - ultrasound focusing. And
the results are fat smash - fat dissolving - skin firming and body sculpting respectively. It only targets at low
density fat cells while leaving high density tissues like blood vessels intact, therefore having no side effects on
human body. Slight tinnitus might appear to happen during the treatment, which is within normal range so
there’s no need to worry.
12. Q: Why does tinnitus occur?
A: It’s because ultrasound comes with a high frequency vibration, which could go up to 20kHz. It also goes deep
into skin fat layers, which could go down to 20mm below epidermis. Highly intensifies ultrasound cause high
speed friction among fat cells, resulting in them bursting and heating up, and eventually emulsified. And during
the process, ultrasound can cause microvibration to the tissue that make us feel like as “tinnitus”.
13. Q: What is collagen?
A: Collagen is a kind of biological macromolecule substance, a kind of white, opaque and non-branched fibrous
protein. It can supplement the nutrition needed by all layers of the skin, enhance the collagen activity in the
skin, lock moisture, nourish the skin, delay aging, beautify, relieve facial relaxation, provide nutrients for the hair
and so on. Collagen is a nutrient that human body must replenish to delay aging. With the growth of age,
collagen will gradually be lost. At the age of 20 , women have begun to age, collagen gradually decrease. At the
age of 25, collagen loss reaches its peak. At the age of 40 , the content is less than half of which one has at age
18. It is the loss of collagen and water that causes the wrinkles on the face of the elderly. The breakage of
collagen fibers and elastic mesh will cause skin tissue to be oxidized, atrophied and collapsed. The skin will be
dry, wrinkled, flabby and inelastic etc,. Therefore, in order to delay aging, collagen must be supplemented.
14. Q: Why do I need breast maintenance?
A: The lymph nodes of bosom rank the top among other parts of the body, which also lead to toxin
accumulation very easily , and urbanite life rhythm is very fast now, working pressure is very big, which can
bring about the hyperplasia of different level. The saying goes that bosom is the cradle of children, the garden
of the woman, the symbol of female identity! Breast maintenance can make your figure more beautiful, add
scores for your whole temperament, thus turn head rate increases 10 times certainly! Good figure and
temperament will also ensure husband’s loyalty! The evolution of breast cancer: breast milk residual ,
secretions, toxins -- nodules and blockages -- lobular hyperplasia, ductal hyperplasia, breast hyperplasia -- duct
blockage and adhesion -- fibroma, breast cyst -- breast cancer.
15. Q: Why do I need hip maintenance?
A: Because it can help the body lymphatic system discharge poison, improve the gynaecological disease, and
avoid harm brought by buttock blockage. Hip impassability surely bring about gynaecological issues. What’s
inside buttocks is pelvic cavity, bowel. It connects daimai, lumbar vertebra, sciatic nervefrom above, uterus
ovary, uterine adenexa in front, anus, vagina, inguinal lymphatic from below. If suffering from squeeze of
shangjiao and xiaojiao meridian channels, hip would be most vulnerable to cold, wet and blood stasis. When hip
is affected by cold, it can cause meridian contraction of hips, dysmenorrhea, irregular menstruation, dark
menstruation color , clot, deterred blood flow and meridian channels. It also affects fertility.
16. Q: How does negative pressure detoxify?
A: Negative pressure can congest capillary, stimulate cell to increase vitality. The suction and release of pressure
during operation can make local pores continue to open and close, therefore promote skin breathing, increase
the amount of skin oxygen, speed up the elimination of waste. So it achieves the effects of promoting qi and
blood circulation, dispelling coldness and dampness, dredging channels and collaterals, clearing toxins,heat and
so on.
© ArianaSpas www.arianaspas.com
20 | P a g e
RF Handy
Polar Energy:
30%-80%
Eletroporation
Energy:
30%-80%
Mode: EL
Vacuum&RF
Energy:
15%-20%
Suction Time:
0.3-1.5
Release Time:
0-1.0
Makeup
remover+
Face wash+
Hydrating
base mask+
Essence+
Device+
Facial mask
1. Remove makeup and cleanse face, 5 min.
2. Apply hydrating base mask+hot steam, 10
min.
3. Wash face clean, 2 min.
4. RF handy polar operation: place the
vacuum pad on the back and put on the RF handy
polar on the esthetician. 5. Apply massage cream
evenly on face and caress face, 3 times.
6. Push the following acupoints (chengjiang,
renzhong, dicang, jiache, yingxiang, jingming,
cuanzhu, yuyao, sizhongkong, tongziliao, temple,
chengqi, sibai), 3 times.
7. Caress the whole face, 3 times.
8. Alternate both hands to lift in 3 lines from
chin to ear lobe, corner of mouth to ear gate, nose
wing to temple, lower eyelid to temple, lift canthus,
3 times.
9. Do the same on the other side.
10. Lift towards hairlines on forehead, 3 times.
11. Use ring and middle fingers to massage and
lift
Technique 5,7
Technique 6
Technique 8,17
Technique 10,12,19
Technique 15
Table of contents
Other ArianaSpas Personal Care Product manuals
