Aristel DV-28 User manual
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
1
28
D
V
INTRODUCTION
：
：：
：
...................................................................................................................... 3
1. SYSTEM SUMMARY .............................................................................................................. 4
1.1
H
ARDWARE
C
ONFIGURATION
.................................................................................................. 4
1.2
S
YSTEM
S
OFTWARE
................................................................................................................ 4
1.3
S
AFETY
C
ONFORMITY
............................................................................................................. 4
2. HARDWARE CONFIGURATION ........................................................................................... 5
2.1
S
YSTEM
S
PECIFICATIONS
........................................................................................................ 5
2.2
ELECTRICAL
SPECIFICATIONS........................................................................................ 6
2.3
S
YSTEM
M
ODEL
D
ESCRIPTION
................................................................................................ 7
2.4
S
YSTEM
F
EATURES
L
IST
.......................................................................................................... 8
2.5
S
TATION
F
EATURES
L
IST
......................................................................................................... 9
3. EQUIPMENT REQUIREMENT:............................................................................................ 11
3.1
P
REPARATION
: ...................................................................................................................... 11
3.2
E
NVIRONMENT
R
EQUIREMENT
: ............................................................................................. 11
3.3
C
ABLE
R
EQUIREMENT
：
...................................................................................................... 11
3.4
N
OTICE
: ............................................................................................................................... 11
4. DV-28 PCB AND CABINET LAYOUT ................................................................................. 12
4.1
DV-28
SYSTEM
DIAGRAM ............................................................................................ 12

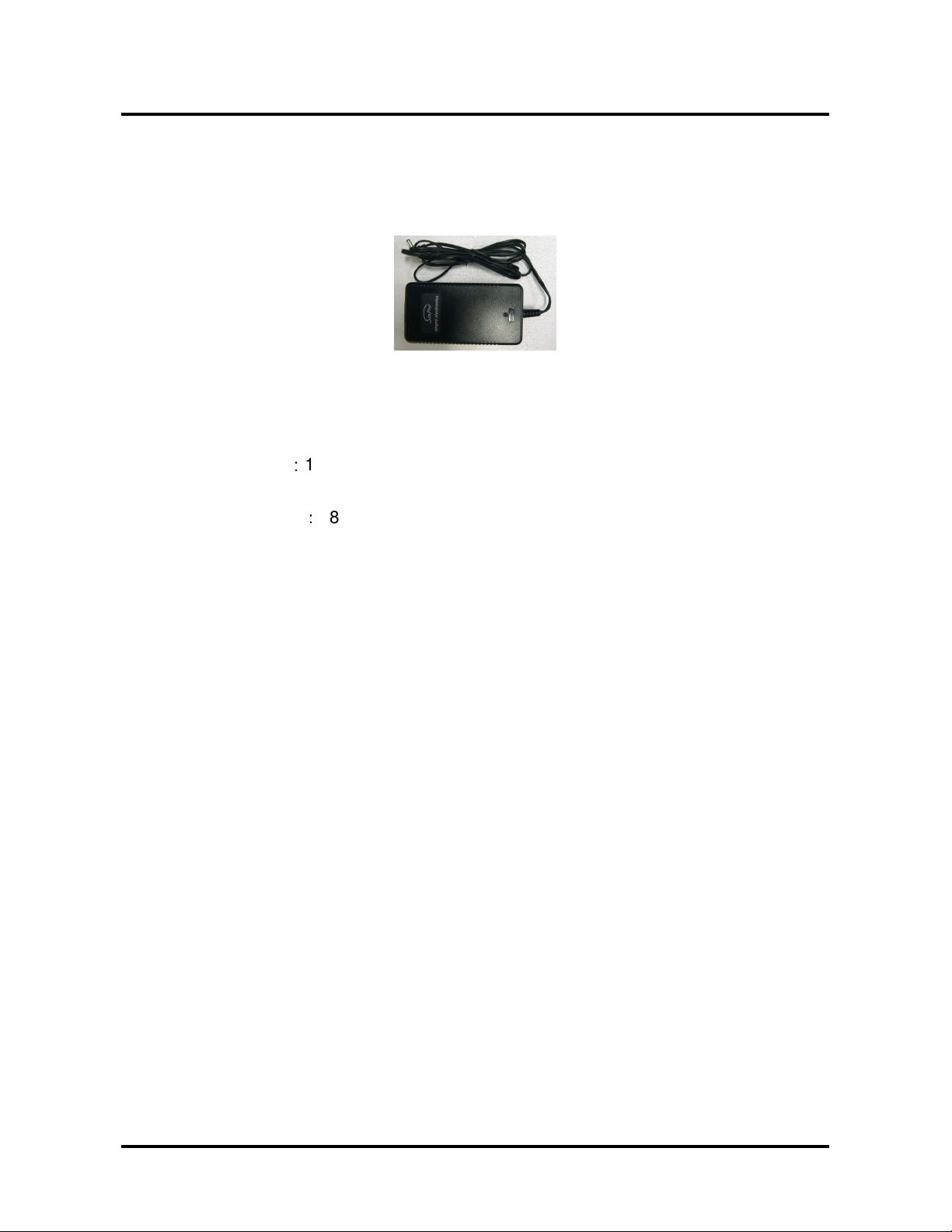

4.2
D4PWUA
–
F
ULL
R
ANGE
P
OWER
A
DAPTOR
.......................................................................... 13

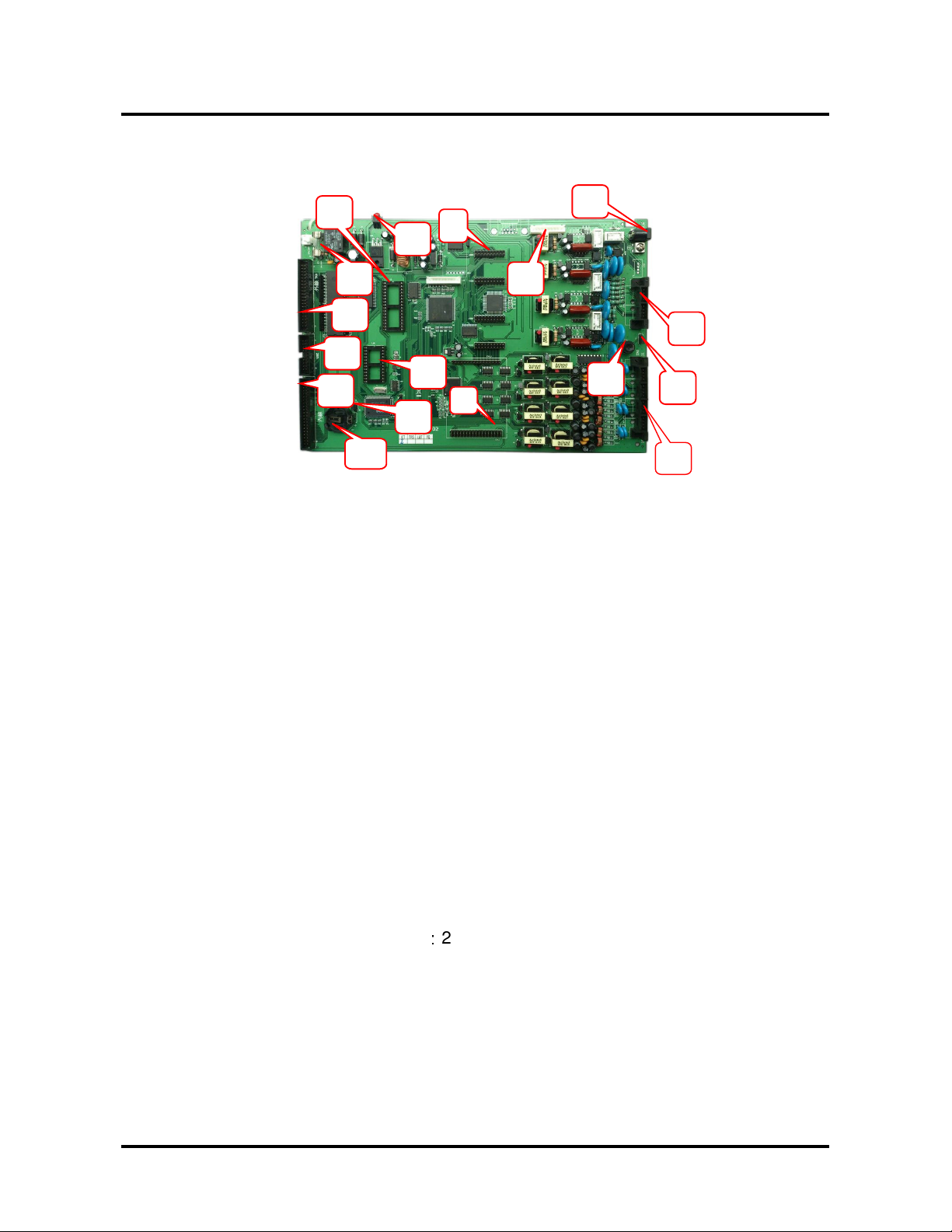

4.3
D5MBUA
(M
OTHER
B
OARD
U
NIT
) ...................................................................................... 14
4.4
D5TKUA
(T
RUNK
U
NIT
)...................................................................................................... 15
4.5
D4TKUB
(T
RUNK
U
NIT
)...................................................................................................... 16
4.6
D5DLUA
（
K
EY
S
TATION
C
ARD
）
....................................................................................... 17
4.7
D4DLUB
（
K
EY
S
TATION
C
ARD
）
....................................................................................... 18
4.8
D4SLCC
(SLT
S
TATION
C
ARD
) ............................................................................................ 19
4.9
D4HYUB
（
H
YBRID
S
TATION
U
NIT
）
.................................................................................. 20
4.10
D4VSCA
（
V
OICE
S
ERVICE
C
ARD
）
.................................................................................. 21
4.11
D4MFCA/B
(M
ULTI
F
UNCTION
C
ARD
) ............................................................................... 22
5
、
、、
、
INSTALLATION AND WIRING ........................................................................................... 23
5.1
D4PWUA
POWER
UNIT
INSTALLATION ........................................................................ 23
F
IGURE
12
：
DV-28
P
OWER
I
NSTALLATION
5.2
D5MBUA
-
CO
TRUNK
AND
KEY-PHONE
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
2
28
DV
EXTENSION
INSTALLATION ................................................................................................ 23
5.2
D5MBUA
-
CO
TRUNK
AND
KEY-PHONE
EXTENSION
INSTALLATION .................... 24
5.3
D5EXPA
S
UB
-C
ONTROL
BOARD
INSTALLATION ............................................................ 25
5.4
D5DLUA
STATION
CARDS
INSTALLATION................................................................... 26
5.5
D5TKUA
(T
RUNK
U
NIT
).................................................................................................... 27
5.6
D
OOR PHONE CONNECTION
................................................................................................... 28
5.7
SENSOR INSTALLATION
.......................................................................................................... 29
5.8
D
OOR SWITCH INSTALLATION
................................................................................................ 30
5.9
E
XTERNAL MUSICE INSTALLATION
......................................................................................... 31
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
3
28
D
V
INTRODUCTION：
：：
：
Congratulation on your smart selection of ARISTEL DV-28 SOHO System. ARISTEL
DV-28 is a state-of-the-art communication system that offers you the unique feature,
flexibility and superb service in your office or at your home.
ARISTEL DV-28 system’s digital technology extends well beyond handling just
conventional voice call. Computers, paging systems, fax machines, sensors, modems,
door phones and even door latches can be connected and controlled through this system.
This system is designed to suit your requirements today and grow with your business
tomorrow. The entry window of Internet has been prepared for you by Aristel DV-28
，
through it
，
you can enjoy the fascinating network world unrestrainedly. The capacity is of
4-8 CO lines, 8-20 station ports, and door phone port, multi function card port, sensor port,
paging port, external music port, single line phone port are powerful options for your
communication enhancement. So you can upgrade many special functions cost effectively
just by adding expansion cards or periphery accessories.
The manual will provide you with the details instructions or procedures for the installation
of ARISTEL DV-28 SOHO system so that it can serve you with the communication needs
and custom-design services. Please read this entire section before proceeding with the
actual installation.
In case you have any other questions, please contact your nearest dealer for further
assistance.
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
4
28
DV
1. System Summary
1.1 Hardware Configuration
System capacity
：
408~820
System Control
：
Stored Program Control (SPC)
。
SMT interface agglutinate technology
Stationary trough interface installation, Main systematic and Internal/External Lines
independent of each
1.2 System Software
Built-in programming
：
Store in ROM
System Operation programming
：
Store in RAM
Software Security Element
：
Watch Dog
Programming security
：
Back up by “Li-Battery”
Key phone operation security
：
Error operation recovery protection program.
Extension Error Action Protection
：
Extension error action protection mode
1.3 Safety Conformity
Internal/External Lines Short Circuit Protection
：
Electron is short circuit protection
Power Mingled Dispatch Restrain
t
Lightning Protection
Power Fluid Transformation : AC110~AC240
KEY PAD Endurance
：
1,000,000 Times
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
5
28
D
V
2. Hardware Configuration
2.1 System Specifications
The system use fixed slot design, all expansion card have to connected to designated slot
DV-28 Basic Capacity Expansion
Capacity MAX. Capacity
CO Line 4 4 8
Key Telephone 8 6 / 8 / 12 20
Single Line Telephone 0 1 / 2 / 4 / 8 8
Door Phone Connection 0 1 1
Relay Interface 0 1 1
Sensor Interface 0 1 1
Auto Attendant 0 1 / 2 2
Three Parties Conference 0 8 Groups 8 Groups
Speed Dial set 1000 0 1000
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
6
28
DV
2.2 ELECTRICAL SPECIFICATIONS
Input AC Voltage AC110~240V
Key Telephone 1~2 W
Door Phone 0.5 W
Power
Consumption
Maximum 40 W
System Power Back-Up Battery 4 Hour (24 V 7AH)
CO Line 1.5K Ωmax.
Key Telephone 40 Ωmax.
Loop
Resistance
Door Phone 40 Ωmax.
Outgoing Dialing Tone / Pulse
Dialing Signal
Intercom Dialing Tone / Pulse / Digital
CO Line/Key Telephone 2 wires
Door Phone 2 wires
Relay Switch 2 wires
Wiring
Installation
External Music/paging 2 wires
Type SPDT
Relay Switch
Contact Capacity 120V × 7A max.
System Dimension (mm, W×D×H) 310 ×205 ×70 mm
Key Telephone Dimension (mm) 200L ×180W ×75H mm
Working Temperature 0
0
C ~ 45
0
C (32
0
F ~ 113
0
F)
Working Humidity 10% ~ 90% relative non-condensing
System Installation Manual
Digital Key Telephone System
7
Arista Systems Corporation
28
D
V
2.3 System Model Description
Model No.
Description
D5-408K MAIN SERVICE UNIT, consisting of (Plastic Cabinet + D5MBUA + D4PWUA + D5EXPA +
D1CIDC )
D4PWUA POWER UNIT, Input 110~240VAC Full range, Output 28Vdc/1.8A
D5MBUA MOTHER BOARD UNIT, consisting of (4 CO Lines + 8 Digital Key Stations Ports), with quick
Connectors
D5CNFC Conference Chip, support up to 8 groups of three party conference call
D5EXPA Sub-Control Board, for expanding Trunk card D5TKUA, D4TKUB and Station Card
D5DLUA, D4DLUB, D4HYUB, D4SLUB, D4SLCC/D.
D5TKUA CO Trunk CARD, consisting of 4 CO Lines
D4TKUB CO Trunk CARD, consisting of 3 CO Lines
D4DLUB Key Station Card, consisting 8 Digital Key Station Ports.
D5DLUA Key Station Card, consisting 12 Digital Key Station Ports.
D4HYUB HYBRID STATION UNIT, consisting of 6 Digital Key Station+2 SLT Station port)
D4SLCA8 SLT STATION CARD, consisting of 8 SLT Station Ports
D4SLCA4 SLT STATION CARD, consisting of 4 SLT Station Ports
D4SLCA1 SLT STATION CARD, consisting of 1 SLT Station Ports
D4VSCA VOICE SERVICE CARD, consisting of 2 Voice Channels (60 seconds)
D4VSCB VOICE SERVICE CARD, consisting of 1 Voice Channels (60 seconds)
D4VSCC VOICE SERVICE CARD, consisting of 2 Voice Channels (60 seconds) with Fax detection
function
D4MFCA MULTI FUNCTION CARD, consisting of (1 Sensor + 1 Relay + 1 Door Phone Port)
D4MFCB MULTI FUNCTION CARD, consisting of 1 Door Phone Port
D1CIDC FSK/DTMF CLI INTERFACE
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
8
28
DV
2.4 System Features List
2 Pages of DSS Key
5 Different Trunk Access Codes
9 Different Incoming Ringing Frequencies
Account Code
Auto Attendant
Auto Accessing Trunk
Automatic Answer (Intercom)
Automatic Call Distribution (ACD)
Automatic Transfer
Baby Listening
Caller’s Number Identification
Call Limit Time Duration
Call Park
Call Split
Console Grouping
Date/Time Setting
Day/Night Schedule
Direct Intercom Dialing
Direct Inward Station Access (DISA)
Door Phone Connection
Door Switch Control
Environment Monitor
Fax Call Detection
Flexible Function Key Assignment
Forced Account Code
Headset Function
Hot Line
Illegal Outgoing Protection
Intercom Busy Reminder
Incoming Hunting
Incoming Paging
Intercom Hunting
Internal/External Music Source
Internal/External Paging
Key Station Short Protection
Lightning Protection
Manual Line
Message Waiting
Name Speed Dialing (Phone Book)
One Touch Operation
Power Failure Telephone
Private Line
Programming Help List
Remote Relay Control
Security/Fire Alarm System
Single Digit Dialing
Station Loud Bell
System Alarm
Toll Restriction
Tone/Pulse Dialing
Trunk Grouping
Trunk Loud Bell
Trunk Queuing
Means the optional function.
System Installation Manual
Digital Key Telephone System
9
Arista Systems Corporation
28
D
V
2.5 Station Features List
16×2 Dot-Matrix LCD Display
5 Different Numbers Auto Redial
9 Different Ringing Frequencies on Key Station
Adjustable LCD Angle
Built-In Calculator Function (25 Buttons LCD
Phone)
Call Forward/Call Follow Me
Call Forward To Individual Speed Dial
Call Pick Up
Call Transfer
Camp On
Day/Night Service Indication
Digital Volume Control (8 Levels)
Do Not Disturb
Dual-Color/Tri-Status BLF Indication
DSS Console
Handsfree Dialing
Handsfree Conversation
Hold/Exclusive Hold
Last Outgoing Redial
Macro Key Setting
Message Text
Monitor
Override
Page/Be Paged
Station Lock/Unlock
Station Name Setting
Station Operation Help List
means the optional function.
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
11
28
D
V
3. Equipment Requirement:
3.1 Preparation:
Survey the capacity of system and telephone.
Survey the wiring and tool.
Carefully study and follow this manual before installation.
3.2 Environment Requirement:
Input Voltage
：
AC110~240V
System Power Back-up Battery
：
Connect with DC24V power source to the battery
back-up interface to ensure a continue supply of
power during power failure.
3.3 Cable Requirement
：
：：
：
CO Line
：
2 wires
Key Telephone
：
2 wires
SLT
：
2 wires
Door Phone
：
2 wires
Relay Switch / Sensor
：
2 wires
External Paging / External music
：
2 wires
3.4 Notice:
The main unit should be installing in a clean, dry, dust-free, and secured location. Place
10cm above the ground to avoid vibration.
Install in an environment of ventilation and prevent from direct sunbeam.
Install main unit in the center position of the extensions to shorten the distance between
main unit and extensions.
The power supply must be independent from the others. And keep away from high
frequency source and noise to avoid interference from EMI.
Use three-aperture outlet.
（
Include ground connection
）
Install ground wire of lightning rod to ensure stability of system.
Use twin wire to avoid noise and interference when the wiring is too long.
Keep away from the power cord and interference source. Otherwise, it’s necessary to
use segregate wire and indeed install ground wire.
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
12
28
DV
4. DV-28 PCB AND CABINET LAYOUT
4.1 DV-28 SYSTEM DIAGRAM
Figure 1: DV-28 Diagram
1. System Dimension
：
306 x 205 x 70mm
2. System AC Input
：
110~240VAC
3. DC Output for Battery backup: 28VDC
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
13
28
D
V
4.2 D4PWUA – Full Range Power Adaptor
Figure 2: DV-28 power adaptor D4PWUA front view
1. AC Input
：
110~240VAC Full range
2. DC Output
：
28VDC/1.8A
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
14
28
DV
4.3 D5MBUA (Mother Board Unit)
Figure 3: DV-28 Mother board Unit (D5MBUA)
1. U4 - D5CNFC Conference Chip
2. U2 - System Software EEPROM
3. J3 – Jumper selection for system RAM programming backup switch
4.
BAT – Li Battery for system programming backup
5. CN1 - Key phone port connector
6. CN2 - Trunk port connector
7. VSC - D4VSCA card connector
8. STA - D4DLU/D5DLUA/D4HYUB/D4SLUB expansion connector
9. D4PWUA power adapter connector
10. MFC - D4MFCA/D4MFCB Multi-function card connector
11. TKU - D4TKUA/D5TKUA trunk expansion connector
12. LED1 - System working Indicator
13. J2 - Music on hold Switch (Internal/ External)
14. VR1 - The volume controller of the Internal Music on hold
15. F1 - Battery Reverse Protect Fuse
：
2A/250V
16. EXP_1 and EXP_2 - Pin connectors for D5EXPA Sub-Control Board.
17. CID1(A~D) and CID2(A~D) - Pin connectors for D1CIDC board.
1
3
5
7
4
6
8
9
10
13
14
11
15
12
16
17
2
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
15
28
D
V
4.4 D5TKUA (Trunk Unit)
Figure 4: DV-28 CO Trunk Card Unit (D4TKUB)
1. For D5MBUA connection.
2. Terminal-Block Connector for the CO Line Connection
NOTE
：
：：
：
D5TKUA
（
（（
（
CO Trunk CARD
）
））
）
consisting of
（
（（
（
4CO Lines
）
））
）
2
1
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
16
28
DV
4.5 D4TKUB (Trunk Unit)
Figure 5: DV-28 CO Trunk Card Unit (D4TKUB)
3. For D5MBUA connection.
4. Terminal-Block Connector for the CO Line Connection
NOTE
：
：：
：
D4TKUB
（
（（
（
CO Trunk CARD
）
））
）
consisting of
（
（（
（
3 CO Lines
2
1
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
17
28
D
V
4.6 D5DLUA
（
（（
（
Key Station Card
）
））
）
Figure6: DV-28 Key Station Card Unit (D5DLUA)
1. For D5MBUA connection.
2. Quick-Connector Module for Key phone connection,
（
（（
（
Use 2-wire T/R
）
））
）
, including 4
sets of 4-wire Male Quick-Connector.
NOTE
：
：：
：
D5DLUA
（
（（
（
Key Station Card
）
））
）
consisting of
（
（（
（
12 Digital Key Station Ports
）
））
）
2
1
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
18
28
DV
4.7 D4DLUB
（
（（
（
Key Station Card
）
））
）
Figure 7: DV-28 Key Station Card Unit (D4DLUB)
3. For D5MBUA connection.
4. Quick-Connector Module for Key phone connection,
（
（（
（
Use 2-wire T/R
）
））
）
, including 4
sets of 4-wire Male Quick-Connector.
NOTE
：
：：
：
D4DLUB
（
（（
（
Key Station Card
）
））
）
consisting of
（
（（
（
8 Digital Key Station Ports
）
））
）
2
1
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
19
28
D
V
4.8 D4SLCC (SLT Station Card)
Figure 8: DV-28 SLT Station Card Unit (D4SLCC)
1. For D5MBUA connection.
2. Quick-Connector Module for Single Line phone connection
（
（（
（
Use 2-wire T/R
）
））
）
,
including 2 sets of 4-wire Male Quick-Connector.
NOTE
：
：：
：
D4SLCC4 (SLT Station Card
）
））
）
consisting of 4 SLT Station Ports.
D4SLCD1 (SLT Station Card
）
））
）
consisting of 1 SLT Station Port.
2
1
System Installation Manual
Digital Key Telephone System
Arista Systems Corporation
20
28
DV
4.9 D4HYUB
（
（（
（
Hybrid Station Unit
）
））
）
Figure 9
：
DV-28 Hybrid Station Unit
1. For D5MBUA connection.
2. Quick-Connector Module for Key Station Wiring, or Single Line Telephone
（
（（
（
Use
2-wire T/R
）
））
）
, including 2 sets of 4-wire Male Quick-Connector.
3. Terminal-Block Connector for the CO Line Connection
NOTE
：
：：
：
D4HYUB
（
（（
（
Hybrid Station Unit
）
））
）
consisting of 6 Digital Key Station + 2 SLT
Station ports.
1 2
Table of contents
Other Aristel Telephone System manuals
