Arjo Evenda User manual

INSTRUCTIONS FOR USE
Evenda
4 castor version
04.EV.01_EN_01 • 03/2023

2
Design Policy and Copyright
® and ™ are trademarks belonging to the Arjo group of companies.
© Arjo 2023.
As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.
The content of this publication may not be copied either whole or in part without the consent of Arjo.
WARNING
To avoid injury, always read this Instructions for use and accompanied documents
before using the product.
Mandatory to read the Instructions for use.

3
Contents
Foreword ...............................................................................5
Intended use ............................................................................6
Safety instructions .......................................................................8
Preparation ............................................................................10
Parts designation .......................................................................14
Product description - Bed ................................................................17
Brakes ...............................................................................17
Accessory socket (one per side) ...........................................................17
Headboard ............................................................................17
Magnets for function lockout ..............................................................18
Thigh section ..........................................................................18
Calf section ...........................................................................18
Mattress platform extension ..............................................................18
Footboard.............................................................................19
Mattress retainers ......................................................................19
Hand control with clip....................................................................19
Telescopic bed rails (optional) .............................................................20
¾ Folding bed rails (optional)..............................................................20
Product description - Accessories ........................................................21
Wall spacer (optional)....................................................................21
Battery (optional) .......................................................................21
Flexible hand control holder (optional).......................................................22
Bed rail gap ller (optional)................................................................22
Side panel extension (optional) ............................................................22
Plastic covers for the mattress platform (optional)..............................................23
Footboard with guiding rail (optional)........................................................23
DIN rail with hooks (optional) ..............................................................24
Product description - Hand controls .......................................................25
Standard hand control and Optional hand control with tilt function.................................25
Power indicator (standard hand control only) ...............................................25
Lockout indicator and magnetic sensor (standard hand control only) ............................25
Function LED indicator (standard hand control only) .........................................25
Backrest adjustment ..................................................................26
Comfort chair adjustment ..............................................................26
Height adjustment ...................................................................26
Thigh section adjustment ..............................................................27
Flat and programmed height (standard hand control only).....................................27
Tilting (optional hand control with tilt function only)...........................................27
Under bed light (optional) ..............................................................28

4
Simplied hand control (optional)...........................................................28
Anti-slide position ....................................................................29
Flatten bed .........................................................................29
Product functions.......................................................................30
Lockout on the standard hand control .......................................................30
Lockout on the optional hand control with tilt function...........................................32
Extending the bed frame .................................................................33
Installing bed rail gap llers ...............................................................35
Installing side panel extensions ...........................................................35
Telescopic bed rails .....................................................................36
¾ Folding bed rails......................................................................38
Battery ...............................................................................39
CPR position ..........................................................................41
CPR position with CPR handle ............................................................41
CPR position without CPR handle..........................................................41
Preparing the bed for a patient ............................................................42
Preparing the bed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Additional patient positions ...............................................................44
Transporting patients ....................................................................45
Cleaning and disinfection ................................................................46
Care and preventive maintenance .........................................................48
Troubleshooting ........................................................................50
Technical specications .................................................................53
Labels.................................................................................57
Electromagnetic compatibility ............................................................61
Parts and accessories ...................................................................64

5FOREWORD 5FOREWORD
Foreword
Thank you for purchasing Evenda®long term care bed.
Customer contact information
For questions regarding this product, supplies, maintenance, or additional information about Arjo
products and service, contact Arjo, an Arjo authorised representative or visit www.arjo.com.
Read and fully understand this IFU before using the product
Information in this Instructions For Use (IFU) is necessary to perform the proper operation and
maintenance of the equipment. It will help to protect your product and make sure that the equipment
performs to your satisfaction. The information in this IFU is important for your safety and must be read
and understood to help prevent possible injury. Unauthorised modications on any Arjo equipment can
a󰀨ect safety. Arjo will not be held responsible for any accidents, incidents or lack of performance that
occur as a result of any unauthorised modication to its products.
Service and support
Routine maintenance must be performed on your product every week to maintain safety and reliability
of the equipment. See section Care and preventive maintenance for more information. If you require
further information or spare parts, see Customer contact information.
Serious incident
If a serious incident occurs in relation to this medical device, a󰀨ecting the user, or the patient, then the
user or patient should report the serious incident to the medical device manufacturer or the distributor.
In the European Union, the user should also report the serious incident to the Competent Authority in
the member state where they are located.
Definitions in this IFU
WARNING
CAUTION
NOTE
Warning means: Safety warning. Failure to understand
and obey this warning may result in injury to you or
others.
Caution means: Failure to follow these instructions
may cause damage to all or parts of the system or
equipment.
Note means: This is important information for the
correct use of this system or equipment.

6 INTENDED USE6 INTENDED USE
Intended use
The Evenda bed is a height and contour adjustable bed for use in a long-term professional care setting
where medical supervision is provided. The bed is to be operated by appropriately trained caregivers
attending to the care of residents/patients and by residents/patients determined to be clinically capable.
The Evenda bed is suitable for long-term care in a medical area where medical supervision is required
and monitoring is provided if necessary, e.g. nursing homes and geriatric facilities.
The bed is intended for use by residents/patients having a height between 146 cm (4’10”) and 210 cm
(6’10”) and between a weight of 40 kg (88 lb) and 195 kg (430 lb).
The Evenda bed with 4-wheel conguration may be used for transportation of residents/patients.
The Evenda bed must be used by appropriately trained caregivers with adequate knowledge of the
care environment, its common practices and procedures, and in accordance with the guidelines in the
Instructions for Use.
The Evenda bed should only be used for the purpose specied in the Instructions for Use. Any other
use is prohibited.
Indications for use
The bed is indicated for medical purposes to aid the patient and/or sta󰀨 during the performance of
routine care.
The bed is appropriate for situations where assistance is required in positioning the patient, or in
reducing lifting and manual handling stresses on the caregiver.
Resident/patient assessment
We recommend that facilities establish regular assessment routines. Caregivers should assess each
resident/patient according to the criteria provided and dened in the intended use above.
Contraindications
The Evenda bed is not suitable for use in the following situations:
• Residents/patients weighing less than 40 kg (88 lb)
• Residents/patients weighing more than 195 kg (430 lb)
• Residents/patients height is not in in the range of 146 cm (4’10”) and 210 cm (6’10”)
• Residents/patients BMI less than 17
• Homecare setting
• Residents/patients transportation with 6-wheel or 8-wheel bed conguration

7INTENDED USE 7INTENDED USE
The recommended patient height is between 146 cm (4’10”) and 210 cm (6’10”). At the discretion of the
caregiver, patients taller than 190 cm (6’3”) may be accommodated by extending the bed. The patient’s
height must not exceed the in-bed length.
The age, size and condition of the patient should be assessed by a clinically qualied healthcare
professional to ensure they can use the bed safely.
If the patient/resident does not meet these criteria an alternative equipment/system shall be used.
Safe Working Load
The safe working load of the bed is 230 kg (507 lb)
The safe working load is calculated as follows (in accordance with EN 60601-2-52):
Maximum resident/patient weight: 195 kg (430 lb)
Mattress: 20 kg (44 lb)
Accessories (including attached loads): 15 kg (33 lb)
TOTAL: 230 kg (507 lb)
If the combined weight of the mattress and accessories exceeds 35 kg (77 Ib), the maximum resident/
patient weight must be reduced accordingly.
Installation requirements
The equipment must be installed in accordance with guidance provided in the Instructions for Use.
Expected Service Life
The expected service life of the Evenda bed is 10 years.
Service life is dened as the period during which the product will maintain the specied performance
and safety, provided it has been maintained and operated in conditions of normal use in accordance
with the requirements in the Instruction for Use.

8 SAFETY INSTRUCTIONS
Safety instructions
WARNING
To avoid injury, each patient should be
clinically assessed by a qualied person
before using the bed.
WARNING
To avoid injury and unintentional activation,
each patient should be clinically assessed
by a qualied person before being allowed to
operate the hand control.
WARNING
To avoid injury, each patient should be
clinically assessed by a qualied person
before allowing the use of bed rails.
WARNING
To reduce the risk of falling, always assess
how prone to falls the patient is and adjust
the bed height accordingly when the patient
is unattended. For patients prone to falls,
leave the bed in the lowest practical position.
For patients with better mobility, leave the
bed at a suitable egress height.
WARNING
To avoid entrapment, keep the patient’s
hair, arms and feet close to the body when
operating the bed.
WARNING
To avoid injury make sure that patient weight,
accessory weight and mattress weight do not
exceed the Safe Working Load of the bed.
If the maximum patient weight for the
mattress is di󰀨erent than that specied for
the bed, the lower value applies.
WARNING
To avoid re and electric shock, do not let
the power cord get damaged. Do NOT use
the equipment if the power cord is damaged
or if any electrical components are exposed.
If damaged, the complete assembly must be
replaced.
WARNING
To avoid injury, avoid squeezing and
disrupting cables, tubing and invasive lines
when operating the bed.
WARNING
To avoid injury and unintentional activation,
position the hand control correctly using the
hand control clip.

9SAFETY INSTRUCTIONS
WARNING
To avoid strangulation or impaired
circulation, use the hand control clip and
position the hand control and the cable
correctly.
WARNING
To avoid tripping, do not allow the power cord
or the hand control cable to trail on the oor
where it may pose a trip hazard.
WARNING
To avoid injury, make sure the bed movement
is not restricted by obstacles such as
bedside furniture.
WARNING
To avoid explosion or re, never use the bed
in oxygen-rich environment, in presence of
heat source or near ammable anaesthetic
gases.
WARNING
This product contains small parts that may
present a choking hazard to children if
inhaled or swallowed.
WARNING
Keep pets and children away from the bed
unless they are supervised by an adult.
CAUTION
To avoid equipment damage, do not let the
hand control cable get damaged by the bed or
other objects being moved over it.
CAUTION
To avoid equipment damage, do not leave the
bed and accessories for extended periods of
time in humid or wet areas.
CAUTION
To avoid equipment damage, avoid spillage or
excessive cleaning of the bed.
NOTE
Lay users such as visitors need to be
informed about the safety instructions for the
bed in order to use the following functions:
• Hand control (unlocked functions only)
• Bed rails
NOTE
To be able to show details more clearly, the
illustrations in this IFU may not always show
the complete product.

10 PREPARATION10 PREPARATION
Preparation
Before first use
1. Check the package for damage. If the package looks damaged, contact the transport agency.
Do NOT use the product.
2. Check that all items are intact.
3. Recycle the packaging according to local regulations.
4. Read this IFU.
5. Congure the bed as required. Add suitable equipment, accessories and mattress. If necessary,
adjust the bed length and install bed rail gap llers as needed. See Extending the bed frame on
page 33 and Installing bed rail gap llers on page 35.
Only use accessories that have been approved for use with the bed.
6. Follow the instructions for initial startup. See Initial startup on page 12.
7. Store the IFU in a designated area, where it is easily accessible at all times.
Before every use
1. Inspect the Evenda bed according to the Care and preventive maintenance chapter in this IFU. If
any item is damaged – do NOT use the product.
2. A patient assessment should be performed by a clinically qualied person before each new patient.
After each patient
Clean and disinfect the product after each patient according to Cleaning and disinfection on page 46.
Mattress size selection
Suitable mattress sizes are shown in the table. When choosing bed and mattress combinations,
consider the use of bed rails (if any) based on clinical assessment of each individual patient and
according to local policy. See respective mattress IFU.
If the bed is extended 20 cm, place a mattress squab at the foot end.
WARNING
To avoid injury or falling, always use a mattress of the correct size and type. Be aware that
entrapment risks may exist when using a very soft mattress, even if it is the correct size.

11PREPARATION 11PREPARATION
MATTRESS
WIDTH MATTRESS LENGTH* MATTRESS THICKNESS
Standard Evenda bed 90 cm (35.4 in)
• 200 cm (78.7 in)
• 210 cm (82.7 in)
• 220 cm (86.6 in)
12 - 22 cm
(4.7 - 8.7 in)
*Suitable mattress length depends on if the Evenda bed has been extended.
Powered air mattressess
Powered air/foam mattresses might be thicker than a foam mattress. Replacement to a powered air/
foam mattress must be assessed individually prior to use to verify that enough space for the bed rails is
maintained.
If a powered air/foam mattress is used, place the mattress squab at the head end.
For more information on appropriate mattresses and mattress replacements, contact your local Arjo
o󰀩ce or approved distributor.
WARNING
To avoid entrapment when the bed is extended 20 cm, place a mattress squab at the foot
end.

12 PREPARATION
Initial startup
Turning on/o󰀨 the bed
1. Plug the power cord into a power outlet.
See Figure 1.
2. Position the bed so that the mains plug is easily
reached to disconnect from the power outlet.
3. To turn o󰀨 the bed, disconnect the power cord
from the power outlet. If the bed is equipped
with a battery, the bed still operates after
disconnecting the power cord.
Hand control startup
The Power indicator light on the standard hand
control lights up when a button is pressed for the rst
time. See Figure 2.
Some glitches may occur the rst time the hand
control is turned on. If using the standard hand
control, perform the following checks.
• If the height adjustment LED is ashing, raise the
bed to the maximum height, then lower it to the
desired height.
CAUTION
To ensure proper performance, leave the bed
connected to a power outlet for at least 10
hours after plugging it in for the rst time with
the battery installed.
NOTE
If using a power outlet controlled by a power
switch, make sure the power switch is set to
ON.
Figure 1
Figure 2

13PREPARATION
• If the backrest adjustment LED is ashing, lower
the backrest section all the way down, then raise
it to the desired position.
• If the thigh section adjustment LED is ashing,
lower the thigh section all the way down, then
raise it to the desired postition.
If using the optional hand control with tilt function,
press every button after plugging in the bed. If any
button is not functioning as expected, perform the
same checks as for the standard hand control to
initialize the controls.
See also Troubleshooting on page 50.

14 PARTS DESIGNATION
Parts designation
1. Accessory socket (one on each side)
2. Headboard
3. Magnet for lockout (one on each side of the
headboard and footboard)
4. Backrest
5. Thigh section
6. Calf section
7. Mattress platform extension
8. Footboard
9. Mattress retainer (two per side)
10. Brake pedal
11. Castor
12. Hand control with clip
13. Telescopic bed rails
14. Bed rail gap ller
15. Side panel extension
16. ¾ Folding bed rails
Bed
The 4 castor conguration bed is always equipped with bed rails.
4
3
9
10
11
12
5 6 7 8
2
1
3
14 1615
13

15PARTS DESIGNATION
Accessories
All accessories are optional.
1. Wall spacer
2. Battery
3. CPR release handle
4. Flexible hand control holder
5. Plastic covers for the mattress platform
6. Footboard (di󰀨erent designs)
7. Brake bar
8. DIN rail with hooks
1
5
6
7
8
4
3
2

16 PARTS DESIGNATION
4
3
56
7
8
1. Power indicator
2. Lockout indicator and magnetic sensor area
3. Function LED indicator
4. Backrest adjustment
5. Comfort chair adjustment
6. Height adjustment
7. Thigh section adjustment
8. Flat and programmed height
Hand controls
Standard hand control (model HB100)
Optional hand control with tilt function (model HL70) Simplied hand control
4
3
2
1
56
1
2
1. Tilt (Trendelenburg / reverse Trendelenburg position)
2. Height adjustment
3. Comfort chair adjustment
4. Thigh section adjument
5. Backrest adjustment
6. Keyhole for lockout (one keyhole per function)
7. Locking key
1. Flatten bed
2. Anti-slide position
1
7
2

17PRODUCT DESCRIPTION - BED
Brakes
The brake pedals are located at the foot end. The
brake pedals can be linked by a full-width bar.
The brakes have three positions: brake, free and
steer.
Brake: The brakes are applied on all four castors.
See Figure 3.
Free: All four castors are free to rotate and swivel.
See Figure 4.
Steer: All four castors can rotate, but the steering
castors are locked so that they cannot swivel. This
helps to keep the bed on a straight line. See Figure 5.
Using the steering castors
1. Position the bed so that all the castors line up in
the direction of travel.
2. Raise the pedals to lock the steering castors and
move the bed by pushing it from the opposite
end.
The steering castors may be at either end of the bed,
as specied by the customer.
Accessory socket (one per side)
The Accessory socket holds the IV pole
(ENT-ACC02, ACC24) or lifting pole (EV-ACC01).
Headboard
The headboard is not adjustable.
Figure 3
Figure 4
Figure 5
Product description - Bed

18 PRODUCT DESCRIPTION - BED
Magnets for function lockout
See Figure 6
There are four magnets: one on each side of the
headboard and footboard. The magnets are used for
function lockout on the standard hand control.
See Lockout on the standard hand control on page
30.
Backrest
The backrest is adjusted with the hand control.
See Backrest adjustment on page 26.
Thigh section
The thigh section is adjusted with the hand control.
See Thigh section adjustment on page 27.
Calf section
See Figure 7.
The calf section is adjusted manually.
For patient positioning, see on page 43.
Mattress platform extension
The mattress platform extension supports the
mattress when the bed is extended. The mattress
platform extension has three slots for di󰀨erent
positions. A stopper locks the position. See Figure 8.
See Extending the bed frame on page 33.
Figure 6
Figure 7
NOTE
The calf section should only be adjusted
when the thigh section is raised.
See Thigh section adjustment on page 27
Figure 8

19PRODUCT DESCRIPTION - BED

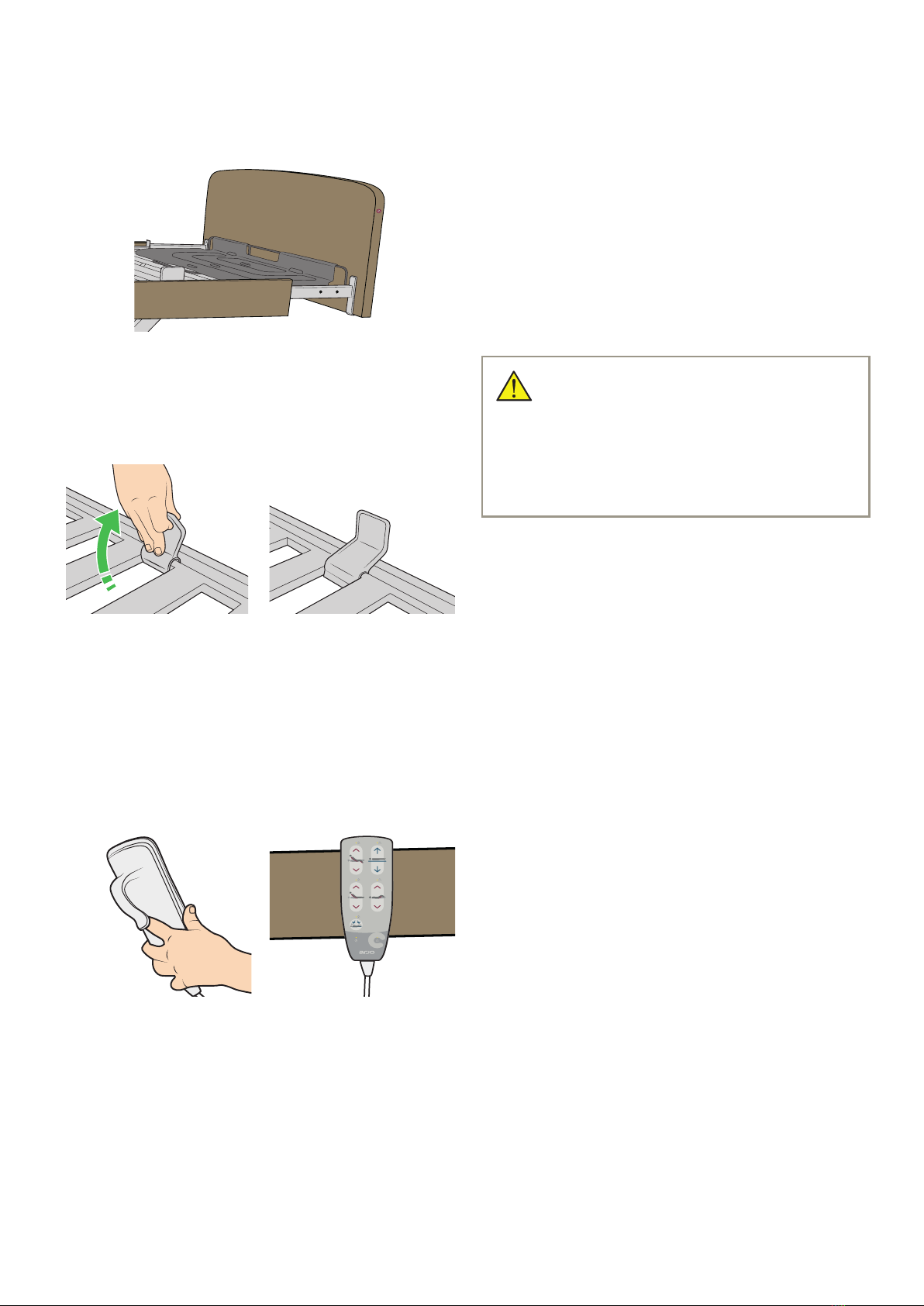

Footboard
See Figure 9
The footboard has three positions to allow the
caregiver to adjust the bed length for tall patients.
See Extending the bed frame on page 33. The
footboard cannot be removed.
Mattress retainers
The mattress retainers keep the mattress in place on
the bed.
Attach and detach mattress retainers
• To attach, snap the mattress retainer onto the
bed frame and rotate it in place. See Figure 10.
• To detach, rotate the mattress retainer inwards
and pull it o󰀨 the bed frame.
Hand control with clip
The hand control has a clip on the back for correct
positioning when not in use. See Figure 11.
Figure 9
WARNING
To avoid unintentional mattress movement
and falling, make sure that all four mattress
retainers are installed correctly and that the
mattress sits within all mattress retainers.
Figure 10
Figure 11

20 PRODUCT DESCRIPTION - BED
Telescopic bed rails (optional)
See Figure 12.
The bed can be equipped with telescopic bed rails to
secure the patient along the full bed length.
When raised, the telescopic bed rails can be locked
in the highest position or in one of several middle
positions. See Figure 13.
See Telescopic bed rails on page 36.
¾ Folding bed rails (optional)
See Figure 14.
The bed can be equipped with ¾ folding bed rails to
secure the patient along ¾ of the bed length.
See Telescopic bed rails on page 36.
Figure 12
Figure 13
Figure 14
