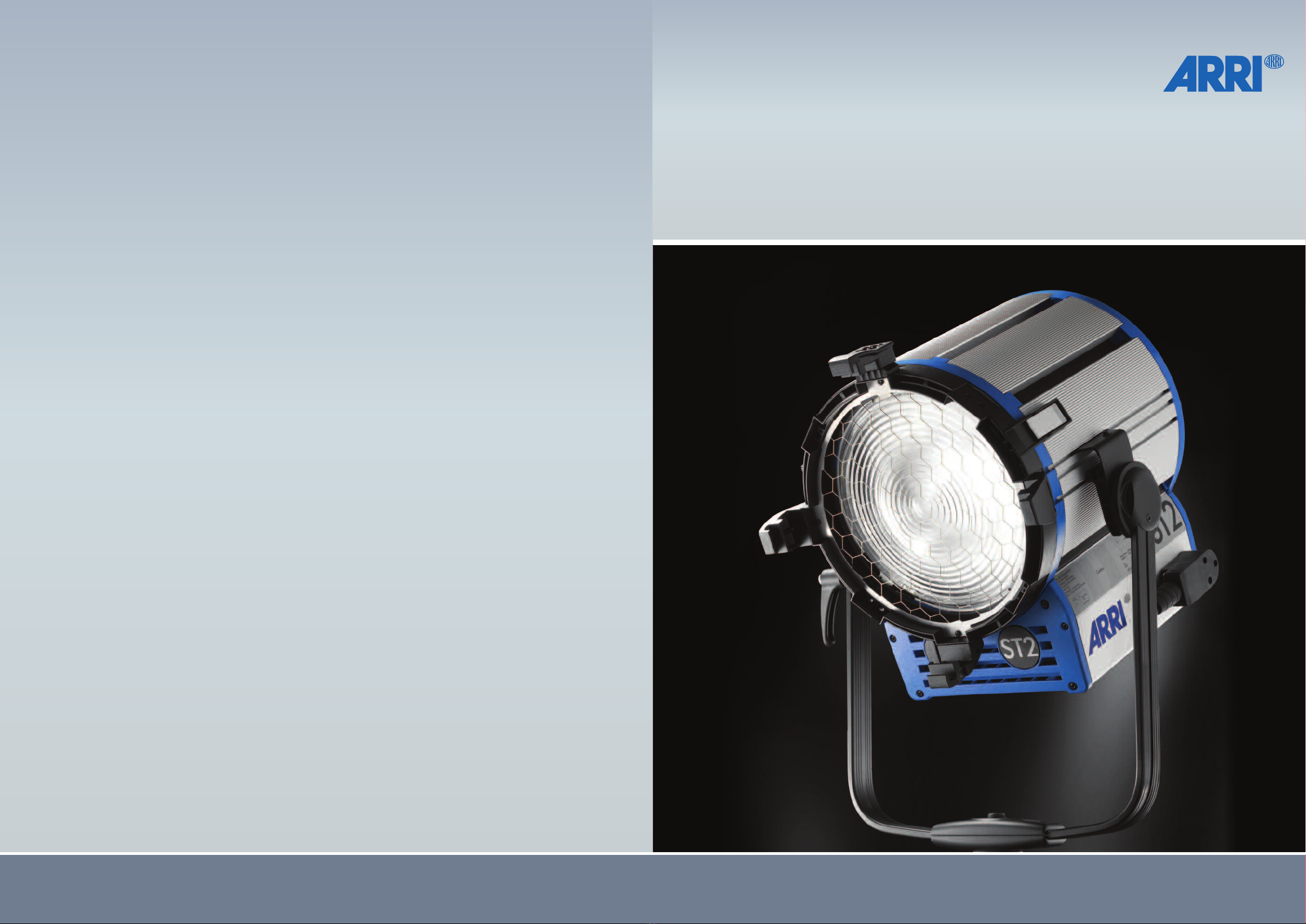

TRUE BLUE
New Location & Studio Fresnels
This ARR True Blue brochure ( D-No. L5.90179.0) is published by Arnold & Richter Cine Technik, April 01, 2008 © ARR /2008
Technical data and offerings are subject to change without notice. All rights reserved. Without any warranty. Not binding 02/02008. ARR is a registered trademark of Arnold & Richter Cine Technik GmbH & Co. Betriebs KG.
Arnold & Richter Cine Technik GmbH & Co. Betriebs KG • Türkenstrasse 89 • D-80799 Munich • phone [phone] • fax [phone] • www.arri.com
Germany
Arnold & Richter Cine Technik GmbH & Co. Betriebs KG.
Pulvermuhle, D-83071 Stephanskirchen
Tel: [phone], Fax: [phone]
ARR Lighting Solutions GmbH
Ernst-Augustin Str. 12, D-12489 Berlin
Tel: + 49(0)30-678233-0, Fax: [phone]
Great Britain
ARR GB Limited (Sales & Service)
2 Highbridge, Oxford Road, Uxbridge, Middlesex, UB8 1LX, Great Britain
Tel: [phone], Fax: [phone]
Italy
ARR talia S.r.l. (Sales & Service, Milan)
Viale Edison 318, 20099 Sesto San Giovanni (Milano), taly
Tel: [phone], Fax: [phone]
ARR talia S.r.l (Sales & Service, Rome)
Via Placanica 97, 00040 Morena (Roma), taly
Tel: [phone], Fax: [phone]
USA
ARR nc. (Sales & Service, East Coast)
617 Route 303, Blauvelt, NY 10913-1109, USA
Tel: [phone], Fax: [phone]
ARR nc. (Sales & Service, West Coast)
600 North Victory Blvd., Burbank, CA 91502-1639, USA
Tel: [phone], Fax: [phone]
Canada
ARR Canada Limited (Sales & Service)
415 Horner Ave, Unit 11 & 12, Toronto, Ontario M8W 4WS, Canada
Tel: [phone], Fax: [phone]
Australia
ARR Australia PTY Limited
Unit 6C, 5 Talavera Road, Macquarie Park NSW 2113, Sydney, Australia
Tel: [phone], Fax: [phone]
Hong Kong
ARR AS A Limited
Office 3B on 29/F, The Centrium, 60 Wyndham Street, Central, Hong Kong
Tel: + 852 2571 6288 Fax: + 852 2875 9181

3
ARR | TRUE BLUE
2
THE EVOLUTION
Of Authentic ARRI TRUE BLUE Lighting
ARR TRUE BLUES represent an unprecedented evolution of
the Studio and Location fixtures that have been popular
workhorses for over two decades. Following extensive
research and feedback from lighting professionals around
the world, combined with advances in technology, ARR has
designed a series of six highly innovative lampheads with
over 30 new improvements for studio and location lighting.
With reduced weight, compact size and maximum light
output TRUE BLUES set a new standard for professional
lighting equipment.
New pressure die cast and extruded aluminium components
have reduced the overall weight of the TRUE BLUE fixtures
without any sacrifice in quality or durability. Many
components now offer greater strength and resistance
to corrosion.
ARR ’s cross cooling system* reduces lamp housing
temperature by 25% and lens temperature by 17%. With
special air channels built into the aluminium extrusion, a
constant stream of air passes around the Fresnel lens and
into the lamphead regardless of the tilt angle.
At the heart of the TRUE BLUE concept is a redesigned
stirrup and improved tilt lock. The stainless steel friction disc
locks the lamphead securely even with the largest Chimera
or other accessories. To make balancing the lamphead even
easier, the stirrup mounting slides and can be adjusted to
counterbalance all accessories. The new extruded aluminium
stirrup is stronger, lighter and less bulky but still permits full
fixture rotation. t’s soft contour makes it comfortable to carry.
The new Stegmaier connector* and strain relief rotate to
allow the cable orientation to be quickly adjusted for
hanging or stand mounting. mproved barndoors are
stronger, less susceptible to bending and a new
hinge design maintains constant tension that can be
easily adjusted.
Routine maintenance and repair are easier with fast, simple
access to all internal components. Cleaning is made
effortless with smooth lamp housing surfaces.
ARR has redesigned these new lights down to the smallest
detail, offering lighting professionals better choices for
location and studio work. TRUE BLUE Fresnels from 1000 to
5000W include the T1, T2, T5, ST1, ST2 and ST5.
* Patent pending

5
ARR | TRUE BLUE
4
True Blue offers two new designs of top latch to suit the application. The
Studio Top Latch is simple and easy to use and can be turned completely out
of the way to load and unload accessories. The Location Top Latch is
specially coated for improved corrosion resistance and is sprung loaded for
fast operation even when hot.
Top Latch
Finally an easy solution to an old problem. Location crews need space in the
accessory bracket for up to four scrims; studio crews suffer from the light
leak this creates. Now two-position TRUE BLUE accessory brackets quickly
adjust in or out for two or four scrims. By reducing the space between the
scrims and the lens, unwanted reflected and spill light is minimised.
Adjustable Accessory Brackets
TRUE BLUE fixtures have been designed for serviceability with more common
parts across the line. Removing a maximum of six universal Torx screws
provides easy access to all interior parts. TRUE BLUES require only three Torx
drivers to disassemble the complete fixture.
ARR ’s new aluminium extrusion makes cleaning fixtures easy and our new
paint process ensures that TRUE BLUES will look as great as they perform.
Maintenance
We’ve named this component after its inventor and the principal designer of
ARR TRUE BLUES. With this combination connector and strain relief, the
power cable can be quickly reoriented for stand mount or hanging fixtures.
n addition, the connector, along with ARR ’s new lampholder, allows us
to eliminate the interior terminal block.
* Patent pending
Ste maier Connector*
ARR ’s cross cooling* system moves a stream of air around the Fresnel lens
and through the lamphead. n addition, air is channeled through the
aluminium extrusion housing, reducing lens temperature by 17% and
housing temperatures by 25%. Cross cooling* allows ARR TRUE BLUES to
safely operate at almost any tilt angle.
*Patent pending
Cross Coolin *
Modern fixtures use a wide variety of Chimeras, scrollers and other front
mounted accessories. Simply slide ARR ’s innovative stirrup bracket to quickly
and easily adjust the fixture’s centre of gravity.
* Due to the smaller size of the fixture, the sliding stirrup is not used on the T1.
Slidin Stirrup
ARR ’s new design creates a positive lock so there’s no slippage when using
heavy accessories. A stainless steel friction disc functions like a disc brake
allowing the lamphead to be completely locked off with a minimum of force.
* Due to the smaller size of the fixture, the friction disc tilt lock is not used
on the T1.
Tilt Lock
TRUE BLUE fixtures are
manufactured to the P23 standard
and are suitable for indoor use or
outdoor use providing a degree of
protection against falling rain (up to
a 60˚ angle from vertical).
Improved Weather Protection/IP23
All True Blue fixtures carry not only CE declaration but also an independently
assessed TUV certification.
Safety Certification
New ARR barndoors use a special alloy with a high strength-to-weight ratio.
The leaves in our new design withstand bending and deforming far better than
traditional barndoors. n addition, leaves are now easily tightened to avoid
slipping and the larger leaf design provides better control and sharper cutoff.
The same features are incorporated in a new optional eight leaf barndoor.
Barndoors
Although the top latch holds
accessories securely at any tilt
angle, both Studio and Location
lampheads feature a second safety
catch mounted on the bottom
accessory bracket. This eliminates
the need for a barndoor safety bond
without restricting the rotation.
Barndoor Safety Catch
The laser cut hexagonal
safety mesh maximizes
light transmission and
is tough enough to
withstand location abuse.
Stainless Steel Lens Protection
Easy to carry, ARR ’s new aluminium extrusion stirrup is smooth, incredibly
strong and extremely lightweight.
Stirrup Contour
Studio Top Latch Location Top Latch
Two Scrim Position Four Scrim Position

7
ARR | TRUE BLUE
6
Part No. Description
L3.39610.B T1 1000W Location Fresnel Lamphead, manual, blue/silver
L3.3961 .B T1 1000W Location Fresnel Lamphead, manual, black
L3.39610.I T1 1000W Location Fresnel Lamphead, pole operated, blue/silver
L3.39610.D T1 1000W Location Fresnel Lamphead, manual, blue/silver with Schuko plug
L3.7961 .D T1 1000W Location Fresnel Lamphead, manual, black with Schuko plug
All the above are supplied with four leaf barndoor and filter frame.
Accessories
L2.39670.0 Four Leaf Barndoor
L2.39700.0 Eight Leaf Barndoor
L2.79690.0 Filter Frame
L2.79680.0 Variable Snoot
L2.79660.0 Set of 4 Scrims (without bag)
L2.88913.1 Scrim bag
L2.76977.0 Large Kit Stand
Lamps
CP40 1000W 230V G22 Monoplane
CP71 1000W 230V G22 Biplane
Specifications
Weight 4.6kg manual, 6. kg pole op
Cable 3m manual, 1. m pole op
Lens Diameter 1 0 mm ( .9”) low expansion borosilicate Fresnel lens
Reflector Spherical specular high purity aluminium
Mounting Combination mount for 16mm ( /8”) or 28mm (1 1/8”) on manual versions,
28mm (1 1/8”) spigot on pole op versions
Protection Class IP23
Certification NRTL-US-C, CE, TÜV GS, CB
Photometric Data with CP71 Lamp
Throw (m): 4 6 8
Spot: 10° 1334 0cd
Output (lux) 8341 3707 208
Diameter (m) 0.7 1.0 1.4
Medium: 30° 38700cd
Output (lux) 2419 107 60
Diameter (m) 2.1 3.2 4.3
Flood: 4° 2027 cd
Output (lux) 1267 63 317
Diameter (m) 4.1 6.1 8.2
1000 lux gives correct exposure for 200ASA film with aperture f4 at 24fps
For light output at any distance visit arri.com and click on photometric calculator.
Part No. Description
L3.40 00.B ST1 1000W Studio Fresnel Lamphead, manual, blue/silver
L3.40 0 .B ST1 1000W Studio Fresnel Lamphead, manual, black
L3.40 00.I ST1 1000W Studio Fresnel Lamphead, pole operated, blue/silver
L3.40 0 .I ST1 1000W Studio Fresnel Lamphead, pole operated, black
L3.40 00.D ST1 1000W Studio Fresnel Lamphead, manual, blue/silver with Schuko plug
L3.40 0 .D ST1 1000W Studio Fresnel Lamphead, manual, black with Schuko plug
L3.40 00.K ST1 1000W Studio Fresnel Lamphead, pole operated, blue/silver with Schuko plug
L3.40 0 .K ST1 1000W Studio Fresnel Lamphead, pole operated, black with Schuko plug
All the above are supplied with four leaf barndoor and filter frame.
Accessories
L2.39870.0 Four Leaf Barndoor
L2.39900.0 Eight Leaf Barndoor
L2.79890.0 Filter Frame
L2.79880.0 Variable Snoot
L2.79860.0 Set of 4 Scrims (without bag)
L2.88914.1 Scrim Bag
L2.76990.0 Safety Cable
L2.89079.0 4m Operating Pole for pole-op fixtures
L2.88118.0 Barrel Clamp
Lamps
CP40 1000W 230V G22 Monoplane
CP71 1000W 230V G22 Biplane
Specifications
Weight 7kg manual, 8. kg pole op
Cable 1. m
Lens Diameter 17 mm (6.9”) low expansion borosilicate Fresnel lens
Reflector Spherical specular high purity aluminium
Mounting Combination mount for 16mm ( /8”) or 28mm (1 1/8”) on manual versions,
28mm (1 1/8”) spigot on pole op versions
Protection Class IP23
Certification NRTL-US-C, CE, TÜV GS, CB
Photometric Data with CP71 Lamp
Throw (m): 4 6 8
Spot 10° 1 22 cd
Output (lux) 9702 4312 242
Diameter (m) 0.7 1.0 1.4
Medium 30° 3632 cd
Output (lux) 2270 1009 68
Diameter (m) 2.1 3.2 4.3
Flood 8° 16 0cd
Output (lux) 1034 460 2 9
Diameter (m) 4.4 6.7 8.9
1000 lux gives correct exposure for 200ASA film with aperture f4 at 24fps
For light output at any distance visit arri.com and click on photometric calculator.
1000W Location Fresnel
ST1
1000W Studio Fresnel
T1
AVAILABLE SEPTEMBER 2008

2000W Location Fresnel
ST2
2000W Studio Fresnel
T2
9
ARR | TRUE BLUE
8
Part No. Description
L3.412 0.B T2 2000W Location Fresnel Lamphead, manual, blue/silver
L3.412 .B T2 2000W Location Fresnel Lamphead, manual, black
L3.412 0.I T2 2000W Location Fresnel Lamphead, pole operated, blue/silver
L3.412 0.D T2 2000W Location Fresnel Lamphead, manual, blue/silver with Schuko plug
L3.412 .D T2 2000W Location Fresnel Lamphead, manual, black with Schuko plug
All the above are supplied with four leaf barndoor and filter frame.
Accessories
L2.39870.0 Four Leaf Barndoor
L2.39900.0 Eight Leaf Barndoor
L2.79890.0 Filter Frame
L2.79880.0 Variable Snoot
L2.79860.0 Set of 4 Scrims (without bag)
L2.88914.1 Scrim bag
L2.88717.0 Cine Stand
Lamps
CP41 2000W 230V G38 Monoplane
CP73 2000W 230V G38 Biplane
Specifications
Weight 7.3kg manual, 8.4kg pole op
Cable 3m manual, 1. m pole op
Lens Diameter 17 mm (6.9”) low expansion borosilicate Fresnel lens
Reflector Spherical specular high purity aluminium
Mounting 28 mm (1 1/8”)
Protection Class IP23
Certification NRTL-US-C, CE, TÜV GS, CB
Photometric Data with CP73 Lamp
Throw (m): 6 9 12
Spot 12° 216600cd
Output (lux) 6017 2674 1 04
Diameter (m) 1.3 1.9 2.
Medium 30° 6762 cd
Output (lux) 1878 83 470
Diameter (m) 3.2 4.8 6.4
Flood 7° 3447 cd
Output (lux) 9 8 426 239
Diameter (m) 6. 9.8 13.0
1000 lux gives correct exposure for 200ASA film with aperture f4 at 24fps
For light output at any distance visit arri.com and click on photometric calculator.
Part No. Description
L3.407 0.B ST2 2000W Studio Fresnel Lamphead, manual, blue/silver
L3.407 .B ST2 2000W Studio Fresnel Lamphead, manual, black
L3.407 0.I ST2 2000W Studio Fresnel Lamphead, pole operated, blue/silver
L3.407 .I ST2 2000W Studio Fresnel Lamphead, pole operated, black
L3.407 0.D ST2 2000W Studio Fresnel Lamphead, manual, blue/silver with Schuko plug
L3.407 .D ST2 2000W Studio Fresnel Lamphead, manual, black with Schuko plug
L3.407 0.K ST2 2000W Studio Fresnel Lamphead, pole operated, blue/silver with Schuko plug
L3.407 .K ST2 2000W Studio Fresnel Lamphead, pole operated, black with Schuko plug
All the above are supplied with four leaf barndoor and filter frame.
Accessories
L2.409 0.0 Four Leaf Barndoor
L2.40960.0 Eight Leaf Barndoor
L2.80970.0 Filter Frame
L2.8097 .0 Variable Snoot
L2.80980.0 Set of 4 Scrims (without bag)
L2.8891 .I Scrim Bag
L2.76990.0 Safety Cable
L2.89079.0 4m Operating Pole for pole-op fixtures
L2.88118.0 Barrel Clamp
Lamps
CP41 2000W 230V G38 Monoplane
CP73 2000W 230V G38 Biplane
Specifications
Weight 10.6kg manual, 12.2kg pole op
Cable 1. m
Lens Diameter 2 0 mm (10”) low expansion borosilicate Fresnel lens
Reflector Spherical specular high purity aluminium
Mounting 28 mm (1 1/8”)
Protection Class IP23
Certification NRTL-US-C, CE, TÜV GS, CB
Photometric Data with CP73 Lamp
Throw (m): 69 12
Spot 9° 46 700cd
Output (lux) 12936 749 3234
Diameter (m) 0.9 1.4 1.9
Medium 30° 7987 cd
Output (lux) 2219 986
Diameter (m) 3.2 4.8 6.4
Flood 2° 4312 cd
Output (lux) 1198 32 299
Diameter (m) .9 8.8 11.7
1000 lux gives correct exposure for 200ASA film with aperture f4 at 24fps
For light output at any distance visit arri.com and click on photometric calculator.

5000W Location Fresnel
ST5
5000W Studio Fresnel
T5
11
ARR | TRUE BLUE
10
Part No. Description
L3.40000.B T 000W Location Fresnel Lamphead, manual, blue/silver
L3.4000 .B T 000W Location Fresnel Lamphead, manual, black
All the above are supplied with four leaf barndoor and filter frame.
Accessories
L2.409 0.0 Four Leaf Barndoor
L2.40960.0 Eight Leaf Barndoor
L2.80970.0 Filter Frame
L2.8097 .0 Variable Snoot
L2.80980.0 Set of 4 Scrims (without bag)
L2.8891 .1 Scrim bag
L2.89 04.0 Universal Stand
Lamps
CP29 000W 230V G38 Monoplane
CP8 000W 230V G38 Biplane
Specifications
Weight 11.6kg
Cable 3m
Lens Diameter 2 0 mm (10”) low expansion borosilicate Fresnel lens
Reflector Spherical specular high purity aluminium
Mounting 28 mm (1 1/8”)
Protection Class IP23
Certification NRTL-US-C, CE, TÜV GS, CB
Photometric Data with CP85 Lamp
Throw (m): 9 12 18
Spot 11° 71492 cd
Output (lux) 8826 496 2207
Diameter (m) 1.7 2.3 3.
Medium 30° 22922 cd
Output (lux) 2830 1 92 707
Diameter (m) 4.8 6.4 9.7
Flood 0° 9967 cd
Output (lux) 1231 692 308
Diameter (m) 8.4 11.2 16.8
1000 lux gives correct exposure for 200ASA film with aperture f4 at 24fps
For light output at any distance visit arri.com and click on photometric calculator.
Part No. Description
L3.41000.B ST 000W Studio Fresnel Lamphead, manual, blue/silver
L3.4100 .B ST 000W Studio Fresnel Lamphead, manual, black
L3.41000.I ST 000W Studio Fresnel Lamphead, pole operated, blue/silver
L3.4100 .I ST 000W Studio Fresnel Lamphead, pole operated, black
All the above are supplied with four leaf barndoor and filter frame.
Accessories
L2.41200.0 Four Leaf Barndoor
L2.41210.0 Eight Leaf Barndoor
L2.81220.0 Filter Frame
L2.8122 .0 Variable Snoot
L2.81230.0 Set of 4 Scrims (without bag)
L2.88916.I Scrim Bag
L2.76990.0 Safety Cable
L2.89079.0 4m Operating Pole for pole-op fixtures
L2.88118.0 Barrel Clamp
Lamps
CP29 000W 230V G38 Monoplane
CP8 000W 230V G38 Biplane
Specifications
Weight 13.6kg manual, 1 .4kg pole op
Cable 2m
Lens Diameter 300 mm (11.8”) low expansion borosilicate Fresnel lens
Reflector Spherical specular high purity aluminium
Mounting 28 mm (1 1/8”)
Protection Class IP23
Certification NRTL-US-C, CE, TÜV GS, CB
Photometric Data with CP85 Lamp
Throw (m): 9 12 18
Spot 9.0° 90827 cd
Output (lux) 11213 6307 2803
Diameter (m) 1.4 1.9 2.8
Medium 30° 188 2 cd
Output (lux) 2327 1309 82
Diameter (m) 4.8 6.4 9.7
Flood 62° 8987 cd
Output (lux) 1110 624 277
Diameter (m) 10.8 14.4 21.6
1000 lux gives correct exposure for 200ASA film with aperture f4 at 24fps
For light output at any distance visit arri.com and click on photometric calculator.
