Aruba 4100i Series User manual

Aruba 4100i Switch Series
Installation and Getting Started Guide
Part Number: 5200-8236
Published: July 2021
Edition: 1

|2
Copyright Information
© Copyright 2021 Hewlett Packard Enterprise Development LP.
Open Source Code
This product includes code licensed under the GNU General Public License, the GNU Lesser General Public
License, and/or certain other open source licenses. A complete machine-readable copy of the source code
corresponding to such code is available upon request. This offer is valid to anyone in receipt of this
information and shall expire three years following the date of the final distribution of this product version
by Hewlett Packard Enterprise Company. To obtain such source code, send a check or money order in the
amount of US $10.00 to:
Hewlett Packard Enterprise Company
6280 America Center Drive
San Jose, CA 95002
USA
Notices
The information contained herein is subject to change without notice. The only warranties for Hewlett
Packard Enterprise products and services are set forth in the express warranty statements accompanying
such products and services. Nothing herein should be construed as constituting an additional warranty.
Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Confidential computer software. Valid license from Hewlett Packard Enterprise required for possession, use,
or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software
Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under
vendor's standard commercial license.
Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard
Enterprise has no control over and is not responsible for information outside the Hewlett Packard
Enterprise website.
Acknowledgments
Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
UNIX® is a registered trademark of The Open Group.
All third-party marks are property of their respective owners.

Contents
Contents
Contents 3
About this Document 5
Applicable Products 5
Related Publications 5
Introducing the Switches 6
Overview 6
Switch Features 6
Front of the Switches 7
Management ports 11
100/1000 SFP/10G SFP+ Ports (Uplink) 11
10/100/1000 BASE-T Ports (Downlink) 12
Console Ports 12
DC Power connectors 13
Alarm connector 14
Configuring alarm relays 17
Chassis LEDs and buttons on the front of the switch 23
LED Behavior 25
LED mode select button and indicator LEDs 27
Reset buttons 27
Back of the Switch 27
Power Supplies 28
Installing the switch 31
Included Parts 31
Parts not included 32
Installation Warnings 32
Installation Precautions and Guidelines 35
Grounding the switch 35
Installation Procedures for 12-port JL817A Switches 37
Prepare the Installation Site 38
Installing the Power Supplies 38
Mount the Power Supplies 39
Power-on the switch and check LEDs 48
Power off the switch 48
Mount the Switch 48
DINRail Mount Option 48
DIN-to-rack Mount Option 52
Aruba Side Enforcement Bracket Kit for Aruba Switches (optional) 54
User Configurable PoE Power Budget 58
Installation Procedures for 24-port JL818A Switches 61
Prepare the Installation Site 61
Horizontal and Wall Mount Option 62
Two-post Rack Mount Option 64
Four-Post Rack Mount Option 66
Install Transceivers (optional) 68
Aruba 4100i Switch Series | Installation and Getting Started Guide 3

Contents |4
Connect the Switch to a Power Source 68
Setup for Initial Configuration 69
Connect Network Cables 69
Connecting Cables to Transceivers 69
Troubleshooting 70
Basic Troubleshooting Tips 70
Diagnosing with the LEDs 70
LED Patterns for General Switch Troubleshooting 71
Diagnostic Tips 72
Hardware Diagnostic Tests 74
Testing the switch by resetting it 74
Checking the Switch LEDs 74
Checking Console Messages 74
Testing Switch-to-Device Network Communications 75
Testing End-to-End Networking Communications 75
Specifications 76
Physical 76
Electrical 77
Power Cords 78
Environmental Specifications 79
RoHS 79
Safety and Regulatory Information 79
Connectivity Standards 80
Battery Statements: 81
Cabling and Technology Information 83
Cabling Specifications 83
Support and other resources 85
Accessing Aruba Support 85
Accessing Updates 85
Aruba Support Portal 86
My Networking 86
Warranty Information 86
Regulatory Information 86
Documentation Feedback 86

Chapter 1
About this Document
About this Document
This document is intended for network administrators and support personnel.
The display and command line illustrated in this document are examples and might not exactly match your
particular switch or environment.
The switch and accessory drawings in this document are for illustration only, and may not exactly match your
particular switch and accessory products.
Applicable Products
nJL817A - Aruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount
Switch
nJL818A - Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch
Related Publications
nStart Here: Installation, Safety, and Regulatory Information for the Aruba 4100i Switches
nAOS-S and AOS-CX Transceiver Guide
nAOS-CX software manuals
To view and download these publications, visit the Aruba Support Portal at
https://asp.arubanetworks.com/downloads.
Aruba 4100i Switch Series | Installation and Getting Started Guide 5

Chapter 2
Introducing the Switches
Introducing the Switches
Aruba 4100i networking switches are ruggedized devices offering low latency for high-speed networking
with full network management capabilities.
This chapter describes these switches with the following information:
nSwitch features
nNetwork ports
nManagement ports
nChassis and Port LEDs
nLED Mode Select Button and Mode LEDs
nLED behavior
nPower supplies
Overview
The Aruba 4100i Switch Series is a family of ruggedized networking switches, ideal for industrial
environments and extreme conditions. They provide the foundation for high-performance networks
supporting IoT, mobile, and cloud applications. They are for use in industrial applications. The end use
environment may or may not be a restricted access location.
Switch Features
nCombinations of Class 6 and Class 4 10/100/1000 Base-T ports.
nPower supply options (JL817A):
oAruba 4000i POE 54VDC 240W 100-240VAC DIN Power Supply (JL819A)
oAruba 4000i POE 54VDC 480W 100-240VAC DIN Power Supply (JL820A)
oAruba 4000i POE 54VDC 240W 12-48VDC DIN Power Supply (JL821A)
nEasy management of the switch through several available interfaces:
oConsole interface: A full-featured, easy-to-use, VT-100 terminal interface for out-of-band or serial
switch management. There is a single serial console port on the switch, using a USB Type-C connector.
This port is used to connect a console to the switch. Use a common USB to USB-C cable (must be data
capable). The console can be a PC or workstation running a VT-100 terminal emulator, or a VT-100
terminal. The console is also available via USB-A port using USB to Serial Adapter.
oAuxiliary (Aux) port: An auxiliary port is available for downloading switch software code. This port
uses a USB Type-A connector.
oWeb browser interface: An easy-to-use built-in graphical interface that can be accessed from
common web browsers.
Aruba 4100i Switch Series | Installation and Getting Started Guide 6

Introducing the Switches |7
oAruba AirWave: A powerful and easy-to-use network operations system that manages wired and
wireless infrastructures. For more information, visit
https://www.arubanetworks.com/products/networking/management/airwave.
oAruba Activate: Cloud-based service that provides inventory control and facilitates Zero Touch
Provisioning. (Available in future Aruba Activate release)
oAruba ClearPass Policy Manager: Network policy management software for wired and wireless
network devices that provide on-boarding and role-based control/security.
oAruba Central: Network management software cloud platform. It offers IT organizations a simple,
secure, and cost-effective way to manage and monitor Aruba switches and Aruba instant wireless APs.
(Available in future Aruba Central release)
nSupports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W)
nSupport for many advanced features to enhance network performance: For a description, see the AOS-
CX guides for your switch.
nAbility to update the switch software. To download product updates, go to the Aruba Support Portal.
JL817A - Aruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN
Mount Switch
n4 ports 10/100/1000 BaseT Class 6 PoE ports supporting up to 60W per port
n8 ports 10/100/1000 BaseT Class 4 PoE ports supporting up to 30W per port
n2 1/10G SFP+ ports
n1 USB-C Console Port
n1 RJ-45 Console Port
n1 USB Type-A host port
n1 Alarm socket
n2 DC power sockets (for standby redundancy)
JL818A - Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+
Switch
n4 ports 10/100/1000 BaseT Class 6 PoE ports supporting up to 60W per port
n20 ports 10/100/1000 BaseT Class 4 PoE ports supporting up to 30W per port
n4 1/10G SFP+ ports
n1 USB-C Console Port
n1 RJ-45 Console Port
n1 USB Type-A Host port
n1 Alarm socket
Front of the Switches

Aruba 4100i Switch Series | Installation and Getting Started Guide 8
Figure 1 Front of all 4100i switches
Label Description
1Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6
POE) 4-port SFP+ Switch (JL818A)
2Aruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port
Class 6 POE) 2-port SFP+ DIN Mount Switch (JL817A)

Introducing the Switches |9

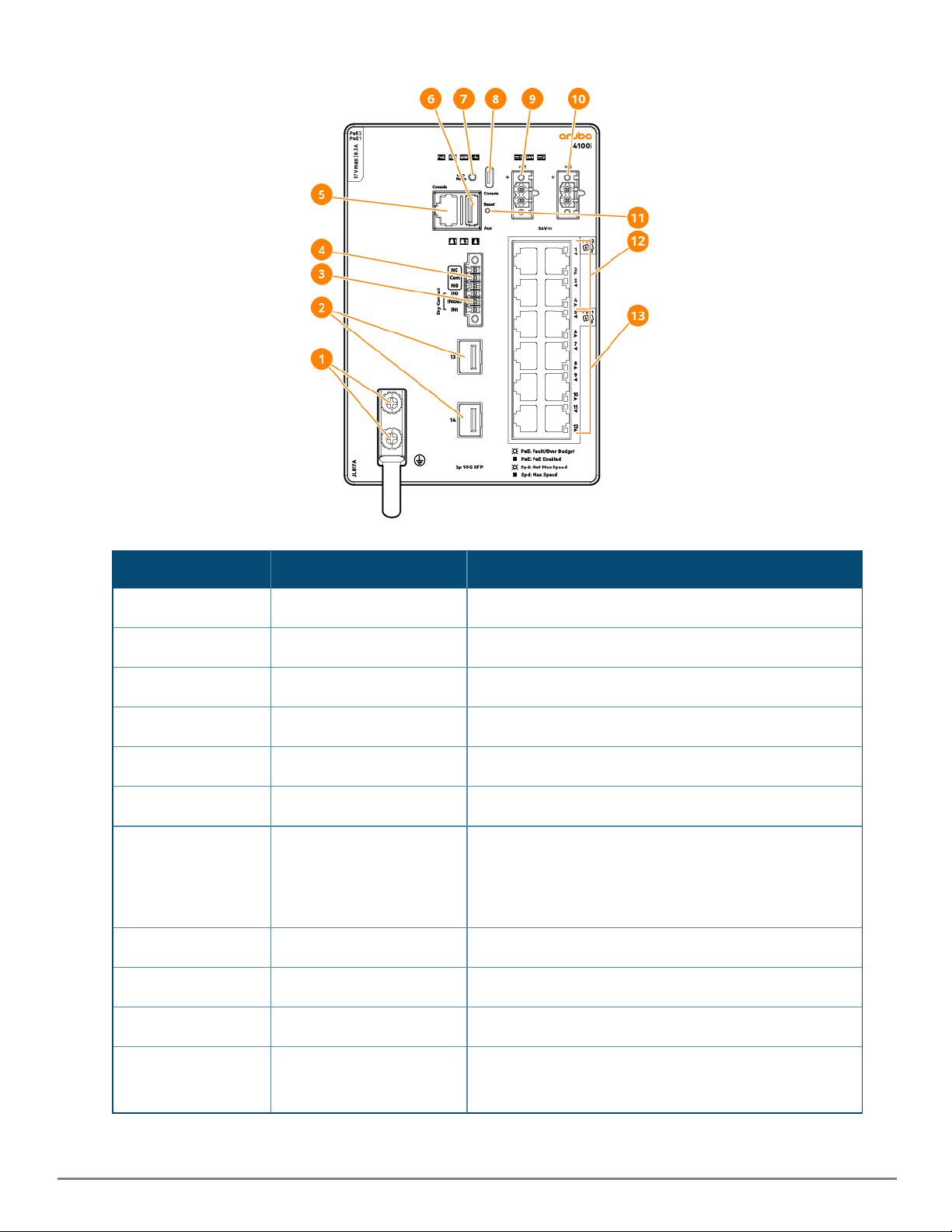

Figure 2 Front of switch (JL817A)
Item Label Description
1 Ground lug (must earth) DINswitch grounding must be connected
2 10G SFP+ ports SFP ports supporting 100M/1G/10GbE transceivers
3 Alarm INterminal Alarm 1 and 2 input terminal block
4 Alarm OUT terminal Alarm output terminal block
5 RJ-45 console port RJ-45 management console
6 USB auxiliary port USB Type-A host port
7 LEDMode button Push to toggle the display modes of port LEDs:
nActivity / Link Mode (default)
nSpeed Mode
nPoE Mode (only for PoEenabled SKUs)
8 USB-C console port USB management console
9 DC power IN 1 PSU 1 power input terminal block
10 DC power IN 2 PSU 2 power input terminal block
11 Reset button Hard reset - hold for 5 seconds
Soft reset - press and release within 5 seconds

Aruba 4100i Switch Series | Installation and Getting Started Guide 10
Item Label Description
12 Class 6 PoE ports 802.3bt Class 6 PoE ports supporting up to 60W of power
are labeled with a silver frame (1-4)
13 Class 4 PoE ports 802.3at Class 4 PoE ports supporting up to 30W of power
(5 - 12)

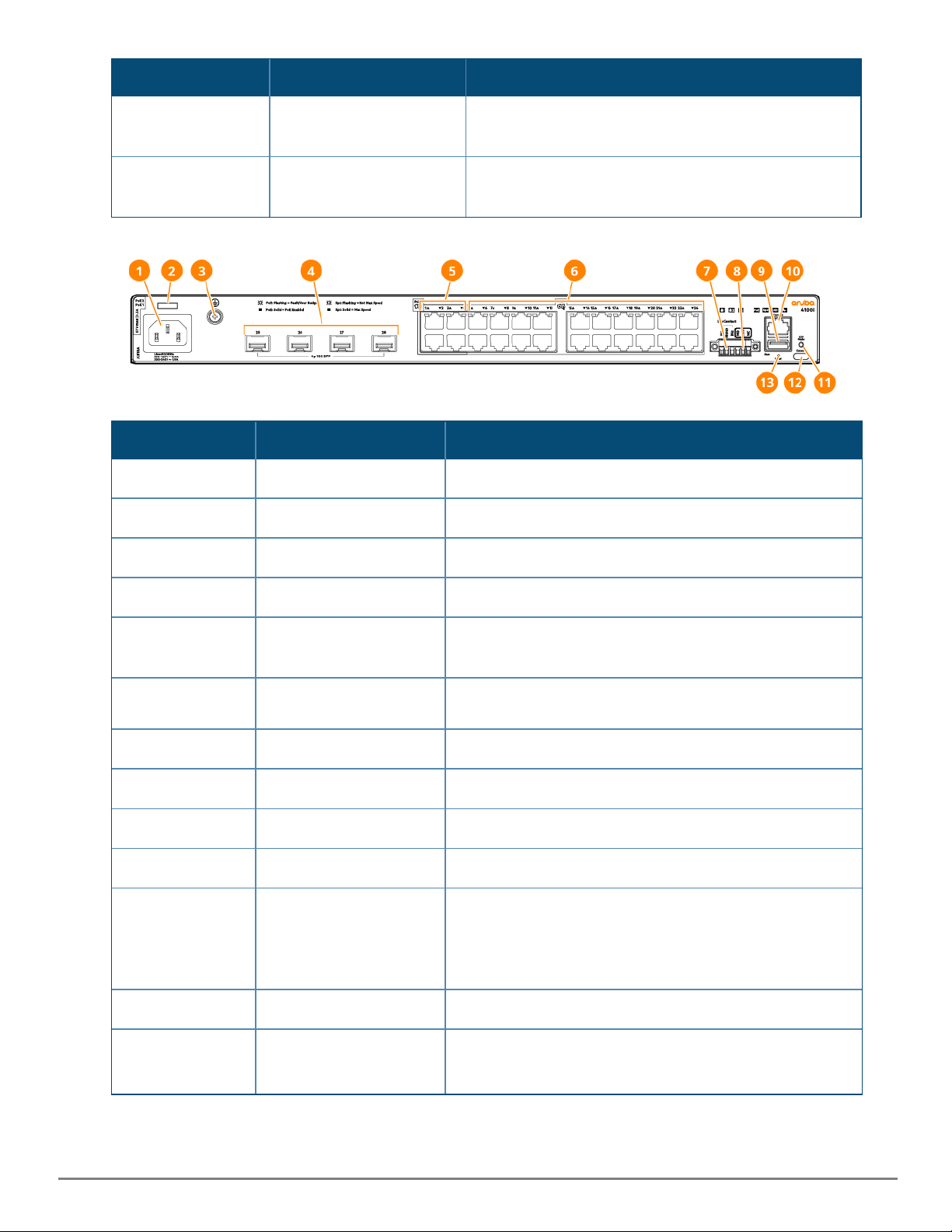

Figure 3 Front of switch (JL818A)
Item Label Description
1 AC power input AC power input terminal block
2 Cable tie anchor Allows for power cord to be secured by cable tie
3 Ground lug screw Switch grounding conncetion (optional earth system)
4 10G SFP+ ports SFP ports supporting 100M/1G/10GbEtransceivers
5 Class 6 PoE ports 802.3bt Class 6 PoE ports supporting up to 60W of power are
labeled with a silver frame (1-4)
6 Class 4 PoE ports 802.3at Class 4 PoE ports supporting up to 30W of power (5 -
24)
7 Alarm IN terminal Alarm 1 and 2 input terminal block
8 Alarm OUTterminal Alarm output terminal block
9 USBauxiliary port USB Type-A host port
10 RJ-45 console port RJ-45 management console
11 LEDMode button Push to toggle the display modes of port LEDs:
nActivity / Link Mode (default)
nSpeed mode
nPoE mode (only for PoEenabled SKUs)
12 USB-C console port USB mangement console
13 Reset button Hard reset - hold for 5 seconds
Soft reset - press and release within 5 seconds

Introducing the Switches |11
Management ports
You can connect the switch to a PC running Microsoft Windows or to a terminal server through either the RJ-
45 console port or the USB-C console port. These ports use the following connectors:

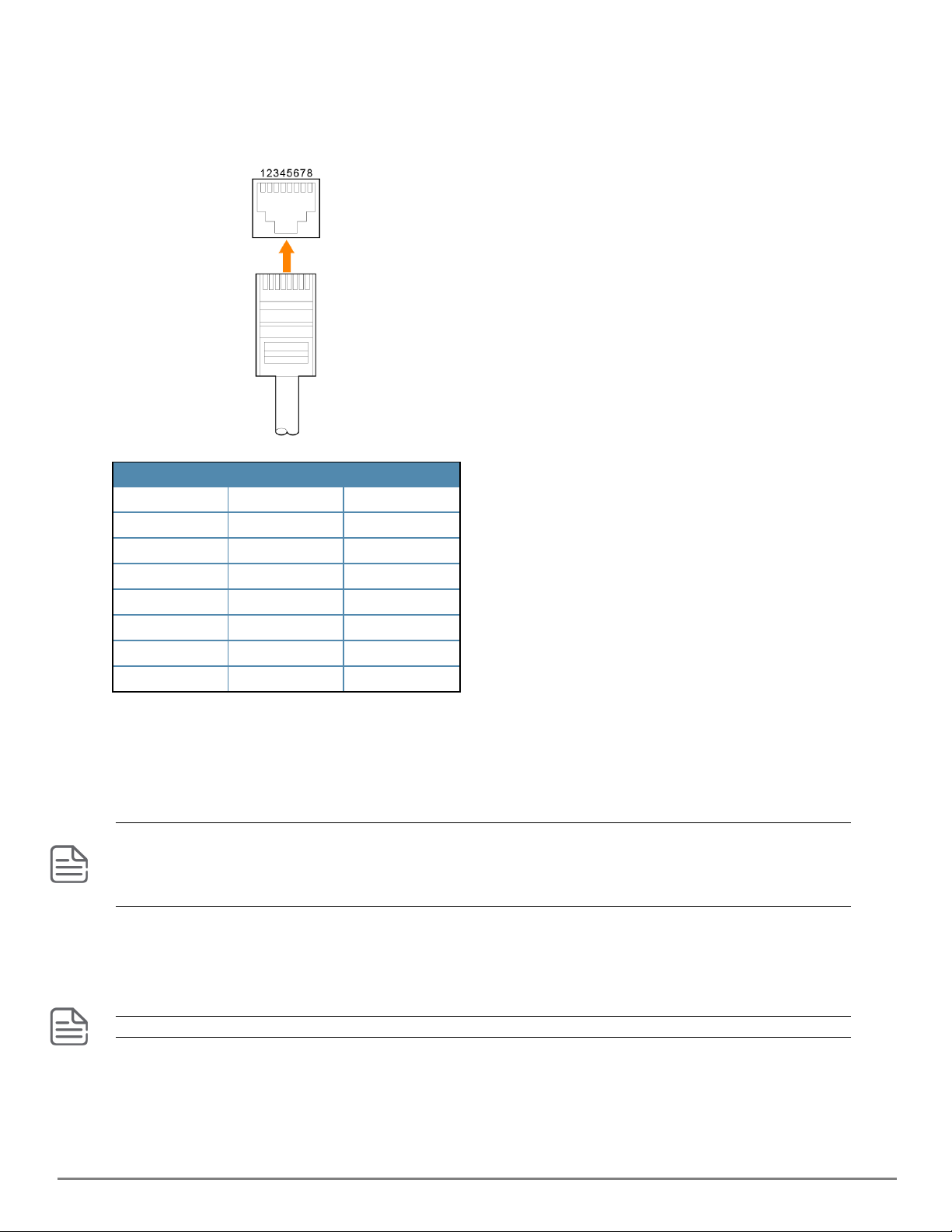

nRJ-45 console port uses a console connection with these pinout assignments:
RJ-45 (Signal reference from chassis)
Reserved 1 CTS
Reserved 2 DSR
TXD 3 RXD
Reserved 4 DCD
GND 5 GND
RXD 6 TXD
Reserved 7 DTR
Reserved 8 RTS
nUSB-C console port
To use the USB-C console port, you must install the Windows USB device driver on the device that is connected to
the USB-mini console port and that is running Microsoft Windows. With the Windows USB device driver,
connecting and disconnecting the USB cable from the console port does not affect Windows HyperTerminal
operations. Mac OS X or Linux require no special drivers.
Only the connected and active port will be able to input data. For information on using the CLI to configure
the USB-C interface, see the switch software guide.
Different configurations are available. Not all ports are present in all configurations.
100/1000 SFP/10G SFP+ Ports (Uplink)

Aruba 4100i Switch Series | Installation and Getting Started Guide 12
Depending on the switch model, the uplink ports support 100Mbps FX, 1G or 10G optics (no support for
10G LRM optics).
For more information on SFP/SFP+, see the Transceiver Guide.
10/100/1000 BASE-T Ports (Downlink)
You can set the 10/100/1000 Base-T ports to operate in 10 or 100 Mbp/s in full-duplex or half-duplex
mode. You can also set these ports for speed and duplex autonegotiation in compliance with IEEE 802.3.
(The default setting is autonegotiate.) When set for autonegotiation, the port receives the speed and duplex
settings of the attached device and advertises its own capabilities. If the connected device also supports
autonegotiation, the switch port negotiates the best connection (that is, the fastest line speed that both
devices support, and full-duplex transmission if the attached device supports it) and configures itself
accordingly. In all cases, the attached device must be within 328 feet (100 meters). 100BASE-TX traffic
requires Category 5 cable. 10BaseT traffic can use Category 3 or Category 4 cables.
Console Ports
Aruba 4100i switches include an RJ-45 serial console port on the front of the switch. This port is used to
connect a console to the switch by using an RJ-45 serial cable (not supplied). A DB9-to-RJ-45 console cable
can be ordered from HPE: JL448A, Aruba X2C2 RJ45 to DB9 Console Cable.
The switch also has a USB-C console port on the front of the switch. The USB-C has precedence for input. If
both cables are plugged in, the console output is echoed to both the RJ-45 and the USB-C, but the input is
only accepted from the USB-C.
JL817A
JL818A

Introducing the Switches |13
nUse of the USB-C port may require the installation of a standard USB driver. New Windows installs include
the driver by default.
The console can be a PC or workstation running a VT-100 terminal emulator, or a VT-100 terminal.
The Aruba CX mobile app and the Aruba USB Bluetooth adapter enable you to configure your switch from
your mobile device. For information about using the Aruba CX mobile app to configure the switch, see the
Fundamentals Guide for your switch and software release.
DC Power connectors
(JL817A only)
DC connection is supported for the JL817A through two connectors on the front panel of the switch. The
dual-feed power supply provides primary and secondary DC power (DC-1 and DC-2). The switch is capable
of operating with a single or dual power source. When using both power sources, the switch will draw power
from the DC source with the higher voltage. Each of the power sources serve as redundancy to one another.
The switch has an ORing controller to provide protection against reverse-polarity conditions but does NOT
support summation of power for capacity when combining both power supplies together.

Aruba 4100i Switch Series | Installation and Getting Started Guide 14
For safe and reliable DC connection, use wiring that is 14 AWG, up to 2 meters.
Ensure that the wires are secured by tightening the captive screws.
Alarm connector
JL817A

Introducing the Switches |15
JL818A
Alarm signals can be connected to the switch through the alarm connector. The switch supports two alarm
inputs and one alarm output relay. The alarm connector provides six alarm wire connections.
Alarm Specifications
Input Dry contact. Do not apply any voltage source. Open or Closed state detect (Dry Contact detection).
Output 1.0A @ 24 VDC or 0.5A @ 48VDC Max Power: 24W
Supports Normally Open and Normally Closed
Wire AWG 18-16
Alarm Label
Item Description
NC Alarm output normally closed
Com Alarm output reference ground
NO Alarm output normally open

Aruba 4100i Switch Series | Installation and Getting Started Guide 16
Item Description
IN2 Alarm input 2
INGND Alarm input reference ground
IN1 Alarm input 1
Alarms can be configured in the CLI. Each alarm input can be configured as normally open or normally
closed contact and can be used for environmental, power supply or port needs. The alarm output can be
connected to an external device such as a light or bell.

Introducing the Switches |17
Configuring alarm relays
Industrial rugged switches have hardware alarm ports that generate an alarm on internal or external
condition depending on alarm port wiring during system installation. The switch provides for 1x output
alarm port that could be wired to an external device. When an external device like an external alarm bell is
wired to the output port, configuring the event to output relay will trigger the bell to ring indicating the
event. These events could also be configured to send syslog messages and SNMP traps. The switch also
provides for 2x input alarm ports. An external device like a door or a sensor could be connected to the
switch which can be configured to trigger a syslog or SNMP. These could also be forwarded to the relay
circuit at the alarm output port.
To configure the alarm relays, refer to the following CLI commands. For additional CLI and
software information, see the Monitoring Guide for your switch.
Alarm commands
alarm input
alarm input {IN1 | IN2} [name <STRING>] [action <LOG-AND-TRAP> |<RELAY>] [trigger <CLOSED |
OPEN>]
no alarm input {IN1| IN2} [name <STRING>] [action <LOG-AND-TRAP> |<RELAY>] [trigger <CLOSED
|OPEN>]
Description
Configures input alarm and actions. The no form of this command removes the specified configuration.
Parameters
{IN1 | IN2}
Specifies the input alarm port.
name
Specifies the external device connected.

Aruba 4100i Switch Series | Installation and Getting Started Guide 18
<STRING>
Descriptive string.
action
Specifies the action to be taken when the monitored event occurs.
<LOG-AND-TRAP>
Generates an event log and SNMP trap.
<RELAY>
Relays an event to alarm output port.
trigger
Triggers an alarm based on a normally open or closed circuit.
<CLOSED>
Generates an alarm event when the circuit is closed.
<OPEN>
Generates an alarm event when the circuit is open.
Examples
Configuring an alarm on input port 1 named Door-Sensor:
switch(config)# alarm input IN1 name Door-Sensor
Removing the configuring for an alarm on input port 1:
switch(config)# no alarm input IN1
Configuring an alarm on input port 1 with log-and-trap action:
switch(config)# alarm input IN1 action log-and-trap
Removing the configuration for an alarm on input port 1 with log-and-trap action:
switch(config)# no alarm input IN1 action log-and-trap
Configuring an alarm on input port 1 to trigger an alarm when the door sensor circuit is closed:
switch(config)# alarm input IN1 trigger closed
Command History
Release Modification
10.08 Featured introduced.
Command Information
Platforms Command context Authority
4100i config Administrators or local user group members with execution
rights for this command.
alarm snooze
alarm snooze [time in minutes] [repeat]

Introducing the Switches |19
Description
Configures any active event forwarded to alarm relay to be snoozed.
Parameters
time
Specifies the value for time in minutes. The range is 0-1440 minutes.
[repeat]
Repeats the previous snooze time.
Examples
Configuring an alarm relay action for 10 minutes:
switch(config)# alarm snooze 10
Configuring an alarm relay action to be repeated with previously configured snooze time:
switch(config)# alarm snooze repeat
Command History
Release Modification
10.08 Featured introduced.
Command Information
Platforms Command context Authority
4100i config Administrators or local user group members with execution
rights for this command.
alarm
alarm {temperature | power supply} [action <LOG-AND-TRAP> |<RELAY>]
no alarm {temperature | power supply} [action <LOG-AND-TRAP> |<RELAY>]
Description
Configures global events to be forwarded to the output alarm port. The no form of this command disables
the specified configuration.
Parameters
{temperature}
Selects the alarm for ambient temperatures reaching threshold limits. The threshold is 70°C. Threshold is
reduced to 50°C when non-supported transceivers are detected; only the listed Aruba I-Temp
transceivers listed on the product datasheet allow for the maximum of 70°C. Commercial Temp Aruba
transceivers will trigger this derating of this threshold to 50°C.
{power supply}
Selects the alarm for alert events from the power supply.
log-and-trap
Generates an event log and SNMP trap
relay
Relays the event to the alarm output port.
Examples

Aruba 4100i Switch Series | Installation and Getting Started Guide 20
Disabling a temperature event to remove the configuration for all actions associated with the event:
switch(config)# no alarm temperature
Configuring an alarm for a temperature event for the log-and-trap action:
switch(config)# alarm temperature action log-and-trap
Removing the configuration for the temperature event for a log-and-trap action:
switch(config)# no alarm temperature action log-and-trap
Configuring an alarm for a power-supply event for the relay action:
switch(config)# alarm power-supply action relay
Removing the configuration for the power-supply event for the relay action:
switch(config)# no alarm power-supply action relay
Command History
Release Modification
10.08 Featured introduced.
Command Information
Platforms Command context Authority
4100i config Administrators or local user group members with execution
rights for this command.
show alarm input
show alarm input [IN1 | IN2]
Description
Shows the alarm details for all ports or for the specified port.
Parameters
[IN1 | IN2]
Specifies the input alarm port.
Examples
Showing details for all alarm input ports on the switch:
switch# show alarm input
Alarm Snooze Timer Status: inactive
-----------------------------------------------------------------------
Input Alarm IN1, Name:Door-Sensor
-----------------------------------------------------------------------
