DTC®2 Electronic Endodontic System
Model AEU-26
OPERATION AND MAINTENANCE
INSTRUCTION MANUAL

P.O. Box 1548 • Woodinville, WA 98072
8333 216th Street S.E. Woodinville, WA 98072
International [phone] • Toll Free(800) 426-5913
www.aseptico.com • [email protected]
RX: FEDERAL LAW RESTRICTS THIS DEVICE TO
SALE BY OR ON THE ORDER OF A DENTIST
INDICATIONS FOR USE:
The AEU-26 is an electric drive system for instruments and
tools used in dentistry for endodontic procedures. The
system includes a wide range of user controls designed to
provide precision endodontic procedures.
This device has been tested and found to comply with the emissions
requirements of IEC 60601-1-2:2001-09. These requirements provide
reasonable protection against harmful electromagnetic interference in
a typical medical installation. However, high levels of radio-frequency
(RF) emissions from electrical devices, such as cellular phones, may
disrupt the performance of this device. To mitigate disruptive
electromagnetic interference, position this device away from RF
transmitters and other sources of electromagnetic energy.
i.
CLASSIFICATIONS:
• Class I Equipment
• Type B Equipment
• Ordinary Equipment - degree of protection against ingress
of water
• Not suitable for use in the presence of a flammable
anesthetic mixture with air or with oxygen or nitrous oxide.
INFORMATION CONCERNING THE ACCURACY AND
PRECISION OF THIS PRODUCT MAY BE OBTAINED
UPON REQUEST BY CONTACTING ASEPTICO AT THE
ADDRESS SHOWN ON THIS PAGE.
TABLE OF CONTENTS:
Introduction . . . . . . . . . . . . . . . . . . . . . . . . .1
Package Contents . . . . . . . . . . . . . . . . . . . .1
Safety Precautions . . . . . . . . . . . . . . . . . . .2
Setting Up the Unit . . . . . . . . . . . . . . . . . . .4
Quick Start Operation . . . . . . . . . . . . . . . . .6
Presets - Chart of Default Settings . . . . . . .7
Control Panel Functions . . . . . . . . . . . . . . .8
Presets - File Library Chart . . . . . . . . . . . .11
Advanced Operation & Functions . . . . . . .12
Programming Preset Buttons . . . . . . . . . .12
System Setup Menu
RECALL FACTORY SETUP . . . . . . . . . . .14
AUTO-STOP MODE . . . . . . . . . . . . . . . .14
REVERSE BEEPER . . . . . . . . . . . . . . . . .15
TORQUE WARNING . . . . . . . . . . . . . . . .15
KEYPRESS BEEP . . . . . . . . . . . . . . . . . .15
SLEEP MODE . . . . . . . . . . . . . . . . . . . . .16
SYSTEM VOLUME . . . . . . . . . . . . . . . . . .16
Optional Foot Control Operation . . . . . . . .17
Reprogramming the Unit . . . . . . . . . . . . . .19
Sterilization . . . . . . . . . . . . . . . . . . . . . . . .20
Maintenance & Cleaning . . . . . . . . . . . . . .21
Troubleshooting . . . . . . . . . . . . . . . . . . . . .22
Specifications . . . . . . . . . . . . . . . . . . . . . .23
Changing the Fuse . . . . . . . . . . . . . . . . . .23
Symbol Definitions . . . . . . . . . . . . . . . . . .24
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .25
41EJ
MEDICAL ‐‐ GENERAL MEDICAL EQUIPMENT
AS TO ELECTRICAL SHOCK, FIRE AND MECHANICAL
HAZARDS ONLY, IN ACCORDANCE WITH:
UL 60601‐1: First Edition ‐ Medical Electrical
Equipment, Part 1: General Requirements for Safety.
ANSI/AAMI ES60601‐1:2005/(R)2012 and A1:2012,
C1:2009/(R)2012 and A2:2010/(R)2012 ‐ Medical
electrical equipment—Part 1: General requirements
for basic safety and essential performance.
CAN/CSA C22.2 NO. 60601‐1‐08 (2013) ‐ Medical
Electrical Equipment ‐ Part 1: General Requirements
for Basic Safety and Essential Performance (Adopted
IEC 60601‐1:2005, third edition, 2005‐12), Includes
Corrigendum 1:2011.

1
Your new Aseptico DTC®2 Endodontic System is one of the finest units available to the
dental profession. The system features a high torque brushless motor, intuitive user
interface, and an easy to read digital display. These features combine to make the
DTC®2 an exceptionally powerful and convenient system for Endodontic procedures.
Congratulations!
This system is engineered to provide many years of reliable service. Please read the
instructions provided in this manual to receive the best and longest service from your
Aseptico equipment.
Separate manuals may be provided to cover the operation and maintenance of
handpieces or other accessories for your unit.
PACKAGE CONTENTS:
• AEU-26 Electronic Control Console
• Autoclavable Brushless Micromotor, P/N AE-225-30
• Autoclavable Motor Holder, P/N 461561
• Motor Holder Attaching Bracket, P/N 461653
• On/Off Foot Control, P/N AE-7PM
• Power Cord
• Operation and Maintenance Instruction Manual, P/N 420728
PURCHASED SEPARATELY:
• AHP-71TI 1:5 Increaser Contra Angle Handpiece
• AHP-63 1:1 Contra-Angle Handpiece
• AHP-88MN 8:1 Reduction Latch-Head Contra Angle Handpiece
• AHP-88MNP 8:1 Reduction Push-Button Head Contra Angle Handpiece
• AHP-62MN 16:1 Reduction Latch-Head Contra Angle Handpiece
• AHP-62MNP 16:1 Reduction Push-Button Head Contra Angle Handpiece

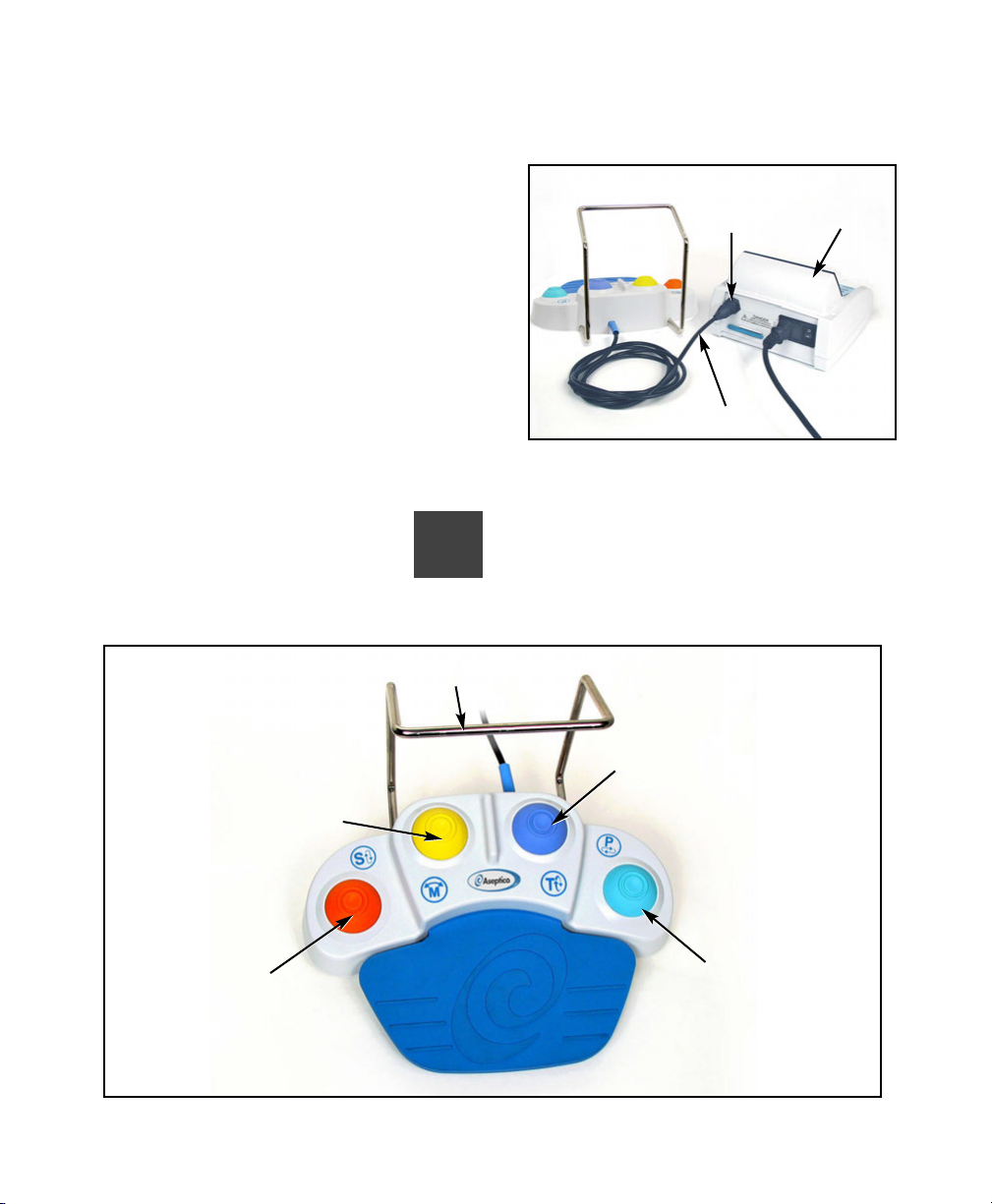

• AE-70V2E Multi-Function Foot Control
• Memory Card, P/N MC-26

2
SAFETY PRECAUTIONS:
Aseptico accepts no liability for direct or consequential injury or damage resulting from improper
use, arising in particular through the non-observance of the operating instructions, or improper
preparation and maintenance of this product.
CAUTION: The AEU-26 system is supplied Non-Sterile! Before first use, and before each
patient use thereafter, sterilize specified components as recommended in the
Sterilization and Maintenance section.
WARNING: Use for intended purposes only. Failure to observe the operating instructions may
result in the patient or user suffering serious injury or the the product being
damaged, possibly beyond repair. Before using this product, make sure that you
have studied and understood the operating instructions.
CAUTION: Federal law restricts this device to sale by or on the order of a dentist.
CAUTION: Use of other dental accessories or sub-assemblies from third-party manufacturers
is the sole responsibility of the user.
CAUTION: All repairs are to be performed by authorized Aseptico service personnel only.
WARNING: Always follow these guidelines when operating the unit:
• Never touch drills, burs, or other handpiece tips when they are still rotating.
• Handpieces should only be attached when the motor has stopped running.
WARNING: Do not install where there is a risk of an explosion. The AEU-26 is not intended for
operation in the presence of flammable anesthetics or gases.
CAUTION: In order to ensure the accuracy of torque and speed, it is recommended that
calibration be performed for each change of handpiece used for torque controlled
operations, or daily if the same handpiece is used.
WARNING: Always comply with the endodontic handpiece and file manufacturer’s instructions
regarding maximum speeds, torques, forward and reverse directions, and use of all
instrumentation, drills, burs, etc., used in endodontic applications.
CAUTION: Connect mains power cable to a properly grounded outlet only.
CAUTION: The AEU-26 motor is sensitive to shock and may be damaged if dropped or
impacted against a hard surface.
To prevent injury to people and damage to property, please heed relevant warnings and
remarks. They are marked as follows:
WARNING: Serious injury or death may result if ignored.
CAUTION: Damage to property or the environment may result if ignored.
NOTE: Important additional information and hints.

3
WARNING: Do not disassemble or alter the AEU-26 motor, console, or foot switch.
CAUTION: Use only appliance cord Type C13,10A per IEC / EN 60320-1. Note: North America,
Denmark, Australia, and New Zealand may require hospital grade plugs. Consult
local codes.
WARNING: Never use damaged or worn files as they may separate in the root canal.
WARNING: Do not use this device in conjunction with an electric scalpel or on patients with
pacemakers.
CAUTION: It is recommended to always have the patient wear a rubber dam during endodontic
procedures.
WARNING: Always use irrigating coolant when using high-speed handpieces.
