ASRock Industrial 4X4-5800U User manual

1
4X4-5800U
4X4-5700U
4X4-5600U
4X4-5400U
4X4-5300U
User Manual
Version 1.0
Published March 7, 2022
Copyright©2022 ASRockind INC. All rights reserved.

2
Version 1.0
Published March 7, 2022
Copyright©2022 ASRockind INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockind Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRockind. ASRockind assumes no responsibility
for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockind does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockind, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRockind has been advised of the possibility of such damages arising from
any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRockind Website: http://www.asrockind.com

3
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6
1.3 Motherboard Layout....................................................... 8
1.4 I/O Panel........................................................................ 10
2 Installation ......................................................... 11
2.1 Screw Holes................................................................... 11
2.2 Pre-installation Precautions ........................................... 11
2.3 Installation of Memory Modules (SO-DIMM).................. 12
2.4 Expansion Slots ............................................................ 13
2.5 Jumpers Setup............................................................... 14
2.6 Onboard Headers and Connectors................................ 15
3 UEFI SETUP UTILITY......................................... 18
3.1 Introduction .................................................................... 18
3.1.1 UEFI Menu Bar .................................................... 18
3.1.2 Navigation Keys ................................................... 19
3.2 Main Screen................................................................... 19
3.3 Advanced Screen........................................................... 20
3.3.1 CPU Conguration ............................................... 21
3.3.2 Chipset Conguration........................................... 22
3.3.3 Storage Conguration .......................................... 23
3.3.4 Super IO Conguration ........................................ 24
3.3.5 ACPI Conguration............................................... 25
3.3.6 USB Conguration ............................................... 26
3.3.7 Trusted Computing............................................... 27
3.4 Hardware Health Event Monitoring Screen ................... 28
3.5 Security Screen ............................................................. 29
3.6 Boot Screen ................................................................... 30
3.7 Exit Screen .................................................................... 32
4 Software Support .............................................. 33
4.1 Install Operating System................................................ 33
4.2 Support CD Information ................................................. 33
4.2.1 Running Support CD............................................ 33
4.2.2 Drivers Menu........................................................ 33
4.2.3 Utilities Menu........................................................ 33
4.2.4 Contact Information.............................................. 33

5
Chapter 1: Introduction
Thank you for purchasing ASRockind 4X4-5800U / 4X4-5700U / 4X4-5600U / 4X4-
5400U / 4X4-5300U motherboard, a reliable motherboard produced under ASRock-
ind’s consistently stringent quality control. It delivers excellent performance with
robust design conforming to ASRockind’s commitment to quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockind website without further notice. You may
nd the latest CPU support lists on ASRockind website as well.
ASRockind website https://www.asrockind.com/
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
https://www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockind 4X4-5800U / 4X4-5700U / 4X4-5600U / 4X4-5400U / 4X4-5300U Moth-
erboard (NUC 4.09” x 4.02” (104 x 102mm))

6
1.2 Specications
Form
Factor Dimensions NUC 4.09" x 4.02" (104 x 102mm)
Processor
System
CPU
AMD Ryzen™ 7 5800U (Max Speed up to 4.4GHz)
AMD Ryzen™ 7 5700U (Max Speed up to 4.3GHz)
AMD Ryzen™ 5 5600U (Max Speed up to 4.2GHz)
AMD Ryzen™ 3 5400U (Max Speed up to 4.0GHz)
AMD Ryzen™ 3 5300U (Max Speed up to 3.8GHz)
Chipset SoC
BIOS AMI SPI 128 Mbit
Expansion
Slot M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and
CNVio for Wireless
Memory
Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Graphics
Controller AMD Radeon™ Graphics
HDMI HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.2a, DP++
Max resolution up to 4096x2160@60Hz
Multi Display Max 4 display (Included 2 outputs from type C)
Audio Interface Realtek ALC233, High Denition Audio.
Ethernet
Controller/
Speed
LAN1: 1 x Realtek RTL8125BG with
10/100/1000/2500 Mbps
LAN2: 1 x Realtek R8111EPV (Dash) with
10/100/1000 Mbps
Connector 2 x RJ-45
Front I/O USB
2 x USB 3.2 Gen2 (Type A)
2 x USB 3.2 Gen2 (Type C) (Supports DP1.2a
display output)
Audio 1 (headphone & microphone jack)
Rear I/O
HDMI 1 x HDMI 2.0a
DisplayPort 1 x DP1.2a
Ethernet 2 x 1 Gigabit LAN
USB 2 x USB 2.0
DC Jack 1

7
Internal
Connector
USB USB (1x2.0 pitch header)
COM 1 x COM (RS-232/422/485)
TPM Innion SLB9670VQ2.0
eDP 1
Storage M.2
1 x M.2 (KEY M, 2242/2260/2280) with
PCIe x4 and SATA3 for SSD
*M.2 Key M 2280 (Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec
Power
Requirements
Input PWR 12V~19V DC-In Jack
Power On
AT/ATX Supported
AT: Directly PWR on as Power input ready
Environment ATX: Press Button to PWR on
after Power input ready
Environment
Operating
Temp 0ºC ~ 60ºC
Storage
Temp -40ºC ~ 85°C
Operating
Humidity 5% ~ 90%
Storage
Humidity 5% ~ 90%

8

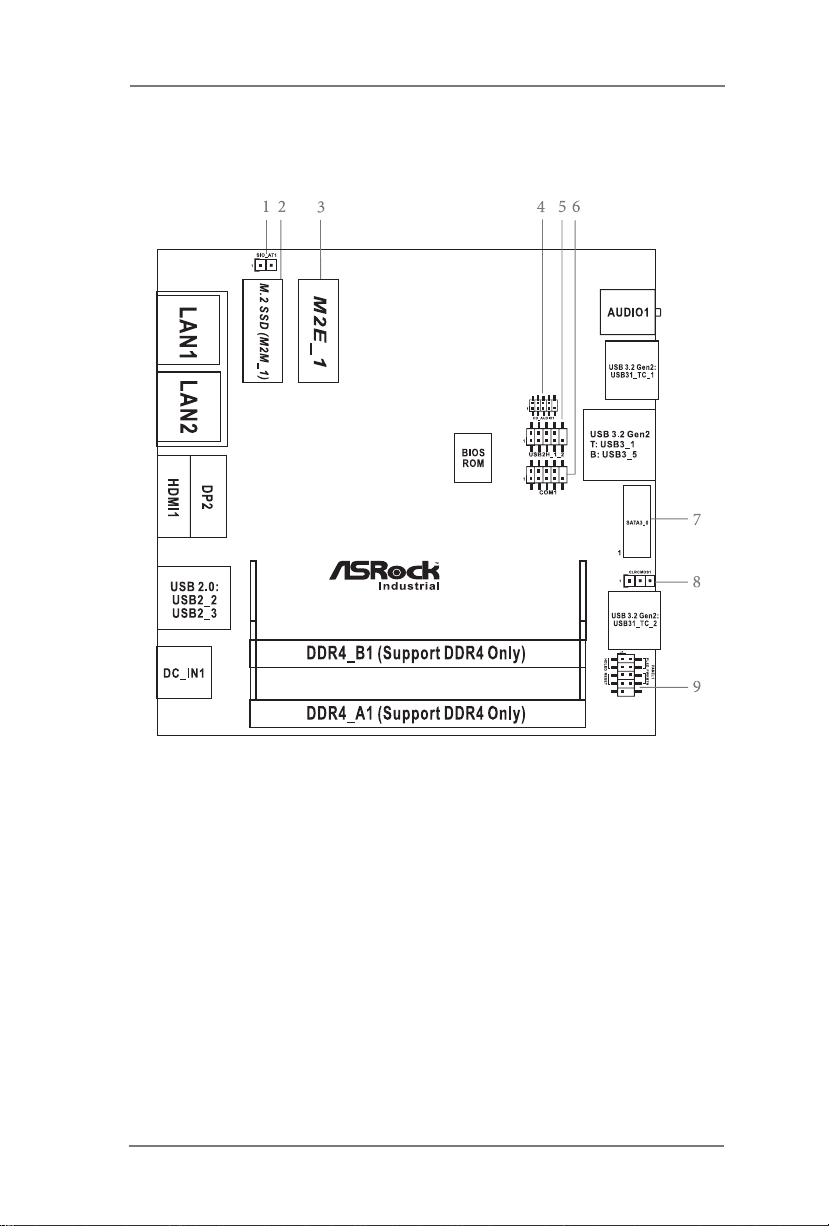

1.3 Motherboard Layout
1 : SIO_AT1
2 : M.2 Key-M Socket (M2M_1)
3 : M.2 Key-E Socket (M2E_1)
4 : Front Panel Audio Header
5 : USB2.0 Connector (USB2H_1_2)
6 : COM Port Header (RS232/422/485)
7 : SATA3 Port (SATA3_0)
8 : Clear CMOS Header (CLRCMOS1)
9 : System Panel Header (PANEL1)

9
Back Side :
10 : Power Button (PWR_BTN3)
11 : Fan Connector (FAN1)
12 : Battery Connector (BAT1)
13 : LPC Connector (LPC1)

10
1.4 I/O Panel
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
1 LAN RJ-45 Port (LAN1)*
2 LAN RJ-45 Port (LAN2)**
3 HDMI Port (HDMI1)
4 DisplayPort (DP2)
5 USB 2.0 Ports (USB2_2_3)
6 DC-In Jack (DC_IN1)
7 USB 3.2 Gen2 Type-C Port (USB31_TC_2)
8 USB 3.2 Gen2 Ports (USB3_1_5)
9 USB 3.2 Gen2 Type-C Port (USB31_TC_1)
10 Audio Jack (AUDIO1)
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port

11
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
Chapter 2: Installation
Before you install the motherboard, study the conguration of your chassis to ensure
that the motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched o󰀨 or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (SO-DIMM)
This motherboard provides two 204-pin DDR4 (Double Data Rate 4) SO-DIMM
slots.
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
1. The SO-DIMM only ts in one correct orientation. It will cause permanent damage
to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at
incorrect orientation.
2. Please do not intermix di󰀨erent voltage SO-DIMMs on this motherboard.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots (M.2 Slots)
There are 2 M.2 slots on this motherboard.
M.2 for SSD: 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD.
* M.2 Key M 2280 (Supported by bracket)
M.2 for Wi-Fi: 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVio for
Wireless.
M.2 Key-M Socket (M2M_1) M.2 Key-E Socket (M2E_1)
* Pin6 and Pin8 are dened as USB2.0
signal to support Key-M to Key-B exten-
sion card.
PIN Signal Name PIN Signal Name
1 GND 2 +3.3V
3 USB_D+ 4 +3.3V
5 USB_D- 6 NA
7 GND 8 NA
9 NA 10 NA
11 NA 12 NA
13 NA 14 NA
15 NA 16 NA
17 NA 18 GND
19 NA 20 NA
21 NA 22 NA
23 NA
33 GND 32 NA
35 PETp 34 NA
37 PETn 36 NA
39 GND 38 NA
41 PERp 40 NA
43 PERn 42 NA
45 GND 44 NA
47 PEFCLKp 46 NA
49 PEFCLKn 48 NA
51 GND 50 SUSCLK
53 CLKREQ# 52 PERST0#
55 WAKE# 54 W_DISABLE1#
57 GND 56 W_DISABLE2#
59 NA 58 SMB_DATA
61 NA 60 SMB_CLK
63 GND 62 NA
65 NA 64 NA
67 NA 66 NA
69 GND 68 NA
71 NA 70 NA
73 NA 72 +3.3V
75 GND 74 +3.3V
PIN Signal Name PIN Signal Name
1 GND 2 +3.3V
3 GND 4 +3.3V
5 PERn3 6 USB_D+
7 PERp3 8 USB_D-
9 GND 10 SATA_LED
11 PETn3 12 +3.3V
13 PETp3 14 +3.3V
15 GND 16 +3.3V
17 PERn2 18 +3.3V
19 PERp2 20 NA
21 GND 22 NA
23 PETn2 24 NA
25 PETp2 26 NA
27 GND 28 NA
29 PERn1 30 NA
31 PERp1 32 NA
33 GND 34 NA
35 PETn1 36 NA
37 PETp1 38 DEVSLP
39 GND 40 SMB_CLK
41 PERn0/ SATA-B+ 42 SMB_DATA
43 PERp0/ SATA-B- 44 NA
45 GND 46 NA
47 PETn0/ SATA-A- 48 NA
49 PETP0/ SATA-A+ 50 PERST#
51 GND 52 CLKREQ#
53 PEFCLKn 54 WAKE#
55 PEFCLKp 56 NA
57 GND 58 NA
67 NA 68 NA
69 PEDET 70 +3.3V
71 GND 72 +3.3V
73 GND 74 +3.3V
75 GND

14

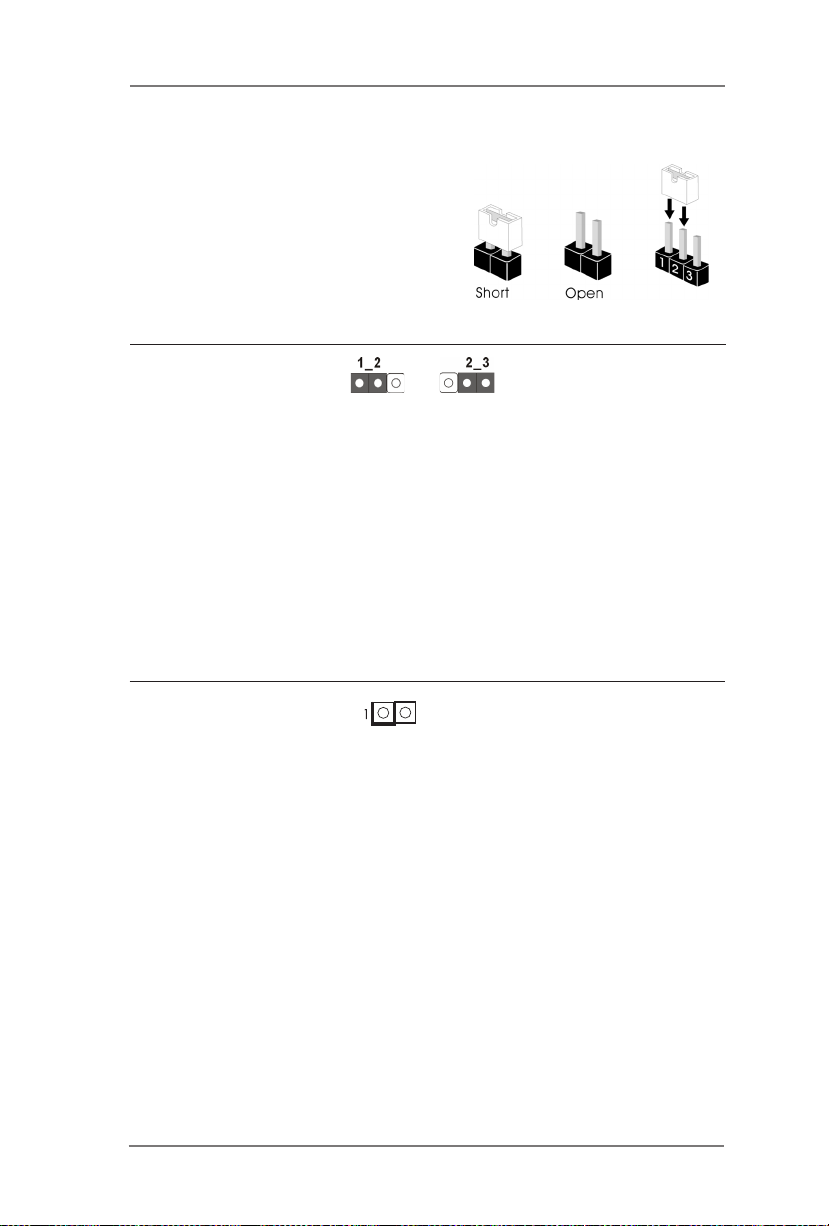

2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper
(3-pin CLRMOS1)
(see p.8, No. 8)
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time, user default prole and MAC
address will be cleared only if the CMOS battery is removed.
Clear CMOSDefault
ATX/AT Mode Jumper Open : ATX Mode
(2-pin SIO_AT1)
Short : AT Mode
(see p.8, No. 1)

15
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
USB 2.0 Connector There is one USB 2.0
(9-pin USB2H_1_2) connector on this
(see p.8 No. 5) motherboard.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8 No. 9) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn o󰀨 your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is o󰀨 when the system is in S3/S4 sleep
state or powered o󰀨 (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may di󰀨er by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
NC
DUMMY
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
DUMMY
GND

16
COM1 Port Pin Denition
COM Port Header (RS232/422/485)
(9-pin COM1: see p.8, No. 6)
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name PIN Signal Name
2 AGND 4 NC 6 LIN1_JD 8 LIN2_JD 10 NC
1LIN1_L_
IN 3LIN1_R_ IN 5LIN2_R_ OUT 7 AGND 9 LIN2_L_ OUT
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.8 No. 4) convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
PIN RS232 RS422 RS485
1 DCD, Data Carrier Detect TX- RTX-
2 RXD, Receive Data TX+ RTX+
3 TXD, Transmit Data RX+ N/A
4 DTR, Data Terminal Ready RX- N/A
5 GND GND GND
6 DSR, Data Set Ready N/A N/A
7 RTS, Request To Send N/A N/A
8 CTS, Clear To Send N/A N/A
9 N/A N/A N/A
* This motherboard supports RS232/422/485 on COM1 port. Please refer to below table for the pin
denition. In addition, COM1 port (RS232/422/485) can be adjusted in BIOS setup utility > Advanced
Screen > Super IO Conguration. You may refer to page 24 for details.

17
Back Side:
Power Button Header
(PWR_BTN3: see p.9, No. 10)
Fan Connector
(FAN1: see p.9, No. 11)
Battery Connector
(BAT1: see p.9, No. 12)
LPC Connector
(LPC1: see p.9, No. 13)
1
FAN_SPEED_CONTROL
FAN_SPEED
+12V
GND
+5V
1
PIN Signal Name
1 GND
2 LPC_CLK1
3 GND
4 LFRAME#
5 PCIE_RST#
6 GND
7 +3V
8 GND
9 SCLK0
10 SDATA0
11 LAD_0
12 LAD_1
13 LAD_2
14 LAD_3
15 GND
16 +3VSB
17 GPIO_TEST#
18 S_PWRDWN#
19 SERIRQ#
20 GND
SATA3 Port
(SATA3_0: see p.8, No. 10)
PIN Signal Name
20 GND
19 GND
18 GND
17 NC
16 +5V
15 +5V
14 +5V
13 +5V
12 +5V
11 NC
10 GND
9 GND
8GND
7R_SATA_RXP0
6 R_SATA_RXN0
5 GND
4 GND
3 R_SATA_TXN0
2 R_SATA_TXP0
1 GND

18
Chapter 3: UEFI SETUP UTILITY
3.1 Introduction
This section explains how to use the UEFI SETUP UTILITY to congure your
system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You
may run the UEFI SETUP UTILITY when you start up the computer. Please press
<F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP
UTILITY, otherwise, POST will continue with its test routines.
If you wish to enter the UEFI SETUP UTILITY after POST, restart the system by
pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system
chassis. You may also restart by turning the system o󰀨 and then back on.
Because the UEFI software is constantly being updated, the
following UEFI setup screens and descriptions are for reference
purpose only, and they may not exactly match what you see on
your screen.
3.1.1 UEFI Menu Bar
The top of the screen has a menu bar with the following selections:
Main To set up the system time/date information
Advanced To set up the advanced UEFI features
H/W Monitor To display current hardware status
Security To set up the security features
Boot To set up the default system device to locate and load the
Operating System
Exit To exit the current screen or the UEFI SETUP UTILITY
Use < > key or < > key to choose among the selections on the menu
bar, and then press <Enter> to get into the sub screen. You can also use the
mouse to click your required item.

19
3.1.2 Navigation Keys
Please check the following table for the function description of each navigation
key.
Navigation Key(s) Function Description
/ Moves cursor left or right to select Screens
/ Moves cursor up or down to select items
+ / - To change option for the selected items
<Enter> To bring up the selected screen
<F1> To display the General Help Screen
<F7> Discard changes
<F9> To load optimal default values for all the settings
<F10> To save changes and exit the UEFI SETUP UTILITY
<F12> Print screen
<ESC> To jump to the Exit Screen or exit the current screen
3.2 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and display
the system overview.

20
Setting wrong values in this section may cause
the system to malfunction.
3.3 Advanced Screen
In this section, you may set the congurations for the following items: CPU Congu-
ration, Chipset Conguration, Storage Conguration, Super IO Conguration, ACPI
Conguration, USB Conguration, Trusted Computing, MCTP Conguration and Se-
rial Port Console Redirection.
DASH Support
Enable or disable Realtek Lan DASH Function.
Instant Flash
Instant Flash is a UEFI ash utility embedded in Flash ROM. This conve-
nient UEFI update tool allows you to update system UEFI without entering
operating systems rst like MS-DOS or Windows®. Just launch this tool
and save the new UEFI le to your USB ash drive, oppy disk or hard
drive, then you can update your UEFI only in a few clicks without prepar-
ing an additional oppy diskette or other complicated ash utility. Please
be noted that the USB ash drive or hard drive must use FAT32/16/12 le
system. If you execute Instant Flash utility, the utility will show the UEFI
les and their respective information. Select the proper UEFI le to update
your UEFI, and reboot your system after UEFI update process completes.
