ASRock Industrial 4X4-R1000M User manual

1
4X4-R1000M
4X4-R1000V
4X4-V1000M
4X4-R1000E
User Manual
Version 1.0
Published June 2019
Copyright©2019 ASRockind INC. All rights reserved.

2
Version 1.0
Published June 2019
Copyright©2019 ASRockind INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockind Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRockind. ASRockind assumes no responsibility
for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockind does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockind, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRockind has been advised of the possibility of such damages arising from
any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRockind Website: http://www.asrockind.com

3
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6
1.3 Motherboard Layout....................................................... 8
1.4 I/O Panel........................................................................ 9
2 Installation ......................................................... 10
2.1 Screw Holes................................................................... 10
2.2 Pre-installation Precautions ........................................... 10
2.3 Installation of Memory Modules (SO-DIMM).................. 11
2.4 Expansion Slots ............................................................ 12
2.5 Jumpers Setup............................................................... 13
2.6 Onboard Headers and Connectors................................ 14
3 UEFI SETUP UTILITY......................................... 17
3.1 Introduction .................................................................... 17
3.1.1 UEFI Menu Bar .................................................... 17
3.1.2 Navigation Keys ................................................... 18
3.2 Main Screen................................................................... 18
3.3 Advanced Screen........................................................... 19
3.3.1 CPU Conguration ............................................... 20
3.3.2 Chipset Conguration........................................... 21
3.3.3 Storage Conguration .......................................... 22
3.3.4 Super IO Conguration ........................................ 23
3.3.5 ACPI Conguration............................................... 24
3.3.6 USB Conguration ............................................... 25
3.3.7 Trusted Computing............................................... 26
3.4 Hardware Health Event Monitoring Screen ................... 27
3.5 Security Screen ............................................................. 28
3.6 Boot Screen ................................................................... 29
3.7 Exit Screen .................................................................... 31
4 Software Support .............................................. 32
4.1 Install Operating System................................................ 32
4.2 Support CD Information ................................................. 32
4.2.1 Running Support CD............................................ 32
4.2.2 Drivers Menu........................................................ 32
4.2.3 Utilities Menu........................................................ 32
4.2.4 Contact Information.............................................. 32

5
Chapter 1: Introduction
Thank you for purchasing ASRockind 4X4-R1000M / 4X4-R1000V / 4X4-V1000M
/ 4X4-R1000E motherboard, a reliable motherboard produced under ASRockind’s
consistently stringent quality control. It delivers excellent performance with robust
design conforming to ASRockind’s commitment to quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockind website without further notice. You may
nd the latest CPU support lists on ASRockind website as well.
ASRockind website https://www.asrockind.com/
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
https://www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockind 4X4-R1000M / 4X4-R1000V / 4X4-V1000M / 4X4-R1000E Motherboard
(NUC 4.09” x 4.02” (104 x 102mm))
ASRockind 4X4-R1000M / 4X4-R1000V / 4X4-V1000M / 4X4-R1000E Driver CD
ASRockind 4X4-R1000M / 4X4-R1000V / 4X4-V1000M / 4X4-R1000E Jumper set-
ting instruction

6
1.2 Specications
Form
Factor Dimensions NUC 4.09" x 4.02" (104 x 102mm)
Processor
System
CPU
AMD Ryzen™ Embedded R-Series
(R1606G, DC, 2.6GHz, 12-25W) (4X4-R1000M)
(R1505G, DC, 2.4GHz, 12-25W) (4X4-R1000V)
AMD Ryzen™ Embedded V-Series
(V1605B, QC, 2GHz, 12-25W) (4X4-V1000M)
AMD Ryzen™ Embedded R-Series
(R1305G, DC, 2.5GHz, 8-10W) (4X4-R1000E)
Chipset SoC
Expansion
Slot M.2
1 x Key M (2242/2260/2280 by BRACKET) with
PCIe x4 and SATA3 for SSD
1 x Key E (2230) with PCIe x1 and USB 2.0 for
Wireless
Memory
Technology Dual Channel DDR4 2400MHz
Max. 32GB
Socket 2 x SO-DIMM
ECC
Support Yes
Graphics
Controller
AMD Radeon™ Vega 3 Graphics (4X4-R1000M /
4X4-R1000V)
AMD Radeon™ Vega 8 Graphics (4X4-V1000M)
HDMI Supports HDMI 2.0, max resolution up to
4096x2160@ 60Hz
DisplayPort DisplayPort 1.2a with max resolution up to 3840 x
2160@ 60Hz
Multi Display Triple Display
Ethernet Ethernet 10/100/1000 Mbps
Controller 2 x Realtek RTL8111G
Front I/O Front USB 1 x USB 3.1
Front Audio 1 (Mic-in, Line-out)
Rear I/O
HDMI 1
DisplayPort 2
Ethernet 2
USB 2 x USB 3.1

7
Internal
Connector
USB 2 x USB 2.0
Serial 1 x COM (RS-232/422/485)
SATA 1 x SATA3 (6.0Gb/s)
SATA PWR
Output 1
TPM 1 x Header
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec
Power
Requirements
Input PWR 12V only (DC Jack)
Power On
AT/ATX Supported
AT*: Directly PWR on as Power input ready
*Adjusted by BIOS option [Restore on
AC/POWER Loss] (see 3.3.2 Chipset
Conguration on P.21)
Environment ATX: Press Button to PWR on
after Power input ready
Environment
Operating
Temp 0ºC – 60ºC
Storage
Temp -40ºC – 85°C

8
1.3 Motherboard Layout
M2E_1
AUDIO1
HDMI1
USB 3.1:
USB3_3
DC_IN1
M.2 SSD (M2M_1)
DP2
DISPLAY1
SATA3_1
DDR4_B1 (Support DDR4 Only)
DDR4_A1 (Support DDR4 Only)
SATA_PWR1
1
Industrial
LAN1
USB 3.1: USB3_1
LAN2
USB 3.1: USB3_2
BIOS
ROM
1
LPC1
1
CLRCMOS1
1
COM1
1
USB2_0_5
1
HDLED RESET
PLED PWRBTN
PANEL1
1 : M.2 Key-M Socket (M2M_1)
2 : M.2 Key-E Socket (M2E_1)
3 : COM Port Header (RS232/422/485)
4 : System Panel Header (PANEL1)
5 : USB2.0 Connector (USB2_0_5)
6 : LPC Debug Header (LPC1)
7 : Clear CMOS Headers (CLRCMOS1)
8 : SATA Power Output Connector (SATA_PWR1)
9 : SATA3 Connector (SATA3_1)
Back Side :
Power Button (PWR_BTN3)
Fan Connector (FAN1)

9
1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
1 LAN RJ-45 Port (LAN1)*
2 LAN RJ-45 Port (LAN2)*
3 DisplayPort (DP2)
4 DC-In Jack (DC_IN1)
5 DisplayPort (DISPLAY1)
6 HDMI Port (HDMI1)
7 USB 3.1 Port (USB3_2)
8 USB 3.1 Port (USB3_1)
9 Audio Jack (AUDIO1)
10 USB 3.1 Port (USB3_3)
6
12
4
3
5
87
10 9

10
Chapter 2: Installation
Before you install the motherboard, study the conguration of your chassis to ensure
that the motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched o󰀨 or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

11
2.3 Installation of Memory Modules (SO-DIMM)
4X4-R1000M / 4X4-R1000V / 4X4-V1000M / 4X4-R1000E provides two 204-pin
DDR4 (Double Data Rate 4) SO-DIMM slots.
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
1. The SO-DIMM only ts in one correct orientation. It will cause permanent damage
to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at
incorrect orientation.
2. Please do not intermix di󰀨erent voltage SO-DIMMs on this motherboard.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

12

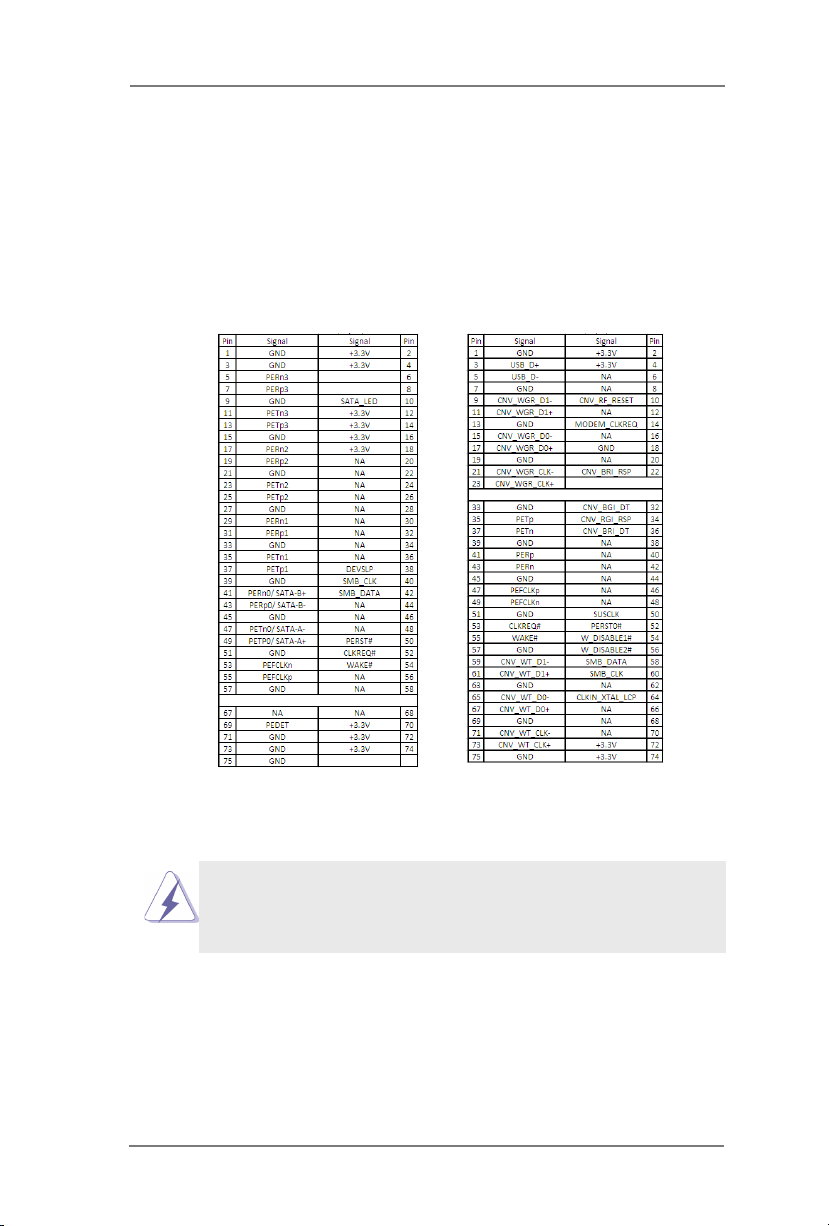

2.4 Expansion Slots (M.2 Slots)
There are 2 M.2 slots on this motherboard.
M.2 for SSD: Key M (M2M_1) (2242/2260/2280 by BRACKET) supports PCIe x4
and SATA3 for SSD.
M.2 for Wi-Fi: Key E (M2_2) (2230) supports PCIe x1 and USB 2.0 for Wireless.
M.2 Key-M Socket (M2M_1) M.2 Key-E Socket (M2E_1)
USB_D+
USB_D-
* Pin6 and Pin8 are dened as USB2.0
signal to support Key-M to Key-B extension
card.
If you want to install M Key type 2242 M.2 module on M2M_1 socket, please
remove the stando󰀨 installed on the motherboard rst, and replace it with the
6.5mm stando󰀨 in our accessory package.

13
2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper
(3-pin CLRMOS1)
(see p.8, No. 7)
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time, user default prole and MAC
address will be cleared only if the CMOS battery is removed.
Clear CMOSDefault

14

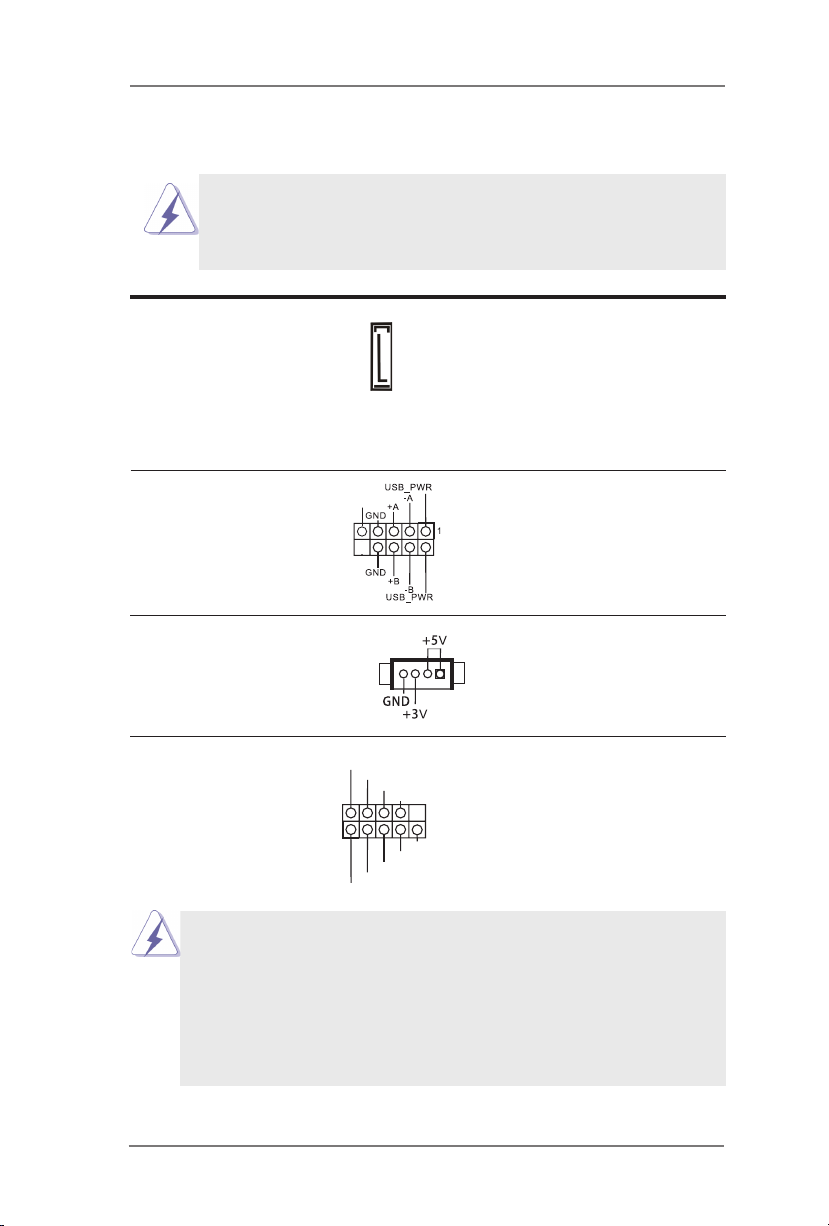

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
SATA Power Output Connector Please connect a SATA
(SATA_PWR1) power cable to this connector.
(see p.8, No. 8)
SATA3 Connector This Serial ATA3 (SATA3)
(SATA3_1: see p.8, No. 9) connector supports SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
USB 2.0 Connector There is one USB 2.0
(9-pin USB2_0_5) connector on this
(see p.8 No. 5) motherboard.
1
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8 No. 4) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn o󰀨 your system using the power switch.
DUMMY
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND

15
LPC Debug Header This connector supports a
(13-pin LPC1) Trusted Platform Module (TPM)
(see p.8, No. 6) system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is o󰀨 when the system is in S3/S4 sleep
state or powered o󰀨 (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may di󰀨er by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
PCIRST#
FRAME
PCICLK
* This motherboard supports RS232/422/485 on COM1 port. Please refer to below table for the pin
denition. In addition, COM1 port (RS232/422/485) can be adjusted in BIOS setup utility > Advanced
Screen > Super IO Conguration. You may refer to page 23 for details.
COM1 Port Pin Denition
COM Port Header (RS232/422/485)
(9-pin COM1: see p.8, No. 3) CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GN D
TTXD1
DDCD#1
1
RRI#1
PIN RS232 RS422 RS485
1 DCD, Data Carrier Detect TX- RTX-
2 RXD, Receive Data TX+ RTX+
3 TXD, Transmit Data RX+ N/A
4 DTR, Data Terminal Ready RX- N/A
5 GND GND GND
6 DSR, Data Set Ready N/A N/A
7 RTS, Request To Send N/A N/A
8 CTS, Clear To Send N/A N/A
9 N/A N/A N/A

16

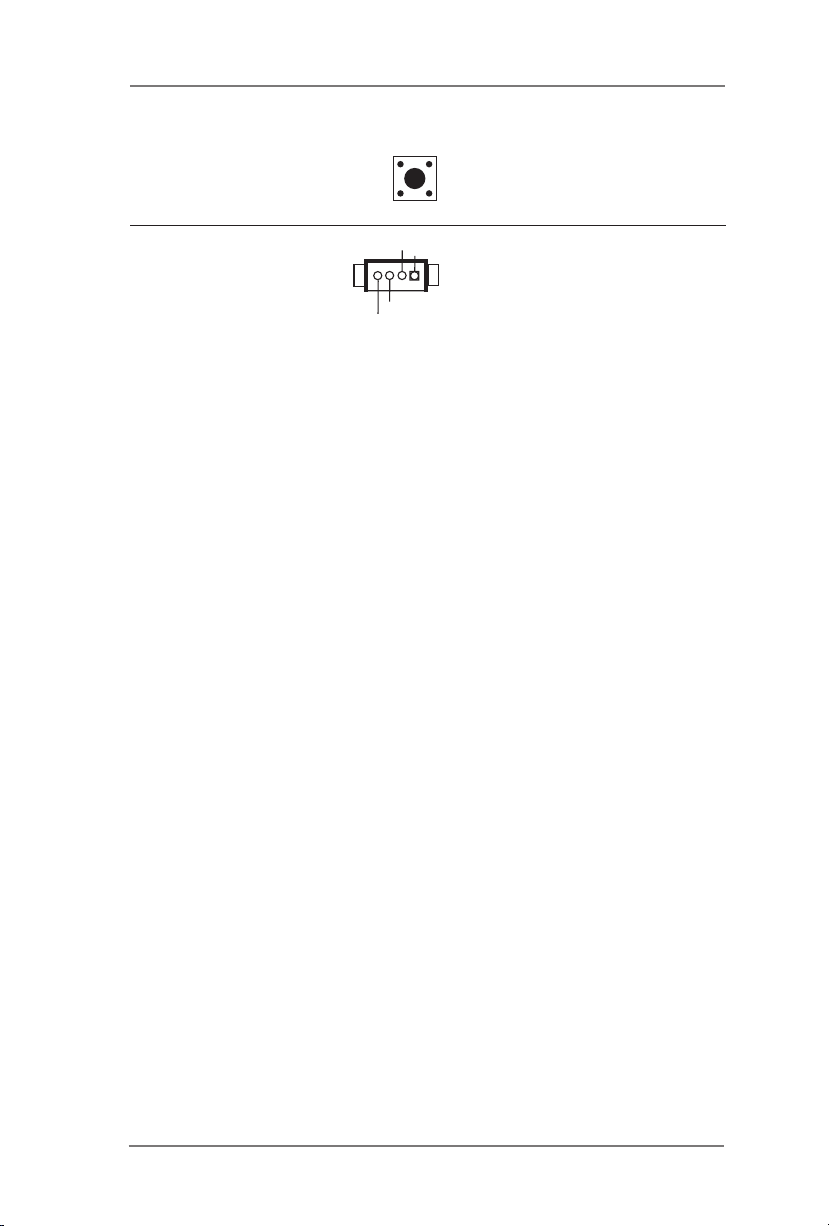

Back Side:
Power Button Header
(PWR_BTN3)
Fan Connector
(FAN1)
1
FAN_SPEED_CONTROL
FAN_SPEED
+12V
GND

17
Chapter 3: UEFI SETUP UTILITY
3.1 Introduction
This section explains how to use the UEFI SETUP UTILITY to congure your
system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You
may run the UEFI SETUP UTILITY when you start up the computer. Please press
<F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP
UTILITY, otherwise, POST will continue with its test routines.
If you wish to enter the UEFI SETUP UTILITY after POST, restart the system by
pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system
chassis. You may also restart by turning the system o󰀨 and then back on.
Because the UEFI software is constantly being updated, the
following UEFI setup screens and descriptions are for reference
purpose only, and they may not exactly match what you see on
your screen.
3.1.1 UEFI Menu Bar
The top of the screen has a menu bar with the following selections:
Main To set up the system time/date information
Advanced To set up the advanced UEFI features
H/W Monitor To display current hardware status
Security To set up the security features
Boot To set up the default system device to locate and load the
Operating System
Exit To exit the current screen or the UEFI SETUP UTILITY
Use < > key or < > key to choose among the selections on the menu
bar, and then press <Enter> to get into the sub screen. You can also use the
mouse to click your required item.

18
3.1.2 Navigation Keys
Please check the following table for the function description of each navigation
key.
Navigation Key(s) Function Description
/ Moves cursor left or right to select Screens
/ Moves cursor up or down to select items
+ / - To change option for the selected items
<Enter> To bring up the selected screen
<F1> To display the General Help Screen
<F7> Discard changes
<F9> To load optimal default values for all the settings
<F10> To save changes and exit the UEFI SETUP UTILITY
<F12> Print screen
<ESC> To jump to the Exit Screen or exit the current screen
3.2 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and display
the system overview.

19
Setting wrong values in this section may cause
the system to malfunction.
3.3 Advanced Screen
In this section, you may set the congurations for the following items: CPU Congu-
ration, Chipset Conguration, Storage Conguration, Super IO Conguration, ACPI
Conguration, USB Conguration and Trusted Computing.
Instant Flash
Instant Flash is a UEFI ash utility embedded in Flash ROM. This conve-
nient UEFI update tool allows you to update system UEFI without entering
operating systems rst like MS-DOS or Windows®. Just launch this tool
and save the new UEFI le to your USB ash drive, oppy disk or hard
drive, then you can update your UEFI only in a few clicks without prepar-
ing an additional oppy diskette or other complicated ash utility. Please
be noted that the USB ash drive or hard drive must use FAT32/16/12 le
system. If you execute Instant Flash utility, the utility will show the UEFI
les and their respective information. Select the proper UEFI le to update
your UEFI, and reboot your system after UEFI update process completes.

20
3.3.1 CPU Conguration
Cool ‘n‘ Quiet
Use this item to enable or disable AMD’s Cool ‘n’ QuietTM technology.
The default value is [Enabled]. Conguration options: [Enabled] and [Dis-
abled]. If you install Windows®OS and want to enable this function, please
set this item to [Enabled]. Please note that enabling this function may re-
duce CPU voltage and memory frequency, and lead to system stability or
compatibility issue with some memory modules or power supplies. Please
set this item to [Disable] if above issue occurs.
SVM Mode
When this is set to [Enabled], a VMM (Virtual Machine Architecture) can
utilize the additional hardware capabilities provided by AMD-V. The default
value is [Enabled]. Conguration options: [Enabled] and [Disabled].
Core Performance Boost
The default value is [Auto].
AMD fTPM Switch
Use this to enable or disable AMD CPU fTPM.
