ASRock Industrial IMB-X1314 User manual

1
IMB-X1314
User Manual
Version 1.3
Updated June 8, 2023
Copyright©2023 ASRockInd INC. All rights reserved.

2
Version 1.0
Published September 8, 2022
Copyright©2023 ASRockInd INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockInd Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished
for informational use only and subject to change without notice, and should
not be constructed as a commitment by ASRockInd. ASRockInd assumes no
responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockInd does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockInd, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRockInd has been advised of the possibility of such damages arising
from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRockInd Website: http://www.asrockind.com

3
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6
1.3 Motherboard Layout....................................................... 9
1.4 I/O Panel........................................................................ 11
2 Installation ......................................................... 12
2.1 Screw Holes................................................................... 12
2.2 Pre-installation Precautions ........................................... 12

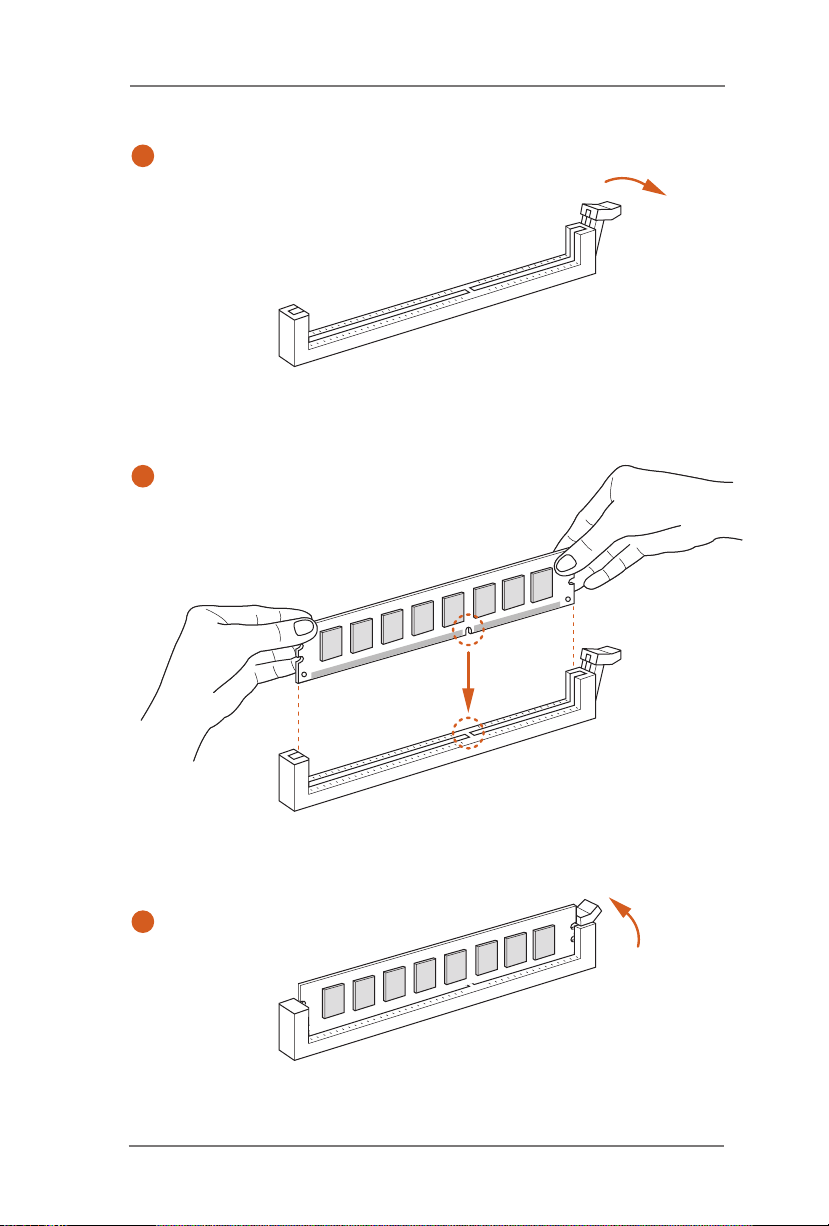

2.3 Installation of Memory Modules (DIMM) ........................ 13
2.4 Expansion Slots ............................................................ 15

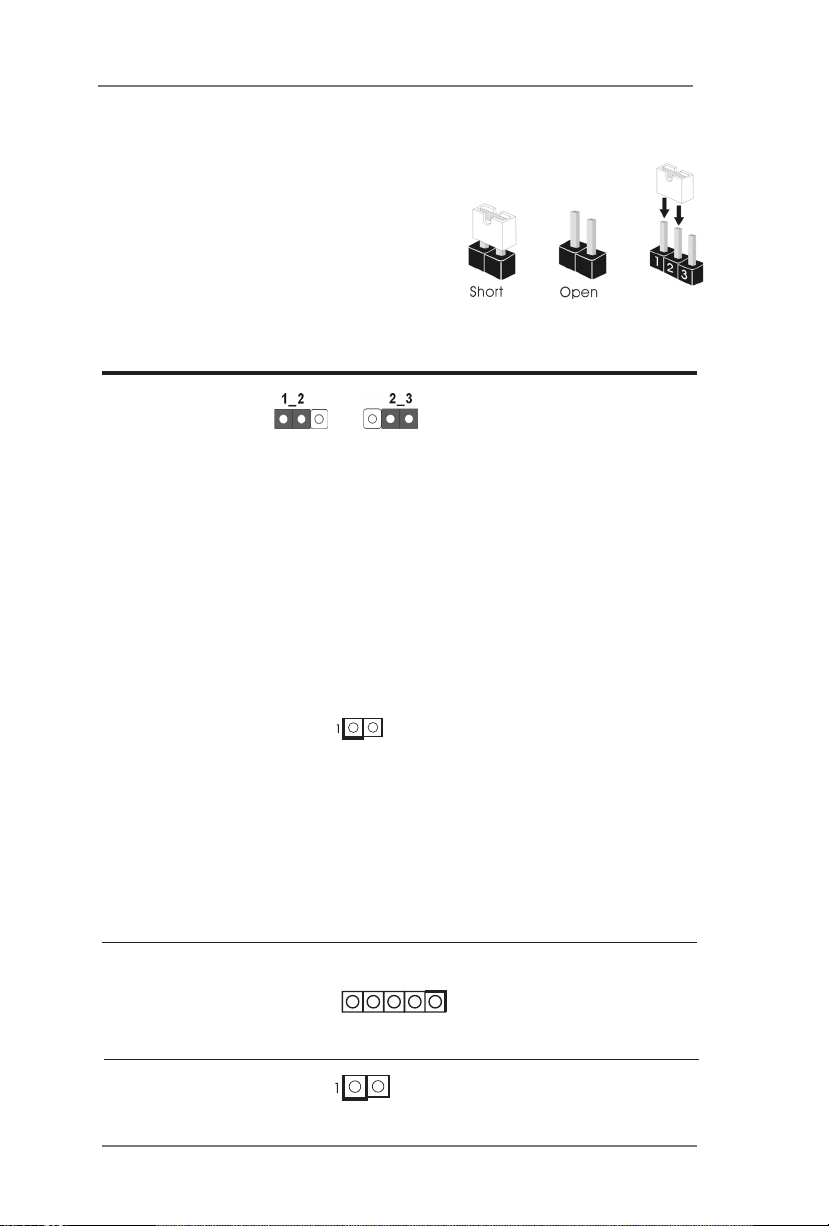

2.5 Jumpers Setup............................................................... 17

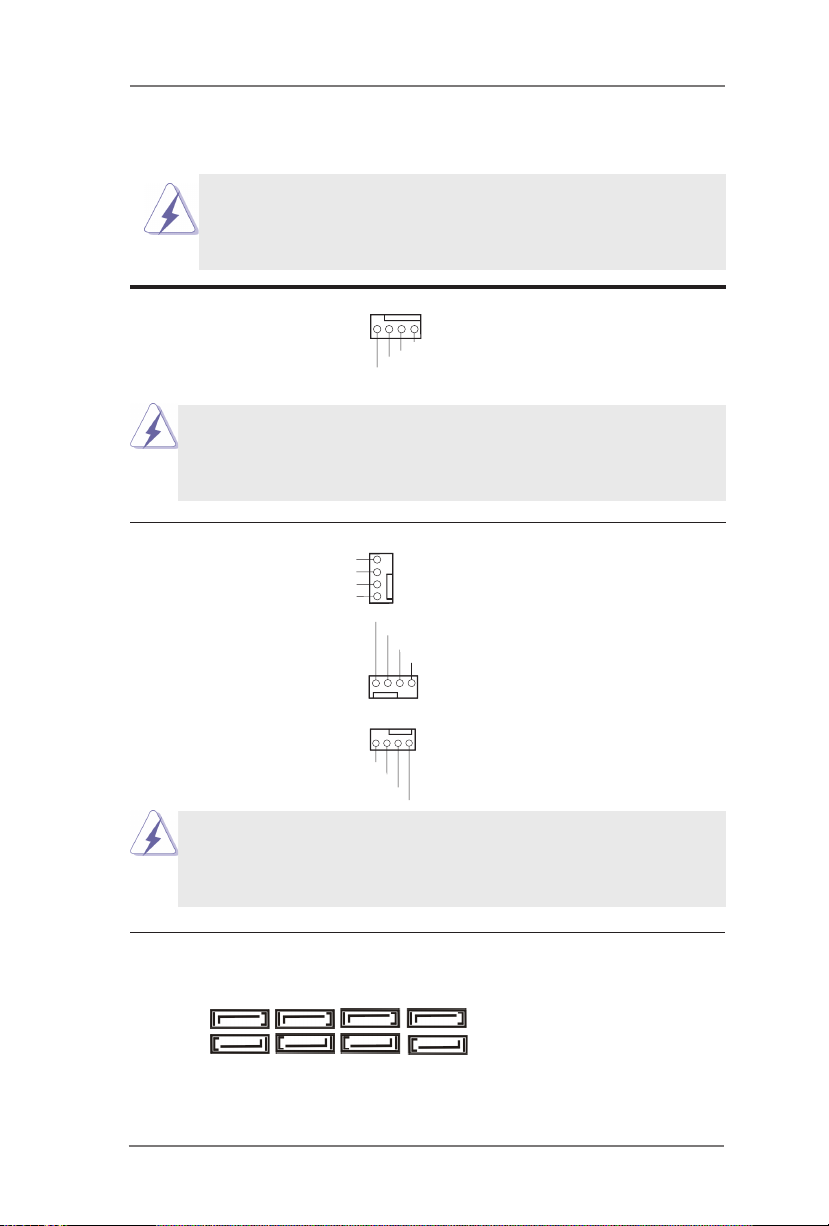

2.6 Onboard Headers and Connectors................................ 20
2.7 Installation of ROM Socket ............................................ 26
3 UEFI SETUP UTILITY ....................................... 27
3.1 Introduction .................................................................... 27
3.1.1 UEFI Menu Bar .................................................... 27
3.1.2 Navigation Keys ................................................... 28
3.2 Main Screen................................................................... 28
3.3 Advanced Screen........................................................... 29
3.3.1 CPU Conguration ............................................... 30
3.3.2 Chipset Conguration........................................... 32
3.3.3 Storage Conguration .......................................... 34
3.3.4 Super IO Conguration ........................................ 35
3.3.5 AMT Conguration ............................................... 36
3.3.6 ACPI Conguration............................................... 38
3.3.7 USB Conguration ............................................... 39
3.3.8 Trusted Computing............................................... 40
3.3.9 Thunderbolt(TM) Conguration............................ 41
3.4 Hardware Health Event Monitoring Screen ................... 42
3.5 Security Screen ............................................................. 43
3.6 Boot Screen ................................................................... 44
3.7 Exit Screen .................................................................... 45

5
Chapter 1: Introduction
Thank you for purchasing ASRockInd IMB-X1314 motherboard, a reliable mother-
board produced under ASRockInd’s consistently stringent quality control. It delivers
excellent performance with robust design conforming to ASRockInd’s commitment
to quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-
step guide to the hardware installation. Chapter 3 contains the conguration guide
to BIOS setup.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockInd website without further notice. You may
nd the latest VGA cards and CPU support lists on ASRockInd website
as well. ASRockInd website http://www.asrockind.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd IMB-X1314 Motherboard (Micro ATX (9.6-in x 9.6-in x 1.4-in, 24.4 cm x
24.4 cm x 3.6 cm))
Gift Package:
2 x SATA Data Cable
1 x I/O Shield
4 x SCREW M2*2, D=5
Bulk Package:
1 x I/O Shield
4 x SCREW M2*2, D=5

6
1.2 Specications
Form
Factor Dimensions Micro ATX (9.6-in x 9.6-in x 1.4-in, 24.4 cm x
24.4 cm x 3.6 cm)
Processor
System
CPU Intel® 13th/12th Gen (Raptor Lake-S/Alder
Lake-S) Core™ Processors, up to 125W
Chipset Intel®W680
Socket LGA 1700
BIOS AMI SPI 256 Mbit
Memory
Technology Dual Channel ECC/non-ECC DDR4 3200 MHz
Capacity 128GB (32GB per DIMM)
Socket 4 x 288-pin Long-DIMM
Graphics
Controller Intel® UHD Graphics
HDMI HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
DisplayPort DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay Quad Display
Expansion
Slot
PCIe
2 x PCIe Gen4 Slots (PCIE1/PCIE3:single at
x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))
(PCIE1: Support riser card x8/x8)
2 x PCIex4 (Gen4)*
*If using PCIEx8/x16 card on PCIE2/PCIE4 slot,
M.2 Key M2(M2_M2) and M.2 Key E(M2_E1)
are limited to install
M.2
1 x M.2 (Key B, 3042/3052) with PCIex1, USB
3.2 Gen1, USB 2.0 and SIM for 4G/5G
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
and CNVi for Wireless
SIM Socket 1 x SIM socket connected to M.2 key B
Audio Interface Realtek ALC897 HD, High Denition Audio
Ethernet
Controller/
Speed
LAN1: Intel® I225LM with 10/100/1000/2500
Mbps, supports vPro
LAN2: Intel® I225LM/I225V with
10/100/1000/2500 Mbps
LAN3: Intel® I225LM/I225V with
10/100/1000/2500 Mbps
Connector 3 x RJ-45

7

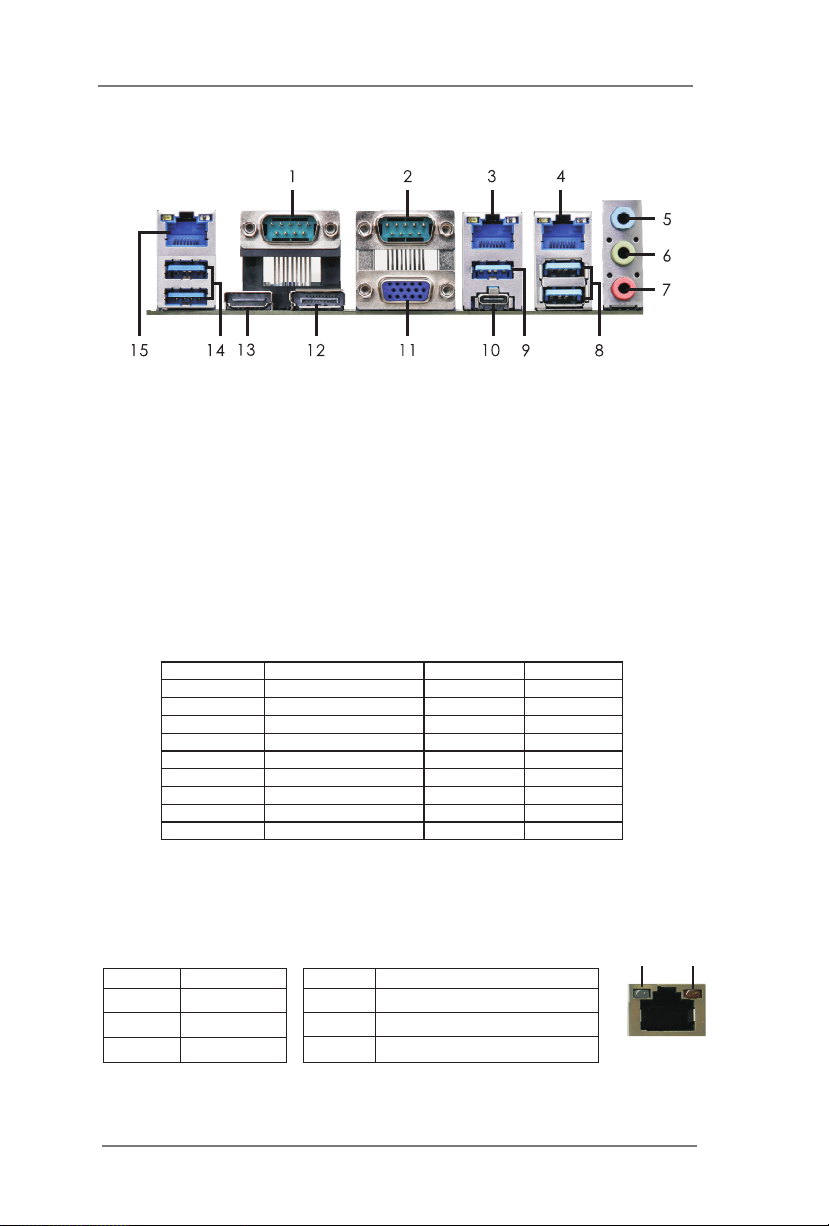

Rear I/O
HDMI 1 x HDMI 2.0b
DisplayPort 1 x DP 1.4a
VGA 1
Ethernet 3 x 2.5 Gigabit LAN
USB 5 x USB 3.2 Gen2
1 x USB 3.2 Gen2x2 (Type-C, 5V/3A)
Audio 3 (Line-In/Line-Out/Mic-In)
Serial Port COM1, COM2 (RS-232/422/485)
Internal
Connector
USB 2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM COM3, COM4, COM5, COM6 (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
TPM TPM 2.0 onboard IC
LVDS 1
Speaker
Header 1
PS/2 1 x PS/2 header
Thunderbolt
header 1 (only support by PCIE4)
Storage
M.2
1 x M.2 (Key M, up to 25110) with PCIex4
Gen4 for SSD
1 x M.2 (Key M, 2242/2260/2280) with
PCIex4 Gen3 for SSD
SATA 8 x SATA3 (6Gb/s)
RAID
Intel®VMD RAID 0/1/5/10
**Supported by identical interface (PCIe or
SATA)
PCIe interface: M.2 Key B + M.2 Key M1/2
or 2*M.2 Key M
SATA interface: SATA port
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec
Power
Requirements
Input PWR ATX PWR (24+8-pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power
input ready

8
Environment
Operating
Temp 0ºC ~ 70ºC
Storage
Temp -40°C ~ 85°C
Operating
Humidity 5% ~ 90%
Storage
Humidity 5% ~ 90%

9
1.3 Motherboard Layout
ATXPWR1
PCIE1
PCIE2
CMOS
Battery
HDLED RESET
PLED PWRBTN
DDR4_A2 (64 bit, 2 88-pi n modul e)
DDR4_A1 (64 bit, 2 88-pi n modul e)
DDR4_B2 (64 bit, 2 88-pi n modul e)
DDR4_B1 (64 bit, 2 88-pi n modul e)
Industrial
1
PWR_COM1
SPDIF1
1
PCIE3
PCIE4
PWR_COM6
1
SATA3_4
SATA3_6
SATA3_7 SATA3_5
SATA3_2
SATA3_3
SATA3_0
SATA3_1
LVDS1
PNL_PWR1
1
BLT_PWR1
1
BLT_VOL1
1
1
BLT_PWM1
SPEAKER1
1
SIM1
DACC1
1
USB3_5_6
1
CHA_FAN1
CHA_FAN3
M2_M2
Top:
LAN1
USB 3.2 Gen2
T: USB3_3
B: USB3_4
COM2
VGA1
COM1
HDMI1 DP1
CHA_FAN2
1
PWR_COM2
Top:
LAN2
USB 3.2 Gen2:
USB3_9
ATX12V1
CPU_FAN1
M2_B1
M2_E1
M2_M1
1
BLT_EN_PWM1
USB2_10_11
1
USB2_12_13
1
ESPI1
1
COM6
1
COM5
1
COM4
1
COM3
1
PWR_COM5
1
PWR_COM4
1
PWR_COM3
1
CLRMOS1
1
SMBUS_TEST1
1
1
SIO_AT1
1
CLRMOS2
ATXPWR1
1
HD_AUDIO1
1
CMOS
Battery
HDLED RESET
PLED PWRBTN
PANEL 1
1
IMB-X1314
DDR4_A2 (64 bit, 2 88-pi n modul e)
DDR4_A1 (64 bit, 2 88-pi n modul e)
DDR4_B2 (64 bit, 2 88-pi n modul e)
DDR4_B1 (64 bit, 2 88-pi n modul e)
Industrial
1
PWR_COM1
SPDIF1
1
1
SATA3_4
SATA3_6
SATA3_7 SATA3_5
SATA3_2
SATA3_3
SATA3_0
SATA3_1
1
PNL_PWR1
1
BLT_PWR1
1
BLT_V OL1
1
1
BLT_PWM1
SIM1
LPT_GPIO1
11
USB3_5_6
1
1
CI1
CHA_FAN1
CHA_FAN3
M2_M2
USB 3.2 Gen2
T: USB3_3
B: USB3_4
COM2
VGA1
COM1
HDMI1
DP1
CHA_FAN2
1
PWR_C OM2
USB 3.2 Gen2:
USB3_9
USB 3.2 Gen2:
TC_U7_8
ATX12V1
CPU_FAN1
M2_B1
M2_E1
M2_M1
1
1
BKT_PWR2
1
BKT_PWR2
USB2_10_11
1
USB2_12_13
1
ESPI1
1
111
1
1
SIO_AT1
1
CLRMOS2
PS2_KB_MS1
1
BIOS
ROM
PWR_LOSS1
1
13
12
13
24567
8
10
16
17
15
18
21
22
19
20
23
14
9
11
24
25
26
35
36
34
33
32
31
30
28
29 27
Top:
LINE I N
Center:
LINE O UT
Bottom:
MIC IN
TB1
1
1
CI2
1
BUZZ2
JGPIO_SET1
11
JGPIO_PWR1
1
JGPIO_PWR1
1
Top:
LAN3
USB 3.2 Gen2
T: USB3_1
B: USB3_2
1
I225_LED1
1
1
I225_LED2
1
1
I225_LED3
1
41
40
43
42
39
38
37

10
1 : COM Port Pin9 PWR Setting Jumpers
PWR_COM1 (For COM Port1)
PWR_COM2 (For COM Port2)
2 : 4-Pin Chassis FAN Connector (+12V) (CHA_FAN1)
3 : ATX 12V Power Connector
4 : 4-Pin Chassis FAN Connector (+12V) (CHA_FAN3)
5 : 4-Pin CPU FAN Connector (+12V) (CPU_FAN1)
6 : M.2 Key-M Socket (M2_M1)
7 : Power Loss Header (PWR_LOSS1)
8 : 24-pin ATX Power Input Connector
9 : System Panel Header
10 : Thunderbolt AIC Connector (TB1)
11 : USB 3.2 Gen1 Header ( USB3_5_6 )
12 : M.2 Key-B Socket (M2_B1)
13 : Brightness Control Mode (BLT_PWM1)
14 : Panel Power Select (PNL_PWR1)
15 : CON_LBKLT_EN and CON_LBKLT_CTL Voltage Level (BLT_EN_PWM1)
16 : Inverter Power Control Wafer (BLT_PWR1)
17 : Chassis Intrusion Header (CI1)
18 : Backlight & Amp Volume Control (BLT_VOL1)
19 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR2)
20 : LVDS Panel Connector
21 : SATA3 Connectors (SATA3_0~7)
22 : M.2 Key-M Socket (M2_M2)
23 : USB 2.0 Headers ( USB2_10_11, USB2_12_13 )
24 : ESPI Header
25 : COM Port Headers (COM3,4,5,6) (RS232)
26 : COM Port Pin9 PWR Setting Jumpers
PWR_COM3 (For COM Port3)
PWR_COM4 (For COM Port4)
PWR_COM5 (For COM Port5)
PWR_COM6 (For COM Port6)
27 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)
28 : Clear CMOS Header (CLRMOS1)
29 : Printer Port / GPIO Header (LPT_GPIO1)
30 : SMBUS_TEST1
31 : Chassis Intrusion Header (CI2)
32 : Digital Input / Output Power Select (JGPIO_SET1)
33 : Buzzer (BUZZ2)
34 : 3W Audio Output Wafer
35 : DACC1
36 : SPDIF Header
37 : Front Panel Audio Header
38 : 4-Pin Chassis FAN Connector (+12V) (CHA_FAN2)
39 : Clear CMOS Header (CLRMOS2)
40 : ATX/AT Mode Jumper (SIO_AT1)
41 : LAN LED Headers
I225_LED3 (For LAN3 Port)
I225_LED2 (For LAN2 Port)
I225_LED1 (For LAN1 Port)
42 : PS/2 Keyboard/Mouse Header
43 : M.2 Key-E Socket (M2_E1)

11
1.4 I/O Panel
1 COM Port (COM1) (RS232/422/485)*
2 COM Port (COM2) (RS232/422/485)*
3 RJ45 LAN Port (LAN2)**
4 RJ45 LAN Port (LAN1)**
5 Line In (Light Blue)
6 Line out (Lime)
7 Microphone (Pink)
8 USB 3.2 Gen2 Ports (USB3_3_4)
9 USB 3.2 Gen2 Port (USB3_9)
10 USB 3.2 Gen2 Type-C Port (TC_U7_8)
11 D-Sub Port (VGA1)
12 DisplayPort (DP1)
13 HDMI Port (HDMI1)
14 USB 3.2 Gen2 Ports (USB3_1_2)
15 RJ45 LAN Port (LAN3)**
* This motherboard supports RS232/422/485 on COM1, 2 ports. Please refer to below table for
the pin denition. In addition, COM1, 2 ports (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to page 35 for details.
COM1, 2 Ports Pin Denition
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps/100Mbps connection
Blinking Data Activity Orange 1Gbps connection
On Link Green 2.5Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD TX+ RTX+
3 TXD RX+ N/A
4 DTR RX- N/A
5GND GND GND
6 DSR N/A N/A
7RTS N/A N/A
8 CTS N/A N/A
9 PWR PWR PWR

12
Chapter 2: Installation
This is a Micro ATX form factor (9.6” x 9.6”) motherboard. Before you install the
motherboard, study the conguration of your chassis to ensure that the motherboard
ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched o󰀨 or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

13
2.3 Installation of Memory Modules (DIMM)
This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM
slots, and supports Dual Channel Memory Technology.
Dual Channel Memory Conguration
1. For dual channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three
memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.
e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.
Priority DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2
1Populated Populated
2Populated Populated Populated Populated

14
1
2
3

15
2.4 Expansion Slots
There are 4 PCI Express slots, 4 M.2 sockets and 1 SIM socket on this mother-
board.
PCIE slots:
PCIE1 (PCIE 4.0 x16 slot) is used for PCI Express x16 lane width cards.
PCIE2 (PCIE 4.0 x4 slot) is used for PCI Express x4 cards.
PCIE3 (PCIE 4.0 x16 slot) is used for PCI Express x8 lane width cards.
PCIE4 (PCIE 4.0 x4 slot) is used for PCI Express x4 cards.
* PCIE1/PCIE3: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3).
* PCIE1: Support riser card x8/x8.
* If using PCIEx8/x16 card on PCIE2/PCIE4 slot, M.2 Key M2(M2_M2)
and M.2 Key E(M2_E1) are limited to install.
SIM socket:
1 x SIM socket connected to M.2 key B.
M.2 sockets:
1 x M.2 (Key M, up to 25110) with PCIex4 Gen4 for SSD.
1 x M.2 (Key M, 2242/2260/2280) with PCIex4 Gen3 for SSD.
1 x M.2 (Key B, 3042/3052) with PCIex1, USB 3.2 Gen1, USB 2.0 and
SIM for 4G/5G.
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless.

16
M.2 Key-M Socket (M2_M1): M.2 Key-M Socket (M2_M2):
M.2 Key-B Socket (M2_B1): M.2 Key-E Socket (M2_E1):
+3VSB
+3VSB
+3VSB
+3VSB

17
2.5 Jumpers Setup
The illustration shows how jumpers are setup.
When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap is
placed on pins, the jumper is “Open”. The illus-
tration shows a 3-pin jumper whose pin1 and
pin2 are “Short” when jumper cap is placed on
these 2 pins.
Jumper Setting Description
Clear CMOS Jumpers CLRMOS1
:
(3-pin CLRMOS1)
1-2 : Normal
(see p.9, No. 28)
2-3 : Clear CMOS
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug the
power cord from the power supply. After waiting for 15 seconds, use a jumper cap
to short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear
the CMOS right after you update the BIOS. If you need to clear the CMOS when
you just nish updating the BIOS, you must boot up the system rst, and then shut
it down before you do the clear-CMOS action. Please be noted that the password,
date, time, user default prole and MAC address will be cleared only if the CMOS
battery is removed.
(2-pin CLRMOS2)
CLRMOS2
:
(see p.9, No. 40)
Open : Normal
Short : Auto Clear CMOS (Power O󰀨)
Note: CLRMOS2 allows you to clear the data in CMOS automatically when AC power
on. The data in CMOS includes system setup information such as system pass-
word, date, time, and system setup parameters. To clear and reset the system
parameters to default setup, please turn o󰀨 the computer and unplug the power
cord, then use a jumper cap to short the pins on CLRMOS2.
Digital Input / Output Power Select (JGPIOPWR) 1-2 : +12V
(5-pin JGPIO_PWR1)
2-3 : +5V
(see p.9, No. 27)
3-4 : +5V
4-5: GND
Clear CMOSDefault
ATX/AT Mode Jumper Open : ATX Mode
(2-pin SIO_AT1)
Short : AT Mode
(see p.9, No. 40)
1

18
COM Port Pin9 PWR Setting Jumpers 1-2 : +5V
(3-pin PWR_COM1 (For COM Port1))
2-3 : +12V
(see p.9, No. 1)
(3-pin PWR_COM2 (For COM Port2))
(see p.9, No. 1)
(3-pin PWR_COM3 (For COM Port3))
(3-pin PWR_COM4 (For COM Port4))
(3-pin PWR_COM5 (For COM Port5))
(3-pin PWR_COM6 (For COM Port6))
(see p.9, No. 26)
Chassis Intrusion Headers This motherboard supports
(2-pin CI1: see p.9, No. 17) CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
(2-pin CI2: see p.9, No. 31) requires a chassis with chassis
intrusion detection design.
CI1 :
Open : Normal
Short : Active Case Open
CI2 :
Open : Active Case Open
Short : Normal
PWR Loss Header Open : No Power Loss
(2-pin PWR_LOSS1)
Short : Power Loss
(see p.9, No. 7)
1
Signal
GN
D
Brightness Control Mode 1-2: From eDP PWM to
(3-pin BLT_PWM1)
CON_LBKLT_CTL
(see p.9, No. 13) 2-3:
From LVDS PWM to
CON_LBKLT_CTL
Note: Please set to 1-2 when adjusting brightness by Brightness Control bar under
OS. Please set to 2-3 when adjusting brightness by BLT_VOL1.
12
3
3 2 1
CON_LBKLT_EN and CON_LBKLT_CTL 1-2 : 3V Level
Voltage Level 2-3 : 5V Level
(3-pin BLT_EN_PWM1)
(see p.9, No. 15)
3
2
1
3
2
1
3
2
1
3
2
1

19
Digital Input / Output Power Select 1-2 : +5V
(3-pin JGPIO_SET1)
2-3 : GND
(see p.9, No. 32)
Panel Power Select 1-2 : +3V
(5-pin PNL_PWR1)
2-3 : +5V
(see p.9, No. 14)
4-5 : +12V
Backlight Power Select (LCD_BLT_VCC) 1-2 : LCD_BLT_VCC: +5V
(3-pin BKT_PWR2)
2-3 : LCD_BLT_VCC: +12V
(see p.9, No. 19)
DACC1 Open : No ACC
(2-pin DACC1)
Short : ACC
(see p.9, No. 35)
Note: Auto clear CMOS when system boot improperly.
1
3
2
1
3
2
1
1

20
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.9 No. 5) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
Though this motherboard provides 4-Pin chassis fan (Quiet Fan) support,
the 3-Pin chassis fan still can work successfully even without the fan speed
control function. If you plan to connect the 3-Pin chassis fan to the chassis
fan connector on this motherboard, please connect it to Pin 1-3.
GND
+12V
CPU_FA
N_SPEED
FAN_SPEED_CONTROL
4 3 2 1
Chassis Fan Connectors Please connect the fan cable
(4-pin CHA_FAN1) to the fan connector and
(see p.9 No. 2) match the black wire to the
ground pin.
(4-pin CHA_FAN2)
(see p.9 No. 38)
(4-pin CHA_FAN3)
(see p.9 No. 4)
GND
+12V
CHA_FAN_SPEED
F
AN_SPEED_CONTROL
4 3 2 1
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
4
3
2
1
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTR
OL
1 2 3 4
SATA3 Connectors These eight Serial ATA3 (SATA3)
(SATA3_0~7: see p.9, No. 21) connectors support SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
SATA3_6 SATA3_4 SATA3_2 SATA3_0
SATA3_7 SATA3_5 SATA3_3 SATA3_1
