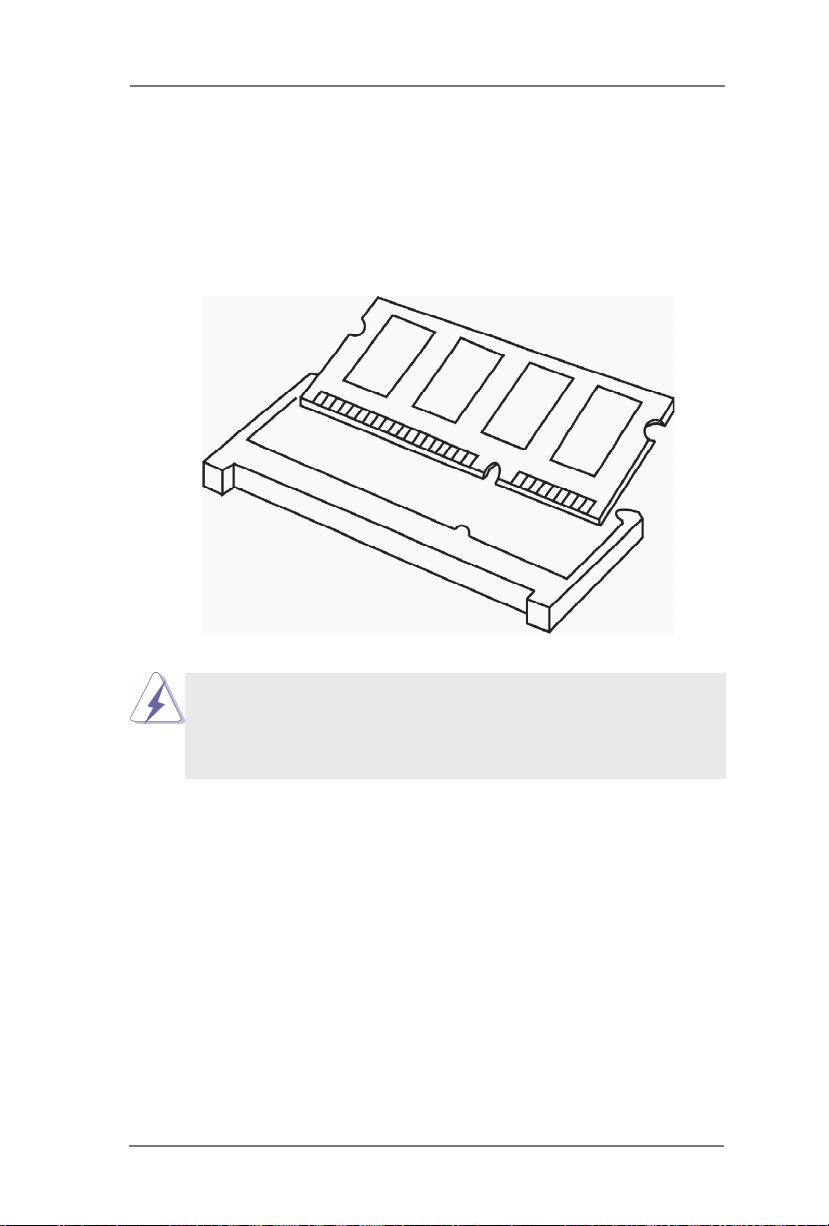

2.3 Installation of Memory Modules (SO-DIMM).................. 12
2.4 Expansion Slots ............................................................ 13
2.5 Jumpers Setup............................................................... 14
2.6 Onboard Headers and Connectors................................ 16
2.7 Installation of ROM Socket ............................................ 22
3 UEFI SETUP UTILITY......................................... 23
3.1 Introduction .................................................................... 23
3.1.1 UEFI Menu Bar .................................................... 23
3.1.2 Navigation Keys ................................................... 24
3.2 Main Screen................................................................... 24
3.3 Advanced Screen........................................................... 25
3.3.1 CPU Conguration ............................................... 26
3.3.2 Chipset Conguration........................................... 28
3.3.3 Storage Conguration .......................................... 30
3.3.4 Super IO Conguration ........................................ 31
3.3.5 ACPI Conguration............................................... 32
3.3.6 USB Conguration ............................................... 33
3.3.7 Trusted Computing............................................... 34
3.4 Hardware Health Event Monitoring Screen ................... 35
3.5 Security Screen ............................................................. 36
3.6 Boot Screen ................................................................... 37
3.7 Exit Screen .................................................................... 38
4 Software Support .............................................. 39
4.1 Install Operating System................................................ 39

5
Chapter 1: Introduction
Thank you for purchasing ASRockInd IMB-1232-WV motherboard, a reliable moth-
erboard produced under ASRockInd’s consistently stringent quality control. It deliv-
ers excellent performance with robust design conforming to ASRockInd’s commit-
ment to quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockInd website without further notice. You may
nd the latest VGA cards and CPU support lists on ASRockInd website
as well. ASRockInd website http://www.asrockind.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd IMB-1232-WV Motherboard (Mini-ITX (6.7-in x 6.7-in))
1 x I/O Panel Shield

6
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU Intel® 12th Gen (Alder Lake-S) Core™
Processors, up to 65W
Chipset Intel®H610
Socket LGA1700
BIOS AMI SPI 256 Mbit
Memory
Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Graphics
Controller Intel® UHD Graphics
DisplayPort DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
eDP eDP1.4b
Max resolution up to 1920 x 1200@60Hz
LVDS Dual channel 24 bit up to 1920x1200@60Hz
MultiDisplay Triple Display
Expansion
Slot
PCIe 1 x PCIe x16 (Gen4)
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1/
USB3.2 Gen1/USB 2.0 and SIM for 4G/5G
SIM Socket 1 x Socket connected to M.2 Key B
Audio Interface Realtek ALC897, High Denition Audio. Line-
out, Mic-in
Ethernet
Controller/
Speed
LAN1: Intel®I225LM with 10/100/1000/2500
Mbps, support AMT/vPro
LAN2: Intel®I225LM with 10/100/1000/2500
Mbps
Connector 2 x RJ-45
Rear I/O
Ethernet 2 x 2.5 Gigabit LAN
USB 2 x USB 3.2 (Gen2)
2 x USB 2.0
HDMI 1 x HDMI 2.0b
DisplayPort 2 x DP 1.4a++
Audio 2 (Mic-in, Line-out)

7
Internal
Connector
USB 1 x USB 3.2 Gen1 (1 x USB 3.2 header)
3 x USB 2.0 (1 x 2.54 pitch header)
COM COM1, COM2 (RS-232/422/485)
COM3, COM4 (RS-232)
GPIO 4 x GPI, 4 x GPO
TPM TPM 2.0 onboard IC
LVDS 1
eDP 1
SATA PWR
Output 1
Speaker
Header 1
Storage M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe
Gen3 x4 for SSD
SATA 2 x SATA3 (6Gb/s)
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec
Power
Requirements
Input PWR 12~28V DC-In with 4-pin wafer PWR cable
or DC Jack(Screw type)
Power On
AT/ATX Supported
- AT: Directly PWR on as power input ready
- ATX: Press button to PWR on after power
input ready
Environment
Operating
Temp 0ºC ~ 60ºC
Storage
Temp -40°C ~ 85°C
Operating
Humidity 5% ~ 90%
Storage
Humidity 5% ~ 90%

8
1.3 Motherboard Layout

9
1 : DDR4 SO-DIMM Sockets
2 : ESPI Header (ESPI1)
3 : M.2 Key-B Socket (M2_B1)
4 : Battery Connector
5 : SATA Power Output Connector
6 : SATA3 Connectors (SATA3_1, SATA3_2)
7 : DACC1
8 : Digital Input / Output Default Value Setting (JGPIO_SET1)
9 : Digital Input / Output Power Select (JGPIO_PWR1)
10 : Digital Input/Output Pin Header (JGPIO1)
11 : COM Port Headers (COM1, 2, 3, 4)
12 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
13 : COM Port PWR Setting Jumpers
PWR_COM3 (For COM Port3)
PWR_COM1 (For COM Port1)
14 : Inverter Power Control Wafer (BLT_PWR1)
15 : LVDS Panel Connector*
* eDP Connector (on the Backside of PCB)
16 : Backlight Volume Control (BLT_VOL1)
17 : Panel Power Select (LCD_VCC) (PNL_PWR1)
18 : Inverter Power Control Wafer (BLT_PWR2)
19 : Clear CMOS Header (CLRMOS1)
20 : Chassis Intrusion Header (CI1_2)
21 : PWR_BAT1_SIO_AT1
22 : AT_TEST1_PCIE_PWR1
23 : System Panel Header
24 : SMBUS_TEST1
25 : CPU FAN Connector (+12V)
26 : Chassis FAN Connector (+12V)
27 : Power Adapter
28 : M.2 Key-M Socket (M2_KEYM1)
29 : M.2 Key-E Socket (M2_KEYE1)
30 : 4-pin ATX PWR Connector
31 : 2-pin UPS Module Power Input Connector
32 : SPDIF Header
33 : Front Panel Audio Header
34 : 3W Audio AMP Output Wafer
35 : USB2.0 Header (USB2_5_6)
36 : USB3.2 Gen1 Header (USB3_4_9)
Back Side :
SIM Card Socket (SIM1)
eDP Connector (EDP1, refer to No. 15)

10
1.4 I/O Panel
1 USB 3.2 Gen2 Ports (USB3_1_2)
2 USB 2.0 Ports (USB2_7_8)
3 HDMI Port (HDMI1)
4 DisplayPort (DP1)
5 DisplayPort (DP2)
6 LAN RJ-45 Port (LAN2)*
7 LAN RJ-45 Port (LAN1)*
8 Line out (Lime)
9 Microphone (Pink)
10 DC Jack (DC_JACK1)
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port

11
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
Chapter 2: Installation
This is a Mini-ITX form factor (6.7” x 6.7”) motherboard. Before you install the moth-
erboard, study the conguration of your chassis to ensure that the motherboard ts
into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched o󰀨 or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (SO-DIMM)
This motherboard provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM
slots.
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
1. The SO-DIMM only ts in one correct orientation. It will cause permanent damage
to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at
incorrect orientation.
2. Please do not intermix di󰀨erent voltage SO-DIMMs on this motherboard.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots
There is 1 PCI Express slot, 4 M.2 sockets and 1 SIM socket on this motherboard.
PCIE slot: PCIE1 (PCIE 4.0 x16 slot) is used for PCI Express x16 lane width cards.
M.2 sockets:
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless.
1 x M.2 (Key B, 3042/3052) with PCIe x1/USB3.2 Gen1/USB 2.0 and SIM
for 4G/5G.
1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x4 for SSD.
SIM socket:
1 x SIM socket connected to M.2 key B.
M.2 Key-E Socket (M2_KEYE1): M.2 Key-M Socket (M2_KEYM1):
M.2 Key-B Socket (M2_B1):
PERn0
PERp0
PETn0
PETp0

14
2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Jumper Setting Description
Clear CMOS Jumpers CLRMOS1
:
(3-pin CLRMOS1)
1-2 : Normal
(see p.8, No. 19)
2-3 : Clear CMOS
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the date, time and user default prole will be cleared
only if the CMOS battery is removed.
Clear CMOSDefault
COM Port PWR Setting Jumpers 1-2 : +5V
(3-pin PWR_COM1 (For COM Port1))
2-3 : +12V
(3-pin PWR_COM3 (For COM Port3))
(see p.8, No. 13)
Digital Input / Output Default Value Setting 1-2 : Pull-High
(3-pin JGPIO_SET1)
2-3 : Pull-Low
(see p.8, No. 8)
DACC1 Open : no ACC
(2-pin DACC1)
Short : ACC
(see p.8, No. 7)
Note: Auto clear CMOS when system boot improperly.

15
Digital Input / Output Power Select 1-2 : +12V
(3-pin JGPIO_PWR1)
2-3 : +5V
(see p.8, No. 9)

16
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.8 No. 25) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8, No. 23) functions.
Chassis Fan Connector Please connect the chassis fan
(4-pin CHA_FAN1) cable to the connector and
(see p.8 No. 26) match the black wire to the
ground pin.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn o󰀨 your system using the power switch.
Though this motherboard provides 4-Pin chassis fan (Quiet Fan) support, the
3-Pin chassis fan still can work successfully even with the fan speed control
function. If you plan to connect the 3-Pin chassis fan to the chassis fan
connector on this motherboard, please connect it to Pin 1-3.
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
GN D
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
GN D
RESET#
PWRBTN#
PLED-
PLED+
GN D
HDLED-
HDLED+
1
GN D

17
COM Port Headers
(9-pin COM1, 2, 3, 4: see p.8, No. 11)
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1/S3 sleep state. The LED is o󰀨 when the system is in S4 sleep
state or powered o󰀨 (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may di󰀨er by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name PIN Signal Name
1DDCD# 3TTXD 5GND 7RRTS# 9PWR
2RRXD 4DDTR# 6DDSR# 8CCTS#
2
1
* This motherboard supports RS232/422/485 on COM1, 2 ports.
Please refer to below table for the pin denition. In addition, COM1, 2
ports (RS232/422/485) can be adjusted in BIOS setup utility >
Advanced Screen > Super IO Conguration. You may refer to page
31 for details.
COM1, 2 Port Pin Denition
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD TX+ RTX+
3 TXD RX+ N/A
4 DTR RX- N/A
5GND GND GND
6 DSR N/A N/A
7 RTS N/A N/A
8 CTS N/A N/A
9 PWR PWR PWR

18
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 34)
SATA3 Connectors These two Serial ATA3 (SATA3)
(SATA3_1~2: see p.8, No. 6) connectors support SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.8 No. 33) convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
USB 2.0 Header There is one header on this
(9-pin USB2_5_6: motherboard. This USB 2.0
see p.8, No. 35) header can support two ports.
SATA3_1
SATA3_2
USB 3.2 Gen1 Header There is one header on this
(19-pin USB3_4_9, motherboard. This USB 3.2
(see p.8, No. 36) Gen1 header can support one
port USB3.2 Gen1 and one
port USB2.0.
J_SENSE
OUT2_L
MIC_RET
PRESENCE#
G N D
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name
1 OUTLN 2 OUTLP 3 OUTRP 4 OUTRN
1
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
GND
VbusVbus
Vbus
IntA _PA_S SRX-
IntA _PA_S SRX+
GND
IntA _PA_S STX-
IntA _PA_S STX+
GND
IntA _PA_D -
IntA_PA_D+

19
LVDS Panel Connector*
(40-pin LVDS1)
(see p.8 No. 15)
*eDP Connector (on the Backside of PCB)
* PD (Panel Detection): Connect this
pin to LVDS Panel’s Ground pin to
detect Panel detection.
1
39 4 0
2
PIN Signal Name PIN Signal Name
39 LCD_BLT_VCC 40 LCD_BLT_VCC
37 CON_LBKLT_CTL 38 LCD_BLT_VCC
35 GND 36 CON_LBKLT_EN
33 LVDS_B_CLK# 34 LVDS_B_CLK
31 LVDS_B_DATA3 32 GND
29 DPLVDD_EN 30 LVDS_B_DATA3#
27 LVDS_B_DATA2# 28 LVDS_B_DATA2
25 LVDS_B_DATA1 26 GND
23 GND 24 LVDS_B_DATA1#
21 LVDS_B_DATA0# 22 LVDS_B_DATA0
19 LVDS_A_CLK 20 GND
17 GND 18 LVDS_A_CLK#
15 LVDS_A_DATA3# 16 LVDS_A_DATA3
13 LVDS_A_DATA2 14 GND
11 GND 12 LVDS_A_DATA2#
9 LVDS_A_DATA1# 10 LVDS_A_DATA1
7 LVDS_A_DATA0 8 PD (Panel Detection)
5 LDDC_DATA 6 LVDS_A_DATA0#
3 +3.3V 4 LDDC_CLK
1 LCD_VCC 2 LCD_VCC
PIN Signal Name
40 NA
39 LCD_BLT_VCC
38 LCD_BLT_VCC
37 LCD_BLT_VCC
36 LCD_BLT_VCC
35 SMB_CLK_MAIN
34 SMB_DATA_MAIN
33 eDP_BKLTCTL_R
32 eDP_BKLTEN
31 GND
30 GND
29 GND
28 GND
27 eDP_HPD_CON
26 GND
25 GND
24 GND
23 GND
22 NA
21 LCD_VCC
20 LCD_VCC
19 LCD_VCC
18 LCD_VCC
17 GND
16 eDP_AUX#_CON
15 eDP_AUX_CON
14 GND
13 eDP_TX0_CON
12 eDP_TX#0_CON
11 GND
10 eDP_TX1_CON
9 eDP_TX#1_CON
8GND
7 eDP_TX2_CON
6 eDP_TX#2_CON
5GND
4 eDP_TX3_CON
3 eDP_TX#3_CON
2GND
1 NA
40
1
EDP1
40
1
SPDIF Header SPDIF header, providing
(3-pin SPDIF1) SPDIF audio output to HDMI
(see p.8, No. 32) VGA card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the SPDIF connector of
HDMI VGA card to this header.
+5V

20
SATA Power Connector Please connect a SATA
(SATA_PWR1) power cable to this connector.
(see p.8 No. 5)
ATX Power Connector Please connect a DC
(4-pin DC_4PIN1) power supply to this
(see p.8 No. 30) connector.
1-2 : GND
3-4 : DC Input
1
PIN Signal Name
6 LCD_BLT_VCC
5 LCD_BLT_VCC
4 CON_LBKLT_EN
3 CON_LBKLT_CTL
2GND
1GND
Inverter Power Control Wafer
(6-pin BLT_PWR1)
(see p.8 No. 14)
Digital Input/Output Pin Header
(10-pin JGPIO1)
(see p.8 No. 10)
Backlight Volume Control
(7-pin BLT_VOL1)
(see p.8 No. 16)
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name PIN Signal Name
2GPP_E2 4GPP_E4 6GPP_E5 8GPP_E6 10 GND
1SIO_
GP71 3SIO_ GP72 5SIO_ GP73 7SIO_ GP74 9JGPIOPWR_ R
GN D
+5V
+12V
1
GN D
1
UPS Module Power Input Connector Pin1 : GND
(2-pin TO_UPS1) Pin2 : DC Input
(see p.8 No. 31)
1
PIN Signal Name
7GND
6GND
5 BLT_DW
4 BLT_UP
3 PWRDN
2GPIO_VOL_DW
1GPIO_VOL_UP
Backlight Power Select (LCD_BLT_VCC) 1-2 : LCD_BLT_VCC: +5V
(5-pin BKT_PWR1) 2-3 : LCD_BLT_VCC: +12V
(see p.8 No. 12) 4-5 : LCD_BLT_VCC: DC_IN
4
2
3
1
