ASRock Industrial IMB-R1000 User manual

1
IMB-R1000
User Manual
Version 1.0
Published July 2019
Copyright©2019 ASRockInd INC. All rights reserved.

2
Version 1.0
Published July 2019
Copyright©2019 ASRockInd INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockInd Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility
for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockInd does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockInd, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRockInd has been advised of the possibility of such damages arising
from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRockInd Website: http://www.asrockind.com

3
Contents
1. Introduction ................................................................ 5
1.1 Package Contents.......................................................... 5
 1.2 Specications ................................................................. 6
1.3 Motherboard Layout ..................................................... 7
1.4 I/O Panel ...................................................................... 9
2. Installation .................................................................. 11
2.1 Installing Memory Modules (DIMM) ............................... 12
2.2 Expansion Slot ............................................................... 13
2.3 Jumpers Setup ............................................................... 15
2.4 Onboard Headers and Connectors ................................ 18
3. UEFI SETUP UTILITY.................................................. 23
3.1 Introduction .................................................................... 23
3.1.1 UEFI Menu Bar ..................................................... 23
3.1.2 Navigation Keys .................................................... 24
3.2 Main Screen ................................................................... 25
3.3 Advanced Screen........................................................... 26
  3.3.1CPUConguration ............................................... 27
  3.3.2ChipsetConguration........................................... 28
  3.3.3StorageConguration .......................................... 30
  3.3.4SuperIOConguration ........................................ 31
  3.3.5ACPIConguration............................................... 32
  3.3.6USBConguration ............................................... 33
3.3.7 Trusted Computing............................................... 34
3.4 Hardware Health Event Monitoring Screen.................... 35
3.5 Security Screen.............................................................. 36
3.6 Boot Screen ................................................................... 37
3.7 Exit Screen..................................................................... 39
4. Software Support ....................................................... 40
4.1 Install Operating System ................................................ 40
4.2 Support CD Information ................................................. 40
4.2.1 Running The Support CD..................................... 40
4.2.2 Drivers Menu........................................................ 40
4.2.3 Utilities Menu........................................................ 40
4.2.4 Contact Information.............................................. 40
 4.3 AMDEyenityMultidisplayTechnologySetting.............. 41

4
1. Introduction
Thank you for purchasing ASRockInd IMB-R1000 motherboard, a reliable
motherboard produced under ASRockInd’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRockInd’s commitment to quality and endurance.
In this manual, chapter 1 and 2 contains the introduction of the mother-
board and step-by-step hardware installation guide. Chapter 3 and 4 con-
tainsthecongurationguideofUEFIsetupandinformationoftheSupport
CD.
BecausethemotherboardspecicationsandtheBIOSsoftware
might be updated, the content of this manual will be subject to
changewithoutnotice.Incaseanymodicationsofthismanual
occur, the updated version will be available on ASRockInd web-
sitewithoutfurthernotice.YoumayndthelatestCPUsupport
lists on ASRockInd website as well.
ASRockInd website https://www.asrockind.com/
If you require technical support related to this motherboard,
pleasevisitourwebsiteforspecicinformationaboutthemodel
you are using.
https://www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd IMB-R1000 Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
ASRockInd IMB-R1000 Quick Installation Guide
ASRockInd IMB-R1000 Support CD
1 x I/O Panel Shield

5
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU
AMD Ryzen FP5 BGA package, 14nm
process, with CPU option 12W~25W (IMB-
R1000M(R1606G), R1000V(R1505G))
Chipset SoC
Expansion
Slot
PCIe 1 x PCIe x 4
Mini-PCIe 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
M.2
1 x M.2 (Key E, 2230) with PCIe x1 and USB2.0
for Wireless
1 x M.2 (Key M, 2242/2260/2280) with SATA for
SSD
Memory
Technology Dual Channel DDR4 2400 MT/s
Max. 32 GB
Socket 2 x SO-DIMM
Graphics
VGA Supports max resolution up to 1920x1200
DVI N/A
LVDS Dual Channel 24-bit, max resolution up to
1920x1200@60Hz (Shared with DP1)
HDMI N/A
DisplayPort Max resolution up to 3840x2160@60Hz
MultiDisplay TripleDisplay(SupportAMDEyenity
multidisplay technology)
eDP Max resolution up to 3840x2160@60Hz
Ethernet Ethernet 10/100/1000 Mbps
Controller 2 x R8111G
Rear I/O
VGA N/A
DVI N/A
HDMI N/A
DisplayPort 3 x DP 1.3 (Support DP++)
Ethernet 2
USB 2 x USB3.1 (Gen 2), 2 x USB2.0
Audio 2 (Mic-in, Line-out)
Serial 2 x COM (RS-232/422/485)

6
* For detailed product information, please visit our website: http://www.asrockind.com
Internal
Connector
USB 4 x USB2.0, 1 x USB 2.0 (Type A)
LVDS/
inverter 1
eDP 1 (Shared with DP0)
VGA 1
Serial 4 x COM (RS-232, COM6 shared with
ccTalk)
SATA 2 x SATA3 (6.0Gb/s)
GPIO 8 x GPI, 8 x GPO (Shared with LPT)
SATA PWR
Output 1
Speaker
Header 1
LPT Header 1
ccTalk 1
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec
Power
Requirements
Input PWR 12V/19V~28V DC-in (DC Jack/ 4-pin ATX
PWR Con.)
Power On
AT/ATX Supported
AT: Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power
input ready
Environment Operating
Temp 0ºC – 60ºC

7
1.3 Motherboard Layout
PCIE1
HDLE D RES ET
PLED P WRB TN
PANE L1
1
Super
I/O
SATA3 _2
SATA3 _1
CLRC MOS2
1
CPU_FAN1
CI2 CI 1
Top:
LAN2
USB 2.0
T: USB2
B: USB3
1
LVDS1
BLT_PW R1
BLT_V OL1
BUZZ1
Line Out
Mic In
SPE AK ER 1
1
IMB-R1000
PNL_ PWR1
LPC 1
1
Industrial
BIOS
ROM
CHA_FAN1
1
LPT _GP IO 1
1
USB3 _PWR 1
1
USB 2H_ PWR 3
USB 2H _2 _3
1
CLRC MOS1
1
Top:
LAN1
USB 3.0
T: USB2
B: USB1
DP0
COM6
1
VGA 1
1
DDR4_A1
SPDI F1
1
M.2 WiFi ( )M2_2
mini-PCIe
DC_JACK1
DP1
COM3 COM4
ATX1 2V1
COM5
1
COM1
1
COM2
1
DDR4_B1
1
HD_AUDIO1
1
USB 2H_ PWR 2
1
USB 2H_ PWR 1
PWR_ BAT1
1
BUZZ 2
1
1
1
1
1
1
1
1
SATA_P WR1
1
1
1
1
1
1
1
1
1
1
CC_TAL K_O UT1
JGPI O_SE T1
CC_TAL K3
CC_TAL K2
BLT_PW M1
JGPI O_PW R1
BL2
BL3
VGA _SE L1
BKT_ PWR1
BL1
BL4
1
SIO_ AT1
USB 2H _0 _1
1
USB 2_ 3
DP3

8
1 : ATX Power Connector
2 : LVDS Panel Connector
* eDP Connector (on the Backside of PCB)
3 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
4 : BL1, BL2
5 : Inverter Power Control Wafer (BLT_PWR1)
6 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)
7 : Panel Power Select (R_LVDD) (PNL_PWR1)
8 : Backlight Control Level (CON_LBKLT_CTL) (BLT_PWM1)
9 : SATA Power Output Connector
10 : COM Port Headers (COM1, 2, 5, 6) (RS232)
11 : Printer Port / GPIO Header (LPT_GPIO1)
12 : Chassis Intrusion Headers (CI1, CI2)
13 : LPC Header
14 : CC_TALK_OUT1, CC_TALK2, CC_TALK3
15 : Digital Input / Output Power Select (JGPIO_SET1)
16 : System Panel Header
17 : Backlight & Amp Volume Control (BLT_VOL1)
19 : VGA_SEL1
20 : Key-E M.2 Socket (M2_2)
21 : CPU FAN Connector (+12V)
22 : Clear CMOS Headers (CLRCMOS1, CLRCMOS2)
23 : PWR_BAT1
24 : Buzzer (BUZZ2)
25 : SATA3 Connectors (SATA3_1, SATA3_2)
26 : Chassis FAN Connector (+12V)
27 : USB 2.0 Headers ( USB2H_0_1, USB2H_2_3 )
USB 2.0 Port (5VSB Only) ( USB2_3)
28 : USB Power Setting Jumpers
USB2H_PWR1 (For USB2H_0_1)
USB2H_PWR2 (For USB2H_2_3)
USB2H_PWR3 (For USB2H_2_3 on rear I/O)
USB3_PWR1 (For USB3_1_2 on rear I/O)
29 : SPDIF Header
30 : 3W Audio AMP Output Wafer
31 : Front Panel Audio Header
32 : VGA Header
33 : ATX/AT Mode Jumper (SIO_AT1)
Back Siode :
Key-M M.2 Socket (M2)

9
1.4 I/O Panel
1 DisplayPort (DP0)
2 Serial Port (COM3)*
3 LAN RJ-45 Port (LAN1)**
4 LAN RJ-45 Port (LAN2)**
5 Front Speaker (Lime)
6 Microphone (Pink)
7 USB 2.0 Ports (USB2H_2_3)
8 USB 3.0 Ports (USB3_1_2)
9 Serial Port (COM4)*
10 DisplayPort (DP3)
11 DisplayPort (DP1)
12 DC Jack (DC_JACK1)***
124
3
5
6
7
8
9
12 10
11
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨NoLinkO󰀨10Mbpsconnection
Blinking Data Activity Yellow 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
* This motherboard supports RS232/422/485 on COM3, 4 ports. Please refer to below table for
thepindenition.Inaddition,COM3,4ports(RS232/422/485)canbeadjustedinBIOSsetup
utility>AdvancedScreen>SuperIOConguration.Youmayrefertopage31fordetails.
COM3, 4 Port Pin Denition
PIN RS232 RS422 RS485
1 DCD, Data Carrier Detect TX- RTX-
2 RXD, Receive Data RX+ N/A
3 TXD, Transmit Data TX+ RTX+
4 DTR, Data Terminal Ready RX- N/A
5 GND GND GND
6 DSR, Data Set Ready N/A N/A
7 RTS, Request To Send N/A N/A
8 CTS, Clear To Send N/A N/A
9 N/A N/A N/A

10
***PleaserefertobelowpicturesforDCjackspecications.

11
Chapter 2: Installation
This is a Mini-ITX form factor motherboard. Before you install the mother-
board,studythe conguration of yourchassistoensurethat the mother-
boardtsintoit.
Pre-installation Precautions
Take note of the following precautions before you install motherboard com-
ponents or change any motherboard settings.
1. Make sure to unplug the power cord before installing or
removing the motherboard. Failure to do so may cause
physical injuries to you and damages to motherboard com-
ponents.
2. In order to avoid damage from static electricity to the moth-
erboard’s components, NEVER place your motherboard
directly on a carpet. Also remember to use a grounded wrist
strap or touch a safety grounded object before you handle
the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any components, place them on a
grounded anti-static pad or in the bag that comes with the
components.
5. When placing screws to secure the motherboard to the
chassis, please do not over-tighten the screws! Doing so
may damage the motherboard.

12
2.1 Installing Memory Modules (DIMM)
This motherboard provides two DDR4 (Double Data Rate 4) SO-DIMM
slots.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM
matches the break on the slot.
TheDIMMonlytsinonecorrectorientation.Itwillcause
permanent damage to the motherboard and the DIMM if you
force the DIMM into the slot at incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both
ends fully snap back in place and the DIMM is properly seated.
notch
break
notch break

13
2.2 Expansion Slots (mini-PCIe, PCI Express and M.2 Slots)
There is 1 PCI Express slot and 1 mini PCI Express slot on this mother-
board.
mini-PCIE Slot: MINI_PCIE1 is used for mini PCIE cards.
PCIE Slot: The x4 lane width PCIE1 (PCIE 3.0 x8 slot) is used for PCI
Express expansion cards.
M.2 Sockets: M.2 (Key E, 2230) Supports PCIe x1 and USB2.0 for
Wireless.
M.2 (Key M, 2242/2260/2280) Supports SATA for SSD.
Key-E M.2 Socket (M2_2) Key-M M.2 Socket (M2)
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
SATA-B+
SATA-B-
SATA-A-
SATA-A+

14
Installing an Expansion Card
Step 1. Before installing an expansion card, please make sure that the
power supply is switched o󰀨 or the power cord is unplugged.
Please read the documentation of the expansion card and make
necessary hardware settings for the card before you start the
installation.
Step 2. Remove the bracket facing the slot that you intend to use. Keep
the screws for later use.
Step3. Alignthecardconnectorwiththeslotandpressrmlyuntilthe
card is completely seated on the slot.
Step 4. Fasten the card to the chassis with screws.

15

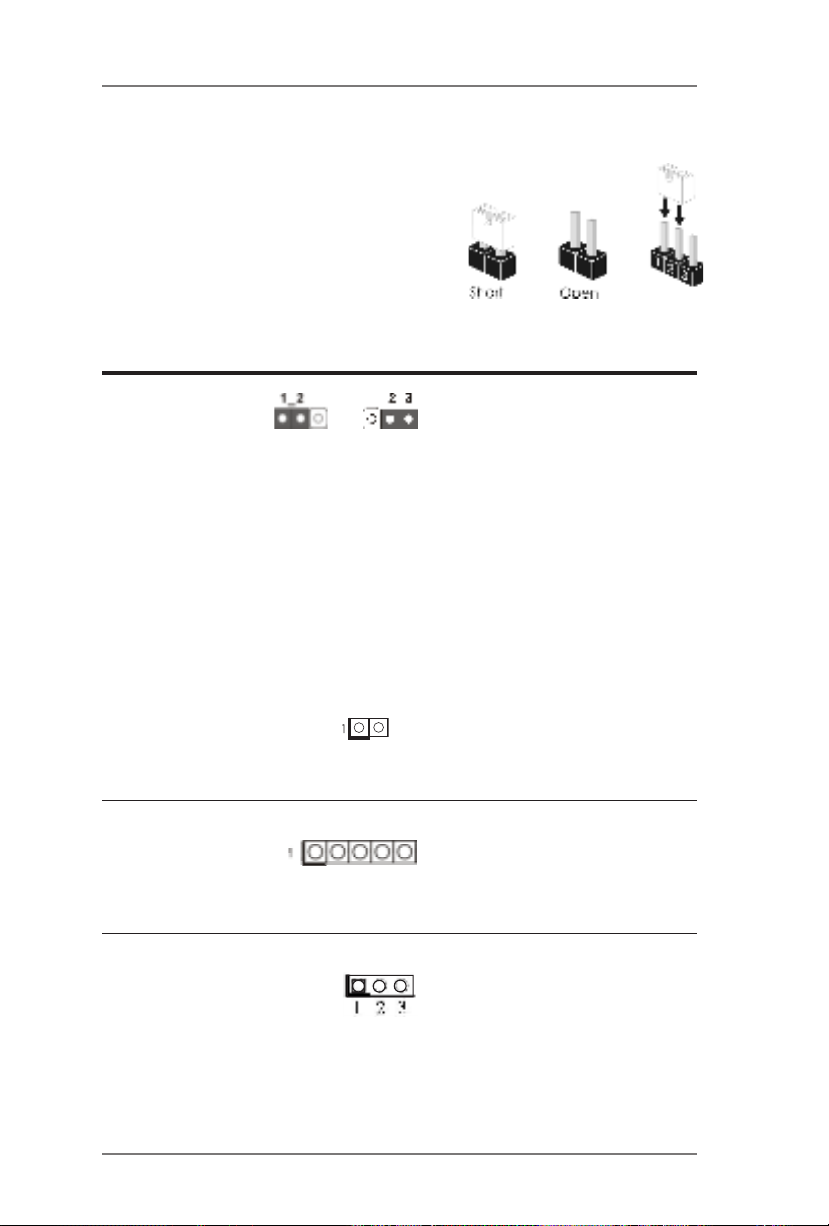

2.3 Jumpers Setup
The illustration shows how jumpers are setup.
When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap is
placed on pins, the jumper is “Open”. The illus-
tration shows a 3-pin jumper whose pin1 and
pin2 are “Short” when jumper cap is placed on
these 2 pins.
Jumper Setting Description
Clear CMOS Jumpers
CLRCMOS1
:
(3-pin CLRCMOS1)
1-2 : Normal
(see p.7, No. 22)
2-3 : Clear CMOS
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
 systemparameterstodefaultsetup,pleaseturno󰀨thecomputerandunplugthe
power cord from the power supply. After waiting for 15 seconds, use a jumper
cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not
clear the CMOS right after you update the BIOS. If you need to clear the CMOS
when you just nish updating the BIOS, you must boot up the system rst, and
then shut it down before you do the clear-CMOS action. Please be noted that the
password,date,time,userdefaultproleandMACaddresswillbeclearedonlyif
the CMOS battery is removed.
(2-pin CLRCMOS2)
CLRCMOS2
:
(see p.7, No. 22)
Open : Normal
Short:AutoClearCMOS(PowerO󰀨)
Digital Input / Output Power Select (JGPIOPWR) 1-2 : +12V
(5-pin JGPIO_PWR1)
2-3 : +5V
(see p.7, No. 6)
3-4 : +5V
4-5 : GND
Digital Input / Output Power Select 1-2 : Pull-High
(3-pin JGPIO_SET1)
2-3 : Pull-Low
(see p.7, No. 15)
Clear CMOSDefault

16
Backlight Power Select (LCD_BLT_VCC) 1-2 : LCD_BLT_VCC : +5V
(5-pin BKT_PWR1)
2-3 : LCD_BLT_VCC : +12V
(see p.7, No. 3)
4-5 : LCD_BLT_VCC : DC_IN
BL1, BL2
(2-pin BL1)
Open : Protect LCD_BLT_VCC
(see p.7 No. 4) Short : No Protect LCD_BLT_VCC
(2-pin BL2)
Open : Protect R_LVDD
(see p.7 No. 4) Short : No Protect R_LVDD
Panel Power Select (R_LVDD) 1-2 : R_LVDD: +3V
(5-pin PNL_PWR1)
2-3 : R_LVDD: +5V
(see p.7, No. 7)
4-5 : R_LVDD: +12V
PWR_BAT1 Open : Normal
(2-pin PWR_BAT1)
Close : Charge Battery
(see p.7, No. 23)
Backlight Control Level (CON_LBKLT_CTL) 1-2 : From eDP PWM to
(3-pin BLT_PWM1)
CON_LBKLT_CTL (+3V)
(see p.7, No. 8)
2-3 : From LVDS PWM to
CON_LBKLT_CTL (+5V)
Chassis Intrusion Headers This motherboard supports
(2-pin CI1: see p.7, No. 12) CASE OPEN detection feature
(2-pin CI2: see p.7, No. 12) that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
CI1 :
Close : Active Case Open
Open : Normal
CI2 :
Close : Normal
Open : Active Case Open
1
Signal
GND

17
CC_TALK_OUT1
(2-pin CC_TALK_OUT1)
(see p.7, No. 14)
CC_TALK2, CC_TALK3 1-2 : CCTALK
(3-pin CC_TALK2, CC_TALK3)
2-3 : COMF
(see p.7, No. 14)
VGA_SEL1 1-2 : DP3
(3-pin VGA_SEL1)
2-3 : VGA1
(see p.7, No. 19)
USB Power Setting Jumpers 1-2 : +5V
(3-pin USB2H_PWR1 (For USB2H_0_1))
2-3 : +5VSB
(3-pin USB2H_PWR2 (For USB2H_2_3))
(3-pin USB2H_PWR3 (For USB2H_2_3 on rear I/O))
(3-pin USB3_PWR1 (For USB3_1_2 on rear I/O))
(see p.7, No. 28)
ATX/AT Mode Jumper Open : ATX Mode
(2-pin SIO_AT1)
Short : AT Mode
(see p.7, No. 33)
1
Signal
GND
Signal
GND

18

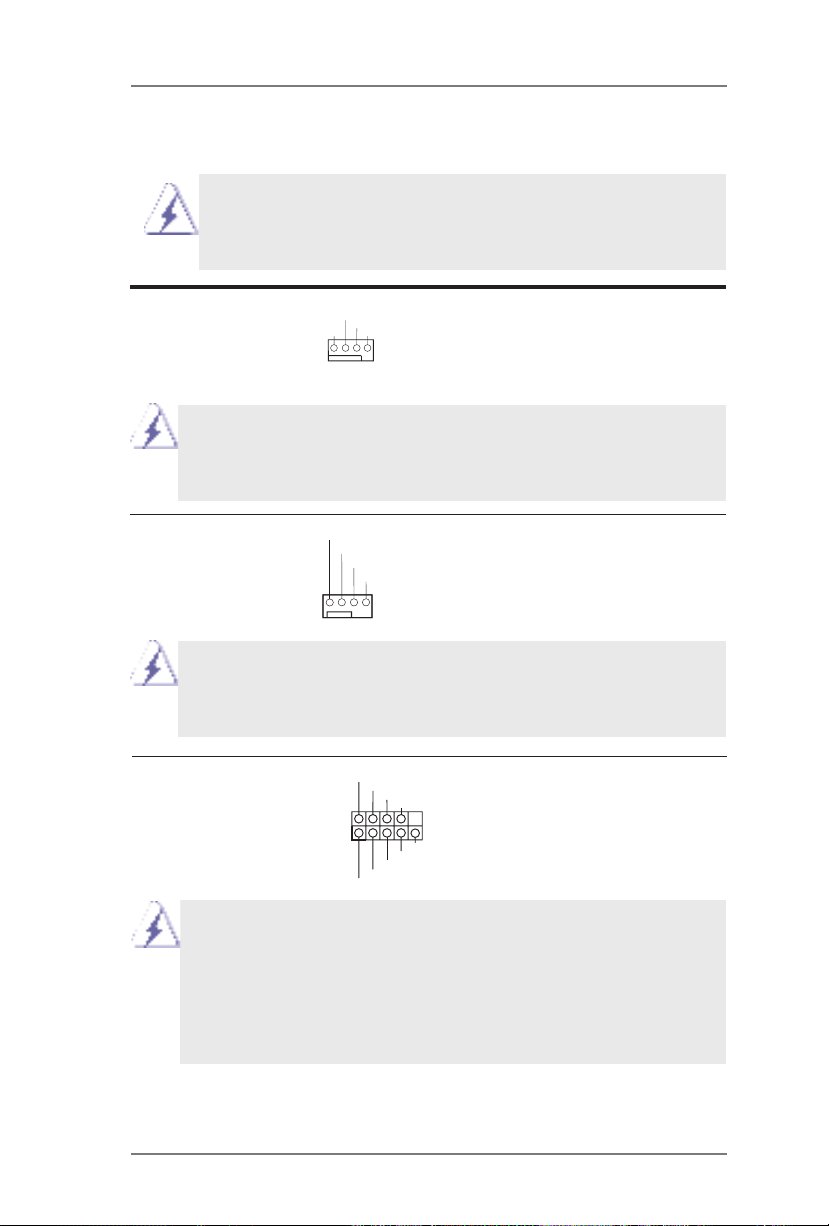

2.4 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.7 No. 21) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even with the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.7, No. 16) functions.
Chassis Fan Connector Please connect the chassis fan
(4-pin CHA_FAN1) cable to the connector and
(see p.7 No. 26) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin chassis fan (Quiet Fan) support,
the 3-Pin chassis fan still can work successfully even with the fan speed
control function. If you plan to connect the 3-Pin chassis fan to the chassis
fan connector on this motherboard, please connect it to Pin 1-3.
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
 Connecttothepowerswitchonthechassisfrontpanel.Youmaycongure
thewaytoturno󰀨yoursystemusingthepowerswitch.
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4

19
COM Port Headers (RS232)
(10-pin COM1, 2, 5, 6: see p.7, No. 10)
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
temisinS1/S3sleepstate.TheLEDiso󰀨whenthesystemisinS4sleep
stateorpoweredo󰀨(S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
 Thefrontpaneldesignmaydi󰀨erbychassis.Afrontpanelmodulemainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
USB 2.0 Headers There are two headers and one
(9-pin USB2H_0_1, USB2H_2_3) port on this motherboard.
(see p.7, No. 27)
1
2
PIN Signal
Name PIN Signal
Name PIN Signal
Name PIN Signal
Name PIN Signal
Name
8CCTS# 6DDSR# 4DDTR# 2RRXD
9NA 7RRTS# 5GND 3TTXD 1DDCD#
DUMMY
GND
GND
+B
-B
USB_PWR
+A
-A
USB_PWR
1
Buzzer
(2-pin BUZZ2)
(see p.7 No. 24)
SATA3 Connectors These two Serial ATA3 (SATA3)
(SATA3_1~2: see p.7, No. 25) connectors support SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
SATA3_2
SATA3_1

20
J_SENS E
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
NA
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.7 No.30)
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.7 No. 31) convenient connection and
control of audio devices.
 1.HighDenitionAudiosupportsJackSensing,butthepanelwireon
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
4
2
3
1
ATX Power Connector Please connect a DC
(4-pin ATX12V1) power supply to this
(see p.7 No. 1) connector.
1-2 : GND
3-4 : DC Input
(USB 2.0 Port (USB2_3) (5VSB Only))
(see p.7, No. 27)
1
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name
4OUTRN 3OUTRP 2OUTLP 1OUTLN
SATA Power Connector Please connect a SATA
(SATA_PWR1) power cable to this connector.
(see p.7 No. 9)
GND
+5V
+12V
1
GND
