IMB-1006
User Manual
Version 1.2
Updated July 11, 2023
Copyright©2023 ASRockInd INC. All rights reserved.

Version 1.0
Published May, 2023
Copyright©2023 ASRockInd INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockInd Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished
for informational use only and subject to change without notice, and should
not be constructed as a commitment by ASRockInd. ASRockInd assumes no
responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockInd does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockInd, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRockInd has been advised of the possibility of such damages arising
from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

WARNING
THIS PRODUCT CONTAINS A BUTTON BATTERY
If swallowed, a button battery can cause serious injury or death.
Please keep batteries out of sight or reach of children.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
AUSTR ALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRockInd
Tel : [phone] ext.123 (Standard International call charges apply)
ASRockInd INC. hereby declares that this device is in compliance with the essential re-
quirements and other relevant provisions of related UKCA Directives. Full text of UKCA
declaration of conformity is available at: http://www.asrockind.com
ASRockInd INC. hereby declares that this device is in compliance with the essential re-
quirements and other relevant provisions of related Directives. Full text of EU declaration
of conformity is available at: http://www.asrockind.com
ASRockInd follows the green design concept to design and manufacture our products,
and
makes sure that each stage of the product life cycle of ASRockInd product is in line with
global
environmental regulations. In addition, ASRockInd disclose the relevant information
based on regulation requirements.
Please refer to https://www.asrockind.com/general/about.asp?cat=Responsibility for in-
formation disclosure based on regulation requirements ASRockInd is complied with.
DO NOT throw the motherboard in municipal waste. is product has been
designed to enable proper reuse of parts and recycling. This symbol of the
crossed out wheeled bin indicates that the product (electrical and electronic
equipment) should not be placed in municipal waste. Check local regulations
for disposal of electronic products.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 4

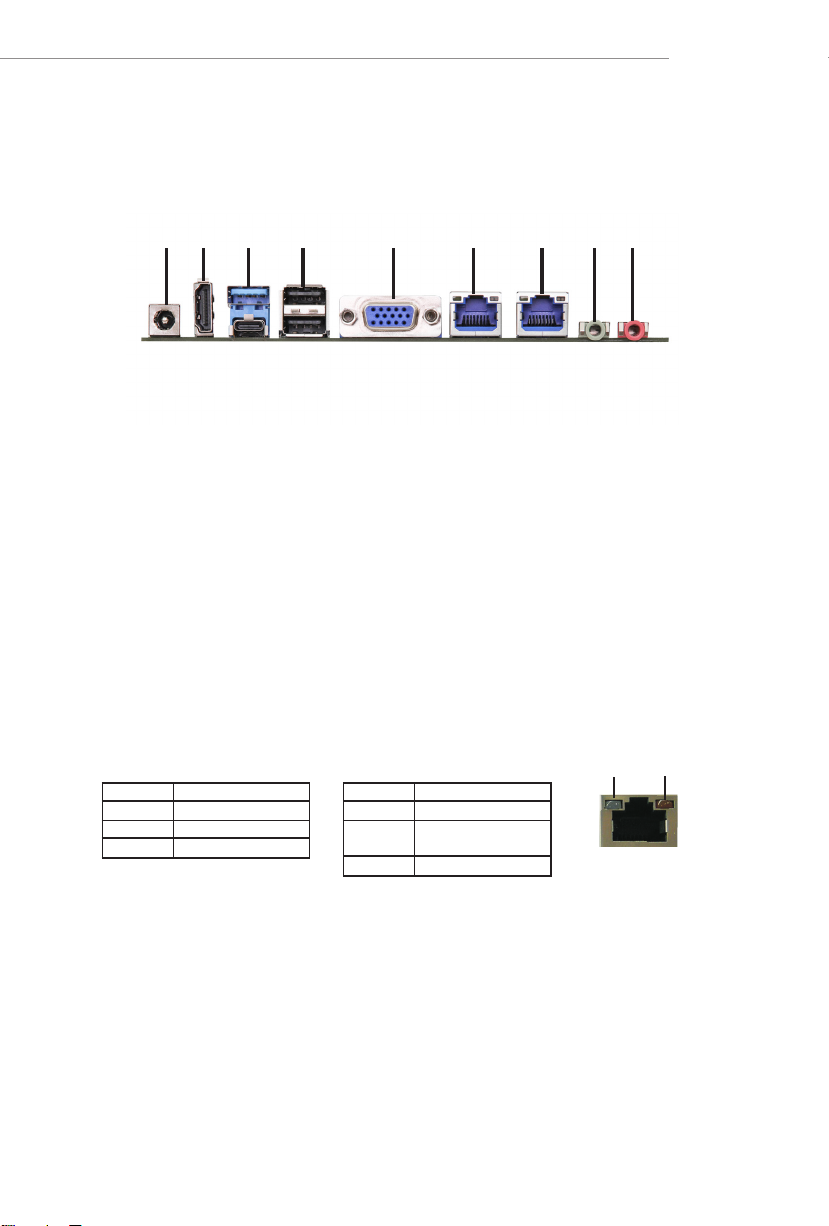

1.4 I/O Panel 7
1.5 Block Diagram 8
Chapter 2 Installation 9
2.1 Screw Holes 9
2.2 Pre-installation Precautions 9

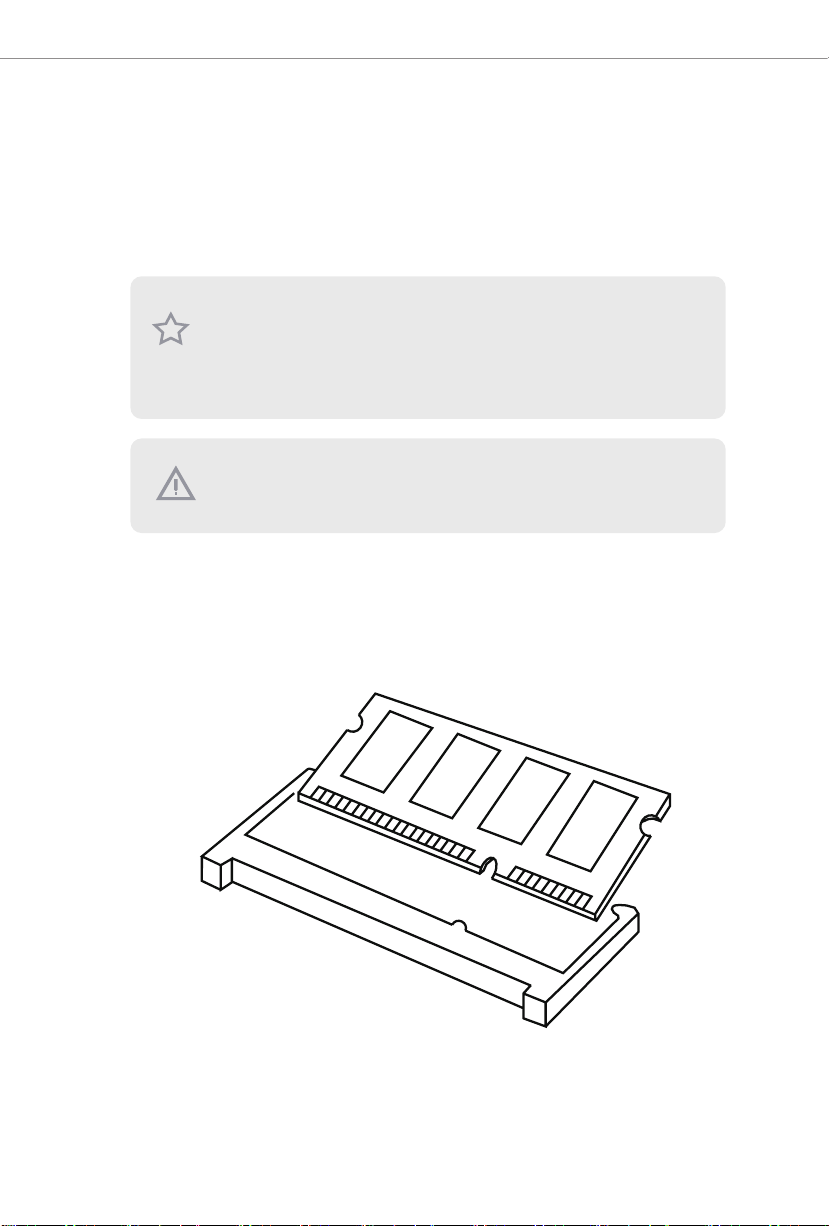

2.3 Installation of Memory Modules 10
2.4 Expansion Slots 11
2.5 Jumpers Setup 12

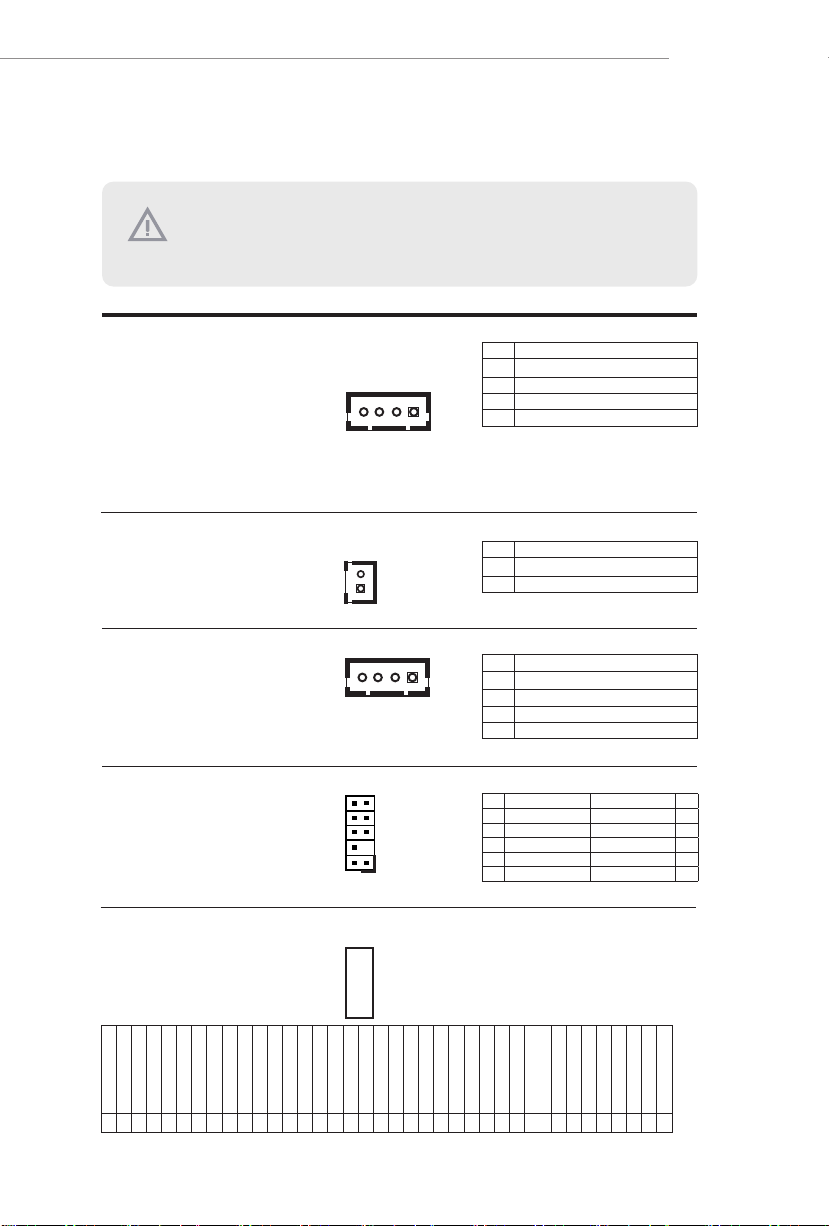

2.6 Onboard Headers and Connectors 15
Chapter 3 UEFI SETUP UTILITY 22
3.1 Introduction 22
3.1.1 Entering BIOS Setup 22
3.1.2 UEFI Menu Bar 23
3.1.3 Navigation Keys 24
3.2 Main Screen (Advanced Mode) 25
3.3 Advanced Screen 26
3.3.1 CPU Conguration 27
3.3.2 Chipset Conguration 30

3.3.3 Storage Conguration 32
3.3.4 Super IO Conguration 34
3.3.5 ACPI Conguration 35
3.3.6 USB Conguration 36
3.3.7 Trusted Computing 37
3.4 Hardware Health Event Monitoring Screen 39
3.5 Security Screen 40
3.6 Boot Screen 42
3.7 Exit Screen 43

1
IMB-1006
Chapter 1 Introduction
Thank you for purchasing ASRockInd IMB-1006 motherboard, a reliable mother-
board produced under ASRockInd’s consistently stringent quality control. It delivers
excellent performance with robust design conforming to ASRockInd’s commitment to
quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-
step guide to the hardware installation. Chapter 3 contains the conguration guide to
BIOS setup.
Because the motherboard specications and the BIOS soware might be updated, the
content of this manual will be subject to change without notice. In case any modica-
tions of this manual occur, the updated version will be available on ASRockInd website
without further notice. You may nd the latest CPU support lists on ASRockInd web-
site as well.
ASRockInd website https://www.asrockind.com/
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
https://www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd IMB-1006 Motherboard (Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x
17.0 cm x 3.8 cm))

2
1.2 Specications
Form Factor Dimensions Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8
cm)
Processor
System
CPU
Intel® Alder Lake-N SoC Processors
IMB-1006J (N97, QC, Max Speed Up to 3.6GHz, 12W)
*For other CPU SKUs request, please contact regional Sales
for availability
Chipset SoC
BIOS AMI SPI 256 Mbit
Memory
Technology Single Channel DDR4 3200 MHz
Capacity 16GB
Socket 1 x 260-pin SO-DIMM
Graphics
Controller Intel® UHD Graphics
HDMI HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
DisplayPort DisplayPort 1.4a
Max resolution up to 4096 x 2160@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz
(connector shared with eDP)
eDP Max resolution up to 1920 x 1080@60Hz
(connector shared with LVDS)
Multi Display Triple display (included 1 output from Type-C)
Expansion
Slot
PCIe 1 x PCIex1 (Gen3)
M.2
1 x M.2 (Key E, 2230) with PCIex1 ,USB 2.0 and CNVi for
Wireless
1 x M.2 (Key B, 3042/3052) with PCIex1, USB 3.2 Gen1,
USB 2.0 and SIM for 4G/5G
SIM Socket 1 x SIM socket connected to M.2 key B
Audio Interface Interface Realtek ALC662/ALC897 HD, High Denition
Audio. Mic-in, Line-out
Ethernet
Controller/
Speed
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Controller 2 x RJ-45
Rear I/O
HDMI 1 x HDMI2.0b
DisplayPort 1 x DP1.4a
VGA 1
Ethernet 2 x 2.5 Gigabit LAN
USB
1 x USB 3.2 Gen2 (Type-C, 5V/3A, supports DP1.4a display
output)
1 x USB 3.2 Gen1
2 x USB 2.0
Audio 2 (Mic-In, Line-Out)
DC Jack 1

3
IMB-1006
Internal
Connector
USB
3 x USB 3.2 Gen1 (1 x USB 3.2 header, 1 x USB 3.2
Gen1 Type-A vertical connector)
4 x USB 2.0 (2x2.54 pitch header)
COM COM1, COM2 (RS-232/422/485)
COM3, COM4 (RS-232/TTL-5V)
GPIO 4 x GPI, 4 x GPO
TPM TPM Header
LVDS 1 (Connector with LVDS/eDP signal, switch by BIOS)
VGA 1
SATA PWR
Output 1
Speaker Header 1
MIPI Camera
Header 1 (optional)
Storage M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3x1
or SATA3 and USB 2.0 for SSD
SATA 1 x SATA3 (6Gb/s)
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255 Sec
Power
Requirements
Input PWR 12~28V DC-In with 4-pin wafer PWR cable or DC
Jack
Power On
AT/ATX Supported
-AT: Directly PWR on as power input ready
-ATX: Press button to PWR on aer power input ready
Environment
Operating
Temp -20ºC - 70ºC
Storage Temp -40ºC - 85ºC
Operating
Humidity 5% - 90%
Storage
Humidity 5% - 90%

4
1.3 Motherboard Layout
TO_UPS1
1
1
FROM_UPS1
Industrial
RoHS
SPDIF1
1
SPEAKER1
DACC1
BUZZ2
BUZZ1
M2_M1
1
HD_AUDIO1
IMB-1006
M2_B1
SIM1
ESPI1
1
USB3H_2
1
1
USB3H_3_4
SMBUS_TEST1
PCIE1
COM4 COM2
COM1COM3
DDR4_ 1A
1
LVDS1
1
BLT_PWM2
BKT_PWR1
1
PNL_PWR1
1
1
1
BLT_VOL1
BLT_PWR1
CHA_FAN1
1
PANEL1
HDLED RESET
PLED PWRBTN
CLRMOS1
1
Cl2
JGPIO1
COM4_RX_SEL1COM4_TX_SEL1COM3_RX_SEL1COM3_TX_SEL1
PWR_COM4 PWR_COM3 PWR_COM2 PWR_COM1
M2_E1
BIOS
ROM
SPI_TPM1
1
1
USB2H_3_4
1
PWR_ADAPTER1
1
1
USB2H_1_2
VGA2
1
1
Line Out
Mic In
1
1
1
11
1
13 24
11
5
6
10
14
12
13
7
8
9
16
18
15
19
20
21
22
26
28
29 30
3234 33 31 35
37
36
38
39
41
42
17
40
23
2425
27
DC_JACK1
HDMI1
T : USB3H_1
B : TC_U3D_0
USB 2.0
T : USB2_7
B : USB2_6
VGA1
LAN1
LAN2
1
PWR_BAT2
1
JGPIO_PWR1
BLT_PWM1
SIO_AT1
1
BAT1
1
1
1
1
CPU_FAN1
SATA_PWR1
MIPI1
SATA 13_
1
1
1
1
11
11
11
1111 1 1
1
1
JGPIO_SET1
Cl1

5
IMB-1006
1 : 4-pin DC-in PWR Connector (Input +12V~+28V) & UPS Module Power
Output Connector (FROM_UPS1)
2 : 2-pin UPS Module Power Input Connector (TO_UPS1)
3 : M.2 Key-E Socket (M2_E1)
4 : PWR_ADAPTER1
5 : SPI_TPM Header (SPI_TPM1)
6 : MIPI Connector (MIPI1)
7 : CPU FAN Connector (+12V) (CPU_FAN1)
8 : SATA3 Connector (SATA3_1)
9 : SATA Power Output Connector (SATA_PWR1)
10 : USB 3.2 Gen1 Connector (Type A) (USB3H_2)
11 : ESPI Header (ESPI1)
12 : CON_LBKLT_CTL Voltage Level (BLT_PWM2)
13 : Brightness Control Mode (BLT_PWM1)
14 : LVDS Panel Connector (LVDS1)
15 : Backlight Power Connector (BLT_PWR1)
16 : Backlight Volume Control (BLT_VOL1)
17 : eDP and LVDS Panel Power Select (LCD_VCC) (PNL_PWR1)
18 : System Panel Header (PANEL1)
19 : Clear CMOS Header (CLRMOS1)
20 : eDP and LVDS Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
21 : 4-pin Chassis FAN Connector (+12V) (CHA_FAN1)
22 : COM3, COM4 TX RX Selection Header
(From le to right)
COM4_RX_SEL1
COM4_TX_SEL1
COM3_RX_SEL1
COM3_TX_SEL1
23 : COM Port PWR Setting Headers (PWR_COM1~4)
24 : Digital Input / Output Power Select (JGPIO_PWR) (JGPIO_PWR1)
25 : Chassis Intrusion Headers (CI1, CI2)
26 : Digital Input / Output Default Value Setting (JGPIO_SET1)
27 : ATX/AT Mode Jumper (SIO_AT1)
28 : USB 3.2 Gen1 Connector (USB3H_3_4)
29 : Internal COM Port Headers
COM1, 2 (RS232/422/485)
COM3, 4 (RS232)
30 : Digital Input/Output Pin Header (JGPIO1)
31 : M.2 Key-B Socket (M2_B1)
32 : SMB_TEST1 (SMBUS_TEST1)
33 : M.2 Key-M Socket (M2_M1)

6
34 : DACC Jumper (DACC1)
35 : Buzzer Header (BUZZ2)
36 : 3W Audio AMP Output Wafer (SPEAKER1)
37 : SPDIF Header (SPDIF1)
38 : Front Panel Audio Header (HD_AUDIO1)
39 : Battery Connector (BAT1)
40 : PWR_BAT2
41 : VGA Header (VGA2)
42 : USB 2.0 Headers (USB2H_1~4)

7
IMB-1006
1.4 I/O Panel
1 DC Jack (DC_JACK1)
2 HDMI Port (HDMI1)
3 Top : USB 3.2 Gen1 Port (USB3H_1)
Bottom : USB 3.2 Gen2 Type-C Port
(TC_U3D_0)
4 Top : USB 2.0 Port (USB2_7)
Bottom : USB 2.0 Port (USB2_6)
5 D-Sub Port (VGA1)
6 RJ45 LAN Port (LAN1)*
7 RJ45 LAN Port (LAN2)*
8 Audio Output : Green – Line Out
9 Audio Output : Pink – Mic In
23
14 5 6789
Activity/Link LED SPEED LED
* ere are two LEDs next to the LAN ports. Please refer to the table below for the LAN
port LED indications.
LAN Port LED Indications
Status Description
O No Link
Blinking Data Activity
On Link
Status Description
O 10Mbps connection
Orange 100/1000Mbps connec-
tion
Green 2.5Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port

8
1.5 Block Diagram
Intel
Alder Lake-N
FCBGA 1493
Package(35*24mm)
IMB-1006
DDI
Chrontel
CH7513
LVDS/
eDP
LVDS/By
pass mode
DDI
ITE
IT66318FN
HDMI
HDMI
Connector
SO-DIMM
Channel A
DDR4
3200MHz
SATA Port
SATA
TCP
Type-C
Connector 1x USB2.0
VGA
Connector
Realtek
RTD2168
TCP
VGA
ASMEDIA
ASM1074
USB3.2
Gen2
USB2.0
1x USB3.2 Gen1
Connector
1x USB3.2 Gen1
Internal
Connector
2x USB3.2 Gen1
Header
1x USB3.2 Gen1
2x USB3.2 Gen1
1x
USB3.2
Gen1
2x USB2.0
Connector
2x USB2.0
Realtek
RTL8125BG
2x USB2.0
Connector
Realtek
RTL8125BG
PCIe x1
2.5G
2.5G
2x USB2.0
Connector
PCIe x1
Realtek
ALC897/
ALC662
HDA
Line In/Line
Out
Mic In
SPDIF
Front Audio
Realtek
ALC122
Speaker
M.2 Key E
PCIe x1
CNVi
USB2.0
M.2 Key B
PCIe x1
USB3.2 Gen2
USB2.0
M.2 Key M
PCIe x1/SATA
USB2.0
PCIe x1 Slot
PCIe x1
SIM SIM Card
2x USB2.0
Header
2x USB2.0
Header
Genesys
GL852G
USB2.0 USB2.0
USB2.0
BIOS
SPI
TPM
Header
SPI
SMBUS NUVOTON
NUC121ZC2AE
MIPI-CSI-2
Connector
CSI-2
NUVOTON
NCT6126D
FAN CPU FAN x1
CHA FAN x1
UART x2
COM Port x2
RS232/422/485
COM Port x2
RS232 Only
UART x2
GPIO
DGPI
Header
eSPI
eSPI
Header
GPIO x4

9
IMB-1006
Chapter 2 Installation
is is a Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm) form factor
motherboard. Before you install the motherboard, study the configuration of your
chassis to ensure that the motherboard ts into it.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components or
change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity, NEV-
ER place your motherboard directly on the carpet or the like. Also remember to
use a grounded wrist strap or touch a safety grounded object before you handle
components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
5. Heatsink (e thermal solution of whole system needs to be designed addition-
ally.)
Make sure to unplug the power cord before installing or removing the motherboard. Failure to
do so may cause physical injuries to you and damages to motherboard components.
Do not over-tighten the screws! Doing so may damage the motherboard.
Before you install or remove any component, ensure that the power is switched o or the
power cord is detached from the power supply. Failure to do so may cause severe damage to
the motherboard, peripherals, and/or components.

10
2.3 Installation of Memory Modules
IMB-1006 provides one 260-pin DDR4 (Double Data Rate 4) SO-DIMM slots, and
supports single Channel Memory Technology.
e DIMM only ts in one correct orientation. It will cause permanent damage to the moth-
erboard and the DIMM if you force the DIMM into the slot in the incorrect orientation.
Installing a SO-DIMM
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.
1. Please make sure to disconnect the power supply before adding or removing SO-
DIMMs or the system components.
2. It is not allowed to install a DDR, DDR2, or DDR3 memory module into a DDR4 slot;
otherwise, this motherboard and DIMM may be damaged.

11
IMB-1006
2.4 Expansion Slots
ere are 1 PCI Express Gen3 slot, 3 M.2 sockets and 1 SIM socket on this motherboard.
PCIE slot: PCIE1 (PCIe x1 slot) is used for PCIe Gen3 x1 lane width card.
M.2 sockets: 1 x M.2 (Key E, 2230) with PCIex1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIex1, USB 3.2 Gen1, USB 2.0 and SIM for
4G/5G
1 x M.2 (KeyM, 2242/2260/2280) with PCIe Gen3x1 or SATA3 and USB 2.0 for
SSD
SIM socket: 1x SIM socket connected to M.2 key B
Pin Signal Name Signal Name Pin
1 GND +3.3V 2
3 USB_D+ +3.3V 4
5 USB_D- NA 6
7 GND NA 8
9 CNV_WGR_D1- CNV_RF_
RESET 10
11 CNV_WGR_
D1+ NA 12
13 GND MODEM_
CLKREQ 14
15 CNV_WGR_D0- NA 16
17 CNV_WGR_
D0+ GND 18
19 GND NA 20
21 CNV_WGR_
CLK- CNV_BRI_RSP 22
23 CNV_WGR_
CLK+
33 GND CNV_BGI_DT 32
35 PE Tp CNV_RGI_RSP 34
37 PETn CNV_BRI_DT 36
39 GND NA 38
41 PERp NA 40
43 PERn NA 42
45 GND NA 44
47 PEFCLKp NA 46
49 PEFCLKn NA 48
51 GND SUSCLK 50
53 CLKREQ# PERST0# 52
55 NA W_DISABLE1# 54
57 GND W_DISABLE2# 56
59 CNV_WT_D1- SMB_DATA 58
61 CNV_WT_D1+ SMB_CLK 60
63 GND NA 62
65 CNV_WT_D0- NA 64
67 CNV_WT_D0+ NA 66
69 GND NA 68
71 CNV_WT_CLK- NA 70
73 CNV_WT_
CLK+ +3.3V 72
75 GND +3.3V 74
M.2 Key-M Socket
(M2_M1)
M.2 Key-E Socket
(M2_E1)
M.2 Key-B Socket
(M2_B1)
Pin Signal Name Signal Name Pin
1NA +3.3V 2
3 GND +3.3V 4
5 GND FULL_Card_
Power_o 6
7 USB_D+ W_DISABLE1# 8
9 USB_D- WWAN_LED# 10
11 GND
NA 20
21 GND NA 22
23 NA NA 24
25 NA W_DISABLE2# 26
27 GND NA 28
29 USB3_RX- UIM_RESET 30
31 USB3_RX+ UIM_CLK 32
33 GND UIM_DATA 34
35 USB3_TX- UIM_PWR 36
37 USB3_TX+ NA 38
39 GND NA 40
41 PERn0 NA 42
43 PERp0 NA 44
45 GND NA 46
47 PETn0 NA 48
49 PETp0 PERST# 50
51 GND CLKREQ# 52
53 PEFCLKn WAKE# 54
55 PEFCLKp NA 56
57 GND NA 58
59 NA NA 60
61 NA NA 62
63 NA NA 64
65 NA NA 66
67 NA NA 68
69 PEDET +3.3V 70
71 GND +3.3V 72
73 GND +3.3V 74
75 NA
Pin Signal Name Signal Name Pin
1 GND +3.3V 2
3 GND +3.3V 4
5NA NA 6
7NA NA 8
9 GND SATA_LED 10
11 NA +3.3V 12
13 NA +3.3V 14
15 GND +3.3V 16
17 NA +3.3V 18
19 NA NA 20
21 GND NA 22
23 NA NA 24
25 PE Tp2 NA 26
27 GND NA 28
29 NA NA 30
31 NA GND 32
33 GND USB_D+ 34
35 NA USB_D- 36
37 NA NA 38
39 GND NA 40
41 PERn0 /
SATA-B+ NA 42
43 PERp0 /
SATA-B- NA 44
45 GND NA 46
47 PETn0 /
SATA-A- NA 48
49 PETp0 /
SATA-A+ PERST# 50
51 GND CLKREQ# 52
53 PEFCLKn WAKE# 54
55 PEFCLKp NA 56
57 GND NA 58
67 NA NA 68
69 PEDET +3.3V 70
71 GND +3.3V 72
73 GND +3.3V 74
75 GND

12
2.5 Jumpers Setup
The illustration shows how jumpers are setup.
When the jumper cap is placed on pins, the
jumper is “Short.” If no jumper cap is placed
on pins, the jumper is “Open.” The illustration
shows a 3-pin jumper whose pin1 and pin2 are
“Short” when jumper cap is placed on these 2
pins.
Jumper Setting Description
Clear CMOS Header
(3-pin CLRMOS1)
(see p. 4, No. 19)
NOTE: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system param-
eters to default setup, please turn o the computer and unplug the power cord from the power
Setting Description
1-2 Normal (Default)
2-3 Clear CMOS
CON_LBKLT_CTL Voltage Level
(3-pin BLT_PWM2)
(see p. 4, No. 12)
Brightness Control Mode
(3-pin BLT_PWM1)
(see p. 4, No. 13)
Note: Please set to 1-2 when adjusting brightness by Brightness Control bar under OS.
Please set to 2-3 when adjusting brightness by BLT_VOL1.
eDP and LVDS Panel Power Select (LCD_VCC)
(5-pin PNL_PWR1)
(see p. 4,No. 17)
Use this to set up the VDD power of the LVDS connector.
1
1 5
Setting Description
1-2 LCD_VCC: +3V
(Default)
2-3 LCD_VCC: +5V
4-5 LCD_VCC: +12V
Setting Description
1-2 From eDP PWM to
CON_LBKLT_CTL
2-3 From LVDS PWM to
CON_LBKLT_CTL
(Default)
Setting Description
1-2 +3V (Default)
2-3 +5V
1 3
1 3
1 5
1 3

13
IMB-1006
supply. Aer waiting for 15 seconds, use a jumper cap to short pin 2 and pin 3 on CLRMOS1
for 5 seconds. However, please do not clear the CMOS right aer you update the BIOS. If you
need to clear the CMOS when you just nish updating the BIOS, you must boot up the system
rst, and then shut it down before you do the clear-CMOS action. Please be noted that the
date, time, user default prole will be cleared only if the CMOS battery is removed.

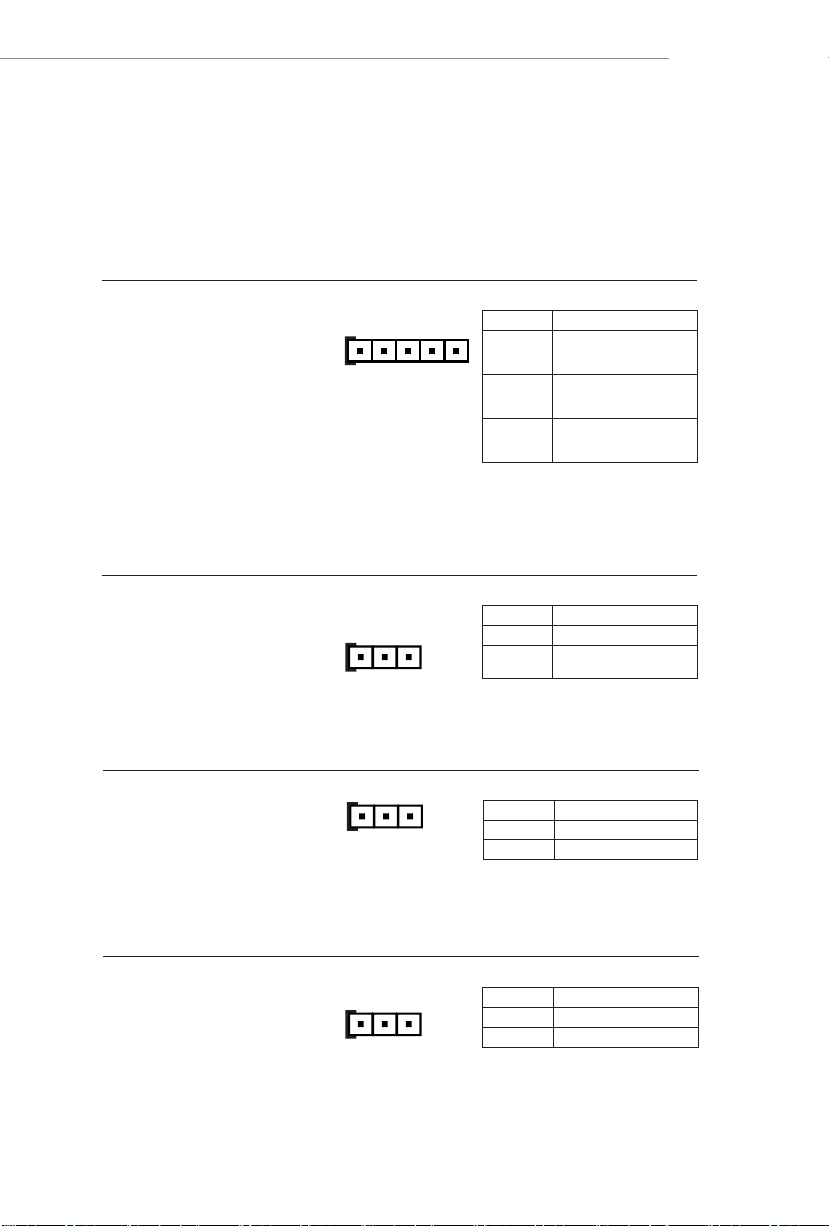

eDP and LVDS Backlight Power Select (LCD_BLT_VCC)
(5-pin BKT_PWR1)
(see p. 4,No. 20)
Use this to set up the backlight power of the LVDS connector and the panel backlight power
of BLT_PWM1.
Setting Description
1-2 LCD_BLT_VCC: +5V
(Default)
2-3 LCD_BLT_VCC:
+12V
4-5 LCD_BLT_VCC:
DC Input
COM3, COM4 TX RX Selection Headers
(from le to right: 3-pin
COM4_RX_SEL1
COM4_TX_SEL1
COM3_RX_SEL1
COM3_TX_SEL1)
(see p. 4,No. 22)
Setting Description
1-2 TTL: 0V~5V
2-3 -5V~+5V (RS-232)
(Default)
COM Port PWR Setting Headers
(3-pin PWR_COM1~4 (For COM Port1~4))
(see p. 4,No. 23)
e maximum current for per port is 1A, and the power supply is either 5V or 12V. Use the
jumper to set the power for COM port pin 9.
Setting Description
1-2 +5V (Default)
2-3 +12V
1 5
1 3
1 3
Digital Input / Output Power Select (JGPIO_PWR)
(3-pin JGPIO_PWR1)
(see p. 4,No. 24)
Setting Description
1-2 +12V
2-3 +5V (Default)
1 3

14
Digital Input / Output Default Value Setting
(3-pin JGPIO_SET1)
(see p. 4, No. 26)
e header is used for GPIO default value setting for either pull high or pull low. Pulling the
header to a high/low value means the voltage is anchored to VCC/GND, in a stable, non-
oating state.
DACC Jumper
(2-pin DACC1)
(see p. 4, No. 34)
*Auto clear CMOS when system boot improperly.
Setting Description
1-2 Pull-High (Default)
2-3 Pull-Low
Setting Description
Open Normal
Short
Auto Clear CMOS
(Power o) (Default)
ATX/AT Mode Jumper
(2-pin SIO_AT1)
(see p. 4, No. 27)
e header provides auto boot function when AC power on. If you need the function,
short SIO_AT1 pin 1 and pin 2.
Chassis Intrusion Headers
(2-pin CI1, CI2)
(see p. 4, No. 25)
is motherboard supports CASE OPEN detection feature that detects if the chassis cover has
been removed. is feature requires a chassis with chassis intrusion detection design.
Setting Description
Open ATX Mode (Default)
Short AT Mode
C I1
Setting Description
Close Active Case Open
Open Normal (Default)
C I2
Setting Description
Close Normal (Default)
Open Active Case Open
PWR_BAT2
(2-pin PWR_BAT2)
(see p. 4, No. 40)
* Only supported by chargeable battery.
Setting Description
Open Normal (Default)
Short Charge Battery
1 2
1 2
1 3
1 2
1 2
1 2
1 2
1 2
1 2

15
IMB-1006
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
headers and connectors. Placing jumper caps over the headers and connectors will cause per-
manent damage to the motherboard!
4-pin DC-in PWR Connector
& UPS Module Power Output Connector
(Input +12V~+28V)
(4-pin FROM_UPS1)
(see p. 4, No. 1)
Please connect a DC +12V~+28V power supply to this connector.
Pin Signal Name
1 GND
2DC Input
3DC Input
4 GND
2-pin UPS Module Power Input Connector
(2-pin TO_UPS1)
(see p. 4, No. 2)
Pin Signal Name
1 GND
2DC Input
PWR_ADAPTER1
(4-pin PWR_ADAPTER1)
(see p. 4, No. 4)
Pin Signal Name
1 GND
2 5VA_CONTROL
35 VA
4GND
SPI_TPM Header
(9-pin SPI_TPM1)
(see p. 4, No. 5)
Pin Signal Name Signal Name Pin
1 TPM PWR RST# 2
3 CS# 4
5 IRA MOSI 6
7 MISO GND 8
9 CLK GND 10
MIPI1
(36-pin MIPI1)
(see p. 4, No. 6)
Pin Signal Name
1 GND 2 CSI_B_DN2 3 CSI_B_DP2 4 GND 5 CSI_B_DN1 6 CSI_B_DP1 7 GND 8 CSI_B_CLK_N 9 CSI_B_CLK_P
10 GND 11 CSI_B_DN0 12 CSI_B_DP0 13 CSI_B_DN3 14 CSI_B_DP3 15 GND 16 GND 17 +2.8V 18 GND 19 +2.8V 20 +1.8V 21 +1.2V 22 GND 23 IMBCLKOUT0 24 GND 25 I2C1_SCL 26 I2C1_SDA 27 N/C 28 BUF_PLT_
RST_1.8_R_N
29 N/C 30 GND 31 N/C 32 +1.2V 33 GND 34 GPP_S1 35 GPP_S2 36 GPP_S3
1
36
14
1
2
14
12
910
