ASRock Industrial IMB-1235 User manual

IMB-1235
User Manual
Version 1.1
Updated February 6, 2024
Copyright©2024 ASRockInd INC. All rights reserved.

Version 1.0
Published November, 2023
Copyright©2024 ASRockInd INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or translated
in any language, in any form or by any means, except duplication of documentation by the
purchaser for backup purpose, without written consent of ASRockInd Inc.
Products and corporate names appearing in this documentation may or may not be
registered trademarks or copyrights of their respective companies, and are used only for
identication or explanation and to the owners’ benet, without intent to infringe.
Disclaimer:
Specifications and information contained in this documentation are furnished for
informationa l use only and subject to change without notice, and should not be
constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockInd does not provide
warranty of any kind, either expressed or implied, including but not limited to the implied
warranties or conditions of merchantability or tness for a particular purpose.
In no event shall ASRockInd, its directors, officers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for loss
of profits, loss of business, loss of data, interruption of business and the like), even if
ASRockInd has been advised of the possibility of such damages arising from any defect or
error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI logo
are trademarks or registered trademarks of HDMI Licensing LLC in the United States and
other countries.

WARNING
THIS PRODUCT CONTAINS A BUTTON BATTERY
If swallowed, a button battery can cause serious injury or death.
Please keep batteries out of sight or reach of children.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
AUSTR ALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRockInd
Tel : [phone] ext.123 (Standard International call charges apply)
ASRockInd follows the green design concept to design and manufacture our products,
and makes sure that each stage of the product life cycle of ASRockInd product is in line
with global environmental regulations. In addition, ASRockInd disclose the relevant in-
formation based on regulation requirements.
DO NOT throw the motherboard in municipal waste. is product has been
designed to enable proper reuse of parts and recycling. This symbol of the
crossed out wheeled bin indicates that the product (electrical and electronic
equipment) should not be placed in municipal waste. Check local regulations
for disposal of electronic products.

P/N: 15G062470000AK V1.0
*15G062470000AK*
Button Battery Safety Notice
- Remove and immediately recycle or dispose of used batteries according to local
regulations and keep away from children. Do NOT dispose of batteries in household
trash or incinerate.
- Even used batteries may cause severe injury or death.
- Call a local poison control center for treatment information.
- Battery type: CR2032
- Battery voltage: 3.3V
- Non-rechargeable batteries are not to be recharged.
- Do not force discharge, recharge, disassemble, heat above (manufacturer's specied
temperature rating) or incinerate. Doing so may result in injury due to venting,
leakage or explosion resulting in chemical burns.
- is product contains an irreplaceable battery.
- is icon indicates that a swallowed button battery can cause serious injury or death.
Please keep batteries out of sight or reach of children.
WARNING
•INGESTION HAZARD: This product contains a button cell or
coin battery.
•DEATHor serious injury can occur if ingested.
•A swallowed button cell or coin battery can cause Internal
Chemical Burns in as little as 2 hours.
•KEEP new and used batteries OUT OF REACH of CHILDREN
•Seek immediate medical attention if a battery is suspected to
be swallowed or inserted inside any part of the body.
Button Battery Safety Notice

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 5
1.4 I/O Panel 7
1.5 Block Diagram 8
Chapter 2 Installation 9
2.1 Screw Holes 9
2.2 Pre-installation Precautions 9
2.3 Installation of Memory Modules 10
2.4 Expansion Slots 11
2.5 Jumpers Setup 12
2.6 Onboard Headers and Connectors 15
Chapter 3 UEFI SETUP UTILITY 21
3.1 Introduction 21
3.1.1 Entering BIOS Setup 21
3.1.2 UEFI Menu Bar 22
3.1.3 Navigation Keys 23
3.2 Main Screen 24
3.3 Advanced Screen 25
3.3.1 CPU Conguration 26
3.3.2 Chipset Conguration 29
3.3.3 Storage Conguration 31

3.3.4 Super IO Conguration 33
3.3.6 ACPI Conguration 35
3.3.7 USB Conguration 36
3.3.8 Trusted Computing 37
3.4 Hardware Health Event Monitoring Screen 39
3.5 Security Screen 40
3.6 Boot Screen 41
3.7 Exit Screen 42

1
IMB-1235
Chapter 1 Introduction
Thank you for purchasing ASRockInd IMB-1235 motherboard, a reliable motherboard
produced under ASRockInd’s consistently stringent quality control. It delivers excellent per-
formance with robust design conforming to ASRockInd’s commitment to quality and endur-
ance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step
guide to the hardware installation. Chapter 3 contains the conguration guide to BIOS setup.
Because the motherboard specications and the BIOS soware might be updated, the
content of this manual will be subject to change without notice. In case any modica-
tions of this manual occur, the updated version will be available on ASRockInd website
without further notice.
ASRockIndind website: https://www.asrockind.com/IMB-1235
https://www.asrockind.com/IMB-1235P
https://www.asrockind.com/IMB-1235M
https://www.asrockind.com/IMB-1235V
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
https://www.asrockind.com/technical-support
1.1 Package Contents
ASRockInd IMB-1235 Motherboard (Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x
3.8 cm))
ASRockInd IMB-1235 Jumper Setting Instruction
Gi Package:
1 x SATA Power Cable
2 x COM Cable
2 x SATA Data Cable
1 x I/O Shield
1 x I/O Shield THIN
3 x SCREW M2*2,D=5
Bulk Package:
1 x I/O Shield
1 x I/O Shield THIN
3 x SCREW M2*2,D=5

2
1.2 Specications
Form Factor Dimensions Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm
x 3.8 cm)
Processor
System
CPU
Intel® 13th Gen (Raptor Lake-P) Core™ Processors
IMB-1235P (i7-1365UE, 2P+8E)
IMB-1235M (i5-1335UE, 2P+8E)
IMB-1235V (i3-1315UE, 2P+4E)
Chipset MCP
BIOS AMI SPI 256 Mbit
Memory
Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Graphics
Controller Intel® Iris® Xe Graphics
HDMI 2 x HDMI 2.0b
Max resolution up to 4096x2160@60Hz
LVDS Dual channel 24 bit up to 1920x1200@60Hz
eDP eDP 1.4b
Max resolution up to 4096x2160@60Hz
DisplayPort 2 x DisplayPort 1.4a
Max resolution up to 4096x2160@60Hz
MultiDisplay Quad display (Included 2 outputs from Type-C)
Expansion
Slot
M.2
1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB
3.2, USB 2.0 and SIM for 4G/5G
1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0
and CNVi for Wireless
SIM Socket 1x SIM socket connected to M.2 key B
Audio Interface Realtek ALC897 HD, High Denition Audio
Ethernet
Controller/
Speed
IMB-1235P/IMB-1235M
LAN1: Intel® I226LM with 10/100/1000/2500 Mbps,
supports vPro
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
IMB-1235V
LAN1: Intel® I226LM with 10/100/1000/2500 Mbps
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
Controller 2 x RJ-45

3
IMB-1235
Rear I/O
HDMI 2 x HDMI 2.0b
Ethernet 2 x 2.5 Gigabit LAN
USB
2 x USB 2.0
2 x USB 3.2 Gen2
2 x USB4/underbolt™4 (5V/3A, supports DP
1.4a display output)
* For underbolt support, please refer to
support list.
Audio 2 (Mic-In/Line-Out)
DC Jack 1 DC-in
Internal
Connector
USB 1 x USB 3.2 Gen1 and 1 x USB 2.0 (1 x USB 3.2
header)
COM COM1, COM2 (RS-232/422/485)
COM3, COM4, COM5, COM6 (RS-232)
GPIO 4 x GPI, 4 x GPO
LVDS 1
eDP 1
SATA PWR
Output 1
Speaker
Header 1
Storage
M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe
Gen4 x4 for SSD
SATA 2 x SATA3 (6Gb/s)
RAID
Intel® VMD RAID 0/1
**supported by identical interface (PCIE or
SATA)
PCIE interface: M.2 Key B+ M.2 Key M
SATA interface: 2 x SATA port
Security TPM TPM 2.0 onboard IC
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255 Sec
Power
Requirements
Input PWR 12V~28V DC-in with Lockable DC Jack
Power On
AT/ATX Supported
-AT: Directly PWR on as power input ready
-ATX: Press button to PWR on aer power input
ready

4
Environment
Operating
Temp -20ºC ~ 70ºC
Storage Temp -40ºC - 85ºC
Operating
Humidity 5% - 90%
Storage
Humidity 5% - 90%

5
IMB-1235

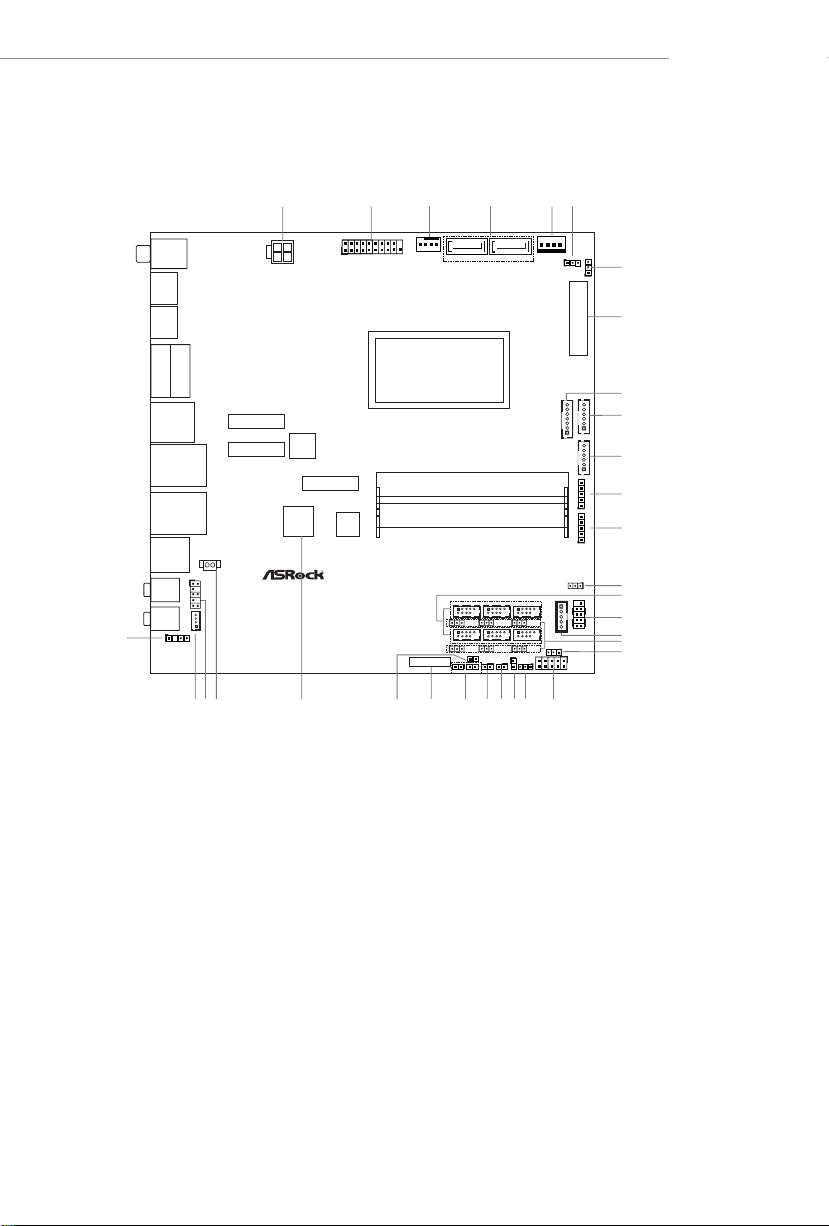

1.3 Motherboard Layout
Industrial
IMB-1235
Mic In
Line Out
DDR4_B1
DDR4_A1
DC_JACK1
HDMI1
HDMI2
LVDS1
USB 2.0
T: USB2_3
B: USB2_4
M2_B1
RoHS
M2_E1
M2_M1
BIOS
ROM
SIM1
BUZZ1
LAN1
LAN2
USB 3.2 Gen2
T: USB3_1
B: USB3_2
Thunderbolt
Type-C
(TC_T1)
Thunderbolt
Type-C
(TC_T0)
5
12346
9
8 (*Backside: EDP1)
7
12
10
11
14
13
15
18
19
16
17
33
2425
26
31 30 29 27 21
23 22 20
32
4P_ATX1
1
SATA_PWR1
1
CPU_FAN1
USB3_3
1
BLT_PWM1
1
BLT_PWM2
1
1
1
1
BLT_V OL1
1
BKT_PWR1
CLRMOS1
1
PNL_PWR1
1
EDP_BLT_PWR1
1
BLT_PWR1
1
HDLED RESET
PLED PWRBTN
1
COM4
1
1
SMB_TEST1
1
ESPI1
1
COM5
1
COM6
1
COM1 COM2 COM3
111
PWR_COM4 PWR_COM5 PWR_COM6
111
PWR_COM1 PWR_COM2 PWR_COM3
1
JGPIO_SET1
PSON#_1
11
1
1
SIO_AT1
CI1
BUZZ2
CI2
1
1
PANEL1
1
JGPIO1
DACC1
JGPIO_PWR1
1
SPDIF1
1
BAT1
SPEAKER1
1
1
1
SATA3_1 SATA3_0
11
111
1
HD_AUDIO1

6
1 : 4-pin ATX 12V PWR Connector (4P-ATX1)
2 : USB 3.2 Gen1 Header (USB3_3)
3 : CPU FAN Connector (+12V) (CPU_FAN1)
4 : SATA3 Connectors (SATA3_0, SATA3_1)
5 : SATA Power Output Connector (SATA_PWR1)
6 : Brightness Control Mode (BLT_PWM2)
7 : Brightness Control Mode (BLT_PWM1)
8 : LVDS Panel Connector* (LVDS1)
* eDP Connector (on the Backside of PCB) (EDP1)
9 : Backlight Volume Control (BLT_VOL1)
10 : Inverter Power Control Wafer (BLT_PWR1)
11 : eDP Inverter Power Control Wafer (EDP_BLT_PWR1)
12 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
13 : Panel Power Select (LCD_VCC) (PNL_PWR1)
14 : Clear CMOS Jumper (CLRMOS1)
15 : COM Port Headers (COM1~6)
16 : System Panel Header (PANEL1)
17 : SMB_TEST1
18 : COM Port PWR Setting Jumpers
PWR_COM1~6 (For COM Port1~6)
19 : Digital Input/Output Default Value Setting (JGPIO_SET1)
20 : Digital Input/Output Pin Header (JGPIO1)
21 : Digital Input/Output Power Select (JGPIO_PWR1)
22 : DACC Jumper (DACC1)
23 : PSON#_1
24 : ATX/AT Mode Jumper (SIO_AT1)
25 : Chassis Intrusion Headers (CI1, CI2)
26 : ESPI Header (ESPI1)
27 : Buzzer Header (BUZZ2)
28 : Buzzer (BUZZ1)
29 : SIM Socket (SIM1)
30 : Battery Connector (BAT1)
31 : Front Panel Audio Header (HD_AUDIO1)
32 : 3W Audio AMP Output Wafer (SPEAKER1)
33 : SPDIF Header (SPDIF1)

7
IMB-1235
1.4 I/O Panel
1 DC Jack (DC_JACK1)
2 underbolt Type-C Port (TC_T1)
3 underbolt Type-C Port (TC_T0)
4 HDMI Port (HDMI1)
5 USB 3.2 Gen2 Port (USB3_1)
6 IMB-1235P/IMB-1235M:
RJ45 LAN Port (LAN1)(Supports vPro)
IMB-1235V:
RJ45 LAN Port (LAN1)
7 RJ45 LAN Port (LAN2)
8 USB 2.0 Port (USB2_3)
9 Audio Jack: Green - Line Out
10 Audio Jack: Pink - Mic In
11 USB 2.0 Port (USB2_4)
12 USB 3.2 Gen2 Port (USB3_2)
13 HDMI Port (HDMI2)
15
234678910
13 12 11
Activity/
LINK LED
SPEED
LED
LAN Port
Status Description
O 10Mbps connection
Orange 100Mbps/1Gbps connection
Green 2.5Gbps connection
Activity/Link LED SPEED LED
Status Description
O No Link
Blinking Data Activity
On Link
* ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
LAN1 Port LED Indications

8
1.5 Block Diagram
FINTEK
F81966
GPIO x4
SPI
IMB-1235
SIM
BIOS
INFINEON
SLB9670XQ2.0
SIM Card
PCIe Gen3 x1
CNVi
USB 2.0
SATA Port x2
SATA x2
SO-DIMM
Channel A DDR4
3200MHz
HDA Line Out
Mic In
Realtek
ALC897
Intel
Raptor Lake-P
FCBGA 1493
Package(35*24mm)
Channel B DDR4
3200MHz SO-DIMM
M.2 Key E
PCIe Gen3 x1
USB 2.0 M.2 Key B
PCIe Gen4 x4 M.2 Key M
SPI
Realtek
ALC122
eDP
connector
DDIA
LVDS
connector
Chrontel
CH7513
DDIB
LVDS
HDMI
connector Re-timer TCP2
HDMI
connector Re-timer
TCP3
Display Port/
Thunderbolt BBR TCP0
USB 2.0
Display Port/
Thunderbolt BBR TCP1
USB 2.0
RJ45
connector
Intel
I226-LM
PCIe x1
2.5G
RJ45
connector
Intel
I226-V
PCIe x1
2.5G
Rear
2 x USB 3.2 Gen2
2 x USB 3.2 Gen2
2 x USB 2.0
Rear
2 x USB 2.0
2 x USB 2.0
Internal
USB 3.2 Gen1
USB 3.2 Gen1
USB 2.0
Internal
USB 2.0
USB 2.0
UART x2
COM Port x2
RS232/422/482
SP339EER1
-L/TR x2
UART x4
COM Port x4
RS232 only
SP3243EUE
Y-L/TR x2
eSPI
DGIO header DGIO
CPU FAN
FAN

9
IMB-1235
Chapter 2 Installation
is is a Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm) form factor mother-
board. Before you install the motherboard, study the conguration of your chassis to ensure
that the motherboard ts into it.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity, NEVER place
your motherboard directly on the carpet or the like. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or in the
bag that comes with the component.
5. Heatsink (e thermal solution of whole system needs to be designed additionally.)
Make sure to unplug the power cord before installing or removing the motherboard. Failure to
do so may cause physical injuries to you and damages to motherboard components.
Do not over-tighten the screws! Doing so may damage the motherboard.
Before you install or remove any component, ensure that the power is switched o or the
power cord is detached from the power supply. Failure to do so may cause severe damage to
the motherboard, peripherals, and/or components.

10
2.3 Installation of Memory Modules
IMB-1235 provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM slots, and supports
Dual Channel Memory Technology.

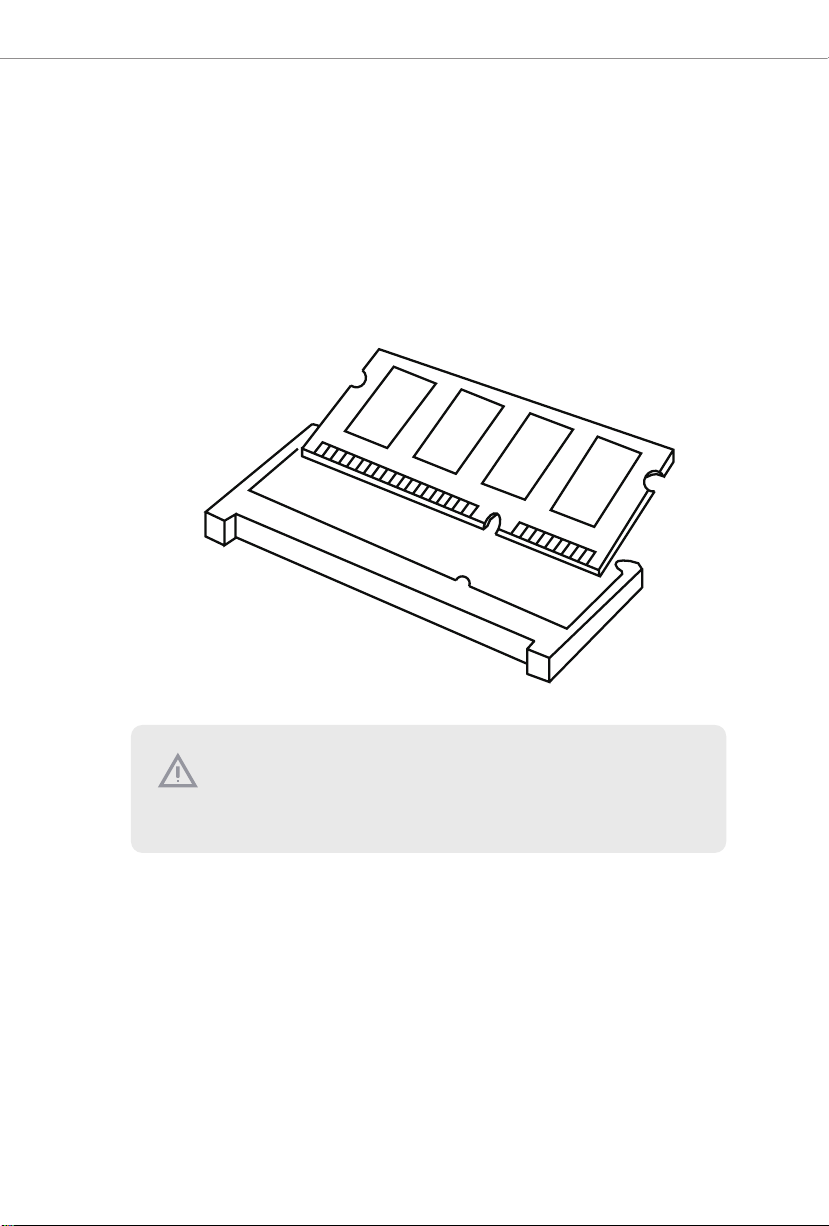

Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM matches the
break on the slot.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both ends fully
snap back in place and the SO-DIMM is properly seated.
1. e SO-DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at incor-
rect orientation.
2. Please do not intermix dierent voltage SO-DIMMs on this motherboard.

11
IMB-1235
2.4 Expansion Slots
ere are 3 M.2 sockets and 1 SIM socket on this motherboard.
M.2 sockets: 1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.2, USB 2.0 and SIM for
4G/5G
1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
SIM Socket: 1x SIM socket connected to M.2 key B
M.2 Key-E Socket
(M2_E1)
Pin Signal Name Signal Name Pin
1 GND +3.3V 2
3 GND +3.3V 4
5 PERn3 NA 6
7 PERp3 NA 8
9 GND SATA_LED 10
11 PETn3 +3.3V 12
13 PETp 3 +3.3V 14
15 GND +3.3V 16
17 PERn2 +3.3V 18
19 PERp2 NA 20
21 GND NA 22
23 PETn2 NA 24
25 PETp 2 NA 26
27 GND NA 28
29 PERn1 NA 30
31 PERp1 NA 32
33 GND NA 34
35 PETn1 NA 36
37 PETp 1 NA 38
39 GND NA 40
41 PERn0 NA 42
43 PERp0 NA 44
45 GND NA 46
47 PETn0 NA 48
49 PETp 0 PERST# 50
51 GND CLKREQ# 52
53 PEFCLKn WAKE# 54
55 PEFCLKp NA 56
57 GND NA 58
67 NA NA 68
69 PEDET +3.3V 70
71 GND +3.3V 72
73 GND +3.3V 74
75 GND
M.2 Key-M Socket
(M2_M1)
M.2 Key-B Socket
(M2_B1)
Pin Signal Name Signal Name Pin
1 GND +3.3V 2
3 USB_D+ +3.3V 4
5 USB_D- NA 6
7 GND NA 8
9 CNV_WGR_D1- CNV_RF_RESET 10
11 CNV_WGR_D1+ NA 12
13 GND MODEM_CLKREQ 14
15 CNV_WGR_D0- NA 16
17 CNV_WGR_D0+ GND 18
19 GND NA 20
21 CNV_WGR_CLK- CNV_BRI_RSP 22
23 CNV_WGR_CLK+
CNV_BGI_DT 32
33 GND CNV_RGI_RSP 34
35 PETp CNV_BRI_DT 36
37 PETn NA 38
39 GND NA 40
41 PERp NA 42
43 PERn NA 44
45 GND NA 46
47 PEFCLKp NA 48
49 PEFCLKn SUSCLK 50
51 GND PERST0# 52
53 CLKREQ# W_DISABLE1# 54
55 WAKE# W_DISABLE2# 56
57 GND NA 58
59 CNV_WT_D1- NA 60
61 CNV_WT_D1+ NA 62
63 GND CLKIN_XTAL_LCP 64
65 CNV_WT_D0- NA 66
67 CNV_WT_D0+ NA 68
69 GND NA 70
71 CNV_WT_CLK- +3.3V 72
73 CNV_WT_CLK+ +3.3V 74
75 GND
Pin Signal Name Signal Name Pin
1NA +3.3V 2
3 GND +3.3V 4
5 GND FuLL_Card_Power_o 6
7 USB_D+ W_DISABLE1# 8
9 USB_D- WWAN_LED# 10
11 GND
NA 20
21 GND NA 22
23 NA NA 24
25 NA W_DISABLE2# 26
27 GND NA 28
29 USB3_RX- UIM_RESET 30
31 USB3_RX+ UIM_CLK 32
33 GND UIM_DATA 34
35 USB3_TX- UIM_PWR 36
37 USB3_TX+ NA 38
39 GND NA 40
41 PERn0 NA 42
43 PERP0 NA 44
45 GND NA 46
47 PETn0 NA 48
49 PETP0 PERST# 50
51 GND CLKREQ# 52
53 PEFCLKn WAKE# 54
55 PEFCLKp NA 56
57 GND NA 58
59 NA NA 60
61 NA NA 62
63 NA NA 64
65 NA NA 66
67 NA NA 68
69 PEDET +3.3V 70
71 GND +3.3V 72
73 GND +3.3V 74
75 NA

12
2.5 Jumpers Setup
The illustration shows how jumpers are setup.
When the jumper cap is placed on pins, the
jumper is “Short.” If no jumper cap is placed
on pins, the jumper is “Open.” The illustration
shows a 3-pin jumper whose pin1 and pin2 are
“Short” when jumper cap is placed on these 2
pins.
Jumper Setting Description
Brightness Control Mode
(3-pin BLT_PWM2)
(see p. 5, No. 6)
Brightness Control Mode
(3-pin BLT_PWM1)
(see p. 5, No. 7)
Please set to 1-2 when adjusting brightness by Brightness Control bar under OS.
Please set to 2-3 when adjusting brightness by BLT_VOL1.
3
1
1
2
3
Setting Description
1-2 3V Level (Default)
2-3 5V Level
Setting Description
1-2 From eDP PWM to CON_
LBKLT_CTL
2-3 From LVDS PWM to CON_LBKLT_CTL
(Default)
13
Backlight Power Select (LCD_BLT_VCC)
(5-pin BKT_PWR1)
(see p. 5, No. 12)
Panel Power Select (LCD_VCC)
(5-pin PNL_PWR1)
(see p. 5, No. 13)
1
5
1
5
Setting Description
1-2 GNDLCD_BLT_VCC : +5V
(Default)
2-3 LCD_BLT_VCC : +12V
4-5 LCD_BLT_VCC : DC_IN
Setting Description
1-2 LCD_VCC +3V
(Default)
2-3 LCD_VCC +5V
4-5 LCD_VCC +12V
Use this header to set up the backlight power of the LVDS connector and the panel backlight
power of BLT_PWM1.
Use this to set up the VDD power of the LVDS connector.

13
IMB-1235
Digital Input/Output Power Select
(5-pin JGPIO_PWR1)
(see p. 5, No. 21)
COM Port PWR Setting Jumpers
(3-pin PWR_COM1~6 (For COM Port1~6))
(see p. 5,No. 18)
Digital Input/Output Default Value Setting
(3-pin JGPIO_SET1)
(see p. 5, No. 19)
DACC Jumper
(2-pin DACC1)
(see p. 5, No. 22)
Auto clear CMOS when system boot improperly.
ATX/AT Mode Jumper
(2-pin SIO_AT1)
(see p. 5, No. 24)
1
1 2
2
1
1 2
2
Setting Description
1-2 +5V (Default)
2-3 +12V
Setting Description
1-2 Pull-High (Default)
2-3 Pull-Low
Setting Description
1-2 +12V
2-3 +5V (Default)
Setting Description
Open No ACC (Default)
Short ACC
Setting Description
Open ATX Mode (Default)
Short AT Mode
13
31
31
Clear CMOS Jumpers
(3-pin CLRMOS1)
(see p. 5, No. 14)
NOTE: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system param-
eters to default setup, please turn o the computer and unplug the power cord from the power
supply. Aer waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRMOS1
for 5 seconds. However, please do not clear the CMOS right aer you update the BIOS. If you
need to clear the CMOS when you just nish updating the BIOS, you must boot up the system
rst, and then shut it down before you do the clear-CMOS action. Please be noted that the
password, date, time, user default prole and MAC address will be cleared only if the CMOS
battery is removed.
Setting Description
1-2 Auto Clear CMOS (Default)
2-3 Clear CMOS
31

14
Chassis Intrusion Jumpers (CI1, CI2)
(2-pin CI1, CI2)
(see p. 5, No. 25)
CI1 :
CI2 :
1
1 2
2
Setting Description
Open Normal (Default)
Short Active Case Open
Setting Description
Open Active Case Open
Short Normal (Default)
