Chapter 1: Introduction
Thank you for purchasing ASRockInd IMB-1711 / IMB-X1711 motherboard, a reli-
able motherboard produced under ASRockInd’s consistently stringent quality con-
trol. It delivers excellent performance with robust design conforming to ASRockInd’s
commitment to quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockInd website without further notice. You may
nd the latest VGA cards and CPU support lists on ASRockInd website
as well. ASRockInd website http://www.asrockind.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd IMB-1711 / IMB-X1711 Motherboard (ATX (12-in x 9.6-in))
ASRockInd IMB-1711 / IMB-X1711 Driver CD
ASRockInd IMB-1711 / IMB-X1711 Jumper setting instruction
1 x I/O Panel Shield

6
1.2 Specications
Form
Factor Dimensions ATX (12-in x 9.6-in)
Processor
System
CPU Intel®10th Gen (Cometlake-S) Core™
Processors, up to 125 W
Chipset Intel®Q470E
Socket LGA1200
BIOS AMI SPI 256 Mbit
Expansion
Slot
PCIe
3 x PCIe Gen3 Slots (PCIE1 / PCIE2 / PCIE3:
Single at x16 (PCIE1); Dual at x8 (PCIE1) / x8
(PCIE3); Triple at x8 (PCIE1) / x4 (PCIE2) / x4
(PCIE3))
2 x PCIe x4 (Gen3)
PCI 2 x PCI
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
and CNVi for Wireless
1 x M.2 (Key B, 3042 / 3052) with PCIe x1 /
USB 3.0 / USB 2.0 and SIM socket for 4G / 5G
SIM Socket 1 x SIM socket connected to M.2 Key B
Memory
Technology
Dual Channel DDR4 2933/2666/2400 MHz
- Intel® Core™ i9/i7 CPUs support DDR4 up to
2933 MHz
- Intel® Core™ i5/i3 CPUs support DDR4 up to
2666 MHz
- Intel®Pentium®/Celeron®CPU support DDR4
up to 2400 MHz
Max.
128GB*
* Intel® Core i9/i7/i5 CPUs support up to 128GB
(32GB per DIMM)
Intel®Core i3/Pentium®/Celeron®CPUs support
up to 64GB (16GB per DIMM)
Socket 4 x 288-pin Long-DIMM
Graphics
Controller Intel® UHD Graphics
HDMI HDMI 2.0a, Max resolution up to 4096 x
2160@60Hz
DisplayPort DisplayPort 1.2, DP++
Max resolution up to 4096 x 2160@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
MultiDisplay Triple Display

7
Audio Interface Realtek ALC887/ALC897 HD, High
Denition Audio. Line-out, Mic-in.
Ethernet
Controller/
Speed
LAN1: Intel®I225LM with 10/100/1000/2500
Mbps
LAN2: Intel®I219LM with 10/100/1000
Mbps, support AMT / vPro
Connector 2 x RJ-45
Rear I/O
HDMI 1 x HDMI 2.0a
DisplayPort 1 x DP 1.2
VGA 1
Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB 4 x USB 3.2 Gen2, 2 x USB 2.0
Audio 3 ( Line-In, Line-Out, Mic-In)
COM 2 x COM (RS-232/422/485)
PS2 1
Internal
Connector
USB
4 x USB 3.2 Gen1 (2 x USB 3.2 Gen1
header)
2 x USB 2.0 (1 x 2.54 pitch header)
COM 4 x COM (RS-232)
Parallel 1
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
TPM TPM 2.0 onboard
Speaker
Header 1
Storage M.2
1 x M.2 (Key M, 2242 / 2260 / 2280) with
SATA3 and PCIe x4 for SSD
* Shared with SATA3_5 / SATA3_6 Ports
- When using M.2 PCIe x4 SSD, both
SATA3_5 and SATA_6 Ports are disabled
- When using M.2 SATA SSD, only
SATA3_5 Port is disabled, and SATA3_6
Port is available
SATA 6 x SATA3 (6Gb/s)
Watchdog
Timer
Output From super I/O to drag RESETCON#
Interval 256 Segments, 0,1, 2…255 Sec
Power
Requirements
Input PWR ATX PWR (24+8-pin)
Power On
AT/ATX Supported
AT: Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power
input ready

8
Environment
Operating
Temp 0ºC ~ 60ºC
Storage
Temp -40°C ~ 85°C
Operating
Humidity 5% ~ 90%
Storage
Humidity 5% ~ 90%

9
1.3 Motherboard Layout

10
1 : Chassis FAN Connectors (+12V) (CHA_FAN1~3)
2 : ATX 12V Power Connector
3 : CPU FAN Connector (+12V)
4 : PWR LOSS Jumper (PWR_LOSS1)
5 : 24-pin ATX Power Input Connector
6 : SATA3 Connectors (SATA3_1 ~ SATA3_6)
7 : M.2 Key-M Socket (M2_1)
8 : M.2 Key-B Socket (M2_B1)
9 : M.2 Key-E Socket (M2_2)
10 : USB 3.2 Gen1 Headers ( USB3_5_6, USB3_7_8)
11 : Chassis Intrusion Headers (CI1, CI2)
12 : PCIe Isolation Jumper (PCIE_ISOLATION)
13 : DACC1
14 : ATX/AT Mode Jumper (SIO_AT1)
15 : COM Port Pin9 PWR Setting Jumpers
PWR_COM3 (For COM Port3)
PWR_COM4 (For COM Port4)
PWR_COM5 (For COM Port5)
PWR_COM6 (For COM Port6)
16 : COM Port Headers (COM3~6) (RS232)
17 : Clear CMOS Header (CLRMOS2)
18 : Printer Port / GPIO Header (LPT_GPIO1)
19 : LPC Header
20 : USB 2.0 Header ( USB2_9_10)
21 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)
22 : Digital Input / Output Default Value Setting (JGPIO_SET1)
23 : System Panel Header
24 : Buzzer (BUZZ1)
25 : SMBUS_TEST1
26 : SPDIF Header
27 : Front Panel Audio Header
28 : MCU Connector (MCU_CON1)
29 : Clear CMOS Header (CLRMOS1)
30 : PWR_BAT1
31 : LAN LED Headers
LAN_LED1 (For LAN1 Port)
LAN_LED2 (For LAN2 Port)
32 : COM Port Pin9 PWR Setting Jumpers
PWR_COM1 (For COM Port1)
PWR_COM2 (For COM Port2)

11
1.4 I/O Panel
1 USB 2.0 Ports (USB11_12)
2 COM Port (COM1) (RS232/422/485)*
3 COM Port (COM2) (RS232/422/485)*
4 LAN RJ-45 Port (LAN1)**
5 LAN RJ-45 Port (LAN2)***
6 Line In (Light Blue)
7 Line Out (Lime)
8 Microphone (Pink)
9 USB 3.2 Gen2 Ports (USB3_3_4)
10 USB 3.2 Gen1 Ports (USB3_1_2)
11 D-Sub Port (VGA1)
12 DisplayPort (DP1)
13 HDMI Port (HDMI1)
14 PS/2 Keyboard/Mouse Port
* This motherboard supports RS232/422/485 on COM1, 2 ports. Please refer to below table for
the pin denition. In addition, COM1, 2 ports (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to page 35 for details.
COM1, 2 Port Pin Denition
PIN RS232 RS422 RS485
1 DCD, Data Carrier Detect TX- RTX-
2 RXD, Receive Data RX+ N/A
3 TXD, Transmit Data TX+ RTX+
4 DTR, Data Terminal Ready RX- N/A
5GND GND GND
6 DSR, Data Set Ready N/A N/A
7 RTS, Request To Send N/A N/A
8 CTS, Clear To Send N/A N/A
9 No Power/5V/12V N/A N/A

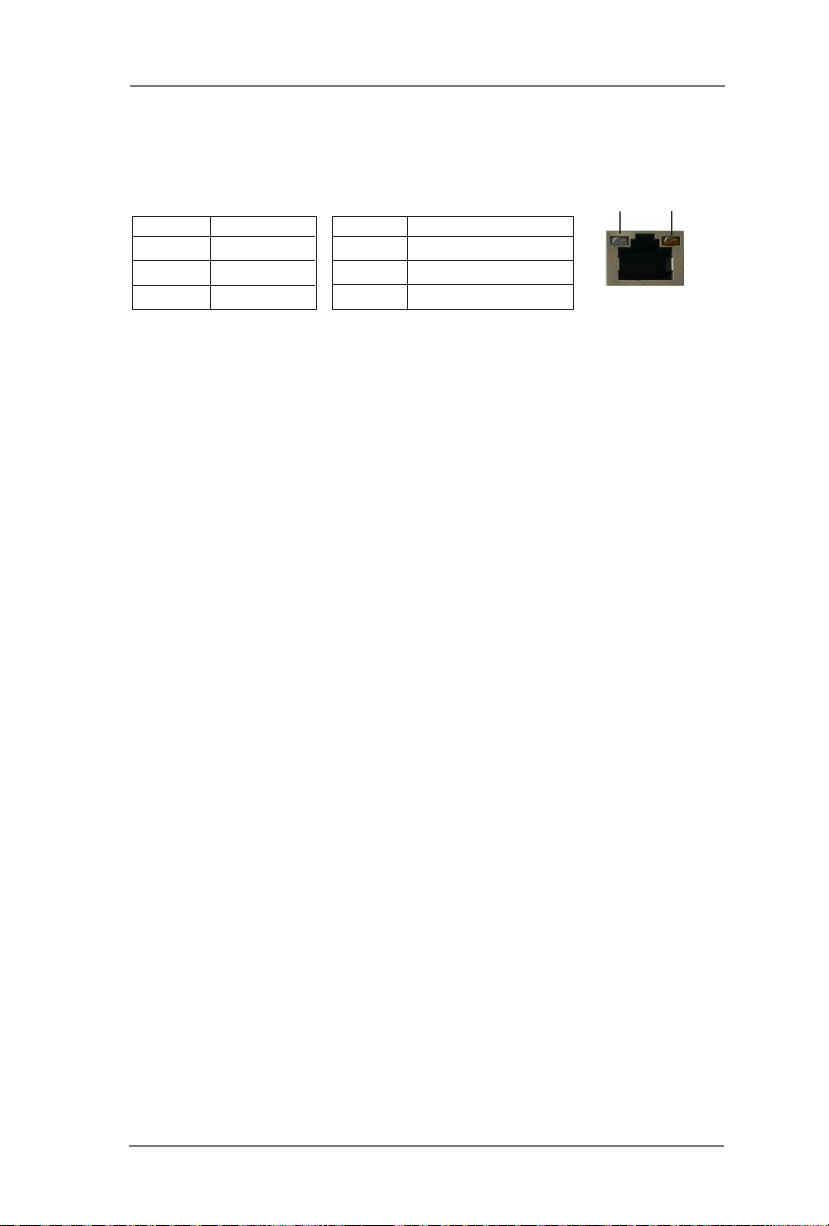

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port

12
*** There are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port

13
Chapter 2: Installation
This is an ATX form factor (12” x 9.6”) motherboard. Before you install the mother-
board, study the conguration of your chassis to ensure that the motherboard ts
into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched o󰀨 or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

14
2.3 Installation of Memory Modules (DIMM)
This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM
slots, and supports Dual Channel Memory Technology.

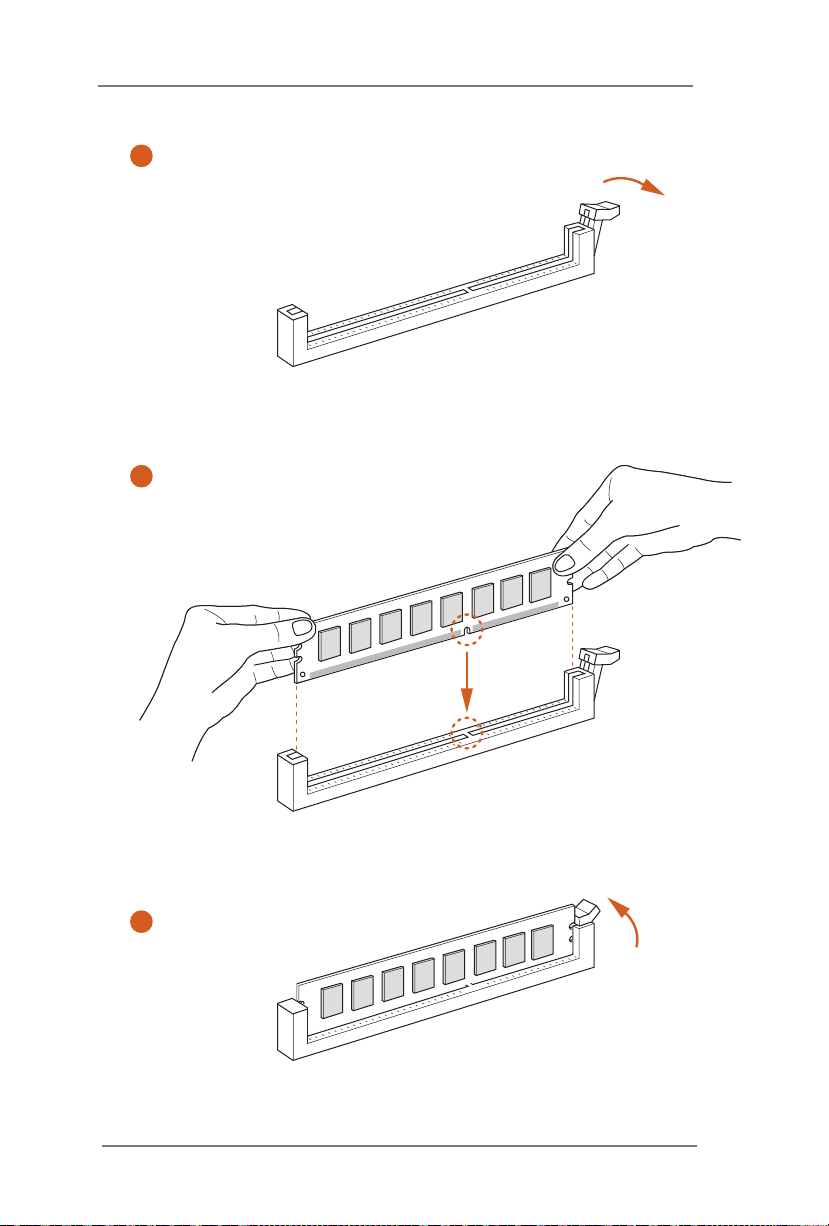

The DIMM only ts in one correct orientation. It will cause permanent dam-
age to the motherboard and the DIMM if you force the DIMM into the slot at
incorrect orientation.
1. For dual channel conguration, you always need to install identical (the
same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or
three memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a
DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

15
1
2
3

16
2.4 Expansion Slots
There are 5 PCI Express slots, 2 PCI slots, 3 M.2 sockets and 1 SIM socket on this
motherboard.
PCIE slots:
PCIE1 (PCIE 3.0 x16 slot) is used for PCI Express x16 lane width cards.
PCIE2 (PCIE 3.0 x4 slot) is used for PCI Express x4 lane width cards.
PCIE3 (PCIE 3.0 x16 slot) is used for PCI Express x8 lane width cards.
PCIE4 (PCIE 3.0 x4 slot) is used for PCI Express x4 lane width cards.
PCIE5 (PCIE 3.0 x4 slot) is used for PCI Express x4 lane width cards.
PCI slots: The PCI1 and PCI2 slots are used to install expansion cards that have
32-bit PCI interface.
SIM socket:
1 x SIM socket connected to M.2 key B.
3 OPTIONS FOR PCIE SLOT 1~3
Slot1 x16 x8 x8
Slot2 0 0 x4
Slot3 0 x8 x4

17
M.2 sockets:
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless.
1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.0 / USB 2.0 and SIM
socket for 4G / 5G.
1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA3 and PCIe x4 for SSD.
* Shared with SATA3_5 / SATA3_6 Ports.
* When using M.2 PCIe x4 SSD, both SATA3_5 and SATA_6 Ports are
disabled.
* When using M.2 SATA SSD, only SATA3_5 Port is disabled, and
SATA3_6 Port is available.
M.2 Key-M Socket (M2_1) M.2 Key-E Socket (M2_2)
M.2 Key-B Socket (M2_B1)

18
2.5 Jumpers Setup

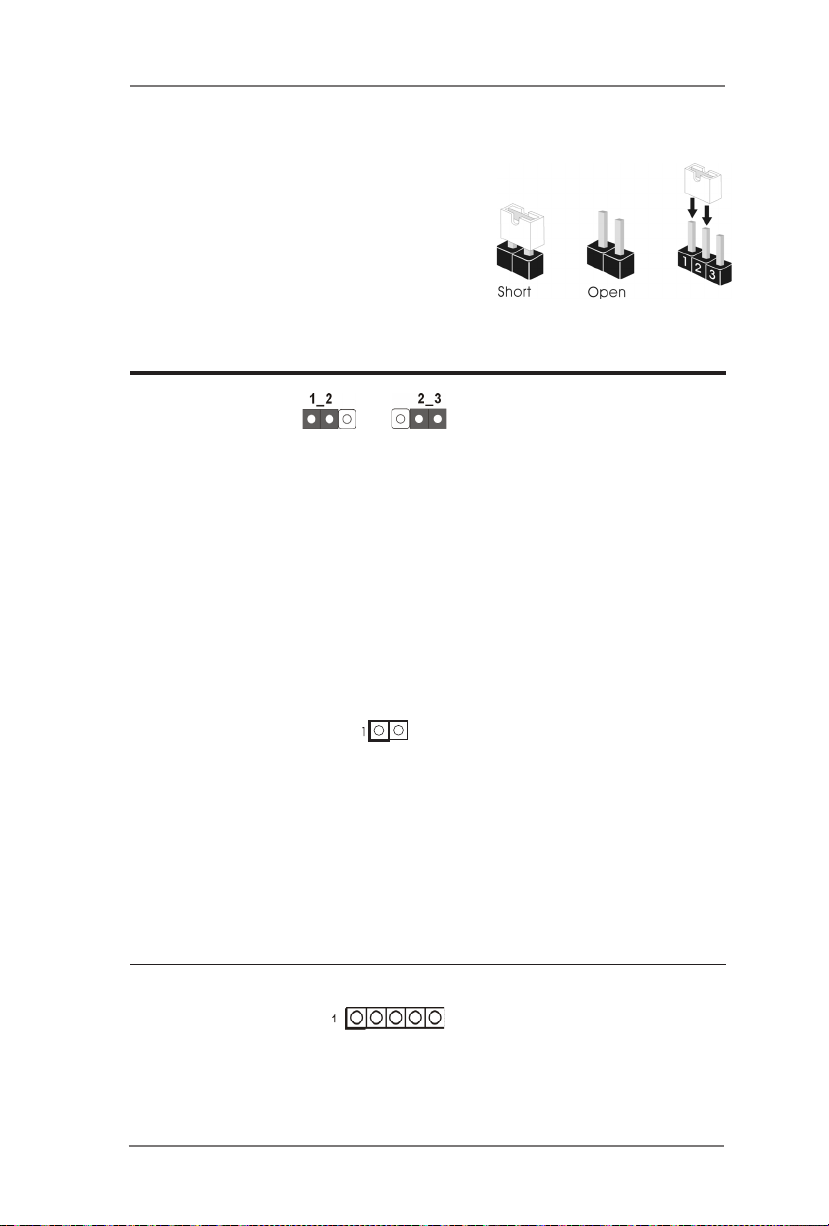

The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Jumper Setting Description
Clear CMOS Jumpers CLRMOS1
:
(3-pin CLRMOS1)
1-2 : Normal
(see p.9, No. 29)
2-3 : Clear CMOS
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the date, time and user default prole will be cleared
only if the CMOS battery is removed.
(2-pin CLRMOS2)
CLRMOS2
:
(see p.9, No. 17)
Open : Normal
Short : Auto Clear CMOS
(Power O󰀨)
Note: CLRMOS2 allows you to clear the data in CMOS automatically when AC pow-
er on. The data in CMOS includes system setup information such as system
password, date, time, and system setup parameters. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug
the power cord, then use a jumper cap to short the pins on CLRMOS2.
Digital Input / Output Power Select (JGPIOPWR) 1-2 : +12V
(5-pin JGPIO_PWR1)
2-3 : +5V
(see p.9, No. 21)
3-4 : +5V
4-5: GND
Clear CMOSDefault

19
COM Port Pin9 PWR Setting Jumpers 1-2 : +5V
(3-pin PWR_COM1, 2 (For COM Port1, 2))
2-3 : +12V
(see p.9, No. 32)
(3-pin PWR_COM3~6 (For COM Port3~6))
(see p.9, No. 15)
+5VSB_ATX
PWR LOSS Header Short : Power Loss
(2-pin PWR_LOSS1)
Open : no Power Loss
(see p.9, No. 4)
ATX/AT Mode Jumper Open : ATX Mode
(2-pin SIO_AT1)
Short : AT Mode
(see p.9, No. 14)
Chassis Intrusion Headers This motherboard supports
(2-pin CI1, CI2: see p.9, No. 11) CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
CI1 :
Short : Active Case Open
Open : Normal
CI2 :
Short : Normal
Open : Active Case Open
1
Signal
GND
Digital Input / Output Default Value Setting 1-2 : Pull-High
(3-pin JGPIO_SET1)
2-3 : Pull-Low
(see p.9, No. 22)
PWR_BAT1 Open : Normal
(2-pin PWR_BAT1)
Short : Charge Battery
(see p.9, No. 30)
PCIe Isolation Jumper
(2-pin PCIE_ISOLATION1)
(see p.9, No. 12)

20
DACC1 Short : ACC
(2-pin DACC1)
Open : no ACC
(see p.9, No. 13)
