ASRock Industrial IMB-159 User manual

1
IMB-159
User Manual
Version 1.0
Published April 2018
Copyright©2018 ASRockind INC. All rights reserved.

2
Version 1.0
Published April 2018
Copyright©2018 ASRockind INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockind Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRockind. ASRockind assumes no responsibility
for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockind does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockind, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRockind has been advised of the possibility of such damages arising from
any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRockind Website: http://www.ASRockind.com

3
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6
1.3 Motherboard Layout....................................................... 8
1.4 I/O Panel........................................................................ 10
2 Installation ......................................................... 11
2.1 Screw Holes................................................................... 11
2.2 Pre-installation Precautions ........................................... 11

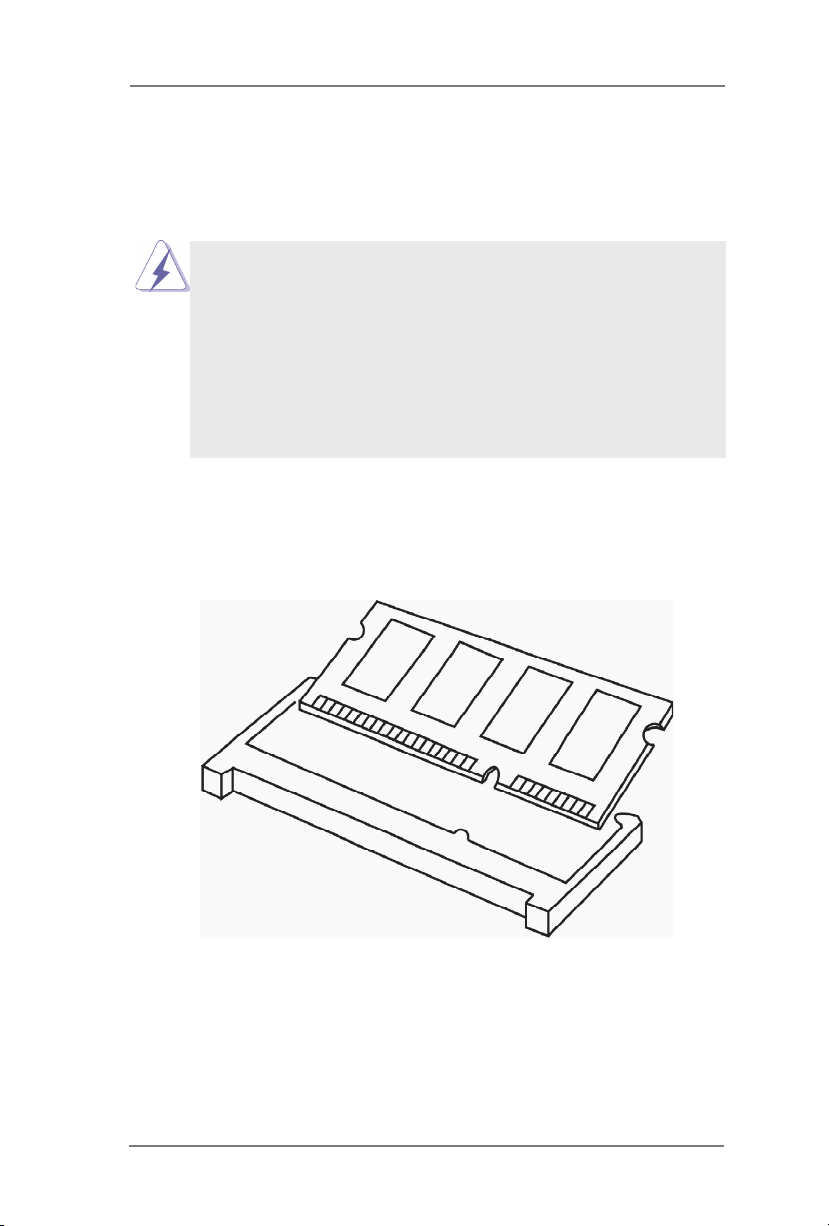

2.3 Installation of Memory Modules (SO-DIMM).................. 12
2.4 Expansion Slot............................................................... 13
2.5 Jumpers Setup............................................................... 14
2.6 Onboard Headers and Connectors................................ 17
3 UEFI SETUP UTILITY......................................... 25
3.1 Introduction .................................................................... 25
3.1.1 UEFI Menu Bar .................................................... 25
3.1.2 Navigation Keys ................................................... 26
3.2 Main Screen................................................................... 26
3.3 Advanced Screen........................................................... 27
3.3.1 CPU Conguration ............................................... 28
3.3.2 Chipset Conguration........................................... 29
3.3.3 Storage Conguration .......................................... 31
3.3.4 Super IO Conguration ........................................ 32
3.3.5 ACPI Conguration............................................... 34
3.3.6 Trusted Computing............................................... 35
3.4 Hardware Health Event Monitoring Screen ................... 36
3.5 Security Screen ............................................................. 37
3.6 Boot Screen ................................................................... 38
3.7 Exit Screen .................................................................... 40
4 Software Support .............................................. 41
4.1 Install Operating System................................................ 41
4.2 Support CD Information ................................................. 41
4.2.1 Running Support CD............................................ 41
4.2.2 Drivers Menu........................................................ 41
4.2.3 Utilities Menu........................................................ 41
4.2.4 Contact Information.............................................. 41

5
Chapter 1: Introduction
Thank you for purchasing ASRockind IMB-159 motherboard, a reliable motherboard
produced under ASRockind’s consistently stringent quality control. It delivers ex-
cellent performance with robust design conforming to ASRockind’s commitment to
quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockind website without further notice. You may
nd the latest VGA cards and CPU support lists on ASRockind website
as well. ASRockind website http://www.ASRockind.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.ASRockind.com/support/index.asp
1.1 Package Contents
ASRockind IMB-159 Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
ASRockind IMB-159 Driver CD
ASRockind IMB-159 Jumper Setting Instruction
1 x I/O Panel Shield

6
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU BGA1090 for Intel Gemini Lake SoC
Chipset N/A
BIOS UEFI
Expansion
Slot
PCIe 1 x PCIe x1 slot
Mini-PCIe 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
mSATA 0
M.2
1 x M.2 (Key E, 2230) with PCIe x1, CNVI and
USB2.0 for Wireless
1 x M.2 (Key M, 2242/2260/2280) with SATA3
for SSD
Memory
Technology Dual Channel DDR4 2400 MHz
Max. 8GB
Socket 2 x SO-DIMM
Graphics
VGA Supports max resolution up to 1920x1200
DVI N/A
LVDS Dual Channel 24-bit, max resolution up to
1920x1200@60Hz
eDP Max resolution up to 4096x2160@60Hz
HDMI N/A
DisplayPort Max resolution up to 4096x2160@60Hz
MultiDisplay Triple Display
Ethernet Ethernet 10/100/1000 Mbps
Controller 2 x Realtck RTL8111H
SATA
Max Data
Transfer
Rate
SATA3 (6.0Gb/s)
Rear I/O
VGA 1
DVI N/A
HDMI N/A
DisplayPort 1 x DP++ 1.2
Ethernet 2
USB 4 x USB3.0
Audio 2 (Mic-in, Line-out)
Serial N/A
PS/2 N/A

7
Internal
Connector
USB 5 x USB2.0 (2 x headers, 1 x Type A)
LVDS 1 (shared with eDP, auto detect)
eDP 1
VGA 1 (shared with VGA Con.)
Serial 2 x COM (RS-232/422/485), 4 x
COM(RS-232)
SATA 1 x SATA3 (6.0Gb/s)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO
SATA PWR
Output Con 1
Speaker
Header 1
TPM Header 1
Watchdog
Timer
Output Output from super I/O to drag RESETCON#
Interval 256 Segments, 0,1,2…255 Sec/Min
Power
Requirements
Input PWR +12V or +19V~+28V DC-In (DC Jack / 4-pin
DC-in PWR Connector)
Power On
AT/ATX Supported
-AT : Directly PWR on as power input ready
-ATX : Press button to PWR on after power
input ready
Environment Temperature 0ºC – 60ºC

8

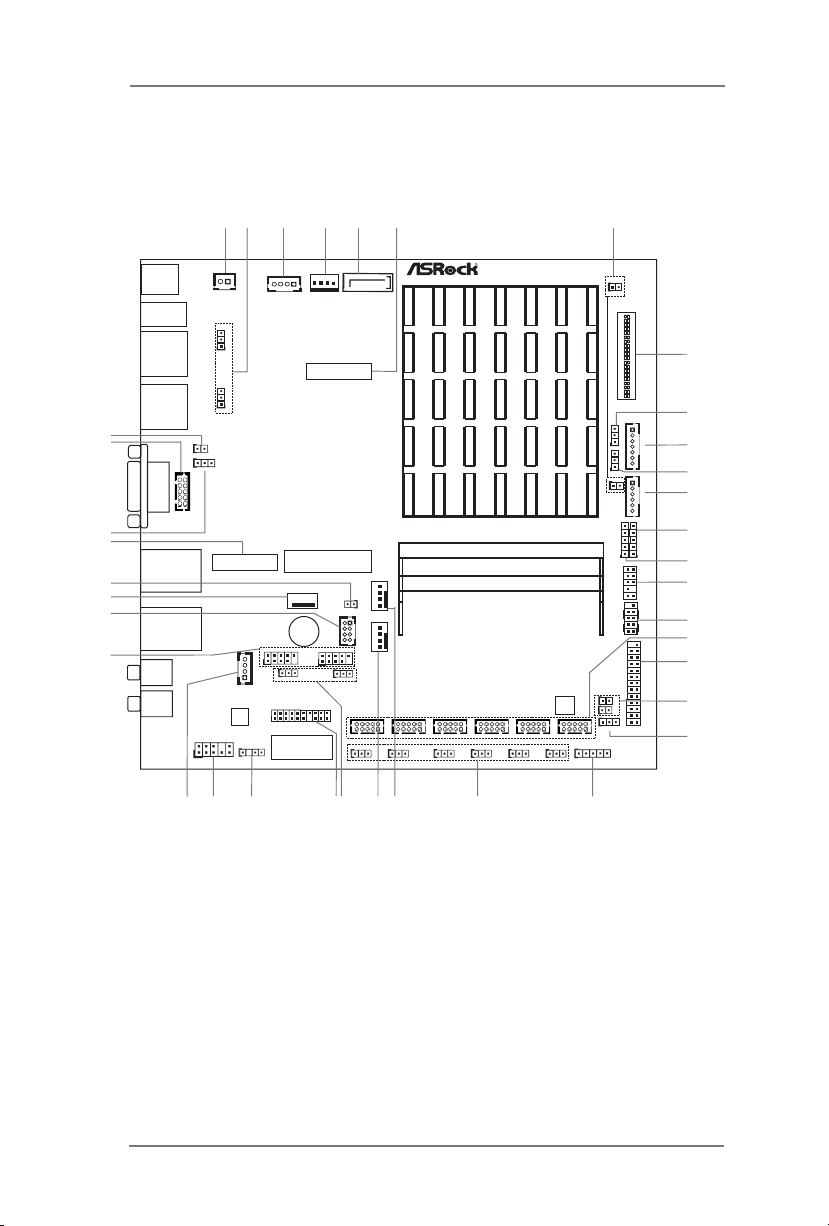

1.3 Motherboard Layout
Mic In
AUDIO
CODEC
BUZZ1
BIOS
Chip
1
HD_AUDIO1
IMB-159
BUZZ2
SATA3_1
CPU_FAN1
PCIE1
DC_JACK1
mini-PCIe
1
LPC1
PS2_KB_MS1
1
VGA2
1
CLRMOS1
1
SPEAKER1
1
LAN1
VGA1
Line Out
DISPLAY1
1
BLT_VOL1
HDLED RESET
PLED PWRBTN
PANEL1
1
SATA_PWR1
1
BLT_PWR1
1
PNL_PWR1
BKT_PWR1
Industrial
SPDIF1
1
M.2 KEY E
USB 3.0
T: USB3
B: USB2
USB 3.0
T: USB1
B: USB0
LAN2
LVDS1
1
1
BLT_PWM1
1
LPT_GPIO1
CHA_FAN1
COM1
JGPIO_SET1
1
1
BL1
1
BL2
TO_UPS1
1
FROM_UPS1
1
1
USB3_PWR0_1
1
USB3_PWR2_3
1
USB2H_1_2
1
USBH_PWR1
1
USBH_PWR2
1
USB2_4_5
1
CI2
13 24
11
10
5 6
8 (*Backside: EDP1)
9
14
12
13
15
16
17
1
JGPIO_PWR1
1
PWR_COM1
1
PWR_COM2
1
PWR_COM3
1
PWR_COM4
1
PWR_COM5
1
PWR_COM6
19
20
18
21
22
23
24
29
33
32
31
30
26
28 27 25
34
37
36
35
1
COM2
1
COM3
1
COM4
1
COM5
1
COM6
1
CLRMOS2
1
M.2 KEY M
1
PWR_JP1
TPM1
1
CI1
Vertical TypeA
USB 2 .0
1
1
7
DDR4_B1
DDR4_A1
1

9
1 : 2-pin UPS Module Power Input Connector
2 : USB Power Setting Jumpers
(USB3_PWR0_1 (For USB3_0_1 ))
(USB3_PWR2_3 (For USB3_2_3 ))
3 : 4-pin DC-in PWR Connector (Input +12V or +19V~+28V) & UPS Module Power
Output Connector
4 : SATA Power Output Connector
5 : SATA3 Connector (SATA3_1)
6 : M.2 KEY E
7 : BL1, BL2
8 : LVDS Panel Connector
* eDP Connector (on the Backside of PCB)
9 : Backlight Control Level (BLT_PWM1)
10 : Backlight Volume Control (BLT_VOL1)
11 : ATX/AT Mode Select (PWR_JP1)
12 : Backlight Power Connector (BLT_PWR1)
13 : Panel Power Select (LCD_VCC) (PNL_PWR1)
14 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
15 : SPI TPM Header
16 : System Panel Header
17 : Internal COM Port Headers
COM1, 2 (RS232/422/485)
COM3, 4, 5, 6 (RS232)
18 : Printer Port / GPIO Header (LPT_GPIO1)
19 : Chassis Intrusion Headers (CI1, CI2)
20 : Digital Input / Output Default Value Setting (JGPIO_SET1)
21 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)
22 : COM Port Pin9 PWR Setting Jumpers (PWR_COM1 ~ 6 (For COM Port1 ~ 6))
23 : 4-Pin CPU FAN Connector (+12V)
24 : 4-Pin Chassis FAN Connector (+12V)
25 : USB Power Setting Jumpers
(USBH_PWR1 (For USB2H_1_2 ))
(USBH_PWR2 (For USB2_4_5 and PS2_KB_MS1 ))
26 : LPC Header
27 : SPDIF Header
28 : Front Panel Audio Header
29 : 3W Audio AMP Output Wafer
30 : USB2.0 Connectors (USB2H_1_2, USB2_4_5)
31 : PS2 Keyboard/Mouse Header
32 : Vertical Type A USB 2.0 Port
33 : Buzzer
34 : M.2 KEY M
35 : Clear CMOS Header (CLRMOS1)
36 : VGA Header
37 : Clear CMOS Jumper (CLRMOS2)

10
1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
1 DC Jack
2 DisplayPort (DP1)
3 USB 3.0 Ports (USB3_0_1)
4 USB 3.0 Ports (USB3_2_3)
5 VGA Port (VGA1)
6 LAN RJ-45 Port (LAN1)*
7 LAN RJ-45 Port (LAN2)*
8 Line out (Green)
9 Microphone (Pink)
ACT/LINK
LED
SPEED
LED
LAN Port
6
124
358
79

11
Chapter 2: Installation
This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you
install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (SO-DIMM)
IMB-159 motherboard provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM
slots, and supports Dual Channel Memory Technology.
1. If you install one memory module only, please install it on DDR4_A1.
2. It is not allowed to install a DDR, DDR2 or DDR3 memory module into
a DDR4 slot; otherwise, this motherboard and SO-DIMM may be
damaged.
2. Please make sure to disconnect the power supply before adding or
removing SO-DIMMs or the system components.
3. The SO-DIMM only ts in one correct orientation. It will cause
permanent damage to the motherboard and the SO-DIMM if you force
the SO-DIMM into the slot at incorrect orientation.
Installing a SO-DIMM
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots (mini-PCIe, PCI Express and M.2 Slots)
There is 1 mini-PCIe slot, 1 PCI Express slot and 2 M.2 slots on this motherboard.
mini-PCIe slot:
MINI_PCIE1 (mini-PCIe slot; half/full size) is used for PCI Express mini
cards.
PCIE slot: PCIE1 (PCIE x1 slot) is used for PCI Express x1 lane width cards.
M.2 slots: M2 Slot (Key M) supports type 2242/2260/2280 M.2 SATA3 6.0 Gb/s
module.
M2_2 Slot (Key E) supports type 2230 WiFi/BT and CNVi module.
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
Step 4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

14
2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper Open: Normal
(2-pin CLRMOS2)
Short: Auto Clear CMOS When AC
(see p.8, No. 37) Power On
Note: CLRMOS2 allows you to clear the data in CMOS. The data in CMOS includes
system setup information such as system password, date, time, and system
setup parameters. To clear and reset the system parameters to default setup,
please turn off the computer and unplug the power cord, then use a jumper
cap to short the pins on CLRMOS2 for 3 seconds. Please remember to re-
move the jumper cap after clearing the CMOS. If you need to clear the CMOS
when you just nish updating the BIOS, you must boot up the system rst,
and then shut it down before you do the clear-CMOS action.
Clear CMOS Jumper
(3-pin CLRMOS1)
(see p.8, No. 35)
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time, user default prole and MAC
address will be cleared only if the CMOS battery is removed.
Digital Input / Output Power Select (JGPIOPWR) 1-2: +12V
(5-pin JGPIO_PWR1) 2-3: +5V
(see p.8 No. 21) 4-5: GND
2-pin jumper
Clear CMOSDefault

15
Backlight Power Select Use this to set up the backlight
(LCD_BLT_VCC) power of the LVDS connector
(5-pin BKT_PWR1) and the panel backlight power
(see p.8 No. 14) of BLT_PWM1.
1-2: LCD_BLT_VCC: +5V
2-3: LCD_BLT_VCC: +12V
4-5: LCD_BLT_VCC: DC Input
Backlight Control Level 1-2: From eDP PWM to CON_LBKLT_CTL
(3-pin BLT_PWM1) 2-3: From LVDS PWM to CON_LBKLT_CTL
(see p.8, No. 9)
COM Port Pin9 PWR Setting Jumpers 1-2: +5V
(3-pin PWR_COM1, for COM Port1) 2-3: +12V
(3-pin PWR_COM2, for COM Port2)
(3-pin PWR_COM3, for COM Port3)
(3-pin PWR_COM4, for COM Port4)
(3-pin PWR_COM5, for COM Port5)
(3-pin PWR_COM6, for COM Port6)
(see p.8, No. 22)
USB Power Setting Jumpers
(3-pin USB3_PWR0_1 (For USB3_0_1))
1-2: +5V
(3-pin USB3_PWR2_3 (For USB3_2_3)) 2-3: +5VSB
(see p.8, No. 2)
(3-pin USBH_PWR1 (For USB2H_1_2))
(3-pin USBH_PWR2 (For USB2_4_5 and PS2_KB_MS1))
(see p.8, No. 25)
Panel Power Select (LCD_VCC) Use this to set up the VDD
(5-pin PNL_PWR1) power of the LVDS connector.
(see p.8 No. 13) 1-2: LCD_VCC: +3V
2-3: LCD_VCC: +5V
4-5: LCD_VCC: +12V
ATX/AT Mode Select 1-2: AT Mode
(3-pin PWR_JP1) 2-3: ATX Mode
(see p.8 No. 11)

16

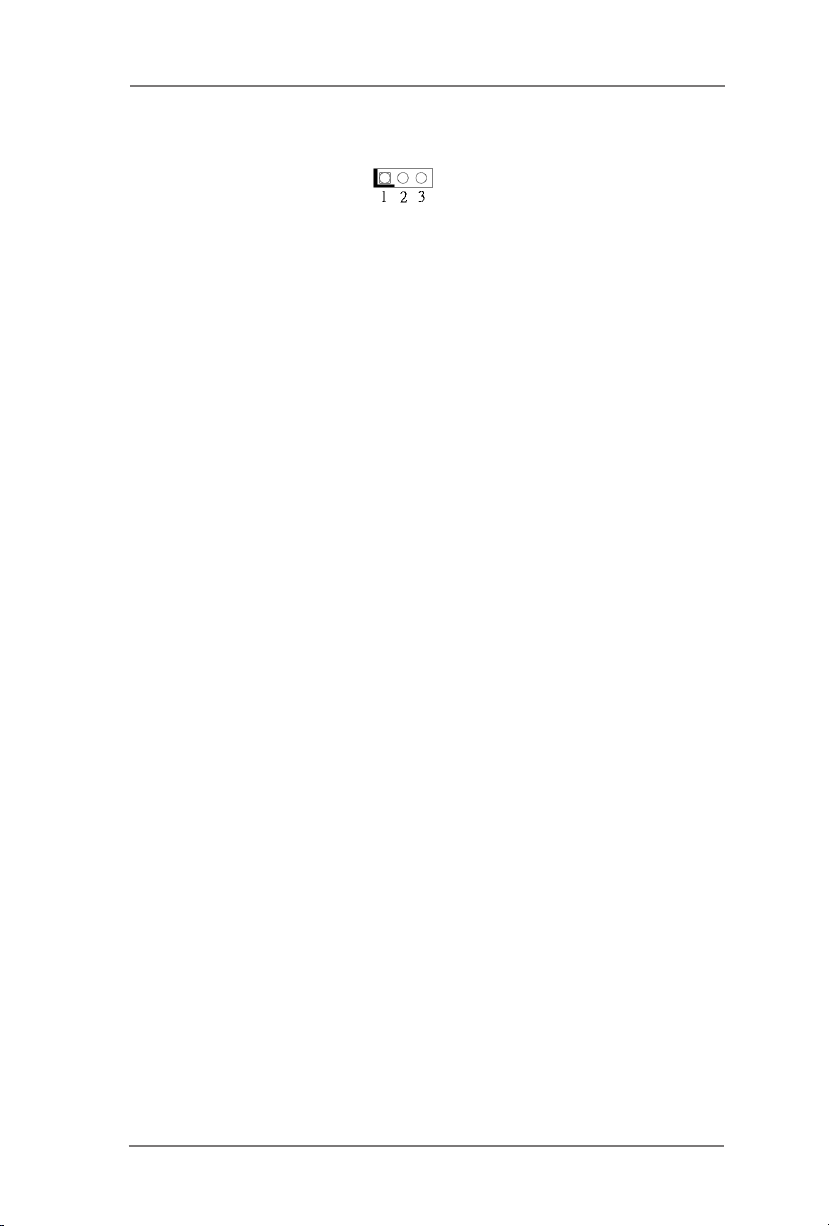

Digital Input / Output Default Value Setting 1-2: Pull-High
(3-pin JGPIO_SET1) 2-3: Pull-Low
(see p.8, No. 20)

17

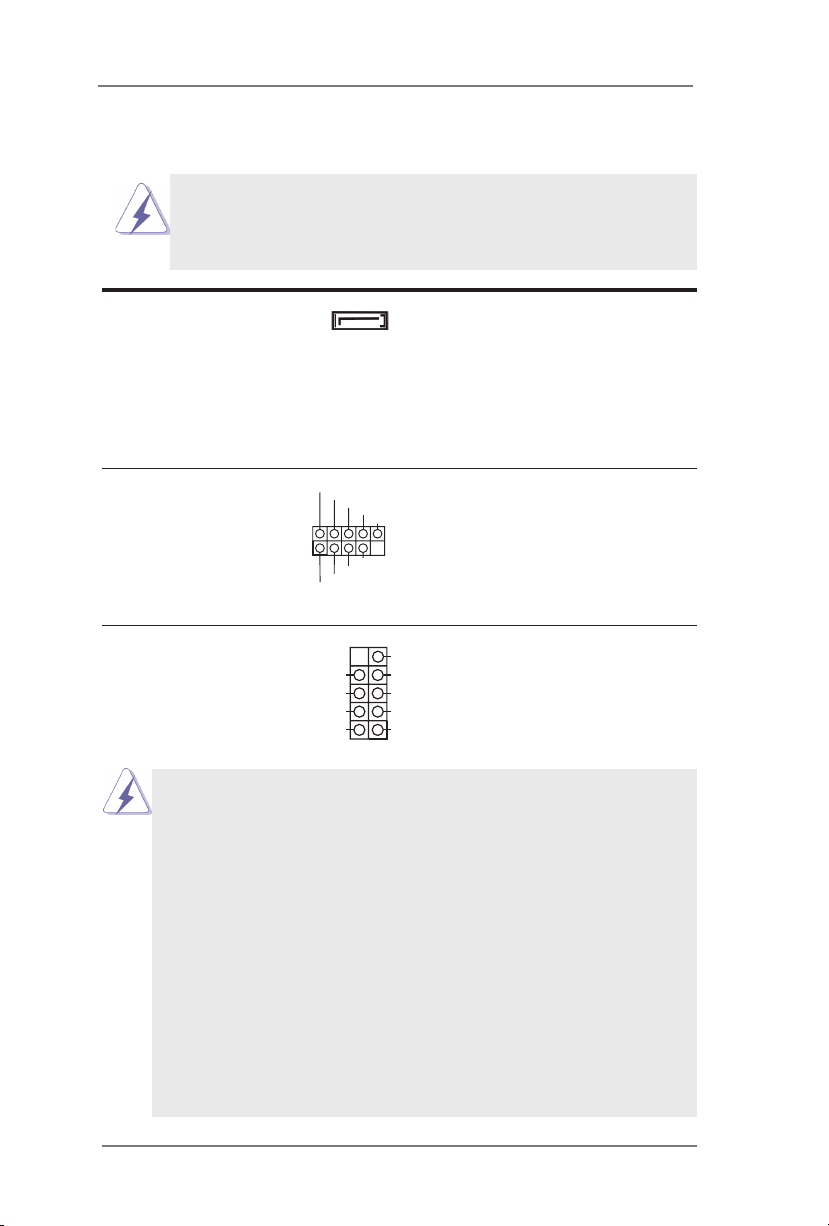

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
SATA3 Connector This Serial ATA3
(SATA3_1: see p.8, No. 5) (SATA3) connector supports
SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
USB 2.0 Connectors There are two USB 2.0
(9-pin USB2H_1_2, USB2_4_5) connectors on this
(see p.8 No. 30) motherboard. Each USB 2.0
connector can support two USB
ports.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8 No. 16) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep
state or powered off (S5).
SATA3_1
DUMMY
GND
GND
+B
-B
USB_PWR
+A
-A
USB_PWR
1
GND RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND

18

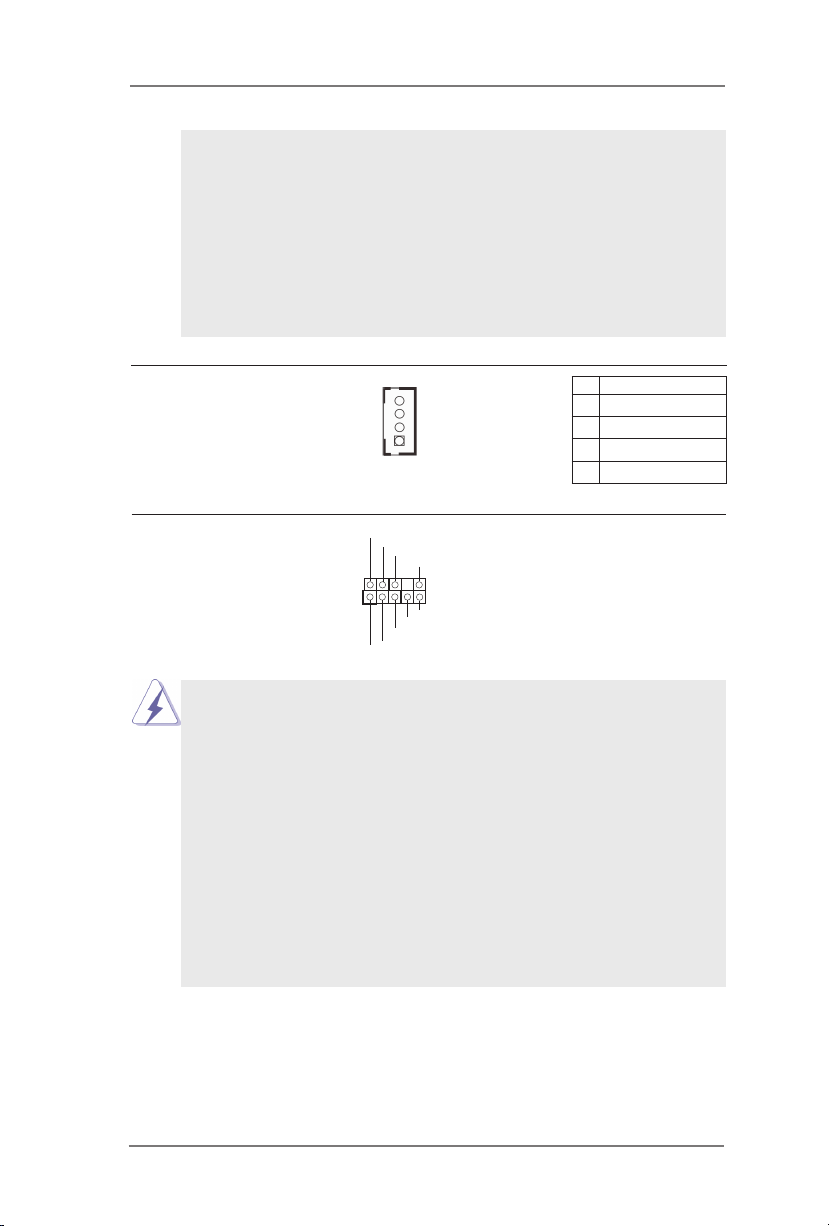

HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 29)
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.8 No. 28) convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
PIN Signal Name
4 OUTRN
3 OUTRP
2 OUTLP
1 OUTLN
1
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET

19

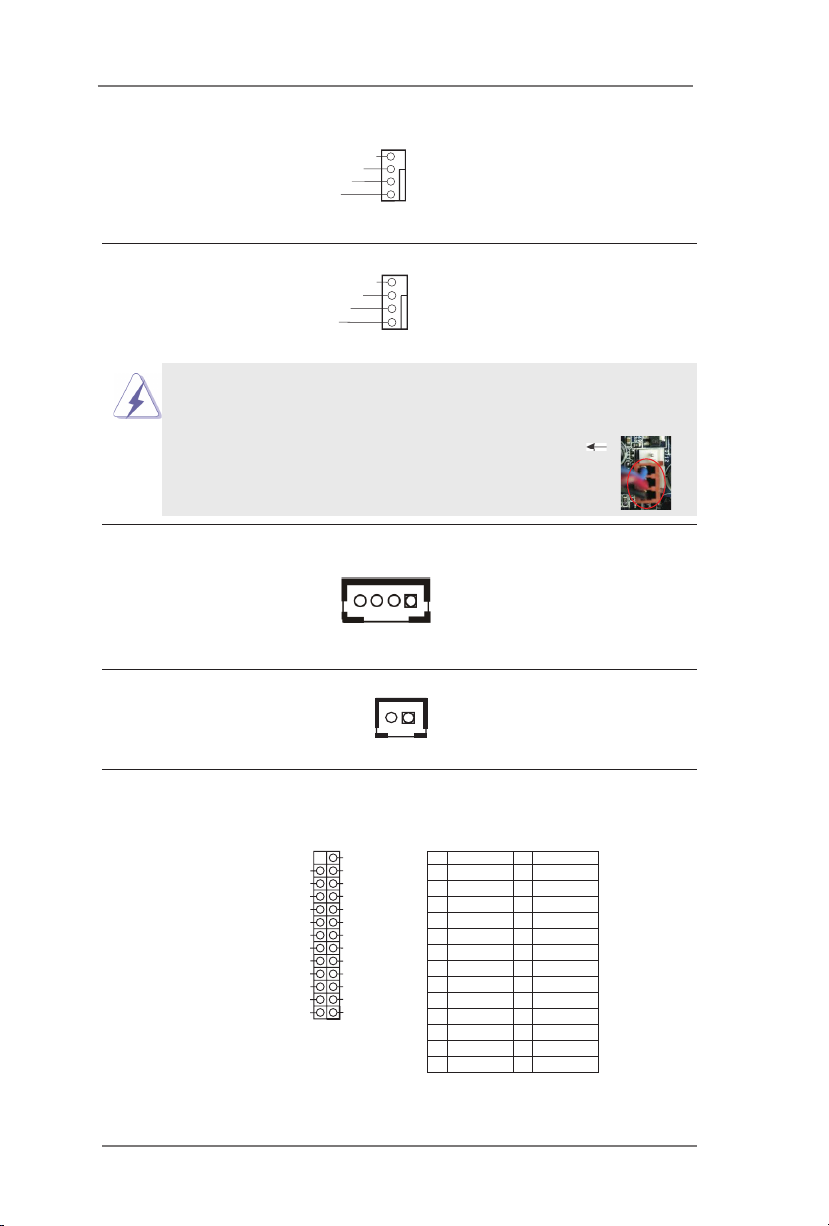

Chassis Fan Connector Please connect the fan cable
(4-pin CHA_FAN1) to the fan connector and
(see p.8 No. 24) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.8 No. 23) match the black wire to the
ground pin.

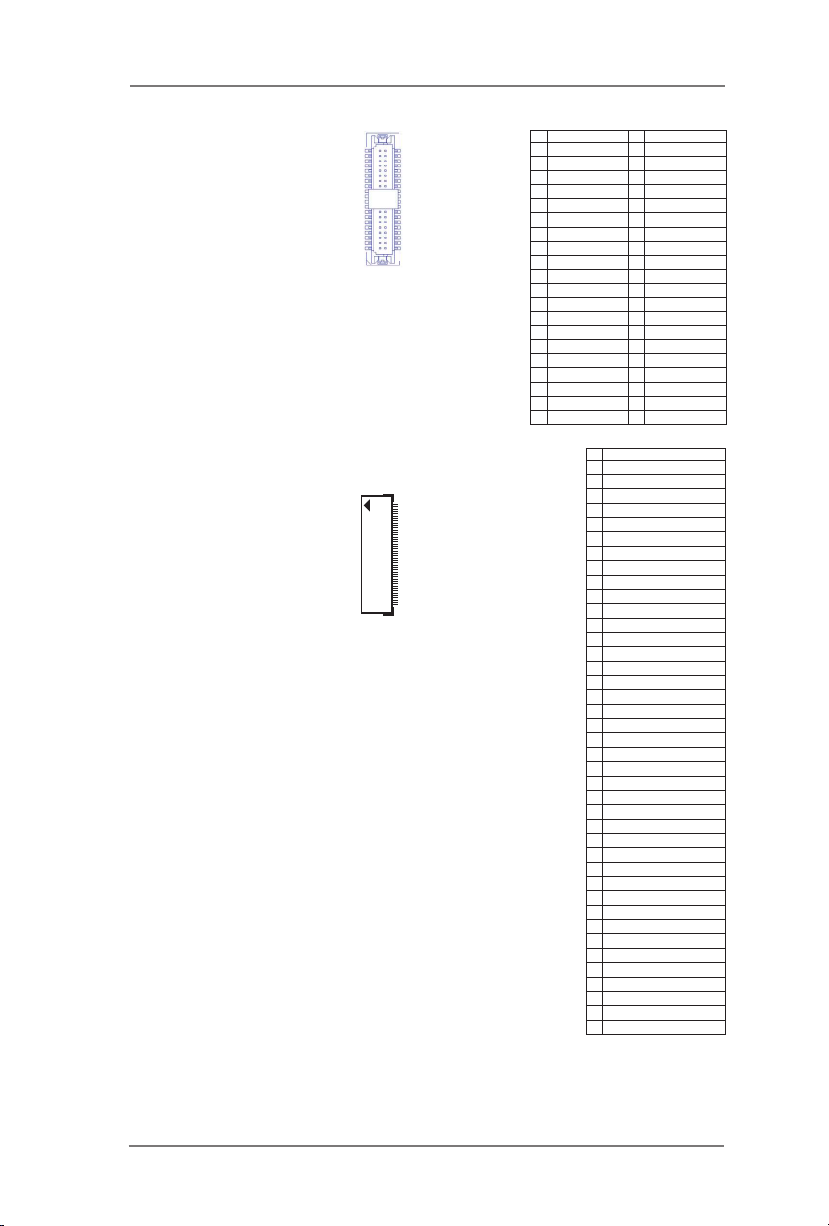

Printer Port / GPIO Header
(25-pin LPT_GPIO1)
(see p.8 No. 18) Printer Port: GPIO:
* If you want to use the printer port function, please short pin4
and pin5 on Digital Input / Output Power Select (JGPIO_PWR1).
1
1
SPD0
STB#
SPD1
SPD2
SPD3
SPD4
SPD6
SPD7
GND
GND
SLIN#
PINIT#
ERROR#
AFD#
GND
GND
GND
GND
GND
GND
SPD5
ACK#
BUSY
PE
SLCT PIN Signal Name PIN Signal Name
26 NC 25 NA
24 GND 23 SIO_GP30
22 GND 21 SIO_GP31
20 GND 19 SIO_GP32
18 GND 17 SIO_GP33
16 GND 15 SIO_GP34
14 GND 13 SIO_GP35
12 JGPIOPWR 11 SIO_GP36
10 JGPIOPWR 9SIO_GP37
8SIO_GP43 7SIO_GP40
6SIO_GP44 5SIO_GP41
4SIO_GP45 3SIO_GP42
2SIO_GP46 1SIO_GP47
UPS Module Power Input Connector Pin1: GND
(2-pin TO_UPS1) Pin2: DC Input
(see p.8 No. 1)
FAN_SPEED
FAN_SPEED_CONTROL
+12V
GND 1
2
3
4
FAN_SPEED
FAN_SPEED_CONTROL
+12V
GND 1
2
3
4
1
4-pin DC-in PWR Connector Please connect a DC
& UPS Module Power Output Connector +12V & +19V~+28V power
(Input +12V & +19V~+28V) supply to this connector.
(4-pin FROM_UPS1) Pin1 and Pin4: GND
(see p.8 No. 3) Pin2 and Pin3: DC Input

20
LVDS Connector
(40-pin LVDS1)
(see p.8 No. 8)
PIN Signal Name PIN Signal Name
2 LCD_VCC 1 LCD_VCC
4 LDDC_CLK 3 +3.3V
6 LVDS_A_DATA0# 5 LDDC_DATA
8GND 7 LVDS_A_DATA0
10 LVDS_A_DATA1 9 LVDS_A_DATA1#
12 LVDS_A_DATA2# 11 GND
14 GND 13 LVDS_A_DATA2
16 LVDS_A_DATA3 15 LVDS_A_DATA3#
18 LVDS_A_CLK# 17 GND
20 GND 19 LVDS_A_CLK
22 LVDS_B_DATA0 21 LVDS_B_DATA0#
24 LVDS_B_DATA1# 23 GND
26 GND 25 LVDS_B_DATA1
28 LVDS_B_DATA2 27 LVDS_B_DATA2#
30 LVDS_B_DATA3# 29 DPLVDD_EN
32 GND 31 LVDS_B_DATA3
34 LVDS_B_CLK 33 LVDS_B_CLK#
36 CON_LBKLT_EN 35 GND
38 LCD_BLT_VCC 37 CON_LBKLT_CTL
40 LCD_BLT_VCC 39 LCD_BLT_VCC
1
39
40
2
PIN Signal Name
40 NA
39 LCD_BLT_VCC
38 LCD_BLT_VCC
37 LCD_BLT_VCC
36 LCD_BLT_VCC
35 NA
34 NA
33 CON_LBKLT_CTL
32 CON_LBKLT_EN
31 GND
30 GND
29 GND
28 GND
27 eDP_HPD_CON
26 GND
25 GND
24 GND
23 GND
22 NA
21 LCD_VCC
20 LCD_VCC
19 LCD_VCC
18 LCD_VCC
17 GND
16 eDP_AUX#_CON
15 eDP_AUX_CON
14 GND
13 eDP_TX0_CON
12 eDP_TX#0_CON
11 GND
10 eDP_TX1_CON
9 eDP_TX#1_CON
8GND
7 eDP_TX2_CON
6 eDP_TX#2_CON
5GND
4 eDP_TX3_CON
3 eDP_TX#3_CON
2GND
1 NA
40
1
EDP1
* eDP Connector (on the Backside of PCB)
