Astral Pool PRO ELYO INVERBOOST NN Troubleshooting guide

SWIMMING POOL HEAT PUMP User and service manual
POMPE À CHALEUR POUR PISCINE Manuel d’installation et d’utilisation
ZWEMBAD WARMTEPOMP Gebruiker en service manual
BOMBA DE CALOR PARA PISCINA Manual del usuario y de servicio
SCHWIMMBAD - WÄRMEPUMPE Benutzer - und Wartungshandbuch
PISCINA POMPA DI CALORE Istruzioni per l'uso e di servizio
BOMBA DE CALOR DE PISCINA Manual do usuário e serviço
PRO ELYO INVERBOOST NN
EN
FR
NL
IT
ES
DE
PT

- 9 -
SWIMMING POOL HEAT PUMP
PRO ELYO INVERBOOST NN
User and Service manual

- 10 -
ATTENTION: This manual includes all the necessary information for the use and the installation of
your heat pump.
The installer must read the manual and follow the instructions of implementation and maintenance.
The installer is responsible for the installation of the product and should follow all the instructions of
the manufacturer and the regulations in application. Incorrect installation will invalidate the guarantee.
The manufacturer declines any responsibility for the damage caused by any third party, object
ingression and of the errors due to the installation that do not follow the manual guidelines. Any use
that is not as intended by the manufacturer will invalidate the guarantee.
1. Description
2. Transport information
3. Specifications
4. Accessories and options
5. Location and connection
6. Electrical Wiring
7. Start-up of the Heat Pump
8. Troubleshooting
9. Exploded Diagram
Thank you for using PRO ELYO INVERBOOST NN swimming pool heat pump for your pool heating, it will heat your
pool water and keep the constant temperature when the air ambient temperature is at -20 to 50℃.
WARNING:
INDEX
INDEX
INDEX
Important notice:
Please always keep the heat pump in a well ventilated place and away from anything which could cause fire.
Do not braze or weld the pipe if there is refrigerant inside machine. Please do not charge the gas when in a confined
space.
Please always empty the water in heat pump during winter time or when the ambient temperature drops below 0℃,
or else the Titanium exchanger will be damaged because of being frozen, in such case, your warranty will belost.
Please always cut the power supply if you want to open the cabinet to reach inside the heat pump.
Please keep the display controller in a dry area to protect the display controller from being damaged by humidity.

- 11 -
1.1 Included with your Heat Pump
- Water connection assembly 50 mm (pcs: 2)
- User and service manual
- Reducer connection
- 10 meters’ signal wire
- Waterproof box
- Winter cover
- Anti-vibration base (pcs: 4)

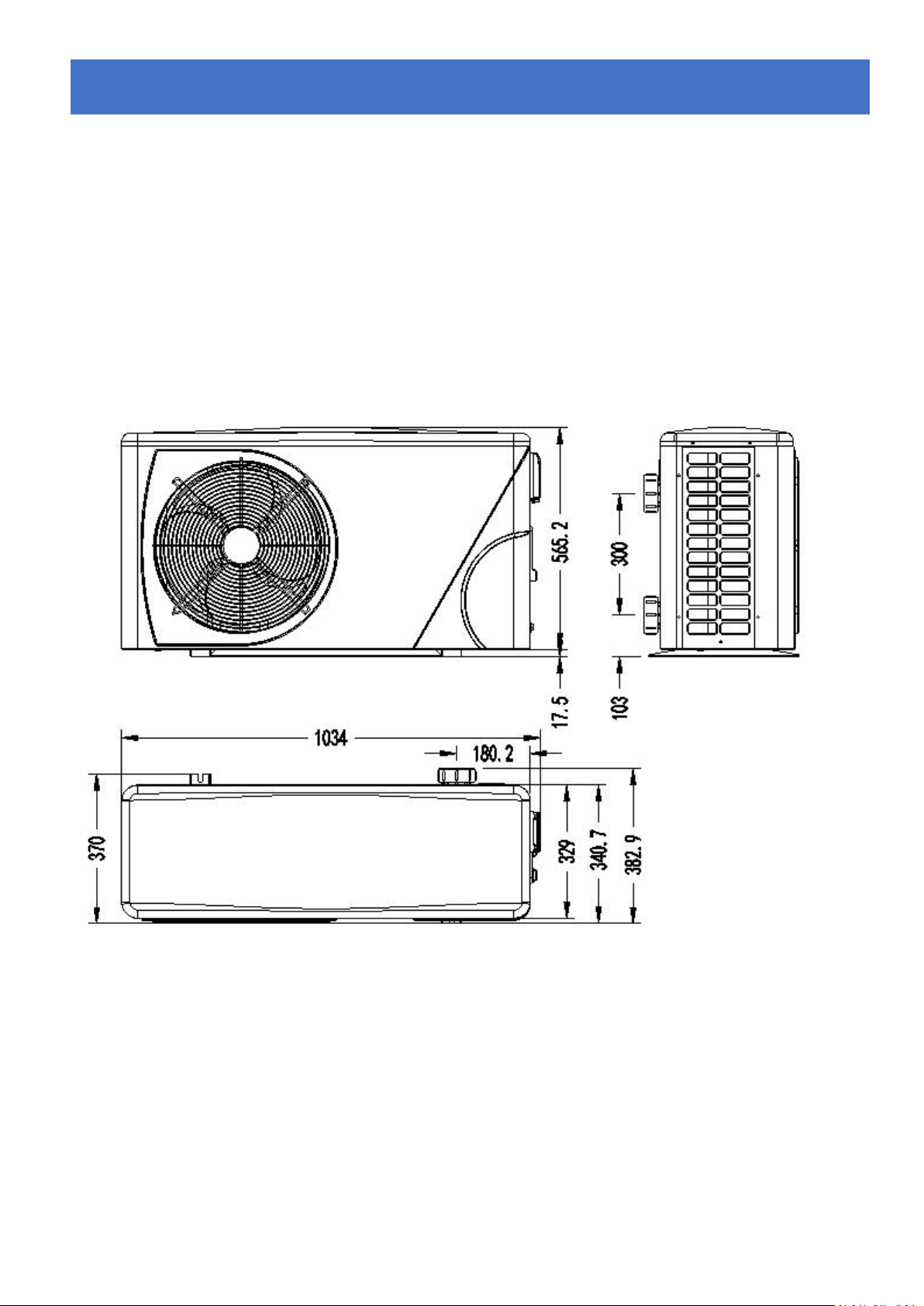

1.2 Dimension
Model: 71676
1.
1.
1. Description
Description
Description

- 12 -
Models: 71677/71678/71679
Models: 71680/71681
1.
1.
1. Description
Description
Description

- 13 -
Models: 71682/71683/68821/68822/68823
1.
1.
1. Description
Description
Description

- 14 -

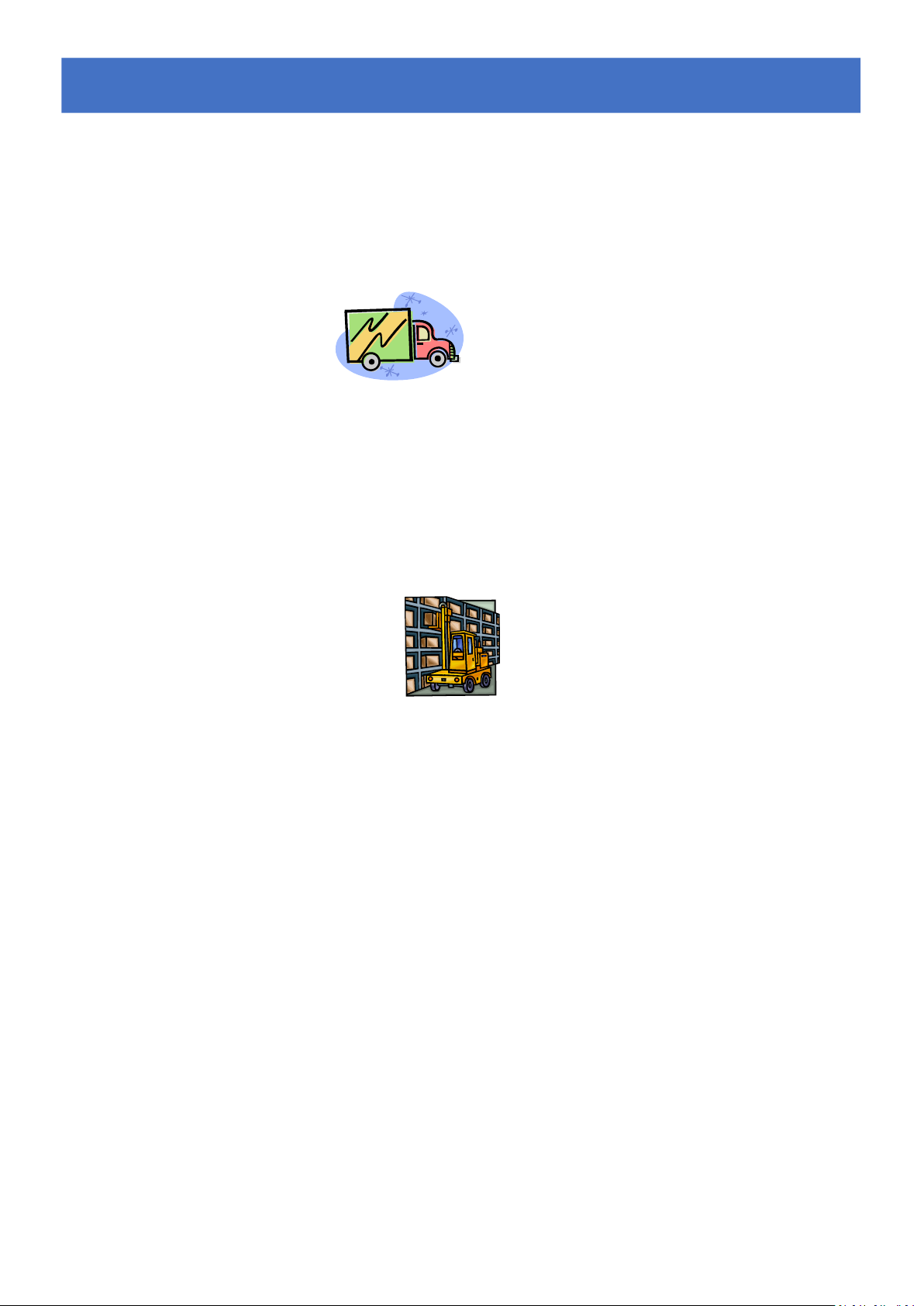

2.1 Delivery of the unit
For the transportation, the heat pumps are fixed on the pallet and covered with a cardboard box.
To protect from any damage, the heat pump must be transferred in its package.
It is the responsibility of the addressee to notify of any damage incurred during delivery within 48 hours.
No responsibility can be taken once the unit has been signed for.
2.2 Stock advice
* The warehouse should be bright, spacious, open, well ventilated, have ventilation equipment and no fire
source.
* Heat pumps must be stored and transferred in vertical position in its original packaging. If it is not the case, it
cannot be operated until a minimum period of 24H has passed before the unit can have the electrical power
turned on.
FORBIDDEN
2.3 Transfer to the final position
* During the unpacking of the product and the transfer from the pallet to the final place of installation, it is
necessary to maintain the heat pump in a verticalposition.
* Smoking and the use of flames are prohibited near R32machine.
* Water connection are not to be used as load bearing handles. The manufacturer would not take the
responsibility in case of damage to the water pipes.
2.
2.
2. Transport
Transport
Transport information
information
information

- 15 -
Technical data PRO ELYO INVERBOOST NN pool heat pumps
CE Standard, R32, ABS Cabinet
MODEL
PROELYXP07i
PROELYXP09i
PROELYXP11i
PROELYXP14i
CODE
71676
71677
71678
71679
* Performance at Air 28℃, Water 28℃, Humidity 80%
Heating capacity
Kw
7-3.1
9-2.3
11-2.9
14-3.2
Power consumption
Kw
1.04-0.21
1.34-0.14
1.64-0.18
2.09-0.2
C.O.P.
15-6.7
16-6.7
16-6.7
16-6.7
* Performance at Air 15℃, Water 26℃, Humidity 70%
Heating capacity
Kw
4.7-2.5
6.6-1.9
7.9-2
9.5-2.3
Power consumption
Kw
0.94-0.32
1.32-0.24
1.58-0.25
1.9-0.29
C.O.P.
7.9-5
8.0-5
8.0-5
8.0-5
* Performance at Air 0℃, Water 26℃, Humidity 78%
Heating capacity
Kw
3.44-1.7
4.11-2.3
5.54-3.0
6.85-3.8
Power consumption
Kw
1.23-0.38
1.47-0.82
1.98-0.68
2.45-0.85
C.O.P.
4.5-2.8
4.4-2.8
4.4-2.8
4.5-2.8
* Performance at Air -10℃, Water 26℃, Humidity 78%
Heating capacity
Kw
2.41-1.5
3.13-2.0
3.87-2.7
5.1-3.15
Power consumption
Kw
1.21-0.35
1.42-0.53
1.76-0.69
2.32-0.81
C.O.P.
4.3-2
3.8-2.2
3.9-2.2
3.9-2.2
* General data
Compressor type
MITSUBISHI INVERTER COMPRESSOR
Voltage
V
220-240V/50Hz or 60Hz/1PH
Rated current
A
4.6
5.9
7.2
9.2
Minimum fuse
A
7
9
11
14
Advised pool volume
m³
10-26
12-35
16-60
18-66
Advised water flux
m3/h
2.5
3.0
3.7
4.0
Water pressure drop
Kpa
12
12
14
15
Heat exchanger
Twist-titanium tube in PVC
Water connection
mm
50
No. of Fan
1
Ventilation type
Horizontal
Fan speed
RPM
500-850
550-850
Power input of Fan
W
6-35
22-82
32-110
Noise level(10m)
dB(A)
≤ 41
≤ 42
≤ 42
≤ 43
Noise level(1m)
dB(A)
38-51
39-52
40-52
40-54
Refrigerant (R32)
g
650
700
1000
1100
CO2 equivalent
Tonne
0.44
0.47
0.68
0.74
* Dimension/ Weight
Net weight
kg
56
68
73
78
Gross weight
kg
68
73
78
83
Net dimension
mm
1008*380*577
1050*440*709
Packing dimension
mm
1095*430*705
1130*470*850
3.
3.
3. Specifications
Specifications
Specifications

- 16 -
Technical data PRO ELYO INVERBOOST NN pool heat pumps
CE Standard, R32, ABS Cabinet
MODEL
PROELYXP16i
PROELYXP20i
PROELYXP26i
PROELYXP30i
CODE
71680
71681
71682
71683
* Performance at Air 28℃, Water 28℃, Humidity 80%
Heating capacity
Kw
16-3.8
20-4.7
26-5.9
30-6.8
Power consumption
Kw
2.39-0.24
2.99-0.29
3.88-0.37
4.55-0.43
C.O.P.
16-6.7
16-6.7
16-6.7
16-6.6
* Performance at Air 15℃, Water 26℃, Humidity 70%
Heating capacity
Kw
11.2-3
14-3.9
18-5.4
22.8-5.6
Power consumption
Kw
2.24-0.38
2.8-0.49
3.6-0.68
4.56-0.68
C.O.P.
8.2-5
8.2-5
8.2-5
8.2-5
* Performance at Air 0℃, Water 26℃, Humidity 78%
Heating capacity
Kw
7.4-4.1
9.79-4.8
13-6.7
15.89-8.5
Power consumption
Kw
2.64-0.91
3.5-1.09
4.64-1.52
5.68-1.93
C.O.P.
4.5-2.8
4.4-2.8
4.4-2.8
4.4-2.8
* Performance at Air -10℃, Water 26℃, Humidity 78%
Heating capacity
Kw
5.8-3.6
7.58-4.3
10.4-5.9
12.74-7.4
Power consumption
Kw
2.64-0.92
3.45-1.1
4.73-1.51
5.79-1.95
C.O.P.
3.9-2.2
3.9-2.2
3.9-2.2
3.8-2.2
* General data
Compressor type
MITSUBISHI INVERTER COMPRESSOR
Voltage
V
220V-240V/50Hz or 60Hz/1PH
Rated current
A
10.5
13.2
17.0
23.0
Minimum fuse
A
16
20
26
35
Advised pool volume
m³
28-85
58-120
65-132
78-156
Advised water flux
m3/h
5.0
6.0
8.0
10.0
Water pressure drop
Kpa
15
18
20
25
Heat exchanger
Twist-titanium tube in PVC
Water connection
mm
50
No. of Fan
1
Ventilation type
Horizontal
Fan speed
RPM
450-650
(550-850)*2
Power input of Fan
W
35-130
(32-110)*2
Noise level(10m)
dB(A)
≤ 43
≤ 45
≤ 49
≤ 49
Noise level(1m)
dB(A)
40-54
41-56
42-60
42-60
Refrigerant (R32)
g
1500
1900
2000
2600
CO2 equivalent
Tonne
1.01
1.28
1.35
1.76
* Dimension/ Weight
Net weight
kg
98
117
128
130
Gross weight
kg
113
135
146
148
Net dimension
mm
1050*450*870
1050*452*1295
Packing dimension
mm
1140*480*1010
1130*515*1430
3.
3.3. Specifications SpecificationsSpecifications

- 17 -
Technical data PRO ELYO INVERBOOST NN pool heat pumps
CE Standard, R410A, ABS Cabinet
MODEL
Pro Elyo Inverboost NN26T
Pro Elyo Inverboost NN 35
Pro Elyo Inverboost NN35T
CODE
68821
68822
68823
* Performance at Air 28℃, Water 28℃, Humidity 80%
Heating capacity
Kw
26-5.9
35-8
35-8
Power consumption
Kw
3.88-0.37
5.22-0.5
5.22-0.5
C.O.P.
16-6.7
16-6.7
16-6.7
* Performance at Air 15℃, Water 26℃, Humidity 70%
Heating capacity
Kw
18-5.4
24-5.6
24-5.6
Power consumption
Kw
3.6-0.68
4.8-0.68
4.8-0.68
C.O.P.
8.2-5
8.2-5
8.2-5
* Performance at Air 0℃, Water 26℃, Humidity 78%
Heating capacity
Kw
13-6.7
15.8-3.7
15.8-3.7
Power consumption
Kw
4.64-1.52
4.46-0.63
4.46-0.63
C.O.P.
4.4-2.8
5.8-3.6
5.8-3.6
* Performance at Air -10℃, Water 26℃, Humidity 78%
Heating capacity
Kw
10.4-5.9
11.6-3.1
11.6-3.1
Power consumption
Kw
4.73-1.51
4.77-0.6
4.77-0.6
C.O.P.
3.9-2.2
5.2-2.45
5.2-2.45
* General data
Compressor type
MITSUBISHI INVERTOR COMPRESSOR
Voltage
V
380V/50Hz or 60Hz/3PH
220~240V /50Hz or
60Hz/1PH
380V/50Hz or 60Hz/3PH
Rated current
A
7
22.9
8.4
Minimum fuse
A
10.5
34
13
Advised pool
volume
m³
65-132
78-160
78-160
Advised water flux
m3/h
8.00
10.0
10.0
Water pressure
Kpa
20
25
25
Heat exchanger
Twist-titanium tube in PVC
Water connection
mm
50
No, of Fan
2
Ventilation type
Horizontal
Fan speed
RPM
(550-850)*2
Power input of Fan
W
(32-110)*2
Noise level(10m)
dB(A)
/
/
/
Noise level(1m)
dB(A)
42-60
42-60
42-60
Refrigerant (R410a)
g
3800
4000
4000
CO2 equivalent
Tonne
7.94
8.36
8.36
* Dimension / Weight
Net weight
kg
128
Gross weight
kg
146
Net dimension
mm
1050*452*1295
Packing dimension
mm
1130*515*1430
* Above data are subject to modification without notice.
3.
3.
3. Specifications
Specifications
Specifications

- 18 -
4.1 Accessories list
Anti-vibration base, 4 pcs
Draining plug, 2 pcs
Waterproof box, 1 pc
10M signal wire, 1 pc
Modbus signal wire, 1 pc
Water connection assembly, 2 sets
Winter Cover, 1 pc
4.2 The By-Pass Kit
The By-Pass Kit is the essential accessory for the installation of your heat pump, it is also a tool for the optimization
of the heating of the water. The valves allows the optimum flow of water using a manometer to make sure the
optimized running of the compressor, see paragraph 5.6 controls of the pressure.
4.
4.
4. Accessories
Accessories
Accessories and
and
and options
options
options

- 19 -

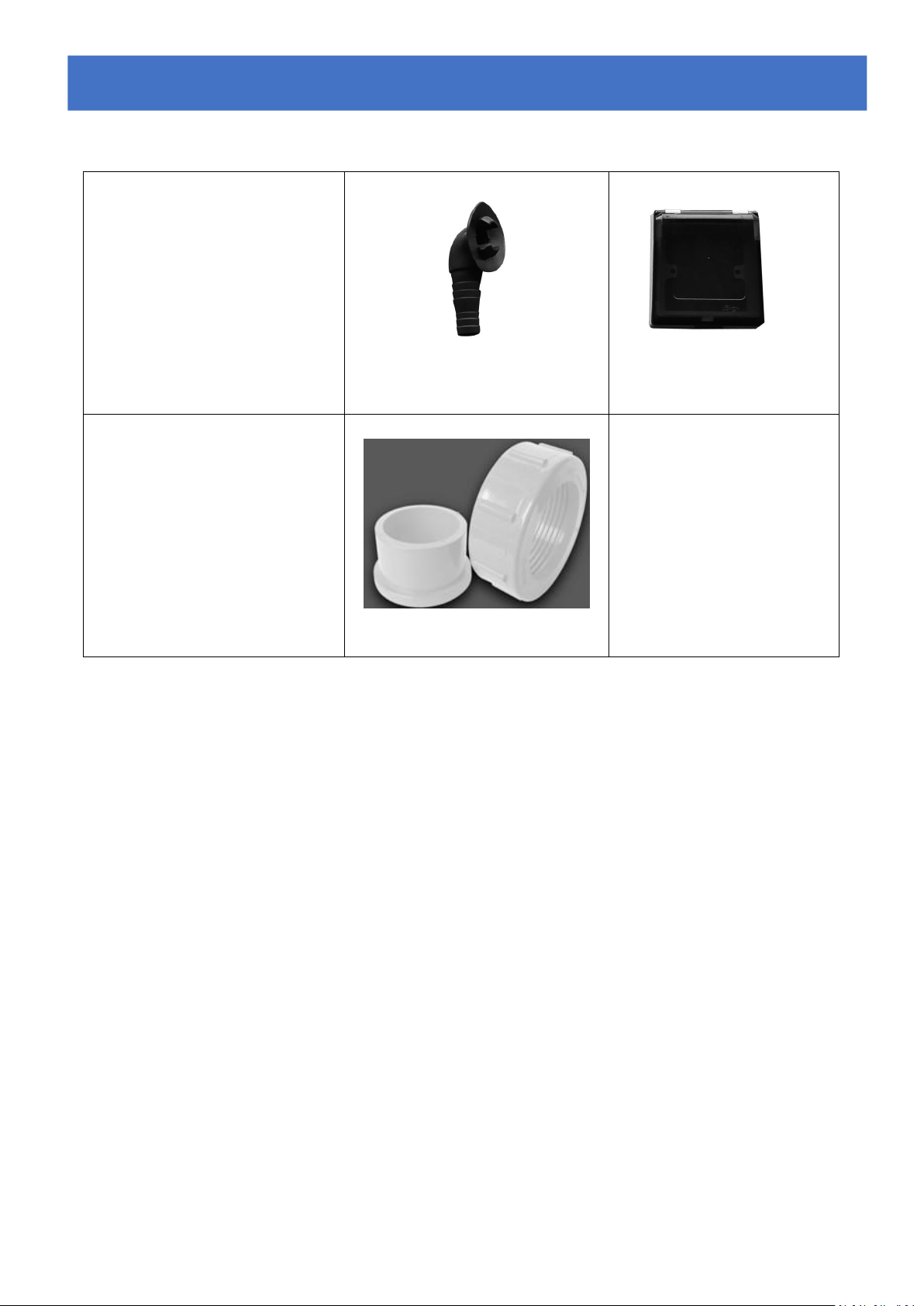

4.3 Accessories Installation
Anti-vibration bases
1. Take out 4 Anti-vibration bases
2. Install them on the bottom of
machine.
Draining plug
1. Install the draining plug under the
bottom panel
2. Connect with a water pipe to
drain out the water.
Note: Lift the heat pump to install
the draining plug. Never overturn
the heat pump, it could damage the
compressor.
Water Inlet & outlet connection
1. Install the two joints like the
picture shows
2. Screw them onto the water Inlet
& outlet connection
Mains Cable wiring
1. Open the cover of the terminal
box (marked red) on the side of
machine
2. Tight the cables in the correct
connections, L N E, inside the
terminal block.
Filtration pump wiring (Dry contact)
1. Open the cover of the terminal
box (marked red) on the side of
machine
2. Tight the cables in the correct
connections, 1 2, inside the terminal
block.
4.
4.
4. Accessories
Accessories
Accessories and
and
and options
options
options

- 20 -
ATTENTION:
Please observe the following rules when installing the heat pump:
1. Any addition of chemicals must take place in the piping located downstream from the heat
pump.
2. Always keep the heat pump upright. If the unit has been held at an angle, wait at least 24
hours before applying mains power to the heat pump.
ATTENTION: Never install the unit in a closed room with a limited air volume in which the air expelled
from the unit will be reused, or close to shrubbery that could block the air inlet. Such locations impair
the continuous supply of fresh air, resulting in reduced efficiency and possibly preventing sufficient heat
output.
5.1 Heat pump location
The unit will work properly in any desired location as long as the following three items are present:
1. Fresh air
2. Electricity
3. Swimming pool filters
The unit may be installed in virtually any outdoor location as long as the specified minimum distances to other
objects are maintained (see drawing below). Please consult your installer for installation with an indoor pool.
Installation in a windy location does not present any problem at all.
5.
5.
5. Location
Location
Location and
and
and connection
connection
connection

- 21 -
5.2 Check-valve installation
NOTE
Note: If automatic dosing equipment for chlorine and acidity (pH) is used, it is essential to protect the heat
pump against excessively high chemical concentrations which may corrode the heat exchanger. For this reason,
equipment of this sort must always be fitted in the piping on the downstream side of the heat pump, and it is
recommended to install a check-valve to prevent reverse flow in the absence of water circulation.
Damage to the heat pump caused by failure to observe this instruction is not covered by the warranty.
5.
5.
5. Location
Location
Location and
and
and connection
connection
connection

- 22 -
ATTENTION:
In order to heat the water in the pool (or hot tub), the filtration pump must be running so the water
is circulating through the heat pump. The heat pump will not start up if the water is not circulating.
5.3 Typical arrangement
This arrangement is only an illustrative example.
NOTE
The factory supplies only the heat pump. All other components, including a bypass if necessary, must be
provided by the user or the installer.
5.
5.
5. Location
Location
Location and
and
and connection
connection
connection

- 23 -
5.4 Initial operation
After all connections have been made and checked, carry out the following procedure:
1. Switch on the filtration pump. Check for leaks and verify that water is flowing to and from the swimming pool.
2. Connect power to the heat pump and press the On/Off button on the electronic control panel.
The unit will start up after the time delay expires (see below).
3. After a few minutes, check whether the air blowing out of the unit iscooler.
4. When the filtration pump is turned off, the unit should also turn off automatically.
5. Allow the heat pump and the filtration pump to run 24 hours a day until the desired water temperature is
reached. The heat pump will stop running at this point +1°C. After this, it will restart automatically (as long as
the filtration pump is running) whenever the swimming pool water temperature drops 1 degree below the set
temperature (for example, if you set the temperature 28°C, the heat pump will stop when the temperature at
29°C. While it will restart when the temperature of the water down to 27°C)
Depending on the initial temperature of the water in the swimming pool and the air temperature, it may take
several days to heat the water to the desired temperature. A good swimming pool cover can dramatically
reduce the required length of time.
NOTE
Water Flow Switch:
It is equipped with a flow switch for protecting the HP unit running with adequate water flow rate. It will turn
on when the filtration pump runs and shut it off when the pump shuts off.
Time delay - The heat pump has a built-in 3-minute start-up delay to protect the circuitry and avoid excessive
electrical contactor wear. The unit will restart automatically after this time delay expires. Even a brief power
interruption will trigger this time delay and prevent the unit from restarting immediately. Additional power
interruptions during this delay period do not affect the 3-minute duration of the delay.
5.
5.
5. Location
Location
Location and
and
and connection
connection
connection

- 24 -
5.5 Condensation
The air drawn into the heat pump is cooled by the operation of the heat pump for heating the pool water, which
may cause condensation on the fins of the evaporator.
NOTE
The amount of condensation may be as much as several litters per hour at high humidity. The condensate will
drain from the bottom of the heat pump. This is sometimes mistakenly regarded as a water leak.
5.6 Pressure gauge display (R32)
Examine the pressure gauge which indicates the refrigerant gas pressure of the unit, the below table shows
the normal value of the gas pressure (R32) when the machine is in power off or running conditions.
Unit Condition
Power Off
Ambient (℃)
-5~5
5~15
15~25
25~35
Water temp (℃)
/
/
/
/
Pressure gauge (Mpa)
0.59~0.85
0.85~1.18
1.18~1.59
1.59~2.1
Unit Condition
Running
Ambient (℃)
/
/
/
/
/
Water temp (℃)
10~15
15~20
20~25
25~30
30~35
Pressure gauge (Mpa)
1.1~1.6
1.3~1.8
1.5~2.1
1.7~2.4
1.9~2.7
5.
5.
5. Location
Location
Location and
and
and connection
connection
connection

- 25 -
6.1 Inverter swimming pool heat pump wiring diagram
Ref. 71676/71677/71678/71679/71680
6.
6.
6. Electrical
Electrical
Electrical Wiring
Wiring
Wiring

- 26 -
6.2 Inverter swimming pool heat pump wiring diagram
Ref: 71681
6.
6.
6. Electrical
Electrical
Electrical Wiring
Wiring
Wiring

- 27 -
6.3 Inverter swimming pool heat pump wiring diagram
Ref: 71682/71683
6.
6.
6. Electrical
Electrical
Electrical Wiring
Wiring
Wiring
