1. Introduction
1.1 Package contents
Check your ASUS Xonar™ U5 audio card package for the following items:
• ASUS XonarTM U5 5.1-Channel USB Audio Card x1
• Driver CD x1
• S/PDIF TOSLINK optical adapter x1
• Quick Start Guide x1
• Type B to A USB Cable x1
1.2 System requirements
To ensure a successful installation of the Xonar U5 audio card, make sure that
your computer meets the following requirements:
• IBM compatible PC with one USB1.1 (or higher) compatible port for the
USB audio device
• 32/64bit Microsoft®Windows® 7 / Windows® 8 / Windows®8.1
• Intel®Pentium® 4 1.4GHz, AMD Athlon 1400 CPU, or faster CPU
• 256MB system memory
• 60MB available storage space for driver installation
• CD-ROM drive (or DVD-ROM drive) for software installation
• High-quality headphones, powered analog speakers, or a Dolby Digital
decoder

5
ASUS Xonar U5 User Guide
English
1.3 General Specification
Items Description
Audio Performance
Output Signal-to-Noise Ratio
(A-Weighted)
Up to 104dB
Input Signal-to-Noise Ratio
(A-Weighted)
Up to 94dB
Output Total Harmonic Distortion +
Noise at 1kHz (A-Weighted)
Up to 0.005% (-86dB)
Input Total Harmonic Distortion +
Noise at 1kHz (A-Weighted)
Up to 0.005% (-86dB)
Frequency Response
(-3dB, 24-bit/96kHz input)
< 10Hz to 44kHz
Output / Input Full-Scale Voltage 1 Vrms (2.828 Vp-p) for rear output (Speaker)
1.3 Vrms (3.677 Vp-p) for headphone out
1 Vrms (3.677 Vp-p) for line in
Bus Compatibility
USB audio class USB audio class 2.0 for all functions;
USB audio class 1.0 for playback
Main Chipset
Audio Processor Cmedia 6631A High-Performance Sound Processor
(Max. 192kHz / 24bit)
D-A Converter of Digital Sources Cmedia CM9882A x1 (108dB SNR, Max.
192kHz/24bit)
A-D Converter for Analog Inputs Cmedia CM9882A x1 (104dB SNR, Max.
192kHz/24bit)
Sample Rate and Resolution
Analog Playback Sample Rate and
Resolution
44.1k/48k/88.2k//96k/192kHz @ 16/24bit
Analog Recording Sample Rate
and Resolution
44.1k/48k/88.2k//96k/192kHz @ 16/24bit
S/PDIF Digital Output 44.1k/48k/88.2k//96k/192kHz @ 16/24bit
ASIO 2.0 Driver Support 44.1k/48k/88.2k//96k/192kHz @ 16/24bit
(continued on the next page)

6ASUS Xonar U5 User Guide
English
Items Description
I/O Ports
Analog Output Jack 3.50mm mini jack x3 for surround
(Front/Center-Subwoofer/Rear-out)
3.50mm mini jack x1 (Headphone out)
Analog Input Jack 3.50mm mini jack x1 (Shared by Line-In / Mic-In)
Button Output volume / Output selection / Microphone Volume)
Digital S/PDIF Output High-bandwidth coaxial / optical port supports 192kHz/24bit
Driver Features
As SW specications Version 1.01

7
ASUS Xonar U5 User Guide
English
2. Hardware

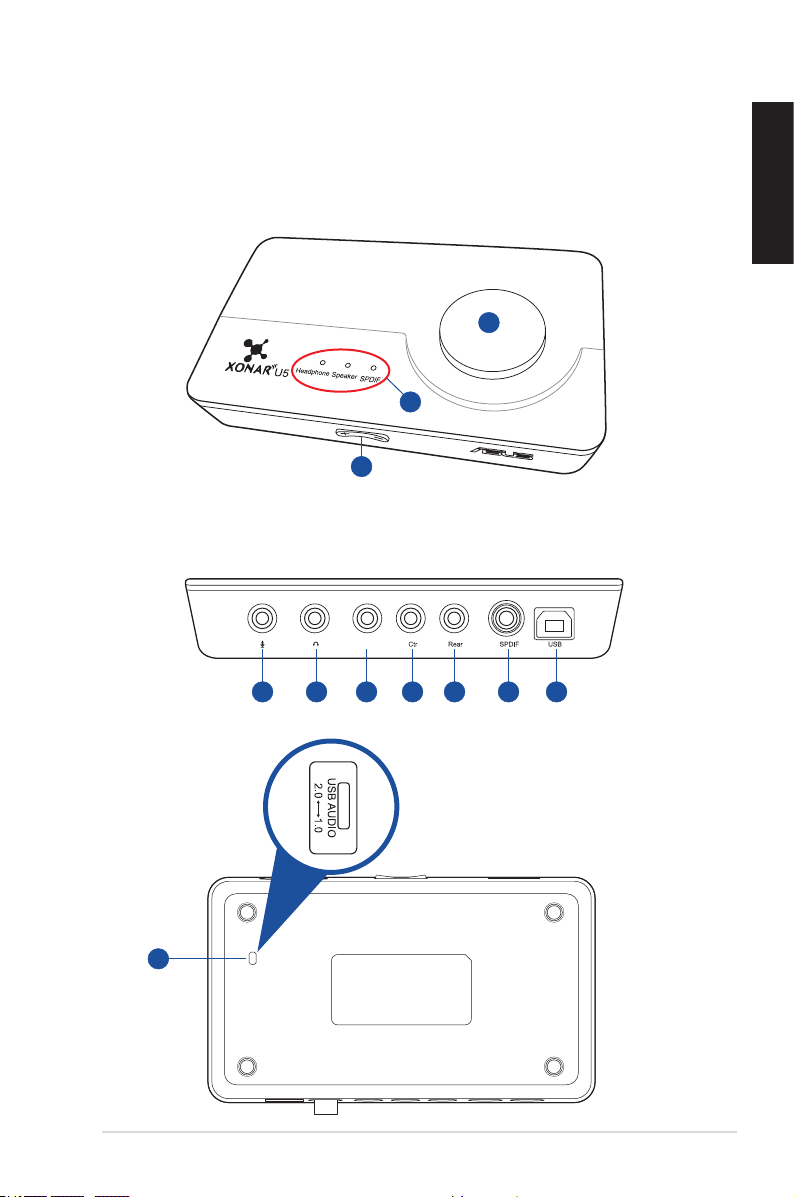

Xonar U5 Audio Card
3
2
1
Front
654 7 8 9 10
Top view
Rear view
Bottom view
11

8ASUS Xonar U5 User Guide
English
No Item Description
1Microphone Volume
Control
Press to increase or decrease microphone volume.
2Output Selection
Indicator
LED indicator indicates different output selection
(Headphone/Speaker/S/PDIF).
3Output Selection/
Volume Control
Rotate to adjust the playback volume. Press to select
an output source.
4 Microphone In port
Connect your external PC microphone to this 3.5mm
port for voice input. Built-in high-quality Microphone
pre-amplier.
5Headphone Out
port
Connect your headphone to this port.
6 Front Out port For 2/4/5.1 channel speaker systems, connects to the
front input on the powered speakers.
7Center/Subwoofer
Out port
Connects to the center/subwoofer input on 5.1 powered
analog speakers.
8 Rear Out port Connects to the rear/subwoofer input on 5.1 powered
analog speakers.
9 S/PDIF Out port
Coaxial digital output port. Connects to an external
digital decoder or digital speaker systems, Home
Theater systems, AV receivers for outputting digital
audio including PCM, Dolby Digital, DTS, WMA-Pro,
etc. Connects to the surround channel input on 4/5.1
powered analog speakers.
10 USB Port Connects to your computer using a USB Type B-A lead.
11 USB Audio 1.0/2.0
switch
Move this switch to toggle between USB Audio 2.0
and USB Audio 1.0 connection. Use USB Audio 1.0
for plug and play. Use USB Audio 2.0 on a mac (Apple
computer).
USB Audio 1.0/2.0 switch is located at the bottom side of the audio card. USB
Audio 1.0 connection has the following limitations:
• Only supports playback features.
• 5.1 speakers, Headphone, Mic In / Line-In, and SPDIF Out can only
support sample rates of 44.1KHz/48KHz @16-bit.

9
ASUS Xonar U5 User Guide
English
3. Driver Installation
3.1 Installing the Xonar U5 Card Driver
After connecting the Xonar U5 audio card to your computer, you need to install
the device driver that enables the Xonar U5 audio card to work with Windows
operating system.
The version and content of the support CD are subject to change without notice.
To install the device driver:
1. Insert the ASUS Xonar U5 support CD into your optical drive. If Autorun is
enabled, the ASUS Xonar Card Driver screen appears automatically. Go to
step 4. If Autorun is not enabled in your computer, perform step 2.
2. Click Computer on your desktop and double-click the optical drive icon.
3. Double-click setup.exe located on the optical drive.
4. Click Driver to start the installation.
5. Follow the on-screen instructions to complete the installation. Read,
understand, and accept the END USER LICENSE AGREEMENT before
continuing the installation.
6. When the installation nishes, you may be prompted to restart your
computer. You can choose to restart the computer at a later time.
3.2 Uninstalling or Reinstalling the Xonar U5 Card
Driver
3.2.1 Uninstalling the Xonar U5 Card Driver
To uninstall the Xonar U5 card driver:
1. Click Start > Control Panel > Programs and Features.
2. Right-click the driver you want to remove, and then click Uninstall.
3. In the InstallShield Wizard dialog box, select Remove.
4. Restart your computer when prompted.
3.2.2 Reinstalling the Xonar U5 Card Driver
To reinstall the Xonar U5 card driver:
1. Uninstall the existing software or driver.
2. Follow the installation process to reinstall the driver.

10 ASUS Xonar U5 User Guide
English
Front
Desktop PC Laptop/Portable
USB
4. Connecting Speakers and Peripherals
4.1 Input connection
4.1.1 Connecting to a USB 2.0 port on your computer
No Item Description
1 USB Port Connects to your computer using a USB Type B-A lead.
1

11
ASUS Xonar U5 User Guide
English
AVR
Front
S/PDIF

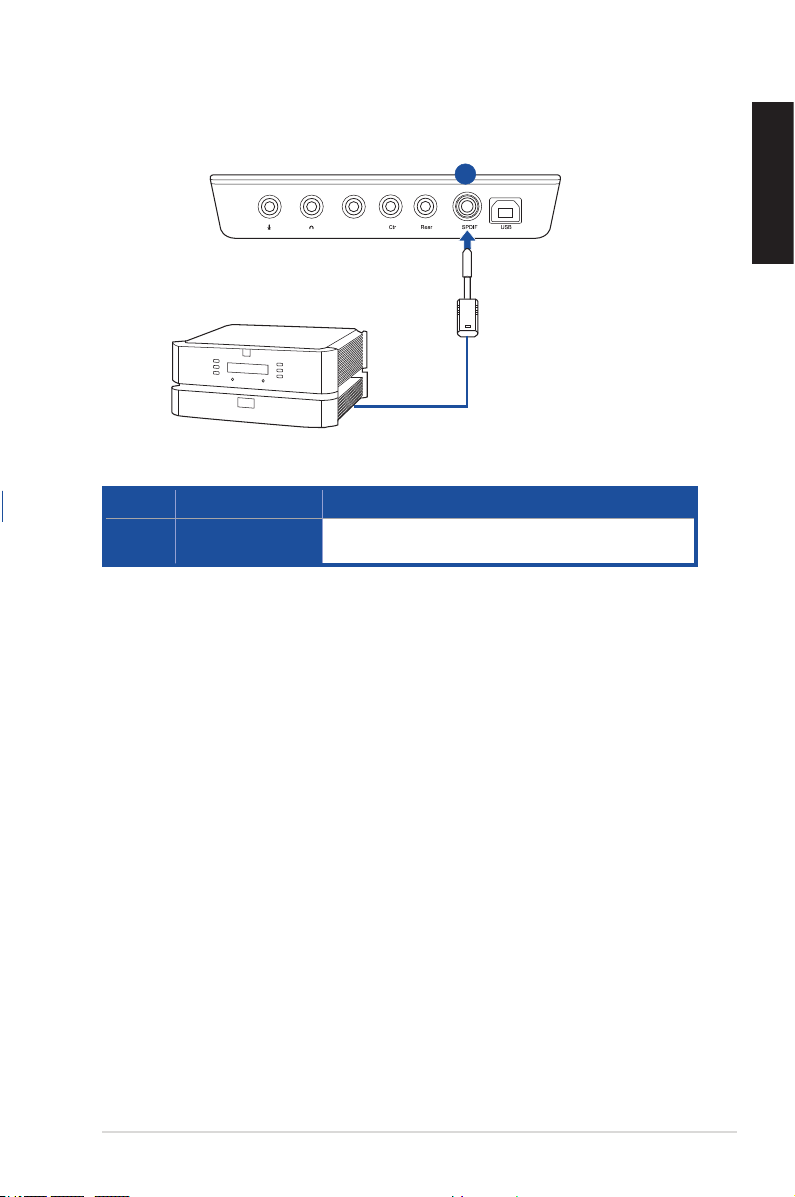

4.1.2 Connecting digital audio systems
1
No Item Description
1 S/PDIF Out port Connect an AVR (Audio/Video Receiver) to this S/PDIF
output port.

12 ASUS Xonar U5 User Guide
English
Front
OR
MP3 Player
CD Player
Microphone
4.1.3 Connecting microphone / Line-In
1
No Item Description
1 Microphone In /
Line In port
Connect the microphone’s 3.5mm plug into this Mic-In
port for voice communication, recording, or karaoke.
Connect the 3.5mm plug of the CD/MP3 Player or any
other Line level analog audio sources into this Line-In
port for sound recording.

13
ASUS Xonar U5 User Guide
English
Front
4.2 Output connection

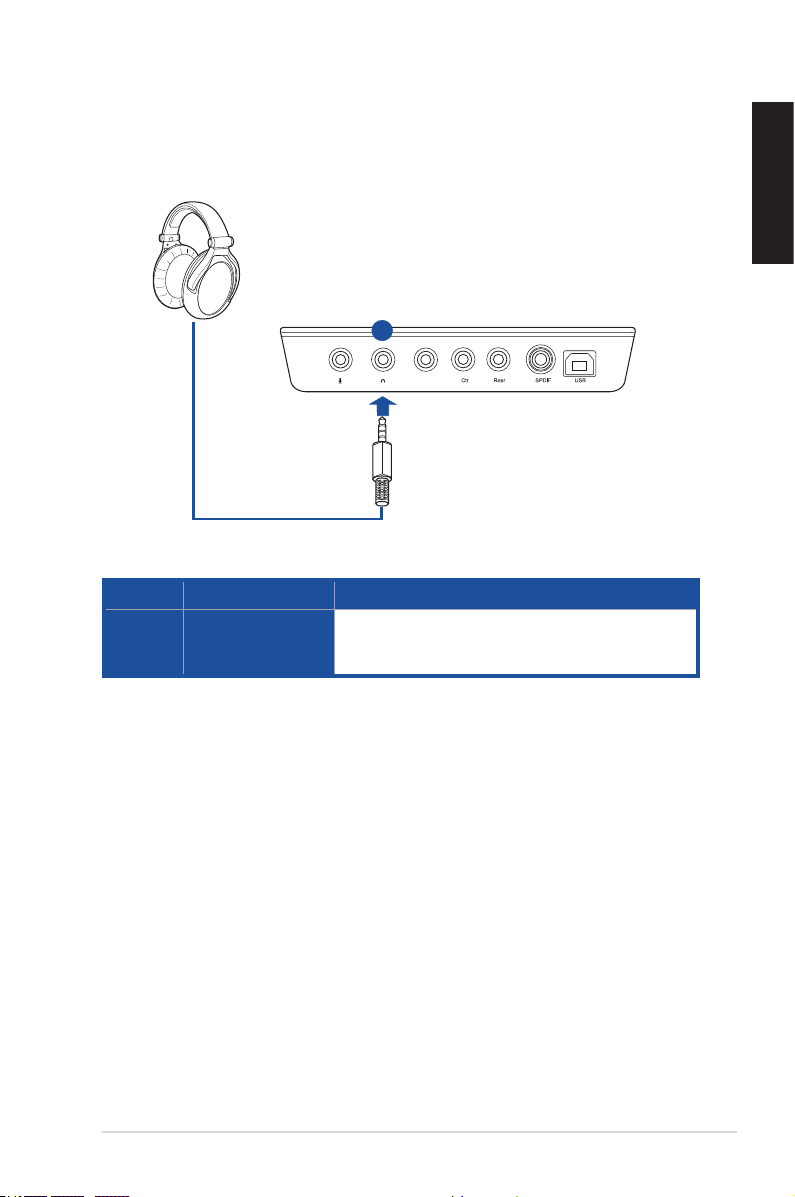

4.2.1 Connecting Stereo Headphones
1
No Item Description
1 Headphone Out
Port
The Headphone Out port has a built-in high-quality
amplier to drive headphones. Connect your stereo
headphones directly to this port.

14 ASUS Xonar U5 User Guide
English
Front
No Item Description
1 Front Out port Connect the Front-channel 3.5mm plug of your 5.1
channel headphone into this jack.
2Center/Subwoofer
Out port
Connect the Center/Bass-channel 3.5mm plug of your
5.1 channel headphone into this jack.
3 Rear Surround
Out port
Connects to the rear surround input port of your 5.1
channel headphone.
4.2.2 Connecting 5.1 channel headphones
1 2 3

15
ASUS Xonar U5 User Guide
English
Front
4.2.3 Connecting analog speaker systems
Connecting 2 channel speakers
No Item Description
1 Front Out port Connect the Front-channel 3.5mm plug of 2 channel
speakers using a 3.5mm cable.
1

16 ASUS Xonar U5 User Guide
English
Front
OR
AV Receiver/Amplifier
Speaker

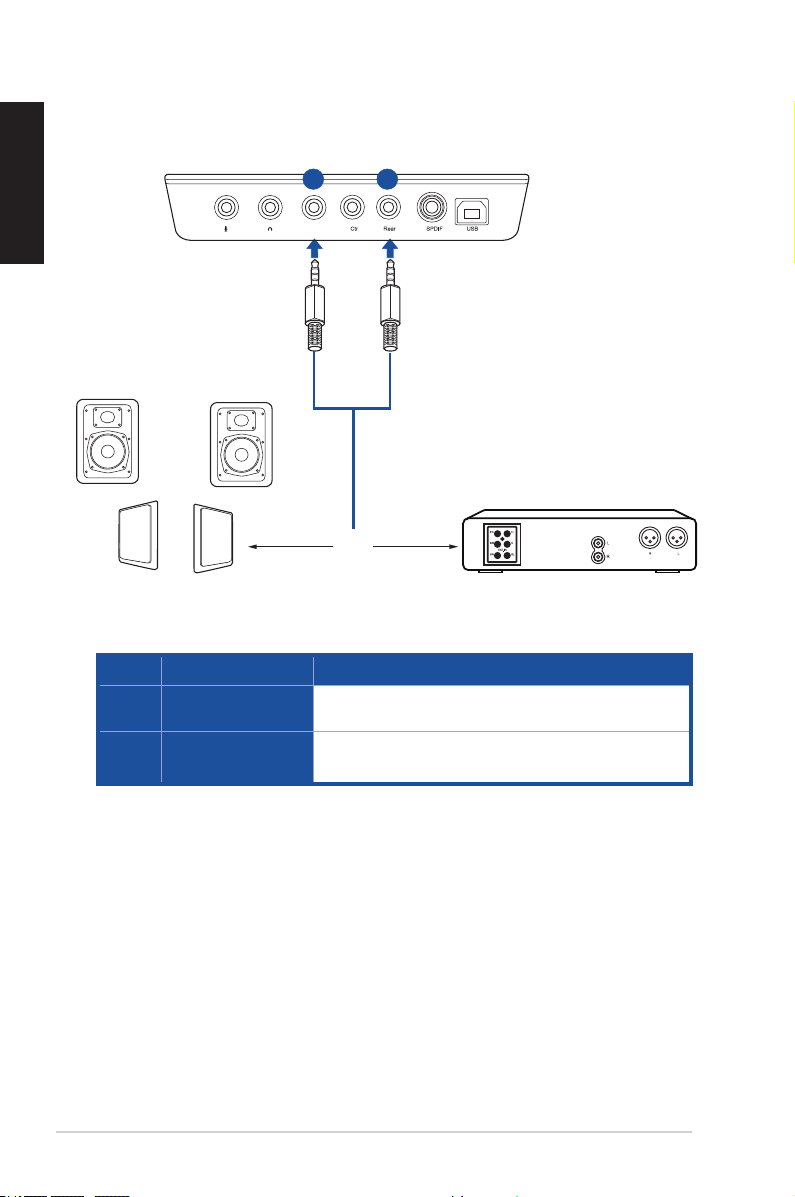

Connecting 4.1 channel speakers / power amplifier
No Item Description
1 Front Out port Connect the Front-channel 3.5mm plug of your 5.1
channel headphone into this jack.
2 Rear Surround
Out port
Connects to the rear surround input port of 4.1 channel
speakers.
1 2

17
ASUS Xonar U5 User Guide
English
Connecting 5.1 channel speakers
No Item Description
1 Front Out port Connect the Front-channel 3.5mm plug of your 5.1
channel headphone into this jack.
2 Center/Subwoofer
Out port
Connects to the Center and Subwoofer input ports of 5.1
channel speakers.
3 Rear Surround
Out port
Connects to the rear surround input port of 5.1 channel
speakers.
Front
1 2 3

18 ASUS Xonar U5 User Guide
English
5. Software Utilities
For more details about using Sonic Studio, refer to the Sonic Studio manual.
Sonic Studio overview
Sonic Studio comes with advanced sound algorithms and virtual surround effects
to enhance your gaming and entertainment experience.
