ATEN US221A User manual

US221A/ US421A
USER MANUAL
USB 2.0 Peripheral Switch
us221a-421a.fm Page 1 Wednesday, May 20, 2009 2:27 PM

FCC Information
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instruction manual, may
cause interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna;
Increase the separation between the equipment and receiver;
Connect the equipment into an outlet on a circuit different from
that which the receiver is connected;
Consult the dealer or an experienced radio/television technician
for help.
RoHS
This product is RoHS compliant.
SJ/T 11364-2006
The following contains information that relates to China.
us221a-421a.fm Page 2 Wednesday, May 20, 2009 2:27 PM

- 3 -
US221A/ US421A
User Manual
Online Registration
You can register your product at our online support center:
Online Support
International
North America
International http://support.aten.com
North America http://www.aten-usa.com/product_registration
Email Support [email protected]
Online
Support Technical Support http://support.aten.com
Troubleshooting
Documentation
Software Updates
http://www.aten.com
Telephone Support 886-2-8692-6959
Email Support ATEN TECH [email protected]
ATEN NJ [email protected]
Online
Support Technical Support ATEN TECH http://www.aten-usa.com/support
ATEN NJ http://support.aten.com
Troubleshooting
Documentation
SW Updates
ATEN TECH http://www.aten-usa.com
ATEN NJ http://www.aten.com
Telephone Support ATEN TECH 1-888-999-ATEN
ATEN NJ 1-732-356-1703
us221a-421a.fm Page 3 Wednesday, May 20, 2009 2:27 PM

- 4 -
Package Contents
The US221A/ US421AUSB 2.0 Peripheral Switch package
contains the following items:
1 2-port (US221A) or 4-port (US421A) USB 2.0 Peripheral
Switch
1 1.8 m USB Type A to USB Type B Cable
1 Installation Disk
1 User Manual*
1 Quick Start Guide
Check to make sure that all the components are present and that
nothing got damaged in shipping. If you encounter a problem,
contact your dealer.
Read this manual thoroughly and follow the installation and
operation procedures carefully to preventanydamage tothe unit,
and/or any of the devices connected to it.
*Features may have been added to the US221A/ US421Asince
this manual was printed. Please visit our website to download
the most up-to-date version of the manual.
Copyright © 2009 ATEN® International Co., Ltd.
Manual Part No. PAPE-1245-110G
Manual Date: 2009-05-20
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights
reserved. All other trademarks are the property of their respective owners.
us221a-421a.fm Page 4 Wednesday, May 20, 2009 2:27 PM

- 5 -
Overview
The US221A/ US421Ais a 2/4-port USB 2.0 Peripheral Switch
that allows up to 2/4 computers to share the use of a single USB
peripheraldevice(such asa printer,scanner, mass storagedrive,
etc.*) on a one-at-a-time basis.
The peripheral focus can be given to a computer manually by
using pushbuttons on the switch or by using the software-based
configuration utility. In addition, the US221A/ US421Ahas a new
Auto Switch function that stores commands sent to the USB
peripheral device to be processed on a first-come, first-served
basis, meaning that a print server is not required.
Compatible with both Windows and Mac, and with multifunction
printer support, the US221A/ US421Ais the ideal way to share
the latest USB 2.0 peripherals in a multimedia SOHO
environment.
Note: The US221A/ US421Adoes not support a USB hub
peripheral device.
us221a-421a.fm Page 5 Wednesday, May 20, 2009 2:27 PM

- 6 -
Features
Enables two (US221A) or four (US421A) computers to share a
single USB peripheral device
Simple port selection via pushbuttons or easy-to-use
configuration utility
Auto Switch function – no need for a separate print server
USB 2.0 compliant
Supports transfer rates up to 480 Mbps
Multiplatform support – Windows and Mac
LED indicators display port focus
Overcurrent protection
Bus-powered
Hot pluggable
Buzzer indicates switching between computers
Supports multifunction printers
us221a-421a.fm Page 6 Wednesday, May 20, 2009 2:27 PM

- 7 -
System Requirements
Computers
Thefollowingequipmentmustbeinstalled oneach computer that
is to be connected to the system:
USB host controller
Cables
USB to USB cables to connect the computers to the
peripheral device.
Note: Only one USB Type A to USB Type B cable is provided
in the US221A/ US421Apackage. You will need to
purchase an additional USB Type A to USB Type B
cables for each computer you wish to connect to the
US221A/ US421A.
Operating Systems
Supported operating systems are shown in the table, below:
OS Version
Windows 2000, XP, 2003, 2008, Vista
Mac OS X 10.4.5, 10.5
us221a-421a.fm Page 7 Wednesday, May 20, 2009 2:27 PM

- 8 -
Components

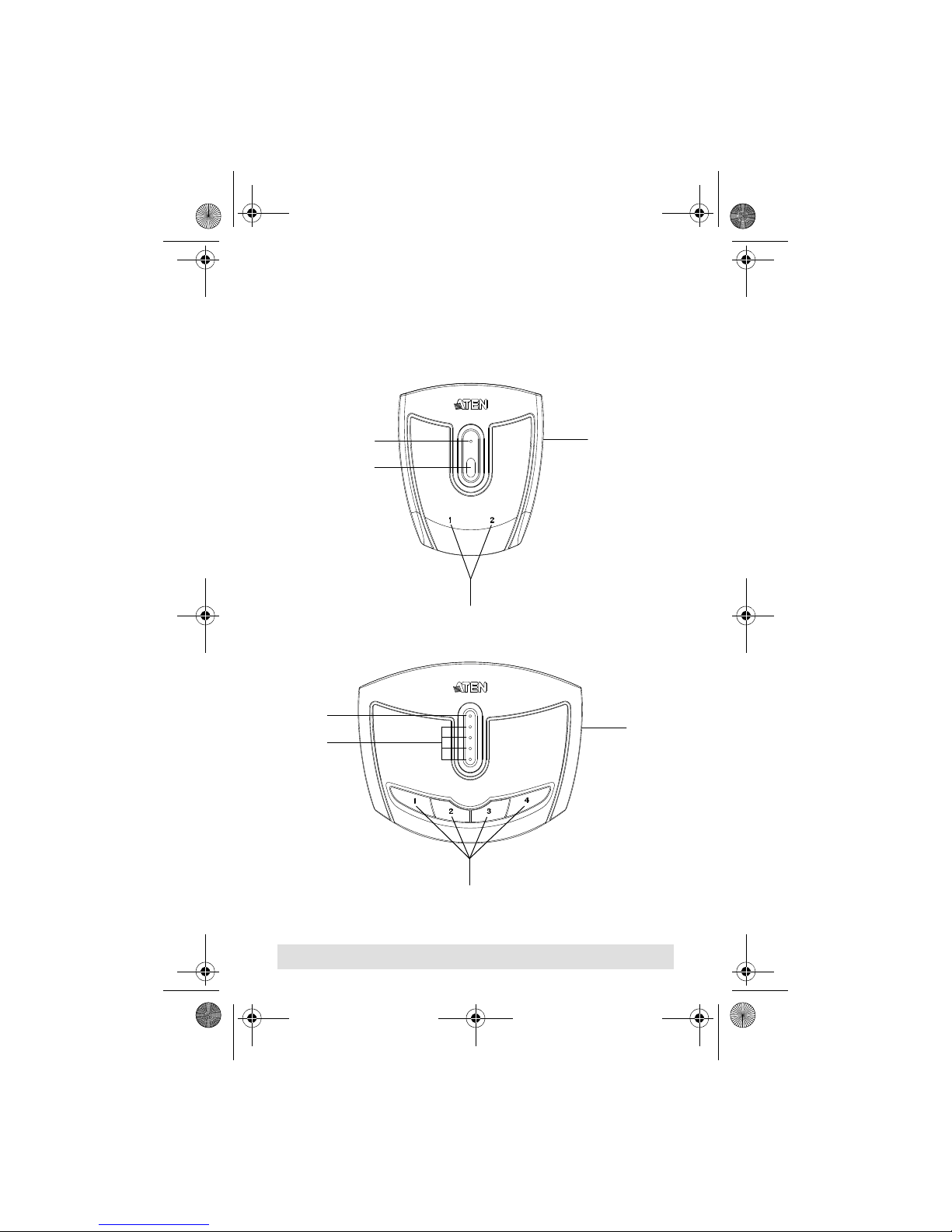

Top View
1
2
3
2
1
3
4
4
us221a-421a.fm Page 8 Wednesday, May 20, 2009 2:27 PM

- 9 -
Rear View
No. Component Description
1 Lock LED Lights orange to show that the US221A/
US421Ais locked.
2 Port Selection
Pushbutton(s) Pressing a Port Selection Pushbutton brings control to the computer attached to its
corresponding port. See Manual Operation –
Pushbutton, page 12 for further details.
3 Port Selected
LEDs Lights green to show that the computer attached to its corresponding port has control.
4 Beeper On/Off
Switch (on side) Use this recessed switch to turn the US221A/
US421A’s beeper on or off.
5 USB Type B
Computer Port Your computers plug into these ports. See Installation, page 10 for further details.
6 USB Type A
Peripheral Port Your USB 2.0 peripheral device plugs into this port.
5
6
5
6
us221a-421a.fm Page 9 Wednesday, May 20, 2009 2:27 PM

- 10 -
Installation
The US221A/ US421AUSB 2.0 Peripheral Switch provides 2/4
USB Type B ports for computers to connect to, and one USB
Type A port for the peripheral device (multifunction printer,
scanner, mass storage device, etc.) that the computers will
share.
To install the US221A/ US421A, do the following:
1. Use your USB device's USB cable to connect it to the
US221A/ US421A's USB Type A port.
2. Plug the USB Type B connector of the USB Type A to USB
Type B cable provided with the US221A/ US421Apackage
into any available port on the US221A/ US421A.
3. Plug the Type A connector into the computer’s USB host port.
Repeat steps 2 and 3 for any other computers you are installing.
Note: Only one USB Type A to USB Type B cable is provided in
the US221A/ US421Apackage. You will need to purchase
an additional USB Type A to USB Type B cables for each
computer you wish to connect to the US221A/ US421A.
1. Make sure that the power to any device that you
connect to the installation has been turned off and
that all devices are properly grounded.
us221a-421a.fm Page 10 Wednesday, May 20, 2009 2:27 PM

- 11 -
1
2
3
us221a-421a.fm Page 11 Wednesday, May 20, 2009 2:27 PM

- 12 -
Manual Operation – Pushbutton
Note: Manual operation and the software-based configuration
utility operate independently; commands from one will not
override the other.
US221A
To toggle the USB peripheral focus between the two computers,
press the port selection pushbutton (located on the top of the
unit). The selected port LED flashes and the unit beeps. When
the flashing stops and the LED becomes steady (in about four
seconds), that port has the peripheral focus.
US421A
To switch the peripheral focus to another port, press the
pushbutton that corresponds to that port. The selected port LED
flashes and the unit beeps. When the flashing stops and the LED
becomes steady (in about four seconds), that port has the
peripheral focus.
Lock/Unlock Peripheral Focus
To lock the peripheral focus on a certain computer, press and
hold the pushbutton that corresponds to that port for two
seconds, or until the orange LED lights up.
To unlock the peripheral focus, press and hold the pushbutton
that corresponds to that port for one second, or until the orange
LED turns off.
us221a-421a.fm Page 12 Wednesday, May 20, 2009 2:27 PM

- 13 -
Software Operation
Installing the Configuration Utility
The US221A/ US421Ahas a software-based configuration utility
that can be used to configure the US221A/ US421A's settings,
such as the Auto Switch function, Manual Switch and Release
reminder, and sound effects. The utility can also be used to lock
and unlock control of the US221A/ US421A.
Note: Microsoft Windows users should login as an administrator
to install and launch the US221A/ US421Asoftware.
To install the configuration utility, do the following:
1. Insert the installation disk that came with the US221A/
US421Apackage and double click on the Setup.exe icon.
2. Follow the on-screen installation instructions.
3. When the installation completes, an icon labeled USB 2.0
Peripheral Switch Utility appears on your desktop and
another icon appears in your system tray.
The icon on your system tray displays in four colors to indicate
the US221A/ US421A’s status, as shown in the following table:
Color Status
Green Locked on local computer
Yellow Connected to local computer
Red Peripheral device not connected
Grey Disconnected or busy
us221a-421a.fm Page 13 Wednesday, May 20, 2009 2:27 PM

- 14 -
Basic Operation
When you click on the icon in your system tray, a menu bar of
shortcuts appears. The first item at the top of the menu is one of
four shortcuts, depending on the current status of the US221A/
US421A. Shortcut options are Lock Connection, Unlock
Connection, Switch to Local Computer, and Cancel Switch
Request.
Lock / Unlock Connection
Tolocktheconnection fromyourcomputertothe USB peripheral,
click on the icon in the system tray and select Lock Connection.
This method is a toggle between Lock and Unlock, so to unlock
the connection, do the same but click Unlock Connection.
Switch to Local Computer
To bring the control of the USB peripheral device to your
computer, click on the icon in the system tray and select Switch
to Local Computer.
Cancel Switch Request
If you have sent a request to the USB peripheral device and the
USBperipheral deviceis busy,yourrequestis queued.To cancel
a sent request, click on the icon in the system tray and select
Cancel Switch Request.
us221a-421a.fm Page 14 Wednesday, May 20, 2009 2:27 PM

- 15 -
Advanced Operation and Settings
To use the Configuration Utility to view and change the US221A/
US421A’s settings, click on the icon in your system tray and

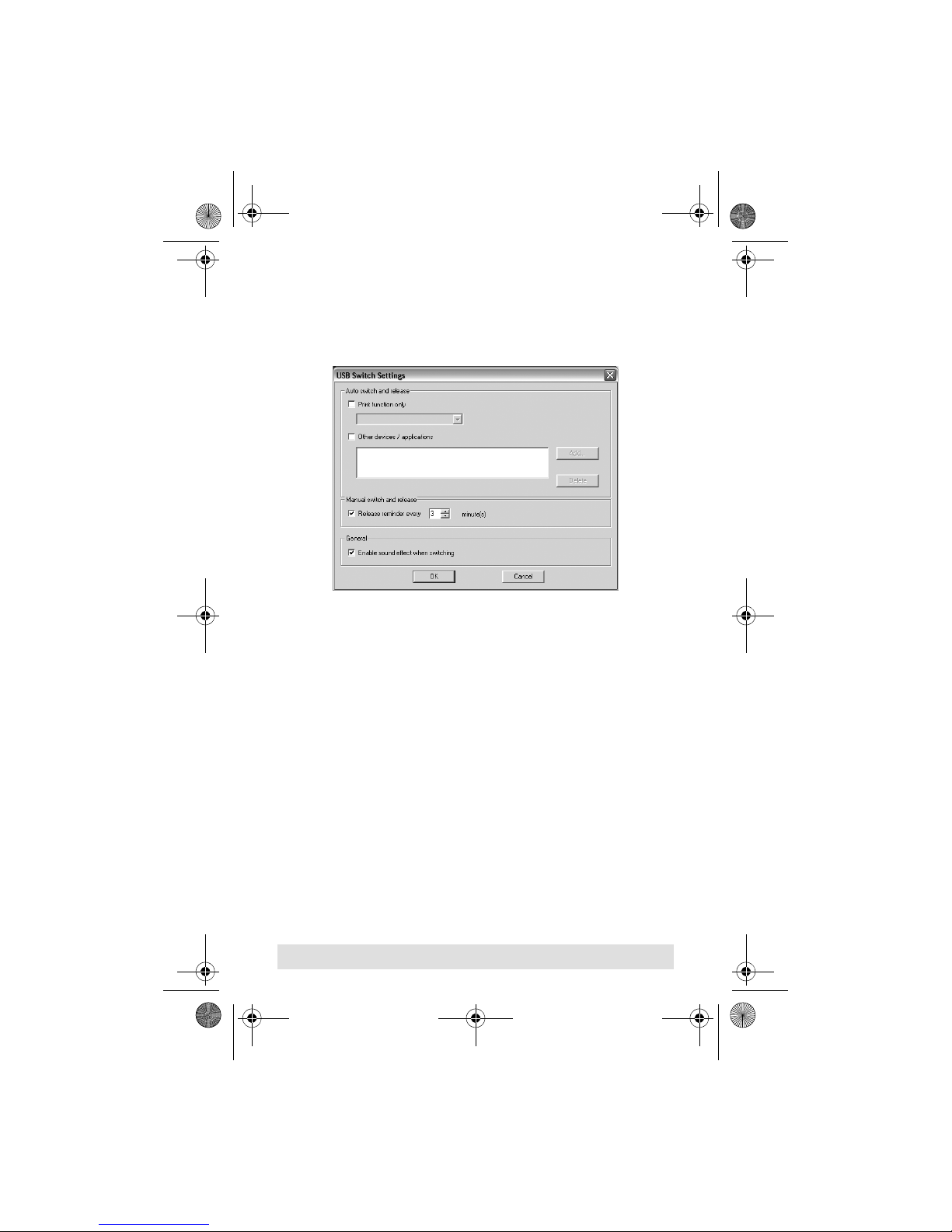

select Settings. The following dialog box appears:
Auto Switch and Release
Enable these buttons to activate the US221A/ US421A’s Auto
Switch function for a printer or other devices.
When Auto Switch and Release is enabled, commands sent to
the USB peripheral device are stored to be processed on a first-
come,first-served basis.Control ofthe US221A/US421Aandthe
USB peripheral device is locked on the computer currently
performing the action and then automatically released after the
action is completed.
us221a-421a.fm Page 15 Wednesday, May 20, 2009 2:27 PM

- 16 -
Printers
If your USB device is a printer or MFP (multifunction printer) and
you wish to use its print function, enable the Print Function Only
button and select the printer from the drop-down menu.
Note: 1. If the USB peripheral device is a printer, you do not
need a separate print server.
2. If you cannot find your printer in the drop-down menu,
the printer may need to be reinstalled. See
Troubleshooting, page 19 for further details.
3. If your printer is a multifunction printer and you want to
use its scan function, you must also enable the Other
Devices/Applications button if these functions have
dedicated applications. See Multifunction Printers,
page 17 for further details.
Other Devices
To add another device (such as a scanner) and associate its
application with the Auto Switch function, enable the Other
Devices/Applications button and click Add. In the dialog box that
appears, click Browse to search for the application program.* (In
Microsoft Windows only, you can also key in the device name for
easy reference).
Note: Be sure to search for the full application path. A desktop
shortcut, for example, does not work.
Once a device and application has been associated with the Auto
Switch function, the US221A/ US421Aautomatically takes
control of the attached USB 2.0 peripheral when the application
is opened. Control is released when the application is closed.
us221a-421a.fm Page 16 Wednesday, May 20, 2009 2:27 PM

- 17 -
Multifunction Printers
If your USB 2.0 peripheral device is a multifunction printer and
you wish to use its scan function, there are three ways to do this:
If the multifunction printer’s scan function have dedicated
applications, enable both the Print Function Only and the
Other Devices/Applications buttons and click Add. In the
dialog box that appears, click Browse to search for the
application program. (In Microsoft Windows only, you can
also key in the device name for easy reference).
Simply operate the US221A/ US421Amanually. See Manual
Operation – Pushbutton, page 12.
Use the shortcut in the system tray. See Basic Operation,
page 14.
To use the fax function of a multifunction printer, operate the
US221A/ US421Amanually. See Manual Operation –
Pushbutton, page 12.
If your printer is a multifunction printer and you want to
use its print and scan functions, you must enable both
the Print Function Only and the Other Devices/
Applications buttons, if these functions have dedicated
applications.
us221a-421a.fm Page 17 Wednesday, May 20, 2009 2:27 PM

- 18 -
Manual Switch and Release
If the US221A/ US421Ais operating under manual control (with
a USB 2.0 peripheral such as a storage device, for example),
enable this button to set the time for a reminder to release control
of the US221A/ US421A. The reminder will appear as a dialog
box on screen of the PC currently in control of the US221A/
US421A.
General
Enable this button to turn the US221A/ US421A’s configuration
utility beeper on.
Note: 1. This enables the software beeper. To enable/disable
the hardware beeper, use the On/Off switch located on
the side of the US221A/ US421Aunit.
2. Default settings are Enabled.
us221a-421a.fm Page 18 Wednesday, May 20, 2009 2:27 PM

- 19 -
Troubleshooting
First, make sure that all cables are securely attached and seated
completely in their sockets.
Problem Possible Cause Action
Unit operates
erratically Static electricity may cause the unit to
operate erratically.
Disconnect the
appropriate USB cable
from the US221A/
US421Aport, then
reconnect it.
Printer does not
appear in
configuration
utility.
Printer was not
installed correctly. Re-install the printer; the configuration utility will
now find the printer.
Monitor program
of a printer does
notrespond/Print
error messages
are generated
Theprinter’sUSBport
is configured for a PC;
the US221A/ US421A
is in Auto Switch
mode.
Disable the Auto Switch
function and operate the
US221A/ US421A
manually.
The Lock / Unlock
function does not
respond
The too rapid or
continuous
connecting /
disconnecting of a
USB connector from a
locked port can cause
the status of the lock
to be misread.
DisconnectallUSBcables
from the US221A/
US421A, then reconnect
them.
Auto Switch print
function does not
respond.
OSprinter settings not
sent / not set correctly. Reboot your PC to re- establish settings, or re-
install the Configuration
Utility. See Software
Operation, page 13.
Auto Switch
function for other
devices does not
release control
after application
closes.
OS failed to close the
application. Manual close the application in your OS.
us221a-421a.fm Page 19 Wednesday, May 20, 2009 2:27 PM

- 20 -
Specifications
Function US221A US421A
Computer Connections 2 4
Computer Selection Pushbuttons, Software, Auto Switch
Connectors Computer 2 x USB Type B 4 x USB Type B
Device 1 x USB Type A
LEDs Device 1 (Orange)
Selected 2 (Green) 4 (Green)
Switches 2 x Pushbutton 4 x Pushbutton
Power Supply USB Bus Powered
Power Consumption DC5V, 2.5W
Environment Humidity 0–80% RH, Non-condensing
Storage Temp. -20–60ºC
Operating Temp. 5–40ºC
Physical
Properties Housing Plastic
Weight 54 g 97 g
Dimensions
(L x W x H) 7.20 x 6.60 x 2.50 cm 10.20 x 7.60 x 2.30 cm
Limited Warranty
IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE
PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE
OF THE PRODUCT, DISK OR ITS DOCUMENTATION.
The direct vendor makes no warranty or representation, expressed, implied, or
statutory with respect to the contents or use of this documentation, and specially
disclaims its quality, performance, merchantability, or fitness for any particular
purpose.
The direct vendor also reserves the right to revise or update the device or
documentation without obligation to notify any individual or entity of such revisions,
or update. For further inquires please contact your direct vendor.
us221a-421a.fm Page 20 Wednesday, May 20, 2009 2:27 PM
