ATEN VM0202H User manual

EMC Information
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device mat not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
Warning: Operation of this equipment in a residential environment could
cause radio interference.
Warning: This equipment is compliant with Class A of CISPR 32. In a
residential environment this equipment may cause radio interference.
KCC Statement
유선 제품용 / A 급기기 ( 업무용 방송 통신 기기 )
이기기는 업무용 (A 급) 전자파적합기기로서 판매자 또는 사용자는 이점을 주
의하시기 바라며 , 가정 외의 지역에서 사용하는 것을 목적으로 합니다 .
RoHS
This product is RoHS compliant.
SJ/T 11364-2006
The following contains information that relates to China.

- 3 -
VM0202H User Manual
Online Registration
Telephone Support
Technical Support
For international online technical support – including troubleshooting,
documentation, and software updates:
http://eservice.aten.com
For North American technical support:
International http://eservice.aten.com
International 886-2-8692-6959
China 86-400-810-0-810
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
United Kingdom 44-8448-158923
Email Support [email protected]
Online
Technical
Support
Troubleshooting
Documentation
Software Updates
http://www.aten-usa.com/support
Telephone Support 1-888-999-ATEN ext 4998

- 4 -
Package Contents
The VM0202H 2x2 4K HDMI Matrix Switch package contains the
following items:
1 VM0202H 2x2 4K HDMI Matrix Switch

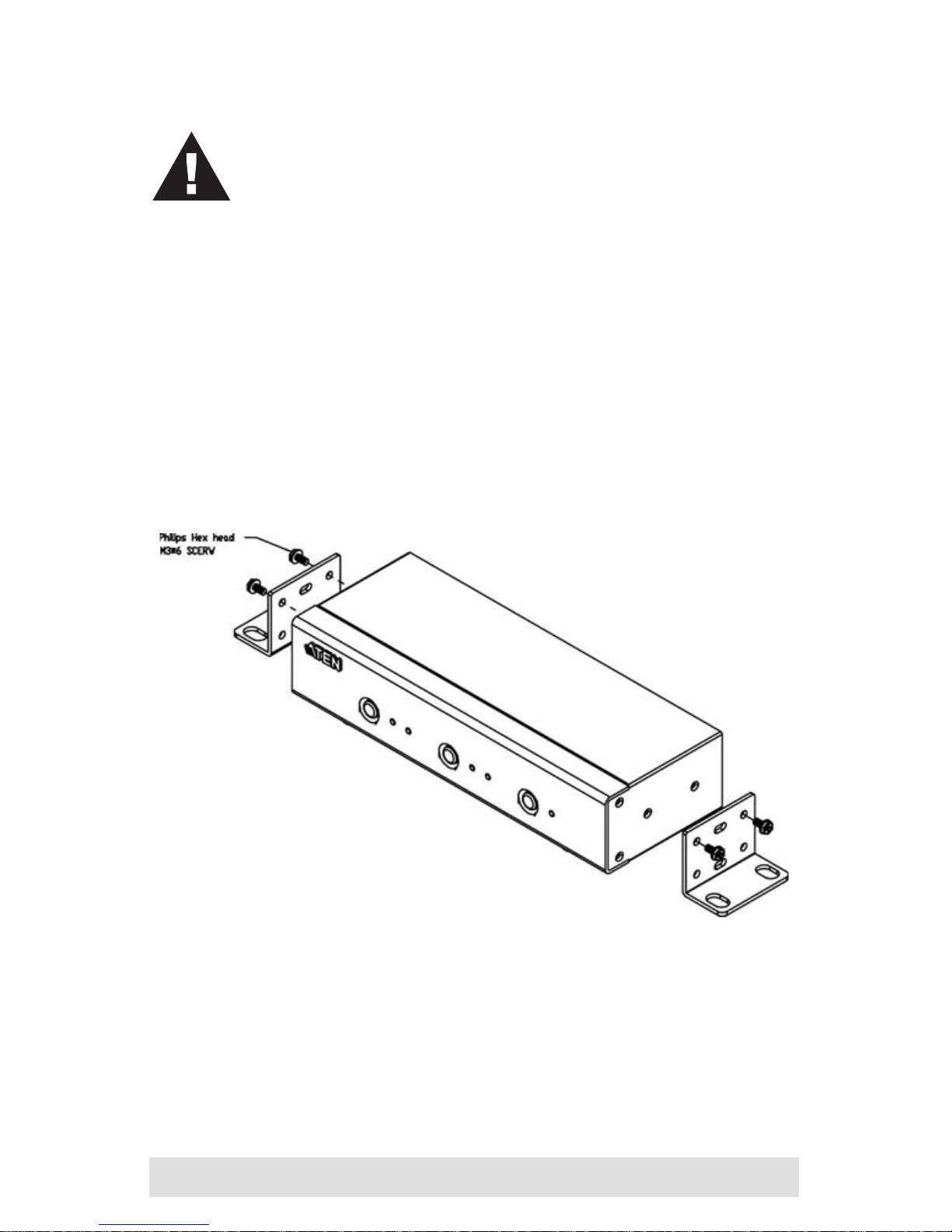

1 Rack Mounting Kit
1 User Instructions*
1 Power Adapter
1 IR Control
1 IR Receiver
Check to make sure that all the components are present and that nothing
got damaged in shipping. If you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit, and/or any of the
devices connected to it.
*Features may have been added to the VM0202H since this
manual was printed. Please visit our website to download the
most up-to-date version of the manual.
Copyright © 2017 ATEN® International Co., Ltd.
Manual Date: 2017-03-14
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights
reserved. All other trademarks are the property of their respective owners.

- 5 -
Overview
The ATEN VM0202H, a 2x2 4K HDMI Matrix Switch supports up to 4K
resolutions, including UHD (3840 x 2160) and DCI (4096 x 2160), and
refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for future high-
definition trends, the VM0202H is ideal for applications where the routing
of up to 4K digital video signals is required, such as in classrooms,
auditoriums and department stores.
The matrix switch offers an easy and affordable way to route any of 2
HDMI video sources to any of 2 HDMI displays and can be controlled and
operated through front-panel pushbuttons, IR and RS-232, ensuring
optimum control capabilities.

- 6 -
Features
Connects any of 2 HDMI sources to any of 2 HDMI displays
Supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x
2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
EDID Expert™ – selects optimum EDID settings for smooth power-
up, high-quality display, and use of the best video resolution across
different screens
Multiple Control Methods – system management via front-panel
pushbuttons, IR and RS-232 serial control
Supports Dolby True HD and DTS HD Master audio
Signaling rates up to 3.4 Gbits for flawless 4K output
HDMI (3D, Deep Color, 4K) and HDCP 1.4 compatible
Consumer Electronics Control (CEC) allows interconnected HDMI
devices to communicate and respond to a single remote control
Supports ATEN LockPro™ HDMI cable lock for securing HDMI
cables
ESD protection for HDMI ports
Firmware upgradeable
Rack Mountable 1U design

- 7 -
System Requirements
Source Devices
HDMI Type A output connector(s)
Note: A DVI/HDMI adapter is required when connecting a DVI source
device.
Display Devices
Display devices or receivers with an HDMI Type A input connector
Cables
1 HDMI cable for each source device you will be connecting
1 HDMI cable for each display device you will be connecting
Note: 1. No cables are included in this package. We strongly
recommend that you purchase high-quality cables of the
appropriate length since this will affect the quality of the audio
and video display. Contact your dealer to purchase the correct
cable sets.
2. If you wish to utilize the VM0202H’s high-end serial controller
function, you will need to purchase an appropriate RS-232
cable. See Installing the RS-232 Controller, page 12.

- 8 -
Components
VM0202H Front View
No. Component Function
1 Output
Pushbuttons
Press an Output Port Pushbutton to select an Input
Port.
Note: The OUTPUT (1–2) front panel pushbuttons
have built-in Green LEDs that light to indicate they
have been selected.
2 Input Select
LEDs
Indicates the input port of the corresponding output
port (output 1 or 2)
3 Power
Pushbutton
This Pushbutton is to power on and off the VM0202H.

- 9 -
VM0202H Rear View
No. Component Function
1 Grounding
Terminal
The grounding wire attaches here. See Grounding,
page 11, for further details.
2 Power Jack This is the DC power jack. The power cord from a
power source plugs in here.
3 HDMI Output
Ports
The cables from the HDMI display devices plug into
these ports.
4 HDMI Input
Ports
The cables from the HDMI source devices plug into
these ports.
5ExternalIR
Receiver Port
This 3.5 mm Mini Stereo Jack connects to the IR
Receiver unit included with your product.
6 Micro USB Port Use this port to upgrade the Firmware. see Firmware
Upgrade, page 17
7 RS-232 Serial
Port
This serial remote port is for input source selection.

- 10 -
IR Remote Control
Note: The model number of the remote control unit shown above is
2XRT-0106G.
No. Component Function
1 Power ON/OFF Use the ON and OFF pushbuttons to turn the Output
displays on or off – by individual port, or all ports.
See IR Remote Selection, page 16 for details.
2 Output
Pushbuttons
1–2
Press Output pushbuttons 1–2 to select the display
you want to configure, then within 2 seconds press
the Input pushbutton 1–2 to select the source for the
display.
For detailed instructions, see Output Pushbuttons,
page 15.
3 Input
Pushbuttons
1–2
Press Input pushbuttons 1–2 to select the source
you want to display after you have pressed an Output
pushbutton 1–2. You must press the Input
pushbutton within 2 seconds after pressing the
Output pushbutton.
For detailed instructions, see , page 15.
